1-56 — EXHAUST BRAKE SYSTEM (#123656) — 86 parça

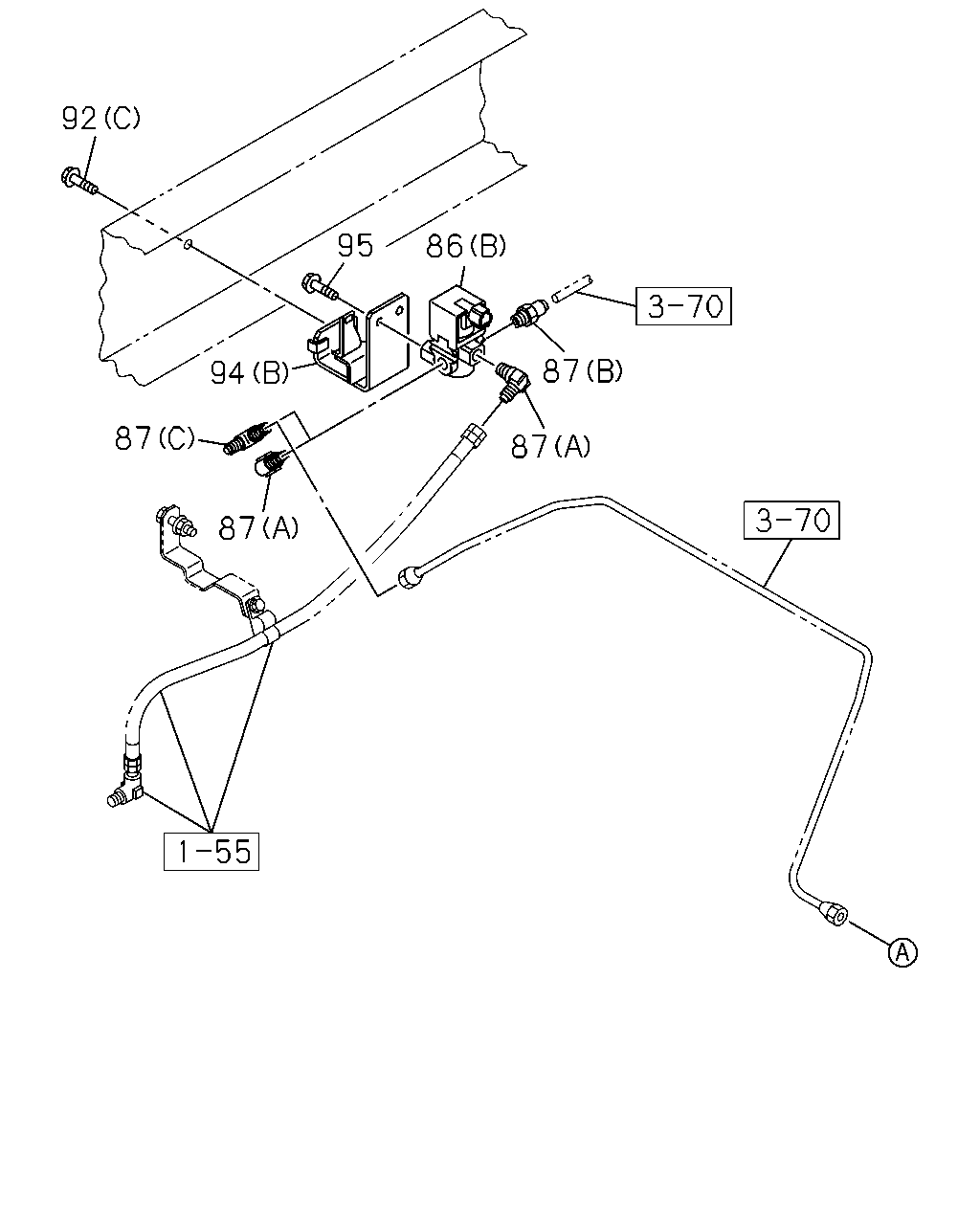

çizim 362926
87 87 86 95 94 87 87 92
BalonParca AdiParca NoAdetTipApplied Date A B C
86 VALVE; MAG,EXH BRK
(B) 		1-82563-871-2 01 1 1307-1312 ● ●
86 VALVE; MAG,EXH BRK
(B) 		1-82563-871-2 01 1 1401- ● ● ●
86 VALVE; MAG,EXH BRK
(A) 		8-97633-075-0 01 1 1307-1312 ● ●
86 VALVE; MAG,EXH BRK
(A) 		8-97633-075-0 01 1 1401- ● ● ●
87 CONNECTOR
(F) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1401- ●
87 CONNECTOR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M12X2 & PT1/4 3WAY 		1-09656-229-1 01 1 1307- ●
87 CONNECTOR
(E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1307-1312 ● ●
87 CONNECTOR
(E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1401- ● ● ●
87 CONNECTOR
(B) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1307-1312 ● ●
87 CONNECTOR
(B) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1401- ● ● ●
87 CONNECTOR
(D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1307-1312 ● ●
87 CONNECTOR
(D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1401- ● ● ●
87 CONNECTOR
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1307-1312 ● ●
87 CONNECTOR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1307-1312 ● ●
87 CONNECTOR
LCT2500 A/T ALLISON(Y5W) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1307-1312 ●
87 CONNECTOR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1401- ● ● ●
87 CONNECTOR
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1401- ● ●
87 CONNECTOR
LCT2500 A/T ALLISON(Y5W) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1401- ● ●
87 CONNECTOR
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1307-1312 ● ●
87 CONNECTOR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1307-1312 ● ●
87 CONNECTOR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1401- ● ● ●
87 CONNECTOR
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1401- ● ●
87 CONNECTOR
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1401- ●
87 CONNECTOR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1307-1312 ●
87 CONNECTOR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1401- ● ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1307-1312 ● ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1401- ● ● ●
92 BOLT; MAG VLV
(C) M10X30 FLANGE 		0-28651-030-0 01 1 1307-1312 ● ●
92 BOLT; MAG VLV
(C) M10X30 FLANGE 		0-28651-030-0 01 1 1401- ● ● ●
92 BOLT; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE 		0-28050-650-0 01 1 1307-1312 ● ●
92 BOLT; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE 		0-28050-650-0 01 1 1401- ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE
(A) 		8-98034-702-0 01 1 1307-1312 ●
94 BRACKET; MAG VLV,EXH BRAKE
SGL CAB(FC**M*) (A) 		8-98034-702-0 01 1 1307-1312 ●
94 BRACKET; MAG VLV,EXH BRAKE
(A) 		8-98034-702-0 01 1 1401- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
SGL CAB(FC**M*) (A) 		8-98034-702-0 01 1 1401- ●
94 BRACKET; MAG VLV,EXH BRAKE
(B) 		8-98123-165-0 01 1 1307-1312 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
(B) 		8-98123-165-0 01 1 1401- ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE
DBL CAB(FC**W*) (C) 		8-98221-339-0 01 1 1307- ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 1307-1312 ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 1401- ● ● ●

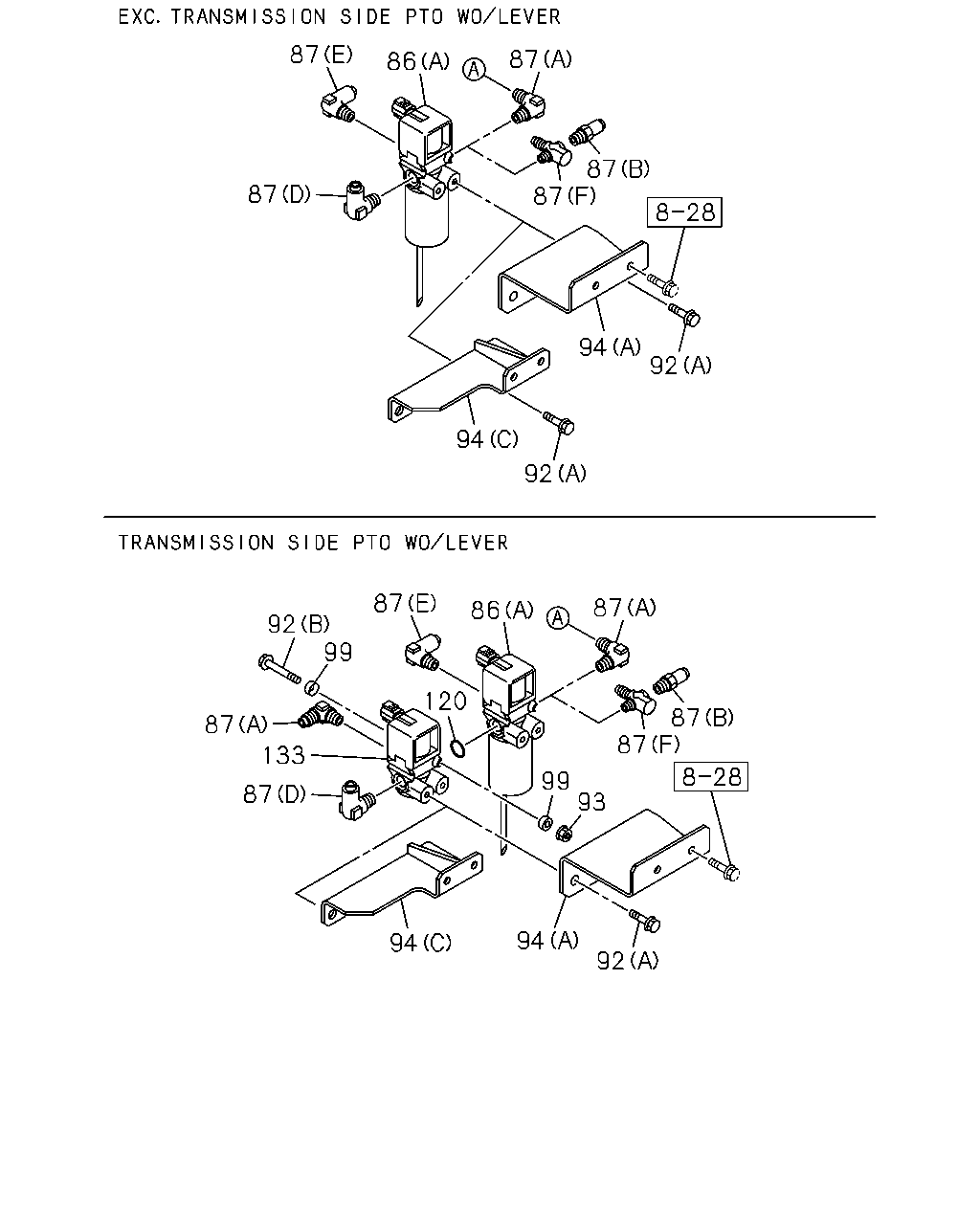

çizim 401322
87 87 87 86 87 87 94 92 94 92 92 87 133 87 99 87 120 86 94 94 92 99 93 87 87 87
BalonParca AdiParca NoAdetTipApplied Date A B C
86 VALVE; MAG,EXH BRK
(B) 		1-82563-871-2 01 1 1307-1312 ● ●
86 VALVE; MAG,EXH BRK
(B) 		1-82563-871-2 01 1 1401- ● ● ●
86 VALVE; MAG,EXH BRK
(A) 		8-97633-075-0 01 1 1307-1312 ● ●
86 VALVE; MAG,EXH BRK
(A) 		8-97633-075-0 01 1 1401- ● ● ●
87 CONNECTOR
(F) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1401- ●
87 CONNECTOR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M12X2 & PT1/4 3WAY 		1-09656-229-1 01 1 1307- ●
87 CONNECTOR
(E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1307-1312 ● ●
87 CONNECTOR
(E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1401- ● ● ●
87 CONNECTOR
(B) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1307-1312 ● ●
87 CONNECTOR
(B) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1401- ● ● ●
87 CONNECTOR
(D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1307-1312 ● ●
87 CONNECTOR
(D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1401- ● ● ●
87 CONNECTOR
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1307-1312 ● ●
87 CONNECTOR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1307-1312 ● ●
87 CONNECTOR
LCT2500 A/T ALLISON(Y5W) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1307-1312 ●
87 CONNECTOR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1401- ● ● ●
87 CONNECTOR
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1401- ● ●
87 CONNECTOR
LCT2500 A/T ALLISON(Y5W) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1401- ● ●
87 CONNECTOR
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1307-1312 ● ●
87 CONNECTOR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1307-1312 ● ●
87 CONNECTOR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1401- ● ● ●
87 CONNECTOR
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1401- ● ●
87 CONNECTOR
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1401- ●
87 CONNECTOR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1307-1312 ●
87 CONNECTOR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1401- ● ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1307-1312 ● ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1401- ● ● ●
92 BOLT; MAG VLV
(C) M10X30 FLANGE 		0-28651-030-0 01 1 1307-1312 ● ●
92 BOLT; MAG VLV
(C) M10X30 FLANGE 		0-28651-030-0 01 1 1401- ● ● ●
92 BOLT; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE 		0-28050-650-0 01 1 1307-1312 ● ●
92 BOLT; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE 		0-28050-650-0 01 1 1401- ● ● ●
93 NUT; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M6 FLANGE 		0-91180-106-0 01 1 1307-1312 ● ●
93 NUT; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M6 FLANGE 		0-91180-106-0 01 1 1401- ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE
(A) 		8-98034-702-0 01 1 1307-1312 ●
94 BRACKET; MAG VLV,EXH BRAKE
SGL CAB(FC**M*) (A) 		8-98034-702-0 01 1 1307-1312 ●
94 BRACKET; MAG VLV,EXH BRAKE
(A) 		8-98034-702-0 01 1 1401- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
SGL CAB(FC**M*) (A) 		8-98034-702-0 01 1 1401- ●
94 BRACKET; MAG VLV,EXH BRAKE
(B) 		8-98123-165-0 01 1 1307-1312 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
(B) 		8-98123-165-0 01 1 1401- ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE
DBL CAB(FC**W*) (C) 		8-98221-339-0 01 1 1307- ●
99 WASHER; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82569-266-0 02 1 1307-1312 ● ●
99 WASHER; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82569-266-0 02 1 1401- ● ● ●
120 GASKET; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8 		9-09565-117-0 01 1 1307-1312 ● ●
120 GASKET; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8 		9-09565-117-0 01 1 1401- ● ● ●
133 VALVE; MAG,PTO CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82563-871-2 01 1 1307-1312 ● ●
133 VALVE; MAG,PTO CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82563-871-2 01 1 1401- ● ● ●
