Isuzu WW
▶
TRUCKS
▶
FRR
▶
11548 - FRR AUST/NZ EURO5 EXC.SPACECAB
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-55 - EXHAUST BRAKE VALVE AND CONTROL CYLINDER
▶

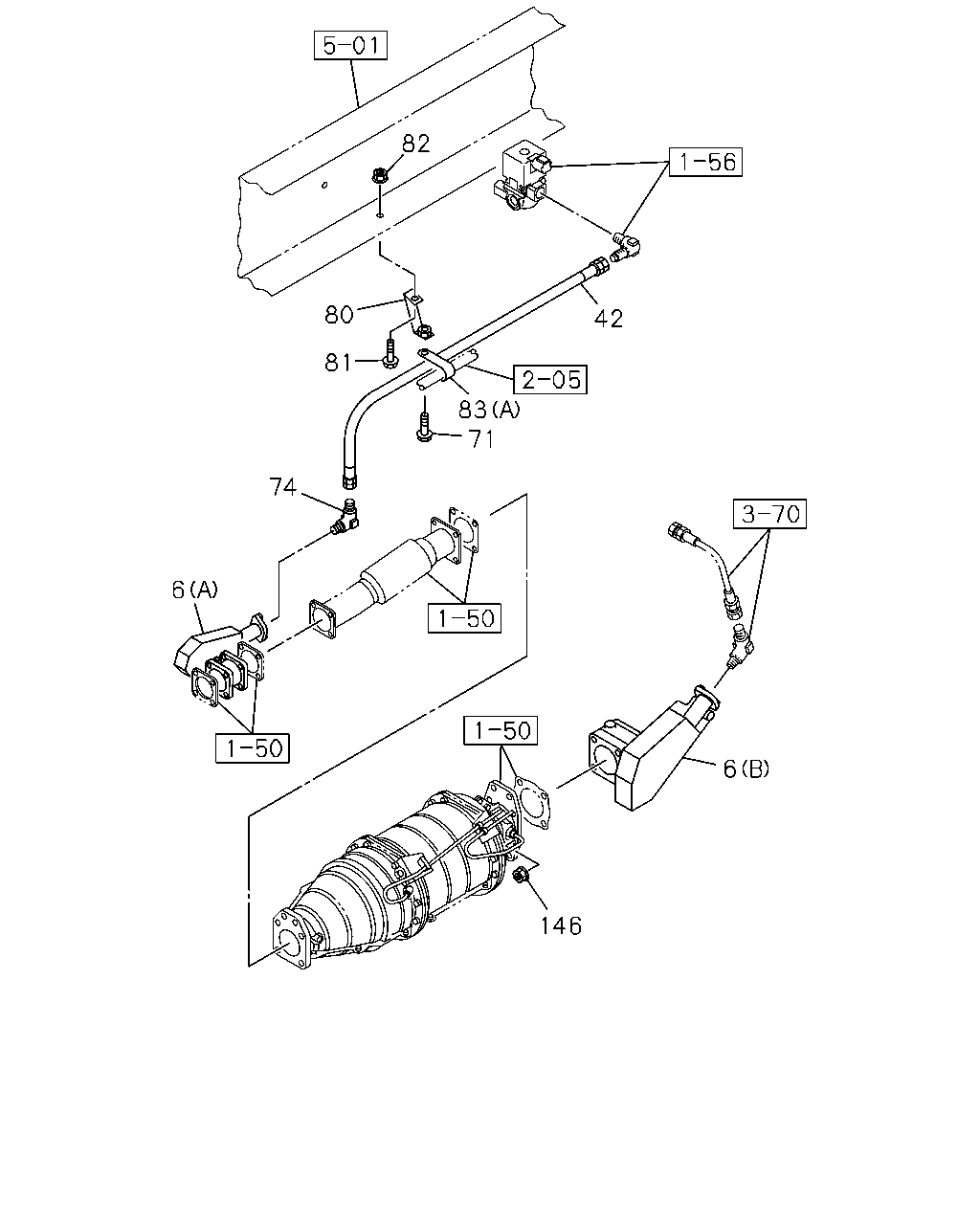

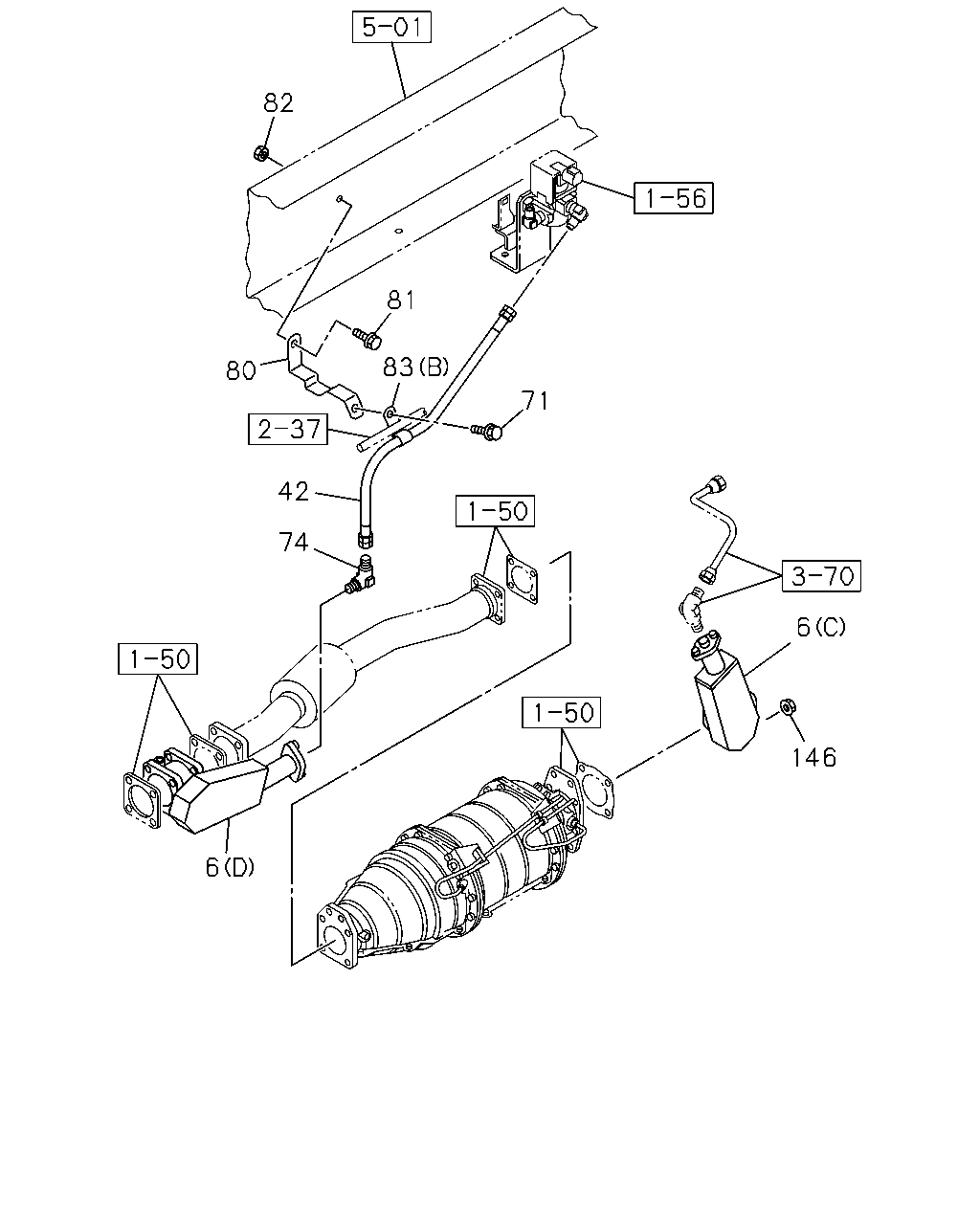

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER
(#123655) — 56 parça
Tümü
A - 4HK1-TCS ENG
B - 6HK1-TCN ENG
C - 6HK1-TCC ENG
◀
[155A] 6HK1 (28 parça)
[155A] 4HK1 (28 parça)
▶
6
74
81
80
82
42
83
146
71
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
6
VALVE; EXH BRAKE
(D)
8-98054-172-6
01
1
1307-
●
6
VALVE; EXH BRAKE
(C)
8-98054-188-6
01
1
1307-
●
6
VALVE; EXH BRAKE
(B)
8-98054-186-6
01
1
1307-1312
●
6
VALVE; EXH BRAKE
(B)
8-98054-186-6
01
1
1401-
●
●
6
VALVE; EXH BRAKE
(A)
8-98233-801-0
01
1
1307-1312
●
6
VALVE; EXH BRAKE
(A)
8-98233-801-0
01
1
1401-
●
●
42
HOSE; FLEX,EXH BRK
L=500
1-09363-733-0
01
1
1307-
●
42
HOSE; FLEX,EXH BRK
L=520
1-09363-957-0
01
1
1307-1312
●
42
HOSE; FLEX,EXH BRK
L=520
1-09363-957-0
01
1
1401-
●
●
71
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
01
1
1307-1312
●
●
71
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
01
1
1401-
●
●
●
74
CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW
1-48629-258-0
01
1
1307-1503
●
74
CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW
8-98299-777-0
01
1
1504-
●
74
CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1307-1312
●
74
CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1401-
●
●
80
BRACKET; FLEX HOSE
8-98090-040-0
01
1
1307-
●
80
BRACKET; FLEX HOSE
8-98078-153-0
01
1
1307-1312
●
80
BRACKET; FLEX HOSE
8-98078-153-0
01
1
1401-
●
●
81
BOLT; HOSE BRKT
M10X25 FLANGE
0-28051-025-0
01
1
1307-1312
●
●
81
BOLT; HOSE BRKT
M10X25 FLANGE
0-28051-025-0
01
1
1401-
●
●
●
82
NUT; HOSE BRKT
M10 FLANGE
0-91180-210-0
01
1
1307-1312
●
●
82
NUT; HOSE BRKT
M10 FLANGE
0-91180-210-0
01
1
1401-
●
●
●
83
CLIP; FLEX HOSE
(B) ID=15 L=22 H=30
1-09701-215-1
01
1
1307-
●
83
CLIP; FLEX HOSE
(A) ID=11X2 L=16
1-09700-820-0
01
1
1307-1312
●
83
CLIP; FLEX HOSE
(A) ID=11X2 L=16
1-09700-820-0
01
1
1401-
●
●
146
NUT; EXH BRK VLV
M8 W/LK WASHER
8-97581-234-0
04
1
1307-
●
146
NUT; EXH BRK VLV
M10 FLANGE
0-91180-210-0
04
1
1307-1312
●
146
NUT; EXH BRK VLV
M10 FLANGE
0-91180-210-0
04
1
1401-
●
●
146
6
6
74
42
83
71
80
81
82
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
6
VALVE; EXH BRAKE
(D)
8-98054-172-6
01
1
1307-
●
6
VALVE; EXH BRAKE
(C)
8-98054-188-6
01
1
1307-
●
6
VALVE; EXH BRAKE
(B)
8-98054-186-6
01
1
1307-1312
●
6
VALVE; EXH BRAKE
(B)
8-98054-186-6
01
1
1401-
●
●
6
VALVE; EXH BRAKE
(A)
8-98233-801-0
01
1
1307-1312
●
6
VALVE; EXH BRAKE
(A)
8-98233-801-0
01
1
1401-
●
●
42
HOSE; FLEX,EXH BRK
L=500
1-09363-733-0
01
1
1307-
●
42
HOSE; FLEX,EXH BRK
L=520
1-09363-957-0
01
1
1307-1312
●
42
HOSE; FLEX,EXH BRK
L=520
1-09363-957-0
01
1
1401-
●
●
71
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
01
1
1307-1312
●
●
71
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
01
1
1401-
●
●
●
74
CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW
1-48629-258-0
01
1
1307-1503
●
74
CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW
8-98299-777-0
01
1
1504-
●
74
CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1307-1312
●
74
CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1401-
●
●
80
BRACKET; FLEX HOSE
8-98090-040-0
01
1
1307-
●
80
BRACKET; FLEX HOSE
8-98078-153-0
01
1
1307-1312
●
80
BRACKET; FLEX HOSE
8-98078-153-0
01
1
1401-
●
●
81
BOLT; HOSE BRKT
M10X25 FLANGE
0-28051-025-0
01
1
1307-1312
●
●
81
BOLT; HOSE BRKT
M10X25 FLANGE
0-28051-025-0
01
1
1401-
●
●
●
82
NUT; HOSE BRKT
M10 FLANGE
0-91180-210-0
01
1
1307-1312
●
●
82
NUT; HOSE BRKT
M10 FLANGE
0-91180-210-0
01
1
1401-
●
●
●
83
CLIP; FLEX HOSE
(B) ID=15 L=22 H=30
1-09701-215-1
01
1
1307-
●
83
CLIP; FLEX HOSE
(A) ID=11X2 L=16
1-09700-820-0
01
1
1307-1312
●
83
CLIP; FLEX HOSE
(A) ID=11X2 L=16
1-09700-820-0
01
1
1401-
●
●
146
NUT; EXH BRK VLV
M8 W/LK WASHER
8-97581-234-0
04
1
1307-
●
146
NUT; EXH BRK VLV
M10 FLANGE
0-91180-210-0
04
1
1307-1312
●
146
NUT; EXH BRK VLV
M10 FLANGE
0-91180-210-0
04
1
1401-
●
●
