Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#123654) — 505 parça

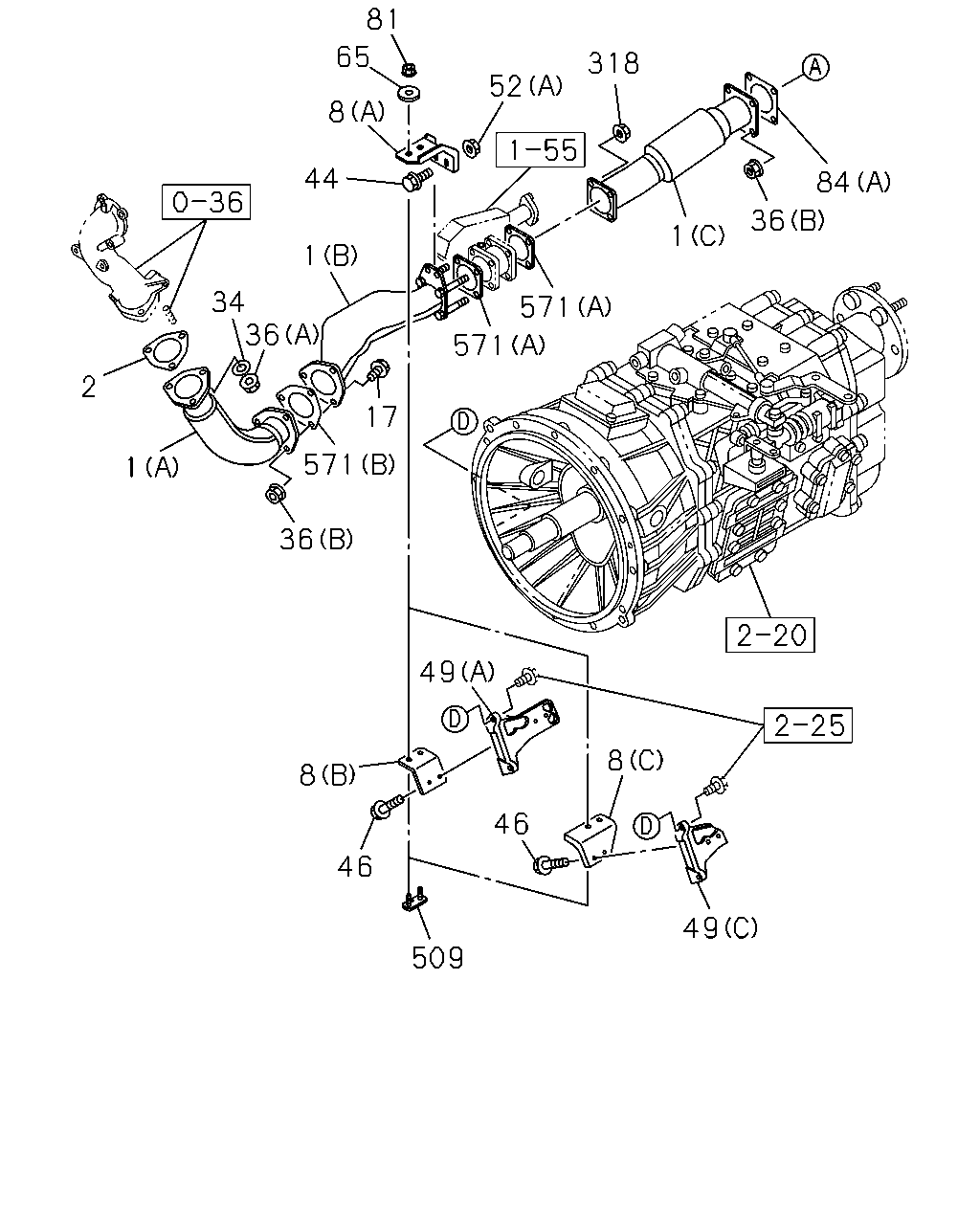

44 2 1 34 36 1 81 65 8 52 318 1 571 571 17 571 8 46 509 49 36 84 36 46 8 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH (C)	1-22123-885-1	01	1	1307-1312	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (C)	1-22123-885-1	01	1	1307-1312		●
1	PIPE; EXH (C)	1-22123-885-1	01	1	1401-	●		●
1	PIPE; EXH 6HK1-TCN ENG(82L) (C)	1-22123-885-1	01	1	1401-		●
1	PIPE; EXH (A)	8-98215-406-0	01	1	1307-1312	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (A)	8-98215-406-0	01	1	1307-1312		●
1	PIPE; EXH (A)	8-98215-406-0	01	1	1401-	●		●
1	PIPE; EXH 6HK1-TCN ENG(82L) (A)	8-98215-406-0	01	1	1401-		●
1	PIPE; EXH (B)	8-98215-407-1	01	1	1307-1312	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (B)	8-98215-407-1	01	1	1307-1312		●
1	PIPE; EXH (B)	8-98215-407-1	01	1	1401-	●		●
1	PIPE; EXH 6HK1-TCN ENG(82L) (B)	8-98215-407-1	01	1	1401-		●
1	PIPE; EXH 4HK1-TCS ENG(RJS) (D)	8-98198-849-0	01	1	1307-		●
1	PIPE; EXH 4HK1-TCS ENG(RJS) (E)	8-98243-546-0	01	1	1307-		●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE).	8-98043-481-0	01	1	1307-1312	●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) ID=81	8-98043-481-0	01	1	1307-1312		●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE).	8-98043-481-0	01	1	1401-	●		●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) ID=81	8-98043-481-0	01	1	1401-		●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS)	8-97381-455-0	01	1	1307-		●
8	BRACKET; EXH PIPE (A)	8-98233-627-0	01	1	1307-1312	●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) (A)	8-98233-627-0	01	1	1307-1312		●
8	BRACKET; EXH PIPE (A)	8-98233-627-0	01	1	1401-1404	●		●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) (A)	8-98233-627-0	01	1	1401-1404		●
8	BRACKET; EXH PIPE (A)	8-98275-817-0	01	1	1405-	●		●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) (A)	8-98275-817-0	01	1	1405-		●
8	BRACKET; EXH PIPE LCT2500 A/T ALLISON(Y5W) (C)	8-98234-526-0	01	1	1307-1310	●
8	BRACKET; EXH PIPE LCT2500 A/T ALLISON(Y5W) (C)	8-98259-876-0	01	1	1311-1312	●
8	BRACKET; EXH PIPE LCT2500 A/T ALLISON(Y5W) (C)	8-98259-876-0	01	1	1401-	●		●
8	BRACKET; EXH PIPE MZW6P M/T(RSZ) (B)	8-98233-626-0	01	1	1307-1310	●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) (B)	8-98233-626-0	01	1	1307-1310		●
8	BRACKET; EXH PIPE MZW6P M/T(RSZ) (B)	8-98259-870-0	01	1	1311-1312	●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) (B)	8-98259-870-0	01	1	1311-1312		●
8	BRACKET; EXH PIPE MZW6P M/T(RSZ) (B)	8-98259-870-0	01	1	1401-	●		●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) (B)	8-98259-870-0	01	1	1401-		●
17	BOLT; EXH PIPE M12X35 FLANGE	0-28051-235-0	03	1	1307-1312	●
17	BOLT; EXH PIPE 6HK1-TCN ENG(82L) M12X35 FLANGE	0-28051-235-0	03	1	1307-1312		●
17	BOLT; EXH PIPE M12X35 FLANGE	0-28051-235-0	03	1	1401-	●		●
17	BOLT; EXH PIPE 6HK1-TCN ENG(82L) M12X35 FLANGE	0-28051-235-0	03	1	1401-		●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	1307-1312	●
34	WASHER; EXH PIPE 6HK1-TCN ENG(82L) ID=13 OD=24 DISH	1-09500-030-0	03	1	1307-1312		●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	1401-	●		●
34	WASHER; EXH PIPE 6HK1-TCN ENG(82L) ID=13 OD=24 DISH	1-09500-030-0	03	1	1401-		●
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	1307-1312	●
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (B) M12 FLANGE	0-91180-212-0	07	1	1307-1312		●
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	1401-	●		●
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (B) M12 FLANGE	0-91180-212-0	07	1	1401-		●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	1307-1312	●
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (A) M12	1-09400-010-0	03	1	1307-1312		●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	1401-	●		●
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (A) M12	1-09400-010-0	03	1	1401-		●
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (C) M10	0-91110-510-0	04	1	1307-		●
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (D) M10 FLANGE	8-97096-192-1	03	1	1307-		●
44	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1307-1312	●
44	BOLT; BRKT 6HK1-TCN ENG(82L) M10X35 FLANGE	0-28651-035-0	02	1	1307-1312		●
44	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1401-	●		●
44	BOLT; BRKT 6HK1-TCN ENG(82L) M10X35 FLANGE	0-28651-035-0	02	1	1401-		●
44	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	08	1	1307-1312	●	●
44	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	08	1	1401-	●	●	●
46	BOLT; BRKT,EXH PIPE M10X30 FLANGE	0-28051-030-0	02	1	1307-1312	●
46	BOLT; BRKT,EXH PIPE 6HK1-TCN ENG(82L) M10X30 FLANGE	0-28051-030-0	02	1	1307-1312		●
46	BOLT; BRKT,EXH PIPE M10X30 FLANGE	0-28051-030-0	02	1	1401-	●		●
46	BOLT; BRKT,EXH PIPE 6HK1-TCN ENG(82L) M10X30 FLANGE	0-28051-030-0	02	1	1401-		●
49	BRACKET; EXH PIPE TO TRANS LCT2500 A/T ALLISON(Y5W) (C)	8-98234-528-0	01	1	1307-1312	●
49	BRACKET; EXH PIPE TO TRANS LCT2500 A/T ALLISON(Y5W) (C)	8-98234-528-0	01	1	1401-	●		●
49	BRACKET; EXH PIPE TO TRANS MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98122-671-0	01	1	1307-1312	●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98122-671-0	01	1	1307-1312		●
49	BRACKET; EXH PIPE TO TRANS MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98122-671-0	01	1	1401-	●		●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98122-671-0	01	1	1401-		●
49	BRACKET; EXH PIPE TO TRANS MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98122-673-0	01	1	1307-1312	●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98122-673-0	01	1	1307-1312		●
49	BRACKET; EXH PIPE TO TRANS MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98122-673-0	01	1	1401-	●		●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98122-673-0	01	1	1401-		●
49	BRACKET; EXH PIPE TO TRANS 4HK1-TCS ENG(RJS) (B)	8-98234-530-0	01	1	1307-		●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1307-1312	●
52	NUT; BRKT 6HK1-TCN ENG(82L) (A) M10 FLANGE	0-91180-210-0	02	1	1307-1312		●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1401-	●		●
52	NUT; BRKT 6HK1-TCN ENG(82L) (A) M10 FLANGE	0-91180-210-0	02	1	1401-		●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	07	1	1307-1312	●	●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	07	1	1401-	●	●	●
52	NUT; BRKT 4HK1-TCS ENG(RJS) (B) M12 FLANGE	0-91180-212-0	04	1	1307-		●
65	WASHER; PL ID=10.5	8-98073-091-0	02	1	1307-1312	●
65	WASHER; PL 6HK1-TCN ENG(82L) ID=10.5	8-98073-091-0	02	1	1307-1312		●
65	WASHER; PL ID=10.5	8-98073-091-0	02	1	1401-	●		●
65	WASHER; PL 6HK1-TCN ENG(82L) ID=10.5	8-98073-091-0	02	1	1401-		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1310-1312	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1401-	●	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1307-1309	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1307-1309	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1310-1312	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1401-	●	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1307-1309	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1307-1309	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1307-1309	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1307-1309		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1310-1312	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1310-1312	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1310-1312		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1401-	●	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1401-	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1401-		●
84	GASKET; EXH PIPE (A)	1-22116-040-0	01	1	1307-1312	●
84	GASKET; EXH PIPE 6HK1-TCN ENG(82L) (A)	1-22116-040-0	01	1	1307-1312		●
84	GASKET; EXH PIPE (A)	1-22116-040-0	01	1	1401-	●		●
84	GASKET; EXH PIPE 6HK1-TCN ENG(82L) (A)	1-22116-040-0	01	1	1401-		●
84	GASKET; EXH PIPE (B) ID=85.8	1-22116-043-0	01	1	1307-1312	●	●
84	GASKET; EXH PIPE (B) ID=85.8	1-22116-043-0	01	1	1307-1312	●
84	GASKET; EXH PIPE 6HK1-TCN ENG(82L) (B) ID=85.8	1-22116-043-0	01	1	1307-1312		●
84	GASKET; EXH PIPE (B) ID=85.8	1-22116-043-0	01	1	1401-	●	●	●
84	GASKET; EXH PIPE (B) ID=85.8	1-22116-043-0	01	1	1401-	●		●
84	GASKET; EXH PIPE 6HK1-TCN ENG(82L) (B) ID=85.8	1-22116-043-0	01	1	1401-		●
84	GASKET; EXH PIPE 4HK1-TCS ENG(RJS) (C) ID=64	8-97373-108-0	02	1	1307-		●
318	NUT; EXH PIPE,FRT M10 FLANGE	0-91180-210-0	04	1	1307-1312	●
318	NUT; EXH PIPE,FRT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	04	1	1307-1312		●
318	NUT; EXH PIPE,FRT M10 FLANGE	0-91180-210-0	04	1	1401-	●		●
318	NUT; EXH PIPE,FRT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	04	1	1401-		●
318	NUT; EXH PIPE,FRT 4HK1-TCS ENG(RJS) M8 W/LK WASHER	8-97581-234-0	04	1	1307-		●
509	STUD; BRKT	8-98233-625-0	01	1	1307-1311	●
509	STUD; BRKT 6HK1-TCN ENG(82L)	8-98233-625-0	01	1	1307-1311		●
509	STUD; BRKT	8-98259-983-0	01	1	1312-1312	●
509	STUD; BRKT 6HK1-TCN ENG(82L)	8-98259-983-0	01	1	1312-1312		●
509	STUD; BRKT	8-98259-983-0	01	1	1401-	●		●
509	STUD; BRKT 6HK1-TCN ENG(82L)	8-98259-983-0	01	1	1401-		●
571	GASKET (A) ID=85.8	1-22116-043-0	02	1	1307-1312	●
571	GASKET 6HK1-TCN ENG(82L) (A) ID=85.8	1-22116-043-0	02	1	1307-1312		●
571	GASKET (A) ID=85.8	1-22116-043-0	02	1	1401-	●		●
571	GASKET 6HK1-TCN ENG(82L) (A) ID=85.8	1-22116-043-0	02	1	1401-		●
571	GASKET (B) ID=81	8-98043-481-0	01	1	1307-1312	●
571	GASKET 6HK1-TCN ENG(82L) (B) ID=81	8-98043-481-0	01	1	1307-1312		●
571	GASKET (B) ID=81	8-98043-481-0	01	1	1401-	●		●
571	GASKET 6HK1-TCN ENG(82L) (B) ID=81	8-98043-481-0	01	1	1401-		●
571	GASKET 4HK1-TCS ENG(RJS) (C) ID=64	8-97373-108-0	02	1	1307-		●

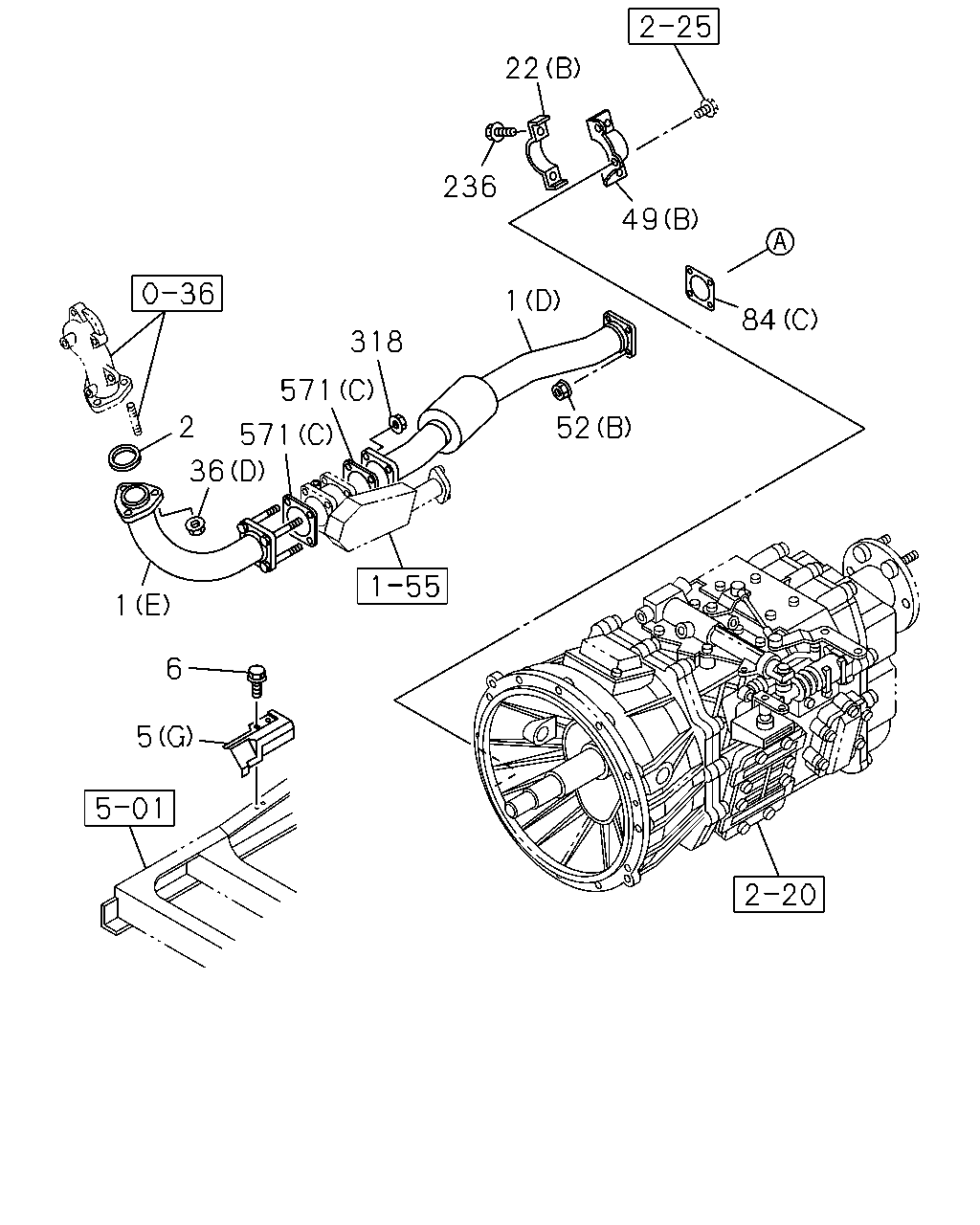

2 1 36 571 571 318 1 236 22 49 84 6 5 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH (C)	1-22123-885-1	01	1	1307-1312	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (C)	1-22123-885-1	01	1	1307-1312		●
1	PIPE; EXH (C)	1-22123-885-1	01	1	1401-	●		●
1	PIPE; EXH 6HK1-TCN ENG(82L) (C)	1-22123-885-1	01	1	1401-		●
1	PIPE; EXH (A)	8-98215-406-0	01	1	1307-1312	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (A)	8-98215-406-0	01	1	1307-1312		●
1	PIPE; EXH (A)	8-98215-406-0	01	1	1401-	●		●
1	PIPE; EXH 6HK1-TCN ENG(82L) (A)	8-98215-406-0	01	1	1401-		●
1	PIPE; EXH (B)	8-98215-407-1	01	1	1307-1312	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (B)	8-98215-407-1	01	1	1307-1312		●
1	PIPE; EXH (B)	8-98215-407-1	01	1	1401-	●		●
1	PIPE; EXH 6HK1-TCN ENG(82L) (B)	8-98215-407-1	01	1	1401-		●
1	PIPE; EXH 4HK1-TCS ENG(RJS) (D)	8-98198-849-0	01	1	1307-		●
1	PIPE; EXH 4HK1-TCS ENG(RJS) (E)	8-98243-546-0	01	1	1307-		●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE).	8-98043-481-0	01	1	1307-1312	●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) ID=81	8-98043-481-0	01	1	1307-1312		●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE).	8-98043-481-0	01	1	1401-	●		●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) ID=81	8-98043-481-0	01	1	1401-		●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS)	8-97381-455-0	01	1	1307-		●
5	PROTECTOR; HEAT (A)	8-97605-172-0	01	1	1307-1312	●	●
5	PROTECTOR; HEAT (A)	8-97605-172-0	01	1	1401-	●	●	●
5	PROTECTOR; HEAT (B)	8-97611-086-0	01	1	1307-1312	●	●
5	PROTECTOR; HEAT (B)	8-97611-086-0	01	1	1401-	●	●	●
5	PROTECTOR; HEAT (C)	8-97611-087-0	01	1	1307-1312	●	●
5	PROTECTOR; HEAT (C)	8-97611-087-0	01	1	1401-	●	●	●
5	PROTECTOR; HEAT (D)	8-97611-088-0	01	1	1307-1312	●	●
5	PROTECTOR; HEAT (D)	8-97611-088-0	01	1	1401-	●	●	●
5	PROTECTOR; HEAT (E)	8-97611-089-0	01	1	1307-1312	●	●
5	PROTECTOR; HEAT (E)	8-97611-089-0	01	1	1401-	●	●	●
5	PROTECTOR; HEAT (F)	8-97613-390-0	01	1	1307-1312	●	●
5	PROTECTOR; HEAT (F)	8-97613-390-0	01	1	1401-	●	●	●
5	PROTECTOR; HEAT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (G)	8-98044-122-0	01	1	1307-		●
6	BOLT; HEAT PROTECTOR 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE	0-28650-825-0	02	1	1307-		●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1307-1312	●	●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1307-1312	●	●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1401-	●	●	●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1401-	●	●	●
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	1-22133-295-0	01	1	1307-1309		●
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1310-		●
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	1307-1312	●
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (B) M12 FLANGE	0-91180-212-0	07	1	1307-1312		●
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	1401-	●		●
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (B) M12 FLANGE	0-91180-212-0	07	1	1401-		●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	1307-1312	●
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (A) M12	1-09400-010-0	03	1	1307-1312		●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	1401-	●		●
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (A) M12	1-09400-010-0	03	1	1401-		●
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (C) M10	0-91110-510-0	04	1	1307-		●
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (D) M10 FLANGE	8-97096-192-1	03	1	1307-		●
49	BRACKET; EXH PIPE TO TRANS LCT2500 A/T ALLISON(Y5W) (C)	8-98234-528-0	01	1	1307-1312	●
49	BRACKET; EXH PIPE TO TRANS LCT2500 A/T ALLISON(Y5W) (C)	8-98234-528-0	01	1	1401-	●		●
49	BRACKET; EXH PIPE TO TRANS MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98122-671-0	01	1	1307-1312	●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98122-671-0	01	1	1307-1312		●
49	BRACKET; EXH PIPE TO TRANS MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98122-671-0	01	1	1401-	●		●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98122-671-0	01	1	1401-		●
49	BRACKET; EXH PIPE TO TRANS MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98122-673-0	01	1	1307-1312	●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98122-673-0	01	1	1307-1312		●
49	BRACKET; EXH PIPE TO TRANS MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98122-673-0	01	1	1401-	●		●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98122-673-0	01	1	1401-		●
49	BRACKET; EXH PIPE TO TRANS 4HK1-TCS ENG(RJS) (B)	8-98234-530-0	01	1	1307-		●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1307-1312	●
52	NUT; BRKT 6HK1-TCN ENG(82L) (A) M10 FLANGE	0-91180-210-0	02	1	1307-1312		●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1401-	●		●
52	NUT; BRKT 6HK1-TCN ENG(82L) (A) M10 FLANGE	0-91180-210-0	02	1	1401-		●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	07	1	1307-1312	●	●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	07	1	1401-	●	●	●
52	NUT; BRKT 4HK1-TCS ENG(RJS) (B) M12 FLANGE	0-91180-212-0	04	1	1307-		●
84	GASKET; EXH PIPE (A)	1-22116-040-0	01	1	1307-1312	●
84	GASKET; EXH PIPE 6HK1-TCN ENG(82L) (A)	1-22116-040-0	01	1	1307-1312		●
84	GASKET; EXH PIPE (A)	1-22116-040-0	01	1	1401-	●		●
84	GASKET; EXH PIPE 6HK1-TCN ENG(82L) (A)	1-22116-040-0	01	1	1401-		●
84	GASKET; EXH PIPE (B) ID=85.8	1-22116-043-0	01	1	1307-1312	●	●
84	GASKET; EXH PIPE (B) ID=85.8	1-22116-043-0	01	1	1307-1312	●
84	GASKET; EXH PIPE 6HK1-TCN ENG(82L) (B) ID=85.8	1-22116-043-0	01	1	1307-1312		●
84	GASKET; EXH PIPE (B) ID=85.8	1-22116-043-0	01	1	1401-	●	●	●
84	GASKET; EXH PIPE (B) ID=85.8	1-22116-043-0	01	1	1401-	●		●
84	GASKET; EXH PIPE 6HK1-TCN ENG(82L) (B) ID=85.8	1-22116-043-0	01	1	1401-		●
84	GASKET; EXH PIPE 4HK1-TCS ENG(RJS) (C) ID=64	8-97373-108-0	02	1	1307-		●
236	BOLT; PIPE CLAMP TO BRKT 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28051-030-0	02	1	1307-		●
318	NUT; EXH PIPE,FRT M10 FLANGE	0-91180-210-0	04	1	1307-1312	●
318	NUT; EXH PIPE,FRT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	04	1	1307-1312		●
318	NUT; EXH PIPE,FRT M10 FLANGE	0-91180-210-0	04	1	1401-	●		●
318	NUT; EXH PIPE,FRT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	04	1	1401-		●
318	NUT; EXH PIPE,FRT 4HK1-TCS ENG(RJS) M8 W/LK WASHER	8-97581-234-0	04	1	1307-		●
571	GASKET (A) ID=85.8	1-22116-043-0	02	1	1307-1312	●
571	GASKET 6HK1-TCN ENG(82L) (A) ID=85.8	1-22116-043-0	02	1	1307-1312		●
571	GASKET (A) ID=85.8	1-22116-043-0	02	1	1401-	●		●
571	GASKET 6HK1-TCN ENG(82L) (A) ID=85.8	1-22116-043-0	02	1	1401-		●
571	GASKET (B) ID=81	8-98043-481-0	01	1	1307-1312	●
571	GASKET 6HK1-TCN ENG(82L) (B) ID=81	8-98043-481-0	01	1	1307-1312		●
571	GASKET (B) ID=81	8-98043-481-0	01	1	1401-	●		●
571	GASKET 6HK1-TCN ENG(82L) (B) ID=81	8-98043-481-0	01	1	1401-		●
571	GASKET 4HK1-TCS ENG(RJS) (C) ID=64	8-97373-108-0	02	1	1307-		●

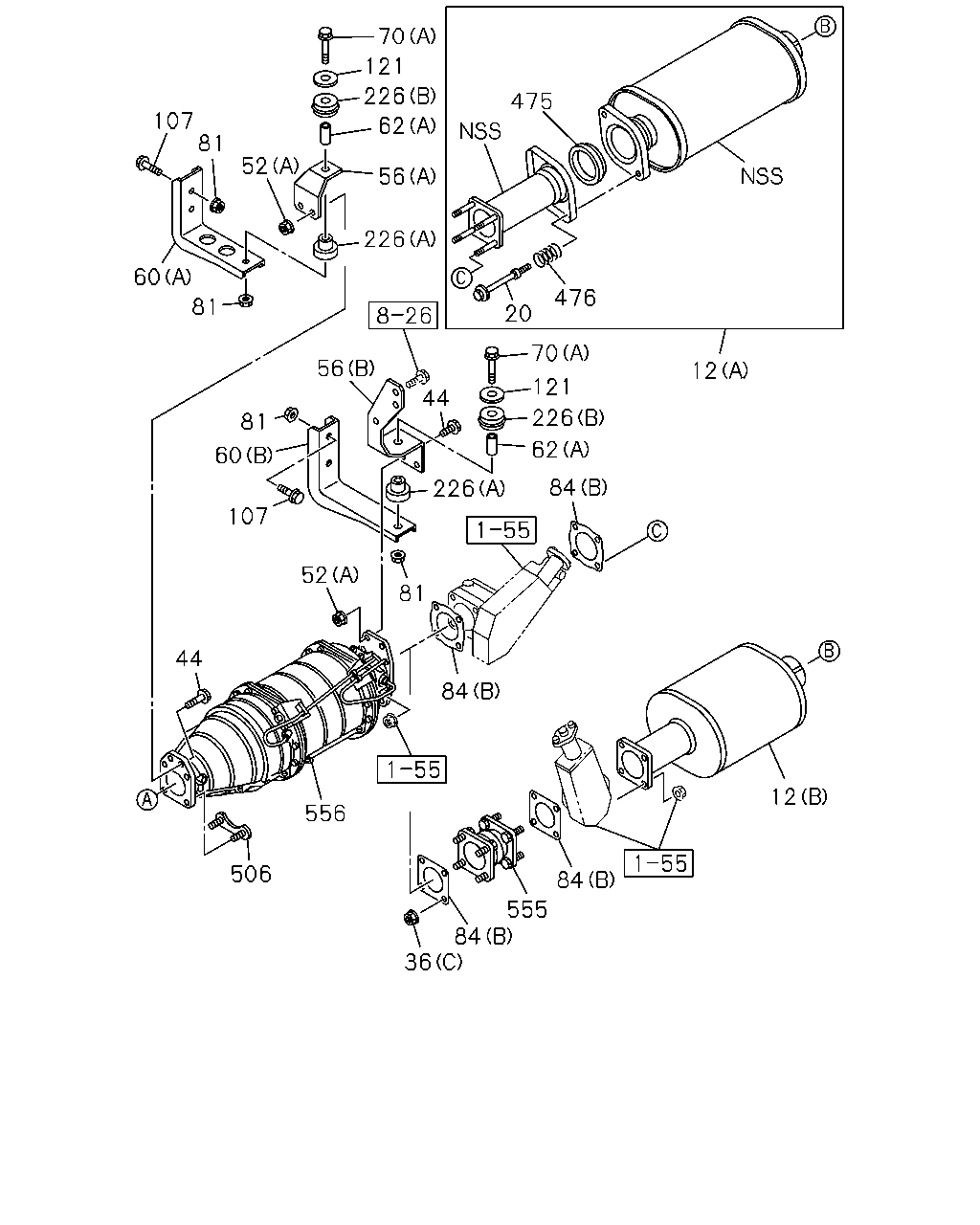

70 226 60 118 107 105 22 22 126 56 56 94 62 226 121 81 105 70 107 81 60 75 56 62 75 81 94 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1307-1312	●	●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1307-1312	●	●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1401-	●	●	●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1401-	●	●	●
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	1-22133-295-0	01	1	1307-1309		●
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1310-		●
56	BRACKET; CLAMP,EXH PIPE (D)	1-22131-584-0	01	1	1307-1309	●	●
56	BRACKET; CLAMP,EXH PIPE (D)	8-98245-522-0	01	1	1310-1312	●	●
56	BRACKET; CLAMP,EXH PIPE (D)	8-98245-522-0	01	1	1401-	●	●	●
56	BRACKET; CLAMP,EXH PIPE (A)	8-98074-829-1	01	1	1307-1312	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (A)	8-98074-829-1	01	1	1307-1312		●
56	BRACKET; CLAMP,EXH PIPE (A)	8-98074-829-1	01	1	1401-	●		●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (A)	8-98074-829-1	01	1	1401-		●
56	BRACKET; CLAMP,EXH PIPE (B)	8-98074-830-0	01	1	1307-1312	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (B)	8-98074-830-0	01	1	1307-1312		●
56	BRACKET; CLAMP,EXH PIPE (B)	8-98074-830-0	01	1	1401-	●		●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (B)	8-98074-830-0	01	1	1401-		●
56	BRACKET; CLAMP,EXH PIPE (E)	8-98233-506-0	01	1	1307-1312	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (E)	8-98233-506-0	01	1	1307-1312		●
56	BRACKET; CLAMP,EXH PIPE (E)	8-98233-506-0	01	1	1401-	●		●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (E)	8-98233-506-0	01	1	1401-		●
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (C)	8-98059-755-0	01	1	1307-		●
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-98074-825-0	01	1	1307-		●
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (A)	8-98074-826-1	01	1	1307-		●
60	BRACKET; FRAME TO BRKT (A)	8-98059-712-1	01	1	1307-1312	●	●
60	BRACKET; FRAME TO BRKT (A)	8-98059-712-1	01	1	1401-	●	●	●
60	BRACKET; FRAME TO BRKT (C)	8-98070-640-0	01	1	1307-1309	●	●
60	BRACKET; FRAME TO BRKT (C)	8-98245-521-0	01	1	1310-1312	●	●
60	BRACKET; FRAME TO BRKT (C)	8-98245-521-0	01	1	1401-	●	●	●
60	BRACKET; FRAME TO BRKT (B)	1-22152-274-1	01	1	1307-1312	●
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (B)	1-22152-274-1	01	1	1307-1312		●
60	BRACKET; FRAME TO BRKT (B)	1-22152-274-1	01	1	1401-	●		●
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (B)	1-22152-274-1	01	1	1401-		●
60	BRACKET; FRAME TO BRKT (D)	8-98233-509-0	01	1	1307-1312	●
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (D)	8-98233-509-0	01	1	1307-1312		●
60	BRACKET; FRAME TO BRKT (D)	8-98233-509-0	01	1	1401-	●		●
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (D)	8-98233-509-0	01	1	1401-		●
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (D)	8-98059-753-1	01	1	1307-1309		●
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (D)	8-98245-530-0	01	1	1310-		●
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (B)	8-98061-138-1	01	1	1307-		●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1307-1312	●	●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1401-	●	●	●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	02	1	1307-1312	●	●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	02	1	1401-	●	●	●
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	1307-1312	●	●
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	1401-	●	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	1307-1312	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	1401-	●	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1307-1312	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1401-	●	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	1307-1312	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	1401-	●	●	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-193-0	02	1	1307-1312	●	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-193-0	02	1	1401-	●	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1310-1312	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1401-	●	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1307-1309	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1307-1309	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1310-1312	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1401-	●	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1307-1309	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1307-1309	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1307-1309	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1307-1309		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1310-1312	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1310-1312	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1310-1312		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1401-	●	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1401-	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1401-		●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1307-1312	●	●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1307-1312	●	●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1401-	●	●	●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1401-	●	●	●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1307-1312	●	●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1307-1312	●	●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1401-	●	●	●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1401-	●	●	●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1307-1309	●	●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1307-1309	●	●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1310-1312	●	●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1401-	●	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1307-1312	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1401-	●	●	●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1307-1312	●	●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1401-	●	●	●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	02	1	1307-1312	●	●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	02	1	1401-	●	●	●
126	PIPE; EXH,RR	8-98233-516-0	01	1	1307-1312	●
126	PIPE; EXH,RR 6HK1-TCN ENG(82L)	8-98233-516-0	01	1	1307-1312		●
126	PIPE; EXH,RR	8-98233-516-0	01	1	1401-	●		●
126	PIPE; EXH,RR 6HK1-TCN ENG(82L)	8-98233-516-0	01	1	1401-		●
126	PIPE; EXH,RR 4HK1-TCS ENG(RJS)	8-98043-365-2	01	1	1307-1309		●
126	PIPE; EXH,RR 4HK1-TCS ENG(RJS)	8-98245-503-0	01	1	1310-		●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1307-1312	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1401-	●	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	1307-1312	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	1401-	●	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1307-1312	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1401-	●	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	1307-1312	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	1401-	●	●	●

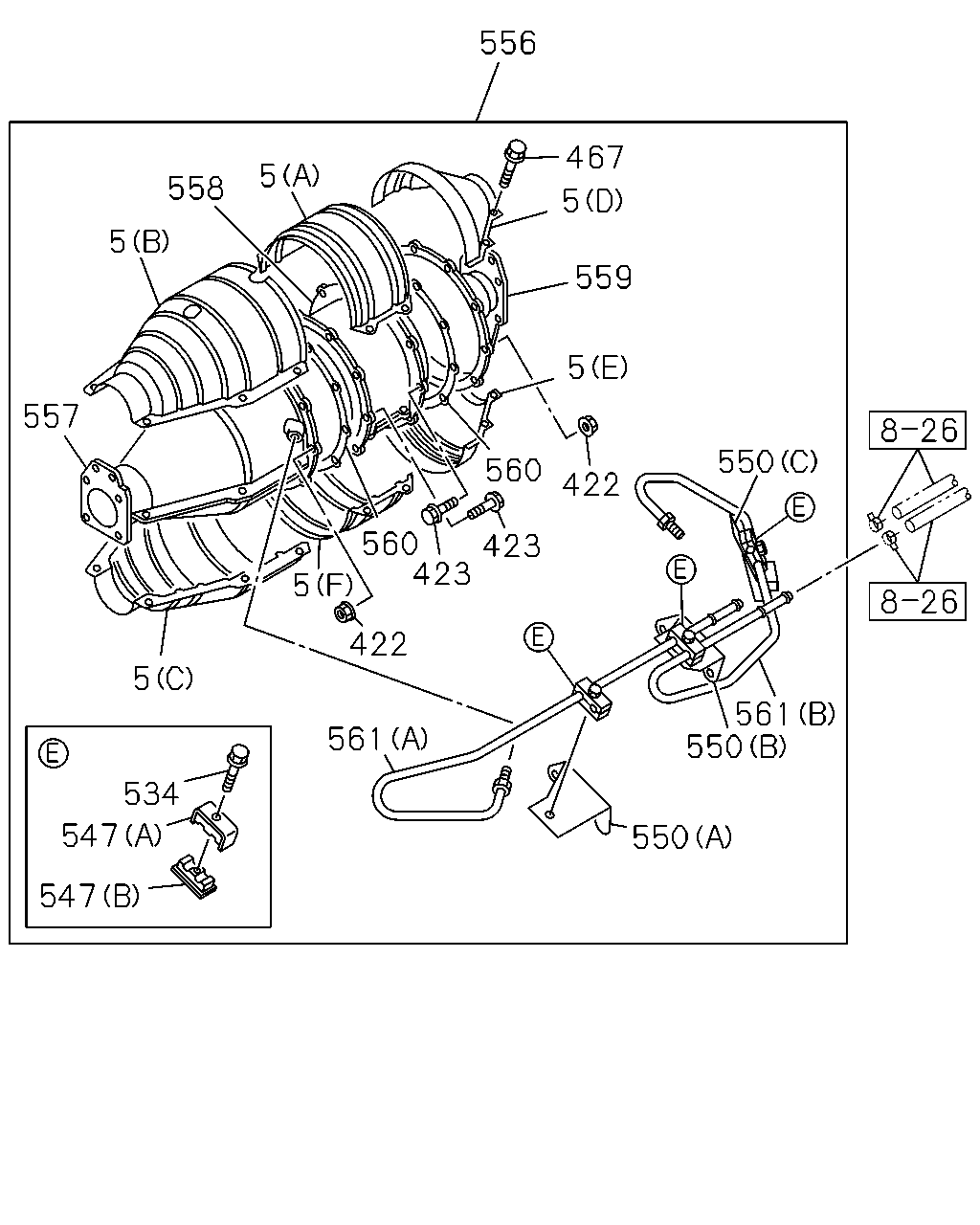

561 550 550 550 422 5 559 5 556 5 558 5 557 5 5 423 423 422 560 560 561 534 547 547 467

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	PROTECTOR; HEAT (A)	8-97605-172-0	01	1	1307-1312	●	●
5	PROTECTOR; HEAT (A)	8-97605-172-0	01	1	1401-	●	●	●
5	PROTECTOR; HEAT (B)	8-97611-086-0	01	1	1307-1312	●	●
5	PROTECTOR; HEAT (B)	8-97611-086-0	01	1	1401-	●	●	●
5	PROTECTOR; HEAT (C)	8-97611-087-0	01	1	1307-1312	●	●
5	PROTECTOR; HEAT (C)	8-97611-087-0	01	1	1401-	●	●	●
5	PROTECTOR; HEAT (D)	8-97611-088-0	01	1	1307-1312	●	●
5	PROTECTOR; HEAT (D)	8-97611-088-0	01	1	1401-	●	●	●
5	PROTECTOR; HEAT (E)	8-97611-089-0	01	1	1307-1312	●	●
5	PROTECTOR; HEAT (E)	8-97611-089-0	01	1	1401-	●	●	●
5	PROTECTOR; HEAT (F)	8-97613-390-0	01	1	1307-1312	●	●
5	PROTECTOR; HEAT (F)	8-97613-390-0	01	1	1401-	●	●	●
5	PROTECTOR; HEAT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (G)	8-98044-122-0	01	1	1307-		●
422	NUT; PIPE M8 FLANGE	0-91180-108-0	20	1	1307-1312	●	●
422	NUT; PIPE M8 FLANGE	0-91180-108-0	20	1	1401-	●	●	●
423	BOLT; PIPE M8X35 FLANGE	0-28650-835-0	20	1	1307-1312	●	●
423	BOLT; PIPE M8X35 FLANGE	0-28650-835-0	20	1	1401-	●	●	●
467	BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	1307-1312	●	●
467	BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	1401-	●	●	●
534	BOLT; CLIP M6X35 FLANGE	0-28650-635-0	03	1	1307-1312	●	●
534	BOLT; CLIP M6X35 FLANGE	0-28650-635-0	03	1	1401-	●	●	●
547	CLIP; PIPE (A)	8-97381-635-0	03	1	1307-1312	●	●
547	CLIP; PIPE (A)	8-97381-635-0	03	1	1401-	●	●	●
547	CLIP; PIPE (B)	8-97381-636-0	03	1	1307-1312	●	●
547	CLIP; PIPE (B)	8-97381-636-0	03	1	1401-	●	●	●
550	BRACKET; DPD (A)	8-97611-083-0	01	1	1307-1312	●	●
550	BRACKET; DPD (A)	8-97611-083-0	01	1	1401-	●	●	●
550	BRACKET; DPD (B)	8-97611-084-0	01	1	1307-1312	●	●
550	BRACKET; DPD (B)	8-97611-084-0	01	1	1401-	●	●	●
550	BRACKET; DPD (C)	8-97611-085-0	01	1	1307-1312	●	●
550	BRACKET; DPD (C)	8-97611-085-0	01	1	1401-	●	●	●
556	DPD ASM	8-97622-883-4	01	1	1307-1312	●	●
556	DPD ASM	8-97622-883-4	01	1	1401-	●	●	●
557	CATALYST ASM	8-97608-055-8	01	1	1307-1312	●	●
557	CATALYST ASM	8-97608-055-8	01	1	1401-	●	●	●
558	FILTER ASM	8-97608-057-3	01	1	1307-1312	●	●
558	FILTER ASM	8-97608-057-3	01	1	1401-	●	●	●
559	COVER; RR	8-97622-887-0	01	1	1307-1312	●	●
559	COVER; RR	8-97622-887-0	01	1	1401-	●	●	●
560	GASKET; DPD	8-97611-080-0	02	1	1307-1312	●	●
560	GASKET; DPD	8-97611-080-0	02	1	1401-	●	●	●
561	PIPE; DPD (A)	8-97622-888-0	01	1	1307-1312	●	●
561	PIPE; DPD (A)	8-97622-888-0	01	1	1401-	●	●	●
561	PIPE; DPD (B)	8-97622-889-0	01	1	1307-1312	●	●
561	PIPE; DPD (B)	8-97622-889-0	01	1	1401-	●	●	●

475 476 20 12 70 121 226 62 84 226 56 81 60 107 81 52 70 121 226 62 56 226 60 81 107 81 84 52 12 84 555 84 36 556 506 44 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	SILENCER ASM; EXH (A)	8-98234-507-0	01	1	1307-1312	●
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) (A)	8-98234-507-0	01	1	1307-1312		●
12	SILENCER ASM; EXH (A)	8-98234-507-0	01	1	1401-	●		●
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) (A)	8-98234-507-0	01	1	1401-		●
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) (B)	8-98041-921-0	01	1	1307-		●
20	BOLT; FLANGE,EXH PIPE	8-98233-481-0	02	1	1307-1312	●
20	BOLT; FLANGE,EXH PIPE 6HK1-TCN ENG(82L)	8-98233-481-0	02	1	1307-1312		●
20	BOLT; FLANGE,EXH PIPE	8-98233-481-0	02	1	1401-	●		●
20	BOLT; FLANGE,EXH PIPE 6HK1-TCN ENG(82L)	8-98233-481-0	02	1	1401-		●
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	1307-1312	●
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (B) M12 FLANGE	0-91180-212-0	07	1	1307-1312		●
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	1401-	●		●
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (B) M12 FLANGE	0-91180-212-0	07	1	1401-		●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	1307-1312	●
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (A) M12	1-09400-010-0	03	1	1307-1312		●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	1401-	●		●
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (A) M12	1-09400-010-0	03	1	1401-		●
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (C) M10	0-91110-510-0	04	1	1307-		●
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (D) M10 FLANGE	8-97096-192-1	03	1	1307-		●
44	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1307-1312	●
44	BOLT; BRKT 6HK1-TCN ENG(82L) M10X35 FLANGE	0-28651-035-0	02	1	1307-1312		●
44	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1401-	●		●
44	BOLT; BRKT 6HK1-TCN ENG(82L) M10X35 FLANGE	0-28651-035-0	02	1	1401-		●
44	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	08	1	1307-1312	●	●
44	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	08	1	1401-	●	●	●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1307-1312	●
52	NUT; BRKT 6HK1-TCN ENG(82L) (A) M10 FLANGE	0-91180-210-0	02	1	1307-1312		●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1401-	●		●
52	NUT; BRKT 6HK1-TCN ENG(82L) (A) M10 FLANGE	0-91180-210-0	02	1	1401-		●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	07	1	1307-1312	●	●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	07	1	1401-	●	●	●
52	NUT; BRKT 4HK1-TCS ENG(RJS) (B) M12 FLANGE	0-91180-212-0	04	1	1307-		●
56	BRACKET; CLAMP,EXH PIPE (D)	1-22131-584-0	01	1	1307-1309	●	●
56	BRACKET; CLAMP,EXH PIPE (D)	8-98245-522-0	01	1	1310-1312	●	●
56	BRACKET; CLAMP,EXH PIPE (D)	8-98245-522-0	01	1	1401-	●	●	●
56	BRACKET; CLAMP,EXH PIPE (A)	8-98074-829-1	01	1	1307-1312	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (A)	8-98074-829-1	01	1	1307-1312		●
56	BRACKET; CLAMP,EXH PIPE (A)	8-98074-829-1	01	1	1401-	●		●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (A)	8-98074-829-1	01	1	1401-		●
56	BRACKET; CLAMP,EXH PIPE (B)	8-98074-830-0	01	1	1307-1312	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (B)	8-98074-830-0	01	1	1307-1312		●
56	BRACKET; CLAMP,EXH PIPE (B)	8-98074-830-0	01	1	1401-	●		●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (B)	8-98074-830-0	01	1	1401-		●
56	BRACKET; CLAMP,EXH PIPE (E)	8-98233-506-0	01	1	1307-1312	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (E)	8-98233-506-0	01	1	1307-1312		●
56	BRACKET; CLAMP,EXH PIPE (E)	8-98233-506-0	01	1	1401-	●		●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (E)	8-98233-506-0	01	1	1401-		●
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (C)	8-98059-755-0	01	1	1307-		●
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-98074-825-0	01	1	1307-		●
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (A)	8-98074-826-1	01	1	1307-		●
60	BRACKET; FRAME TO BRKT (A)	8-98059-712-1	01	1	1307-1312	●	●
60	BRACKET; FRAME TO BRKT (A)	8-98059-712-1	01	1	1401-	●	●	●
60	BRACKET; FRAME TO BRKT (C)	8-98070-640-0	01	1	1307-1309	●	●
60	BRACKET; FRAME TO BRKT (C)	8-98245-521-0	01	1	1310-1312	●	●
60	BRACKET; FRAME TO BRKT (C)	8-98245-521-0	01	1	1401-	●	●	●
60	BRACKET; FRAME TO BRKT (B)	1-22152-274-1	01	1	1307-1312	●
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (B)	1-22152-274-1	01	1	1307-1312		●
60	BRACKET; FRAME TO BRKT (B)	1-22152-274-1	01	1	1401-	●		●
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (B)	1-22152-274-1	01	1	1401-		●
60	BRACKET; FRAME TO BRKT (D)	8-98233-509-0	01	1	1307-1312	●
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (D)	8-98233-509-0	01	1	1307-1312		●
60	BRACKET; FRAME TO BRKT (D)	8-98233-509-0	01	1	1401-	●		●
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (D)	8-98233-509-0	01	1	1401-		●
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (D)	8-98059-753-1	01	1	1307-1309		●
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (D)	8-98245-530-0	01	1	1310-		●
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (B)	8-98061-138-1	01	1	1307-		●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1307-1312	●	●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1401-	●	●	●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	02	1	1307-1312	●	●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	02	1	1401-	●	●	●
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	1307-1312	●	●
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	1401-	●	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	1307-1312	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	1401-	●	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1307-1312	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1401-	●	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	1307-1312	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	1401-	●	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1310-1312	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1401-	●	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1307-1309	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1307-1309	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1310-1312	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1401-	●	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1307-1309	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1307-1309	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1307-1309	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1307-1309		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1310-1312	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1310-1312	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1310-1312		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1401-	●	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1401-	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1401-		●
84	GASKET; EXH PIPE (A)	1-22116-040-0	01	1	1307-1312	●
84	GASKET; EXH PIPE 6HK1-TCN ENG(82L) (A)	1-22116-040-0	01	1	1307-1312		●
84	GASKET; EXH PIPE (A)	1-22116-040-0	01	1	1401-	●		●
84	GASKET; EXH PIPE 6HK1-TCN ENG(82L) (A)	1-22116-040-0	01	1	1401-		●
84	GASKET; EXH PIPE (B) ID=85.8	1-22116-043-0	01	1	1307-1312	●	●
84	GASKET; EXH PIPE (B) ID=85.8	1-22116-043-0	01	1	1307-1312	●
84	GASKET; EXH PIPE 6HK1-TCN ENG(82L) (B) ID=85.8	1-22116-043-0	01	1	1307-1312		●
84	GASKET; EXH PIPE (B) ID=85.8	1-22116-043-0	01	1	1401-	●	●	●
84	GASKET; EXH PIPE (B) ID=85.8	1-22116-043-0	01	1	1401-	●		●
84	GASKET; EXH PIPE 6HK1-TCN ENG(82L) (B) ID=85.8	1-22116-043-0	01	1	1401-		●
84	GASKET; EXH PIPE 4HK1-TCS ENG(RJS) (C) ID=64	8-97373-108-0	02	1	1307-		●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1307-1309	●	●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1307-1309	●	●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1310-1312	●	●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1401-	●	●	●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1307-1312	●	●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1401-	●	●	●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	02	1	1307-1312	●	●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	02	1	1401-	●	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1307-1312	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1401-	●	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	1307-1312	●	●
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	1401-	●	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1307-1312	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1401-	●	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	1307-1312	●	●
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	1401-	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE	8-98233-479-0	01	1	1307-1312	●
475	BEARING; SEAL,VIBNON,EXH PIPE 6HK1-TCN ENG(82L)	8-98233-479-0	01	1	1307-1312		●
475	BEARING; SEAL,VIBNON,EXH PIPE	8-98233-479-0	01	1	1401-	●		●
475	BEARING; SEAL,VIBNON,EXH PIPE 6HK1-TCN ENG(82L)	8-98233-479-0	01	1	1401-		●
476	SPRING; VIBNON,EXH PIPE	8-98233-482-0	02	1	1307-1312	●
476	SPRING; VIBNON,EXH PIPE 6HK1-TCN ENG(82L)	8-98233-482-0	02	1	1307-1312		●
476	SPRING; VIBNON,EXH PIPE	8-98233-482-0	02	1	1401-	●		●
476	SPRING; VIBNON,EXH PIPE 6HK1-TCN ENG(82L)	8-98233-482-0	02	1	1401-		●
506	BRACKET; STUD M12X35	1-22131-963-0	02	1	1307-1312	●	●
506	BRACKET; STUD M12X35	1-22131-963-0	02	1	1401-	●	●	●
555	PIPE; EXH,DPD 4HK1-TCS ENG(RJS)	8-98060-847-0	01	1	1307-		●
556	DPD ASM	8-97622-883-4	01	1	1307-1312	●	●
556	DPD ASM	8-97622-883-4	01	1	1401-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
