◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11548 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶
1-41 — FUEL PIPING; CHASSIS (#123652) — 696 parça
çizim 362685
304 39 41 65 29 41 39 279 345 345 228
BalonParca AdiParca NoAdetTipApplied Date A B C
29 HOSE; FUEL
(E) 		8-98233-950-0 01 1 1307- ●
29 HOSE; FUEL
WHEEL BASE 4300MM(43W) (E) 		8-98233-948-0 01 1 1307-1312 ●
29 HOSE; FUEL
WHEEL BASE 4300MM(43W) (E) 		8-98233-948-0 01 1 1401- ● ●
29 HOSE; FUEL
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (E) 		8-98233-949-0 01 1 1307-1312 ●
29 HOSE; FUEL
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (E) 		8-98233-949-0 01 1 1401- ●
29 HOSE; FUEL
WHEEL BASE 5100MM(51W) (E) 		8-98233-949-0 01 1 1401- ●
29 HOSE; FUEL
(A) 		8-98078-197-1 01 1 1307-1312 ●
29 HOSE; FUEL
6HK1-TCN ENG(82L) (A) 		8-98078-197-1 01 1 1307-1312 ●
29 HOSE; FUEL
(A) 		8-98078-197-1 01 1 1401- ● ●
29 HOSE; FUEL
6HK1-TCN ENG(82L) (A) 		8-98078-197-1 01 1 1401- ●
29 HOSE; FUEL
6HK1-TCN ENG(82L) (B) 		8-98156-579-0 01 1 1307-1312 ● ●
29 HOSE; FUEL
6HK1-TCN ENG(82L) (B) 		8-98156-579-0 01 1 1401- ● ●
29 HOSE; FUEL
(B) 		8-98156-579-0 01 1 1401- ●
29 HOSE; FUEL
4HK1-TCS ENG(RJS) (C) 		8-98192-966-0 01 1 1307- ●
29 HOSE; FUEL
4HK1-TCS ENG(RJS) (D) 		8-98192-968-0 01 1 1307- ●
39 PIPE; FUEL
NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1307-1312 ● ●
39 PIPE; FUEL
NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1401- ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=8 H=20 L=20 		1-09700-604-0 01 1 1307-1312 ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=8 H=20 L=20 		1-09700-604-0 01 1 1401- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1307-1312 ●
41 CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1307-1312 ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1401- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1401- ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 1307-1312 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 1401- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1307-1312 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1307-1312 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1401- ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1401- ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 1307-1312 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 1401- ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1307-1312 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1401- ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=8 H=20 L=20 		1-09700-604-0 02 1 1307- ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 02 1 1307- ●
41 CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS) (B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1307- ●
65 HOSE; FUEL,DELIVERY PIPE
4HK1-TCS ENG(RJS) L=300 SERVICED BY L=3000 		0-01859-300-0 01 1 1307- ●
65 HOSE; FUEL,DELIVERY PIPE
6HK1-TCN ENG(82L) L=320 SERVICED BY L=3000 		0-01859-300-0 01 1 1307- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4300MM(43W) L=580 SERVICED BY L=3000 		0-01859-300-0 01 1 1307-1312 ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4300MM(43W) L=580 SERVICED BY L=3000 		0-01859-300-0 01 1 1401- ● ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=450 SERVICED BY L=3000 		0-01859-300-0 01 1 1307-1312 ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=450 SERVICED BY L=3000 		0-01859-300-0 01 1 1401- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 5100MM(51W) L=450 SERVICED BY L=3000 		0-01859-300-0 01 1 1401- ●
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1307-1312 ● ●
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1401- ● ● ●
228 BOLT; BRKT,SEDIMENTER
(C) M10X50 FLANGE 		0-28051-050-0 02 1 1307-1312 ●
228 BOLT; BRKT,SEDIMENTER
(C) M10X50 FLANGE 		0-28051-050-0 02 1 1401- ● ●
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1307-1312 ● ●
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1401- ● ● ●
228 BOLT; BRKT,SEDIMENTER
(C) M10X60 FLANGE 		0-28051-060-0 02 1 1307- ●
279 WASHER
ID=10.5 OD=26 		0-91614-710-0 02 1 1307-1312 ● ●
279 WASHER
ID=10.5 OD=26 		0-91614-710-0 02 1 1401- ● ● ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
304 NUT; BRKT
6HK1-TCN ENG(82L) (A) M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1401- ● ●
304 NUT; BRKT
6HK1-TCN ENG(82L) (A) M8 FLANGE 		0-91180-108-0 02 1 1401- ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1307-1312 ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1307-1312 ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1401- ● ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1401- ● ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1307-1312 ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1307-1312 ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1401- ● ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1401- ● ●
304 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M8 FLANGE 		0-91180-108-0 01 1 1307- ●
345 PLUG
NPTF3/8-18 		8-97329-623-0 02 1 1307-1312 ● ●
345 PLUG
NPTF3/8-18 		8-97329-623-0 02 1 1401- ● ● ●

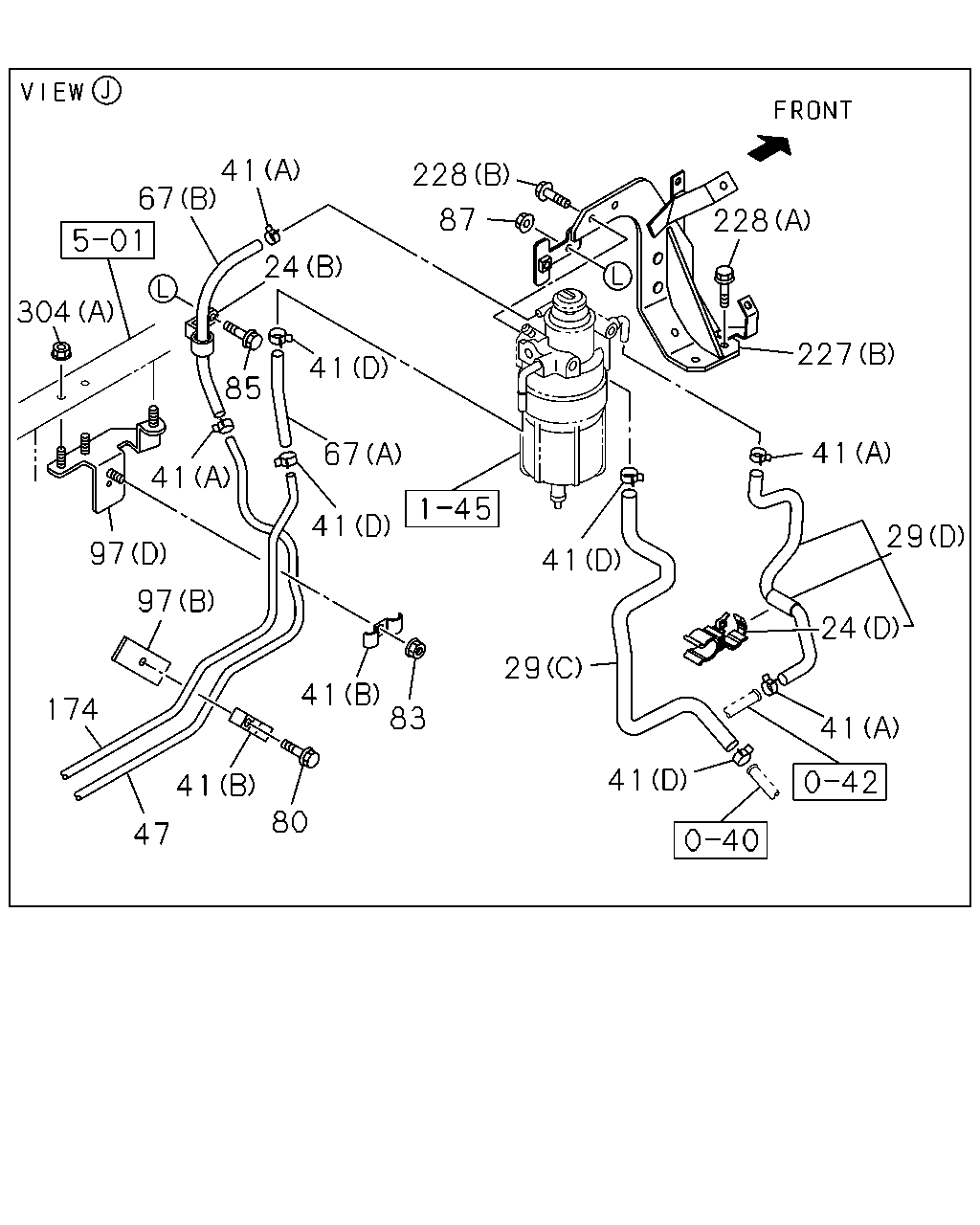

çizim 362758
228 41 67 304 24 41 85 41 97 67 41 97 174 41 47 41 80 83 29 41 41 41 24 29 41 227 228 87
BalonParca AdiParca NoAdetTipApplied Date A B C
24 CLIP; FUEL HOSE
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 1307-1312 ● ●
24 CLIP; FUEL HOSE
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 1401- ● ● ●
24 CLIP; FUEL HOSE
(A) ID=14.5 & 14.5 		1-09701-246-1 01 1 1307-1312 ● ●
24 CLIP; FUEL HOSE
(A) ID=14.5 & 14.5 		1-09701-246-1 01 1 1401- ● ● ●
24 CLIP; FUEL HOSE
(C) ID=21 L=24 		8-98019-191-0 01 1 1307-1312 ● ●
24 CLIP; FUEL HOSE
(C) ID=21 L=24 		8-98019-191-0 01 1 1401- ● ● ●
24 CLIP; FUEL HOSE
6HK1-TCN ENG(82L) (E) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1307-1312 ● ●
24 CLIP; FUEL HOSE
6HK1-TCN ENG(82L) (E) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1401- ● ●
24 CLIP; FUEL HOSE
(E) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1401- ●
24 CLIP; FUEL HOSE
4HK1-TCS ENG(RJS) (D) ID=16.5 & 10.5-14 		8-98147-093-0 01 1 1307- ●
29 HOSE; FUEL
(E) 		8-98233-950-0 01 1 1307- ●
29 HOSE; FUEL
WHEEL BASE 4300MM(43W) (E) 		8-98233-948-0 01 1 1307-1312 ●
29 HOSE; FUEL
WHEEL BASE 4300MM(43W) (E) 		8-98233-948-0 01 1 1401- ● ●
29 HOSE; FUEL
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (E) 		8-98233-949-0 01 1 1307-1312 ●
29 HOSE; FUEL
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (E) 		8-98233-949-0 01 1 1401- ●
29 HOSE; FUEL
WHEEL BASE 5100MM(51W) (E) 		8-98233-949-0 01 1 1401- ●
29 HOSE; FUEL
(A) 		8-98078-197-1 01 1 1307-1312 ●
29 HOSE; FUEL
6HK1-TCN ENG(82L) (A) 		8-98078-197-1 01 1 1307-1312 ●
29 HOSE; FUEL
(A) 		8-98078-197-1 01 1 1401- ● ●
29 HOSE; FUEL
6HK1-TCN ENG(82L) (A) 		8-98078-197-1 01 1 1401- ●
29 HOSE; FUEL
6HK1-TCN ENG(82L) (B) 		8-98156-579-0 01 1 1307-1312 ● ●
29 HOSE; FUEL
6HK1-TCN ENG(82L) (B) 		8-98156-579-0 01 1 1401- ● ●
29 HOSE; FUEL
(B) 		8-98156-579-0 01 1 1401- ●
29 HOSE; FUEL
4HK1-TCS ENG(RJS) (C) 		8-98192-966-0 01 1 1307- ●
29 HOSE; FUEL
4HK1-TCS ENG(RJS) (D) 		8-98192-968-0 01 1 1307- ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=8 H=20 L=20 		1-09700-604-0 01 1 1307-1312 ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=8 H=20 L=20 		1-09700-604-0 01 1 1401- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1307-1312 ●
41 CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1307-1312 ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1401- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1401- ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 1307-1312 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 1401- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1307-1312 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1307-1312 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1401- ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1401- ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 1307-1312 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 1401- ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1307-1312 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1401- ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=8 H=20 L=20 		1-09700-604-0 02 1 1307- ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 02 1 1307- ●
41 CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS) (B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1307- ●
47 PIPE; FUEL,RETURN
WHEEL BASE 4300MM(43W) L=1476 		8-98235-281-0 01 1 1307-1312 ●
47 PIPE; FUEL,RETURN
WHEEL BASE 4300MM(43W) L=1476 		8-98235-281-0 01 1 1401- ● ●
47 PIPE; FUEL,RETURN
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=2316 		8-98235-282-0 01 1 1307-1312 ●
47 PIPE; FUEL,RETURN
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=2316 		8-98235-282-0 01 1 1401- ●
47 PIPE; FUEL,RETURN
WHEEL BASE 5100MM(51W) L=2316 		8-98235-282-0 01 1 1401- ●
47 PIPE; FUEL,RETURN
4HK1-TCS ENG(RJS) L=3009 		8-98234-000-0 01 1 1307- ●
47 PIPE; FUEL,RETURN
6HK1-TCN ENG(82L) L=2293 		8-98233-999-0 01 1 1307- ●
67 HOSE; FUEL,DELIVERY
4HK1-TCS ENG(RJS) (B) L=210 SERVICED BY L=3000 		0-01558-300-0 01 1 1307- ●
67 HOSE; FUEL,DELIVERY
4HK1-TCS ENG(RJS) (A) L=140 SERVICED BY L=3000 		0-01859-300-0 01 1 1307- ●
67 HOSE; FUEL,DELIVERY
6HK1-TCN ENG(82L) (B) L=440 SERVICED BY L=3000 		0-01558-300-0 01 1 1307-1312 ● ●
67 HOSE; FUEL,DELIVERY
6HK1-TCN ENG(82L) (B) L=440 SERVICED BY L=3000 		0-01558-300-0 01 1 1401- ● ●
67 HOSE; FUEL,DELIVERY
(B) L=440 SERVICED BY L=3000 		0-01558-300-0 01 1 1401- ●
67 HOSE; FUEL,DELIVERY
6HK1-TCN ENG(82L) (A) L=280 SERVICED BY L=3000 		0-01859-300-0 01 1 1307-1312 ● ●
67 HOSE; FUEL,DELIVERY
6HK1-TCN ENG(82L) (A) L=280 SERVICED BY L=3000 		0-01859-300-0 01 1 1401- ● ●
67 HOSE; FUEL,DELIVERY
(A) L=280 SERVICED BY L=3000 		0-01859-300-0 01 1 1401- ●
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 01 1 1307-1312 ● ●
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 01 1 1401- ● ● ●
80 BOLT; CLIP,FUEL TANK
M8X25 FLANGE 		0-28650-825-0 01 1 1307-1312 ●
80 BOLT; CLIP,FUEL TANK
M8X25 FLANGE 		0-28650-825-0 01 1 1401- ● ●
80 BOLT; CLIP,FUEL TANK
WHEEL BASE 4300MM(43W) M8X50 FLANGE 		0-28050-850-0 02 1 1307-1312 ●
80 BOLT; CLIP,FUEL TANK
WHEEL BASE 4300MM(43W) M8X50 FLANGE 		0-28050-850-0 02 1 1401- ● ●
80 BOLT; CLIP,FUEL TANK
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M8X50 FLANGE 		0-28050-850-0 04 1 1307-1312 ●
80 BOLT; CLIP,FUEL TANK
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M8X50 FLANGE 		0-28050-850-0 04 1 1401- ●
80 BOLT; CLIP,FUEL TANK
WHEEL BASE 5100MM(51W) M8X50 FLANGE 		0-28050-850-0 04 1 1401- ●
80 BOLT; CLIP,FUEL TANK
M8X50 FLANGE 		0-28050-850-0 03 1 1307- ●
80 BOLT; CLIP,FUEL TANK
M8X25 FLANGE 		0-28650-825-0 02 1 1307- ●
83 NUT; CLIP,FUEL TANK
WHEEL BASE 4300MM(43W) M8 FLANGE 		0-91180-108-0 04 1 1307-1312 ●
83 NUT; CLIP,FUEL TANK
WHEEL BASE 4300MM(43W) M8 FLANGE 		0-91180-108-0 04 1 1401- ● ●
83 NUT; CLIP,FUEL TANK
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M8 FLANGE 		0-91180-108-0 06 1 1307-1312 ●
83 NUT; CLIP,FUEL TANK
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 06 1 1307-1312 ●
83 NUT; CLIP,FUEL TANK
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M8 FLANGE 		0-91180-108-0 06 1 1401- ●
83 NUT; CLIP,FUEL TANK
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 06 1 1401- ●
83 NUT; CLIP,FUEL TANK
WHEEL BASE 5100MM(51W) M8 FLANGE 		0-91180-108-0 06 1 1401- ●
83 NUT; CLIP,FUEL TANK
4HK1-TCS ENG(RJS) M8 FLANGE 		0-91180-108-0 08 1 1307- ●
85 BOLT; CLIP,FUEL HOSE
4HK1-TCS ENG(RJS) M8X20 FLANGE 		0-28650-820-0 01 1 1307- ●
87 NUT; CLIP,FUEL HOSE
M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
87 NUT; CLIP,FUEL HOSE
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
87 NUT; CLIP,FUEL HOSE
M8 FLANGE 		0-91180-108-0 02 1 1401- ● ●
87 NUT; CLIP,FUEL HOSE
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 02 1 1401- ●
87 NUT; CLIP,FUEL HOSE
4HK1-TCS ENG(RJS) M8 FLANGE 		0-91180-108-0 01 1 1307- ●
97 BRACKET; CLIP
(A) L=55 		1-47476-177-0 01 1 1307-1312 ● ●
97 BRACKET; CLIP
(A) L=55 		1-47476-177-0 01 1 1401- ● ● ●
97 BRACKET; CLIP
(F) 		8-98077-896-0 01 1 1307-1312 ●
97 BRACKET; CLIP
6HK1-TCN ENG(82L) (F) 		8-98077-896-0 01 1 1307-1312 ●
97 BRACKET; CLIP
(F) 		8-98077-896-0 01 1 1401- ● ●
97 BRACKET; CLIP
6HK1-TCN ENG(82L) (F) 		8-98077-896-0 01 1 1401- ●
97 BRACKET; CLIP
(E) 		8-98109-768-0 01 1 1307-1312 ● ●
97 BRACKET; CLIP
(E) 		8-98109-768-0 01 1 1401- ● ● ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (B) L=50 		1-47475-299-2 01 1 1307- ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (C) 		8-98078-201-0 01 1 1307- ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (D) 		8-98083-537-0 01 1 1307- ●
174 PIPE; FUEL,FEED,FRT
WHEEL BASE 4300MM(43W) 		8-98178-520-0 01 1 1307-1312 ●
174 PIPE; FUEL,FEED,FRT
WHEEL BASE 4300MM(43W) 		8-98178-520-0 01 1 1401- ● ●
174 PIPE; FUEL,FEED,FRT
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) 		8-98179-133-0 01 1 1307-1312 ●
174 PIPE; FUEL,FEED,FRT
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) 		8-98179-133-0 01 1 1401- ●
174 PIPE; FUEL,FEED,FRT
WHEEL BASE 5100MM(51W) 		8-98179-133-0 01 1 1401- ●
174 PIPE; FUEL,FEED,FRT
4HK1-TCS ENG(RJS) 		8-98233-998-0 01 1 1307- ●
174 PIPE; FUEL,FEED,FRT
6HK1-TCN ENG(82L) 		8-98233-997-0 01 1 1307- ●
227 BRACKET; FUEL SEDIMENTER
(A) 		8-98044-366-3 01 1 1307-1312 ●
227 BRACKET; FUEL SEDIMENTER
6HK1-TCN ENG(82L) (A) 		8-98044-366-3 01 1 1307-1312 ●
227 BRACKET; FUEL SEDIMENTER
(A) 		8-98044-366-3 01 1 1401- ● ●
227 BRACKET; FUEL SEDIMENTER
6HK1-TCN ENG(82L) (A) 		8-98044-366-3 01 1 1401- ●
227 BRACKET; FUEL SEDIMENTER
4HK1-TCS ENG(RJS) (B) 		8-98133-172-0 01 1 1307- ●
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1307-1312 ● ●
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1401- ● ● ●
228 BOLT; BRKT,SEDIMENTER
(C) M10X50 FLANGE 		0-28051-050-0 02 1 1307-1312 ●
228 BOLT; BRKT,SEDIMENTER
(C) M10X50 FLANGE 		0-28051-050-0 02 1 1401- ● ●
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1307-1312 ● ●
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1401- ● ● ●
228 BOLT; BRKT,SEDIMENTER
(C) M10X60 FLANGE 		0-28051-060-0 02 1 1307- ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
304 NUT; BRKT
6HK1-TCN ENG(82L) (A) M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1401- ● ●
304 NUT; BRKT
6HK1-TCN ENG(82L) (A) M8 FLANGE 		0-91180-108-0 02 1 1401- ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1307-1312 ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1307-1312 ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1401- ● ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1401- ● ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1307-1312 ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1307-1312 ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1401- ● ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1401- ● ●
304 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M8 FLANGE 		0-91180-108-0 01 1 1307- ●

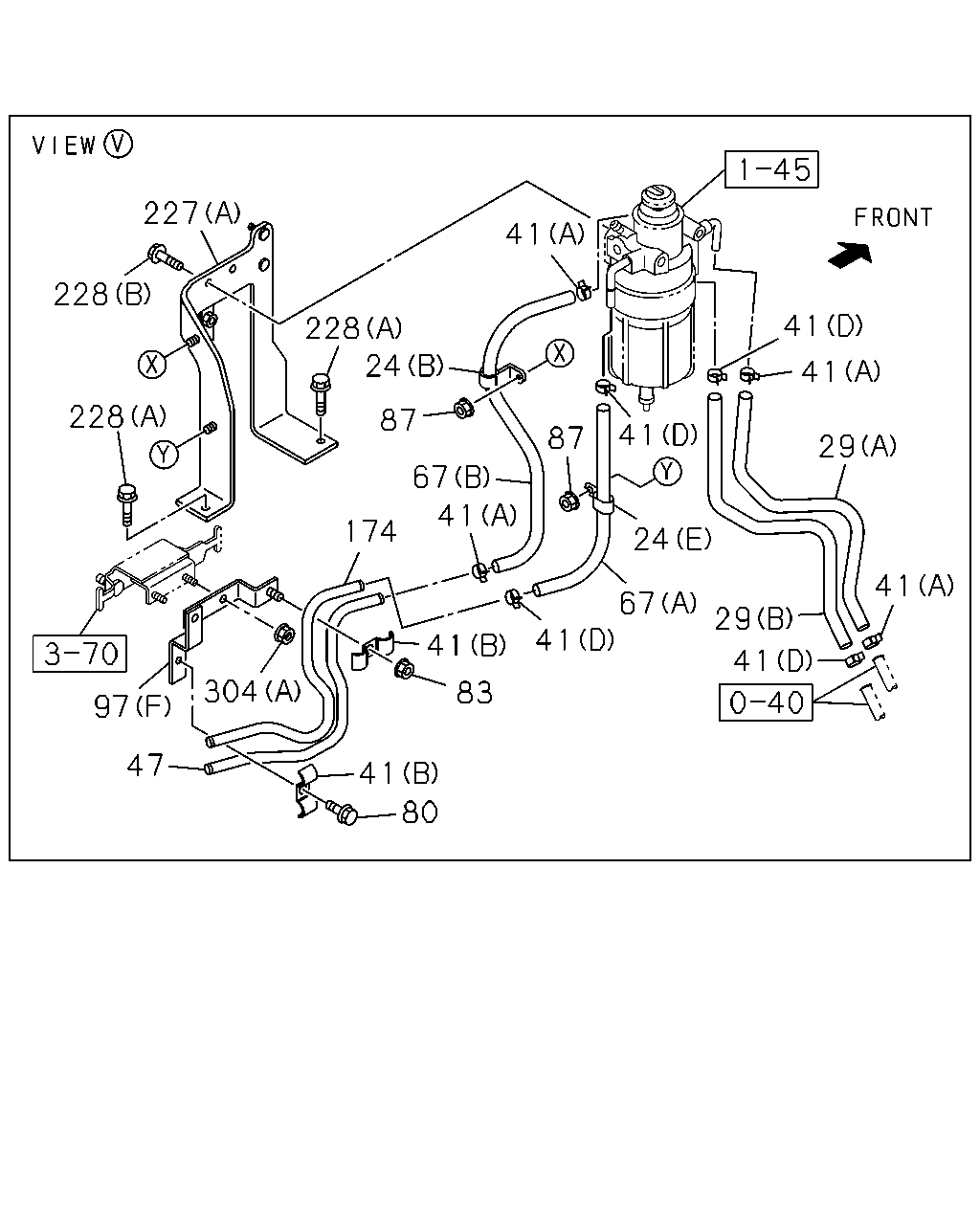

çizim 362771
227 228 228 304 97 47 41 80 228 24 87 67 41 174 41 83 41 67 24 41 87 41 41 41 29 41 29 41
BalonParca AdiParca NoAdetTipApplied Date A B C
24 CLIP; FUEL HOSE
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 1307-1312 ● ●
24 CLIP; FUEL HOSE
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 1401- ● ● ●
24 CLIP; FUEL HOSE
(A) ID=14.5 & 14.5 		1-09701-246-1 01 1 1307-1312 ● ●
24 CLIP; FUEL HOSE
(A) ID=14.5 & 14.5 		1-09701-246-1 01 1 1401- ● ● ●
24 CLIP; FUEL HOSE
(C) ID=21 L=24 		8-98019-191-0 01 1 1307-1312 ● ●
24 CLIP; FUEL HOSE
(C) ID=21 L=24 		8-98019-191-0 01 1 1401- ● ● ●
24 CLIP; FUEL HOSE
6HK1-TCN ENG(82L) (E) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1307-1312 ● ●
24 CLIP; FUEL HOSE
6HK1-TCN ENG(82L) (E) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1401- ● ●
24 CLIP; FUEL HOSE
(E) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1401- ●
24 CLIP; FUEL HOSE
4HK1-TCS ENG(RJS) (D) ID=16.5 & 10.5-14 		8-98147-093-0 01 1 1307- ●
29 HOSE; FUEL
(E) 		8-98233-950-0 01 1 1307- ●
29 HOSE; FUEL
WHEEL BASE 4300MM(43W) (E) 		8-98233-948-0 01 1 1307-1312 ●
29 HOSE; FUEL
WHEEL BASE 4300MM(43W) (E) 		8-98233-948-0 01 1 1401- ● ●
29 HOSE; FUEL
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (E) 		8-98233-949-0 01 1 1307-1312 ●
29 HOSE; FUEL
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (E) 		8-98233-949-0 01 1 1401- ●
29 HOSE; FUEL
WHEEL BASE 5100MM(51W) (E) 		8-98233-949-0 01 1 1401- ●
29 HOSE; FUEL
(A) 		8-98078-197-1 01 1 1307-1312 ●
29 HOSE; FUEL
6HK1-TCN ENG(82L) (A) 		8-98078-197-1 01 1 1307-1312 ●
29 HOSE; FUEL
(A) 		8-98078-197-1 01 1 1401- ● ●
29 HOSE; FUEL
6HK1-TCN ENG(82L) (A) 		8-98078-197-1 01 1 1401- ●
29 HOSE; FUEL
6HK1-TCN ENG(82L) (B) 		8-98156-579-0 01 1 1307-1312 ● ●
29 HOSE; FUEL
6HK1-TCN ENG(82L) (B) 		8-98156-579-0 01 1 1401- ● ●
29 HOSE; FUEL
(B) 		8-98156-579-0 01 1 1401- ●
29 HOSE; FUEL
4HK1-TCS ENG(RJS) (C) 		8-98192-966-0 01 1 1307- ●
29 HOSE; FUEL
4HK1-TCS ENG(RJS) (D) 		8-98192-968-0 01 1 1307- ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=8 H=20 L=20 		1-09700-604-0 01 1 1307-1312 ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=8 H=20 L=20 		1-09700-604-0 01 1 1401- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1307-1312 ●
41 CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1307-1312 ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1401- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1401- ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 1307-1312 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 1401- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1307-1312 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1307-1312 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1401- ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1401- ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 1307-1312 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 1401- ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1307-1312 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1401- ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=8 H=20 L=20 		1-09700-604-0 02 1 1307- ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 02 1 1307- ●
41 CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS) (B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1307- ●
47 PIPE; FUEL,RETURN
WHEEL BASE 4300MM(43W) L=1476 		8-98235-281-0 01 1 1307-1312 ●
47 PIPE; FUEL,RETURN
WHEEL BASE 4300MM(43W) L=1476 		8-98235-281-0 01 1 1401- ● ●
47 PIPE; FUEL,RETURN
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=2316 		8-98235-282-0 01 1 1307-1312 ●
47 PIPE; FUEL,RETURN
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=2316 		8-98235-282-0 01 1 1401- ●
47 PIPE; FUEL,RETURN
WHEEL BASE 5100MM(51W) L=2316 		8-98235-282-0 01 1 1401- ●
47 PIPE; FUEL,RETURN
4HK1-TCS ENG(RJS) L=3009 		8-98234-000-0 01 1 1307- ●
47 PIPE; FUEL,RETURN
6HK1-TCN ENG(82L) L=2293 		8-98233-999-0 01 1 1307- ●
67 HOSE; FUEL,DELIVERY
4HK1-TCS ENG(RJS) (B) L=210 SERVICED BY L=3000 		0-01558-300-0 01 1 1307- ●
67 HOSE; FUEL,DELIVERY
4HK1-TCS ENG(RJS) (A) L=140 SERVICED BY L=3000 		0-01859-300-0 01 1 1307- ●
67 HOSE; FUEL,DELIVERY
6HK1-TCN ENG(82L) (B) L=440 SERVICED BY L=3000 		0-01558-300-0 01 1 1307-1312 ● ●
67 HOSE; FUEL,DELIVERY
6HK1-TCN ENG(82L) (B) L=440 SERVICED BY L=3000 		0-01558-300-0 01 1 1401- ● ●
67 HOSE; FUEL,DELIVERY
(B) L=440 SERVICED BY L=3000 		0-01558-300-0 01 1 1401- ●
67 HOSE; FUEL,DELIVERY
6HK1-TCN ENG(82L) (A) L=280 SERVICED BY L=3000 		0-01859-300-0 01 1 1307-1312 ● ●
67 HOSE; FUEL,DELIVERY
6HK1-TCN ENG(82L) (A) L=280 SERVICED BY L=3000 		0-01859-300-0 01 1 1401- ● ●
67 HOSE; FUEL,DELIVERY
(A) L=280 SERVICED BY L=3000 		0-01859-300-0 01 1 1401- ●
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 01 1 1307-1312 ● ●
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 01 1 1401- ● ● ●
80 BOLT; CLIP,FUEL TANK
M8X25 FLANGE 		0-28650-825-0 01 1 1307-1312 ●
80 BOLT; CLIP,FUEL TANK
M8X25 FLANGE 		0-28650-825-0 01 1 1401- ● ●
80 BOLT; CLIP,FUEL TANK
WHEEL BASE 4300MM(43W) M8X50 FLANGE 		0-28050-850-0 02 1 1307-1312 ●
80 BOLT; CLIP,FUEL TANK
WHEEL BASE 4300MM(43W) M8X50 FLANGE 		0-28050-850-0 02 1 1401- ● ●
80 BOLT; CLIP,FUEL TANK
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M8X50 FLANGE 		0-28050-850-0 04 1 1307-1312 ●
80 BOLT; CLIP,FUEL TANK
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M8X50 FLANGE 		0-28050-850-0 04 1 1401- ●
80 BOLT; CLIP,FUEL TANK
WHEEL BASE 5100MM(51W) M8X50 FLANGE 		0-28050-850-0 04 1 1401- ●
80 BOLT; CLIP,FUEL TANK
M8X50 FLANGE 		0-28050-850-0 03 1 1307- ●
80 BOLT; CLIP,FUEL TANK
M8X25 FLANGE 		0-28650-825-0 02 1 1307- ●
83 NUT; CLIP,FUEL TANK
WHEEL BASE 4300MM(43W) M8 FLANGE 		0-91180-108-0 04 1 1307-1312 ●
83 NUT; CLIP,FUEL TANK
WHEEL BASE 4300MM(43W) M8 FLANGE 		0-91180-108-0 04 1 1401- ● ●
83 NUT; CLIP,FUEL TANK
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M8 FLANGE 		0-91180-108-0 06 1 1307-1312 ●
83 NUT; CLIP,FUEL TANK
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 06 1 1307-1312 ●
83 NUT; CLIP,FUEL TANK
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M8 FLANGE 		0-91180-108-0 06 1 1401- ●
83 NUT; CLIP,FUEL TANK
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 06 1 1401- ●
83 NUT; CLIP,FUEL TANK
WHEEL BASE 5100MM(51W) M8 FLANGE 		0-91180-108-0 06 1 1401- ●
83 NUT; CLIP,FUEL TANK
4HK1-TCS ENG(RJS) M8 FLANGE 		0-91180-108-0 08 1 1307- ●
87 NUT; CLIP,FUEL HOSE
M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
87 NUT; CLIP,FUEL HOSE
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
87 NUT; CLIP,FUEL HOSE
M8 FLANGE 		0-91180-108-0 02 1 1401- ● ●
87 NUT; CLIP,FUEL HOSE
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 02 1 1401- ●
87 NUT; CLIP,FUEL HOSE
4HK1-TCS ENG(RJS) M8 FLANGE 		0-91180-108-0 01 1 1307- ●
97 BRACKET; CLIP
(A) L=55 		1-47476-177-0 01 1 1307-1312 ● ●
97 BRACKET; CLIP
(A) L=55 		1-47476-177-0 01 1 1401- ● ● ●
97 BRACKET; CLIP
(F) 		8-98077-896-0 01 1 1307-1312 ●
97 BRACKET; CLIP
6HK1-TCN ENG(82L) (F) 		8-98077-896-0 01 1 1307-1312 ●
97 BRACKET; CLIP
(F) 		8-98077-896-0 01 1 1401- ● ●
97 BRACKET; CLIP
6HK1-TCN ENG(82L) (F) 		8-98077-896-0 01 1 1401- ●
97 BRACKET; CLIP
(E) 		8-98109-768-0 01 1 1307-1312 ● ●
97 BRACKET; CLIP
(E) 		8-98109-768-0 01 1 1401- ● ● ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (B) L=50 		1-47475-299-2 01 1 1307- ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (C) 		8-98078-201-0 01 1 1307- ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (D) 		8-98083-537-0 01 1 1307- ●
174 PIPE; FUEL,FEED,FRT
WHEEL BASE 4300MM(43W) 		8-98178-520-0 01 1 1307-1312 ●
174 PIPE; FUEL,FEED,FRT
WHEEL BASE 4300MM(43W) 		8-98178-520-0 01 1 1401- ● ●
174 PIPE; FUEL,FEED,FRT
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) 		8-98179-133-0 01 1 1307-1312 ●
174 PIPE; FUEL,FEED,FRT
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) 		8-98179-133-0 01 1 1401- ●
174 PIPE; FUEL,FEED,FRT
WHEEL BASE 5100MM(51W) 		8-98179-133-0 01 1 1401- ●
174 PIPE; FUEL,FEED,FRT
4HK1-TCS ENG(RJS) 		8-98233-998-0 01 1 1307- ●
174 PIPE; FUEL,FEED,FRT
6HK1-TCN ENG(82L) 		8-98233-997-0 01 1 1307- ●
227 BRACKET; FUEL SEDIMENTER
(A) 		8-98044-366-3 01 1 1307-1312 ●
227 BRACKET; FUEL SEDIMENTER
6HK1-TCN ENG(82L) (A) 		8-98044-366-3 01 1 1307-1312 ●
227 BRACKET; FUEL SEDIMENTER
(A) 		8-98044-366-3 01 1 1401- ● ●
227 BRACKET; FUEL SEDIMENTER
6HK1-TCN ENG(82L) (A) 		8-98044-366-3 01 1 1401- ●
227 BRACKET; FUEL SEDIMENTER
4HK1-TCS ENG(RJS) (B) 		8-98133-172-0 01 1 1307- ●
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1307-1312 ● ●
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1401- ● ● ●
228 BOLT; BRKT,SEDIMENTER
(C) M10X50 FLANGE 		0-28051-050-0 02 1 1307-1312 ●
228 BOLT; BRKT,SEDIMENTER
(C) M10X50 FLANGE 		0-28051-050-0 02 1 1401- ● ●
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1307-1312 ● ●
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1401- ● ● ●
228 BOLT; BRKT,SEDIMENTER
(C) M10X60 FLANGE 		0-28051-060-0 02 1 1307- ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
304 NUT; BRKT
6HK1-TCN ENG(82L) (A) M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1401- ● ●
304 NUT; BRKT
6HK1-TCN ENG(82L) (A) M8 FLANGE 		0-91180-108-0 02 1 1401- ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1307-1312 ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1307-1312 ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1401- ● ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1401- ● ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1307-1312 ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1307-1312 ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1401- ● ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1401- ● ●
304 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M8 FLANGE 		0-91180-108-0 01 1 1307- ●

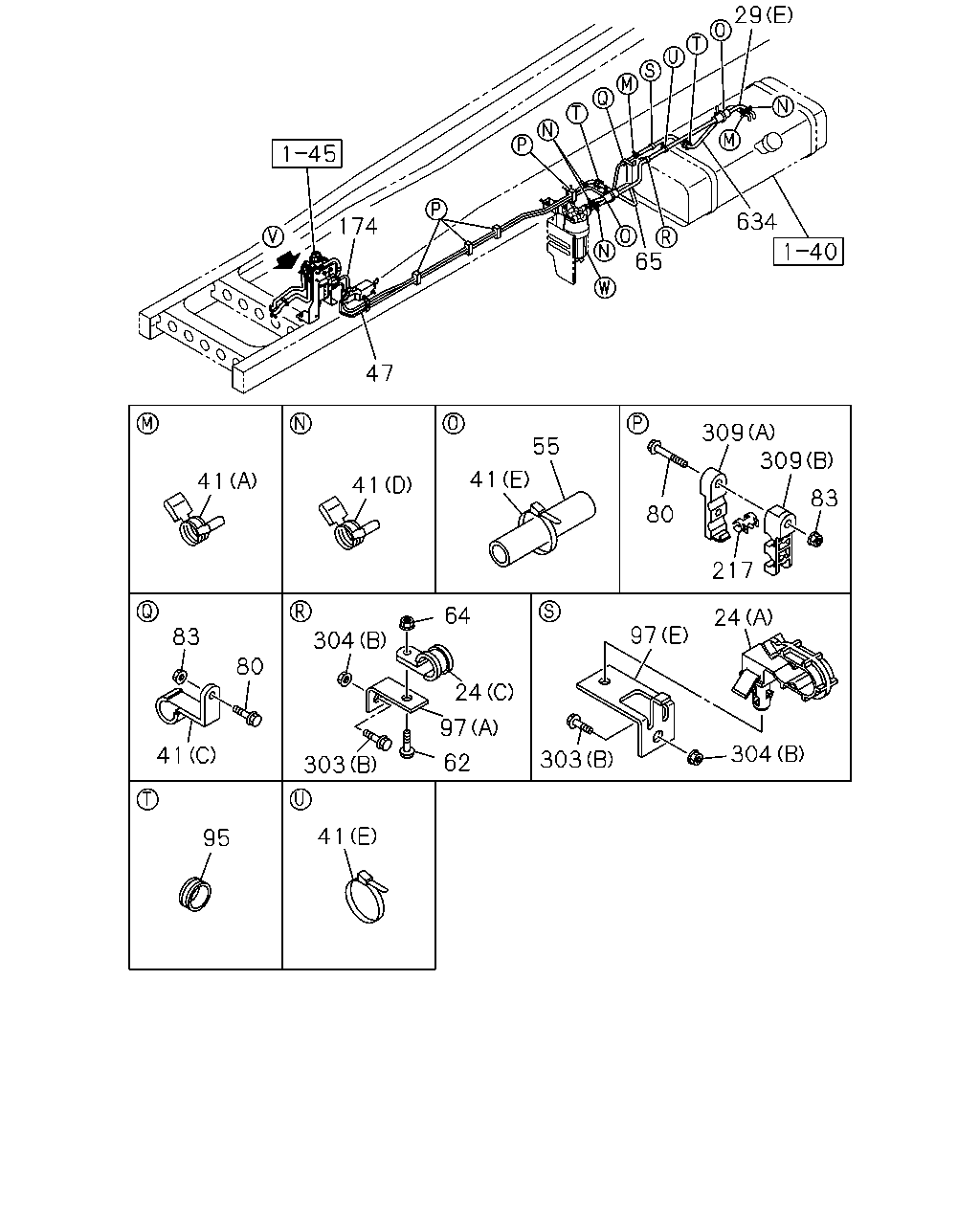

çizim 362779
174 47 65 634 29 41 41 41 55 80 309 309 83 217 24 304 97 303 64 24 97 62 303 304 41 95 41 80 83
BalonParca AdiParca NoAdetTipApplied Date A B C
24 CLIP; FUEL HOSE
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 1307-1312 ● ●
24 CLIP; FUEL HOSE
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 1401- ● ● ●
24 CLIP; FUEL HOSE
(A) ID=14.5 & 14.5 		1-09701-246-1 01 1 1307-1312 ● ●
24 CLIP; FUEL HOSE
(A) ID=14.5 & 14.5 		1-09701-246-1 01 1 1401- ● ● ●
24 CLIP; FUEL HOSE
(C) ID=21 L=24 		8-98019-191-0 01 1 1307-1312 ● ●
24 CLIP; FUEL HOSE
(C) ID=21 L=24 		8-98019-191-0 01 1 1401- ● ● ●
24 CLIP; FUEL HOSE
6HK1-TCN ENG(82L) (E) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1307-1312 ● ●
24 CLIP; FUEL HOSE
6HK1-TCN ENG(82L) (E) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1401- ● ●
24 CLIP; FUEL HOSE
(E) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1401- ●
24 CLIP; FUEL HOSE
4HK1-TCS ENG(RJS) (D) ID=16.5 & 10.5-14 		8-98147-093-0 01 1 1307- ●
29 HOSE; FUEL
(E) 		8-98233-950-0 01 1 1307- ●
29 HOSE; FUEL
WHEEL BASE 4300MM(43W) (E) 		8-98233-948-0 01 1 1307-1312 ●
29 HOSE; FUEL
WHEEL BASE 4300MM(43W) (E) 		8-98233-948-0 01 1 1401- ● ●
29 HOSE; FUEL
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (E) 		8-98233-949-0 01 1 1307-1312 ●
29 HOSE; FUEL
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (E) 		8-98233-949-0 01 1 1401- ●
29 HOSE; FUEL
WHEEL BASE 5100MM(51W) (E) 		8-98233-949-0 01 1 1401- ●
29 HOSE; FUEL
(A) 		8-98078-197-1 01 1 1307-1312 ●
29 HOSE; FUEL
6HK1-TCN ENG(82L) (A) 		8-98078-197-1 01 1 1307-1312 ●
29 HOSE; FUEL
(A) 		8-98078-197-1 01 1 1401- ● ●
29 HOSE; FUEL
6HK1-TCN ENG(82L) (A) 		8-98078-197-1 01 1 1401- ●
29 HOSE; FUEL
6HK1-TCN ENG(82L) (B) 		8-98156-579-0 01 1 1307-1312 ● ●
29 HOSE; FUEL
6HK1-TCN ENG(82L) (B) 		8-98156-579-0 01 1 1401- ● ●
29 HOSE; FUEL
(B) 		8-98156-579-0 01 1 1401- ●
29 HOSE; FUEL
4HK1-TCS ENG(RJS) (C) 		8-98192-966-0 01 1 1307- ●
29 HOSE; FUEL
4HK1-TCS ENG(RJS) (D) 		8-98192-968-0 01 1 1307- ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=8 H=20 L=20 		1-09700-604-0 01 1 1307-1312 ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=8 H=20 L=20 		1-09700-604-0 01 1 1401- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1307-1312 ●
41 CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1307-1312 ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1401- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1401- ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 1307-1312 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 1401- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1307-1312 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1307-1312 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1401- ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1401- ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 1307-1312 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 1401- ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1307-1312 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1401- ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=8 H=20 L=20 		1-09700-604-0 02 1 1307- ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 02 1 1307- ●
41 CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS) (B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1307- ●
47 PIPE; FUEL,RETURN
WHEEL BASE 4300MM(43W) L=1476 		8-98235-281-0 01 1 1307-1312 ●
47 PIPE; FUEL,RETURN
WHEEL BASE 4300MM(43W) L=1476 		8-98235-281-0 01 1 1401- ● ●
47 PIPE; FUEL,RETURN
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=2316 		8-98235-282-0 01 1 1307-1312 ●
47 PIPE; FUEL,RETURN
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=2316 		8-98235-282-0 01 1 1401- ●
47 PIPE; FUEL,RETURN
WHEEL BASE 5100MM(51W) L=2316 		8-98235-282-0 01 1 1401- ●
47 PIPE; FUEL,RETURN
4HK1-TCS ENG(RJS) L=3009 		8-98234-000-0 01 1 1307- ●
47 PIPE; FUEL,RETURN
6HK1-TCN ENG(82L) L=2293 		8-98233-999-0 01 1 1307- ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1307-1312 ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1401- ● ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 1307- ●
62 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 01 1 1307-1312 ● ●
62 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 01 1 1401- ● ● ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1307-1312 ● ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1401- ● ● ●
65 HOSE; FUEL,DELIVERY PIPE
4HK1-TCS ENG(RJS) L=300 SERVICED BY L=3000 		0-01859-300-0 01 1 1307- ●
65 HOSE; FUEL,DELIVERY PIPE
6HK1-TCN ENG(82L) L=320 SERVICED BY L=3000 		0-01859-300-0 01 1 1307- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4300MM(43W) L=580 SERVICED BY L=3000 		0-01859-300-0 01 1 1307-1312 ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4300MM(43W) L=580 SERVICED BY L=3000 		0-01859-300-0 01 1 1401- ● ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=450 SERVICED BY L=3000 		0-01859-300-0 01 1 1307-1312 ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=450 SERVICED BY L=3000 		0-01859-300-0 01 1 1401- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 5100MM(51W) L=450 SERVICED BY L=3000 		0-01859-300-0 01 1 1401- ●
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 01 1 1307-1312 ● ●
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 01 1 1401- ● ● ●
80 BOLT; CLIP,FUEL TANK
M8X25 FLANGE 		0-28650-825-0 01 1 1307-1312 ●
80 BOLT; CLIP,FUEL TANK
M8X25 FLANGE 		0-28650-825-0 01 1 1401- ● ●
80 BOLT; CLIP,FUEL TANK
WHEEL BASE 4300MM(43W) M8X50 FLANGE 		0-28050-850-0 02 1 1307-1312 ●
80 BOLT; CLIP,FUEL TANK
WHEEL BASE 4300MM(43W) M8X50 FLANGE 		0-28050-850-0 02 1 1401- ● ●
80 BOLT; CLIP,FUEL TANK
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M8X50 FLANGE 		0-28050-850-0 04 1 1307-1312 ●
80 BOLT; CLIP,FUEL TANK
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M8X50 FLANGE 		0-28050-850-0 04 1 1401- ●
80 BOLT; CLIP,FUEL TANK
WHEEL BASE 5100MM(51W) M8X50 FLANGE 		0-28050-850-0 04 1 1401- ●
80 BOLT; CLIP,FUEL TANK
M8X50 FLANGE 		0-28050-850-0 03 1 1307- ●
80 BOLT; CLIP,FUEL TANK
M8X25 FLANGE 		0-28650-825-0 02 1 1307- ●
83 NUT; CLIP,FUEL TANK
WHEEL BASE 4300MM(43W) M8 FLANGE 		0-91180-108-0 04 1 1307-1312 ●
83 NUT; CLIP,FUEL TANK
WHEEL BASE 4300MM(43W) M8 FLANGE 		0-91180-108-0 04 1 1401- ● ●
83 NUT; CLIP,FUEL TANK
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M8 FLANGE 		0-91180-108-0 06 1 1307-1312 ●
83 NUT; CLIP,FUEL TANK
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 06 1 1307-1312 ●
83 NUT; CLIP,FUEL TANK
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M8 FLANGE 		0-91180-108-0 06 1 1401- ●
83 NUT; CLIP,FUEL TANK
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 06 1 1401- ●
83 NUT; CLIP,FUEL TANK
WHEEL BASE 5100MM(51W) M8 FLANGE 		0-91180-108-0 06 1 1401- ●
83 NUT; CLIP,FUEL TANK
4HK1-TCS ENG(RJS) M8 FLANGE 		0-91180-108-0 08 1 1307- ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 02 1 1307-1312 ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 02 1 1401- ● ● ●
97 BRACKET; CLIP
(A) L=55 		1-47476-177-0 01 1 1307-1312 ● ●
97 BRACKET; CLIP
(A) L=55 		1-47476-177-0 01 1 1401- ● ● ●
97 BRACKET; CLIP
(F) 		8-98077-896-0 01 1 1307-1312 ●
97 BRACKET; CLIP
6HK1-TCN ENG(82L) (F) 		8-98077-896-0 01 1 1307-1312 ●
97 BRACKET; CLIP
(F) 		8-98077-896-0 01 1 1401- ● ●
97 BRACKET; CLIP
6HK1-TCN ENG(82L) (F) 		8-98077-896-0 01 1 1401- ●
97 BRACKET; CLIP
(E) 		8-98109-768-0 01 1 1307-1312 ● ●
97 BRACKET; CLIP
(E) 		8-98109-768-0 01 1 1401- ● ● ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (B) L=50 		1-47475-299-2 01 1 1307- ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (C) 		8-98078-201-0 01 1 1307- ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (D) 		8-98083-537-0 01 1 1307- ●
174 PIPE; FUEL,FEED,FRT
WHEEL BASE 4300MM(43W) 		8-98178-520-0 01 1 1307-1312 ●
174 PIPE; FUEL,FEED,FRT
WHEEL BASE 4300MM(43W) 		8-98178-520-0 01 1 1401- ● ●
174 PIPE; FUEL,FEED,FRT
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) 		8-98179-133-0 01 1 1307-1312 ●
174 PIPE; FUEL,FEED,FRT
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) 		8-98179-133-0 01 1 1401- ●
174 PIPE; FUEL,FEED,FRT
WHEEL BASE 5100MM(51W) 		8-98179-133-0 01 1 1401- ●
174 PIPE; FUEL,FEED,FRT
4HK1-TCS ENG(RJS) 		8-98233-998-0 01 1 1307- ●
174 PIPE; FUEL,FEED,FRT
6HK1-TCN ENG(82L) 		8-98233-997-0 01 1 1307- ●
217 COLLAR; FUEL PIPE FIX
ID=8 		1-47459-011-0 03 1 1307- ●
217 COLLAR; FUEL PIPE FIX
WHEEL BASE 4300MM(43W) ID=8 		1-47459-011-0 02 1 1307-1312 ●
217 COLLAR; FUEL PIPE FIX
WHEEL BASE 4300MM(43W) ID=8 		1-47459-011-0 02 1 1401- ● ●
217 COLLAR; FUEL PIPE FIX
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) ID=8 		1-47459-011-0 04 1 1307-1312 ●
217 COLLAR; FUEL PIPE FIX
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) ID=8 		1-47459-011-0 04 1 1401- ●
217 COLLAR; FUEL PIPE FIX
WHEEL BASE 5100MM(51W) ID=8 		1-47459-011-0 04 1 1401- ●
303 BOLT; BRKT
(C) M10X35 FLANGE 		0-28651-035-0 02 1 1307-1312 ●
303 BOLT; BRKT
(C) M10X35 FLANGE 		0-28651-035-0 02 1 1401- ● ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1307-1312 ● ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1307-1312 ● ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1401- ● ● ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1401- ● ● ●
303 BOLT; BRKT
4HK1-TCS ENG(RJS) (A) M8X30 FLANGE 		0-28650-830-0 01 1 1307- ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
304 NUT; BRKT
6HK1-TCN ENG(82L) (A) M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1401- ● ●
304 NUT; BRKT
6HK1-TCN ENG(82L) (A) M8 FLANGE 		0-91180-108-0 02 1 1401- ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1307-1312 ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1307-1312 ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1401- ● ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1401- ● ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1307-1312 ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1307-1312 ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1401- ● ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1401- ● ●
304 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M8 FLANGE 		0-91180-108-0 01 1 1307- ●
309 CLIP; PIPE
(A) ID=10 & 10 		1-09709-241-0 03 1 1307- ●
309 CLIP; PIPE
(B) ID=10 & 10 		1-09709-243-0 03 1 1307- ●
309 CLIP; PIPE
WHEEL BASE 4300MM(43W) (A) ID=10 & 10 		1-09709-241-0 02 1 1307-1312 ●
309 CLIP; PIPE
WHEEL BASE 4300MM(43W) (A) ID=10 & 10 		1-09709-241-0 02 1 1401- ● ●
309 CLIP; PIPE
WHEEL BASE 4300MM(43W) (B) ID=10 & 10 		1-09709-243-0 02 1 1307-1312 ●
309 CLIP; PIPE
WHEEL BASE 4300MM(43W) (B) ID=10 & 10 		1-09709-243-0 02 1 1401- ● ●
309 CLIP; PIPE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) ID=10 & 10 		1-09709-241-0 04 1 1307-1312 ●
309 CLIP; PIPE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) ID=10 & 10 		1-09709-241-0 04 1 1401- ●
309 CLIP; PIPE
WHEEL BASE 5100MM(51W) (A) ID=10 & 10 		1-09709-241-0 04 1 1401- ●
309 CLIP; PIPE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (B) ID=10 & 10 		1-09709-243-0 04 1 1307-1312 ●
309 CLIP; PIPE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (B) ID=10 & 10 		1-09709-243-0 04 1 1401- ●
309 CLIP; PIPE
WHEEL BASE 5100MM(51W) (B) ID=10 & 10 		1-09709-243-0 04 1 1401- ●
634 HOSE; RUBBER RETURN
WHEEL BASE 4300MM(43W) L=860 SERVICED BY L=3000 		0-01558-300-0 01 1 1307-1312 ●
634 HOSE; RUBBER RETURN
WHEEL BASE 4300MM(43W) L=860 SERVICED BY L=3000 		0-01558-300-0 01 1 1401- ● ●
634 HOSE; RUBBER RETURN
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=780 SERVICED BY L=3000 		0-01558-300-0 01 1 1307-1312 ●
634 HOSE; RUBBER RETURN
6HK1-TCN ENG(82L) L=780 SERVICED BY L=3000 		0-01558-300-0 01 1 1307-1312 ●
634 HOSE; RUBBER RETURN
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=780 SERVICED BY L=3000 		0-01558-300-0 01 1 1401- ●
634 HOSE; RUBBER RETURN
6HK1-TCN ENG(82L) L=780 SERVICED BY L=3000 		0-01558-300-0 01 1 1401- ●
634 HOSE; RUBBER RETURN
WHEEL BASE 5100MM(51W) L=780 SERVICED BY L=3000 		0-01558-300-0 01 1 1401- ●
634 HOSE; RUBBER RETURN
4HK1-TCS ENG(RJS) L=760 SERVICED BY L=3000 		0-01558-300-0 01 1 1307- ●
çizim 362782
304 304 303 345 345 228 279 39 41 29 65 41 39 418
BalonParca AdiParca NoAdetTipApplied Date A B C
29 HOSE; FUEL
(E) 		8-98233-950-0 01 1 1307- ●
29 HOSE; FUEL
WHEEL BASE 4300MM(43W) (E) 		8-98233-948-0 01 1 1307-1312 ●
29 HOSE; FUEL
WHEEL BASE 4300MM(43W) (E) 		8-98233-948-0 01 1 1401- ● ●
29 HOSE; FUEL
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (E) 		8-98233-949-0 01 1 1307-1312 ●
29 HOSE; FUEL
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (E) 		8-98233-949-0 01 1 1401- ●
29 HOSE; FUEL
WHEEL BASE 5100MM(51W) (E) 		8-98233-949-0 01 1 1401- ●
29 HOSE; FUEL
(A) 		8-98078-197-1 01 1 1307-1312 ●
29 HOSE; FUEL
6HK1-TCN ENG(82L) (A) 		8-98078-197-1 01 1 1307-1312 ●
29 HOSE; FUEL
(A) 		8-98078-197-1 01 1 1401- ● ●
29 HOSE; FUEL
6HK1-TCN ENG(82L) (A) 		8-98078-197-1 01 1 1401- ●
29 HOSE; FUEL
6HK1-TCN ENG(82L) (B) 		8-98156-579-0 01 1 1307-1312 ● ●
29 HOSE; FUEL
6HK1-TCN ENG(82L) (B) 		8-98156-579-0 01 1 1401- ● ●
29 HOSE; FUEL
(B) 		8-98156-579-0 01 1 1401- ●
29 HOSE; FUEL
4HK1-TCS ENG(RJS) (C) 		8-98192-966-0 01 1 1307- ●
29 HOSE; FUEL
4HK1-TCS ENG(RJS) (D) 		8-98192-968-0 01 1 1307- ●
39 PIPE; FUEL
NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1307-1312 ● ●
39 PIPE; FUEL
NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1401- ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=8 H=20 L=20 		1-09700-604-0 01 1 1307-1312 ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=8 H=20 L=20 		1-09700-604-0 01 1 1401- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1307-1312 ●
41 CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1307-1312 ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1401- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1401- ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 1307-1312 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 1401- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1307-1312 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1307-1312 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1401- ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1401- ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 1307-1312 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 1401- ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1307-1312 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1401- ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=8 H=20 L=20 		1-09700-604-0 02 1 1307- ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 02 1 1307- ●
41 CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS) (B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1307- ●
65 HOSE; FUEL,DELIVERY PIPE
4HK1-TCS ENG(RJS) L=300 SERVICED BY L=3000 		0-01859-300-0 01 1 1307- ●
65 HOSE; FUEL,DELIVERY PIPE
6HK1-TCN ENG(82L) L=320 SERVICED BY L=3000 		0-01859-300-0 01 1 1307- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4300MM(43W) L=580 SERVICED BY L=3000 		0-01859-300-0 01 1 1307-1312 ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4300MM(43W) L=580 SERVICED BY L=3000 		0-01859-300-0 01 1 1401- ● ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=450 SERVICED BY L=3000 		0-01859-300-0 01 1 1307-1312 ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=450 SERVICED BY L=3000 		0-01859-300-0 01 1 1401- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 5100MM(51W) L=450 SERVICED BY L=3000 		0-01859-300-0 01 1 1401- ●
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1307-1312 ● ●
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1401- ● ● ●
228 BOLT; BRKT,SEDIMENTER
(C) M10X50 FLANGE 		0-28051-050-0 02 1 1307-1312 ●
228 BOLT; BRKT,SEDIMENTER
(C) M10X50 FLANGE 		0-28051-050-0 02 1 1401- ● ●
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1307-1312 ● ●
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1401- ● ● ●
228 BOLT; BRKT,SEDIMENTER
(C) M10X60 FLANGE 		0-28051-060-0 02 1 1307- ●
279 WASHER
ID=10.5 OD=26 		0-91614-710-0 02 1 1307-1312 ● ●
279 WASHER
ID=10.5 OD=26 		0-91614-710-0 02 1 1401- ● ● ●
303 BOLT; BRKT
(C) M10X35 FLANGE 		0-28651-035-0 02 1 1307-1312 ●
303 BOLT; BRKT
(C) M10X35 FLANGE 		0-28651-035-0 02 1 1401- ● ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1307-1312 ● ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1307-1312 ● ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1401- ● ● ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1401- ● ● ●
303 BOLT; BRKT
4HK1-TCS ENG(RJS) (A) M8X30 FLANGE 		0-28650-830-0 01 1 1307- ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
304 NUT; BRKT
6HK1-TCN ENG(82L) (A) M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1401- ● ●
304 NUT; BRKT
6HK1-TCN ENG(82L) (A) M8 FLANGE 		0-91180-108-0 02 1 1401- ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1307-1312 ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1307-1312 ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1401- ● ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1401- ● ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1307-1312 ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1307-1312 ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1401- ● ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1401- ● ●
304 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M8 FLANGE 		0-91180-108-0 01 1 1307- ●
345 PLUG
NPTF3/8-18 		8-97329-623-0 02 1 1307-1312 ● ●
345 PLUG
NPTF3/8-18 		8-97329-623-0 02 1 1401- ● ● ●
418 BRACKET; PRE FUEL FILTER 8-98114-787-0 01 1 1307-1312 ●
418 BRACKET; PRE FUEL FILTER 8-98114-787-0 01 1 1401- ● ●

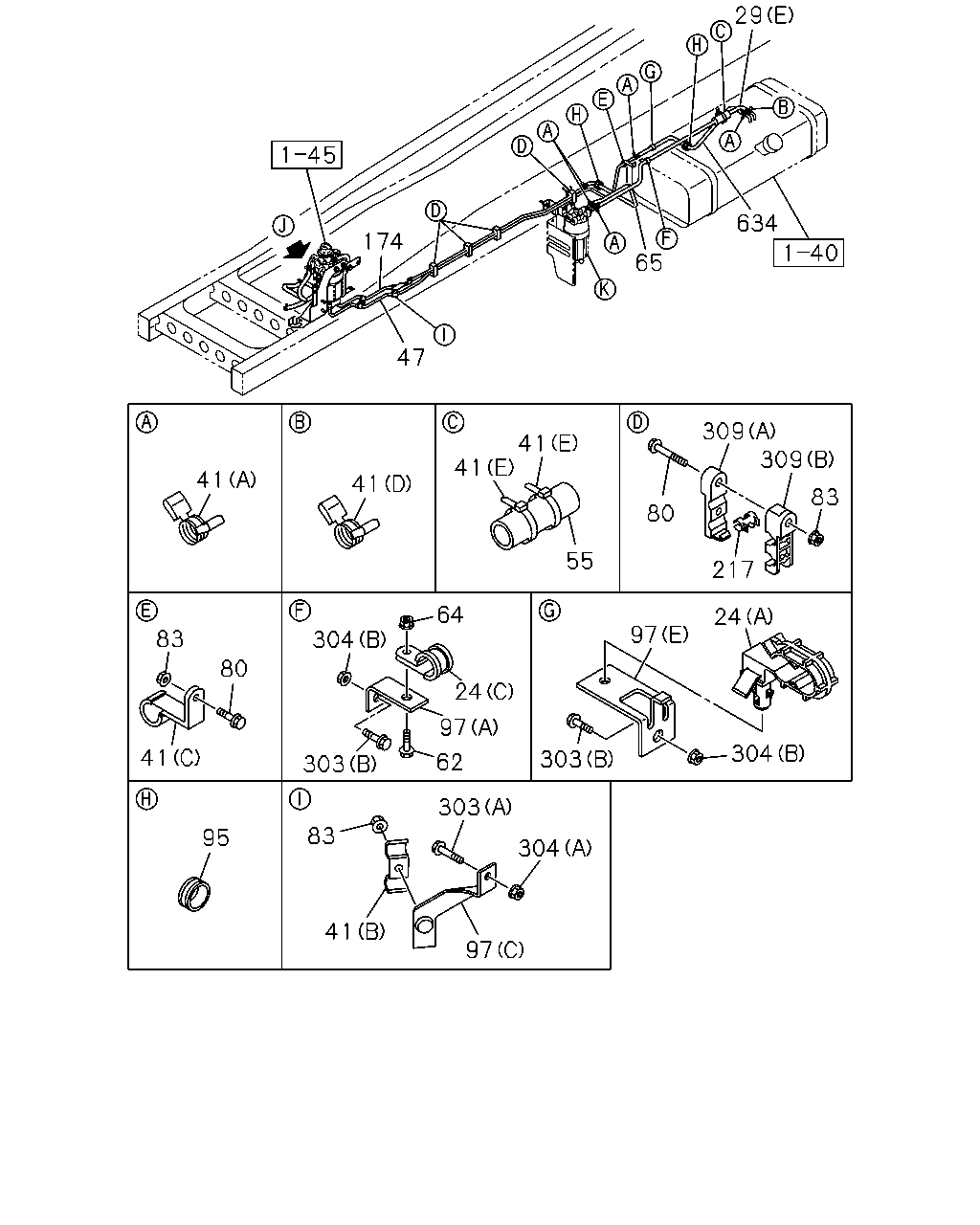

çizim 365969
174 47 29 634 65 41 41 41 41 55 80 309 309 83 217 83 80 41 95 304 64 24 97 62 303 83 303 304 97 41 97 303 304 24
BalonParca AdiParca NoAdetTipApplied Date A B C
24 CLIP; FUEL HOSE
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 1307-1312 ● ●
24 CLIP; FUEL HOSE
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 1401- ● ● ●
24 CLIP; FUEL HOSE
(A) ID=14.5 & 14.5 		1-09701-246-1 01 1 1307-1312 ● ●
24 CLIP; FUEL HOSE
(A) ID=14.5 & 14.5 		1-09701-246-1 01 1 1401- ● ● ●
24 CLIP; FUEL HOSE
(C) ID=21 L=24 		8-98019-191-0 01 1 1307-1312 ● ●
24 CLIP; FUEL HOSE
(C) ID=21 L=24 		8-98019-191-0 01 1 1401- ● ● ●
24 CLIP; FUEL HOSE
6HK1-TCN ENG(82L) (E) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1307-1312 ● ●
24 CLIP; FUEL HOSE
6HK1-TCN ENG(82L) (E) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1401- ● ●
24 CLIP; FUEL HOSE
(E) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1401- ●
24 CLIP; FUEL HOSE
4HK1-TCS ENG(RJS) (D) ID=16.5 & 10.5-14 		8-98147-093-0 01 1 1307- ●
29 HOSE; FUEL
(E) 		8-98233-950-0 01 1 1307- ●
29 HOSE; FUEL
WHEEL BASE 4300MM(43W) (E) 		8-98233-948-0 01 1 1307-1312 ●
29 HOSE; FUEL
WHEEL BASE 4300MM(43W) (E) 		8-98233-948-0 01 1 1401- ● ●
29 HOSE; FUEL
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (E) 		8-98233-949-0 01 1 1307-1312 ●
29 HOSE; FUEL
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (E) 		8-98233-949-0 01 1 1401- ●
29 HOSE; FUEL
WHEEL BASE 5100MM(51W) (E) 		8-98233-949-0 01 1 1401- ●
29 HOSE; FUEL
(A) 		8-98078-197-1 01 1 1307-1312 ●
29 HOSE; FUEL
6HK1-TCN ENG(82L) (A) 		8-98078-197-1 01 1 1307-1312 ●
29 HOSE; FUEL
(A) 		8-98078-197-1 01 1 1401- ● ●
29 HOSE; FUEL
6HK1-TCN ENG(82L) (A) 		8-98078-197-1 01 1 1401- ●
29 HOSE; FUEL
6HK1-TCN ENG(82L) (B) 		8-98156-579-0 01 1 1307-1312 ● ●
29 HOSE; FUEL
6HK1-TCN ENG(82L) (B) 		8-98156-579-0 01 1 1401- ● ●
29 HOSE; FUEL
(B) 		8-98156-579-0 01 1 1401- ●
29 HOSE; FUEL
4HK1-TCS ENG(RJS) (C) 		8-98192-966-0 01 1 1307- ●
29 HOSE; FUEL
4HK1-TCS ENG(RJS) (D) 		8-98192-968-0 01 1 1307- ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=8 H=20 L=20 		1-09700-604-0 01 1 1307-1312 ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=8 H=20 L=20 		1-09700-604-0 01 1 1401- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1307-1312 ●
41 CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1307-1312 ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1401- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1401- ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 1307-1312 ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 1401- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1307-1312 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1307-1312 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1401- ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1401- ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 1307-1312 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 1401- ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1307-1312 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1401- ● ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=8 H=20 L=20 		1-09700-604-0 02 1 1307- ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 02 1 1307- ●
41 CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS) (B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1307- ●
47 PIPE; FUEL,RETURN
WHEEL BASE 4300MM(43W) L=1476 		8-98235-281-0 01 1 1307-1312 ●
47 PIPE; FUEL,RETURN
WHEEL BASE 4300MM(43W) L=1476 		8-98235-281-0 01 1 1401- ● ●
47 PIPE; FUEL,RETURN
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=2316 		8-98235-282-0 01 1 1307-1312 ●
47 PIPE; FUEL,RETURN
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=2316 		8-98235-282-0 01 1 1401- ●
47 PIPE; FUEL,RETURN
WHEEL BASE 5100MM(51W) L=2316 		8-98235-282-0 01 1 1401- ●
47 PIPE; FUEL,RETURN
4HK1-TCS ENG(RJS) L=3009 		8-98234-000-0 01 1 1307- ●
47 PIPE; FUEL,RETURN
6HK1-TCN ENG(82L) L=2293 		8-98233-999-0 01 1 1307- ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1307-1312 ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1401- ● ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 1307- ●
62 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 01 1 1307-1312 ● ●
62 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 01 1 1401- ● ● ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1307-1312 ● ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1401- ● ● ●
65 HOSE; FUEL,DELIVERY PIPE
4HK1-TCS ENG(RJS) L=300 SERVICED BY L=3000 		0-01859-300-0 01 1 1307- ●
65 HOSE; FUEL,DELIVERY PIPE
6HK1-TCN ENG(82L) L=320 SERVICED BY L=3000 		0-01859-300-0 01 1 1307- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4300MM(43W) L=580 SERVICED BY L=3000 		0-01859-300-0 01 1 1307-1312 ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4300MM(43W) L=580 SERVICED BY L=3000 		0-01859-300-0 01 1 1401- ● ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=450 SERVICED BY L=3000 		0-01859-300-0 01 1 1307-1312 ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=450 SERVICED BY L=3000 		0-01859-300-0 01 1 1401- ●
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 5100MM(51W) L=450 SERVICED BY L=3000 		0-01859-300-0 01 1 1401- ●
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 01 1 1307-1312 ● ●
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 01 1 1401- ● ● ●
80 BOLT; CLIP,FUEL TANK
M8X25 FLANGE 		0-28650-825-0 01 1 1307-1312 ●
80 BOLT; CLIP,FUEL TANK
M8X25 FLANGE 		0-28650-825-0 01 1 1401- ● ●
80 BOLT; CLIP,FUEL TANK
WHEEL BASE 4300MM(43W) M8X50 FLANGE 		0-28050-850-0 02 1 1307-1312 ●
80 BOLT; CLIP,FUEL TANK
WHEEL BASE 4300MM(43W) M8X50 FLANGE 		0-28050-850-0 02 1 1401- ● ●
80 BOLT; CLIP,FUEL TANK
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M8X50 FLANGE 		0-28050-850-0 04 1 1307-1312 ●
80 BOLT; CLIP,FUEL TANK
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M8X50 FLANGE 		0-28050-850-0 04 1 1401- ●
80 BOLT; CLIP,FUEL TANK
WHEEL BASE 5100MM(51W) M8X50 FLANGE 		0-28050-850-0 04 1 1401- ●
80 BOLT; CLIP,FUEL TANK
M8X50 FLANGE 		0-28050-850-0 03 1 1307- ●
80 BOLT; CLIP,FUEL TANK
M8X25 FLANGE 		0-28650-825-0 02 1 1307- ●
83 NUT; CLIP,FUEL TANK
WHEEL BASE 4300MM(43W) M8 FLANGE 		0-91180-108-0 04 1 1307-1312 ●
83 NUT; CLIP,FUEL TANK
WHEEL BASE 4300MM(43W) M8 FLANGE 		0-91180-108-0 04 1 1401- ● ●
83 NUT; CLIP,FUEL TANK
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M8 FLANGE 		0-91180-108-0 06 1 1307-1312 ●
83 NUT; CLIP,FUEL TANK
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 06 1 1307-1312 ●
83 NUT; CLIP,FUEL TANK
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M8 FLANGE 		0-91180-108-0 06 1 1401- ●
83 NUT; CLIP,FUEL TANK
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 06 1 1401- ●
83 NUT; CLIP,FUEL TANK
WHEEL BASE 5100MM(51W) M8 FLANGE 		0-91180-108-0 06 1 1401- ●
83 NUT; CLIP,FUEL TANK
4HK1-TCS ENG(RJS) M8 FLANGE 		0-91180-108-0 08 1 1307- ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 02 1 1307-1312 ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 02 1 1401- ● ● ●
97 BRACKET; CLIP
(A) L=55 		1-47476-177-0 01 1 1307-1312 ● ●
97 BRACKET; CLIP
(A) L=55 		1-47476-177-0 01 1 1401- ● ● ●
97 BRACKET; CLIP
(F) 		8-98077-896-0 01 1 1307-1312 ●
97 BRACKET; CLIP
6HK1-TCN ENG(82L) (F) 		8-98077-896-0 01 1 1307-1312 ●
97 BRACKET; CLIP
(F) 		8-98077-896-0 01 1 1401- ● ●
97 BRACKET; CLIP
6HK1-TCN ENG(82L) (F) 		8-98077-896-0 01 1 1401- ●
97 BRACKET; CLIP
(E) 		8-98109-768-0 01 1 1307-1312 ● ●
97 BRACKET; CLIP
(E) 		8-98109-768-0 01 1 1401- ● ● ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (B) L=50 		1-47475-299-2 01 1 1307- ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (C) 		8-98078-201-0 01 1 1307- ●
97 BRACKET; CLIP
4HK1-TCS ENG(RJS) (D) 		8-98083-537-0 01 1 1307- ●
174 PIPE; FUEL,FEED,FRT
WHEEL BASE 4300MM(43W) 		8-98178-520-0 01 1 1307-1312 ●
174 PIPE; FUEL,FEED,FRT
WHEEL BASE 4300MM(43W) 		8-98178-520-0 01 1 1401- ● ●
174 PIPE; FUEL,FEED,FRT
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) 		8-98179-133-0 01 1 1307-1312 ●
174 PIPE; FUEL,FEED,FRT
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) 		8-98179-133-0 01 1 1401- ●
174 PIPE; FUEL,FEED,FRT
WHEEL BASE 5100MM(51W) 		8-98179-133-0 01 1 1401- ●
174 PIPE; FUEL,FEED,FRT
4HK1-TCS ENG(RJS) 		8-98233-998-0 01 1 1307- ●
174 PIPE; FUEL,FEED,FRT
6HK1-TCN ENG(82L) 		8-98233-997-0 01 1 1307- ●
217 COLLAR; FUEL PIPE FIX
ID=8 		1-47459-011-0 03 1 1307- ●
217 COLLAR; FUEL PIPE FIX
WHEEL BASE 4300MM(43W) ID=8 		1-47459-011-0 02 1 1307-1312 ●
217 COLLAR; FUEL PIPE FIX
WHEEL BASE 4300MM(43W) ID=8 		1-47459-011-0 02 1 1401- ● ●
217 COLLAR; FUEL PIPE FIX
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) ID=8 		1-47459-011-0 04 1 1307-1312 ●
217 COLLAR; FUEL PIPE FIX
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) ID=8 		1-47459-011-0 04 1 1401- ●
217 COLLAR; FUEL PIPE FIX
WHEEL BASE 5100MM(51W) ID=8 		1-47459-011-0 04 1 1401- ●
303 BOLT; BRKT
(C) M10X35 FLANGE 		0-28651-035-0 02 1 1307-1312 ●
303 BOLT; BRKT
(C) M10X35 FLANGE 		0-28651-035-0 02 1 1401- ● ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1307-1312 ● ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1307-1312 ● ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1401- ● ● ●
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1401- ● ● ●
303 BOLT; BRKT
4HK1-TCS ENG(RJS) (A) M8X30 FLANGE 		0-28650-830-0 01 1 1307- ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
304 NUT; BRKT
6HK1-TCN ENG(82L) (A) M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1401- ● ●
304 NUT; BRKT
6HK1-TCN ENG(82L) (A) M8 FLANGE 		0-91180-108-0 02 1 1401- ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1307-1312 ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1307-1312 ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1401- ● ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1401- ● ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1307-1312 ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1307-1312 ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1401- ● ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1401- ● ●
304 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M8 FLANGE 		0-91180-108-0 01 1 1307- ●
309 CLIP; PIPE
(A) ID=10 & 10 		1-09709-241-0 03 1 1307- ●
309 CLIP; PIPE
(B) ID=10 & 10 		1-09709-243-0 03 1 1307- ●
309 CLIP; PIPE
WHEEL BASE 4300MM(43W) (A) ID=10 & 10 		1-09709-241-0 02 1 1307-1312 ●
309 CLIP; PIPE
WHEEL BASE 4300MM(43W) (A) ID=10 & 10 		1-09709-241-0 02 1 1401- ● ●
309 CLIP; PIPE
WHEEL BASE 4300MM(43W) (B) ID=10 & 10 		1-09709-243-0 02 1 1307-1312 ●
309 CLIP; PIPE
WHEEL BASE 4300MM(43W) (B) ID=10 & 10 		1-09709-243-0 02 1 1401- ● ●
309 CLIP; PIPE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) ID=10 & 10 		1-09709-241-0 04 1 1307-1312 ●
309 CLIP; PIPE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) ID=10 & 10 		1-09709-241-0 04 1 1401- ●
309 CLIP; PIPE
WHEEL BASE 5100MM(51W) (A) ID=10 & 10 		1-09709-241-0 04 1 1401- ●
309 CLIP; PIPE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (B) ID=10 & 10 		1-09709-243-0 04 1 1307-1312 ●
309 CLIP; PIPE
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (B) ID=10 & 10 		1-09709-243-0 04 1 1401- ●
309 CLIP; PIPE
WHEEL BASE 5100MM(51W) (B) ID=10 & 10 		1-09709-243-0 04 1 1401- ●
634 HOSE; RUBBER RETURN
WHEEL BASE 4300MM(43W) L=860 SERVICED BY L=3000 		0-01558-300-0 01 1 1307-1312 ●
634 HOSE; RUBBER RETURN
WHEEL BASE 4300MM(43W) L=860 SERVICED BY L=3000 		0-01558-300-0 01 1 1401- ● ●
634 HOSE; RUBBER RETURN
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=780 SERVICED BY L=3000 		0-01558-300-0 01 1 1307-1312 ●
634 HOSE; RUBBER RETURN
6HK1-TCN ENG(82L) L=780 SERVICED BY L=3000 		0-01558-300-0 01 1 1307-1312 ●
634 HOSE; RUBBER RETURN
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=780 SERVICED BY L=3000 		0-01558-300-0 01 1 1401- ●
634 HOSE; RUBBER RETURN
6HK1-TCN ENG(82L) L=780 SERVICED BY L=3000 		0-01558-300-0 01 1 1401- ●
634 HOSE; RUBBER RETURN
WHEEL BASE 5100MM(51W) L=780 SERVICED BY L=3000 		0-01558-300-0 01 1 1401- ●
634 HOSE; RUBBER RETURN
4HK1-TCS ENG(RJS) L=760 SERVICED BY L=3000 		0-01558-300-0 01 1 1307- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
