1-35 — CHARGE AIR COOLER (#123650) — 11 parça
çizim 367079
15 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 COOLER; CHARGE AIR
(A) 		8-98006-479-1 01 1 1307- ●
1 COOLER; CHARGE AIR
(B) 		8-98047-633-0 01 1 1307-1312 ●
1 COOLER; CHARGE AIR
(B) 		8-98047-633-0 01 1 1401- ● ●
15 BOLT; CHARGE AIR COOLER
M8X35 FLANGE 		1-21469-151-0 04 1 1307-1312 ●
15 BOLT; CHARGE AIR COOLER
M8X35 FLANGE 		1-21469-151-0 04 1 1401- ● ●

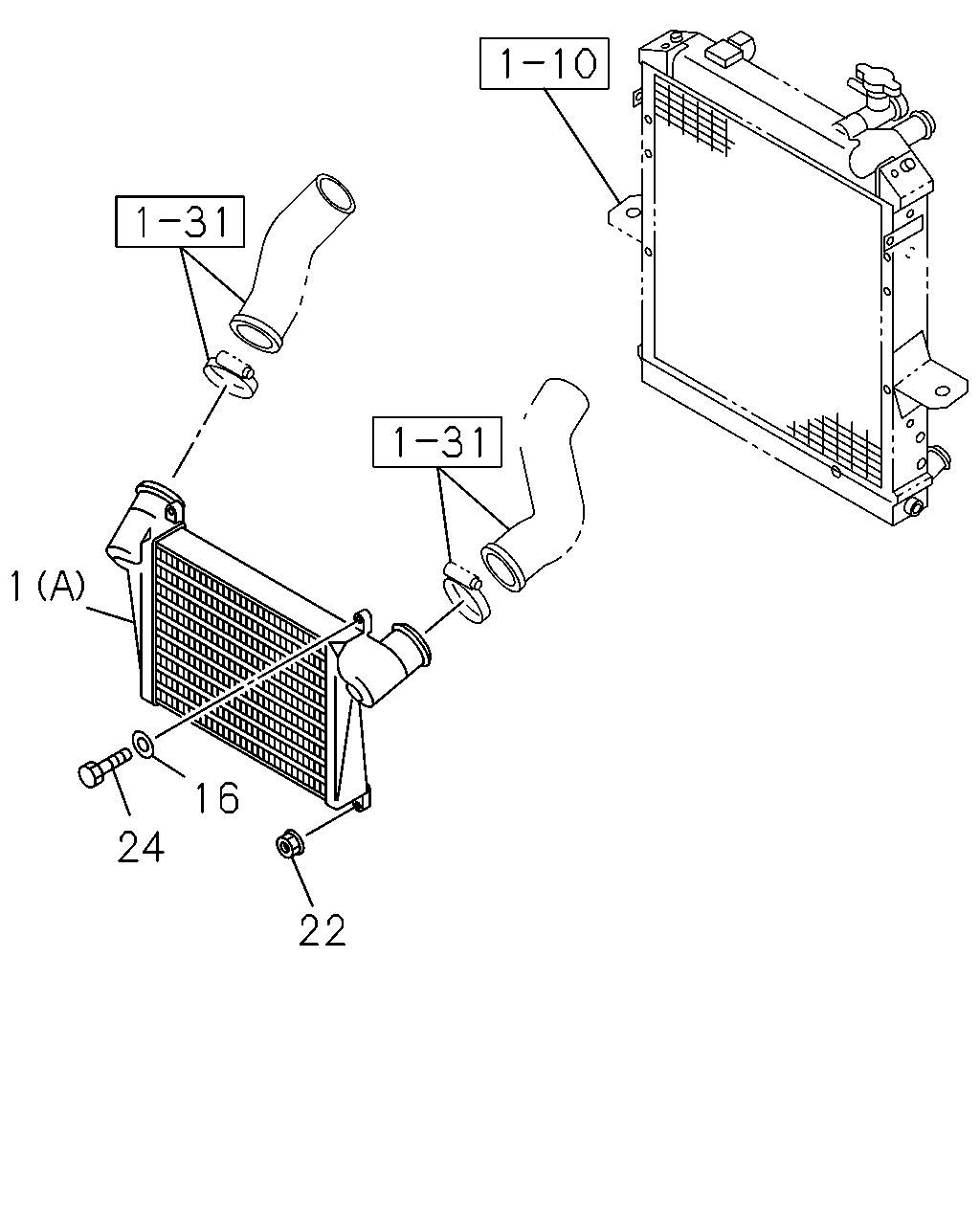

çizim 367111
1 16 24 22
BalonParca AdiParca NoAdetTipApplied Date A B C
1 COOLER; CHARGE AIR
(A) 		8-98006-479-1 01 1 1307- ●
1 COOLER; CHARGE AIR
(B) 		8-98047-633-0 01 1 1307-1312 ●
1 COOLER; CHARGE AIR
(B) 		8-98047-633-0 01 1 1401- ● ●
16 WASHER; PL,CHARGE AIR COOLER
ID=8.4 OD=16 		0-91610-508-0 02 1 1307- ●
22 NUT
M8 FLANGE 		0-91180-108-0 02 1 1307- ●
24 BOLT; COOLER TO RAD
M8X25 FLANGE 		0-28050-825-0 02 1 1307- ●
