Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#12365) — 316 parça

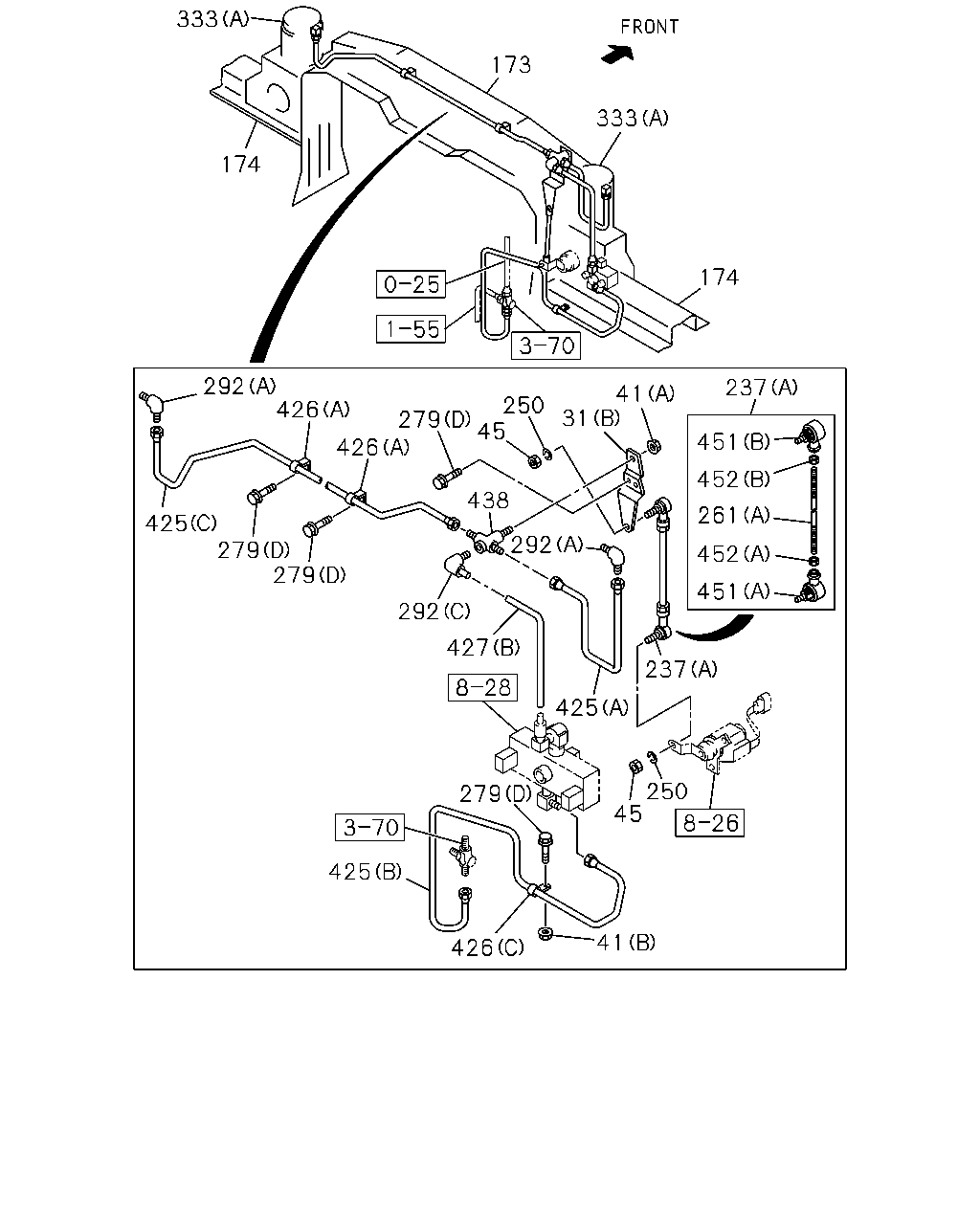

333 174 292 426 426 279 45 250 31 41 173 333 174 237 451 452 261 452 451 237 425 250 45 41 426 425 279 427 292 292 438 279 279 425

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	BRACKET; CAB (A)	1-44226-149-0	01	1	0105-
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	0105-
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	0105-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	0105-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-4	01	1	0105-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-1	01	1	0105-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-273-1	01	1	0105-
41	NUT FULL FLOATING CAB(W16) (B) M8 FLANGE	0-91150-108-0	01	1	0105-
41	NUT FULL FLOATING CAB(W16) (A) M12 FLANGE	0-91150-212-0	01	1	0105-
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	04	1	0105-0512
45	NUT FULL FLOATING CAB(W16) M5	0-91110-505-0	04	1	0601-
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> FULL FLOATING CAB(W16)	1-53450-633-2	01	1	0105-0406
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> FULL FLOATING CAB(W16)	1-53450-667-0	01	1	0407-
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> EXC. FULL FLOATING CAB(W16)	1-53450-636-2	01	1	0105-0406
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> EXC. FULL FLOATING CAB(W16)	1-53450-668-0	01	1	0407-
173	MEMBER; CAB MTG RR EXC. ANTI NOISE EQUIPMENT<SV9>,FULL FLOATING CAB(W16)	1-53450-637-2	01	1	0105-0406
173	MEMBER; CAB MTG RR EXC. ANTI NOISE EQUIPMENT<SV9>,FULL FLOATING CAB(W16)	1-53450-669-0	01	1	0407-
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) EXC. ANTI NOISE EQUIPMENT<SV9>	1-53450-599-2	01	1	0105-0406
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) EXC. ANTI NOISE EQUIPMENT<SV9>	1-53450-665-0	01	1	0407-
174	OUTRIGGER	1-53456-277-3	01	1	0105-
174	OUTRIGGER	1-53456-278-3	01	1	0105-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0105-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	0105-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	0105-
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	04	1	0105-
261	ROD; LINK FULL FLOATING CAB(W16) (B)	9-08410-507-0	01	1	0105-
261	ROD; LINK FULL FLOATING CAB(W16) (A)	9-08410-514-0	01	1	0105-
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	0105-0512
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0601-
279	BOLT (A) M8X25 FLANGE	0-28680-825-0	03	1	0105-0512
279	BOLT (A) M8X25 FLANGE	0-28650-825-0	03	1	0601-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	0105-0512
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	0601-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	0105-0512
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	0601-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	07	1	0105-0512
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	07	1	0601-
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	0105-

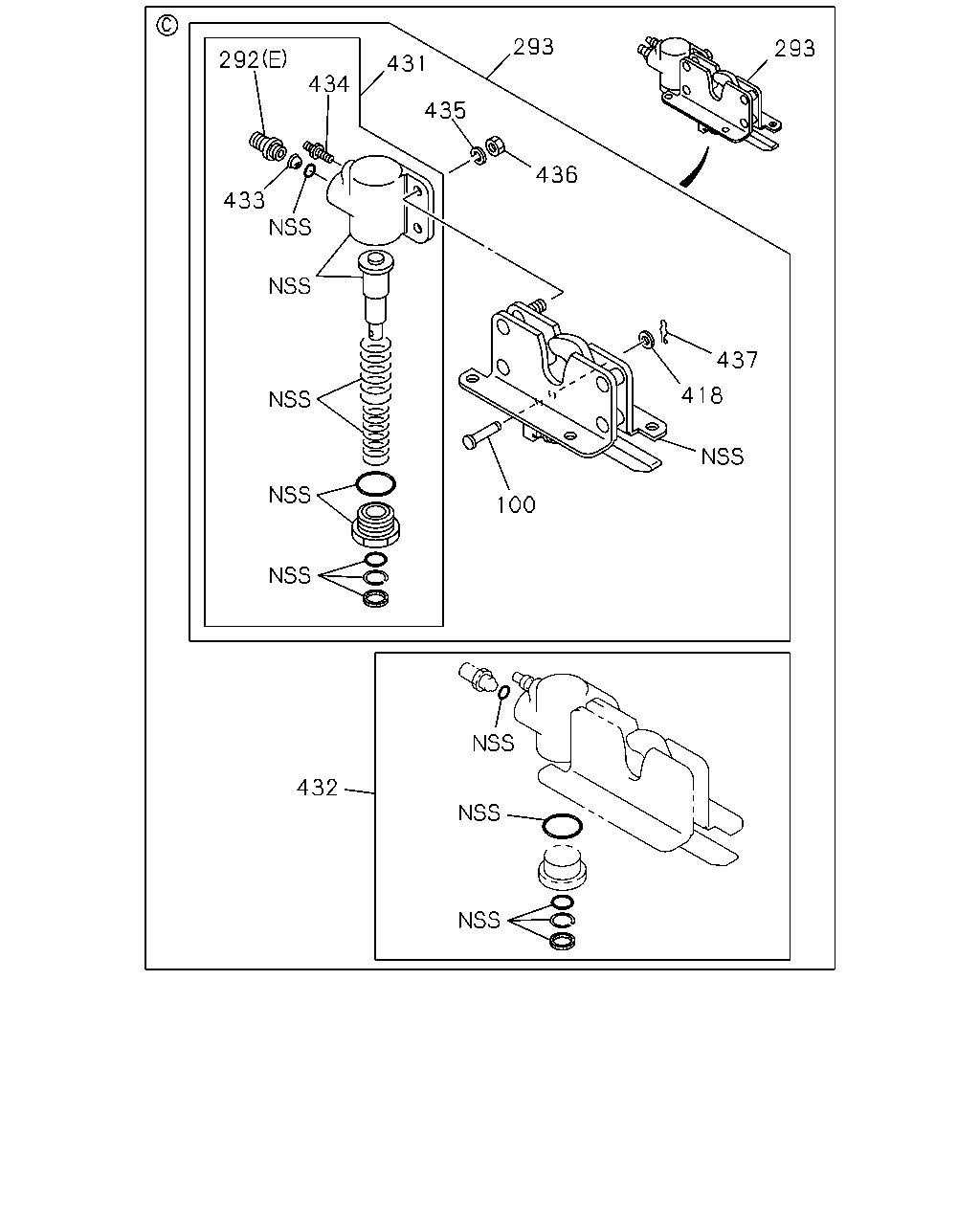

292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	0105-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0105-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0105-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0105-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	0105-
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-2	02	1	0105-
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-2	02	1	0105-
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (A) L=298	1-47494-961-1	01	1	0105-
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (C)	1-49117-396-0	01	1	0105-
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (B)	1-49122-659-0	01	1	0105-
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0105-
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	0105-
426	CLIP FULL FLOATING CAB(W16) (E) ID=5.8 L=8	8-94155-681-0	02	1	0105-
426	CLIP FULL FLOATING CAB(W16) (C) ID=7 L=32	9-09524-665-0	01	1	0105-
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 L=16	9-09525-025-0	01	1	0105-
427	TUBE FULL FLOATING CAB(W16) (A) L=1300 SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0105-0301
427	TUBE FULL FLOATING CAB(W16) (A) L=1300 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0302-
427	TUBE FULL FLOATING CAB(W16) (B) L=400 SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0105-0301
427	TUBE FULL FLOATING CAB(W16) (B) L=400 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0302-
438	UNION FULL FLOATING CAB(W16) M12X2 & PT1/8 3WAY	1-09656-655-0	01	1	0105-
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-103-2	02	1	0105-
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-104-2	02	1	0105-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	02	1	0105-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	9-99110-405-0	02	1	0105-0512
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	0-91110-505-0	02	1	0601-

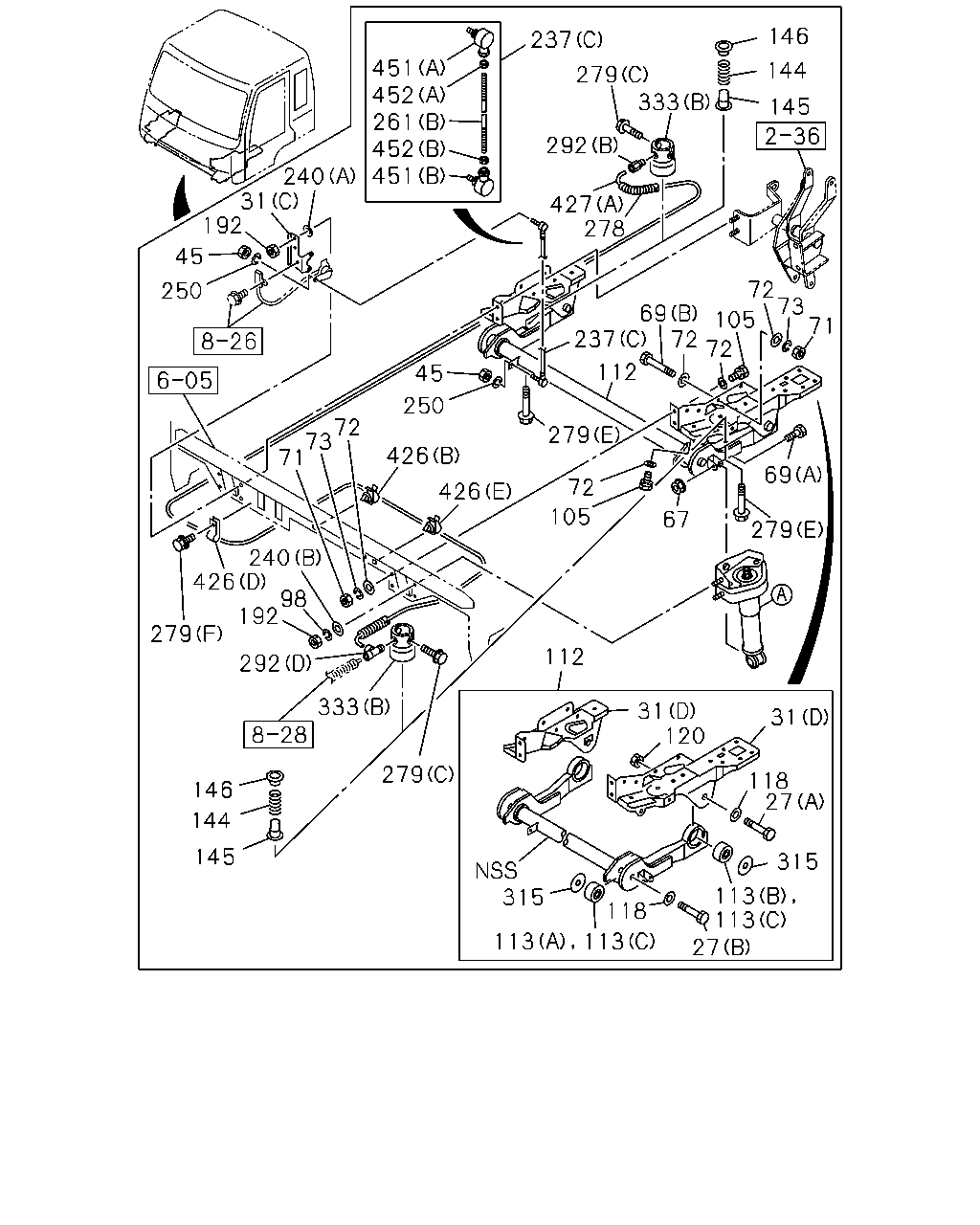

451 452 261 452 451 240 31 192 45 250 72 73 71 240 426 98 192 279 292 333 279 146 144 145 315 113 113 118 27 113 113 315 27 118 31 120 31 112 279 67 105 72 426 426 250 45 279 112 69 71 73 72 105 72 72 69 237 278 427 292 237 279 333 146 144 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	BOLT; BUSHING (B) M18X120	1-09000-442-1	02	1	0105-
27	BOLT; BUSHING (A) M18X100	9-91066-800-0	02	1	0105-0105
27	BOLT; BUSHING FULL FLOATING CAB(W16) (A) M18X100	9-91066-800-0	02	1	0105-0105
27	BOLT; BUSHING EXC. FULL FLOATING CAB(W16) (A) M18X90	9-91066-890-0	02	1	0105-0105
27	BOLT; BUSHING (A) M18X90	9-91066-890-0	02	1	0105-
31	BRACKET; CAB (A)	1-44226-149-0	01	1	0105-
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	0105-
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	0105-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	0105-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-4	01	1	0105-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-1	01	1	0105-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-273-1	01	1	0105-
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	04	1	0105-0512
45	NUT FULL FLOATING CAB(W16) M5	0-91110-505-0	04	1	0601-
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91150-212-0	02	1	0105-
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	0105-
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X100	1-09980-547-0	08	1	0105-0301
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X105	1-79198-008-1	08	1	0302-
71	NUT; BRKT TO CAB FRAME M10	1-09984-142-0	06	1	0105-
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	24	1	0105-
73	WASHER; LK,BRKT TO CAB FRAME ID=10	1-09985-185-0	12	1	0105-
98	WASHER; LK,BRKT ID=10	1-09985-185-0	04	1	0105-
105	BOLT; BRKT TO CAB FRAME M10X30 W/SP WASHER	1-09980-546-0	08	1	0105-
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB(W16)	1-53450-568-4	01	1	0105-0105
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB(W16)	1-53450-645-1	01	1	0106-
112	ARM ASM; LINK,CAB FRT SUSP EXC. FULL FLOATING CAB(W16)	1-53450-565-6	01	1	0105-
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI (A)	1-53458-333-3	02	1	0105-0111
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI (B)	1-53458-714-0	02	1	0105-0111
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI (C)	1-53458-714-0	04	1	0112-
118	WASHER; PL,STOPPER RUBBER,LINK ARM ID=19 OD=30	1-09503-279-0	04	1	0105-
120	NUT; STOPPER RUBBER,LINK ARM M18	9-99110-518-0	02	1	0105-0512
120	NUT; STOPPER RUBBER,LINK ARM M18	0-91110-518-0	02	1	0601-
144	SPRING; COIL,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-09580-537-0	02	1	0105-
145	RUBBER; CUSHION,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-53366-139-0	02	1	0105-
146	SEAT; SPRING,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-53366-138-0	02	1	0105-
192	NUT; BRKT FIX M10	1-09984-142-0	02	1	0105-0301
192	NUT; BRKT FIX M10	1-09984-142-0	06	1	0302-
192	NUT; BRKT FIX M10	1-09984-142-0	04	1	0105-0301
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0105-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	0105-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	0105-
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	0105-
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0105-
240	WASHER; PL,BRKT (C) ID=12.5	9-09160-512-0	02	1	0105-
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	04	1	0105-
261	ROD; LINK FULL FLOATING CAB(W16) (B)	9-08410-507-0	01	1	0105-
261	ROD; LINK FULL FLOATING CAB(W16) (A)	9-08410-514-0	01	1	0105-
278	COVER FULL FLOATING CAB(W16) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0105-
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	0105-0512
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0601-
279	BOLT (A) M8X25 FLANGE	0-28680-825-0	03	1	0105-0512
279	BOLT (A) M8X25 FLANGE	0-28650-825-0	03	1	0601-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	0105-0512
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	0601-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	0105-0512
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	0601-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	07	1	0105-0512
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	07	1	0601-
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	0105-
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	0105-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0105-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0105-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0105-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	0105-
315	WASHER; CAB MTG ID=34.5	1-53458-281-1	04	1	0105-
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-2	02	1	0105-
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-2	02	1	0105-
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0105-
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	0105-
426	CLIP FULL FLOATING CAB(W16) (E) ID=5.8 L=8	8-94155-681-0	02	1	0105-
426	CLIP FULL FLOATING CAB(W16) (C) ID=7 L=32	9-09524-665-0	01	1	0105-
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 L=16	9-09525-025-0	01	1	0105-
427	TUBE FULL FLOATING CAB(W16) (A) L=1300 SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0105-0301
427	TUBE FULL FLOATING CAB(W16) (A) L=1300 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0302-
427	TUBE FULL FLOATING CAB(W16) (B) L=400 SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0105-0301
427	TUBE FULL FLOATING CAB(W16) (B) L=400 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0302-
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-103-2	02	1	0105-
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-104-2	02	1	0105-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	02	1	0105-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	9-99110-405-0	02	1	0105-0512
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	0-91110-505-0	02	1	0601-

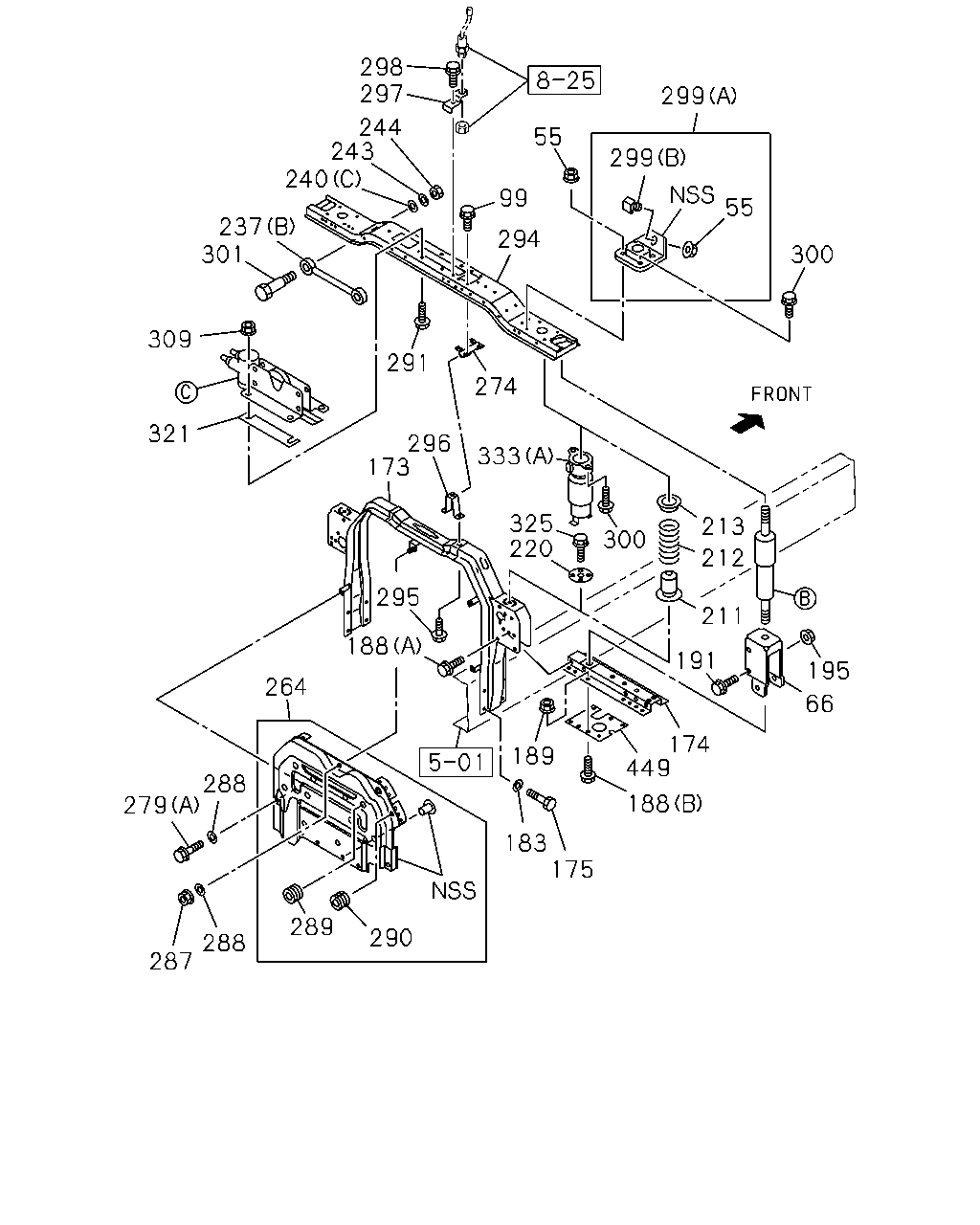

298 297 244 243 240 237 301 309 321 264 288 279 287 288 289 290 183 175 188 449 189 188 295 173 296 291 274 333 325 220 300 213 212 211 191 174 66 195 300 55 299 299 55 99 294

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
55	NUT; RUBBER M8 FLANGE	0-91150-108-0	06	1	0105-
66	BRACKET; S/ABS	1-53458-755-1	01	1	0105-
66	BRACKET; S/ABS	1-53458-786-0	01	1	0105-
99	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	04	1	0105-0512
99	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> FULL FLOATING CAB(W16)	1-53450-633-2	01	1	0105-0406
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> FULL FLOATING CAB(W16)	1-53450-667-0	01	1	0407-
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> EXC. FULL FLOATING CAB(W16)	1-53450-636-2	01	1	0105-0406
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> EXC. FULL FLOATING CAB(W16)	1-53450-668-0	01	1	0407-
173	MEMBER; CAB MTG RR EXC. ANTI NOISE EQUIPMENT<SV9>,FULL FLOATING CAB(W16)	1-53450-637-2	01	1	0105-0406
173	MEMBER; CAB MTG RR EXC. ANTI NOISE EQUIPMENT<SV9>,FULL FLOATING CAB(W16)	1-53450-669-0	01	1	0407-
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) EXC. ANTI NOISE EQUIPMENT<SV9>	1-53450-599-2	01	1	0105-0406
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) EXC. ANTI NOISE EQUIPMENT<SV9>	1-53450-665-0	01	1	0407-
174	OUTRIGGER	1-53456-277-3	01	1	0105-
174	OUTRIGGER	1-53456-278-3	01	1	0105-
175	BOLT; MEMBER TO FRAME M14X35	9-92061-435-0	08	1	0105-0512
175	BOLT; MEMBER TO FRAME M14X35	0-20951-435-0	08	1	0601-
183	WASHER; PL,MEMBER ID=15	9-09651-069-0	08	1	0105-
188	BOLT; OUTRIGGER (B) M10X20 FLANGE	0-28681-020-0	08	1	0105-0512
188	BOLT; OUTRIGGER (B) M10X20 FLANGE	0-28651-020-0	08	1	0601-
188	BOLT; OUTRIGGER (A) M10X25 FLANGE	0-28681-025-0	08	1	0105-0512
188	BOLT; OUTRIGGER (A) M10X25 FLANGE	0-28651-025-0	08	1	0601-
189	NUT; OUTRIGGER M10 FLANGE	0-91150-210-0	08	1	0105-
191	BOLT; BRKT FIX M10X25 FLANGE	0-28681-025-0	07	1	0105-0512
191	BOLT; BRKT FIX M10X25 FLANGE	0-28651-025-0	07	1	0601-
195	NUT; BRKT FIX M10 FLANGE	0-91150-210-0	04	1	0105-
211	RUBBER; CUSHION,S/ABS EXC. FULL FLOATING CAB(W16)	1-53366-128-0	02	1	0105-
212	SPRING; COIL EXC. FULL FLOATING CAB(W16)	1-09580-515-0	02	1	0105-
213	SEAT; SPR,S/ABS EXC. FULL FLOATING CAB(W16)	1-53366-132-1	02	1	0105-
220	GUIDE; SPR FULL FLOATING CAB(W16)	1-53458-648-1	02	1	0105-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0105-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	0105-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	0105-
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	0105-
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0105-
240	WASHER; PL,BRKT (C) ID=12.5	9-09160-512-0	02	1	0105-
243	WASHER; LK,LATERAL ROD ID=12.2	9-09150-512-0	02	1	0105-
244	NUT; LATERAL ROD M12	9-99110-512-0	02	1	0105-0512
244	NUT; LATERAL ROD M12	0-91110-512-0	02	1	0601-
264	PANEL; BACK	1-53193-618-0	01	1	0105-0301
274	PIN	1-53458-996-0	01	1	0105-
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	0105-0512
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0601-
279	BOLT (A) M8X25 FLANGE	0-28680-825-0	03	1	0105-0512
279	BOLT (A) M8X25 FLANGE	0-28650-825-0	03	1	0601-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	0105-0512
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	0601-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	0105-0512
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	0601-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	07	1	0105-0512
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	07	1	0601-
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	0105-
287	NUT M8 FLANGE	0-91150-108-0	01	1	0105-
288	WASHER; PL ID=8.4 OD=26	9-09164-808-0	04	1	0105-
289	GROMMET OD=40 T=4.8	9-09576-198-0	01	1	0105-0301
290	RUBBER; MTG	1-53459-702-1	04	1	0105-0301
291	BOLT; RATCH M10X25 FLANGE	0-28681-025-0	04	1	0105-0512
291	BOLT; RATCH M10X25 FLANGE	0-28651-025-0	04	1	0601-
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-828-1	01	1	0105-0301
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-918-1	01	1	0302-0311
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-949-2	01	1	0312-
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-831-1	01	1	0105-0301
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-919-1	01	1	0302-0311
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-950-3	01	1	0312-
295	BOLT; STOPPER,UPR M10X20 FLANGE	0-28681-020-0	02	1	0105-0512
295	BOLT; STOPPER,UPR M10X20 FLANGE	0-28651-020-0	02	1	0601-
296	STOPPER; UPR	1-53458-973-0	01	1	0105-
297	BRACKET; LIMIT SW	1-53458-782-0	01	1	0105-
298	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0105-0512
298	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0601-
299	RUBBER; MTG (B)	1-53366-155-0	02	1	0105-
299	RUBBER; MTG (A)	1-53366-156-0	02	1	0105-
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) M8X16 FLANGE	0-28080-816-0	04	1	0105-0512
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) M8X16 FLANGE	0-28050-816-0	04	1	0601-
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	0105-
300	BOLT; MTG RUBBER EXC. FULL FLOATING CAB(W16) M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	0105-
301	PIN; LATERAL ROD M12X57.5	1-53459-498-1	02	1	0105-
309	NUT M10 FLANGE	0-91150-210-0	04	1	0105-
321	SHIM; FRT CAB MTG	1-53458-629-1	04	1	0105-
325	BOLT; GUIDE NUT FULL FLOATING CAB(W16) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
325	BOLT; GUIDE NUT FULL FLOATING CAB(W16) M8X20 FLANGE	0-28650-820-0	02	1	0601-
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-2	02	1	0105-
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-2	02	1	0105-
449	BRACKET; OUTRIGGER	1-53456-279-0	02	1	0105-

293 293 436 435 431 292 434 433 432 100 418 437

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	PIN; JOINT	1-53458-831-0	01	1	0105-
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	0105-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0105-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0105-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0105-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	0105-
293	RATCH; CAB SUSP,RR	1-53458-918-0	01	1	0105-
418	WASHER; PL,PIN	1-53458-059-0	01	1	0105-
431	CYLINDER; AIR,RATCH	1-53457-013-0	01	1	0105-
432	REPAIR KIT; AIR CYL	1-85579-052-0	01	1	0105-
433	FILTER; AIR CYL	1-53458-048-0	01	1	0105-
434	SCREW; AIR BLEEDER	1-53458-529-0	01	1	0105-
435	WASHER; LK,AIR CYL ID=10.2	9-09150-510-0	02	1	0105-
436	NUT; AIR CYL	1-53458-528-0	02	1	0105-
437	PIN; SNAP	1-53458-526-0	01	1	0105-

69 72 70 203 204 65 205 204 203 202 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-603-0	02	1	0105-
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	0105-
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X100	1-09980-547-0	08	1	0105-0301
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X105	1-79198-008-1	08	1	0302-
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-493-1	01	1	0105-
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-492-1	01	1	0105-
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	24	1	0105-
202	NUT; S/ABS (C) M10 FLANGE	0-91150-110-0	02	1	0105-
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	0105-
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	0105-
203	WASHER; RUBBER,SHOCK (A) ID=10.8 OD=38 T=6	1-51631-005-0	10	1	0105-
203	WASHER; RUBBER,SHOCK (B) ID=10 OD=38 T=5	1-51631-104-0	02	1	0105-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	0105-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	0105-

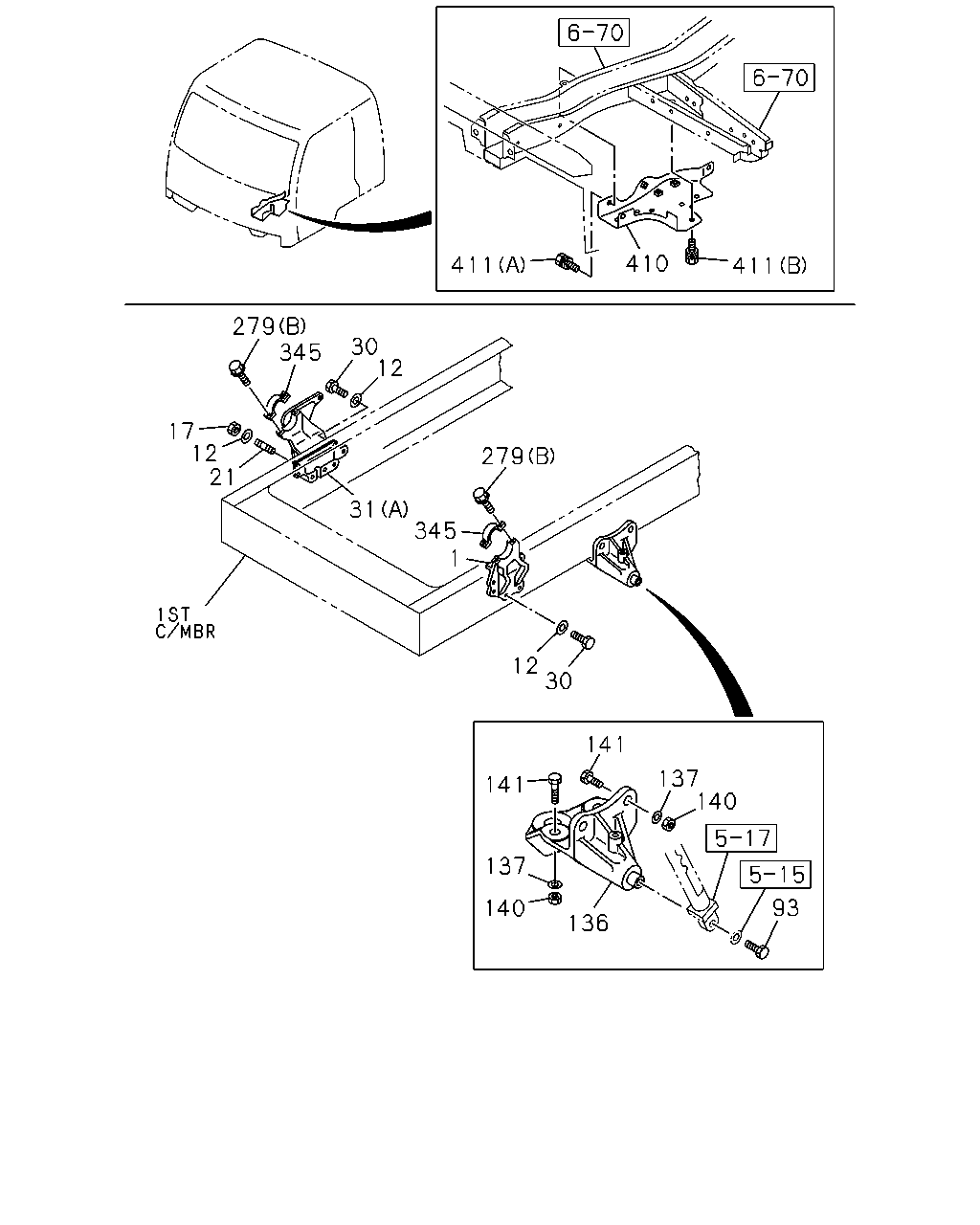

411 410 411 12 30 345 279 17 12 21 31 345 1 279 12 30 141 137 140 93 136 140 137 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG	1-53453-246-1	01	1	0105-
12	WASHER; LK,BRKT ID=16.2	1-09503-223-0	11	1	0105-
17	NUT; BRKT,CAB TILT M16	9-99110-516-0	01	1	0105-0512
17	NUT; BRKT,CAB TILT M16	0-91110-516-0	01	1	0601-
21	STUD; BRKT,CAB TILT M16X50 L=74	1-09300-117-0	01	1	0105-
30	BOLT; CAB FRT FOOT M16X45	9-92061-645-0	10	1	0105-
31	BRACKET; CAB (A)	1-44226-149-0	01	1	0105-
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	0105-
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	0105-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	0105-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-4	01	1	0105-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-1	01	1	0105-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-273-1	01	1	0105-
93	BOLT; PIN M10X30	1-09000-283-0	01	1	0105-
136	BRACKET; OIL CYL	1-53458-829-0	01	1	0105-
137	WASHER; PL,BRKT ID=15	9-09651-069-0	04	1	0105-
140	NUT; BRKT M14	9-99110-514-0	02	1	0105-0512
140	NUT; BRKT M14	0-91110-514-0	02	1	0601-
141	BOLT; BRKT M14X50	9-92061-450-0	04	1	0105-0512
141	BOLT; BRKT M14X50	0-20951-450-0	04	1	0601-
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	0105-0512
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0601-
279	BOLT (A) M8X25 FLANGE	0-28680-825-0	03	1	0105-0512
279	BOLT (A) M8X25 FLANGE	0-28650-825-0	03	1	0601-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	0105-0512
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	0601-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	0105-0512
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	0601-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	07	1	0105-0512
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	07	1	0601-
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	0105-
345	CAP; CAB	1-53458-336-3	02	1	0105-
410	REINFORCEMENT; CAB TILT	1-62570-864-0	01	1	0105-
411	BOLT; REINFORCEMENT (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0105-
411	BOLT; REINFORCEMENT (B) M10X20 W/LK&PL WASHER	8-94279-211-0	01	1	0105-

294 173 174 202 202 203 204 205 205 204 203 201 203 204 205 204 203 202 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> FULL FLOATING CAB(W16)	1-53450-633-2	01	1	0105-0406
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> FULL FLOATING CAB(W16)	1-53450-667-0	01	1	0407-
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> EXC. FULL FLOATING CAB(W16)	1-53450-636-2	01	1	0105-0406
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> EXC. FULL FLOATING CAB(W16)	1-53450-668-0	01	1	0407-
173	MEMBER; CAB MTG RR EXC. ANTI NOISE EQUIPMENT<SV9>,FULL FLOATING CAB(W16)	1-53450-637-2	01	1	0105-0406
173	MEMBER; CAB MTG RR EXC. ANTI NOISE EQUIPMENT<SV9>,FULL FLOATING CAB(W16)	1-53450-669-0	01	1	0407-
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) EXC. ANTI NOISE EQUIPMENT<SV9>	1-53450-599-2	01	1	0105-0406
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) EXC. ANTI NOISE EQUIPMENT<SV9>	1-53450-665-0	01	1	0407-
174	OUTRIGGER	1-53456-277-3	01	1	0105-
174	OUTRIGGER	1-53456-278-3	01	1	0105-
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-607-0	02	1	0105-
202	NUT; S/ABS (C) M10 FLANGE	0-91150-110-0	02	1	0105-
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	0105-
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	0105-
203	WASHER; RUBBER,SHOCK (A) ID=10.8 OD=38 T=6	1-51631-005-0	10	1	0105-
203	WASHER; RUBBER,SHOCK (B) ID=10 OD=38 T=5	1-51631-104-0	02	1	0105-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	0105-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	0105-
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-828-1	01	1	0105-0301
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-918-1	01	1	0302-0311
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-949-2	01	1	0312-
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-831-1	01	1	0105-0301
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-919-1	01	1	0302-0311
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-950-3	01	1	0312-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
