1-31 — AIR DUCT (#123649) — 457 parça

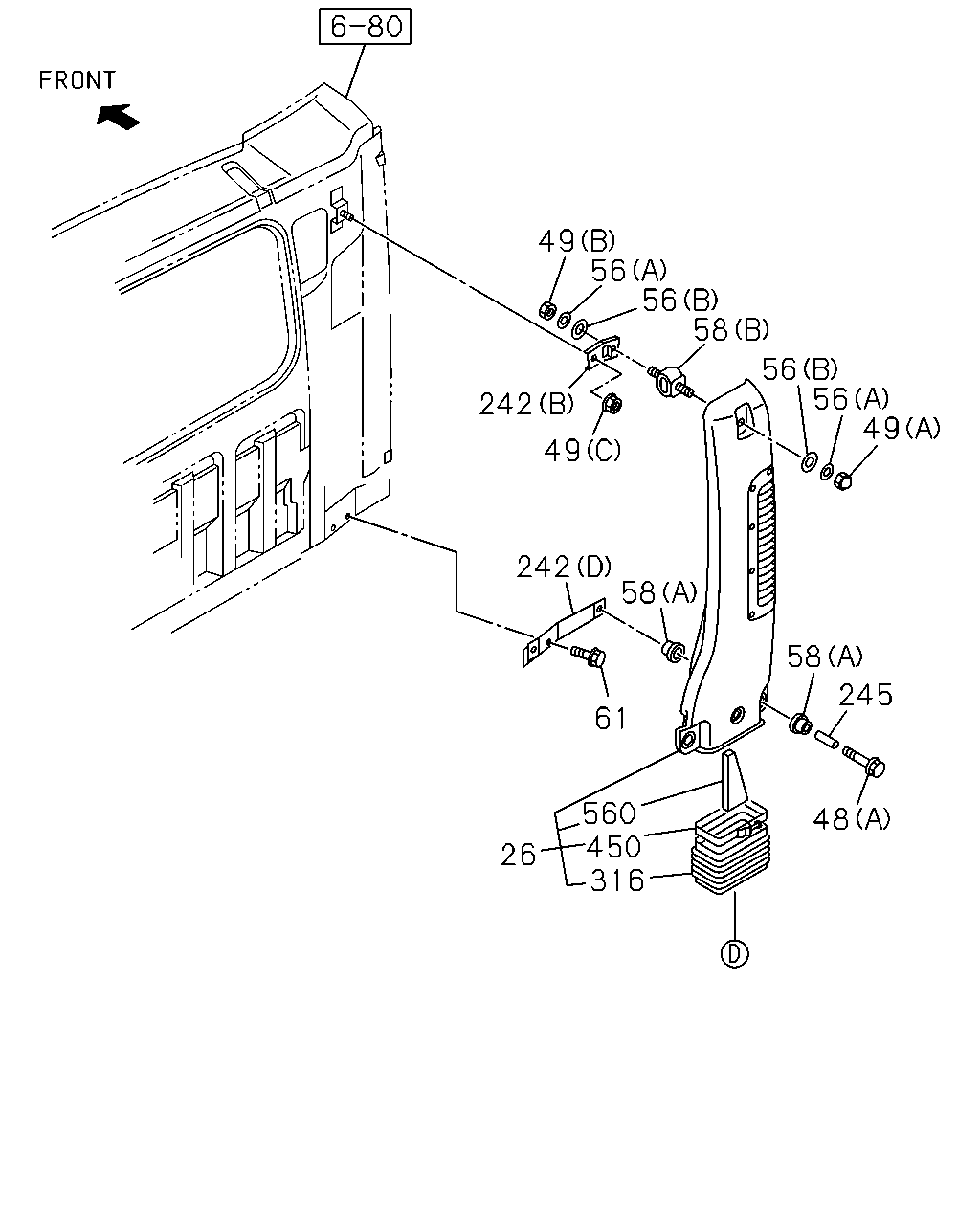

çizim 362724
49 56 242 242 61 58 56 56 49 58 58 245 48 560 450 316 26 56 49
BalonParca AdiParca NoAdetTipApplied Date A B C
26 DUCT; AIR INT 8-98010-361-2 01 1 1307-1312 ● ●
26 DUCT; AIR INT 8-98010-361-2 01 1 1401- ● ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28651-025-0 04 1 1307- ●
48 BOLT; AIR DUCT
DBL CAB(FC**W*) (B) M10X25 FLANGE 		0-28651-025-0 04 1 1307- ●
48 BOLT; AIR DUCT
(A) M10X60 		1-09030-044-1 02 1 1307-1312 ● ●
48 BOLT; AIR DUCT
(A) M10X60 		1-09030-044-1 02 1 1401- ● ● ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 01 1 1307- ●
49 NUT; AIR DUCT
DBL CAB(FC**W*) (C) M8 FLANGE 		8-94279-517-0 01 1 1307- ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1307-1312 ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1401- ● ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1307-1312 ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1401- ● ● ●
49 NUT; AIR DUCT
SGL CAB(FC**M*) (C) M8 FLANGE 		8-94279-517-0 02 1 1307-1312 ●
49 NUT; AIR DUCT
SGL CAB(FC**M*) (C) M8 FLANGE 		8-94279-517-0 02 1 1401- ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 1401- ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1307-1312 ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1401- ● ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1307-1312 ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1401- ● ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1307-1312 ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1401- ● ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1307-1312 ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1401- ● ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1307-1312 ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1401- ● ● ●
242 BRACKET; AIR DUCT
(D) 		8-98050-679-1 01 1 1307- ●
242 BRACKET; AIR DUCT
DBL CAB(FC**W*) (D) 		8-98050-679-1 01 1 1307- ●
242 BRACKET; AIR DUCT
(G) 		8-98084-231-1 01 1 1307- ●
242 BRACKET; AIR DUCT
(F) 		8-98092-771-0 01 1 1307- ●
242 BRACKET; AIR DUCT
DBL CAB(FC**W*) (F) 		8-98092-771-0 01 1 1307- ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1307-1312 ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1401- ● ● ●
242 BRACKET; AIR DUCT
SGL CAB(FC**M*) (C) 		8-98019-302-1 01 1 1307-1312 ●
242 BRACKET; AIR DUCT
SGL CAB(FC**M*) (C) 		8-98019-302-1 01 1 1401- ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1401- ●
242 BRACKET; AIR DUCT
SGL CAB(FC**M*) (A) 		8-98019-303-1 01 1 1307-1312 ●
242 BRACKET; AIR DUCT
SGL CAB(FC**M*) (A) 		8-98019-303-1 01 1 1401- ●
242 BRACKET; AIR DUCT
(A) 		8-98019-303-1 01 1 1401- ●
242 BRACKET; AIR DUCT
DBL CAB(FC**W*) (E) 		8-98089-456-1 01 1 1307- ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1307-1312 ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1401- ● ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1307-1312 ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1401- ● ● ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1307-1312 ● ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1401- ● ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1307-1312 ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1401- ● ● ●

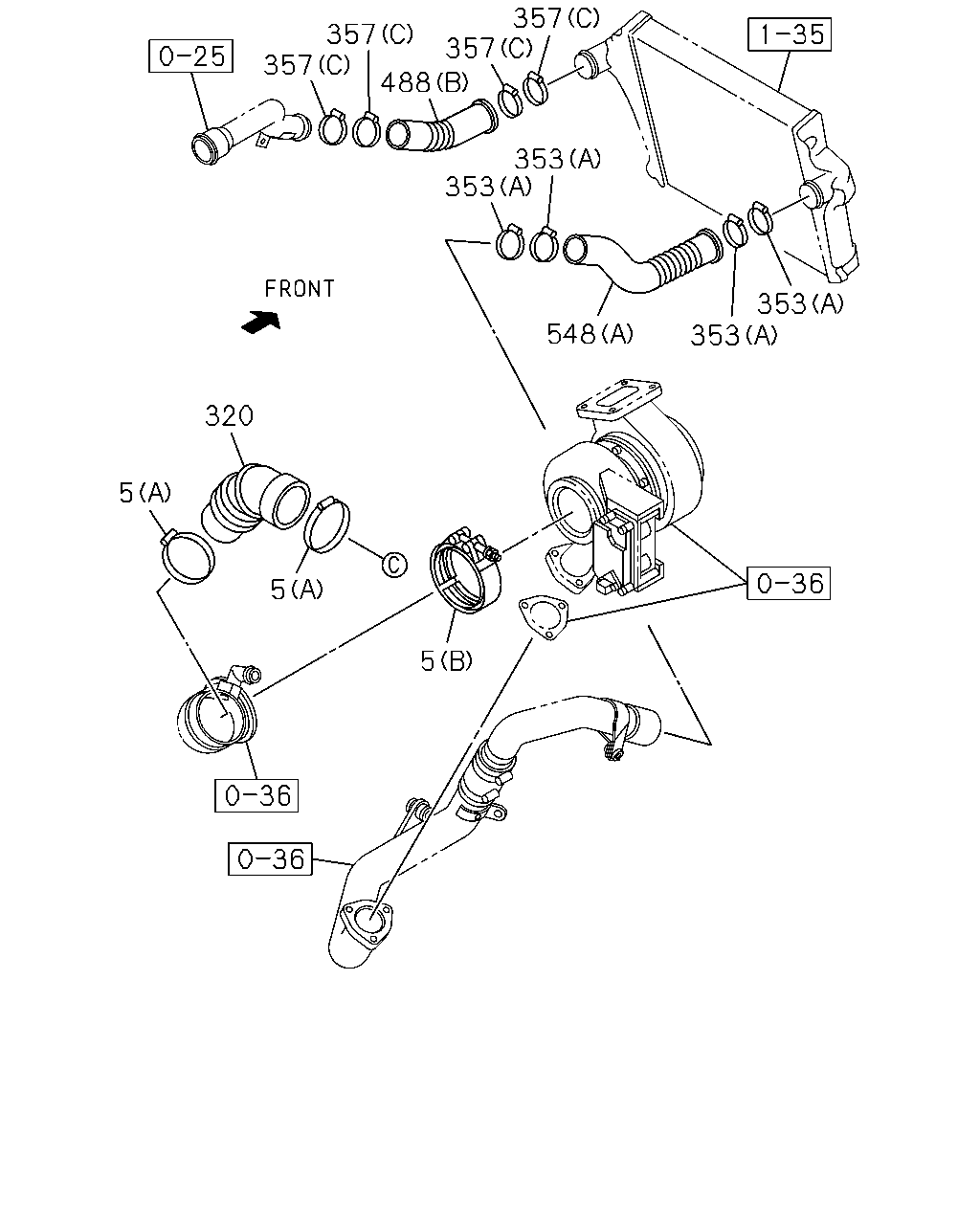

çizim 362725
357 357 488 357 357 353 353 548 353 353 5 5 320 5
BalonParca AdiParca NoAdetTipApplied Date A B C
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 03 1 1307- ●
5 CLIP; AIR DUCT
DBL CAB(FC**W*) (A) ID=104-142 		1-09707-139-0 03 1 1307- ●
5 CLIP; AIR DUCT
(C) ID=77-99 		1-09707-141-0 01 1 1307- ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1307-1312 ●
5 CLIP; AIR DUCT
SGL CAB(FC**M*) (A) ID=104-142 		1-09707-139-0 01 1 1307-1312 ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1401- ● ●
5 CLIP; AIR DUCT
SGL CAB(FC**M*) (A) ID=104-142 		1-09707-139-0 01 1 1401- ● ●
5 CLIP; AIR DUCT
(B) ID=114 		8-15178-030-0 01 1 1307-1312 ●
5 CLIP; AIR DUCT
(B) ID=114 		8-15178-030-0 01 1 1401- ● ●
320 HOSE; CONN,ACL 8-98084-232-0 01 1 1307- ●
320 HOSE; CONN,ACL
SGL CAB(FC**M*) 		8-98077-619-1 01 1 1307-1312 ●
320 HOSE; CONN,ACL
SGL CAB(FC**M*) 		8-98077-619-1 01 1 1401- ●
320 HOSE; CONN,ACL 8-98077-619-1 01 1 1401- ●
320 HOSE; CONN,ACL
DBL CAB(FC**W*) 		8-98092-944-1 01 1 1307- ●
353 CLIP; RUBBER HOSE
(A) ID=58-79 		1-09707-136-0 02 1 1307- ●
353 CLIP; RUBBER HOSE
(B) ID=60-65 		8-98096-418-0 02 1 1307- ●
353 CLIP; RUBBER HOSE
(A) ID=58-79 		1-09707-136-0 04 1 1307-1312 ●
353 CLIP; RUBBER HOSE
(A) ID=58-79 		1-09707-136-0 04 1 1401- ● ●
357 CLIP; RUBBER HOSE
(C) ID=58-79 		1-09707-136-0 02 1 1307- ●
357 CLIP; RUBBER HOSE
(E) ID=24 		8-98025-921-0 02 1 1307- ●
357 CLIP; RUBBER HOSE
(D) ID=68-85 		8-98096-592-0 01 1 1307- ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1307-1312 ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1401- ● ●
357 CLIP; RUBBER HOSE
(C) ID=58-79 		1-09707-136-0 04 1 1307-1312 ●
357 CLIP; RUBBER HOSE
(C) ID=58-79 		1-09707-136-0 04 1 1401- ● ●
357 CLIP; RUBBER HOSE
(B) ID=29.5 		8-97354-979-0 01 1 1307-1312 ●
357 CLIP; RUBBER HOSE
(B) ID=29.5 		8-97354-979-0 01 1 1401- ● ●
488 HOSE; RUBBER,PIPE
(A) 		8-98010-723-0 01 1 1307- ●
488 HOSE; RUBBER,PIPE
(B) 		8-98017-224-1 01 1 1307-1312 ●
488 HOSE; RUBBER,PIPE
(B) 		8-98017-224-1 01 1 1401- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(C) 		8-98061-809-1 01 1 1307- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98061-810-0 01 1 1307- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98017-223-2 01 1 1307-1312 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98017-223-2 01 1 1401- ● ●

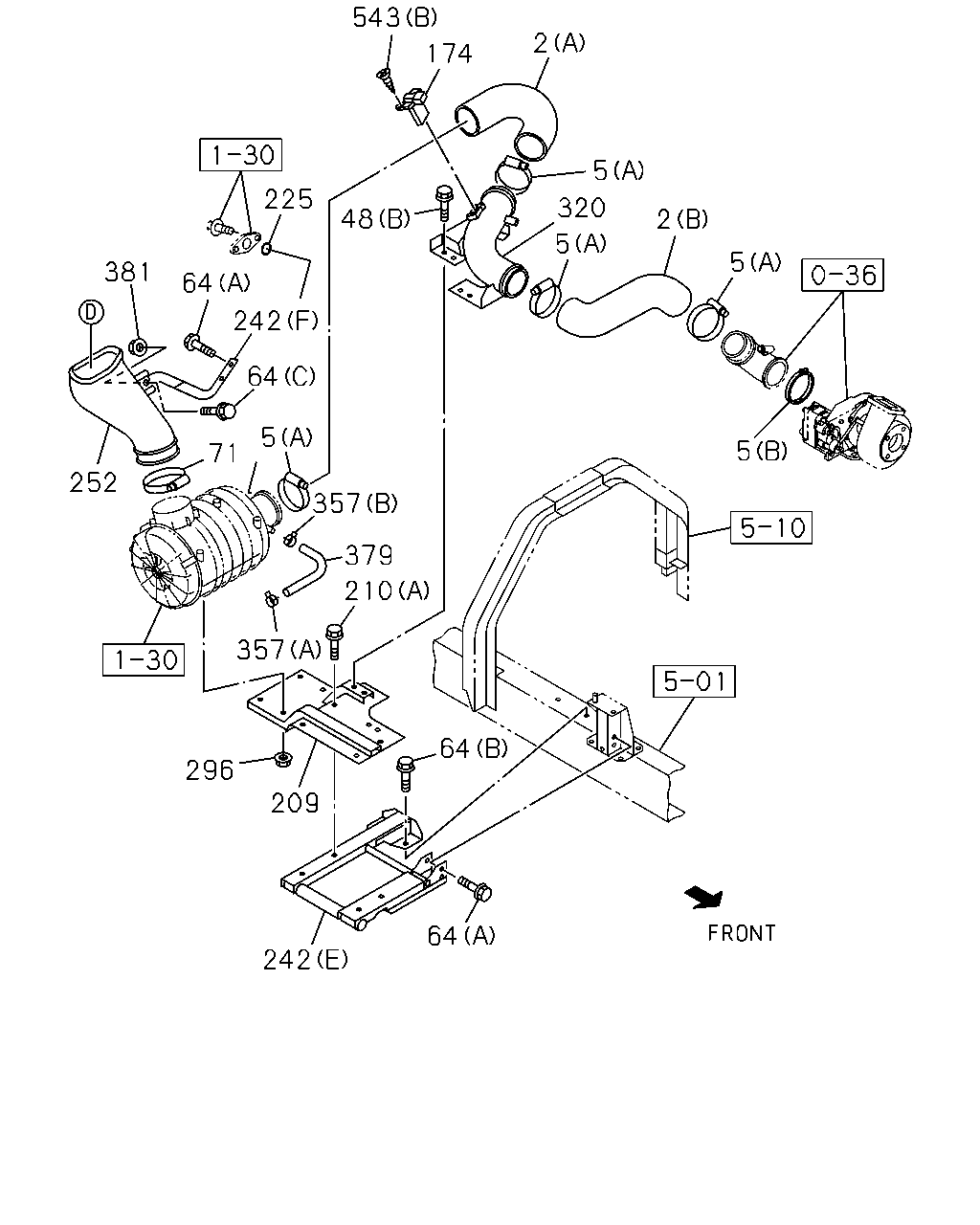

çizim 362737
543 48 64 381 242 71 64 5 357 379 210 357 296 209 242 64 64 174 2 5 320 5 2 5 5 225 252
BalonParca AdiParca NoAdetTipApplied Date A B C
2 HOSE; ACL
(C) 		8-98058-691-1 01 1 1307- ●
2 HOSE; ACL
(D) 		8-98081-763-0 01 1 1307- ●
2 HOSE; ACL
DBL CAB(FC**W*) (A) 		8-98050-682-0 01 1 1307- ●
2 HOSE; ACL
DBL CAB(FC**W*) (B) 		8-98065-313-0 01 1 1307- ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 03 1 1307- ●
5 CLIP; AIR DUCT
DBL CAB(FC**W*) (A) ID=104-142 		1-09707-139-0 03 1 1307- ●
5 CLIP; AIR DUCT
(C) ID=77-99 		1-09707-141-0 01 1 1307- ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1307-1312 ●
5 CLIP; AIR DUCT
SGL CAB(FC**M*) (A) ID=104-142 		1-09707-139-0 01 1 1307-1312 ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1401- ● ●
5 CLIP; AIR DUCT
SGL CAB(FC**M*) (A) ID=104-142 		1-09707-139-0 01 1 1401- ● ●
5 CLIP; AIR DUCT
(B) ID=114 		8-15178-030-0 01 1 1307-1312 ●
5 CLIP; AIR DUCT
(B) ID=114 		8-15178-030-0 01 1 1401- ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28651-025-0 04 1 1307- ●
48 BOLT; AIR DUCT
DBL CAB(FC**W*) (B) M10X25 FLANGE 		0-28651-025-0 04 1 1307- ●
48 BOLT; AIR DUCT
(A) M10X60 		1-09030-044-1 02 1 1307-1312 ● ●
48 BOLT; AIR DUCT
(A) M10X60 		1-09030-044-1 02 1 1401- ● ● ●
64 BOLT; BRKT,AIR DUCT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 1307- ●
64 BOLT; BRKT,AIR DUCT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 1307- ●
64 BOLT; BRKT,AIR DUCT
DBL CAB(FC**W*) (A) M10X25 FLANGE 		0-28651-025-0 02 1 1307- ●
64 BOLT; BRKT,AIR DUCT
(C) M8X25 W/LK&PL WASHER 		1-09030-093-0 01 1 1307- ●
64 BOLT; BRKT,AIR DUCT
DBL CAB(FC**W*) (C) M8X25 W/LK&PL WASHER 		1-09030-093-0 01 1 1307- ●
64 BOLT; BRKT,AIR DUCT
DBL CAB(FC**W*) (A) M10X25 FLANGE 		0-28651-025-0 03 1 1307- ●
64 BOLT; BRKT,AIR DUCT
DBL CAB(FC**W*) (B) M10X35 FLANGE 		0-28651-035-0 02 1 1307- ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1307-1312 ● ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1401- ● ● ●
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1307-1312 ● ●
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1401- ● ● ●
209 BRACKET; ACL 8-98058-687-0 01 1 1307- ●
209 BRACKET; ACL
SGL CAB(FC**M*) 		8-98099-677-0 01 1 1307-1312 ●
209 BRACKET; ACL
SGL CAB(FC**M*) 		8-98099-677-0 01 1 1401- ●
209 BRACKET; ACL 8-98099-677-0 01 1 1401- ●
209 BRACKET; ACL
DBL CAB(FC**W*) 		8-98089-455-1 01 1 1307- ●
210 BOLT; ACL BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1307- ●
210 BOLT; ACL BRKT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 1307- ●
210 BOLT; ACL BRKT
SGL CAB(FC**M*) (A) M10X25 FLANGE 		0-28651-025-0 03 1 1307-1312 ●
210 BOLT; ACL BRKT
SGL CAB(FC**M*) (A) M10X25 FLANGE 		0-28651-025-0 03 1 1401- ●
210 BOLT; ACL BRKT
(A) M10X25 FLANGE 		0-28651-025-0 03 1 1401- ●
210 BOLT; ACL BRKT
DBL CAB(FC**W*) (A) M10X25 FLANGE 		0-28651-025-0 04 1 1307- ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1307-1312 ● ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1401- ● ● ●
242 BRACKET; AIR DUCT
(D) 		8-98050-679-1 01 1 1307- ●
242 BRACKET; AIR DUCT
DBL CAB(FC**W*) (D) 		8-98050-679-1 01 1 1307- ●
242 BRACKET; AIR DUCT
(G) 		8-98084-231-1 01 1 1307- ●
242 BRACKET; AIR DUCT
(F) 		8-98092-771-0 01 1 1307- ●
242 BRACKET; AIR DUCT
DBL CAB(FC**W*) (F) 		8-98092-771-0 01 1 1307- ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1307-1312 ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1401- ● ● ●
242 BRACKET; AIR DUCT
SGL CAB(FC**M*) (C) 		8-98019-302-1 01 1 1307-1312 ●
242 BRACKET; AIR DUCT
SGL CAB(FC**M*) (C) 		8-98019-302-1 01 1 1401- ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1401- ●
242 BRACKET; AIR DUCT
SGL CAB(FC**M*) (A) 		8-98019-303-1 01 1 1307-1312 ●
242 BRACKET; AIR DUCT
SGL CAB(FC**M*) (A) 		8-98019-303-1 01 1 1401- ●
242 BRACKET; AIR DUCT
(A) 		8-98019-303-1 01 1 1401- ●
242 BRACKET; AIR DUCT
DBL CAB(FC**W*) (E) 		8-98089-456-1 01 1 1307- ●
252 DUCT; AIR INT 8-98166-966-0 01 1 1307- ●
252 DUCT; AIR INT
SGL CAB(FC**M*) 		8-98019-843-0 01 1 1307-1312 ●
252 DUCT; AIR INT
SGL CAB(FC**M*) 		8-98019-843-0 01 1 1401- ●
252 DUCT; AIR INT 8-98019-843-0 01 1 1401- ●
252 DUCT; AIR INT
DBL CAB(FC**W*) 		8-98050-681-0 01 1 1307- ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1307-1312 ● ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1401- ● ● ●
320 HOSE; CONN,ACL 8-98084-232-0 01 1 1307- ●
320 HOSE; CONN,ACL
SGL CAB(FC**M*) 		8-98077-619-1 01 1 1307-1312 ●
320 HOSE; CONN,ACL
SGL CAB(FC**M*) 		8-98077-619-1 01 1 1401- ●
320 HOSE; CONN,ACL 8-98077-619-1 01 1 1401- ●
320 HOSE; CONN,ACL
DBL CAB(FC**W*) 		8-98092-944-1 01 1 1307- ●
357 CLIP; RUBBER HOSE
(C) ID=58-79 		1-09707-136-0 02 1 1307- ●
357 CLIP; RUBBER HOSE
(E) ID=24 		8-98025-921-0 02 1 1307- ●
357 CLIP; RUBBER HOSE
(D) ID=68-85 		8-98096-592-0 01 1 1307- ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1307-1312 ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1401- ● ●
357 CLIP; RUBBER HOSE
(C) ID=58-79 		1-09707-136-0 04 1 1307-1312 ●
357 CLIP; RUBBER HOSE
(C) ID=58-79 		1-09707-136-0 04 1 1401- ● ●
357 CLIP; RUBBER HOSE
(B) ID=29.5 		8-97354-979-0 01 1 1307-1312 ●
357 CLIP; RUBBER HOSE
(B) ID=29.5 		8-97354-979-0 01 1 1401- ● ●
379 HOSE; RUBBER 8-98082-252-0 01 1 1307- ●
379 HOSE; RUBBER
SGL CAB(FC**M*) 		8-98063-172-0 01 1 1307-1312 ●
379 HOSE; RUBBER
SGL CAB(FC**M*) 		8-98063-172-0 01 1 1401- ●
379 HOSE; RUBBER 8-98063-172-0 01 1 1401- ●
379 HOSE; RUBBER
DBL CAB(FC**W*) 		8-98073-021-0 01 1 1307- ●
381 NUT; BRKT,AIR DUCT
M8 FLANGE 		0-91180-108-0 01 1 1307- ●
381 NUT; BRKT,AIR DUCT
DBL CAB(FC**W*) M8 FLANGE 		0-91180-108-0 01 1 1307- ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1307- ●
543 SCREW; SENSOR
(B) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1307-1312 ● ●
543 SCREW; SENSOR
(B) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1401- ● ● ●

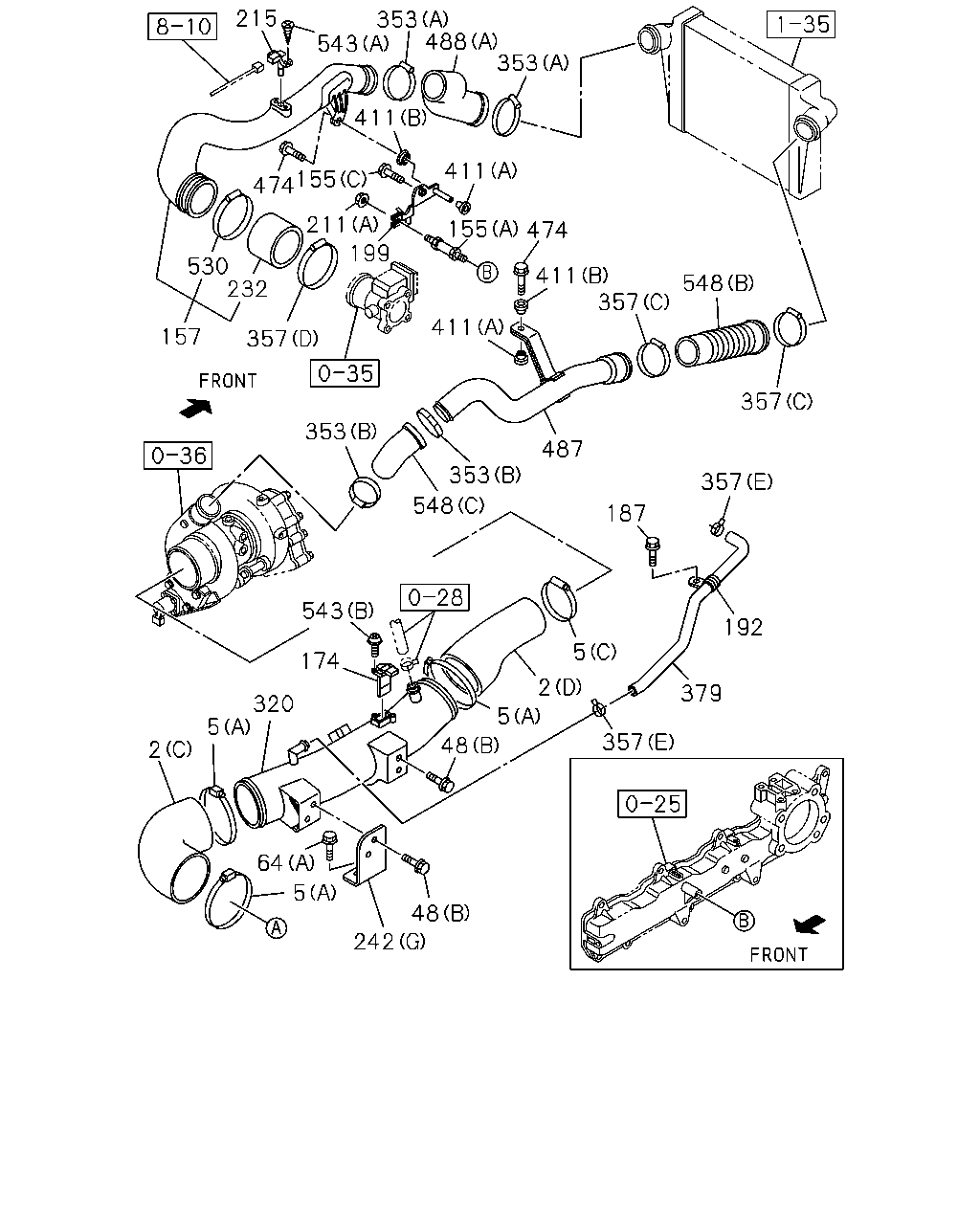

çizim 366138
215 353 543 411 155 474 530 157 357 232 2 320 5 174 543 64 5 242 48 5 5 2 357 379 192 187 357 357 548 357 411 411 353 411 155 474 199 211 487 353 548 353 488 48
BalonParca AdiParca NoAdetTipApplied Date A B C
2 HOSE; ACL
(C) 		8-98058-691-1 01 1 1307- ●
2 HOSE; ACL
(D) 		8-98081-763-0 01 1 1307- ●
2 HOSE; ACL
DBL CAB(FC**W*) (A) 		8-98050-682-0 01 1 1307- ●
2 HOSE; ACL
DBL CAB(FC**W*) (B) 		8-98065-313-0 01 1 1307- ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 03 1 1307- ●
5 CLIP; AIR DUCT
DBL CAB(FC**W*) (A) ID=104-142 		1-09707-139-0 03 1 1307- ●
5 CLIP; AIR DUCT
(C) ID=77-99 		1-09707-141-0 01 1 1307- ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1307-1312 ●
5 CLIP; AIR DUCT
SGL CAB(FC**M*) (A) ID=104-142 		1-09707-139-0 01 1 1307-1312 ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1401- ● ●
5 CLIP; AIR DUCT
SGL CAB(FC**M*) (A) ID=104-142 		1-09707-139-0 01 1 1401- ● ●
5 CLIP; AIR DUCT
(B) ID=114 		8-15178-030-0 01 1 1307-1312 ●
5 CLIP; AIR DUCT
(B) ID=114 		8-15178-030-0 01 1 1401- ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28651-025-0 04 1 1307- ●
48 BOLT; AIR DUCT
DBL CAB(FC**W*) (B) M10X25 FLANGE 		0-28651-025-0 04 1 1307- ●
48 BOLT; AIR DUCT
(A) M10X60 		1-09030-044-1 02 1 1307-1312 ● ●
48 BOLT; AIR DUCT
(A) M10X60 		1-09030-044-1 02 1 1401- ● ● ●
64 BOLT; BRKT,AIR DUCT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 1307- ●
64 BOLT; BRKT,AIR DUCT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 1307- ●
64 BOLT; BRKT,AIR DUCT
DBL CAB(FC**W*) (A) M10X25 FLANGE 		0-28651-025-0 02 1 1307- ●
64 BOLT; BRKT,AIR DUCT
(C) M8X25 W/LK&PL WASHER 		1-09030-093-0 01 1 1307- ●
64 BOLT; BRKT,AIR DUCT
DBL CAB(FC**W*) (C) M8X25 W/LK&PL WASHER 		1-09030-093-0 01 1 1307- ●
64 BOLT; BRKT,AIR DUCT
DBL CAB(FC**W*) (A) M10X25 FLANGE 		0-28651-025-0 03 1 1307- ●
64 BOLT; BRKT,AIR DUCT
DBL CAB(FC**W*) (B) M10X35 FLANGE 		0-28651-035-0 02 1 1307- ●
155 BOLT; BRKT
(C) M10X110 FLANGE 		0-28156-011-0 01 1 1307- ●
155 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 1307- ●
155 BOLT; BRKT
(A) M10X17,M10X30 L=105 		8-97233-428-0 01 1 1307- ●
157 PIPE; AIR 8-98166-967-0 01 1 1307- ●
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1307-1312 ● ●
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1401- ● ● ●
187 BOLT; INL HOSE
M8X16 FLANGE 		0-28050-816-0 01 1 1307- ●
192 CLIP; HOSE
ID=26 L=26 		1-09701-236-0 01 1 1307- ●
199 BRACKET; PIPE 8-98109-137-1 01 1 1307-1403 ●
199 BRACKET; PIPE 8-98252-223-0 01 1 1404- ●
211 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 1307- ●
211 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 1307- ●
215 SENSOR; MAP 8-98009-418-0 01 1 1307- ●
232 HOSE; CONN 8-98128-293-0 01 1 1307- ●
242 BRACKET; AIR DUCT
(D) 		8-98050-679-1 01 1 1307- ●
242 BRACKET; AIR DUCT
DBL CAB(FC**W*) (D) 		8-98050-679-1 01 1 1307- ●
242 BRACKET; AIR DUCT
(G) 		8-98084-231-1 01 1 1307- ●
242 BRACKET; AIR DUCT
(F) 		8-98092-771-0 01 1 1307- ●
242 BRACKET; AIR DUCT
DBL CAB(FC**W*) (F) 		8-98092-771-0 01 1 1307- ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1307-1312 ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1401- ● ● ●
242 BRACKET; AIR DUCT
SGL CAB(FC**M*) (C) 		8-98019-302-1 01 1 1307-1312 ●
242 BRACKET; AIR DUCT
SGL CAB(FC**M*) (C) 		8-98019-302-1 01 1 1401- ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1401- ●
242 BRACKET; AIR DUCT
SGL CAB(FC**M*) (A) 		8-98019-303-1 01 1 1307-1312 ●
242 BRACKET; AIR DUCT
SGL CAB(FC**M*) (A) 		8-98019-303-1 01 1 1401- ●
242 BRACKET; AIR DUCT
(A) 		8-98019-303-1 01 1 1401- ●
242 BRACKET; AIR DUCT
DBL CAB(FC**W*) (E) 		8-98089-456-1 01 1 1307- ●
320 HOSE; CONN,ACL 8-98084-232-0 01 1 1307- ●
320 HOSE; CONN,ACL
SGL CAB(FC**M*) 		8-98077-619-1 01 1 1307-1312 ●
320 HOSE; CONN,ACL
SGL CAB(FC**M*) 		8-98077-619-1 01 1 1401- ●
320 HOSE; CONN,ACL 8-98077-619-1 01 1 1401- ●
320 HOSE; CONN,ACL
DBL CAB(FC**W*) 		8-98092-944-1 01 1 1307- ●
353 CLIP; RUBBER HOSE
(A) ID=58-79 		1-09707-136-0 02 1 1307- ●
353 CLIP; RUBBER HOSE
(B) ID=60-65 		8-98096-418-0 02 1 1307- ●
353 CLIP; RUBBER HOSE
(A) ID=58-79 		1-09707-136-0 04 1 1307-1312 ●
353 CLIP; RUBBER HOSE
(A) ID=58-79 		1-09707-136-0 04 1 1401- ● ●
357 CLIP; RUBBER HOSE
(C) ID=58-79 		1-09707-136-0 02 1 1307- ●
357 CLIP; RUBBER HOSE
(E) ID=24 		8-98025-921-0 02 1 1307- ●
357 CLIP; RUBBER HOSE
(D) ID=68-85 		8-98096-592-0 01 1 1307- ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1307-1312 ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1401- ● ●
357 CLIP; RUBBER HOSE
(C) ID=58-79 		1-09707-136-0 04 1 1307-1312 ●
357 CLIP; RUBBER HOSE
(C) ID=58-79 		1-09707-136-0 04 1 1401- ● ●
357 CLIP; RUBBER HOSE
(B) ID=29.5 		8-97354-979-0 01 1 1307-1312 ●
357 CLIP; RUBBER HOSE
(B) ID=29.5 		8-97354-979-0 01 1 1401- ● ●
379 HOSE; RUBBER 8-98082-252-0 01 1 1307- ●
379 HOSE; RUBBER
SGL CAB(FC**M*) 		8-98063-172-0 01 1 1307-1312 ●
379 HOSE; RUBBER
SGL CAB(FC**M*) 		8-98063-172-0 01 1 1401- ●
379 HOSE; RUBBER 8-98063-172-0 01 1 1401- ●
379 HOSE; RUBBER
DBL CAB(FC**W*) 		8-98073-021-0 01 1 1307- ●
411 RUBBER; CUSHION
(A) OD=32 		8-94395-766-0 02 1 1307- ●
411 RUBBER; CUSHION
(B) OD=23 		8-97105-689-6 02 1 1307- ●
474 BOLT; PIPE
M8X40 FLANGE 		0-28650-840-0 02 1 1307- ●
487 PIPE; TURBO TO CHARGE AIR COOLER 8-98038-759-3 01 1 1307- ●
488 HOSE; RUBBER,PIPE
(A) 		8-98010-723-0 01 1 1307- ●
488 HOSE; RUBBER,PIPE
(B) 		8-98017-224-1 01 1 1307-1312 ●
488 HOSE; RUBBER,PIPE
(B) 		8-98017-224-1 01 1 1401- ● ●
530 CLAMP; AIR DUCT
ID=65-85 		8-98133-350-0 01 1 1307- ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1307- ●
543 SCREW; SENSOR
(B) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1307-1312 ● ●
543 SCREW; SENSOR
(B) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1401- ● ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(C) 		8-98061-809-1 01 1 1307- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98061-810-0 01 1 1307- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98017-223-2 01 1 1307-1312 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98017-223-2 01 1 1401- ● ●

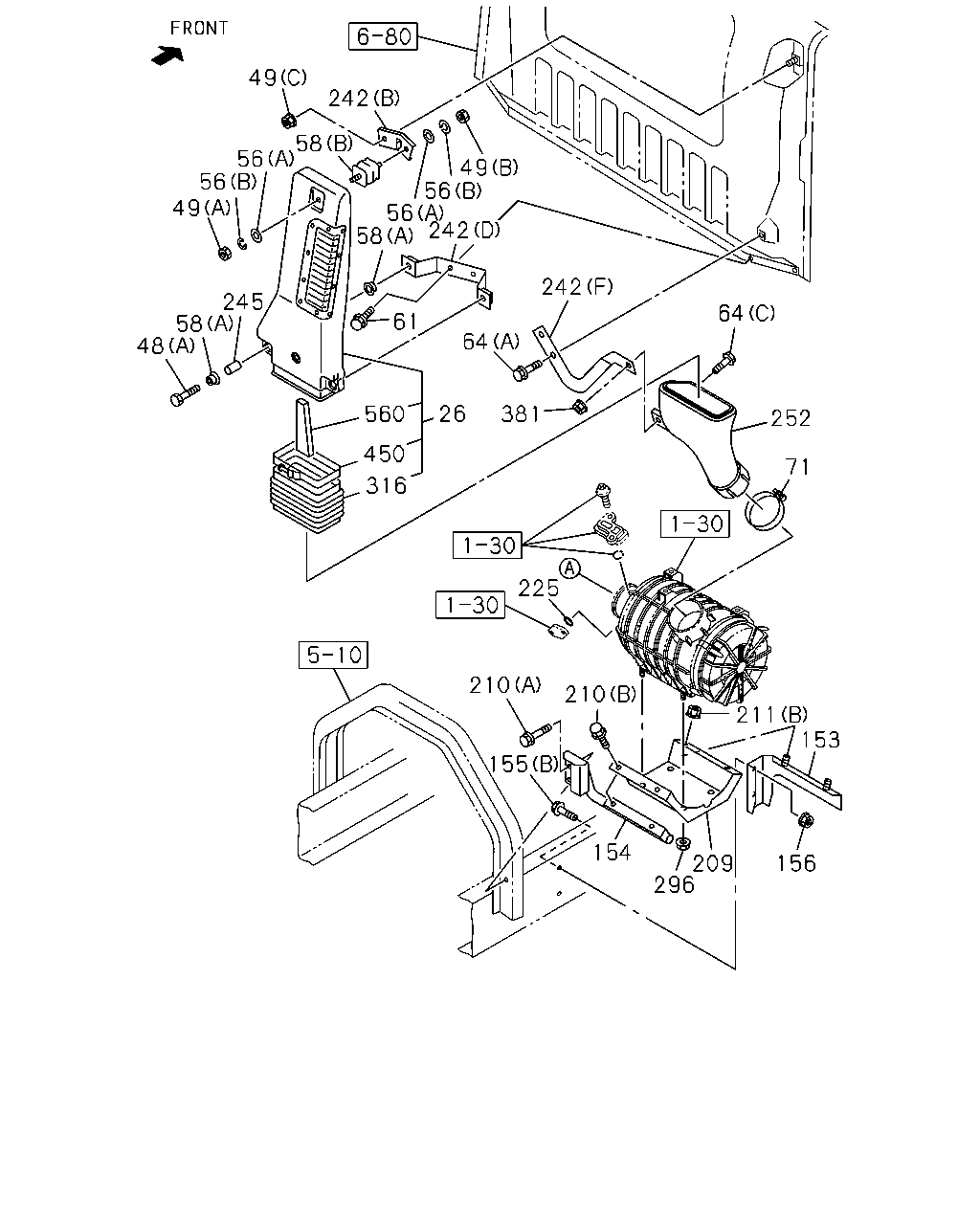

çizim 366315
49 242 58 49 56 56 56 56 49 58 242 245 61 242 64 58 64 48 560 26 381 252 450 71 316 225 210 210 211 155 153 154 209 156 296
BalonParca AdiParca NoAdetTipApplied Date A B C
26 DUCT; AIR INT 8-98010-361-2 01 1 1307-1312 ● ●
26 DUCT; AIR INT 8-98010-361-2 01 1 1401- ● ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28651-025-0 04 1 1307- ●
48 BOLT; AIR DUCT
DBL CAB(FC**W*) (B) M10X25 FLANGE 		0-28651-025-0 04 1 1307- ●
48 BOLT; AIR DUCT
(A) M10X60 		1-09030-044-1 02 1 1307-1312 ● ●
48 BOLT; AIR DUCT
(A) M10X60 		1-09030-044-1 02 1 1401- ● ● ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 01 1 1307- ●
49 NUT; AIR DUCT
DBL CAB(FC**W*) (C) M8 FLANGE 		8-94279-517-0 01 1 1307- ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1307-1312 ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1401- ● ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1307-1312 ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1401- ● ● ●
49 NUT; AIR DUCT
SGL CAB(FC**M*) (C) M8 FLANGE 		8-94279-517-0 02 1 1307-1312 ●
49 NUT; AIR DUCT
SGL CAB(FC**M*) (C) M8 FLANGE 		8-94279-517-0 02 1 1401- ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 1401- ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1307-1312 ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1401- ● ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1307-1312 ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1401- ● ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1307-1312 ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1401- ● ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1307-1312 ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1401- ● ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1307-1312 ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1401- ● ● ●
64 BOLT; BRKT,AIR DUCT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 1307- ●
64 BOLT; BRKT,AIR DUCT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 1307- ●
64 BOLT; BRKT,AIR DUCT
DBL CAB(FC**W*) (A) M10X25 FLANGE 		0-28651-025-0 02 1 1307- ●
64 BOLT; BRKT,AIR DUCT
(C) M8X25 W/LK&PL WASHER 		1-09030-093-0 01 1 1307- ●
64 BOLT; BRKT,AIR DUCT
DBL CAB(FC**W*) (C) M8X25 W/LK&PL WASHER 		1-09030-093-0 01 1 1307- ●
64 BOLT; BRKT,AIR DUCT
DBL CAB(FC**W*) (A) M10X25 FLANGE 		0-28651-025-0 03 1 1307- ●
64 BOLT; BRKT,AIR DUCT
DBL CAB(FC**W*) (B) M10X35 FLANGE 		0-28651-035-0 02 1 1307- ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1307-1312 ● ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1401- ● ● ●
153 BRACKET; ACL,FRT 8-98058-686-0 01 1 1307- ●
154 BRACKET; ACL,RR 8-98058-688-1 01 1 1307- ●
155 BOLT; BRKT
(C) M10X110 FLANGE 		0-28156-011-0 01 1 1307- ●
155 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 1307- ●
155 BOLT; BRKT
(A) M10X17,M10X30 L=105 		8-97233-428-0 01 1 1307- ●
156 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1307- ●
209 BRACKET; ACL 8-98058-687-0 01 1 1307- ●
209 BRACKET; ACL
SGL CAB(FC**M*) 		8-98099-677-0 01 1 1307-1312 ●
209 BRACKET; ACL
SGL CAB(FC**M*) 		8-98099-677-0 01 1 1401- ●
209 BRACKET; ACL 8-98099-677-0 01 1 1401- ●
209 BRACKET; ACL
DBL CAB(FC**W*) 		8-98089-455-1 01 1 1307- ●
210 BOLT; ACL BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1307- ●
210 BOLT; ACL BRKT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 1307- ●
210 BOLT; ACL BRKT
SGL CAB(FC**M*) (A) M10X25 FLANGE 		0-28651-025-0 03 1 1307-1312 ●
210 BOLT; ACL BRKT
SGL CAB(FC**M*) (A) M10X25 FLANGE 		0-28651-025-0 03 1 1401- ●
210 BOLT; ACL BRKT
(A) M10X25 FLANGE 		0-28651-025-0 03 1 1401- ●
210 BOLT; ACL BRKT
DBL CAB(FC**W*) (A) M10X25 FLANGE 		0-28651-025-0 04 1 1307- ●
211 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 1307- ●
211 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 1307- ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1307-1312 ● ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1401- ● ● ●
242 BRACKET; AIR DUCT
(D) 		8-98050-679-1 01 1 1307- ●
242 BRACKET; AIR DUCT
DBL CAB(FC**W*) (D) 		8-98050-679-1 01 1 1307- ●
242 BRACKET; AIR DUCT
(G) 		8-98084-231-1 01 1 1307- ●
242 BRACKET; AIR DUCT
(F) 		8-98092-771-0 01 1 1307- ●
242 BRACKET; AIR DUCT
DBL CAB(FC**W*) (F) 		8-98092-771-0 01 1 1307- ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1307-1312 ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1401- ● ● ●
242 BRACKET; AIR DUCT
SGL CAB(FC**M*) (C) 		8-98019-302-1 01 1 1307-1312 ●
242 BRACKET; AIR DUCT
SGL CAB(FC**M*) (C) 		8-98019-302-1 01 1 1401- ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1401- ●
242 BRACKET; AIR DUCT
SGL CAB(FC**M*) (A) 		8-98019-303-1 01 1 1307-1312 ●
242 BRACKET; AIR DUCT
SGL CAB(FC**M*) (A) 		8-98019-303-1 01 1 1401- ●
242 BRACKET; AIR DUCT
(A) 		8-98019-303-1 01 1 1401- ●
242 BRACKET; AIR DUCT
DBL CAB(FC**W*) (E) 		8-98089-456-1 01 1 1307- ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1307-1312 ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1401- ● ● ●
252 DUCT; AIR INT 8-98166-966-0 01 1 1307- ●
252 DUCT; AIR INT
SGL CAB(FC**M*) 		8-98019-843-0 01 1 1307-1312 ●
252 DUCT; AIR INT
SGL CAB(FC**M*) 		8-98019-843-0 01 1 1401- ●
252 DUCT; AIR INT 8-98019-843-0 01 1 1401- ●
252 DUCT; AIR INT
DBL CAB(FC**W*) 		8-98050-681-0 01 1 1307- ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1307-1312 ● ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1401- ● ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1307-1312 ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1401- ● ● ●
381 NUT; BRKT,AIR DUCT
M8 FLANGE 		0-91180-108-0 01 1 1307- ●
381 NUT; BRKT,AIR DUCT
DBL CAB(FC**W*) M8 FLANGE 		0-91180-108-0 01 1 1307- ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1307-1312 ● ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1401- ● ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1307-1312 ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1401- ● ● ●

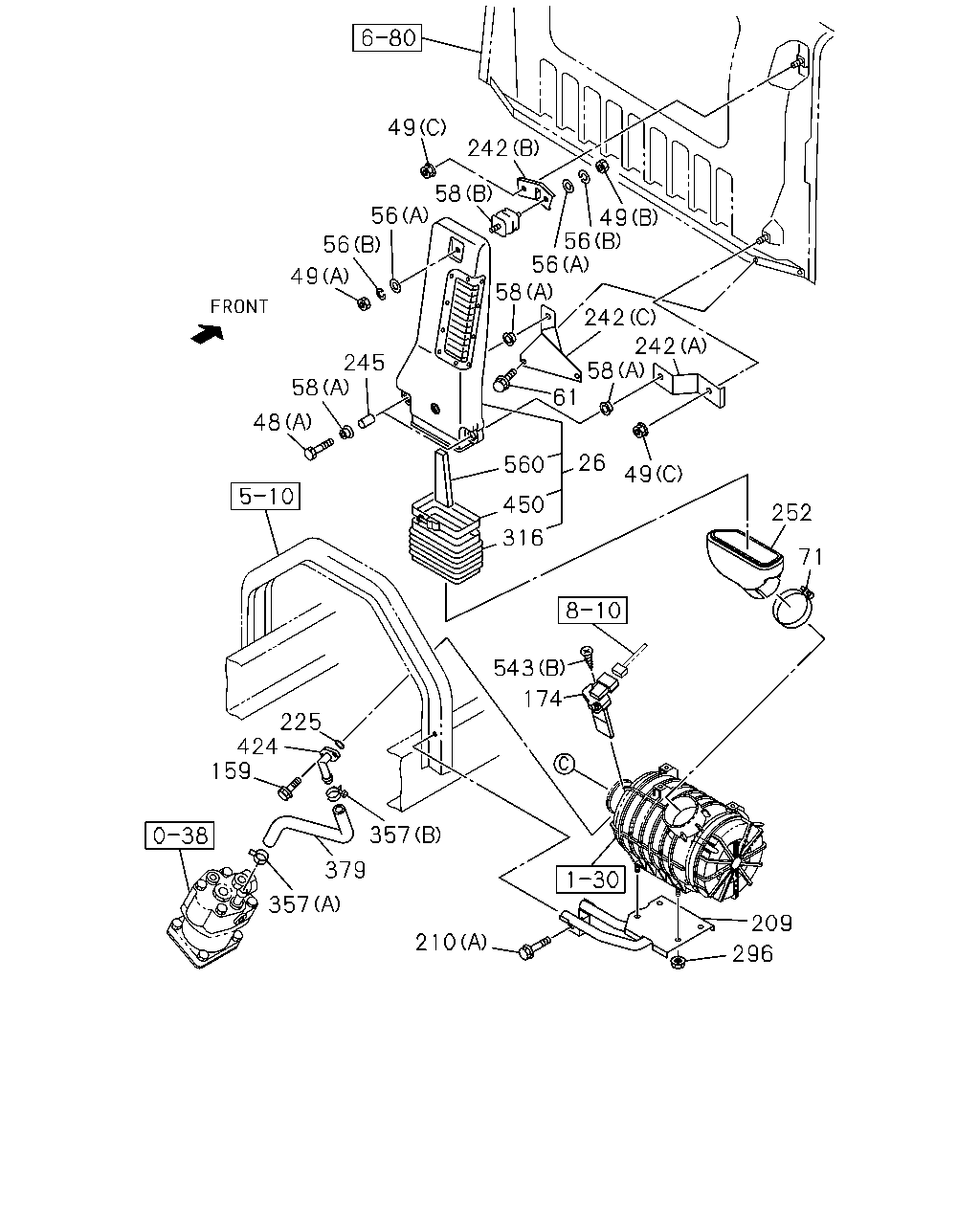

çizim 366818
49 242 58 56 56 49 245 58 48 49 56 56 58 242 58 242 560 26 450 49 316 252 543 174 225 424 159 357 379 357 210 209 296 71 61
BalonParca AdiParca NoAdetTipApplied Date A B C
26 DUCT; AIR INT 8-98010-361-2 01 1 1307-1312 ● ●
26 DUCT; AIR INT 8-98010-361-2 01 1 1401- ● ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28651-025-0 04 1 1307- ●
48 BOLT; AIR DUCT
DBL CAB(FC**W*) (B) M10X25 FLANGE 		0-28651-025-0 04 1 1307- ●
48 BOLT; AIR DUCT
(A) M10X60 		1-09030-044-1 02 1 1307-1312 ● ●
48 BOLT; AIR DUCT
(A) M10X60 		1-09030-044-1 02 1 1401- ● ● ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 01 1 1307- ●
49 NUT; AIR DUCT
DBL CAB(FC**W*) (C) M8 FLANGE 		8-94279-517-0 01 1 1307- ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1307-1312 ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1401- ● ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1307-1312 ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1401- ● ● ●
49 NUT; AIR DUCT
SGL CAB(FC**M*) (C) M8 FLANGE 		8-94279-517-0 02 1 1307-1312 ●
49 NUT; AIR DUCT
SGL CAB(FC**M*) (C) M8 FLANGE 		8-94279-517-0 02 1 1401- ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 1401- ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1307-1312 ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1401- ● ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1307-1312 ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1401- ● ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1307-1312 ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1401- ● ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1307-1312 ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1401- ● ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1307-1312 ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1401- ● ● ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1307-1312 ● ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1401- ● ● ●
159 BOLT; AIR PIPE
SGL CAB(FC**M*) M6X16 FLANGE 		0-28050-616-0 02 1 1307-1312 ●
159 BOLT; AIR PIPE
SGL CAB(FC**M*) M6X16 FLANGE 		0-28050-616-0 02 1 1401- ●
159 BOLT; AIR PIPE
M6X16 FLANGE 		0-28050-616-0 02 1 1401- ●
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1307-1312 ● ●
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1401- ● ● ●
209 BRACKET; ACL 8-98058-687-0 01 1 1307- ●
209 BRACKET; ACL
SGL CAB(FC**M*) 		8-98099-677-0 01 1 1307-1312 ●
209 BRACKET; ACL
SGL CAB(FC**M*) 		8-98099-677-0 01 1 1401- ●
209 BRACKET; ACL 8-98099-677-0 01 1 1401- ●
209 BRACKET; ACL
DBL CAB(FC**W*) 		8-98089-455-1 01 1 1307- ●
210 BOLT; ACL BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1307- ●
210 BOLT; ACL BRKT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 1307- ●
210 BOLT; ACL BRKT
SGL CAB(FC**M*) (A) M10X25 FLANGE 		0-28651-025-0 03 1 1307-1312 ●
210 BOLT; ACL BRKT
SGL CAB(FC**M*) (A) M10X25 FLANGE 		0-28651-025-0 03 1 1401- ●
210 BOLT; ACL BRKT
(A) M10X25 FLANGE 		0-28651-025-0 03 1 1401- ●
210 BOLT; ACL BRKT
DBL CAB(FC**W*) (A) M10X25 FLANGE 		0-28651-025-0 04 1 1307- ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1307-1312 ● ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1401- ● ● ●
242 BRACKET; AIR DUCT
(D) 		8-98050-679-1 01 1 1307- ●
242 BRACKET; AIR DUCT
DBL CAB(FC**W*) (D) 		8-98050-679-1 01 1 1307- ●
242 BRACKET; AIR DUCT
(G) 		8-98084-231-1 01 1 1307- ●
242 BRACKET; AIR DUCT
(F) 		8-98092-771-0 01 1 1307- ●
242 BRACKET; AIR DUCT
DBL CAB(FC**W*) (F) 		8-98092-771-0 01 1 1307- ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1307-1312 ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1401- ● ● ●
242 BRACKET; AIR DUCT
SGL CAB(FC**M*) (C) 		8-98019-302-1 01 1 1307-1312 ●
242 BRACKET; AIR DUCT
SGL CAB(FC**M*) (C) 		8-98019-302-1 01 1 1401- ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1401- ●
242 BRACKET; AIR DUCT
SGL CAB(FC**M*) (A) 		8-98019-303-1 01 1 1307-1312 ●
242 BRACKET; AIR DUCT
SGL CAB(FC**M*) (A) 		8-98019-303-1 01 1 1401- ●
242 BRACKET; AIR DUCT
(A) 		8-98019-303-1 01 1 1401- ●
242 BRACKET; AIR DUCT
DBL CAB(FC**W*) (E) 		8-98089-456-1 01 1 1307- ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1307-1312 ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1401- ● ● ●
252 DUCT; AIR INT 8-98166-966-0 01 1 1307- ●
252 DUCT; AIR INT
SGL CAB(FC**M*) 		8-98019-843-0 01 1 1307-1312 ●
252 DUCT; AIR INT
SGL CAB(FC**M*) 		8-98019-843-0 01 1 1401- ●
252 DUCT; AIR INT 8-98019-843-0 01 1 1401- ●
252 DUCT; AIR INT
DBL CAB(FC**W*) 		8-98050-681-0 01 1 1307- ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1307-1312 ● ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1401- ● ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1307-1312 ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1401- ● ● ●
357 CLIP; RUBBER HOSE
(C) ID=58-79 		1-09707-136-0 02 1 1307- ●
357 CLIP; RUBBER HOSE
(E) ID=24 		8-98025-921-0 02 1 1307- ●
357 CLIP; RUBBER HOSE
(D) ID=68-85 		8-98096-592-0 01 1 1307- ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1307-1312 ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1401- ● ●
357 CLIP; RUBBER HOSE
(C) ID=58-79 		1-09707-136-0 04 1 1307-1312 ●
357 CLIP; RUBBER HOSE
(C) ID=58-79 		1-09707-136-0 04 1 1401- ● ●
357 CLIP; RUBBER HOSE
(B) ID=29.5 		8-97354-979-0 01 1 1307-1312 ●
357 CLIP; RUBBER HOSE
(B) ID=29.5 		8-97354-979-0 01 1 1401- ● ●
379 HOSE; RUBBER 8-98082-252-0 01 1 1307- ●
379 HOSE; RUBBER
SGL CAB(FC**M*) 		8-98063-172-0 01 1 1307-1312 ●
379 HOSE; RUBBER
SGL CAB(FC**M*) 		8-98063-172-0 01 1 1401- ●
379 HOSE; RUBBER 8-98063-172-0 01 1 1401- ●
379 HOSE; RUBBER
DBL CAB(FC**W*) 		8-98073-021-0 01 1 1307- ●
424 PIPE; AIR,INL
SGL CAB(FC**M*) 		8-98081-834-0 01 1 1307-1312 ●
424 PIPE; AIR,INL
SGL CAB(FC**M*) 		8-98081-834-0 01 1 1401- ●
424 PIPE; AIR,INL 8-98081-834-0 01 1 1401- ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1307-1312 ● ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1401- ● ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1307- ●
543 SCREW; SENSOR
(B) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1307-1312 ● ●
543 SCREW; SENSOR
(B) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1401- ● ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1307-1312 ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1401- ● ● ●

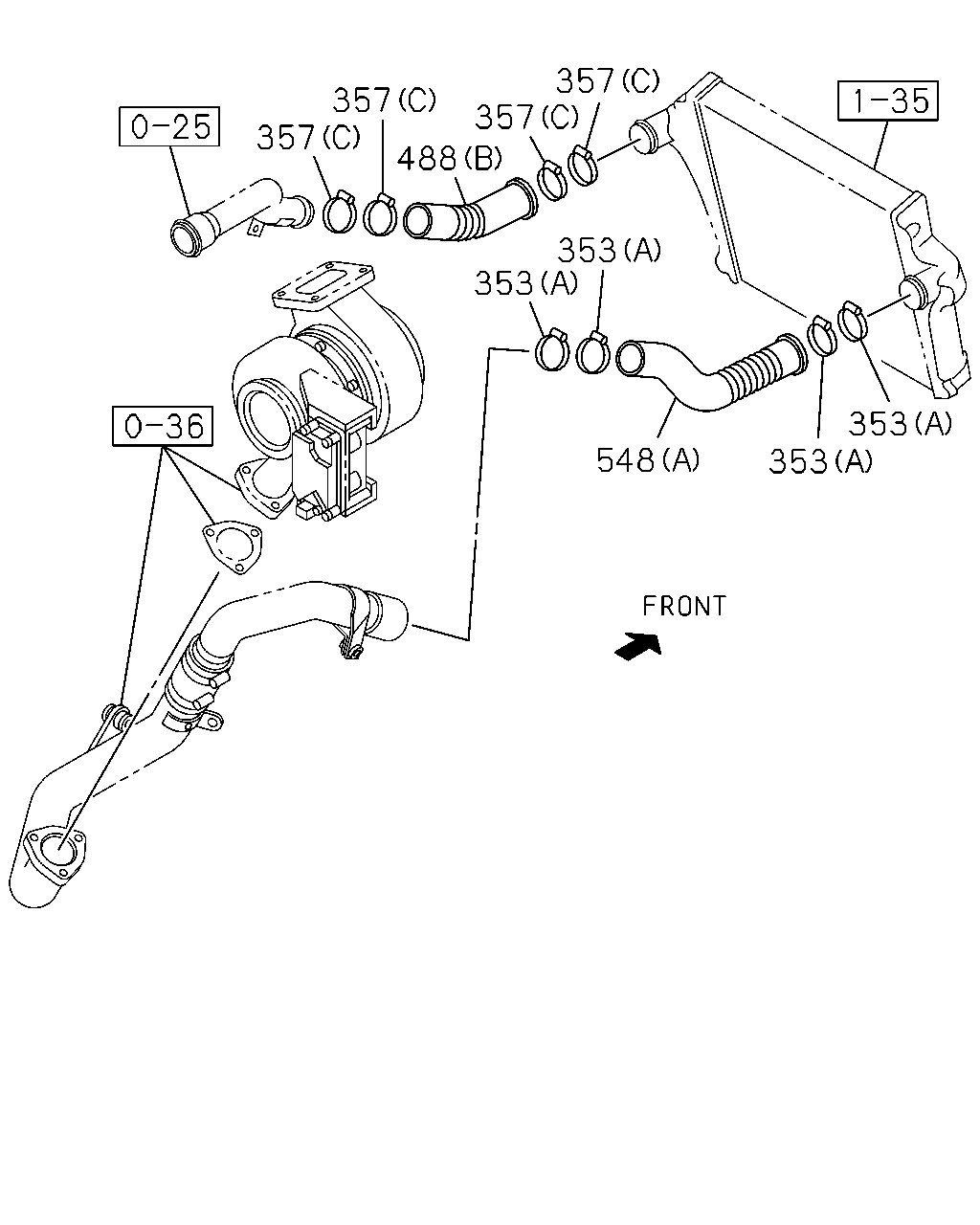

çizim 401274
357 357 488 357 357 353 353 548 353 353
BalonParca AdiParca NoAdetTipApplied Date A B C
353 CLIP; RUBBER HOSE
(A) ID=58-79 		1-09707-136-0 02 1 1307- ●
353 CLIP; RUBBER HOSE
(B) ID=60-65 		8-98096-418-0 02 1 1307- ●
353 CLIP; RUBBER HOSE
(A) ID=58-79 		1-09707-136-0 04 1 1307-1312 ●
353 CLIP; RUBBER HOSE
(A) ID=58-79 		1-09707-136-0 04 1 1401- ● ●
357 CLIP; RUBBER HOSE
(C) ID=58-79 		1-09707-136-0 02 1 1307- ●
357 CLIP; RUBBER HOSE
(E) ID=24 		8-98025-921-0 02 1 1307- ●
357 CLIP; RUBBER HOSE
(D) ID=68-85 		8-98096-592-0 01 1 1307- ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1307-1312 ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1401- ● ●
357 CLIP; RUBBER HOSE
(C) ID=58-79 		1-09707-136-0 04 1 1307-1312 ●
357 CLIP; RUBBER HOSE
(C) ID=58-79 		1-09707-136-0 04 1 1401- ● ●
357 CLIP; RUBBER HOSE
(B) ID=29.5 		8-97354-979-0 01 1 1307-1312 ●
357 CLIP; RUBBER HOSE
(B) ID=29.5 		8-97354-979-0 01 1 1401- ● ●
488 HOSE; RUBBER,PIPE
(A) 		8-98010-723-0 01 1 1307- ●
488 HOSE; RUBBER,PIPE
(B) 		8-98017-224-1 01 1 1307-1312 ●
488 HOSE; RUBBER,PIPE
(B) 		8-98017-224-1 01 1 1401- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(C) 		8-98061-809-1 01 1 1307- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98061-810-0 01 1 1307- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98017-223-2 01 1 1307-1312 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98017-223-2 01 1 1401- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
