◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11548 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶

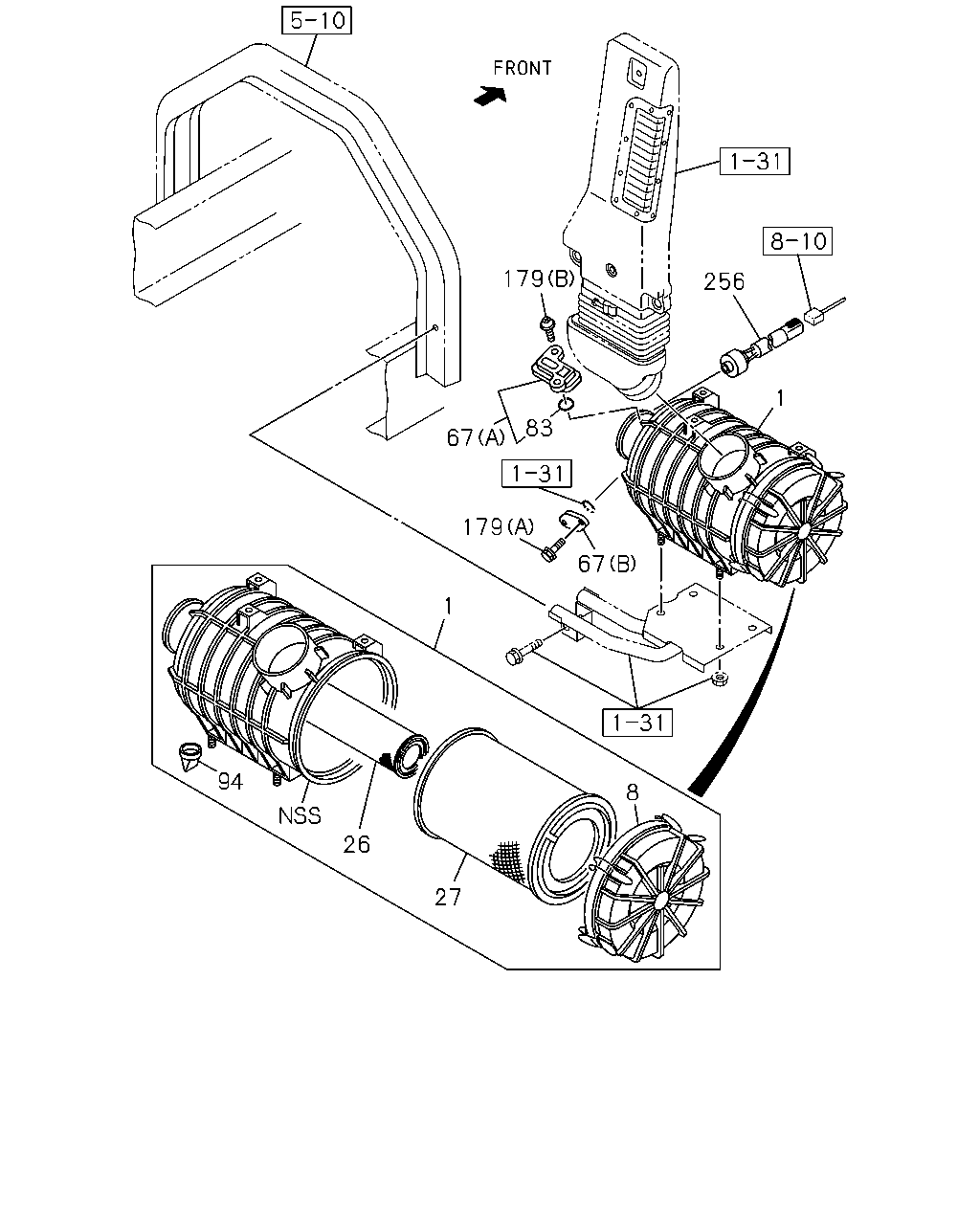

1-30 — AIR CLEANER (#123648) — 26 parça

94 26 27 1 8 179 67 67 83 179 256 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CLEANER ASM; AIR	8-98082-165-1	01	1	1307-1312	●	●
1	CLEANER ASM; AIR	8-98082-165-1	01	1	1401-	●	●	●
8	COVER ASM; ACL	8-98066-740-0	01	1	1307-1312	●	●
8	COVER ASM; ACL	8-98066-740-0	01	1	1401-	●	●	●
26	FILTER; ACL,INNER	8-98071-422-0	01	1	1307-1312	●	●
26	FILTER; ACL,INNER	8-98071-422-0	01	1	1401-	●	●	●
26	FILTER; ACL,INNER BEST VALUE PARTS	1-87610-114-1	01	1	1307-1312	●	●
26	FILTER; ACL,INNER BEST VALUE PARTS	1-87610-114-1	01	1	1401-	●	●	●
27	FILTER; ACL,OUTER DRY TYPE	8-98071-421-0	01	1	1307-1312	●	●
27	FILTER; ACL,OUTER DRY TYPE	8-98071-421-0	01	1	1401-	●	●	●
27	FILTER; ACL,OUTER BEST VALUE PARTS	1-87610-113-1	01	1	1307-1312	●	●
27	FILTER; ACL,OUTER BEST VALUE PARTS	1-87610-113-1	01	1	1401-	●	●	●
67	COVER; ACL (A)	8-98078-789-0	01	1	1307-		●
67	COVER; ACL DBL CAB(FC*W) (A)	8-98078-789-0	01	1	1307-	●
67	COVER; ACL (B)	8-98217-788-0	01	1	1307-		●
67	COVER; ACL DBL CAB(FC*W) (B)	8-98217-788-0	01	1	1307-	●
83	GASKET; COVER	8-98071-416-0	01	1	1307-		●
83	GASKET; COVER DBL CAB(FC*W)	8-98071-416-0	01	1	1307-	●
94	VALVE; VACUATOR	1-14219-279-0	01	1	1307-1312	●	●
94	VALVE; VACUATOR	1-14219-279-0	01	1	1401-	●	●	●
179	BOLT; COVER,ACL (A) M6X16 FLANGE	0-28050-616-0	02	1	1307-		●
179	BOLT; COVER,ACL DBL CAB(FC*W) (A) M6X16 FLANGE	0-28050-616-0	02	1	1307-	●
179	BOLT; COVER,ACL (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1307-		●
179	BOLT; COVER,ACL DBL CAB(FC*W) (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1307-	●
256	SENSOR; AIRFLOW	8-98152-742-1	01	1	1307-1312	●	●
256	SENSOR; AIRFLOW	8-98152-742-1	01	1	1401-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
