◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11548 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#123646) — 313 parça

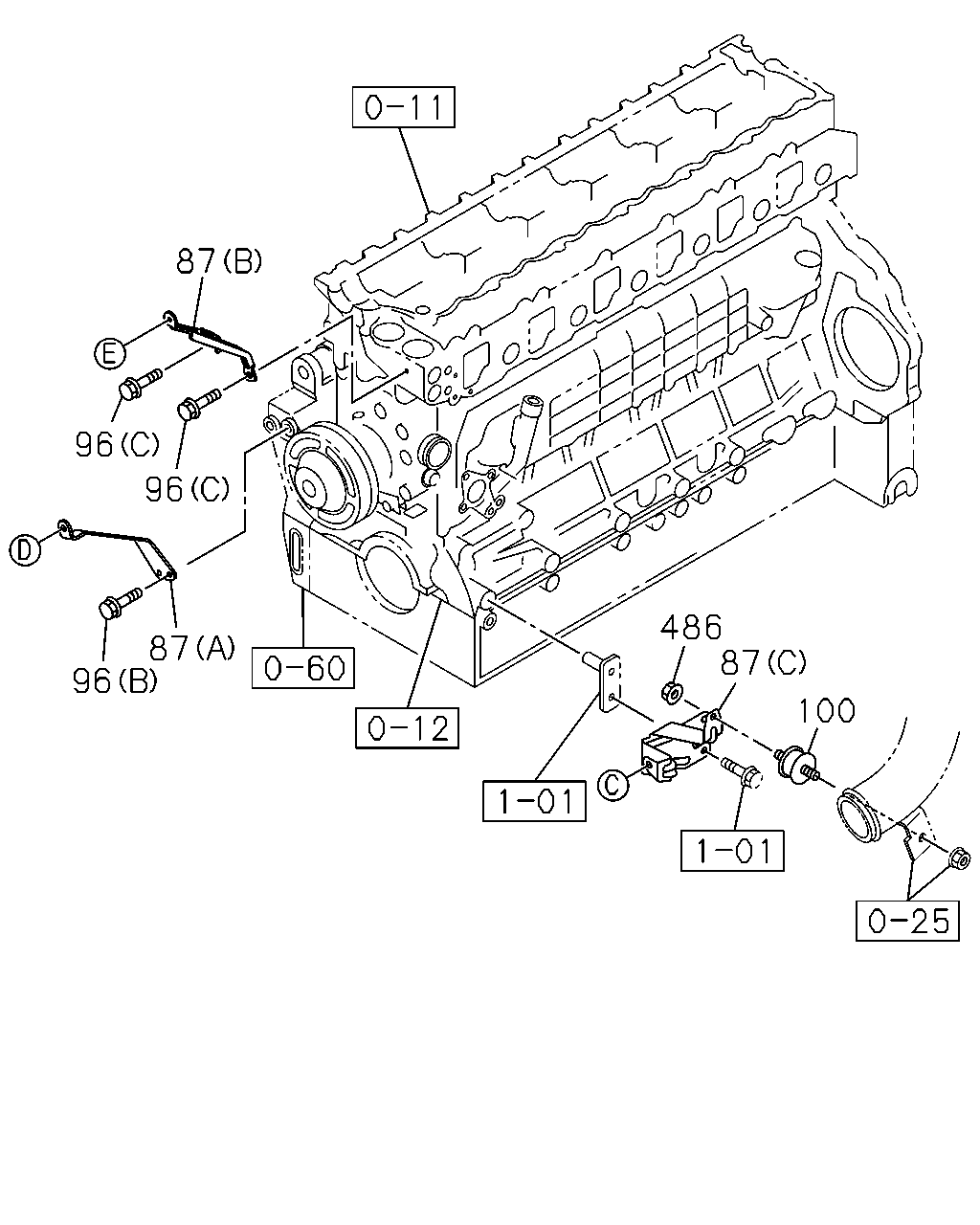

çizim 362585
87 96 96 96 87 486 87 100
BalonParca AdiParca NoAdetTipApplied Date A B C
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 1307-1312 ●
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 1401- ● ●
87 STAY; FAN GUIDE
(C) 		8-94393-778-2 01 1 1307-1312 ●
87 STAY; FAN GUIDE
(C) 		8-94393-778-2 01 1 1401- ● ●
87 STAY; FAN GUIDE
(A) 		8-97602-988-0 01 1 1307-1312 ●
87 STAY; FAN GUIDE
(A) 		8-97602-988-0 01 1 1401- ● ●
96 BOLT; STAY FIX
(A) M10X20 FLANGE 		0-28151-020-0 02 1 1307- ●
96 BOLT; STAY FIX
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) M10X75 FLANGE 		8-94399-669-1 02 1 1307- ●
96 BOLT; STAY FIX
GENERATOR 24V90A(K44) (A) M10X25 FLANGE 		0-28751-025-0 02 1 1307- ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1307-1312 ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1401- ● ●
96 BOLT; STAY FIX
(C) M10X16 FLANGE 		0-28151-016-0 02 1 1307-1312 ●
96 BOLT; STAY FIX
(C) M10X16 FLANGE 		0-28151-016-0 02 1 1401- ● ●
100 RUBBER; MTG 8-98148-109-0 01 1 1307-1312 ●
100 RUBBER; MTG 8-98148-109-0 01 1 1401- ● ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 1307-1312 ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 1401- ● ●
çizim 362586
167 148 167 167 168 168 169 167
BalonParca AdiParca NoAdetTipApplied Date A B C
148 HOSE; WATER,BYPASS,SUB RAD
A/T<X9D> 		8-98116-257-0 01 1 1307-1312 ●
148 HOSE; WATER,BYPASS,SUB RAD
A/T<X9D> 		8-98116-257-0 01 1 1401- ● ●
167 CLIP; BYPASS HOSE
A/T<X9D> (B) ID=12 L=70 		1-09700-097-1 01 1 1307-1312 ●
167 CLIP; BYPASS HOSE
A/T<X9D> (B) ID=12 L=70 		1-09700-097-1 01 1 1401- ● ●
167 CLIP; BYPASS HOSE
A/T<X9D> (A) ID=13 H=75 L=25 		1-09700-601-0 01 1 1307-1312 ●
167 CLIP; BYPASS HOSE
A/T<X9D> (A) ID=13 H=75 L=25 		1-09700-601-0 01 1 1401- ● ●
167 CLIP; BYPASS HOSE
A/T<X9D> (C) ID=11.5 		8-97375-638-0 02 1 1307-1312 ●
167 CLIP; BYPASS HOSE
A/T<X9D> (C) ID=11.5 		8-97375-638-0 02 1 1401- ● ●
168 BOLT; CLIP,BYPASS HOSE
A/T<X9D> M8X20 FLANGE 		0-28650-820-0 02 1 1307-1312 ●
168 BOLT; CLIP,BYPASS HOSE
A/T<X9D> M8X20 FLANGE 		0-28650-820-0 02 1 1401- ● ●
169 NUT; CLIP,BYPASS HOSE
A/T<X9D> M8 FLANGE 		0-91180-108-0 01 1 1307-1312 ●
169 NUT; CLIP,BYPASS HOSE
A/T<X9D> M8 FLANGE 		0-91180-108-0 01 1 1401- ● ●

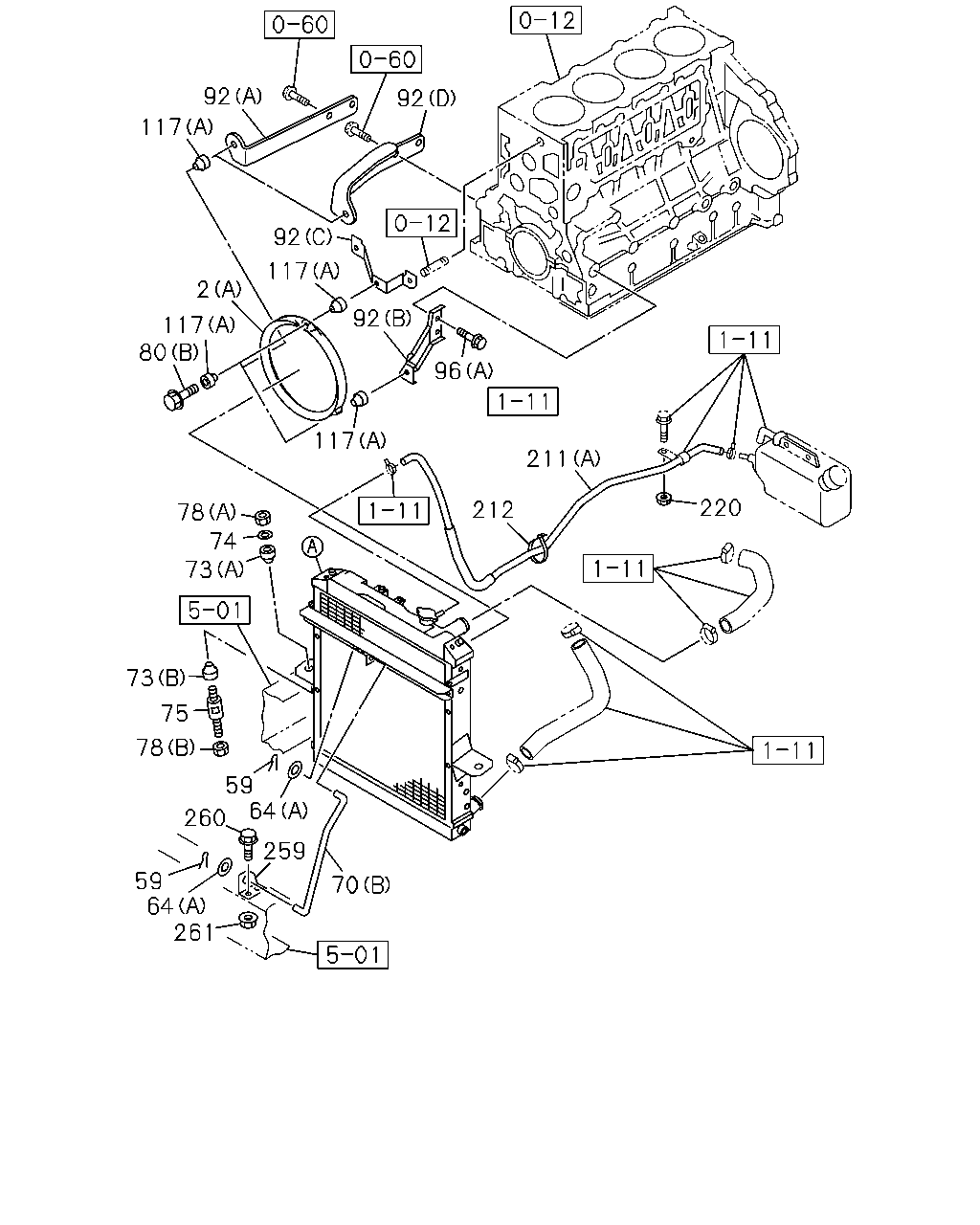

çizim 362676
92 117 92 92 117 2 117 80 92 96 117 211 212 220 78 74 73 73 75 78 59 260 64 259 70 59 64 261
BalonParca AdiParca NoAdetTipApplied Date A B C
2 GUIDE; FAN
(A) 		8-97350-995-0 01 1 1307- ●
2 GUIDE; FAN
(B) 		8-94393-779-1 01 1 1307-1312 ●
2 GUIDE; FAN
(B) 		8-94393-779-1 01 1 1401- ● ●
59 PIN; SNAP,STAY
L=32.6 		8-97359-052-0 02 1 1307- ●
64 WASHER; STAY TO RAD
(A) ID=10.5 		0-91610-510-0 02 1 1307- ●
64 WASHER; STAY TO RAD
(B) ID=12.5 OD=26 		0-91610-612-0 04 1 1307-1312 ●
64 WASHER; STAY TO RAD
(B) ID=12.5 OD=26 		0-91610-612-0 04 1 1401- ● ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 1307- ●
70 STAY; RAD
(A) 		8-98018-941-0 01 1 1307- ●
70 STAY; RAD
SGL CAB(FC**M*) (C) 		8-98078-897-0 01 1 1307-1312 ●
70 STAY; RAD
SGL CAB(FC**M*) (C) 		8-98078-897-0 01 1 1401- ●
70 STAY; RAD
(C) 		8-98078-897-0 01 1 1401- ●
70 STAY; RAD
SGL CAB(FC**M*) (C) 		8-98078-896-0 01 1 1307-1312 ●
70 STAY; RAD
SGL CAB(FC**M*) (C) 		8-98078-896-0 01 1 1401- ●
70 STAY; RAD
(C) 		8-98078-896-0 01 1 1401- ●
70 STAY; RAD
DBL CAB(FC**W*) (C) 		8-98078-905-0 01 1 1307- ●
70 STAY; RAD
DBL CAB(FC**W*) (C) 		8-98078-903-0 01 1 1307- ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 1307-1312 ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 1401- ● ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 1307-1312 ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 1401- ● ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1307-1312 ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1401- ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1307-1312 ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1401- ● ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1307-1312 ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1401- ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 1307-1312 ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 1401- ● ● ●
80 BOLT; FAN GUIDE
(A) M6X16 		1-21559-481-0 04 1 1307- ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1307-1312 ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1401- ● ● ●
80 BOLT; FAN GUIDE
(C) M8X14 		8-98046-222-0 04 1 1307-1312 ●
80 BOLT; FAN GUIDE
(C) M8X14 		8-98046-222-0 04 1 1401-1505 ● ●
80 BOLT; FAN GUIDE
(C) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ● ●
92 BRACKET; FAN GUIDE
(C) 		8-97382-827-2 01 1 1307- ●
92 BRACKET; FAN GUIDE
(B) 		8-97386-233-0 01 1 1307- ●
92 BRACKET; FAN GUIDE
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-97350-997-0 01 1 1307- ●
92 BRACKET; FAN GUIDE
GENERATOR 24V90A(K44) (D) 		8-98032-526-0 01 1 1307- ●
96 BOLT; STAY FIX
(A) M10X20 FLANGE 		0-28151-020-0 02 1 1307- ●
96 BOLT; STAY FIX
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) M10X75 FLANGE 		8-94399-669-1 02 1 1307- ●
96 BOLT; STAY FIX
GENERATOR 24V90A(K44) (A) M10X25 FLANGE 		0-28751-025-0 02 1 1307- ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1307-1312 ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1401- ● ●
96 BOLT; STAY FIX
(C) M10X16 FLANGE 		0-28151-016-0 02 1 1307-1312 ●
96 BOLT; STAY FIX
(C) M10X16 FLANGE 		0-28151-016-0 02 1 1401- ● ●
117 RUBBER; MTG,FAN GUIDE
(A) 		1-09337-027-0 06 1 1307- ●
117 RUBBER; MTG,FAN GUIDE
(B) OD=32 		8-94395-766-0 06 1 1307-1312 ●
117 RUBBER; MTG,FAN GUIDE
(B) OD=32 		8-94395-766-0 06 1 1401- ● ●
211 HOSE; RAD TO PIPE
(A) 		8-98178-700-2 01 1 1307- ●
211 HOSE; RAD TO PIPE
(B) L=940 		8-98073-544-0 01 1 1307-1312 ●
211 HOSE; RAD TO PIPE
(B) L=940 		8-98073-544-0 01 1 1401- ● ●
211 HOSE; RAD TO PIPE
SGL CAB(FC**M*) (C) L=560 		8-98119-375-0 01 1 1307-1312 ●
211 HOSE; RAD TO PIPE
SGL CAB(FC**M*) (C) L=560 		8-98119-375-0 01 1 1401- ●
211 HOSE; RAD TO PIPE
(C) L=560 		8-98119-375-0 01 1 1401- ●
211 HOSE; RAD TO PIPE
DBL CAB(FC**W*) (C) L=1140 		8-98119-760-0 01 1 1307- ●
212 CLIP; HOSE
L=250 		5-09707-030-1 01 1 1307-1312 ● ●
212 CLIP; HOSE
L=250 		5-09707-030-1 01 1 1401- ● ● ●
212 CLIP; HOSE
L=140 		5-09707-031-1 02 1 1307-1312 ●
212 CLIP; HOSE
L=140 		5-09707-031-1 02 1 1401- ● ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 1307- ●
220 NUT; CLIP
SGL CAB(FC**M*) M8 FLANGE 		0-91180-108-0 01 1 1307-1312 ●
220 NUT; CLIP
SGL CAB(FC**M*) M8 FLANGE 		0-91180-108-0 01 1 1401- ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1401- ●
220 NUT; CLIP
DBL CAB(FC**W*) M8 FLANGE 		0-91180-108-0 02 1 1307- ●
259 BRACKET; RAD STAY 8-98063-603-0 01 1 1307- ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1307- ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1307- ●

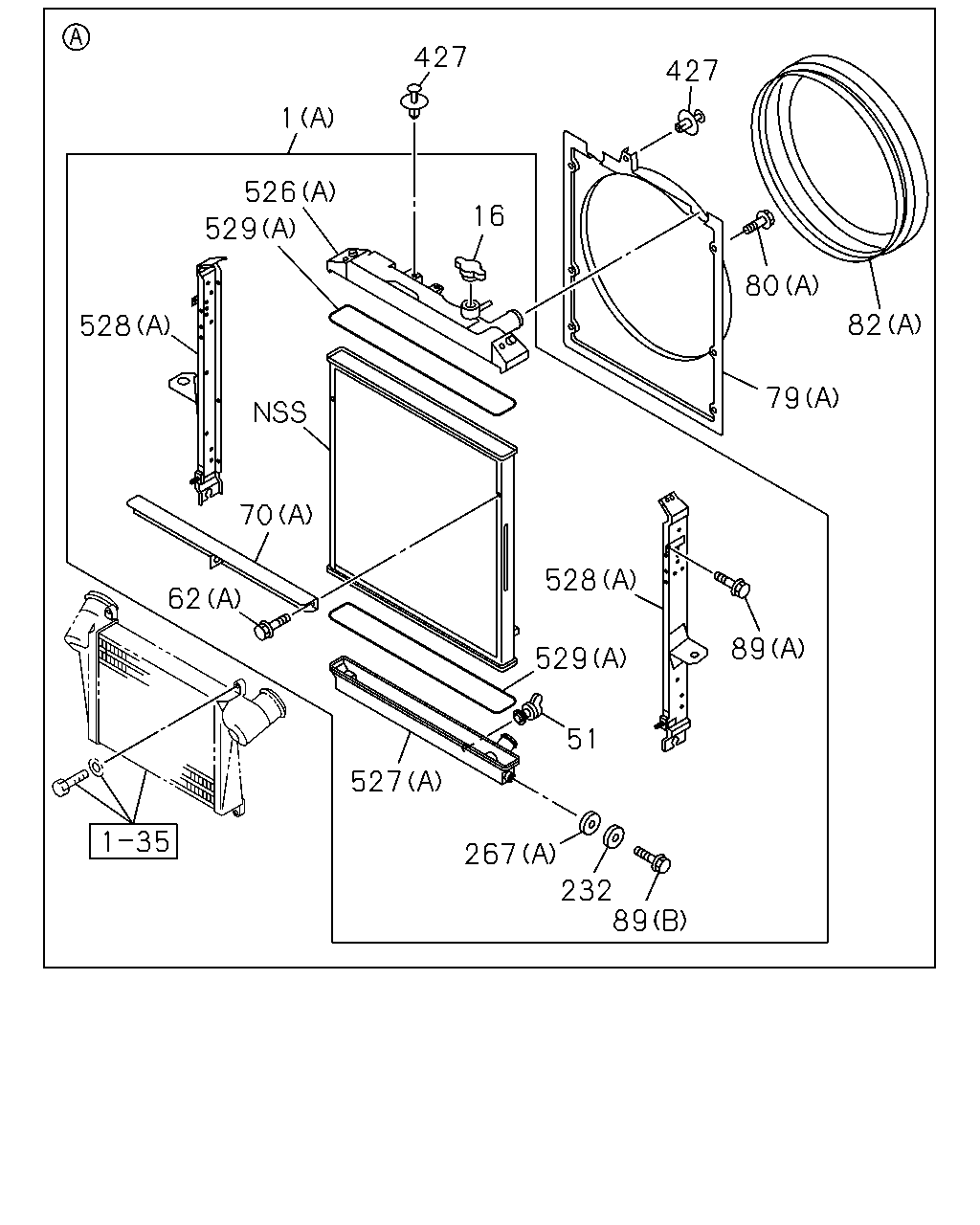

çizim 362684
427 427 1 526 16 529 528 80 82 79 528 529 89 51 527 267 232 89 70 62
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98139-307-0 01 1 1307- ●
1 RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98139-306-0 01 1 1307- ●
1 RADIATOR ASM
A/T<X9D> (B) 		8-98170-436-0 01 1 1307-1312 ●
1 RADIATOR ASM
A/T<X9D> (B) 		8-98170-436-0 01 1 1401-1505 ● ●
1 RADIATOR ASM
A/T<X9D> (B) 		8-98303-839-0 01 1 1506- ● ●
1 RADIATOR ASM
MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98139-309-0 01 1 1307-1312 ●
1 RADIATOR ASM
MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98139-309-0 01 1 1401- ● ●
1 RADIATOR ASM
MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98139-308-0 01 1 1307-1312 ●
1 RADIATOR ASM
MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98139-308-0 01 1 1401- ● ●
16 CAP; RAD 8-98096-226-0 01 1 1307-1312 ● ●
16 CAP; RAD 8-98096-226-0 01 1 1401- ● ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1307-1312 ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1401- ● ● ●
62 BOLT; STAY
(A) M8X12 FLANGE 		0-28050-812-0 02 1 1307- ●
62 BOLT; STAY
(C) M8X30 		1-09009-020-1 02 1 1307-1312 ●
62 BOLT; STAY
(C) M8X30 		1-09009-020-1 02 1 1401- ● ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 1307-1312 ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 1401- ● ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 1307- ●
70 STAY; RAD
(A) 		8-98018-941-0 01 1 1307- ●
70 STAY; RAD
SGL CAB(FC**M*) (C) 		8-98078-897-0 01 1 1307-1312 ●
70 STAY; RAD
SGL CAB(FC**M*) (C) 		8-98078-897-0 01 1 1401- ●
70 STAY; RAD
(C) 		8-98078-897-0 01 1 1401- ●
70 STAY; RAD
SGL CAB(FC**M*) (C) 		8-98078-896-0 01 1 1307-1312 ●
70 STAY; RAD
SGL CAB(FC**M*) (C) 		8-98078-896-0 01 1 1401- ●
70 STAY; RAD
(C) 		8-98078-896-0 01 1 1401- ●
70 STAY; RAD
DBL CAB(FC**W*) (C) 		8-98078-905-0 01 1 1307- ●
70 STAY; RAD
DBL CAB(FC**W*) (C) 		8-98078-903-0 01 1 1307- ●
79 GUIDE; FAN,RAD
(A) 		8-98010-297-0 01 1 1307- ●
79 GUIDE; FAN,RAD
(B) 		8-98004-207-0 01 1 1307-1312 ●
79 GUIDE; FAN,RAD
(B) 		8-98004-207-0 01 1 1401-1505 ● ●
79 GUIDE; FAN,RAD
(C) 		8-98286-937-0 01 1 1506- ● ●
80 BOLT; FAN GUIDE
(A) M6X16 		1-21559-481-0 04 1 1307- ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1307-1312 ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1401- ● ● ●
80 BOLT; FAN GUIDE
(C) M8X14 		8-98046-222-0 04 1 1307-1312 ●
80 BOLT; FAN GUIDE
(C) M8X14 		8-98046-222-0 04 1 1401-1505 ● ●
80 BOLT; FAN GUIDE
(C) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ● ●
82 COVER; FAN,RAD
(A) 		8-98006-478-0 01 1 1307- ●
82 COVER; FAN,RAD
(B) 		8-98004-211-0 01 1 1307-1312 ●
82 COVER; FAN,RAD
(B) 		8-98004-211-0 01 1 1401-1505 ● ●
82 COVER; FAN,RAD
(C) 		8-98293-253-0 01 1 1506- ● ●
89 BOLT
(A) M8X12 FLANGE 		0-28050-812-0 02 1 1307- ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 02 1 1307- ●
89 BOLT
(C) M6X12 FLANGE 		0-28050-612-0 02 1 1307-1312 ●
89 BOLT
(C) M6X12 FLANGE 		0-28050-612-0 02 1 1401- ● ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1307-1312 ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1401- ● ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 02 1 1307- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1307-1312 ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1401- ● ●
267 RUBBER; CUSHION
(A) 		1-21467-023-0 02 1 1307- ●
267 RUBBER; CUSHION
(C) 		1-21469-130-0 04 1 1307-1312 ●
267 RUBBER; CUSHION
(C) 		1-21469-130-0 04 1 1401- ● ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 1307-1312 ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 1401- ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1307-1312 ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1401-1505 ● ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1506- ●
526 TANK; UPR,RADIATOR CORE
(A) 		8-98010-271-2 01 1 1307- ●
526 TANK; UPR,RADIATOR CORE
A/T<X9D> (B) 		8-98010-366-2 01 1 1307-1312 ●
526 TANK; UPR,RADIATOR CORE
A/T<X9D> (B) 		8-98010-366-2 01 1 1401- ● ●
526 TANK; UPR,RADIATOR CORE
MANUAL TRANSMISSION<X9C> (B) 		8-98004-202-2 01 1 1307-1312 ●
526 TANK; UPR,RADIATOR CORE
MANUAL TRANSMISSION<X9C> (B) 		8-98004-202-2 01 1 1401- ● ●
527 TANK; LWR,RADIATOR CORE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98010-279-0 01 1 1307- ●
527 TANK; LWR,RADIATOR CORE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98032-433-1 01 1 1307- ●
527 TANK; LWR,RADIATOR CORE
A/T<X9D> (B) 		8-98038-558-2 01 1 1307-1312 ●
527 TANK; LWR,RADIATOR CORE
A/T<X9D> (B) 		8-98038-558-2 01 1 1401- ● ●
527 TANK; LWR,RADIATOR CORE
MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98010-365-0 01 1 1307-1312 ●
527 TANK; LWR,RADIATOR CORE
MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98010-365-0 01 1 1401- ● ●
527 TANK; LWR,RADIATOR CORE
MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98004-203-0 01 1 1307-1312 ●
527 TANK; LWR,RADIATOR CORE
MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98004-203-0 01 1 1401- ● ●
528 PLATE; SIDE,RADIATOR CORE
(A) 		8-98010-290-1 01 1 1307- ●
528 PLATE; SIDE,RADIATOR CORE
(A) 		8-98010-291-1 01 1 1307- ●
528 PLATE; SIDE,RADIATOR CORE
(B) 		8-98035-117-3 01 1 1307-1312 ●
528 PLATE; SIDE,RADIATOR CORE
(B) 		8-98035-117-3 01 1 1401- ● ●
528 PLATE; SIDE,RADIATOR CORE
(B) 		8-98043-029-1 01 1 1307-1312 ●
528 PLATE; SIDE,RADIATOR CORE
(B) 		8-98043-029-1 01 1 1401- ● ●
529 GASKET; CORE,RADIATOR
(A) 		8-98032-435-0 02 1 1307- ●
529 GASKET; CORE,RADIATOR
(B) 		8-98004-206-0 02 1 1307-1312 ●
529 GASKET; CORE,RADIATOR
(B) 		8-98004-206-0 02 1 1401- ● ●

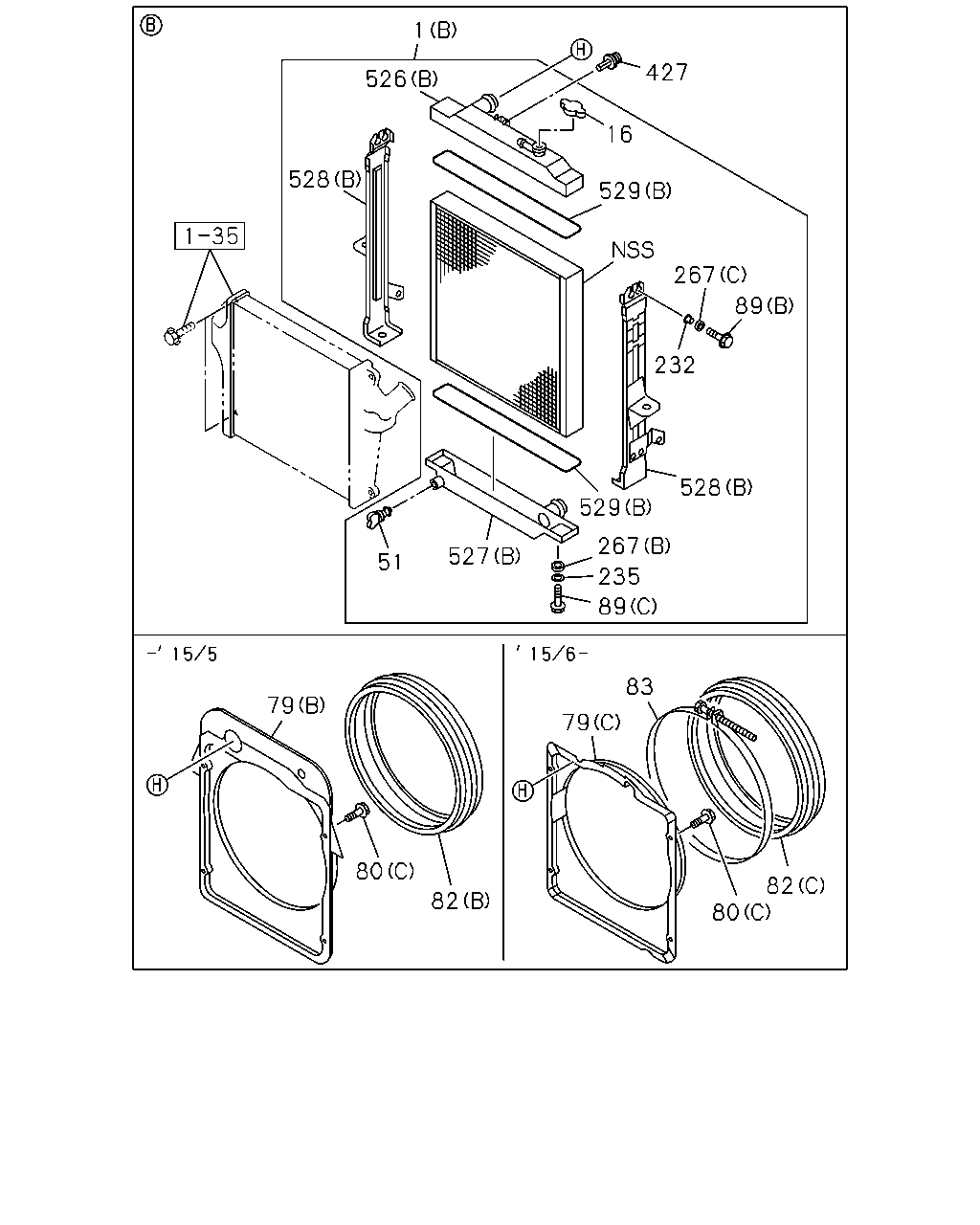

çizim 362695
1 427 16 529 267 89 232 528 529 267 235 89 527 51 79 80 82 79 83 82 80 528 526
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98139-307-0 01 1 1307- ●
1 RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98139-306-0 01 1 1307- ●
1 RADIATOR ASM
A/T<X9D> (B) 		8-98170-436-0 01 1 1307-1312 ●
1 RADIATOR ASM
A/T<X9D> (B) 		8-98170-436-0 01 1 1401-1505 ● ●
1 RADIATOR ASM
A/T<X9D> (B) 		8-98303-839-0 01 1 1506- ● ●
1 RADIATOR ASM
MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98139-309-0 01 1 1307-1312 ●
1 RADIATOR ASM
MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98139-309-0 01 1 1401- ● ●
1 RADIATOR ASM
MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98139-308-0 01 1 1307-1312 ●
1 RADIATOR ASM
MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98139-308-0 01 1 1401- ● ●
16 CAP; RAD 8-98096-226-0 01 1 1307-1312 ● ●
16 CAP; RAD 8-98096-226-0 01 1 1401- ● ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1307-1312 ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1401- ● ● ●
79 GUIDE; FAN,RAD
(A) 		8-98010-297-0 01 1 1307- ●
79 GUIDE; FAN,RAD
(B) 		8-98004-207-0 01 1 1307-1312 ●
79 GUIDE; FAN,RAD
(B) 		8-98004-207-0 01 1 1401-1505 ● ●
79 GUIDE; FAN,RAD
(C) 		8-98286-937-0 01 1 1506- ● ●
80 BOLT; FAN GUIDE
(A) M6X16 		1-21559-481-0 04 1 1307- ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1307-1312 ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1401- ● ● ●
80 BOLT; FAN GUIDE
(C) M8X14 		8-98046-222-0 04 1 1307-1312 ●
80 BOLT; FAN GUIDE
(C) M8X14 		8-98046-222-0 04 1 1401-1505 ● ●
80 BOLT; FAN GUIDE
(C) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ● ●
82 COVER; FAN,RAD
(A) 		8-98006-478-0 01 1 1307- ●
82 COVER; FAN,RAD
(B) 		8-98004-211-0 01 1 1307-1312 ●
82 COVER; FAN,RAD
(B) 		8-98004-211-0 01 1 1401-1505 ● ●
82 COVER; FAN,RAD
(C) 		8-98293-253-0 01 1 1506- ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 1506- ● ●
89 BOLT
(A) M8X12 FLANGE 		0-28050-812-0 02 1 1307- ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 02 1 1307- ●
89 BOLT
(C) M6X12 FLANGE 		0-28050-612-0 02 1 1307-1312 ●
89 BOLT
(C) M6X12 FLANGE 		0-28050-612-0 02 1 1401- ● ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1307-1312 ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1401- ● ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 02 1 1307- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1307-1312 ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1401- ● ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 1307-1312 ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 1401- ● ●
267 RUBBER; CUSHION
(A) 		1-21467-023-0 02 1 1307- ●
267 RUBBER; CUSHION
(C) 		1-21469-130-0 04 1 1307-1312 ●
267 RUBBER; CUSHION
(C) 		1-21469-130-0 04 1 1401- ● ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 1307-1312 ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 1401- ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1307-1312 ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1401-1505 ● ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1506- ●
526 TANK; UPR,RADIATOR CORE
(A) 		8-98010-271-2 01 1 1307- ●
526 TANK; UPR,RADIATOR CORE
A/T<X9D> (B) 		8-98010-366-2 01 1 1307-1312 ●
526 TANK; UPR,RADIATOR CORE
A/T<X9D> (B) 		8-98010-366-2 01 1 1401- ● ●
526 TANK; UPR,RADIATOR CORE
MANUAL TRANSMISSION<X9C> (B) 		8-98004-202-2 01 1 1307-1312 ●
526 TANK; UPR,RADIATOR CORE
MANUAL TRANSMISSION<X9C> (B) 		8-98004-202-2 01 1 1401- ● ●
527 TANK; LWR,RADIATOR CORE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98010-279-0 01 1 1307- ●
527 TANK; LWR,RADIATOR CORE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98032-433-1 01 1 1307- ●
527 TANK; LWR,RADIATOR CORE
A/T<X9D> (B) 		8-98038-558-2 01 1 1307-1312 ●
527 TANK; LWR,RADIATOR CORE
A/T<X9D> (B) 		8-98038-558-2 01 1 1401- ● ●
527 TANK; LWR,RADIATOR CORE
MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98010-365-0 01 1 1307-1312 ●
527 TANK; LWR,RADIATOR CORE
MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98010-365-0 01 1 1401- ● ●
527 TANK; LWR,RADIATOR CORE
MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98004-203-0 01 1 1307-1312 ●
527 TANK; LWR,RADIATOR CORE
MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98004-203-0 01 1 1401- ● ●
528 PLATE; SIDE,RADIATOR CORE
(A) 		8-98010-290-1 01 1 1307- ●
528 PLATE; SIDE,RADIATOR CORE
(A) 		8-98010-291-1 01 1 1307- ●
528 PLATE; SIDE,RADIATOR CORE
(B) 		8-98035-117-3 01 1 1307-1312 ●
528 PLATE; SIDE,RADIATOR CORE
(B) 		8-98035-117-3 01 1 1401- ● ●
528 PLATE; SIDE,RADIATOR CORE
(B) 		8-98043-029-1 01 1 1307-1312 ●
528 PLATE; SIDE,RADIATOR CORE
(B) 		8-98043-029-1 01 1 1401- ● ●
529 GASKET; CORE,RADIATOR
(A) 		8-98032-435-0 02 1 1307- ●
529 GASKET; CORE,RADIATOR
(B) 		8-98004-206-0 02 1 1307-1312 ●
529 GASKET; CORE,RADIATOR
(B) 		8-98004-206-0 02 1 1401- ● ●

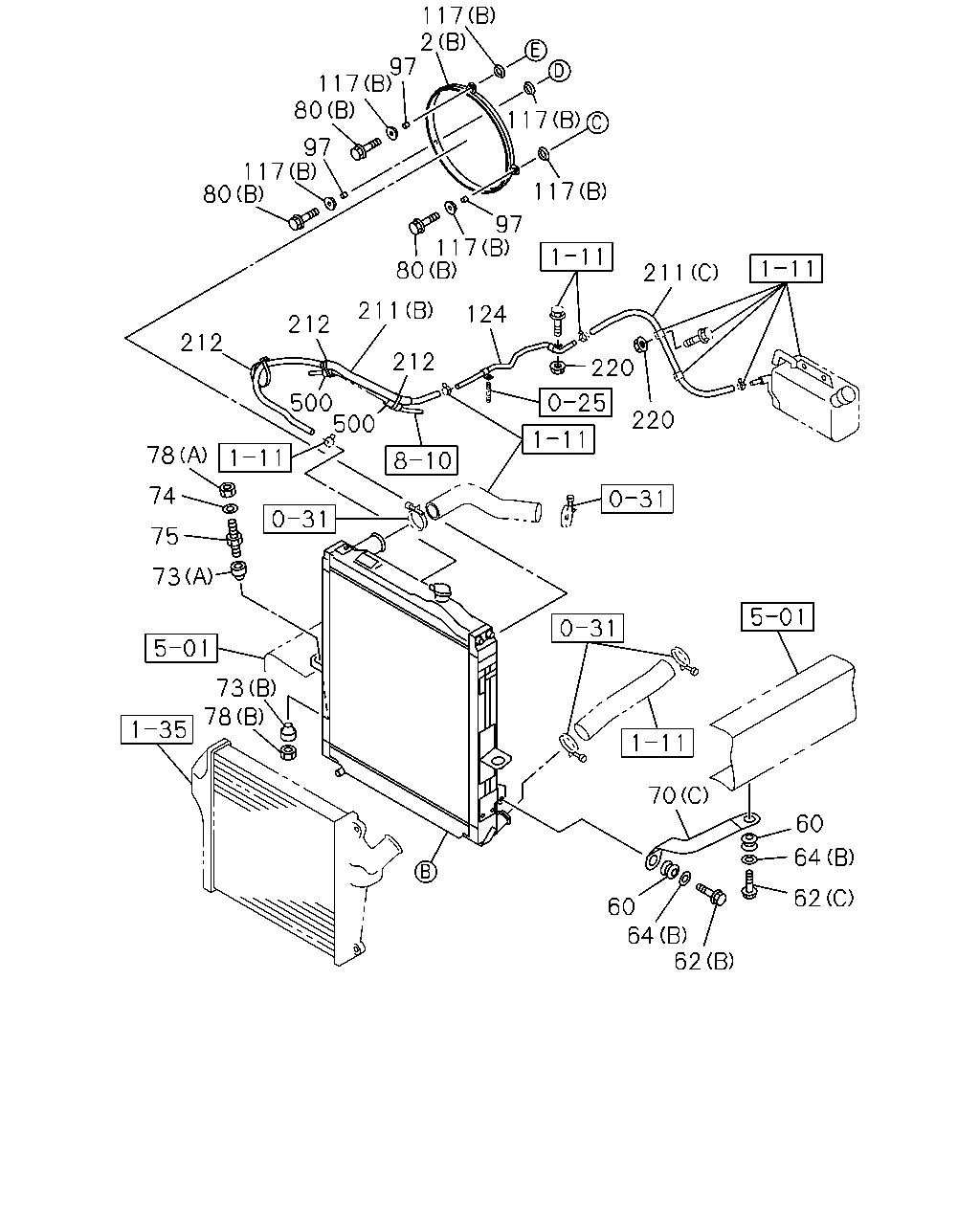

çizim 366024
80 117 97 80 117 97 2 117 117 117 117 97 80 212 211 212 212 124 211 220 220 500 500 78 74 75 73 73 78 60 64 62 60 64 62 70
BalonParca AdiParca NoAdetTipApplied Date A B C
2 GUIDE; FAN
(A) 		8-97350-995-0 01 1 1307- ●
2 GUIDE; FAN
(B) 		8-94393-779-1 01 1 1307-1312 ●
2 GUIDE; FAN
(B) 		8-94393-779-1 01 1 1401- ● ●
60 GROMMET 1-09332-117-0 04 1 1307-1312 ●
60 GROMMET 1-09332-117-0 04 1 1401- ● ●
62 BOLT; STAY
(A) M8X12 FLANGE 		0-28050-812-0 02 1 1307- ●
62 BOLT; STAY
(C) M8X30 		1-09009-020-1 02 1 1307-1312 ●
62 BOLT; STAY
(C) M8X30 		1-09009-020-1 02 1 1401- ● ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 1307-1312 ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 1401- ● ●
64 WASHER; STAY TO RAD
(A) ID=10.5 		0-91610-510-0 02 1 1307- ●
64 WASHER; STAY TO RAD
(B) ID=12.5 OD=26 		0-91610-612-0 04 1 1307-1312 ●
64 WASHER; STAY TO RAD
(B) ID=12.5 OD=26 		0-91610-612-0 04 1 1401- ● ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 1307- ●
70 STAY; RAD
(A) 		8-98018-941-0 01 1 1307- ●
70 STAY; RAD
SGL CAB(FC**M*) (C) 		8-98078-897-0 01 1 1307-1312 ●
70 STAY; RAD
SGL CAB(FC**M*) (C) 		8-98078-897-0 01 1 1401- ●
70 STAY; RAD
(C) 		8-98078-897-0 01 1 1401- ●
70 STAY; RAD
SGL CAB(FC**M*) (C) 		8-98078-896-0 01 1 1307-1312 ●
70 STAY; RAD
SGL CAB(FC**M*) (C) 		8-98078-896-0 01 1 1401- ●
70 STAY; RAD
(C) 		8-98078-896-0 01 1 1401- ●
70 STAY; RAD
DBL CAB(FC**W*) (C) 		8-98078-905-0 01 1 1307- ●
70 STAY; RAD
DBL CAB(FC**W*) (C) 		8-98078-903-0 01 1 1307- ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 1307-1312 ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 1401- ● ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 1307-1312 ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 1401- ● ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1307-1312 ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1401- ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1307-1312 ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1401- ● ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1307-1312 ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1401- ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 1307-1312 ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 1401- ● ● ●
80 BOLT; FAN GUIDE
(A) M6X16 		1-21559-481-0 04 1 1307- ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1307-1312 ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1401- ● ● ●
80 BOLT; FAN GUIDE
(C) M8X14 		8-98046-222-0 04 1 1307-1312 ●
80 BOLT; FAN GUIDE
(C) M8X14 		8-98046-222-0 04 1 1401-1505 ● ●
80 BOLT; FAN GUIDE
(C) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 1307-1312 ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 1401- ● ●
117 RUBBER; MTG,FAN GUIDE
(A) 		1-09337-027-0 06 1 1307- ●
117 RUBBER; MTG,FAN GUIDE
(B) OD=32 		8-94395-766-0 06 1 1307-1312 ●
117 RUBBER; MTG,FAN GUIDE
(B) OD=32 		8-94395-766-0 06 1 1401- ● ●
124 PIPE; WATER,TANK TO RAD 8-97611-022-1 01 1 1307-1312 ●
124 PIPE; WATER,TANK TO RAD 8-97611-022-1 01 1 1401- ● ●
211 HOSE; RAD TO PIPE
(A) 		8-98178-700-2 01 1 1307- ●
211 HOSE; RAD TO PIPE
(B) L=940 		8-98073-544-0 01 1 1307-1312 ●
211 HOSE; RAD TO PIPE
(B) L=940 		8-98073-544-0 01 1 1401- ● ●
211 HOSE; RAD TO PIPE
SGL CAB(FC**M*) (C) L=560 		8-98119-375-0 01 1 1307-1312 ●
211 HOSE; RAD TO PIPE
SGL CAB(FC**M*) (C) L=560 		8-98119-375-0 01 1 1401- ●
211 HOSE; RAD TO PIPE
(C) L=560 		8-98119-375-0 01 1 1401- ●
211 HOSE; RAD TO PIPE
DBL CAB(FC**W*) (C) L=1140 		8-98119-760-0 01 1 1307- ●
212 CLIP; HOSE
L=250 		5-09707-030-1 01 1 1307-1312 ● ●
212 CLIP; HOSE
L=250 		5-09707-030-1 01 1 1401- ● ● ●
212 CLIP; HOSE
L=140 		5-09707-031-1 02 1 1307-1312 ●
212 CLIP; HOSE
L=140 		5-09707-031-1 02 1 1401- ● ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 1307- ●
220 NUT; CLIP
SGL CAB(FC**M*) M8 FLANGE 		0-91180-108-0 01 1 1307-1312 ●
220 NUT; CLIP
SGL CAB(FC**M*) M8 FLANGE 		0-91180-108-0 01 1 1401- ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1401- ●
220 NUT; CLIP
DBL CAB(FC**W*) M8 FLANGE 		0-91180-108-0 02 1 1307- ●
500 SLEEVE; RUBBER
ID=17 OD=21 L=40 		1-09337-012-0 02 1 1307-1312 ●
500 SLEEVE; RUBBER
ID=17 OD=21 L=40 		1-09337-012-0 02 1 1401- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
