0-52 — OIL AND VACUUM PIPING; ENGINE (#123637) — 53 parça

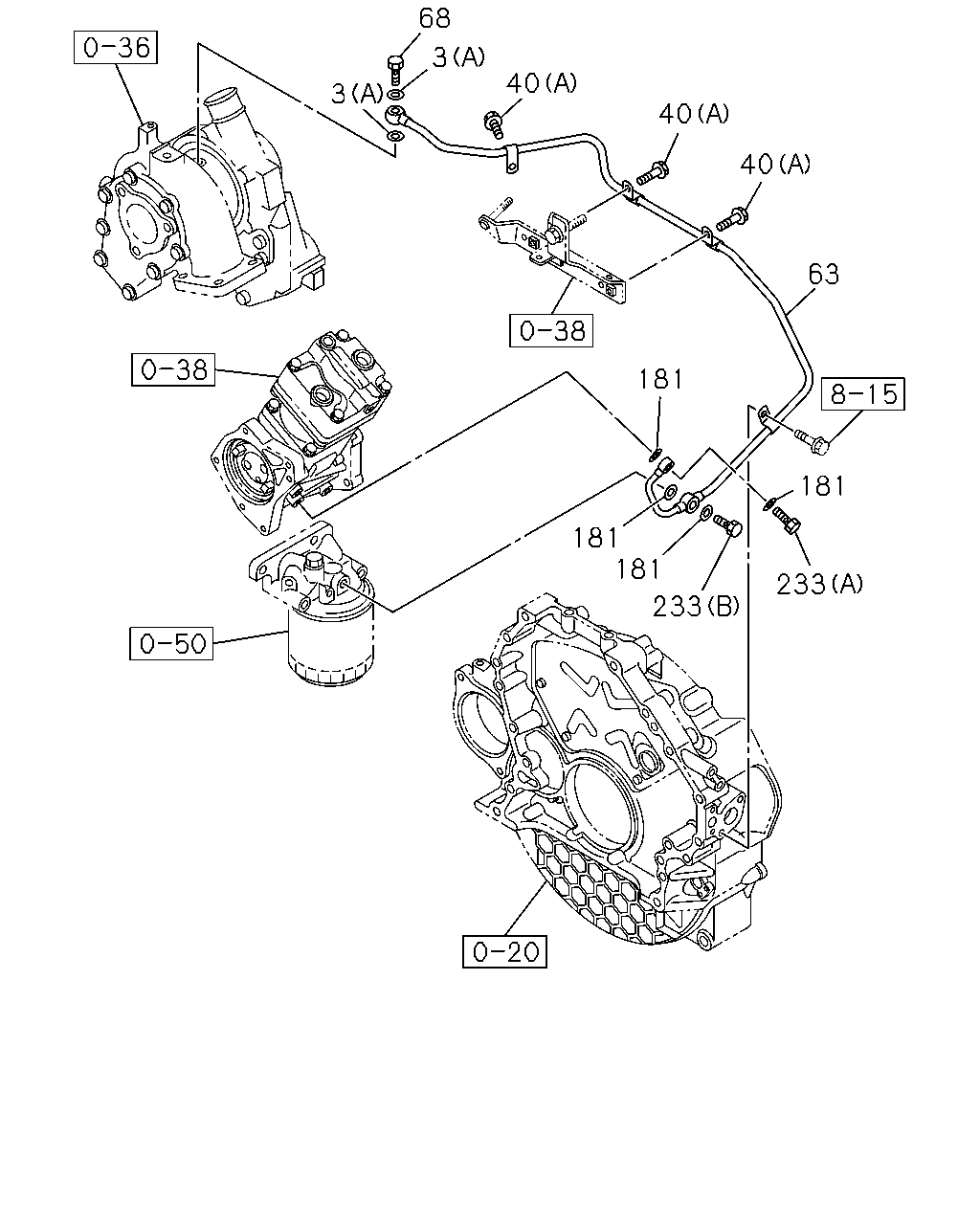

233 233 181 181 181 181 63 40 40 40 3 68 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=16.0	9-09571-410-0	02	1	1307-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	1307-1312		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-1401		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	01	1	1307-1312		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	01	1	1401-		●	●
40	BOLT; OIL PIPE (A) M8X20 FLANGE	0-28050-820-0	03	1	1307-	●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	1307-1312		●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	1401-		●	●
40	BOLT; OIL PIPE (C) M8X30 FLANGE	0-28650-830-0	02	1	1307-1312		●
40	BOLT; OIL PIPE (C) M8X30 FLANGE	0-28650-830-0	02	1	1401-		●	●
63	PIPE; OIL,TURBOCHARGER FEED	8-98076-311-0	01	1	1307-1509	●
63	PIPE; OIL,TURBOCHARGER FEED	8-98204-176-1	01	1	1510-	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97606-204-0	01	1	1307-1312		●
63	PIPE; OIL,TURBOCHARGER FEED	8-97606-204-0	01	1	1401-		●	●
68	BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE M10X26	8-98037-825-0	01	1	1307-	●
181	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	04	1	1307-	●
233	BOLT; EYE (A) M10X22	1-09675-028-0	01	1	1307-	●
233	BOLT; EYE (B) M10X28	8-98037-823-0	01	1	1307-	●

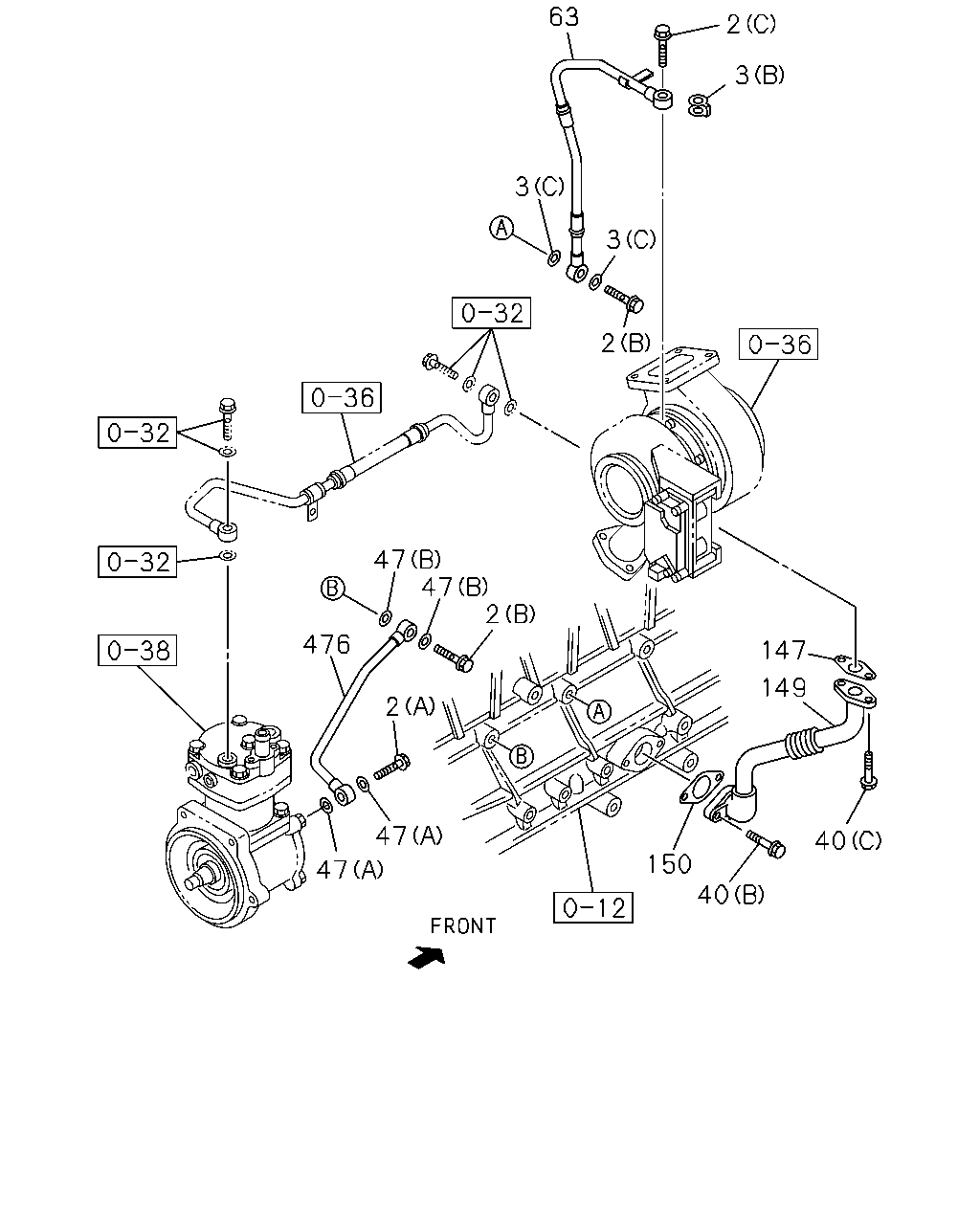

63 2 3 3 3 2 47 476 47 2 2 47 47 147 149 150 40 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	1307-1312		●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	1401-		●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	1307-1312		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	1401-		●	●
2	BOLT; EYE,OIL PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1307-1312		●
2	BOLT; EYE,OIL PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1401-		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=16.0	9-09571-410-0	02	1	1307-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	1307-1312		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-1401		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	01	1	1307-1312		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	01	1	1401-		●	●
40	BOLT; OIL PIPE (A) M8X20 FLANGE	0-28050-820-0	03	1	1307-	●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	1307-1312		●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	1401-		●	●
40	BOLT; OIL PIPE (C) M8X30 FLANGE	0-28650-830-0	02	1	1307-1312		●
40	BOLT; OIL PIPE (C) M8X30 FLANGE	0-28650-830-0	02	1	1401-		●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	1307-1312		●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	1401-		●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	1307-1312		●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-1401		●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●	●
63	PIPE; OIL,TURBOCHARGER FEED	8-98076-311-0	01	1	1307-1509	●
63	PIPE; OIL,TURBOCHARGER FEED	8-98204-176-1	01	1	1510-	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97606-204-0	01	1	1307-1312		●
63	PIPE; OIL,TURBOCHARGER FEED	8-97606-204-0	01	1	1401-		●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	1307-1312		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	1401-		●	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97606-205-3	01	1	1307-1312		●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97606-205-3	01	1	1401-		●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1307-1312		●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1401-		●	●
476	PIPE; OIL,C/BL TO AIR CMPR	8-97608-935-0	01	1	1307-1312		●
476	PIPE; OIL,C/BL TO AIR CMPR	8-97608-935-0	01	1	1401-		●	●
