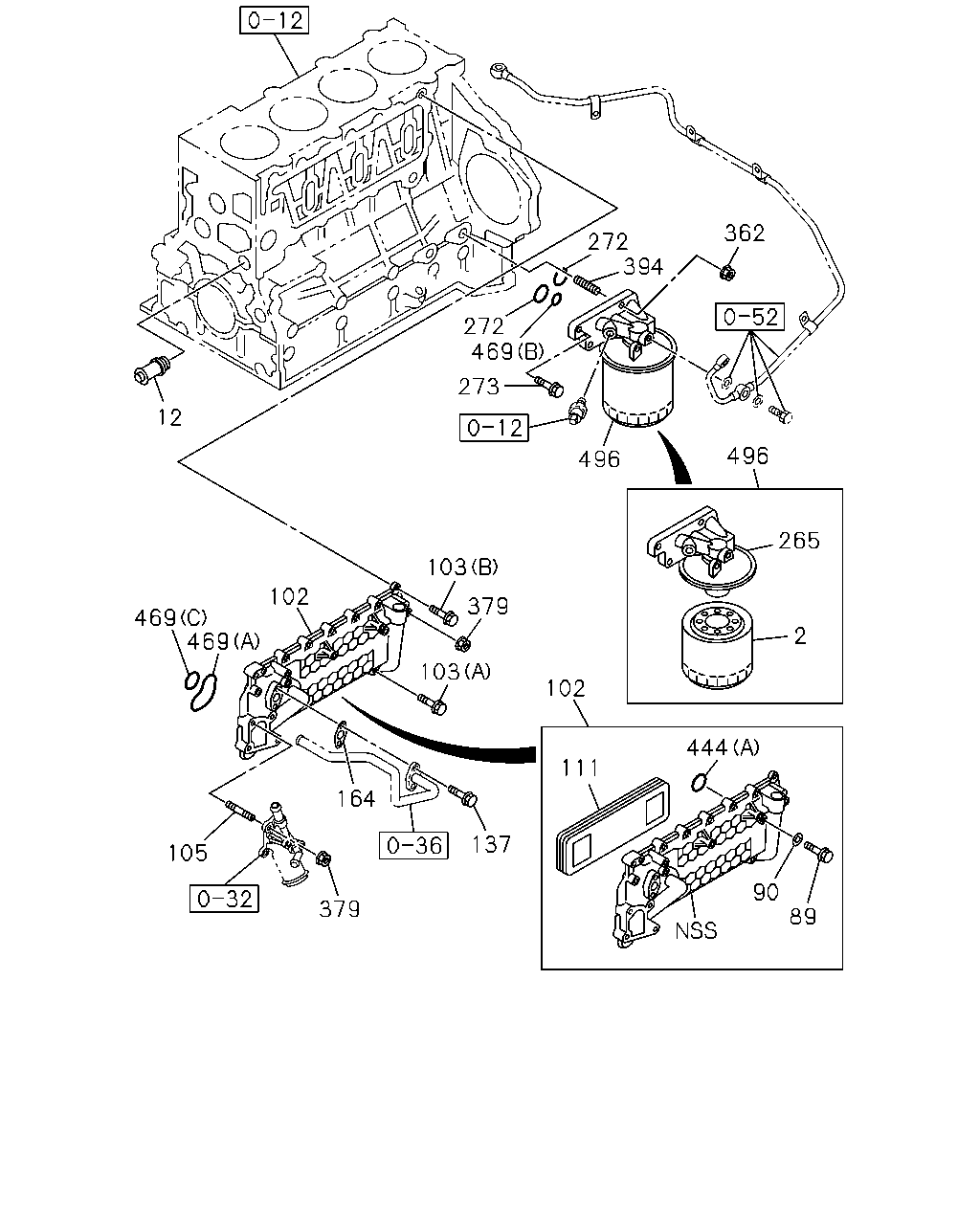

0-50 — OIL COOLER AND OIL FILTER (#123635) — 155 parça

12 272 362 496 496 273 469 272 265 2 102 111 444 90 89 394 102 103 379 103 164 137 379 105 469 469

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	ELEMENT; OIL FILTER	8-97148-270-1	01	1	1307-1509	●
2	ELEMENT; OIL FILTER	8-98328-207-0	01	1	1510-	●
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	1307-1312		●
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	1401-		●	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1307-1312		●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1401-		●	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-117-0	01	1	1307-1509	●
12	VALVE ASM; BYPASS	8-97013-566-2	01	1	1307-	●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE	0-28050-816-0	04	1	1307-	●
90	GASKET; BOLT,OIL COOLER	1-21729-043-0	04	1	1307-	●
102	COOLER ASM; OIL	8-98085-312-5	01	1	1307-	●
102	COOLER ASM; OIL	8-98130-995-0	01	1	1307-1307		●
102	COOLER ASM; OIL	8-98236-650-0	01	1	1308-1312		●
102	COOLER ASM; OIL	8-98236-650-0	01	1	1401-		●	●
103	BOLT; OIL COOLER (D) M8X18 FLANGE	8-98251-758-0	04	1	1309-1312		●
103	BOLT; OIL COOLER (D) M8X18 FLANGE	8-98251-758-0	04	1	1401-		●	●
103	BOLT; OIL COOLER (A) M8X20 FLANGE	0-28050-820-0	08	1	1307-	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	08	1	1307-	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	1307-1312		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	1401-		●	●
103	BOLT; OIL COOLER (C) M8X30 FLANGE	0-28650-830-0	24	1	1307-1312		●
103	BOLT; OIL COOLER (C) M8X30 FLANGE	0-28650-830-0	24	1	1401-		●	●
105	STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	1307-	●
111	CORE; OIL COOLER	8-98063-863-0	01	1	1309-1312		●
111	CORE; OIL COOLER	8-98063-863-0	01	1	1401-		●	●
111	CORE; OIL COOLER	8-97334-100-2	01	1	1307-	●
137	BOLT M8X20 FLANGE	0-28650-820-0	02	1	1307-	●
164	GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.6	8-97146-684-0	01	1	1307-	●
265	BODY; OIL FILTER	8-97096-677-4	01	1	1307-	●
265	BODY; OIL FILTER	8-94391-016-4	01	1	1307-1307		●
265	BODY; OIL FILTER	8-98238-939-0	01	1	1308-1312		●
265	BODY; OIL FILTER	8-98238-939-0	01	1	1401-		●	●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	1307-	●
273	BOLT; OIL FILTER M10X30	0-59331-030-0	03	1	1307-	●
362	NUT; OIL FILTER M10 FLANGE	0-91180-110-0	01	1	1307-	●
379	NUT; OIL COOLER M8 FLANGE	0-91180-108-0	04	1	1309-1312		●
379	NUT; OIL COOLER M8 FLANGE	0-91180-108-0	04	1	1401-		●	●
379	NUT; OIL COOLER M8 FLANGE	0-91180-108-0	03	1	1307-	●
394	STUD; OIL FILTER M10X25 L=48.5	0-49241-025-0	01	1	1307-	●
444	GASKET; ELEMENT TO BODY (C)	8-97601-801-0	02	1	1309-1312		●
444	GASKET; ELEMENT TO BODY (C)	8-97601-801-0	02	1	1401-		●	●
444	GASKET; ELEMENT TO BODY (A)	8-97384-130-0	02	1	1307-	●
444	GASKET; ELEMENT TO BODY (B) ID=38.7	1-09623-299-0	02	1	1307-1312		●
444	GASKET; ELEMENT TO BODY (B) ID=38.7	1-09623-299-0	02	1	1401-		●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	1307-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	1307-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	1307-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-94399-002-0	01	1	1307-1312		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-94399-002-0	01	1	1401-		●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=20	8-98045-449-0	01	1	1307-1312		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=20	8-98045-449-0	01	1	1401-		●	●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1307-1509	●
496	FILTER ASM; OIL	8-98328-202-0	01	1	1510-	●
496	FILTER ASM; OIL	8-94391-015-8	01	1	1307-1307		●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-1312		●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1401-		●	●

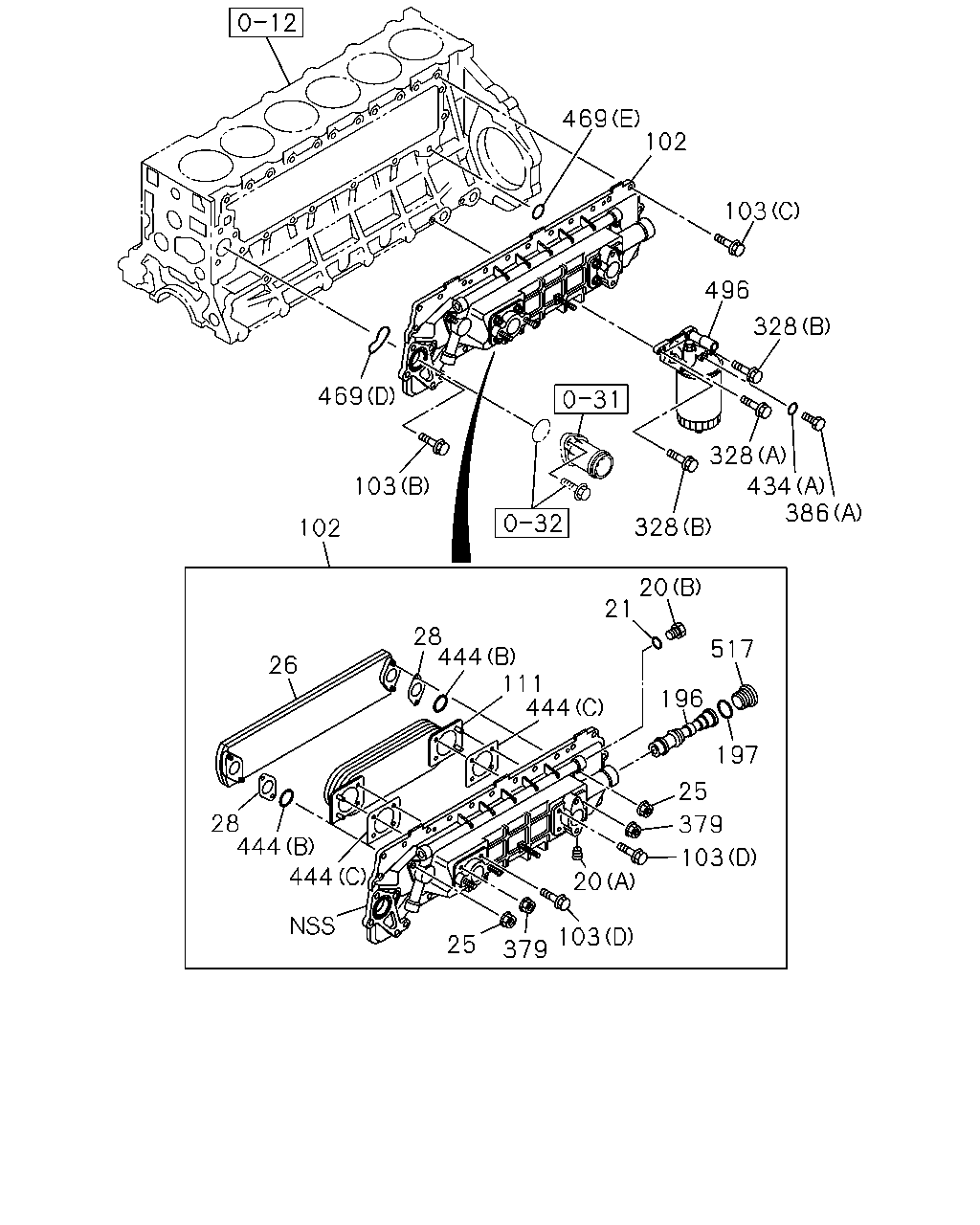

469 102 103 496 328 328 434 386 328 103 469 102 26 28 444 111 444 21 20 517 196 197 25 379 103 20 103 379 25 444 444 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
20	PLUG; COOLER BODY (A)	1-13219-240-0	02	1	1307-1312		●
20	PLUG; COOLER BODY (A)	1-13219-240-0	02	1	1401-		●	●
20	PLUG; COOLER BODY (B)	8-97608-567-0	02	1	1307-1312		●
20	PLUG; COOLER BODY (B)	8-97608-567-0	02	1	1401-		●	●
21	GASKET; PLUG ID=17.8	8-97608-568-0	02	1	1307-1312		●
21	GASKET; PLUG ID=17.8	8-97608-568-0	02	1	1401-		●	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	1307-1312		●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	1401-		●	●
26	CORE ASM; OIL COOLER	8-98062-207-0	01	1	1307-1312		●
26	CORE ASM; OIL COOLER	8-98062-207-0	01	1	1401-		●	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	1307-1312		●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	1401-		●	●
102	COOLER ASM; OIL	8-98085-312-5	01	1	1307-	●
102	COOLER ASM; OIL	8-98130-995-0	01	1	1307-1307		●
102	COOLER ASM; OIL	8-98236-650-0	01	1	1308-1312		●
102	COOLER ASM; OIL	8-98236-650-0	01	1	1401-		●	●
103	BOLT; OIL COOLER (D) M8X18 FLANGE	8-98251-758-0	04	1	1309-1312		●
103	BOLT; OIL COOLER (D) M8X18 FLANGE	8-98251-758-0	04	1	1401-		●	●
103	BOLT; OIL COOLER (A) M8X20 FLANGE	0-28050-820-0	08	1	1307-	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	08	1	1307-	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	1307-1312		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	1401-		●	●
103	BOLT; OIL COOLER (C) M8X30 FLANGE	0-28650-830-0	24	1	1307-1312		●
103	BOLT; OIL COOLER (C) M8X30 FLANGE	0-28650-830-0	24	1	1401-		●	●
111	CORE; OIL COOLER	8-98063-863-0	01	1	1309-1312		●
111	CORE; OIL COOLER	8-98063-863-0	01	1	1401-		●	●
111	CORE; OIL COOLER	8-97334-100-2	01	1	1307-	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	1307-1312		●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	1401-		●	●
197	GASKET; THERMOSTAT	8-94391-728-0	01	1	1307-1312		●
197	GASKET; THERMOSTAT	8-94391-728-0	01	1	1401-		●	●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	1307-1312		●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	1401-		●	●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	1307-1312		●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	1401-		●	●
379	NUT; OIL COOLER M8 FLANGE	0-91180-108-0	04	1	1309-1312		●
379	NUT; OIL COOLER M8 FLANGE	0-91180-108-0	04	1	1401-		●	●
379	NUT; OIL COOLER M8 FLANGE	0-91180-108-0	03	1	1307-	●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	1307-1312		●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	1401-		●	●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-1312		●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1401-		●	●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1307-1312		●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1401-		●	●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-1312		●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1401-		●	●
444	GASKET; ELEMENT TO BODY (C)	8-97601-801-0	02	1	1309-1312		●
444	GASKET; ELEMENT TO BODY (C)	8-97601-801-0	02	1	1401-		●	●
444	GASKET; ELEMENT TO BODY (A)	8-97384-130-0	02	1	1307-	●
444	GASKET; ELEMENT TO BODY (B) ID=38.7	1-09623-299-0	02	1	1307-1312		●
444	GASKET; ELEMENT TO BODY (B) ID=38.7	1-09623-299-0	02	1	1401-		●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	1307-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	1307-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	1307-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-94399-002-0	01	1	1307-1312		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-94399-002-0	01	1	1401-		●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=20	8-98045-449-0	01	1	1307-1312		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=20	8-98045-449-0	01	1	1401-		●	●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1307-1509	●
496	FILTER ASM; OIL	8-98328-202-0	01	1	1510-	●
496	FILTER ASM; OIL	8-94391-015-8	01	1	1307-1307		●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-1312		●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1401-		●	●
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-731-0	01	1	1307-1312		●
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-731-0	01	1	1401-		●	●

496 386 66 434 13 265 308 307 2 265 321 321 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	ELEMENT; OIL FILTER	8-97148-270-1	01	1	1307-1509	●
2	ELEMENT; OIL FILTER	8-98328-207-0	01	1	1510-	●
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	1307-1312		●
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	1401-		●	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1307-1312		●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1401-		●	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-117-0	01	1	1307-1509	●
13	VALVE; RELIEF	8-98238-944-0	01	1	1308-1312		●
13	VALVE; RELIEF	8-98238-944-0	01	1	1401-		●	●
66	SPRING; VLV	8-98238-943-0	01	1	1308-1312		●
66	SPRING; VLV	8-98238-943-0	01	1	1401-		●	●
265	BODY; OIL FILTER	8-97096-677-4	01	1	1307-	●
265	BODY; OIL FILTER	8-94391-016-4	01	1	1307-1307		●
265	BODY; OIL FILTER	8-98238-939-0	01	1	1308-1312		●
265	BODY; OIL FILTER	8-98238-939-0	01	1	1401-		●	●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	1307-1307		●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	1307-1307		●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	1307-1312		●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	1401-		●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	1307-1312		●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	1401-		●	●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	1307-1312		●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	1401-		●	●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-1312		●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1401-		●	●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1307-1312		●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1401-		●	●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-1312		●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1401-		●	●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1307-1509	●
496	FILTER ASM; OIL	8-98328-202-0	01	1	1510-	●
496	FILTER ASM; OIL	8-94391-015-8	01	1	1307-1307		●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-1312		●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1401-		●	●
