◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11548 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#123633) — 365 parça

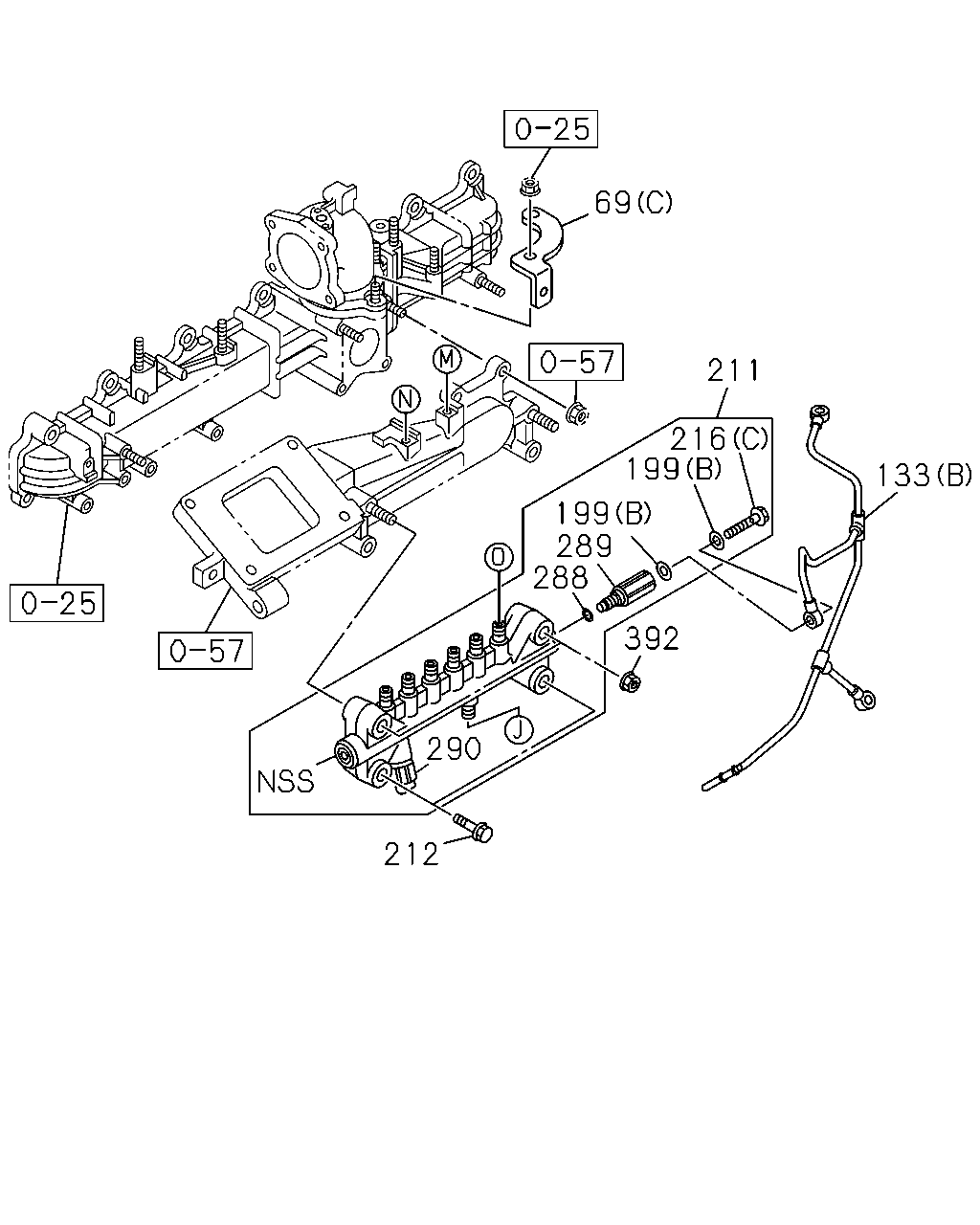

çizim 362315
69 199 216 211 133 199 288 392 290 212 289
BalonParca AdiParca NoAdetTipApplied Date A B C
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 1307-1312 ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 1401- ● ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98038-941-0 01 1 1307-1312 ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98038-941-0 01 1 1401- ● ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-98049-015-0 01 1 1307-1312 ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-98049-015-0 01 1 1401- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-97610-504-0 01 1 1307-1312 ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-97610-504-0 01 1 1401- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1307-1312 ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1401- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1307-1312 ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1401- ● ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1307-1312 ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1401- ● ● ●
211 RAIL ASM; COMMON 8-98011-888-2 01 1 1307- ●
211 RAIL ASM; COMMON 8-97609-980-2 01 1 1307-1312 ●
211 RAIL ASM; COMMON 8-97609-980-2 01 1 1401- ● ●
212 BOLT; RAIL ASM
M10X50 FLANGE 		8-97372-243-0 02 1 1307-1312 ●
212 BOLT; RAIL ASM
M10X50 FLANGE 		8-97372-243-0 02 1 1401- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1307-1312 ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1401- ● ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1307-1312 ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1401- ● ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1307-1312 ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1401- ● ● ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1307-1312 ● ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1401- ● ● ●
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1307-1312 ● ●
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1401- ● ● ●
290 SENSOR; PRESS 8-98119-790-0 01 1 1307-1312 ● ●
290 SENSOR; PRESS 8-98119-790-0 01 1 1401- ● ● ●
392 NUT; RAIL ASM
M8 FLANGE 		0-91180-108-0 02 1 1307- ●
392 NUT; RAIL ASM
M10 FLANGE 		0-91180-110-0 02 1 1307-1312 ●
392 NUT; RAIL ASM
M10 FLANGE 		0-91180-110-0 02 1 1401- ● ●

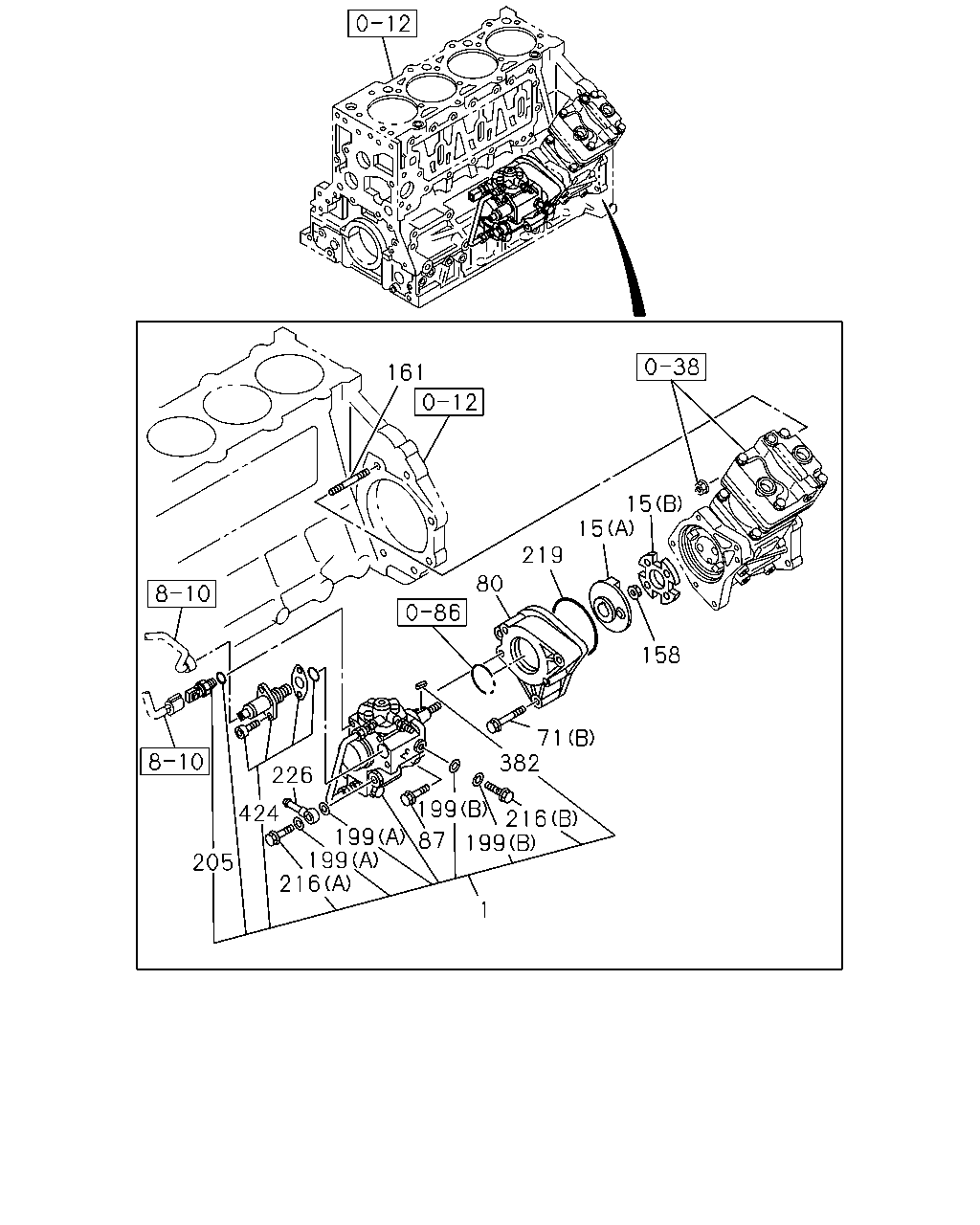

çizim 362355
1 199 199 199 199 216 205 424 87 226 382 216 71 80 158 15 219 15 161
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; INJ 8-97386-557-5 01 1 1307- ●
1 PUMP ASM; INJ 8-97605-946-7 01 1 1307-1312 ●
1 PUMP ASM; INJ 8-97605-946-7 01 1 1401- ● ●
15 COUPLING ASM; INJ PUMP
(A) 		8-97306-054-0 01 1 1307- ●
15 COUPLING ASM; INJ PUMP
(B) SEE FIG-NO 0-87 FOR COMPONENT. 		8-97306-059-1 01 1 1307- ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1307- ●
71 BOLT; BRKT
(C) M8X40 FLANGE 		0-28050-840-0 01 1 1307- ●
71 BOLT; BRKT
(D) M8X60 FLANGE 		0-28050-860-0 01 1 1307- ●
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 03 1 1307- ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1307-1312 ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1401- ● ●
71 BOLT; BRKT
(E) M12X100 FLANGE 		0-28151-200-0 01 1 1307-1312 ●
71 BOLT; BRKT
(E) M12X100 FLANGE 		0-28151-200-0 01 1 1401- ● ●
80 BRACKET; PUMP 8-98061-699-0 01 1 1307- ●
87 BOLT; PUMP
M8X30 FLANGE 		0-28650-830-0 03 1 1307- ●
158 NUT; INJ PUMP
M14 FLANGE 		0-91180-114-0 01 1 1307- ●
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97066-386-1 02 1 1307- ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1307-1312 ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1401- ● ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1307-1312 ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1401- ● ● ●
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1307-1312 ● ●
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1401- ● ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1307-1312 ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1401- ● ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1307-1312 ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1401- ● ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1307-1312 ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1401- ● ● ●
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=94.6 		1-09623-593-0 01 1 1307- ●
226 PIPE; FUEL 8-98126-332-0 01 1 1307- ●
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1307-1312 ● ●
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1401- ● ● ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1307- ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-449-1 01 1 1307-1312 ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-449-1 01 1 1401- ● ●

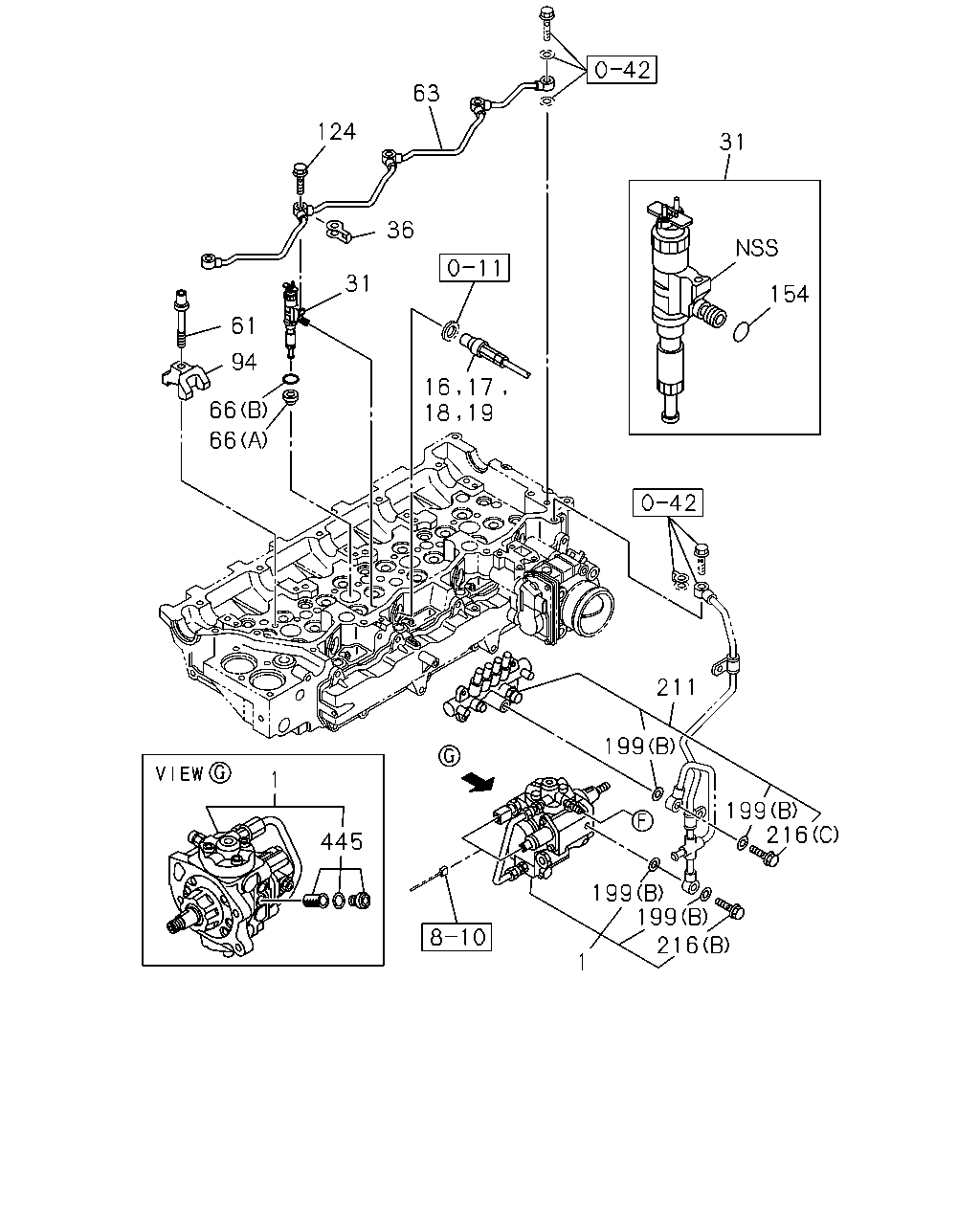

çizim 362375
63 124 36 31 61 66 94 66 16 17 18 19 31 154 1 445 211 199 199 216 199 199 216 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; INJ 8-97386-557-5 01 1 1307- ●
1 PUMP ASM; INJ 8-97605-946-7 01 1 1307-1312 ●
1 PUMP ASM; INJ 8-97605-946-7 01 1 1401- ● ●
16 PIPE; INJ NO.1 8-98185-352-0 01 1 1307-1404 ●
16 PIPE; INJ NO.1 8-98271-218-0 01 1 1405-1502 ●
16 PIPE; INJ NO.1 8-98298-628-0 01 1 1503- ●
16 PIPE; INJ NO.1 8-98185-362-0 01 1 1307-1312 ●
16 PIPE; INJ NO.1 8-98185-362-0 01 1 1401-1403 ● ●
16 PIPE; INJ NO.1 8-98271-207-0 01 1 1404-1501 ● ●
16 PIPE; INJ NO.1 8-98298-611-0 01 1 1502- ● ●
17 PIPE; INJ NO.2 8-98185-353-0 01 1 1307-1404 ●
17 PIPE; INJ NO.2 8-98271-219-0 01 1 1405-1502 ●
17 PIPE; INJ NO.2 8-98298-629-0 01 1 1503- ●
17 PIPE; INJ NO.2 8-98185-363-0 01 1 1307-1312 ●
17 PIPE; INJ NO.2 8-98185-363-0 01 1 1401-1403 ● ●
17 PIPE; INJ NO.2 8-98271-208-0 01 1 1404-1501 ● ●
17 PIPE; INJ NO.2 8-98298-612-0 01 1 1502- ● ●
18 PIPE; INJ NO.3 8-98185-354-0 01 1 1307-1404 ●
18 PIPE; INJ NO.3 8-98271-220-0 01 1 1405-1502 ●
18 PIPE; INJ NO.3 8-98298-630-0 01 1 1503- ●
18 PIPE; INJ NO.3 8-98185-364-0 01 1 1307-1312 ●
18 PIPE; INJ NO.3 8-98185-364-0 01 1 1401-1403 ● ●
18 PIPE; INJ NO.3 8-98271-209-0 01 1 1404-1501 ● ●
18 PIPE; INJ NO.3 8-98298-613-0 01 1 1502- ● ●
19 PIPE; INJ NO.4 8-98185-355-0 01 1 1307-1404 ●
19 PIPE; INJ NO.4 8-98271-221-0 01 1 1405-1502 ●
19 PIPE; INJ NO.4 8-98298-631-0 01 1 1503- ●
19 PIPE; INJ NO.4 8-98185-365-0 01 1 1307-1312 ●
19 PIPE; INJ NO.4 8-98185-365-0 01 1 1401-1403 ● ●
19 PIPE; INJ NO.4 8-98271-210-0 01 1 1404-1501 ● ●
19 PIPE; INJ NO.4 8-98298-614-0 01 1 1502- ● ●
31 NOZZLE ASM; INJ 8-97609-788-6 04 1 1307- ●
31 NOZZLE ASM; INJ 8-97609-788-6 06 1 1307-1312 ●
31 NOZZLE ASM; INJ 8-97609-788-6 06 1 1401- ● ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0 		8-98065-992-0 04 1 1307- ●
61 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 1307- ●
63 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 1307- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3 		8-94173-412-0 04 1 1307- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 04 1 1307- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 06 1 1307-1312 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 06 1 1401- ● ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 1307- ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 06 1 1307-1312 ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 06 1 1401- ● ●
124 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 1307- ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 04 1 1307- ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 06 1 1307-1312 ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 06 1 1401- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1307-1312 ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1401- ● ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1307-1312 ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1401- ● ● ●
211 RAIL ASM; COMMON 8-98011-888-2 01 1 1307- ●
211 RAIL ASM; COMMON 8-97609-980-2 01 1 1307-1312 ●
211 RAIL ASM; COMMON 8-97609-980-2 01 1 1401- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1307-1312 ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1401- ● ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1307-1312 ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1401- ● ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1307-1312 ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1401- ● ● ●
445 SCREW; FILTER,INLET 8-98204-986-0 01 1 1307- ●

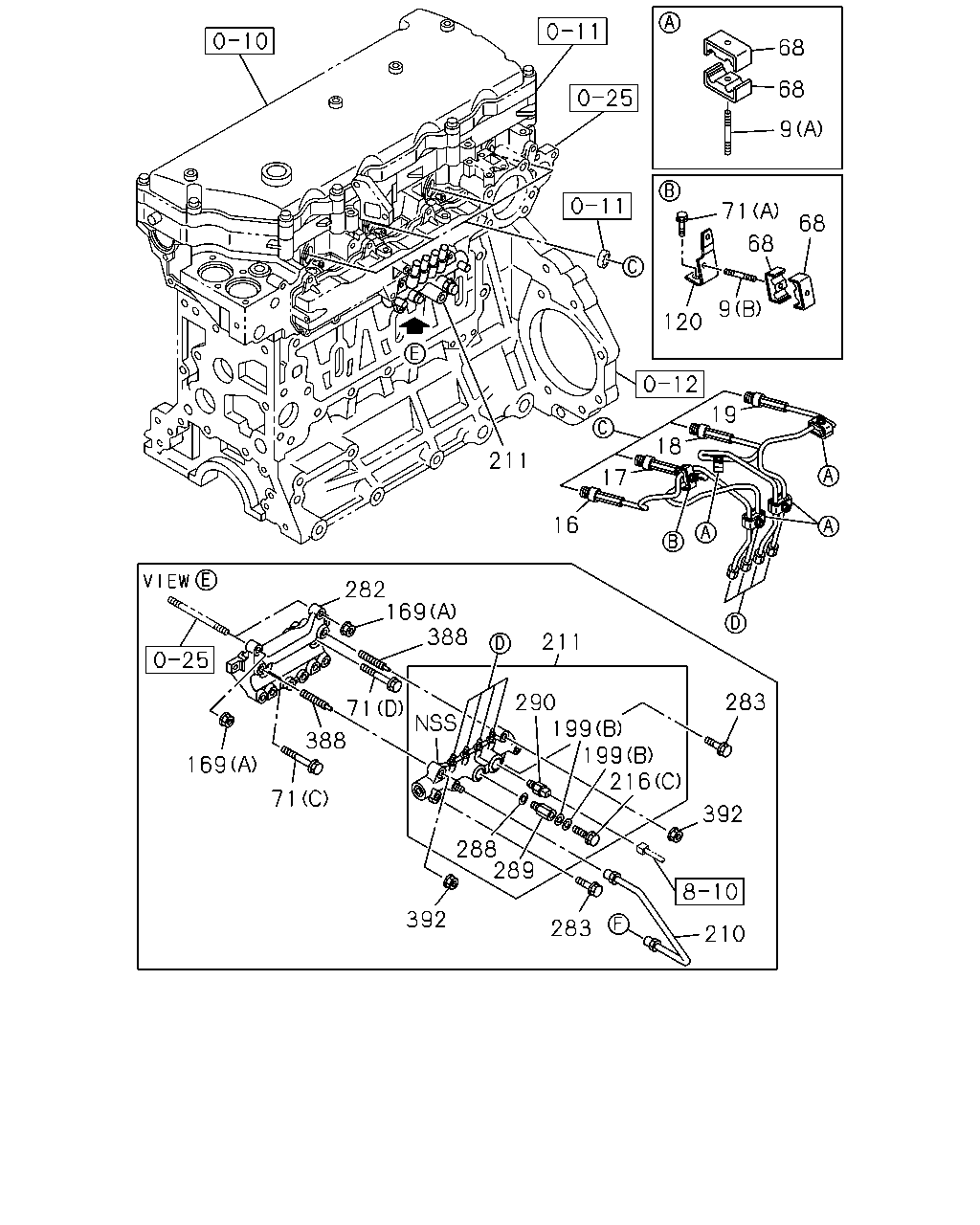

çizim 362381
68 68 9 71 68 68 9 120 211 19 18 17 16 282 169 388 211 71 290 283 388 199 199 169 216 392 71 288 289 392 283 210
BalonParca AdiParca NoAdetTipApplied Date A B C
9 STUD; CLIP
(A) M6X30 L=38 		0-41010-630-0 04 1 1307- ●
9 STUD; CLIP
(B) M6X35 L=43 		8-97203-278-0 01 1 1307- ●
16 PIPE; INJ NO.1 8-98185-352-0 01 1 1307-1404 ●
16 PIPE; INJ NO.1 8-98271-218-0 01 1 1405-1502 ●
16 PIPE; INJ NO.1 8-98298-628-0 01 1 1503- ●
16 PIPE; INJ NO.1 8-98185-362-0 01 1 1307-1312 ●
16 PIPE; INJ NO.1 8-98185-362-0 01 1 1401-1403 ● ●
16 PIPE; INJ NO.1 8-98271-207-0 01 1 1404-1501 ● ●
16 PIPE; INJ NO.1 8-98298-611-0 01 1 1502- ● ●
17 PIPE; INJ NO.2 8-98185-353-0 01 1 1307-1404 ●
17 PIPE; INJ NO.2 8-98271-219-0 01 1 1405-1502 ●
17 PIPE; INJ NO.2 8-98298-629-0 01 1 1503- ●
17 PIPE; INJ NO.2 8-98185-363-0 01 1 1307-1312 ●
17 PIPE; INJ NO.2 8-98185-363-0 01 1 1401-1403 ● ●
17 PIPE; INJ NO.2 8-98271-208-0 01 1 1404-1501 ● ●
17 PIPE; INJ NO.2 8-98298-612-0 01 1 1502- ● ●
18 PIPE; INJ NO.3 8-98185-354-0 01 1 1307-1404 ●
18 PIPE; INJ NO.3 8-98271-220-0 01 1 1405-1502 ●
18 PIPE; INJ NO.3 8-98298-630-0 01 1 1503- ●
18 PIPE; INJ NO.3 8-98185-364-0 01 1 1307-1312 ●
18 PIPE; INJ NO.3 8-98185-364-0 01 1 1401-1403 ● ●
18 PIPE; INJ NO.3 8-98271-209-0 01 1 1404-1501 ● ●
18 PIPE; INJ NO.3 8-98298-613-0 01 1 1502- ● ●
19 PIPE; INJ NO.4 8-98185-355-0 01 1 1307-1404 ●
19 PIPE; INJ NO.4 8-98271-221-0 01 1 1405-1502 ●
19 PIPE; INJ NO.4 8-98298-631-0 01 1 1503- ●
19 PIPE; INJ NO.4 8-98185-365-0 01 1 1307-1312 ●
19 PIPE; INJ NO.4 8-98185-365-0 01 1 1401-1403 ● ●
19 PIPE; INJ NO.4 8-98271-210-0 01 1 1404-1501 ● ●
19 PIPE; INJ NO.4 8-98298-614-0 01 1 1502- ● ●
68 CLIP; INJ PIPE
ID=11 & 11 L=19 		8-98039-293-0 10 1 1307-1405 ●
68 CLIP; INJ PIPE
ID=11 & 11 L=19 		8-98148-996-2 10 1 1406- ●
68 CLIP; INJ PIPE
ID=11 & 11 L=19 		8-98039-293-0 14 1 1307-1312 ●
68 CLIP; INJ PIPE
ID=11 & 11 L=19 		8-98039-293-0 14 1 1401-1405 ● ●
68 CLIP; INJ PIPE
ID=11 & 11 L=19 		8-98148-996-2 14 1 1406- ● ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1307- ●
71 BOLT; BRKT
(C) M8X40 FLANGE 		0-28050-840-0 01 1 1307- ●
71 BOLT; BRKT
(D) M8X60 FLANGE 		0-28050-860-0 01 1 1307- ●
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 03 1 1307- ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1307-1312 ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1401- ● ●
71 BOLT; BRKT
(E) M12X100 FLANGE 		0-28151-200-0 01 1 1307-1312 ●
71 BOLT; BRKT
(E) M12X100 FLANGE 		0-28151-200-0 01 1 1401- ● ●
120 BRACKET; INJ PIPE 8-98001-041-0 01 1 1307- ●
169 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1307- ●
169 NUT; BRKT
(B) M10 FLANGE 		0-91180-110-0 02 1 1307-1312 ●
169 NUT; BRKT
(B) M10 FLANGE 		0-91180-110-0 02 1 1401- ● ●
169 NUT; BRKT
(C) M12 FLANGE 		0-91180-112-0 01 1 1307-1312 ●
169 NUT; BRKT
(C) M12 FLANGE 		0-91180-112-0 01 1 1401- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1307-1312 ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1401- ● ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1307-1312 ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1401- ● ● ●
210 PIPE; INJ,C/R 8-98087-940-0 01 1 1307- ●
210 PIPE; INJ,C/R 8-97608-480-1 01 1 1307-1312 ●
210 PIPE; INJ,C/R 8-97608-480-1 01 1 1401- ● ●
211 RAIL ASM; COMMON 8-98011-888-2 01 1 1307- ●
211 RAIL ASM; COMMON 8-97609-980-2 01 1 1307-1312 ●
211 RAIL ASM; COMMON 8-97609-980-2 01 1 1401- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1307-1312 ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1401- ● ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1307-1312 ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1401- ● ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1307-1312 ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1401- ● ● ●
282 BRACKET; COMMON RAIL 8-98106-661-1 01 1 1307- ●
283 BOLT; COMMON RAIL
M8X20 FLANGE 		0-28050-820-0 02 1 1307- ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1307-1312 ● ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1401- ● ● ●
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1307-1312 ● ●
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1401- ● ● ●
290 SENSOR; PRESS 8-98119-790-0 01 1 1307-1312 ● ●
290 SENSOR; PRESS 8-98119-790-0 01 1 1401- ● ● ●
388 STUD; RAIL
M8X35 L=53 		0-49140-835-0 02 1 1307- ●
392 NUT; RAIL ASM
M8 FLANGE 		0-91180-108-0 02 1 1307- ●
392 NUT; RAIL ASM
M10 FLANGE 		0-91180-110-0 02 1 1307-1312 ●
392 NUT; RAIL ASM
M10 FLANGE 		0-91180-110-0 02 1 1401- ● ●

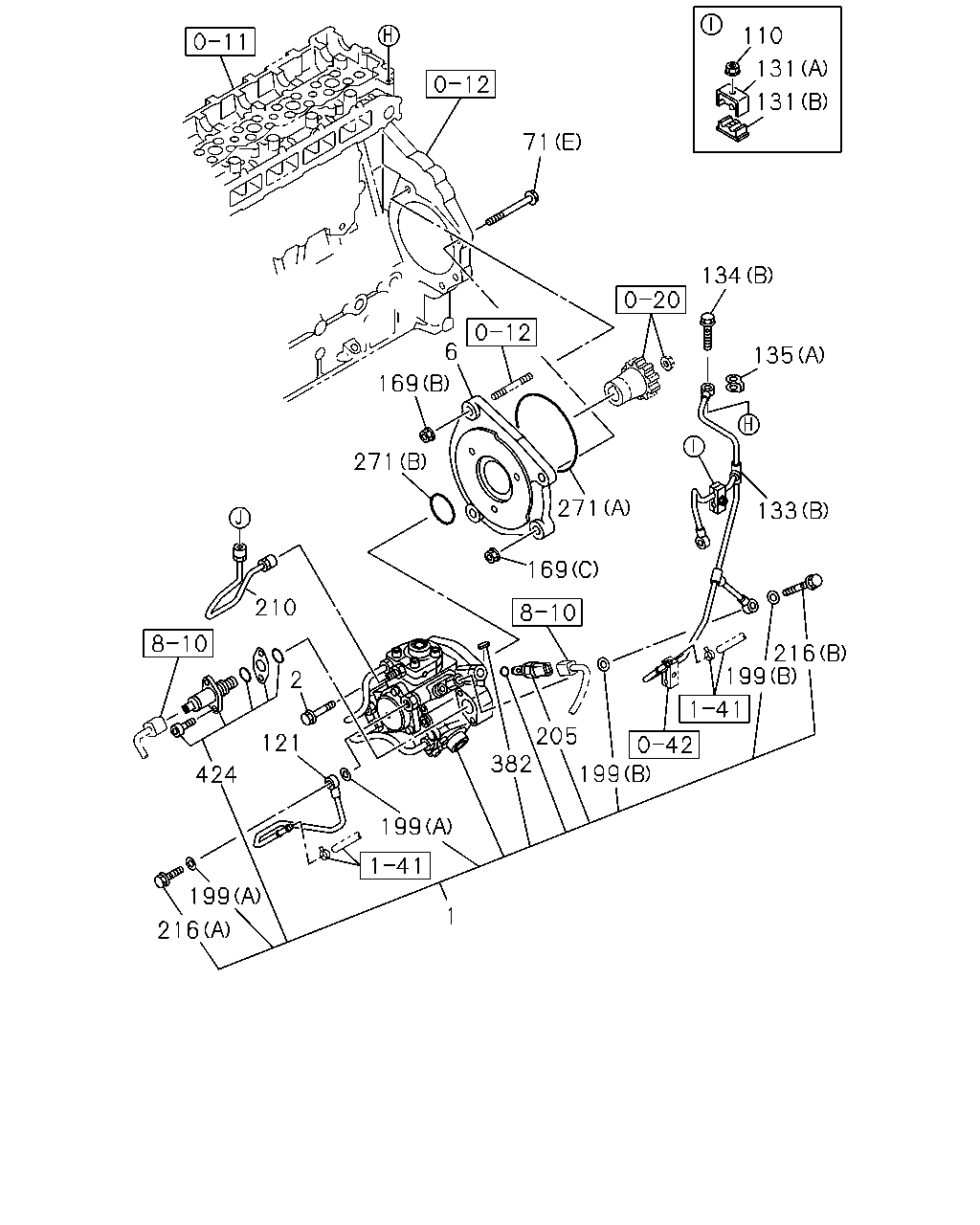

çizim 362383
71 110 131 134 135 133 169 271 169 271 210 2 121 424 199 382 199 199 216 199 216 205 1 6
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; INJ 8-97386-557-5 01 1 1307- ●
1 PUMP ASM; INJ 8-97605-946-7 01 1 1307-1312 ●
1 PUMP ASM; INJ 8-97605-946-7 01 1 1401- ● ●
2 BOLT; INJ PUMP
M8X28 		8-94399-256-0 03 1 1307-1312 ●
2 BOLT; INJ PUMP
M8X28 		8-94399-256-0 03 1 1401- ● ●
6 BRACKET; INJ PUMP TO C/BL 8-97601-154-1 01 1 1307-1312 ●
6 BRACKET; INJ PUMP TO C/BL 8-97601-154-1 01 1 1401- ● ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1307- ●
71 BOLT; BRKT
(C) M8X40 FLANGE 		0-28050-840-0 01 1 1307- ●
71 BOLT; BRKT
(D) M8X60 FLANGE 		0-28050-860-0 01 1 1307- ●
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 03 1 1307- ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1307-1312 ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1401- ● ●
71 BOLT; BRKT
(E) M12X100 FLANGE 		0-28151-200-0 01 1 1307-1312 ●
71 BOLT; BRKT
(E) M12X100 FLANGE 		0-28151-200-0 01 1 1401- ● ●
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 05 1 1307-1312 ●
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 05 1 1401- ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-98126-331-0 01 1 1307-1312 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-98126-331-0 01 1 1401- ● ●
131 CLIP; OVERFLOW LEAK OFF
(A) ID=7 & 9 L=25 		8-98000-010-2 01 1 1307-1312 ●
131 CLIP; OVERFLOW LEAK OFF
(A) ID=7 & 9 L=25 		8-98000-010-2 01 1 1401- ● ●
131 CLIP; OVERFLOW LEAK OFF
(B) ID=7 & 9 L=25 		8-98000-011-2 01 1 1307-1312 ●
131 CLIP; OVERFLOW LEAK OFF
(B) ID=7 & 9 L=25 		8-98000-011-2 01 1 1401- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-97610-504-0 01 1 1307-1312 ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-97610-504-0 01 1 1401- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1307-1312 ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1401- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 1307-1312 ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 1401- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 1307-1312 ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 1401- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0 		8-98065-992-0 06 1 1307-1312 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0 		8-98065-992-0 06 1 1401- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17 		8-98079-755-0 01 1 1307-1312 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17 		8-98079-755-0 01 1 1401- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-98231-393-0 01 1 1307-1312 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-98231-393-0 01 1 1401- ● ●
169 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1307- ●
169 NUT; BRKT
(B) M10 FLANGE 		0-91180-110-0 02 1 1307-1312 ●
169 NUT; BRKT
(B) M10 FLANGE 		0-91180-110-0 02 1 1401- ● ●
169 NUT; BRKT
(C) M12 FLANGE 		0-91180-112-0 01 1 1307-1312 ●
169 NUT; BRKT
(C) M12 FLANGE 		0-91180-112-0 01 1 1401- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1307-1312 ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1401- ● ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1307-1312 ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1401- ● ● ●
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1307-1312 ● ●
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1401- ● ● ●
210 PIPE; INJ,C/R 8-98087-940-0 01 1 1307- ●
210 PIPE; INJ,C/R 8-97608-480-1 01 1 1307-1312 ●
210 PIPE; INJ,C/R 8-97608-480-1 01 1 1401- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1307-1312 ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1401- ● ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1307-1312 ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1401- ● ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1307-1312 ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1401- ● ● ●
271 GASKET; INJ PUMP
(A) ID=139.6 		1-09623-464-0 01 1 1307-1312 ●
271 GASKET; INJ PUMP
(A) ID=139.6 		1-09623-464-0 01 1 1401- ● ●
271 GASKET; INJ PUMP
(B) ID=52 		8-98031-844-0 01 1 1307-1312 ●
271 GASKET; INJ PUMP
(B) ID=52 		8-98031-844-0 01 1 1401- ● ●
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1307-1312 ● ●
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1401- ● ● ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1307- ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-449-1 01 1 1307-1312 ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-449-1 01 1 1401- ● ●

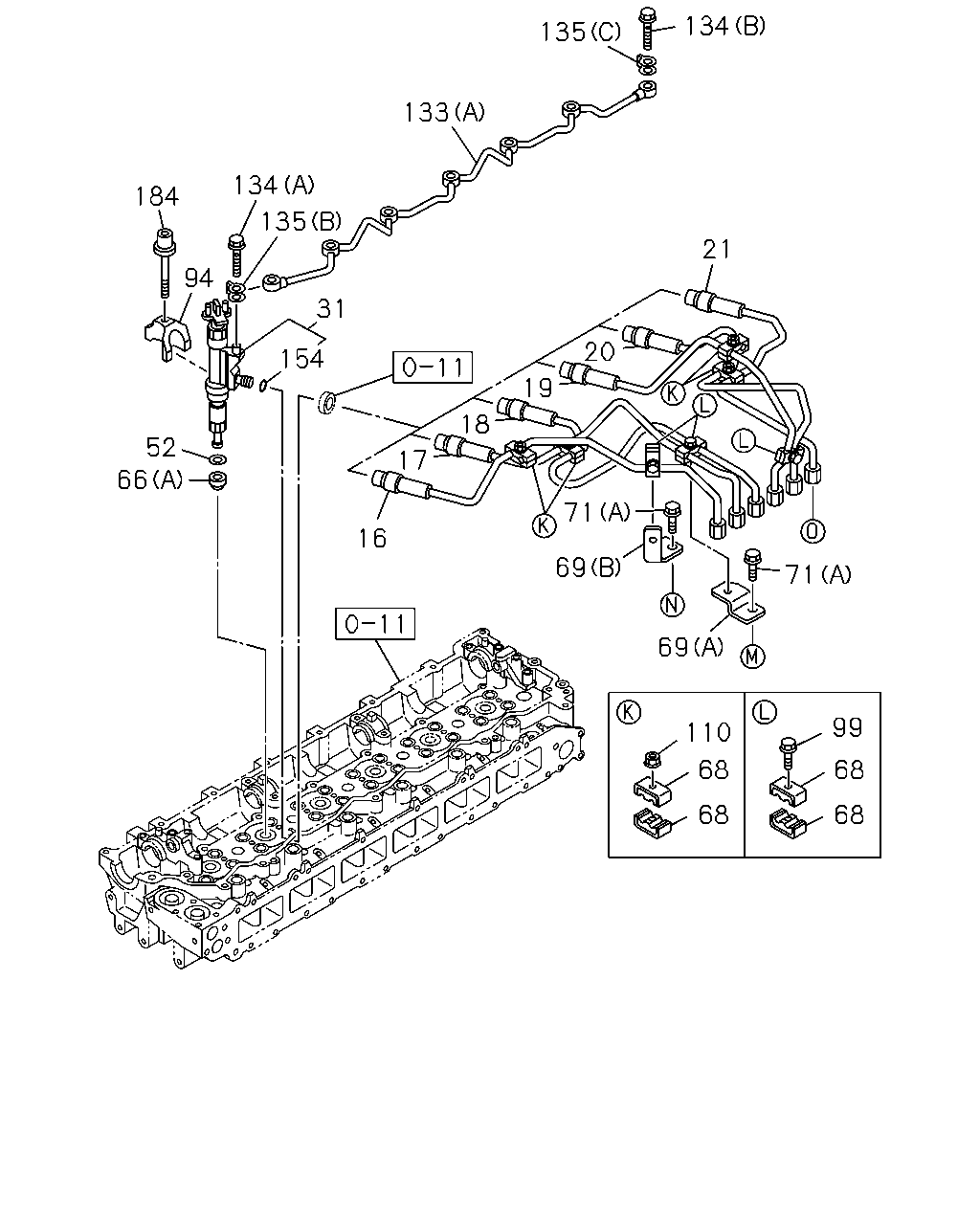

çizim 362400
134 135 133 134 184 94 154 135 52 66 16 17 18 19 20 21 71 69 69 71 110 99 68 68 68 68 31
BalonParca AdiParca NoAdetTipApplied Date A B C
16 PIPE; INJ NO.1 8-98185-352-0 01 1 1307-1404 ●
16 PIPE; INJ NO.1 8-98271-218-0 01 1 1405-1502 ●
16 PIPE; INJ NO.1 8-98298-628-0 01 1 1503- ●
16 PIPE; INJ NO.1 8-98185-362-0 01 1 1307-1312 ●
16 PIPE; INJ NO.1 8-98185-362-0 01 1 1401-1403 ● ●
16 PIPE; INJ NO.1 8-98271-207-0 01 1 1404-1501 ● ●
16 PIPE; INJ NO.1 8-98298-611-0 01 1 1502- ● ●
17 PIPE; INJ NO.2 8-98185-353-0 01 1 1307-1404 ●
17 PIPE; INJ NO.2 8-98271-219-0 01 1 1405-1502 ●
17 PIPE; INJ NO.2 8-98298-629-0 01 1 1503- ●
17 PIPE; INJ NO.2 8-98185-363-0 01 1 1307-1312 ●
17 PIPE; INJ NO.2 8-98185-363-0 01 1 1401-1403 ● ●
17 PIPE; INJ NO.2 8-98271-208-0 01 1 1404-1501 ● ●
17 PIPE; INJ NO.2 8-98298-612-0 01 1 1502- ● ●
18 PIPE; INJ NO.3 8-98185-354-0 01 1 1307-1404 ●
18 PIPE; INJ NO.3 8-98271-220-0 01 1 1405-1502 ●
18 PIPE; INJ NO.3 8-98298-630-0 01 1 1503- ●
18 PIPE; INJ NO.3 8-98185-364-0 01 1 1307-1312 ●
18 PIPE; INJ NO.3 8-98185-364-0 01 1 1401-1403 ● ●
18 PIPE; INJ NO.3 8-98271-209-0 01 1 1404-1501 ● ●
18 PIPE; INJ NO.3 8-98298-613-0 01 1 1502- ● ●
19 PIPE; INJ NO.4 8-98185-355-0 01 1 1307-1404 ●
19 PIPE; INJ NO.4 8-98271-221-0 01 1 1405-1502 ●
19 PIPE; INJ NO.4 8-98298-631-0 01 1 1503- ●
19 PIPE; INJ NO.4 8-98185-365-0 01 1 1307-1312 ●
19 PIPE; INJ NO.4 8-98185-365-0 01 1 1401-1403 ● ●
19 PIPE; INJ NO.4 8-98271-210-0 01 1 1404-1501 ● ●
19 PIPE; INJ NO.4 8-98298-614-0 01 1 1502- ● ●
20 PIPE; INJ NO.5 8-98185-368-0 01 1 1307-1312 ●
20 PIPE; INJ NO.5 8-98185-368-0 01 1 1401-1403 ● ●
20 PIPE; INJ NO.5 8-98272-050-0 01 1 1404-1501 ● ●
20 PIPE; INJ NO.5 8-98298-616-0 01 1 1502- ● ●
21 PIPE; INJ NO.6 8-98185-367-0 01 1 1307-1312 ●
21 PIPE; INJ NO.6 8-98185-367-0 01 1 1401-1403 ● ●
21 PIPE; INJ NO.6 8-98271-212-0 01 1 1404-1501 ● ●
21 PIPE; INJ NO.6 8-98298-617-0 01 1 1502- ● ●
31 NOZZLE ASM; INJ 8-97609-788-6 04 1 1307- ●
31 NOZZLE ASM; INJ 8-97609-788-6 06 1 1307-1312 ●
31 NOZZLE ASM; INJ 8-97609-788-6 06 1 1401- ● ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3 		8-94173-412-0 06 1 1307-1312 ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3 		8-94173-412-0 06 1 1401- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3 		8-94173-412-0 04 1 1307- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 04 1 1307- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 06 1 1307-1312 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 06 1 1401- ● ●
68 CLIP; INJ PIPE
ID=11 & 11 L=19 		8-98039-293-0 10 1 1307-1405 ●
68 CLIP; INJ PIPE
ID=11 & 11 L=19 		8-98148-996-2 10 1 1406- ●
68 CLIP; INJ PIPE
ID=11 & 11 L=19 		8-98039-293-0 14 1 1307-1312 ●
68 CLIP; INJ PIPE
ID=11 & 11 L=19 		8-98039-293-0 14 1 1401-1405 ● ●
68 CLIP; INJ PIPE
ID=11 & 11 L=19 		8-98148-996-2 14 1 1406- ● ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 1307-1312 ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 1401- ● ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98038-941-0 01 1 1307-1312 ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98038-941-0 01 1 1401- ● ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-98049-015-0 01 1 1307-1312 ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-98049-015-0 01 1 1401- ● ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1307- ●
71 BOLT; BRKT
(C) M8X40 FLANGE 		0-28050-840-0 01 1 1307- ●
71 BOLT; BRKT
(D) M8X60 FLANGE 		0-28050-860-0 01 1 1307- ●
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 03 1 1307- ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1307-1312 ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1401- ● ●
71 BOLT; BRKT
(E) M12X100 FLANGE 		0-28151-200-0 01 1 1307-1312 ●
71 BOLT; BRKT
(E) M12X100 FLANGE 		0-28151-200-0 01 1 1401- ● ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 1307- ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 06 1 1307-1312 ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 06 1 1401- ● ●
99 BOLT; CLIP,INJ,PIPE
M6X35 FLANGE 		0-28050-635-0 03 1 1307-1312 ●
99 BOLT; CLIP,INJ,PIPE
M6X35 FLANGE 		0-28050-635-0 03 1 1401- ● ●
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 05 1 1307-1312 ●
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 05 1 1401- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-97610-504-0 01 1 1307-1312 ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-97610-504-0 01 1 1401- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1307-1312 ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1401- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 1307-1312 ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 1401- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 1307-1312 ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 1401- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0 		8-98065-992-0 06 1 1307-1312 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0 		8-98065-992-0 06 1 1401- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17 		8-98079-755-0 01 1 1307-1312 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17 		8-98079-755-0 01 1 1401- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-98231-393-0 01 1 1307-1312 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-98231-393-0 01 1 1401- ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 04 1 1307- ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 06 1 1307-1312 ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 06 1 1401- ● ●
184 BOLT; NOZZLE HOLDER
M8X54 		8-98008-895-0 06 1 1307-1312 ●
184 BOLT; NOZZLE HOLDER
M8X54 		8-98008-895-0 06 1 1401- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
