◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11548 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-39 - AIR COMPRESSOR; BRAKE ▶
0-39 — AIR COMPRESSOR; BRAKE (#123632) — 101 parça

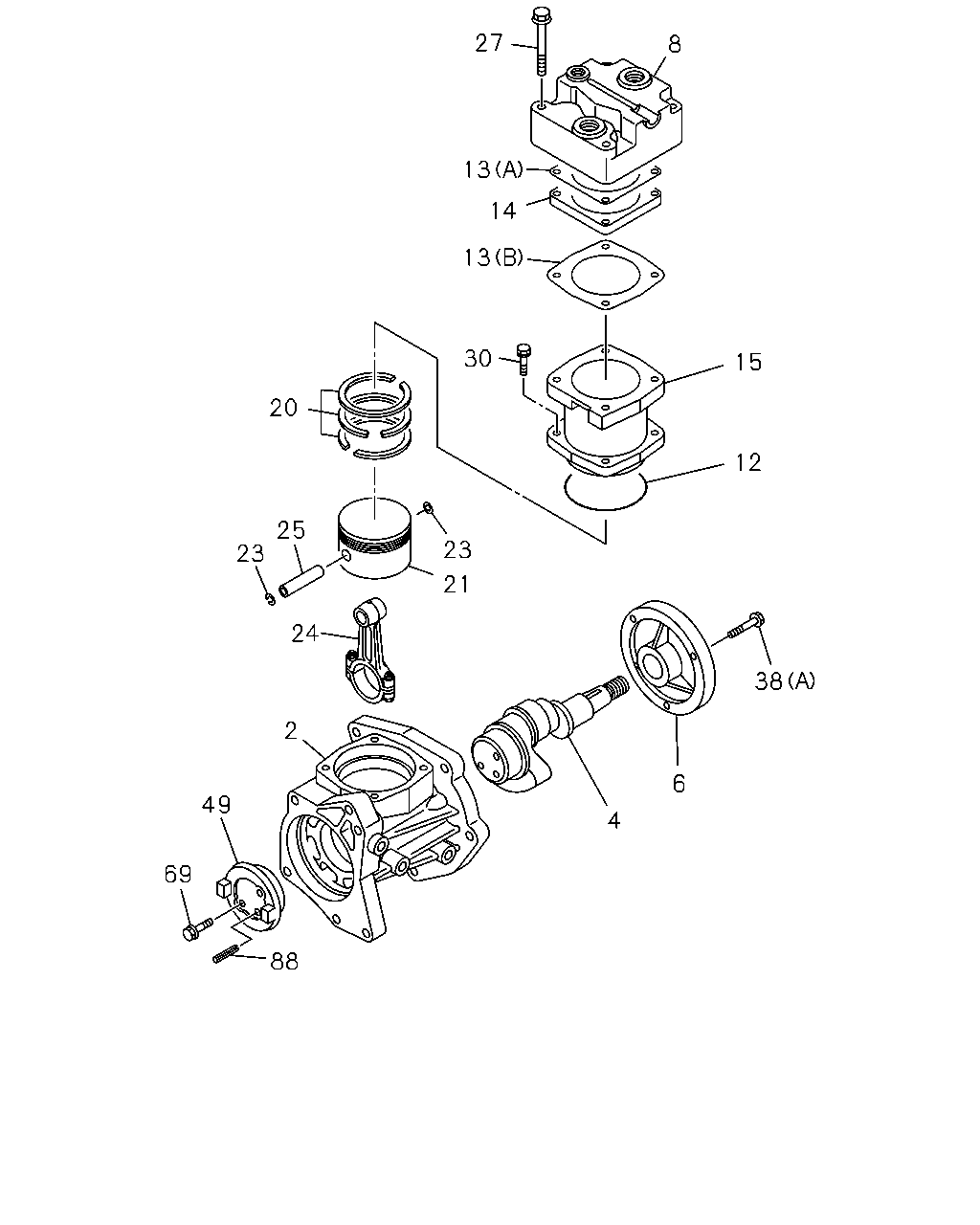

çizim 362336
27 8 13 14 13 30 15 12 20 23 25 23 21 24 2 49 69 88 4 6 38
BalonParca AdiParca NoAdetTipApplied Date A B C
2 CRANKCASE; AIR CMPR 1-19151-303-0 01 1 1307- ●
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 1307-1312 ●
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 1401- ● ●
4 CRANKSHAFT; AIR CMPR 1-19171-090-1 01 1 1307- ●
4 CRANKSHAFT; AIR CMPR 1-19171-096-0 01 1 1307-1312 ●
4 CRANKSHAFT; AIR CMPR 1-19171-096-0 01 1 1401- ● ●
6 COVER ASM; BRG,AIR CMPR 1-19156-086-1 01 1 1307- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 1307-1312 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 1401- ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-075-0 01 1 1307- ●
8 HEAD ASM; CYL,AIR CMPR 8-98167-015-0 01 1 1307-1312 ●
8 HEAD ASM; CYL,AIR CMPR 8-98167-015-0 01 1 1401- ● ●
12 GASKET; AIR CMPR 8-98185-684-0 01 1 1307-1312 ● ●
12 GASKET; AIR CMPR 8-98185-684-0 01 1 1401- ● ● ●
13 GASKET; AIR CMPR
(A) 		1-19115-015-0 01 1 1307- ●
13 GASKET; AIR CMPR
(B) 		1-19115-016-0 01 1 1307- ●
13 GASKET; AIR CMPR
(C) 		8-98048-640-0 01 1 1307-1312 ●
13 GASKET; AIR CMPR
(C) 		8-98048-640-0 01 1 1401- ● ●
14 PLATE; AIR CMPR 1-19130-010-1 01 1 1307-1405 ●
14 PLATE; AIR CMPR 8-98271-713-0 01 1 1406- ●
15 CYLINDER; AIR CMPR 1-19163-068-1 01 1 1307- ●
15 CYLINDER; AIR CMPR 8-98038-668-0 01 1 1307-1312 ●
15 CYLINDER; AIR CMPR 8-98038-668-0 01 1 1401- ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 1307-1312 ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 1401- ● ● ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 1307-1312 ● ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 1401- ● ● ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 1307-1312 ● ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 1401- ● ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-023-0 01 1 1307- ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 1307-1312 ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 1401- ● ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 1307-1312 ● ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 1401- ● ● ●
27 BOLT; HD 8-98188-172-0 04 1 1307- ●
27 BOLT; HD
M10X75 		8-98167-018-0 04 1 1307-1312 ●
27 BOLT; HD
M10X75 		8-98167-018-0 04 1 1401- ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 1307- ●
30 BOLT; CYL TO CRANKCASE
M10X25 		8-98038-763-0 04 1 1307-1312 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		8-98038-763-0 04 1 1401- ● ●
38 BOLT; COVER FIX
(A) 		1-19159-023-0 03 1 1307- ●
38 BOLT; COVER FIX
(B) 		8-97617-894-0 02 1 1307-1312 ●
38 BOLT; COVER FIX
(B) 		8-97617-894-0 02 1 1401- ● ●
38 BOLT; COVER FIX
(C) M8X20 		8-97617-895-0 02 1 1307-1312 ●
38 BOLT; COVER FIX
(C) M8X20 		8-97617-895-0 02 1 1401- ● ●
49 COUPLING ASM 1-19179-032-0 01 1 1307- ●
69 BOLT ASM; AIR COMP 1-19179-033-0 02 1 1307- ●
88 PIN; SPRING 1-19179-034-0 01 1 1307- ●

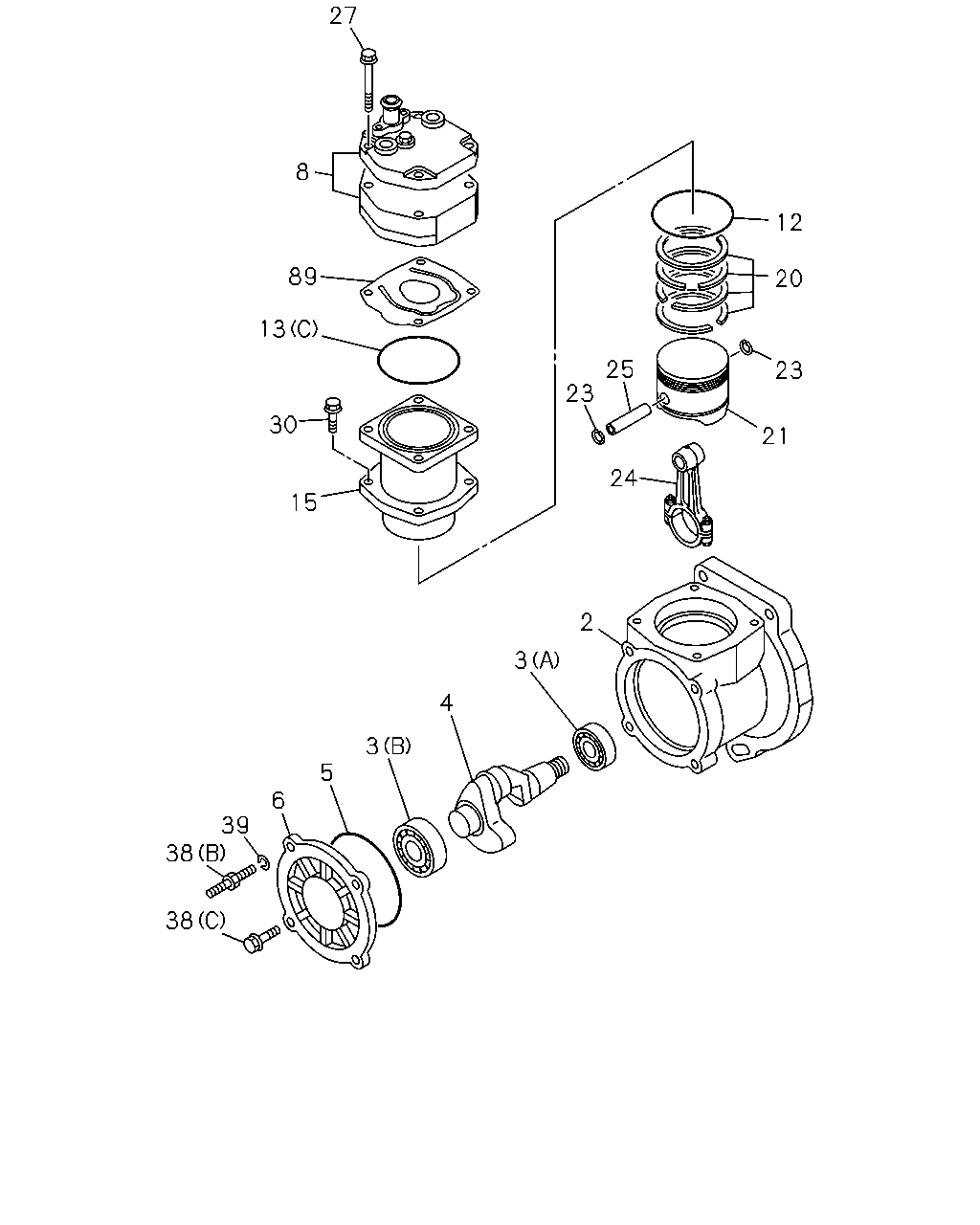

çizim 362341
27 8 89 13 30 15 12 20 23 21 25 23 24 2 3 4 3 5 6 39 38 38
BalonParca AdiParca NoAdetTipApplied Date A B C
2 CRANKCASE; AIR CMPR 1-19151-303-0 01 1 1307- ●
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 1307-1312 ●
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 1401- ● ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 1307-1312 ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 1401- ● ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 1307-1312 ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 1401- ● ●
4 CRANKSHAFT; AIR CMPR 1-19171-090-1 01 1 1307- ●
4 CRANKSHAFT; AIR CMPR 1-19171-096-0 01 1 1307-1312 ●
4 CRANKSHAFT; AIR CMPR 1-19171-096-0 01 1 1401- ● ●
5 GASKET; AIR CMPR 8-98192-460-0 01 1 1307-1312 ●
5 GASKET; AIR CMPR 8-98192-460-0 01 1 1401- ● ●
6 COVER ASM; BRG,AIR CMPR 1-19156-086-1 01 1 1307- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 1307-1312 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 1401- ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-075-0 01 1 1307- ●
8 HEAD ASM; CYL,AIR CMPR 8-98167-015-0 01 1 1307-1312 ●
8 HEAD ASM; CYL,AIR CMPR 8-98167-015-0 01 1 1401- ● ●
12 GASKET; AIR CMPR 8-98185-684-0 01 1 1307-1312 ● ●
12 GASKET; AIR CMPR 8-98185-684-0 01 1 1401- ● ● ●
13 GASKET; AIR CMPR
(A) 		1-19115-015-0 01 1 1307- ●
13 GASKET; AIR CMPR
(B) 		1-19115-016-0 01 1 1307- ●
13 GASKET; AIR CMPR
(C) 		8-98048-640-0 01 1 1307-1312 ●
13 GASKET; AIR CMPR
(C) 		8-98048-640-0 01 1 1401- ● ●
15 CYLINDER; AIR CMPR 1-19163-068-1 01 1 1307- ●
15 CYLINDER; AIR CMPR 8-98038-668-0 01 1 1307-1312 ●
15 CYLINDER; AIR CMPR 8-98038-668-0 01 1 1401- ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 1307-1312 ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 1401- ● ● ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 1307-1312 ● ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 1401- ● ● ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 1307-1312 ● ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 1401- ● ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-023-0 01 1 1307- ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 1307-1312 ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 1401- ● ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 1307-1312 ● ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 1401- ● ● ●
27 BOLT; HD 8-98188-172-0 04 1 1307- ●
27 BOLT; HD
M10X75 		8-98167-018-0 04 1 1307-1312 ●
27 BOLT; HD
M10X75 		8-98167-018-0 04 1 1401- ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 1307- ●
30 BOLT; CYL TO CRANKCASE
M10X25 		8-98038-763-0 04 1 1307-1312 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		8-98038-763-0 04 1 1401- ● ●
38 BOLT; COVER FIX
(A) 		1-19159-023-0 03 1 1307- ●
38 BOLT; COVER FIX
(B) 		8-97617-894-0 02 1 1307-1312 ●
38 BOLT; COVER FIX
(B) 		8-97617-894-0 02 1 1401- ● ●
38 BOLT; COVER FIX
(C) M8X20 		8-97617-895-0 02 1 1307-1312 ●
38 BOLT; COVER FIX
(C) M8X20 		8-97617-895-0 02 1 1401- ● ●
39 WASHER; LK,COVER FIX 8-97617-893-0 02 1 1307-1312 ●
39 WASHER; LK,COVER FIX 8-97617-893-0 02 1 1401- ● ●
89 VALVE; SUCTION 1-19119-045-0 01 1 1307-1312 ●
89 VALVE; SUCTION 1-19119-045-0 01 1 1401- ● ●
