Sayfa 0-36 - Isuzu EPC

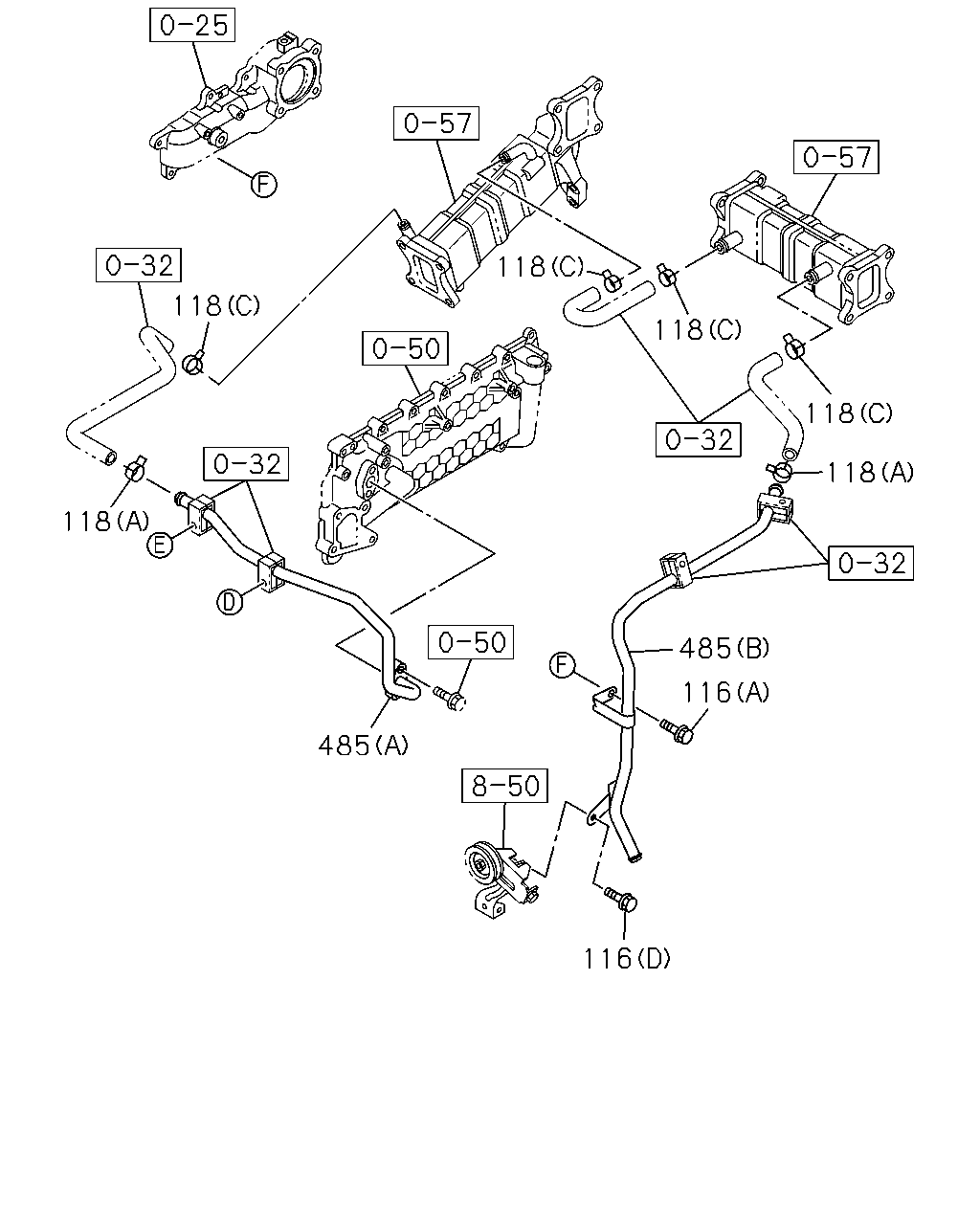

118 118 485 118 116 118 485 116 118 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
116	BOLT; WATER PIPE (D) M8X16 FLANGE	0-28050-816-0	01	1	1307-	●
116	BOLT; WATER PIPE (A) M8X20 FLANGE	0-28650-820-0	01	1	1307-	●
116	BOLT; WATER PIPE (B) M12X24 EYE-BOLT	1-09675-081-0	02	1	1307-	●
116	BOLT; WATER PIPE (C) M14X30 EYE-BOLT	8-94455-144-0	01	1	1307-	●
118	CLIP; WATER HOSE (B) ID=15.5	8-94221-519-0	06	1	1307-	●
118	CLIP; WATER HOSE (A) ID=22	8-97359-141-0	02	1	1307-	●
118	CLIP; WATER HOSE (C) ID=24	8-98025-921-0	04	1	1307-	●
485	PIPE; WATER EGR (A)	8-97376-773-0	01	1	1307-	●
485	PIPE; WATER EGR (B)	8-98036-855-1	01	1	1307-	●

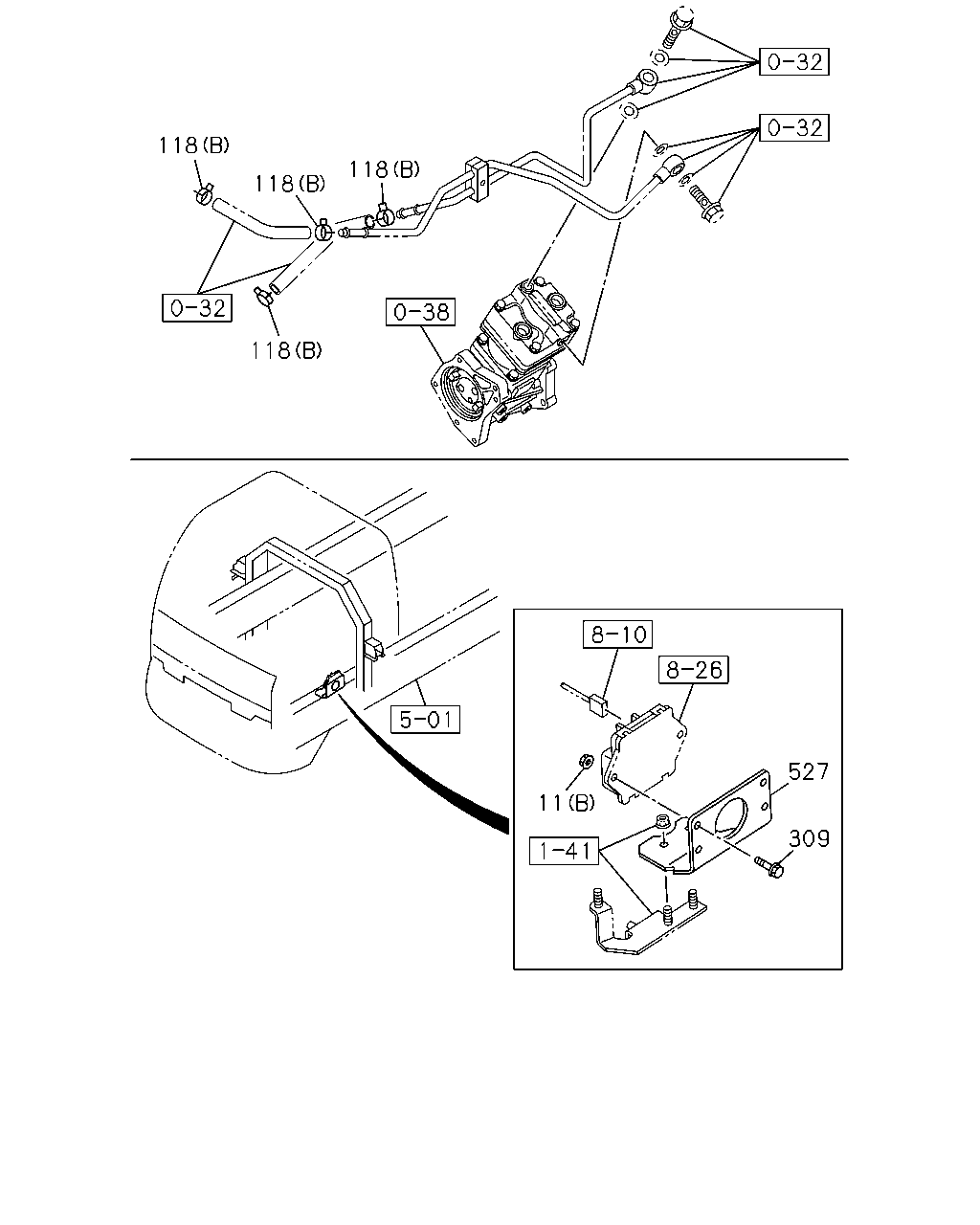

118 118 118 118 527 309 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
11	NUT; TURBOCHARGER (B) M6 FLANGE	0-91180-106-0	02	1	1307-	●
11	NUT; TURBOCHARGER (A) M10 FLANGE	8-97381-617-0	04	1	1307-	●
118	CLIP; WATER HOSE (B) ID=15.5	8-94221-519-0	06	1	1307-	●
118	CLIP; WATER HOSE (A) ID=22	8-97359-141-0	02	1	1307-	●
118	CLIP; WATER HOSE (C) ID=24	8-98025-921-0	04	1	1307-	●
309	BOLT; TURBOCHARGER M6X20 FLANGE	0-28650-620-0	02	1	1307-	●
527	BRACKET; TURBOCHARGER	8-98036-206-1	01	1	1307-	●

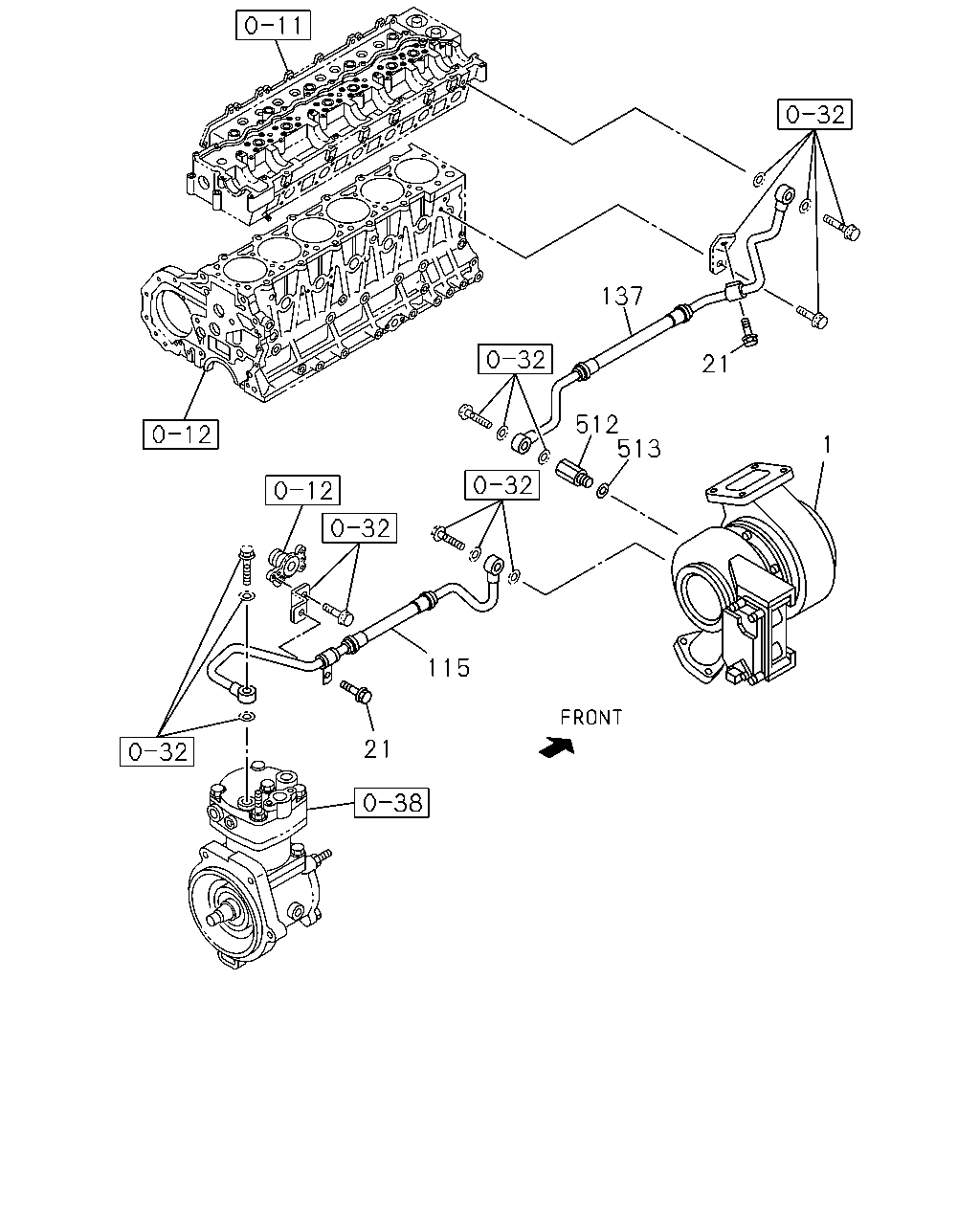

21 115 512 137 513 21 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TURBOCHARGER ASM	8-98027-772-5	01	1	1307-1509	●
1	TURBOCHARGER ASM	8-98322-481-0	01	1	1510-	●
1	TURBOCHARGER ASM	8-97604-975-9	01	1	1307-1312		●
1	TURBOCHARGER ASM	8-97604-975-9	01	1	1401-		●	●
21	BOLT; PIPE M8X16 FLANGE	0-28050-816-0	02	1	1307-1312		●
21	BOLT; PIPE M8X16 FLANGE	0-28050-816-0	02	1	1401-		●	●
115	PIPE; WATER,TURBOCHARGER OUT	8-97387-270-2	01	1	1307-	●
115	PIPE; WATER,TURBOCHARGER OUT	8-97615-877-0	01	1	1307-1312		●
115	PIPE; WATER,TURBOCHARGER OUT	8-97615-877-0	01	1	1401-		●	●
137	PIPE; WATER,TURBOCHARGER IN	8-97387-271-0	01	1	1307-	●
137	PIPE; WATER,TURBOCHARGER IN	8-98046-783-0	01	1	1307-1312		●
137	PIPE; WATER,TURBOCHARGER IN	8-98046-783-0	01	1	1401-		●	●
512	CONNECTOR; TURBO	8-98031-856-0	01	1	1307-1312		●
512	CONNECTOR; TURBO	8-98031-856-0	01	1	1401-		●	●
513	GASKET; CONNECTOR ID=14.2 OD=19.2	1-09630-085-0	01	1	1307-1312		●
513	GASKET; CONNECTOR ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-1401		●
513	GASKET; CONNECTOR ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-		●	●

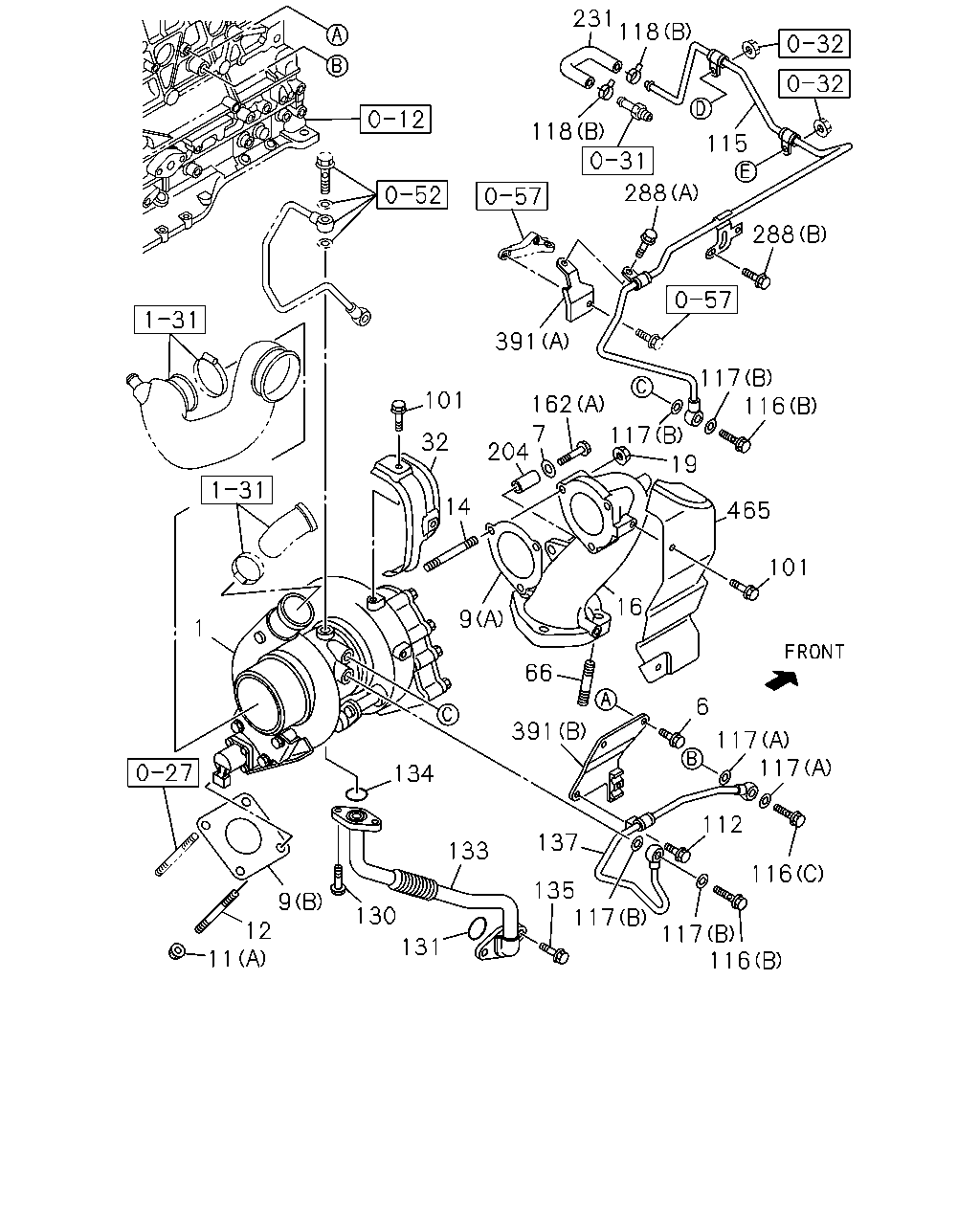

1 11 12 9 130 131 133 134 137 135 117 117 116 116 112 391 66 9 14 32 101 204 7 16 6 117 117 101 465 19 117 162 391 117 116 118 288 288 231 118 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TURBOCHARGER ASM	8-98027-772-5	01	1	1307-1509	●
1	TURBOCHARGER ASM	8-98322-481-0	01	1	1510-	●
1	TURBOCHARGER ASM	8-97604-975-9	01	1	1307-1312		●
1	TURBOCHARGER ASM	8-97604-975-9	01	1	1401-		●	●
6	BOLT; BRKT TO C/BL M8X16 FLANGE	0-28050-816-0	02	1	1307-	●
7	WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	1307-	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=54	8-97376-758-0	01	1	1307-	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=49	8-98046-241-0	01	1	1307-	●
11	NUT; TURBOCHARGER (B) M6 FLANGE	0-91180-106-0	02	1	1307-	●
11	NUT; TURBOCHARGER (A) M10 FLANGE	8-97381-617-0	04	1	1307-	●
12	STUD; TURBOCHARGER M10X30 L=45	1-09302-106-0	02	1	1307-	●
12	STUD; TURBOCHARGER M8X25 L=36	8-94476-282-0	02	1	1307-1312		●
12	STUD; TURBOCHARGER M8X25 L=36	8-94476-282-0	02	1	1401-		●	●
14	STUD; TURBOCHARGER TO EXH PIPE M8X49 L=63	8-97019-478-0	03	1	1307-	●
16	ADAPTER; EXH PIPE	8-98030-080-3	01	1	1307-	●
16	ADAPTER; EXH PIPE	8-98018-241-1	01	1	1307-1312		●
16	ADAPTER; EXH PIPE	8-98018-241-1	01	1	1401-		●	●
19	NUT; EXH PIPE,TURBOCHARGER M8 FLANGE	8-94170-486-0	03	1	1307-	●
32	PROTECTOR; HEAT,TURBOCHARGER	8-98031-888-3	01	1	1307-	●
66	STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1307-	●
101	BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	06	1	1307-	●
112	BOLT; CLIP M8X12 FLANGE	0-28050-812-0	01	1	1307-	●
115	PIPE; WATER,TURBOCHARGER OUT	8-97387-270-2	01	1	1307-	●
115	PIPE; WATER,TURBOCHARGER OUT	8-97615-877-0	01	1	1307-1312		●
115	PIPE; WATER,TURBOCHARGER OUT	8-97615-877-0	01	1	1401-		●	●
116	BOLT; WATER PIPE (D) M8X16 FLANGE	0-28050-816-0	01	1	1307-	●
116	BOLT; WATER PIPE (A) M8X20 FLANGE	0-28650-820-0	01	1	1307-	●
116	BOLT; WATER PIPE (B) M12X24 EYE-BOLT	1-09675-081-0	02	1	1307-	●
116	BOLT; WATER PIPE (C) M14X30 EYE-BOLT	8-94455-144-0	01	1	1307-	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	1307-1312	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	9-09571-412-0	04	1	1307-	●
118	CLIP; WATER HOSE (B) ID=15.5	8-94221-519-0	06	1	1307-	●
118	CLIP; WATER HOSE (A) ID=22	8-97359-141-0	02	1	1307-	●
118	CLIP; WATER HOSE (C) ID=24	8-98025-921-0	04	1	1307-	●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN M6X20 W/LK WASHER	0-50540-620-0	02	1	1307-	●
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1307-	●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-98172-661-0	01	1	1307-	●
134	GASKET; OIL PIPE,TURBOCHARGER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	1307-	●
135	BOLT; OIL PIPE TO C/BL M8X20 FLANGE	0-28050-820-0	02	1	1307-	●
137	PIPE; WATER,TURBOCHARGER IN	8-97387-271-0	01	1	1307-	●
137	PIPE; WATER,TURBOCHARGER IN	8-98046-783-0	01	1	1307-1312		●
137	PIPE; WATER,TURBOCHARGER IN	8-98046-783-0	01	1	1401-		●	●
162	BOLT; ADAPTER (A) M8X57	5-09000-275-0	01	1	1307-	●
162	BOLT; ADAPTER (C) M10X60 FLANGE	0-28051-060-0	01	1	1307-1312		●
162	BOLT; ADAPTER (C) M10X60 FLANGE	0-28051-060-0	01	1	1401-		●	●
162	BOLT; ADAPTER (B) M8X60	8-98158-604-0	02	1	1307-1312		●
162	BOLT; ADAPTER (B) M8X60	8-98158-604-0	02	1	1401-		●	●
204	COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	1307-	●
231	HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1307-	●
288	BOLT; WATER PIPE CLIP (A) M8X10 FLANGE	0-28050-810-0	01	1	1307-	●
288	BOLT; WATER PIPE CLIP (B) M8X16 FLANGE	0-28050-816-0	01	1	1307-	●
391	BRACKET; WATER PIPE (A)	8-98013-958-0	01	1	1307-	●
391	BRACKET; WATER PIPE (B)	8-98057-168-2	01	1	1307-	●
465	PROTECTOR; HEAT,EXH ADAPTER	8-98052-394-0	01	1	1307-	●

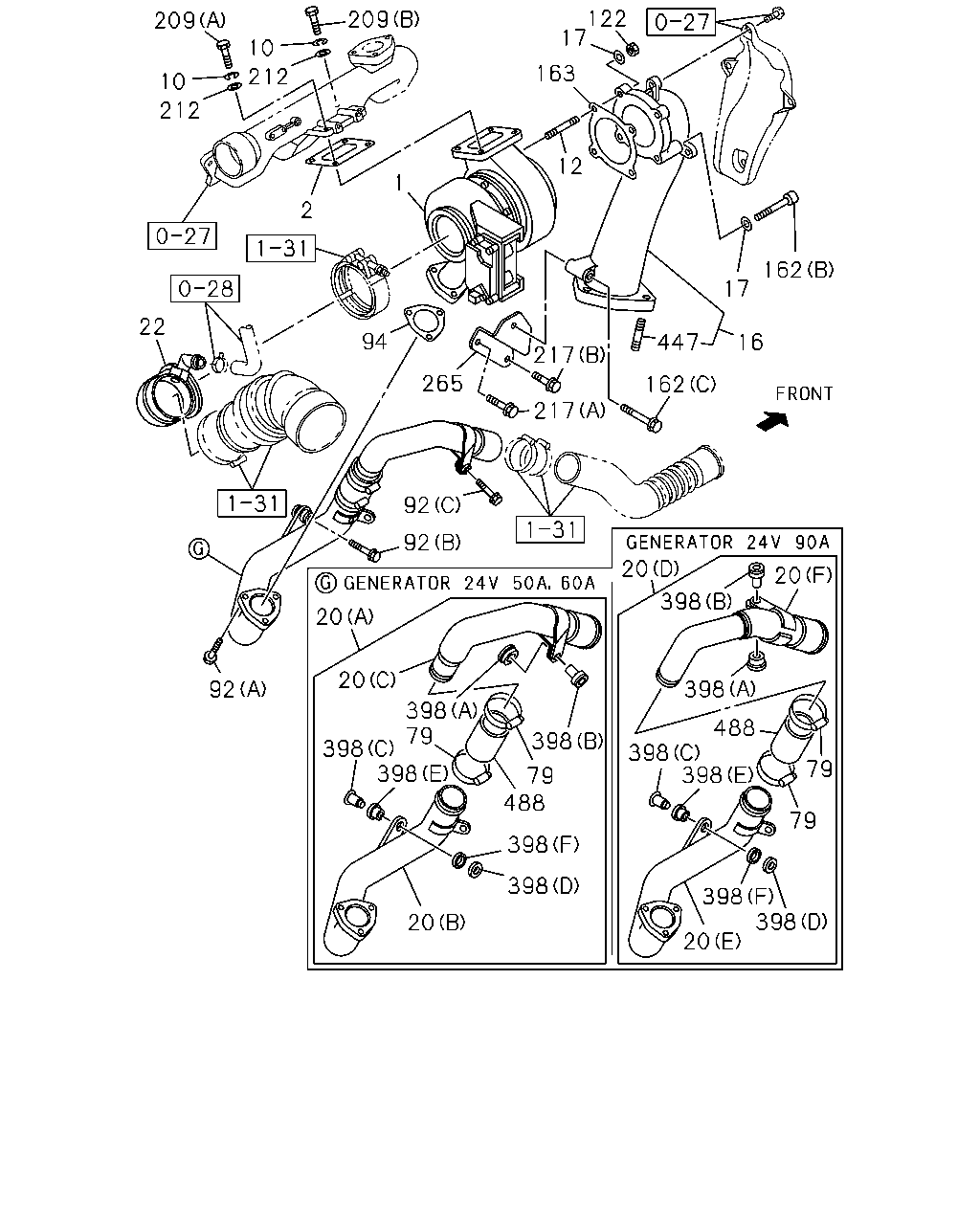

209 212 10 209 163 12 17 122 1 2 212 10 22 92 92 265 94 217 217 447 162 16 17 162 20 20 398 79 398 398 398 79 488 398 398 20 92 398 20 20 398 488 398 398 79 79 398 398 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TURBOCHARGER ASM	8-98027-772-5	01	1	1307-1509	●
1	TURBOCHARGER ASM	8-98322-481-0	01	1	1510-	●
1	TURBOCHARGER ASM	8-97604-975-9	01	1	1307-1312		●
1	TURBOCHARGER ASM	8-97604-975-9	01	1	1401-		●	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97024-124-0	01	1	1307-1312		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97024-124-0	01	1	1401-		●	●
10	WASHER; LK,TURBOCHARGER T=2.2	1-09556-015-0	04	1	1307-1312		●
10	WASHER; LK,TURBOCHARGER T=2.2	1-09556-015-0	04	1	1401-		●	●
12	STUD; TURBOCHARGER M10X30 L=45	1-09302-106-0	02	1	1307-	●
12	STUD; TURBOCHARGER M8X25 L=36	8-94476-282-0	02	1	1307-1312		●
12	STUD; TURBOCHARGER M8X25 L=36	8-94476-282-0	02	1	1401-		●	●
16	ADAPTER; EXH PIPE	8-98030-080-3	01	1	1307-	●
16	ADAPTER; EXH PIPE	8-98018-241-1	01	1	1307-1312		●
16	ADAPTER; EXH PIPE	8-98018-241-1	01	1	1401-		●	●
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	04	1	1307-1312		●
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	04	1	1401-		●	●
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A)	8-98046-167-4	01	1	1307-1312		●
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A)	8-98046-167-4	01	1	1401-1408		●	●
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A)	8-98251-581-0	01	1	1409-		●	●
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B)	8-98046-168-1	01	1	1307-1312		●
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B)	8-98046-168-1	01	1	1401-		●	●
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C)	8-98046-169-2	01	1	1307-1312		●
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C)	8-98046-169-2	01	1	1401-		●	●
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V90A(K44) (D)	8-97617-214-2	01	1	1307-1312		●
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V90A(K44) (D)	8-97617-214-2	01	1	1401-1408		●	●
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V90A(K44) (D)	8-98251-580-0	01	1	1409-		●	●
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V90A(K44) (E)	8-97617-215-0	01	1	1307-1312		●
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V90A(K44) (E)	8-97617-215-0	01	1	1401-		●	●
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V90A(K44) (F)	8-97617-216-0	01	1	1307-1312		●
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V90A(K44) (F)	8-97617-216-0	01	1	1401-		●	●
22	DUCT; INL,ACL TO TURBOCHARGER	8-98036-164-1	01	1	1307-1312		●
22	DUCT; INL,ACL TO TURBOCHARGER	8-98036-164-1	01	1	1401-		●	●
79	CLIP; RUBBER HOSE ID=58-79	1-09707-136-0	02	1	1307-1312		●
79	CLIP; RUBBER HOSE ID=58-79	1-09707-136-0	02	1	1401-		●	●
92	BOLT; INL PIPE (A) M8X30 FLANGE	0-28650-830-0	03	1	1307-1312		●
92	BOLT; INL PIPE (A) M8X30 FLANGE	0-28650-830-0	03	1	1401-		●	●
92	BOLT; INL PIPE (B) M8X35 FLANGE	0-28650-835-0	01	1	1307-1312		●
92	BOLT; INL PIPE (B) M8X35 FLANGE	0-28650-835-0	01	1	1401-		●	●
92	BOLT; INL PIPE (C) M8X40 FLANGE	0-28650-840-0	01	1	1307-1312		●
92	BOLT; INL PIPE (C) M8X40 FLANGE	0-28650-840-0	01	1	1401-		●	●
94	GASKET; INL PIPE ID=55	8-98053-830-0	01	1	1307-1312		●
94	GASKET; INL PIPE ID=55	8-98053-830-0	01	1	1401-		●	●
122	NUT; ADAPTER M8	1-09400-118-1	02	1	1307-1312		●
122	NUT; ADAPTER M8	1-09400-118-1	02	1	1401-		●	●
162	BOLT; ADAPTER (A) M8X57	5-09000-275-0	01	1	1307-	●
162	BOLT; ADAPTER (C) M10X60 FLANGE	0-28051-060-0	01	1	1307-1312		●
162	BOLT; ADAPTER (C) M10X60 FLANGE	0-28051-060-0	01	1	1401-		●	●
162	BOLT; ADAPTER (B) M8X60	8-98158-604-0	02	1	1307-1312		●
162	BOLT; ADAPTER (B) M8X60	8-98158-604-0	02	1	1401-		●	●
163	GASKET; ADAPTER TO EXH PIPE ID=83	8-94392-553-2	01	1	1307-1312		●
163	GASKET; ADAPTER TO EXH PIPE ID=83	8-94392-553-2	01	1	1401-		●	●
209	BOLT; BRACE,TURBOCHARGER (B) M10X80	8-98049-825-0	02	1	1307-1312		●
209	BOLT; BRACE,TURBOCHARGER (B) M10X80	8-98049-825-0	02	1	1401-		●	●
209	BOLT; BRACE,TURBOCHARGER (A) M10X40	9-09604-007-1	02	1	1307-1312		●
209	BOLT; BRACE,TURBOCHARGER (A) M10X40	9-09604-007-1	02	1	1401-		●	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	1307-1312		●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	1401-		●	●
217	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	1307-1312		●
217	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	1401-		●	●
217	BOLT; BRKT (B) M10X25 FLANGE	0-28751-025-0	01	1	1307-1312		●
217	BOLT; BRKT (B) M10X25 FLANGE	0-28751-025-0	01	1	1401-		●	●
265	BRACKET; EXH PIPE	8-98260-415-0	01	1	1307-1312		●
265	BRACKET; EXH PIPE	8-98260-415-0	01	1	1401-		●	●
398	MOUNTING (F) ID=19 OD=26	8-94160-177-0	01	1	1307-1312		●
398	MOUNTING (F) ID=19 OD=26	8-94160-177-0	01	1	1401-		●	●
398	MOUNTING (C) OD=28	8-94390-551-1	01	1	1307-1312		●
398	MOUNTING (C) OD=28	8-94390-551-1	01	1	1401-		●	●
398	MOUNTING (D) ID=13 OD=28	8-94394-504-0	01	1	1307-1312		●
398	MOUNTING (D) ID=13 OD=28	8-94394-504-0	01	1	1401-		●	●
398	MOUNTING (E) OD=26	8-94394-529-0	01	1	1307-1312		●
398	MOUNTING (E) OD=26	8-94394-529-0	01	1	1401-		●	●
398	MOUNTING (A) OD=32	8-94395-766-0	01	1	1307-1312		●
398	MOUNTING (A) OD=32	8-94395-766-0	01	1	1401-		●	●
398	MOUNTING (B) OD=23	8-97105-689-6	01	1	1307-1312		●
398	MOUNTING (B) OD=23	8-97105-689-6	01	1	1401-		●	●
447	STUD; ADAPTER M12X30 L=48	0-44011-230-0	03	1	1307-1312		●
447	STUD; ADAPTER M12X30 L=48	0-44011-230-0	03	1	1401-		●	●
488	HOSE; RUBBER	8-98046-356-0	01	1	1307-1312		●
488	HOSE; RUBBER	8-98046-356-0	01	1	1401-1408		●	●
488	HOSE; RUBBER ID=52.5 L=70	8-98245-242-0	01	1	1409-		●	●
