◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11548 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-33 - FAN AND FAN BELT ▶
0-33 — FAN AND FAN BELT (#123628) — 111 parça

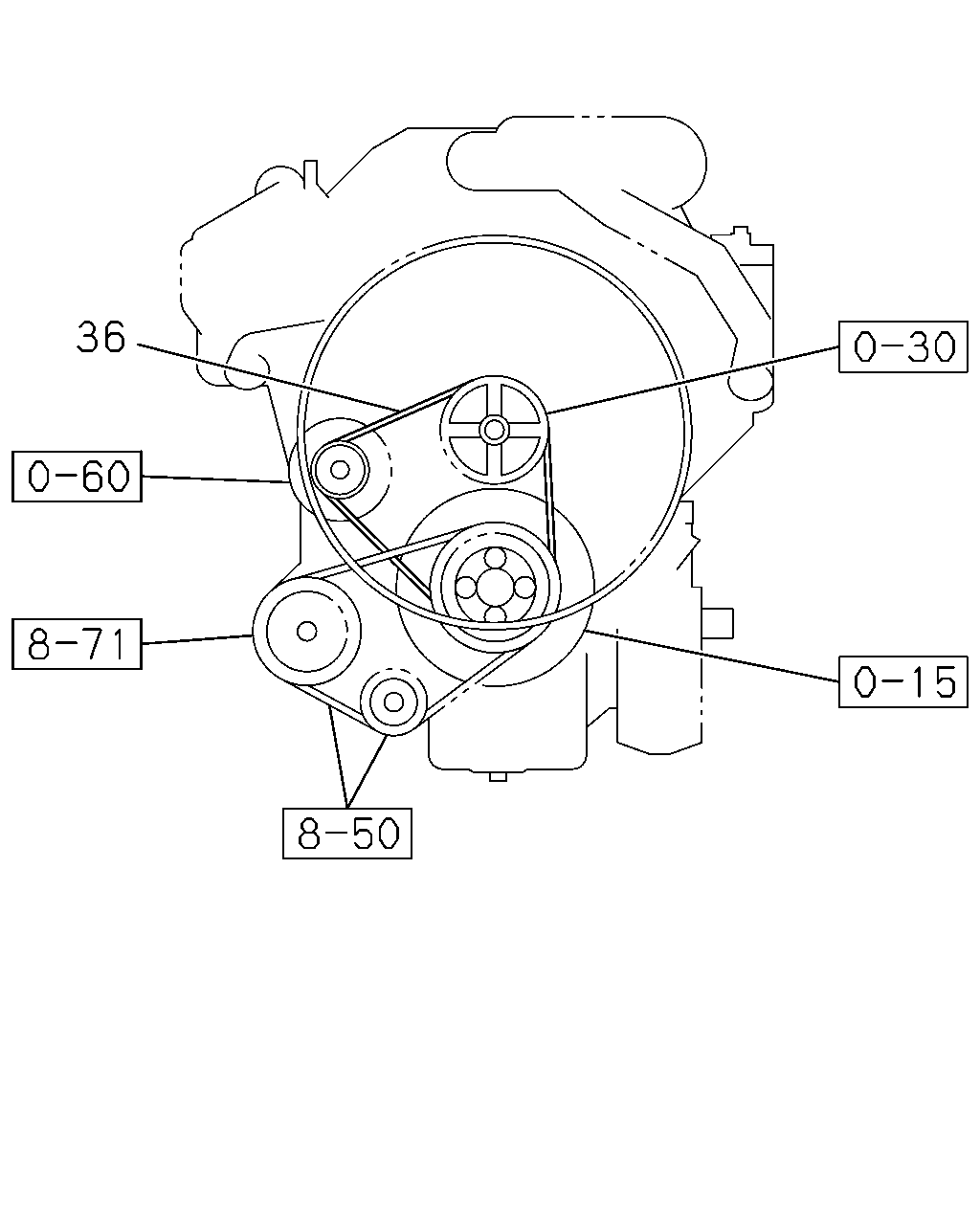

çizim 362238
36
BalonParca AdiParca NoAdetTipApplied Date A B C
36 BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) L=1086 MITSUBOSHI 		8-98020-247-0 01 1 1307- ●
36 BELT; COOLING FAN
GENERATOR 24V90A(K44) L=1131 		8-98031-667-0 01 1 1307- ●
36 BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) L=1170 MITSUBOSHI 		8-97611-859-1 01 1 1307-1312 ●
36 BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) L=1170 MITSUBOSHI 		8-97611-859-1 01 1 1401- ● ●
36 BELT; COOLING FAN
GENERATOR 24V90A(K44) L=1190 MITSUBOSHI 		8-97611-860-0 01 1 1307-1312 ●
36 BELT; COOLING FAN
GENERATOR 24V90A(K44) L=1190 MITSUBOSHI 		8-97611-860-0 01 1 1401- ● ●
36 BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) BEST VALUE PARTS 		1-87610-107-0 01 1 1307- ●
36 BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) BEST VALUE PARTS 		1-87610-105-0 01 1 1307-1312 ●
36 BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) BEST VALUE PARTS 		1-87610-105-0 01 1 1401- ● ●
36 BELT; COOLING FAN
GENERATOR 24V90A(K44) BEST VALUE PARTS 		1-87610-106-0 01 1 1307-1312 ●
36 BELT; COOLING FAN
GENERATOR 24V90A(K44) BEST VALUE PARTS 		1-87610-106-0 01 1 1401- ● ●
çizim 362301
36 144 147
BalonParca AdiParca NoAdetTipApplied Date A B C
36 BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) L=1086 MITSUBOSHI 		8-98020-247-0 01 1 1307- ●
36 BELT; COOLING FAN
GENERATOR 24V90A(K44) L=1131 		8-98031-667-0 01 1 1307- ●
36 BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) L=1170 MITSUBOSHI 		8-97611-859-1 01 1 1307-1312 ●
36 BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) L=1170 MITSUBOSHI 		8-97611-859-1 01 1 1401- ● ●
36 BELT; COOLING FAN
GENERATOR 24V90A(K44) L=1190 MITSUBOSHI 		8-97611-860-0 01 1 1307-1312 ●
36 BELT; COOLING FAN
GENERATOR 24V90A(K44) L=1190 MITSUBOSHI 		8-97611-860-0 01 1 1401- ● ●
36 BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) BEST VALUE PARTS 		1-87610-107-0 01 1 1307- ●
36 BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) BEST VALUE PARTS 		1-87610-105-0 01 1 1307-1312 ●
36 BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) BEST VALUE PARTS 		1-87610-105-0 01 1 1401- ● ●
36 BELT; COOLING FAN
GENERATOR 24V90A(K44) BEST VALUE PARTS 		1-87610-106-0 01 1 1307-1312 ●
36 BELT; COOLING FAN
GENERATOR 24V90A(K44) BEST VALUE PARTS 		1-87610-106-0 01 1 1401- ● ●
144 TENSIONER; DRIVE BELT
GENERATOR 24V90A(K44) 1-GROOVE 		8-98031-811-1 01 1 1307- ●
147 BOLT; BELT TENSIONER
GENERATOR 24V90A(K44) M10X20 FLANGE 		0-28151-020-0 03 1 1307- ●

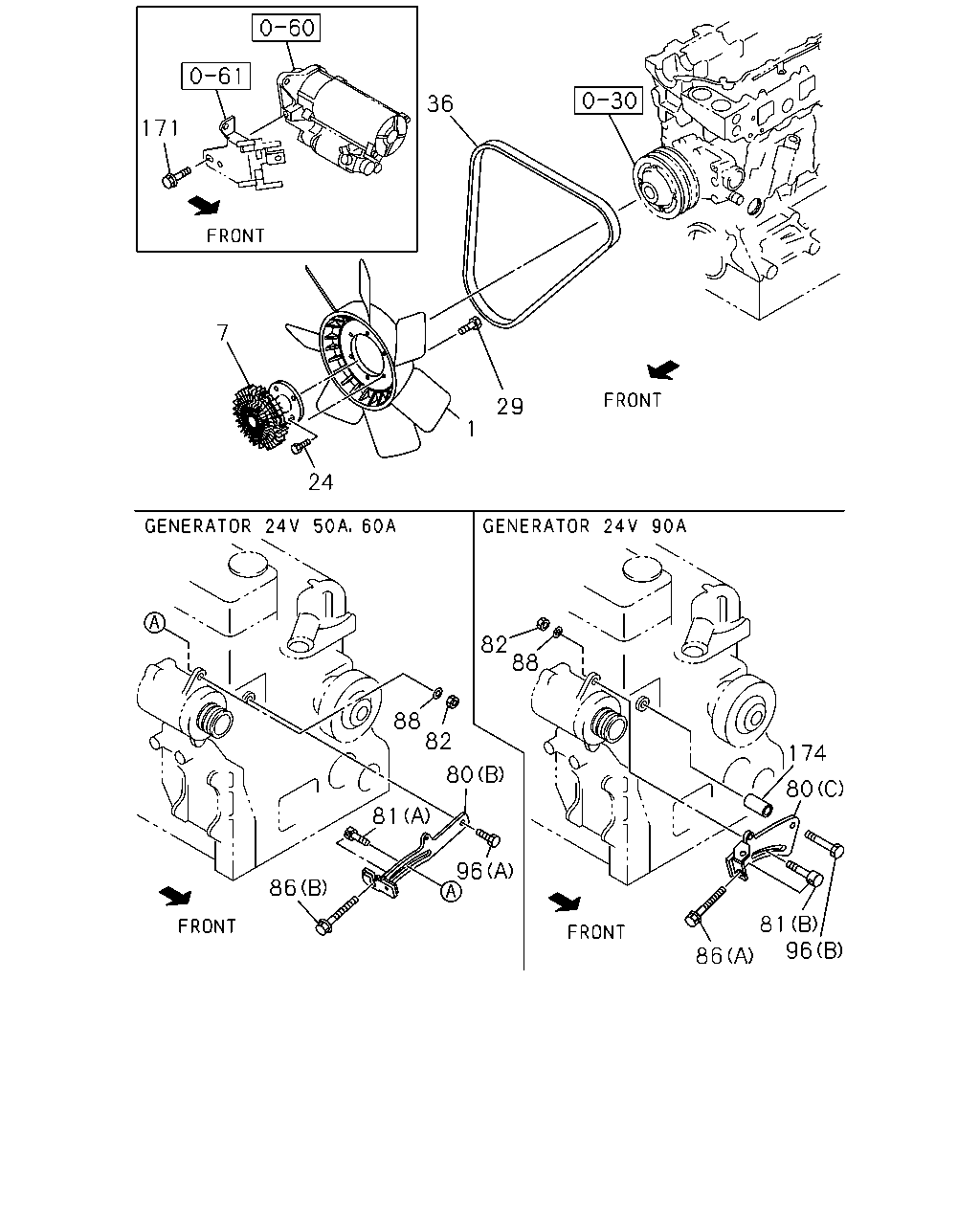

çizim 362303
171 36 29 1 24 7 174 80 81 96 86 88 82 80 82 88 81 96 86
BalonParca AdiParca NoAdetTipApplied Date A B C
1 FAN; COOLING
OD=510 		8-98190-148-1 01 1 1307- ●
1 FAN; COOLING
OD=560 		8-98073-467-1 01 1 1307-1312 ●
1 FAN; COOLING
OD=560 		8-98073-467-1 01 1 1401- ● ●
7 COUPLING; FAN 8-98075-290-1 01 1 1307-1312 ●
7 COUPLING; FAN 8-98075-290-1 01 1 1401- ● ●
24 BOLT; FAN
M8X18 FLANGE 		0-28080-818-0 04 1 1307- ●
24 BOLT; FAN
M10X25 FLANGE 		0-28151-025-0 04 1 1307-1312 ●
24 BOLT; FAN
M10X25 FLANGE 		0-28151-025-0 04 1 1401- ● ●
29 BOLT; COUPLING TO WATER PUMP
M8X16 FLANGE 		0-28050-816-0 06 1 1307-1312 ●
29 BOLT; COUPLING TO WATER PUMP
M8X16 FLANGE 		0-28050-816-0 06 1 1401- ● ●
36 BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) L=1086 MITSUBOSHI 		8-98020-247-0 01 1 1307- ●
36 BELT; COOLING FAN
GENERATOR 24V90A(K44) L=1131 		8-98031-667-0 01 1 1307- ●
36 BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) L=1170 MITSUBOSHI 		8-97611-859-1 01 1 1307-1312 ●
36 BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) L=1170 MITSUBOSHI 		8-97611-859-1 01 1 1401- ● ●
36 BELT; COOLING FAN
GENERATOR 24V90A(K44) L=1190 MITSUBOSHI 		8-97611-860-0 01 1 1307-1312 ●
36 BELT; COOLING FAN
GENERATOR 24V90A(K44) L=1190 MITSUBOSHI 		8-97611-860-0 01 1 1401- ● ●
36 BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) BEST VALUE PARTS 		1-87610-107-0 01 1 1307- ●
36 BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) BEST VALUE PARTS 		1-87610-105-0 01 1 1307-1312 ●
36 BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) BEST VALUE PARTS 		1-87610-105-0 01 1 1401- ● ●
36 BELT; COOLING FAN
GENERATOR 24V90A(K44) BEST VALUE PARTS 		1-87610-106-0 01 1 1307-1312 ●
36 BELT; COOLING FAN
GENERATOR 24V90A(K44) BEST VALUE PARTS 		1-87610-106-0 01 1 1401- ● ●
80 PLATE; ADJ
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-98054-181-0 01 1 1307- ●
80 PLATE; ADJ
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-97601-020-1 01 1 1307-1312 ●
80 PLATE; ADJ
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-97601-020-1 01 1 1401- ● ●
80 PLATE; ADJ
GENERATOR 24V90A(K44) (C) 		8-97617-940-0 01 1 1307-1312 ●
80 PLATE; ADJ
GENERATOR 24V90A(K44) (C) 		8-97617-940-0 01 1 1401- ● ●
81 PIECE; SLIDING
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) M12X45 		1-13674-160-0 01 1 1307-1312 ● ●
81 PIECE; SLIDING
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) M12X45 		1-13674-160-0 01 1 1401- ● ● ●
81 PIECE; SLIDING
GENERATOR 24V90A(K44) (B) M12X59 		1-13674-161-0 01 1 1307-1312 ●
81 PIECE; SLIDING
GENERATOR 24V90A(K44) (B) M12X59 		1-13674-161-0 01 1 1401- ● ●
82 NUT; ADJ PLATE
M12 FLANGE 		0-91180-112-0 01 1 1307-1312 ●
82 NUT; ADJ PLATE
M12 FLANGE 		0-91180-112-0 01 1 1401- ● ●
86 BOLT; ADJ
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) M10X135 		1-09009-113-1 01 1 1307-1312 ●
86 BOLT; ADJ
GENERATOR 24V90A(K44) (A) M10X135 		1-09009-113-1 01 1 1307-1312 ●
86 BOLT; ADJ
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) M10X135 		1-09009-113-1 01 1 1401- ●
86 BOLT; ADJ
GENERATOR 24V90A(K44) (A) M10X135 		1-09009-113-1 01 1 1401- ● ●
86 BOLT; ADJ
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) M10X155 FLANGE 		1-09009-114-1 01 1 1307-1312 ●
86 BOLT; ADJ
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) M10X155 FLANGE 		1-09009-114-1 01 1 1401- ● ●
88 WASHER; PL,ADJ PLATE
ID=12.5 OD=32 		0-91614-712-0 01 1 1307-1312 ●
88 WASHER; PL,ADJ PLATE
ID=12.5 OD=32 		0-91614-712-0 01 1 1401- ● ●
96 BOLT; ADJ PLATE
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) M10X45 FLANGE 		0-28151-045-0 01 1 1307-1312 ●
96 BOLT; ADJ PLATE
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) M10X45 FLANGE 		0-28151-045-0 01 1 1401- ● ●
96 BOLT; ADJ PLATE
GENERATOR 24V90A(K44) (B) M10X75 FLANGE 		8-94399-669-1 01 1 1307-1312 ●
96 BOLT; ADJ PLATE
GENERATOR 24V90A(K44) (B) M10X75 FLANGE 		8-94399-669-1 01 1 1401- ● ●
171 BOLT; HEAT PROTECTOR
M10X20 FLANGE 		0-28051-020-0 01 1 1307-1312 ●
171 BOLT; HEAT PROTECTOR
M10X20 FLANGE 		0-28051-020-0 01 1 1401- ● ●
174 SPACER; ADJ PLATE
GENERATOR 24V90A(K44) 		8-98056-785-0 01 1 1307-1312 ●
174 SPACER; ADJ PLATE
GENERATOR 24V90A(K44) 		8-98056-785-0 01 1 1401- ● ●

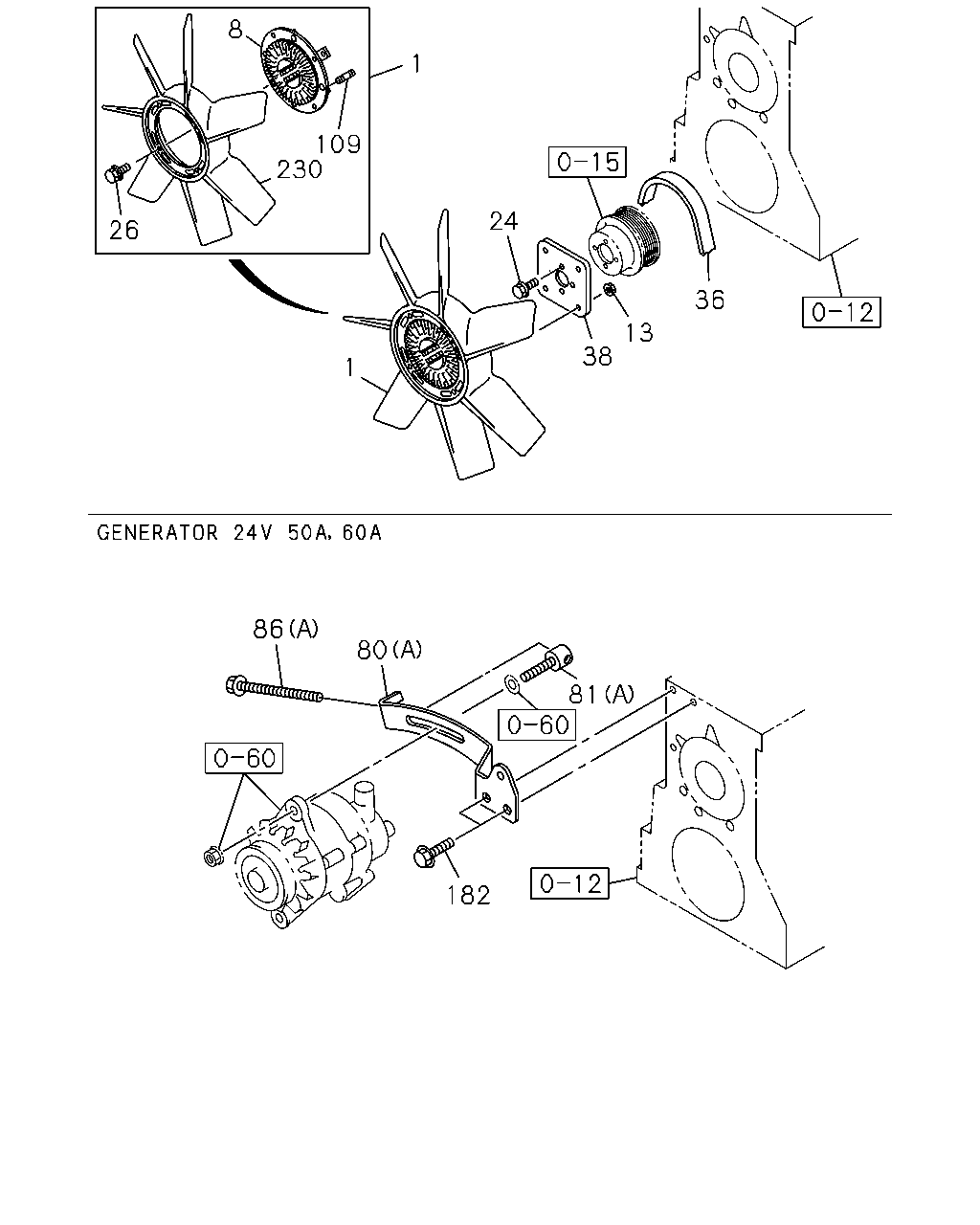

çizim 362305
1 8 109 230 26 1 24 38 13 36 81 182 80 86
BalonParca AdiParca NoAdetTipApplied Date A B C
1 FAN; COOLING
OD=510 		8-98190-148-1 01 1 1307- ●
1 FAN; COOLING
OD=560 		8-98073-467-1 01 1 1307-1312 ●
1 FAN; COOLING
OD=560 		8-98073-467-1 01 1 1401- ● ●
8 CLUTCH; COOLING FAN 8-98019-743-0 01 1 1307- ●
13 NUT; COOLING FAN
M8 FLANGE 		0-91180-108-0 04 1 1307- ●
24 BOLT; FAN
M8X18 FLANGE 		0-28080-818-0 04 1 1307- ●
24 BOLT; FAN
M10X25 FLANGE 		0-28151-025-0 04 1 1307-1312 ●
24 BOLT; FAN
M10X25 FLANGE 		0-28151-025-0 04 1 1401- ● ●
26 BOLT; FAN TO CLU 8-94389-764-0 04 1 1307- ●
36 BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) L=1086 MITSUBOSHI 		8-98020-247-0 01 1 1307- ●
36 BELT; COOLING FAN
GENERATOR 24V90A(K44) L=1131 		8-98031-667-0 01 1 1307- ●
36 BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) L=1170 MITSUBOSHI 		8-97611-859-1 01 1 1307-1312 ●
36 BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) L=1170 MITSUBOSHI 		8-97611-859-1 01 1 1401- ● ●
36 BELT; COOLING FAN
GENERATOR 24V90A(K44) L=1190 MITSUBOSHI 		8-97611-860-0 01 1 1307-1312 ●
36 BELT; COOLING FAN
GENERATOR 24V90A(K44) L=1190 MITSUBOSHI 		8-97611-860-0 01 1 1401- ● ●
36 BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) BEST VALUE PARTS 		1-87610-107-0 01 1 1307- ●
36 BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) BEST VALUE PARTS 		1-87610-105-0 01 1 1307-1312 ●
36 BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) BEST VALUE PARTS 		1-87610-105-0 01 1 1401- ● ●
36 BELT; COOLING FAN
GENERATOR 24V90A(K44) BEST VALUE PARTS 		1-87610-106-0 01 1 1307-1312 ●
36 BELT; COOLING FAN
GENERATOR 24V90A(K44) BEST VALUE PARTS 		1-87610-106-0 01 1 1401- ● ●
38 SPACER; FAN 8-97108-643-0 01 1 1307- ●
80 PLATE; ADJ
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-98054-181-0 01 1 1307- ●
80 PLATE; ADJ
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-97601-020-1 01 1 1307-1312 ●
80 PLATE; ADJ
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-97601-020-1 01 1 1401- ● ●
80 PLATE; ADJ
GENERATOR 24V90A(K44) (C) 		8-97617-940-0 01 1 1307-1312 ●
80 PLATE; ADJ
GENERATOR 24V90A(K44) (C) 		8-97617-940-0 01 1 1401- ● ●
81 PIECE; SLIDING
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) M12X45 		1-13674-160-0 01 1 1307-1312 ● ●
81 PIECE; SLIDING
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) M12X45 		1-13674-160-0 01 1 1401- ● ● ●
81 PIECE; SLIDING
GENERATOR 24V90A(K44) (B) M12X59 		1-13674-161-0 01 1 1307-1312 ●
81 PIECE; SLIDING
GENERATOR 24V90A(K44) (B) M12X59 		1-13674-161-0 01 1 1401- ● ●
86 BOLT; ADJ
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) M10X135 		1-09009-113-1 01 1 1307-1312 ●
86 BOLT; ADJ
GENERATOR 24V90A(K44) (A) M10X135 		1-09009-113-1 01 1 1307-1312 ●
86 BOLT; ADJ
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) M10X135 		1-09009-113-1 01 1 1401- ●
86 BOLT; ADJ
GENERATOR 24V90A(K44) (A) M10X135 		1-09009-113-1 01 1 1401- ● ●
86 BOLT; ADJ
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) M10X155 FLANGE 		1-09009-114-1 01 1 1307-1312 ●
86 BOLT; ADJ
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) M10X155 FLANGE 		1-09009-114-1 01 1 1401- ● ●
109 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 1307- ●
182 BOLT; BRKT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M8X35 FLANGE 		0-28650-835-0 02 1 1307- ●
230 FAN; COOLING 8-98190-058-0 01 1 1307- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
