0-32 — WATER PIPING; ENGINE (#123627) — 152 parça

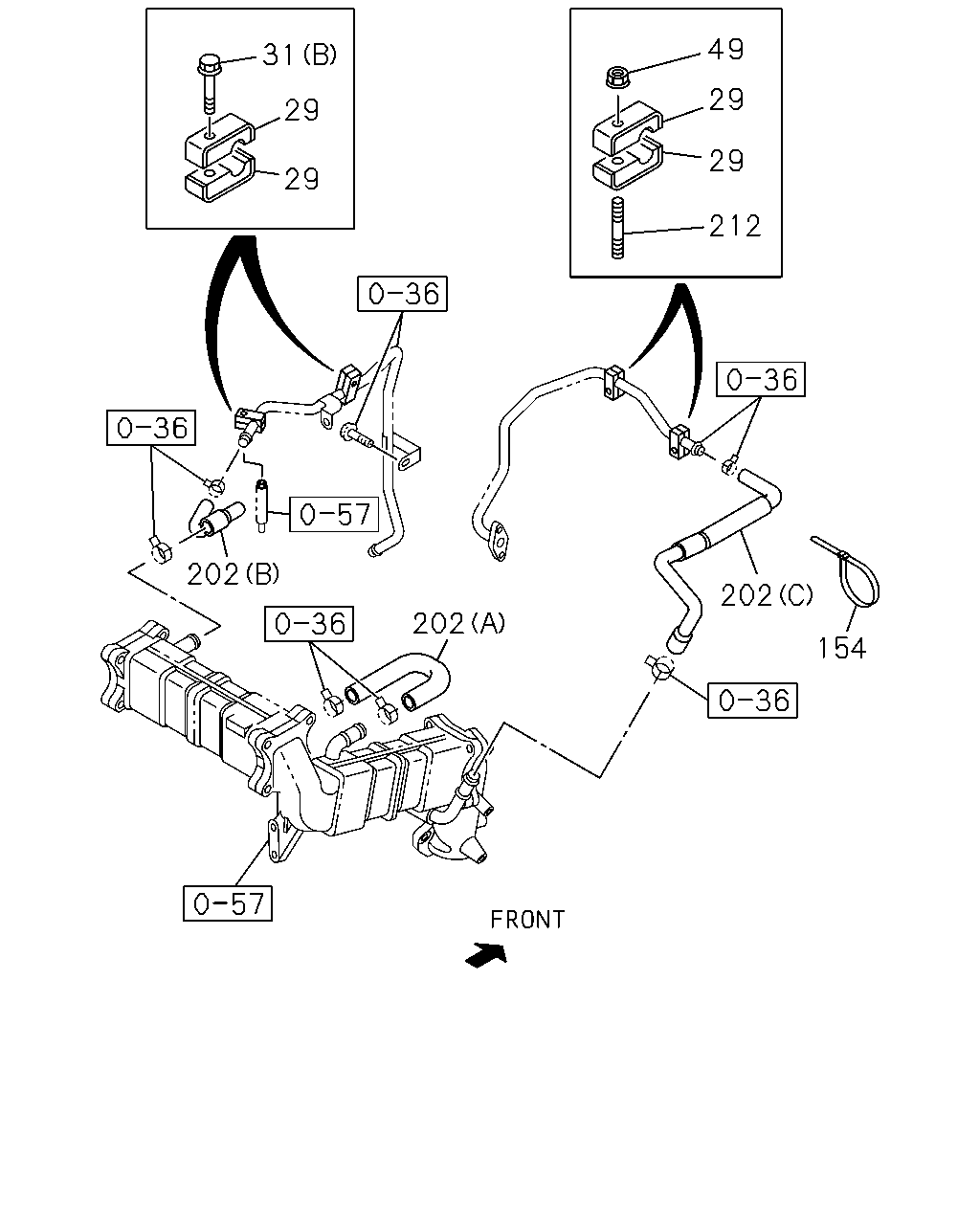

31 29 29 49 29 212 29 202 202 202 154

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
29	CLIP; PIPE ID=17 L=17	1-09701-284-0	08	1	1307-	●
31	BOLT; CLIP (A) M8X12 FLANGE	0-28050-812-0	01	1	1307-	●
31	BOLT; CLIP (B) M8X40 FLANGE	0-28050-840-0	02	1	1307-	●
31	BOLT; CLIP (D) M6X45 FLANGE	0-28050-645-0	01	1	1307-1312		●
31	BOLT; CLIP (D) M6X45 FLANGE	0-28050-645-0	01	1	1401-		●	●
31	BOLT; CLIP (C) M6X40 FLANGE	0-28650-640-0	03	1	1307-1312		●
31	BOLT; CLIP (C) M6X40 FLANGE	0-28650-640-0	03	1	1401-		●	●
49	NUT; WATER PIPE M8 FLANGE	0-91180-108-0	02	1	1307-	●
154	CLIP; WATER HOSE L=170.3	1-09987-182-0	01	1	1307-	●
202	HOSE; RUBBER,EGR COOLER (B)	8-98028-170-0	01	1	1307-	●
202	HOSE; RUBBER,EGR COOLER (A)	8-98028-171-0	01	1	1307-	●
202	HOSE; RUBBER,EGR COOLER (C)	8-98097-717-0	01	1	1307-	●
212	STUD; PIPE M8X45 L=55	8-94217-227-0	02	1	1307-	●

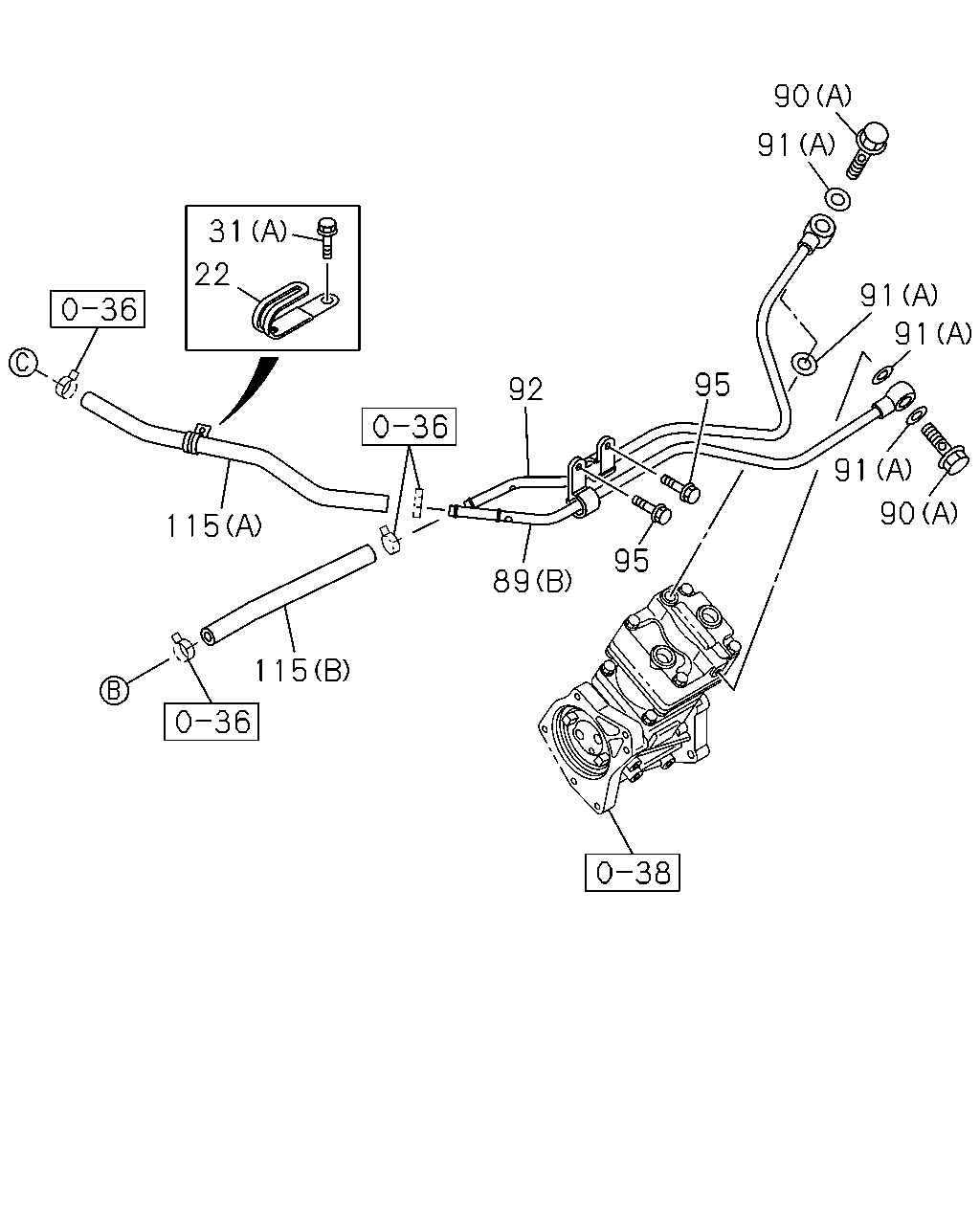

22 31 115 115 89 92 95 95 90 91 91 91 91 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	CLIP; WATER HOSE L=36	8-94224-891-1	01	1	1307-	●
31	BOLT; CLIP (A) M8X12 FLANGE	0-28050-812-0	01	1	1307-	●
31	BOLT; CLIP (B) M8X40 FLANGE	0-28050-840-0	02	1	1307-	●
31	BOLT; CLIP (D) M6X45 FLANGE	0-28050-645-0	01	1	1307-1312		●
31	BOLT; CLIP (D) M6X45 FLANGE	0-28050-645-0	01	1	1401-		●	●
31	BOLT; CLIP (C) M6X40 FLANGE	0-28650-640-0	03	1	1307-1312		●
31	BOLT; CLIP (C) M6X40 FLANGE	0-28650-640-0	03	1	1401-		●	●
89	PIPE; WATER,AIR CMPR,IN (A)	8-97358-699-0	01	1	1307-	●
89	PIPE; WATER,AIR CMPR,IN (B)	8-98095-668-0	01	1	1307-	●
89	PIPE; WATER,AIR CMPR,IN (C)	8-97611-095-0	01	1	1307-1312		●
89	PIPE; WATER,AIR CMPR,IN (C)	8-97611-095-0	01	1	1401-		●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	1307-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	1307-1312		●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	1401-		●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	1307-1312		●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	1401-		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	1307-1312	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	1307-1312		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-1401		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	1307-1312		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	1401-		●	●
92	PIPE; WATER,AIR CMPR,OUT	8-98132-662-0	01	1	1307-	●
95	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	1307-	●
115	HOSE; RUBBER (A)	8-98095-678-3	01	1	1307-	●
115	HOSE; RUBBER (B) L=130	8-98136-884-0	01	1	1307-	●
115	HOSE; RUBBER (E)	8-97606-735-1	01	1	1307-1312		●
115	HOSE; RUBBER (E)	8-97606-735-1	01	1	1401-		●	●
115	HOSE; RUBBER (D)	8-97606-749-0	02	1	1307-1312		●
115	HOSE; RUBBER (D)	8-97606-749-0	02	1	1401-		●	●
115	HOSE; RUBBER (C)	8-98043-192-0	01	1	1307-1312		●
115	HOSE; RUBBER (C)	8-98043-192-0	01	1	1401-		●	●

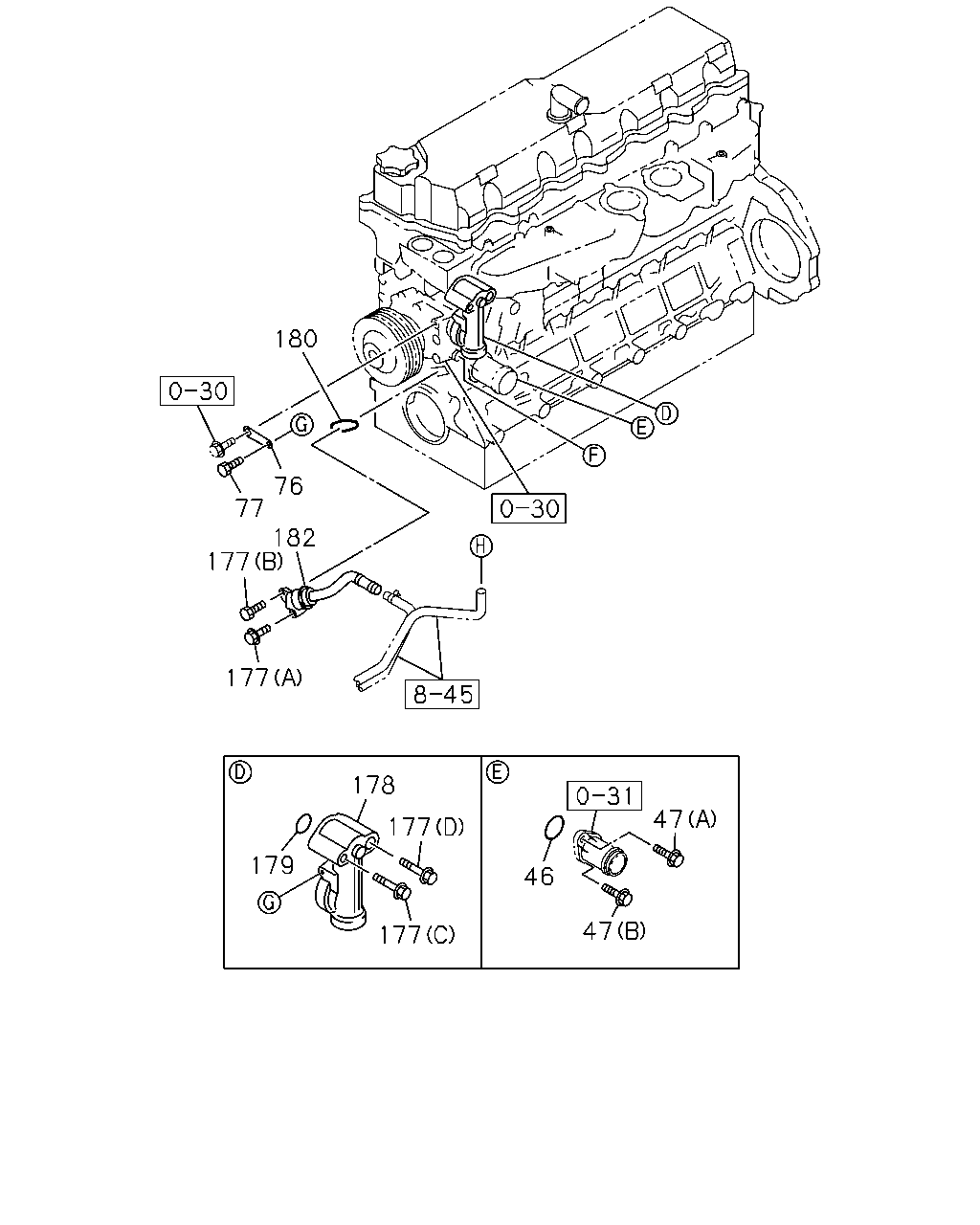

180 76 77 177 177 182 178 177 179 177 47 47 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	1307-1312	●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	1401-	●	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X45 FLANGE	0-28050-845-0	01	1	1307-1312	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X45 FLANGE	0-28050-845-0	01	1	1401-	●	●
47	BOLT; DUCT,TO OIL COOLER (B) M8X25 FLANGE	0-28650-825-0	01	1	1307-1312	●
47	BOLT; DUCT,TO OIL COOLER (B) M8X25 FLANGE	0-28650-825-0	01	1	1401-	●	●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	1307-1312	●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	1401-	●	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	01	1	1307-1312	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	01	1	1401-	●	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28050-880-0	01	1	1307-1312	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28050-880-0	01	1	1401-	●	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28650-825-0	01	1	1307-1312	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28650-825-0	01	1	1401-	●	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	1307-1312	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	1401-	●	●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	1307-1312	●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	1401-	●	●
178	DUCT; WATER,BYPASS	8-94396-627-3	01	1	1307-1312	●
178	DUCT; WATER,BYPASS	8-94396-627-3	01	1	1401-	●	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	1307-1312	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	1401-1408	●	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-98276-756-0	01	1	1409-	●	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	1307-1312	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	1401-	●	●
182	DUCT; WATER,HTR	8-94394-348-5	01	1	1307-1312	●
182	DUCT; WATER,HTR	8-94394-348-5	01	1	1401-	●	●

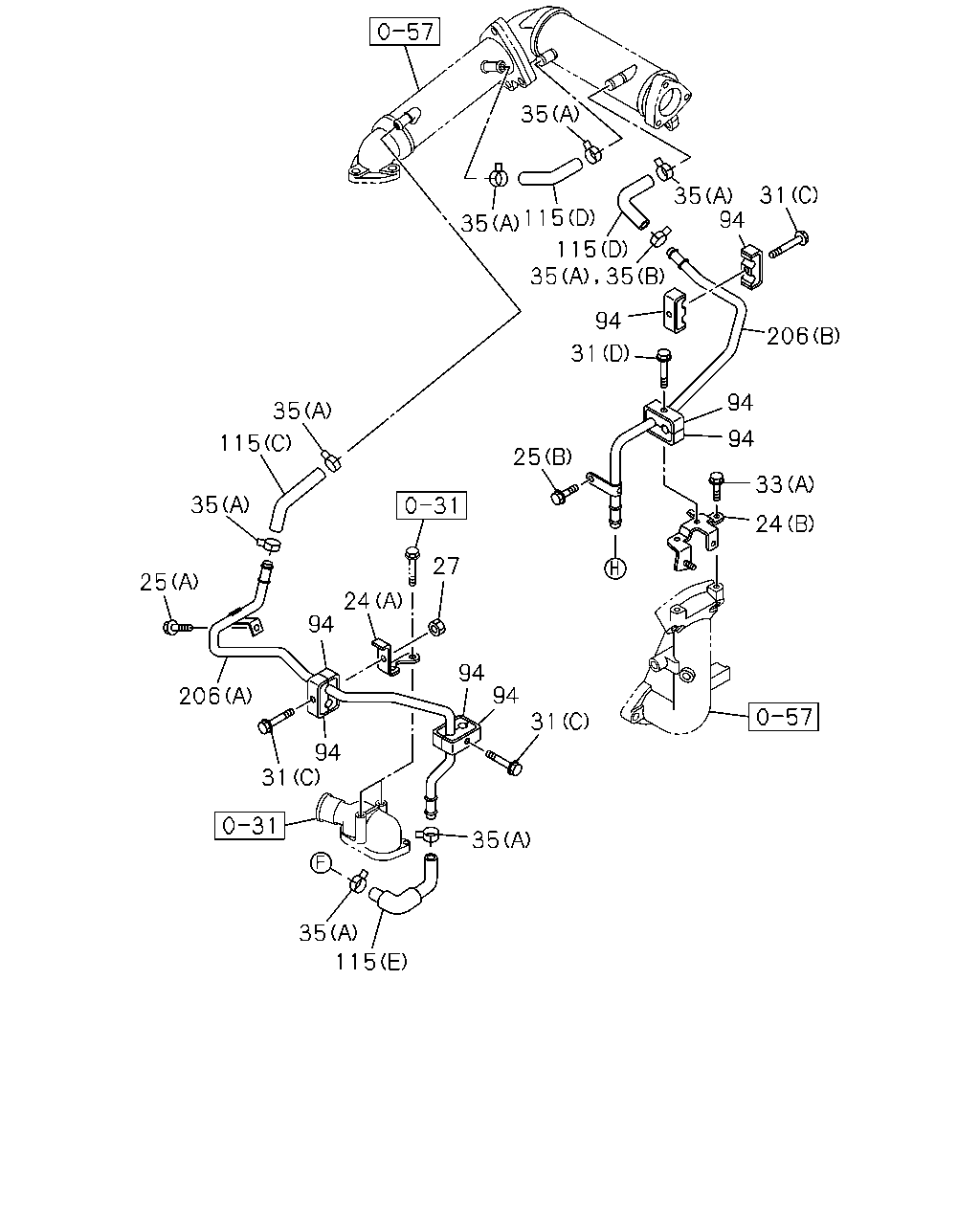

35 35 94 115 35 31 206 31 35 115 35 94 33 25 35 115 35 24 94 94 31 35 35 115 206 31 25 94 94 24 94 94 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	BRACKET; WATER PIPE (A)	8-98000-557-2	01	1	1307-1312		●
24	BRACKET; WATER PIPE (A)	8-98000-557-2	01	1	1401-		●	●
24	BRACKET; WATER PIPE (B)	8-98051-626-1	01	1	1307-1312		●
24	BRACKET; WATER PIPE (B)	8-98051-626-1	01	1	1401-		●	●
25	BOLT; WATER PIPE (A) M8X12 FLANGE	0-28050-812-0	01	1	1307-1312		●
25	BOLT; WATER PIPE (A) M8X12 FLANGE	0-28050-812-0	01	1	1401-		●	●
25	BOLT; WATER PIPE (B) M8X20 FLANGE	0-28650-820-0	01	1	1307-1312		●
25	BOLT; WATER PIPE (B) M8X20 FLANGE	0-28650-820-0	01	1	1401-		●	●
27	NUT; PIPE FIX M6 FLANGE	0-91180-106-0	01	1	1307-1312		●
27	NUT; PIPE FIX M6 FLANGE	0-91180-106-0	01	1	1401-		●	●
31	BOLT; CLIP (A) M8X12 FLANGE	0-28050-812-0	01	1	1307-	●
31	BOLT; CLIP (B) M8X40 FLANGE	0-28050-840-0	02	1	1307-	●
31	BOLT; CLIP (D) M6X45 FLANGE	0-28050-645-0	01	1	1307-1312		●
31	BOLT; CLIP (D) M6X45 FLANGE	0-28050-645-0	01	1	1401-		●	●
31	BOLT; CLIP (C) M6X40 FLANGE	0-28650-640-0	03	1	1307-1312		●
31	BOLT; CLIP (C) M6X40 FLANGE	0-28650-640-0	03	1	1401-		●	●
33	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	1307-1312		●
33	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	1401-		●	●
33	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	03	1	1307-1312		●
33	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	03	1	1401-		●	●
35	CLIP; RUBBER HOSE (B) ID=20.8	8-94125-862-1	01	1	1307-1312		●
35	CLIP; RUBBER HOSE (B) ID=20.8	8-94125-862-1	01	1	1401-		●	●
35	CLIP; RUBBER HOSE (A) ID=20	8-98127-648-0	08	1	1307-1312		●
35	CLIP; RUBBER HOSE (A) ID=20	8-98127-648-0	08	1	1401-		●	●
94	CLIP; WATER PIPE	8-97605-129-1	08	1	1307-1312		●
94	CLIP; WATER PIPE	8-97605-129-1	08	1	1401-		●	●
115	HOSE; RUBBER (A)	8-98095-678-3	01	1	1307-	●
115	HOSE; RUBBER (B) L=130	8-98136-884-0	01	1	1307-	●
115	HOSE; RUBBER (E)	8-97606-735-1	01	1	1307-1312		●
115	HOSE; RUBBER (E)	8-97606-735-1	01	1	1401-		●	●
115	HOSE; RUBBER (D)	8-97606-749-0	02	1	1307-1312		●
115	HOSE; RUBBER (D)	8-97606-749-0	02	1	1401-		●	●
115	HOSE; RUBBER (C)	8-98043-192-0	01	1	1307-1312		●
115	HOSE; RUBBER (C)	8-98043-192-0	01	1	1401-		●	●
206	PIPE; WATER,EGR COOLER (A)	8-97604-928-2	01	1	1307-1312		●
206	PIPE; WATER,EGR COOLER (A)	8-97604-928-2	01	1	1401-		●	●
206	PIPE; WATER,EGR COOLER (B)	8-98000-480-1	01	1	1307-1312		●
206	PIPE; WATER,EGR COOLER (B)	8-98000-480-1	01	1	1401-		●	●

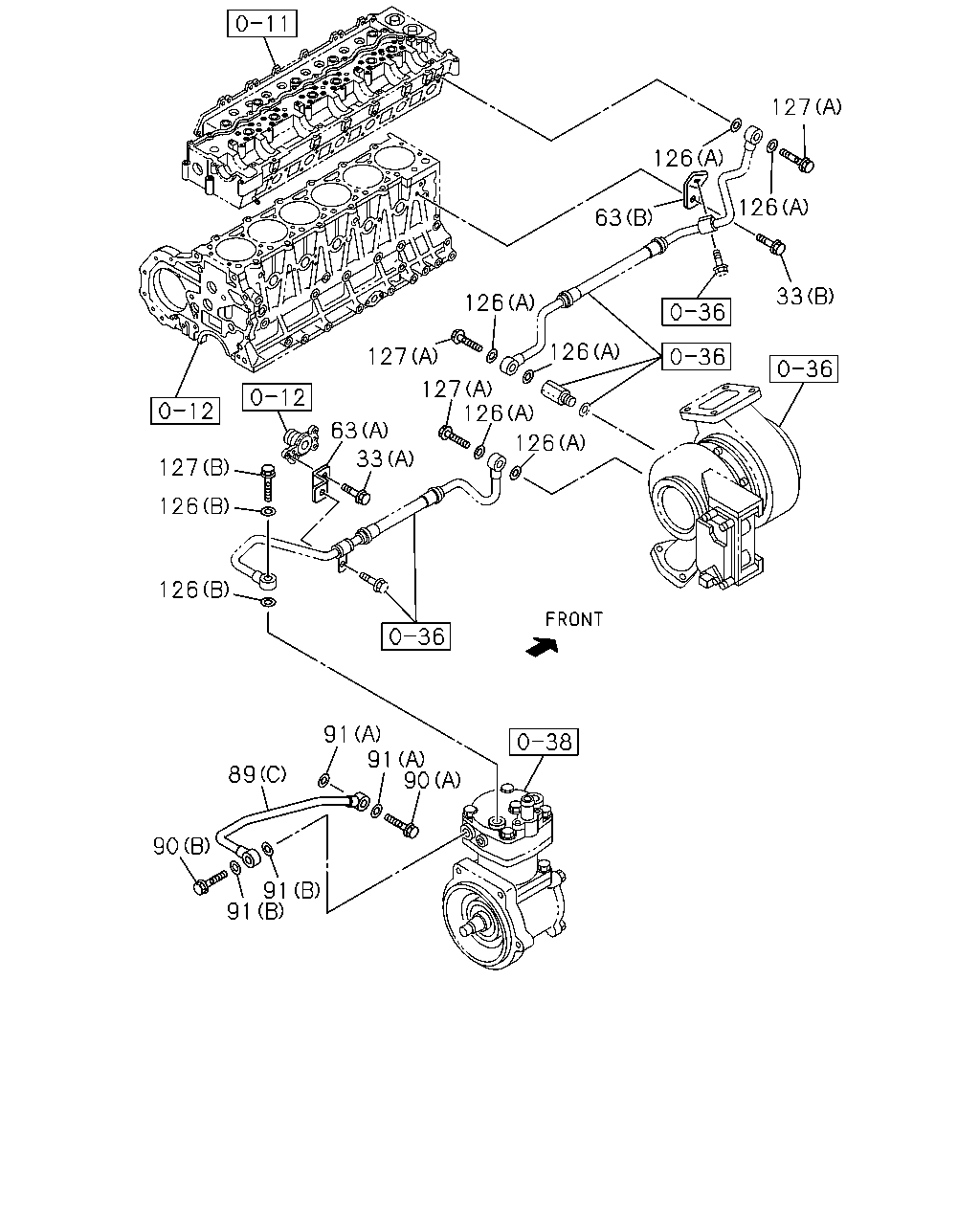

127 126 126 63 126 126 127 126 127 63 126 33 127 126 126 91 91 90 89 90 91 91 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
33	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	1307-1312		●
33	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	1401-		●	●
33	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	03	1	1307-1312		●
33	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	03	1	1401-		●	●
63	BRACKET; WATER PIPE (B)	8-98046-784-0	01	1	1307-1312		●
63	BRACKET; WATER PIPE (B)	8-98046-784-0	01	1	1401-		●	●
63	BRACKET; WATER PIPE (A)	8-98153-457-0	01	1	1307-1312		●
63	BRACKET; WATER PIPE (A)	8-98153-457-0	01	1	1401-		●	●
89	PIPE; WATER,AIR CMPR,IN (A)	8-97358-699-0	01	1	1307-	●
89	PIPE; WATER,AIR CMPR,IN (B)	8-98095-668-0	01	1	1307-	●
89	PIPE; WATER,AIR CMPR,IN (C)	8-97611-095-0	01	1	1307-1312		●
89	PIPE; WATER,AIR CMPR,IN (C)	8-97611-095-0	01	1	1401-		●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	1307-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	1307-1312		●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	1401-		●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	1307-1312		●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	1401-		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	1307-1312	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	1307-1312		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-1401		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	1307-1312		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	1401-		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	1307-1312		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	06	1	1401-1401		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	06	1	1401-		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	1307-1312		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	1401-		●	●
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	1307-1312		●
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	1401-		●	●
127	BOLT; EYE (B) M16X28	8-94383-489-0	01	1	1307-1312		●
127	BOLT; EYE (B) M16X28	8-94383-489-0	01	1	1401-		●	●

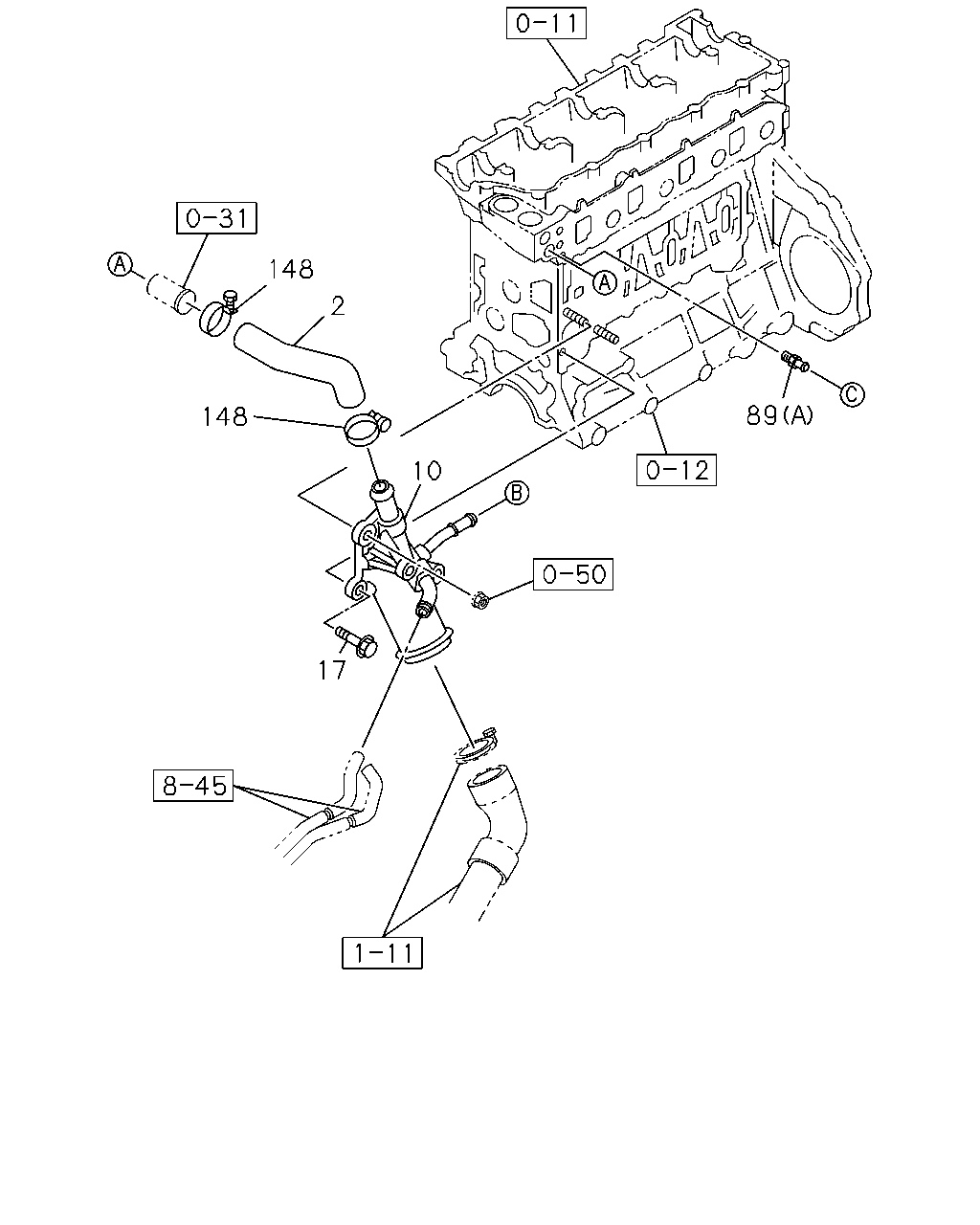

148 148 2 10 17 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOSE; WATER,BY-PASS	8-97379-228-1	01	1	1307-	●
10	PIPE; SUCTION	8-98166-995-0	01	1	1307-	●
17	BOLT; SUCTION PIPE M8X48 FLANGE	8-94458-473-1	01	1	1307-	●
89	PIPE; WATER,AIR CMPR,IN (A)	8-97358-699-0	01	1	1307-	●
89	PIPE; WATER,AIR CMPR,IN (B)	8-98095-668-0	01	1	1307-	●
89	PIPE; WATER,AIR CMPR,IN (C)	8-97611-095-0	01	1	1307-1312		●
89	PIPE; WATER,AIR CMPR,IN (C)	8-97611-095-0	01	1	1401-		●	●
148	CLIP; BYPASS HOSE ID=30	9-09915-315-1	02	1	1307-	●
