0-31 — THERMOSTAT AND HOUSING (#123626) — 56 parça

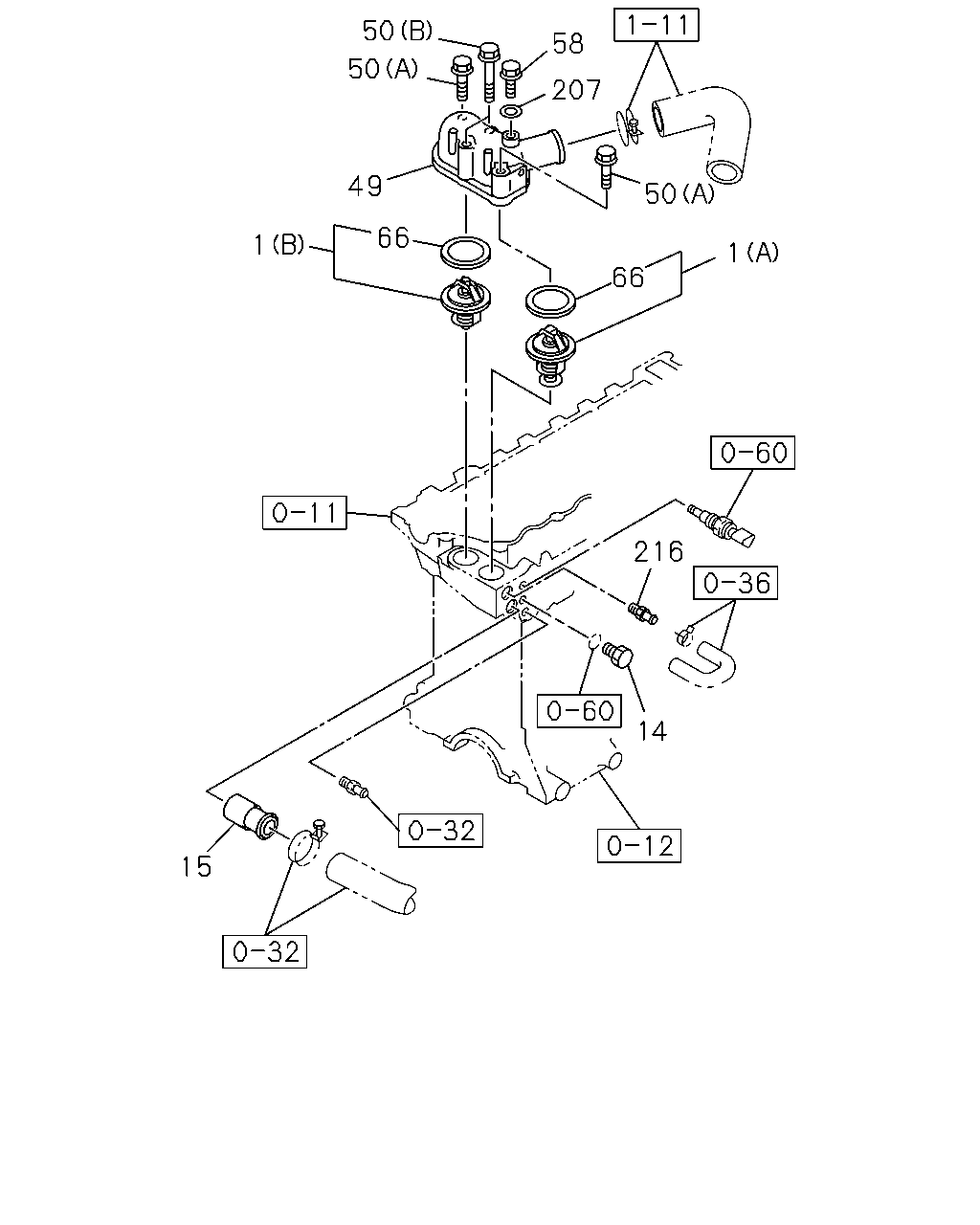

çizim 362228
1 15 50 49 66 50 58 207 50 66 1 216 14
BalonParca AdiParca NoAdetTipApplied Date A B C
1 THERMOSTAT
(B) 85 CELSIUS 		8-97300-787-3 01 1 1307- ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97300-790-3 01 1 1307- ●
1 THERMOSTAT
(C) 82 CELSIUS 		8-97602-048-2 01 1 1307-1312 ●
1 THERMOSTAT
(C) 82 CELSIUS 		8-97602-048-3 01 1 1401- ● ●
1 THERMOSTAT
(D) 82 CELSIUS 		8-97602-393-1 01 1 1307-1312 ●
1 THERMOSTAT
(D) 82 CELSIUS 		8-97602-393-1 01 1 1401-1501 ● ●
1 THERMOSTAT
(D) 82 CELSIUS 		8-98295-921-0 01 1 1502- ● ●
14 PLUG; SW
M16X8 PLUG 		9-09661-005-0 01 1 1307- ●
14 PLUG; SW
PT3/8 		8-94397-338-0 01 1 1307-1312 ●
14 PLUG; SW
PT3/8 		8-94397-338-0 01 1 1401- ● ●
15 PIPE; BYPASS 8-94342-574-0 01 1 1307- ●
49 PIPE; WATER OUTLET 8-97329-914-0 01 1 1307- ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 1307-1312 ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 1401- ● ●
50 BOLT; OUTLET PIPE
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1307- ●
50 BOLT; OUTLET PIPE
(B) M8X65 FLANGE 		1-09044-072-1 02 1 1307- ●
58 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 1307- ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 1307-1312 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 1401-1501 ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 02 1 1502- ● ● ●
207 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=13.2 		1-09630-082-0 01 1 1307- ●
216 PIPE ASM; WATER,TURBOCHARGER RETURN 8-97358-699-0 01 1 1307- ●

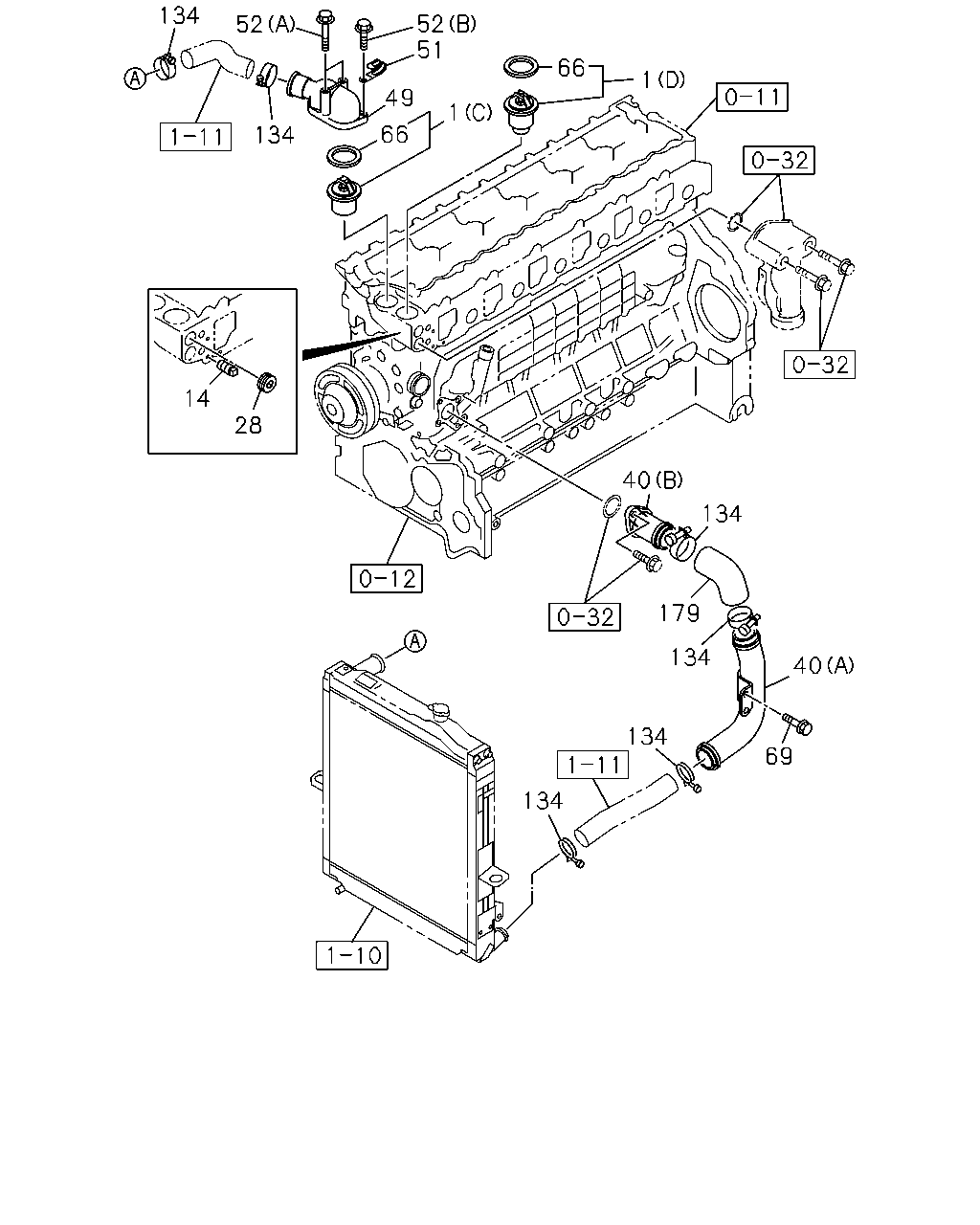

çizim 362232
134 52 134 14 28 52 51 49 66 1 66 1 134 134 69 40 134 179 40 134
BalonParca AdiParca NoAdetTipApplied Date A B C
1 THERMOSTAT
(B) 85 CELSIUS 		8-97300-787-3 01 1 1307- ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97300-790-3 01 1 1307- ●
1 THERMOSTAT
(C) 82 CELSIUS 		8-97602-048-2 01 1 1307-1312 ●
1 THERMOSTAT
(C) 82 CELSIUS 		8-97602-048-3 01 1 1401- ● ●
1 THERMOSTAT
(D) 82 CELSIUS 		8-97602-393-1 01 1 1307-1312 ●
1 THERMOSTAT
(D) 82 CELSIUS 		8-97602-393-1 01 1 1401-1501 ● ●
1 THERMOSTAT
(D) 82 CELSIUS 		8-98295-921-0 01 1 1502- ● ●
14 PLUG; SW
M16X8 PLUG 		9-09661-005-0 01 1 1307- ●
14 PLUG; SW
PT3/8 		8-94397-338-0 01 1 1307-1312 ●
14 PLUG; SW
PT3/8 		8-94397-338-0 01 1 1401- ● ●
28 PLUG; HTR
PT3/4 		1-09605-020-0 01 1 1307-1312 ●
28 PLUG; HTR
PT3/4 		1-09605-020-0 01 1 1401- ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94391-091-1 01 1 1307-1312 ●
40 DUCT; WATER,SUCTION
(B) 		8-94391-091-1 01 1 1401- ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94394-404-1 01 1 1307-1312 ●
40 DUCT; WATER,SUCTION
(A) 		8-94394-404-1 01 1 1401- ● ●
49 PIPE; WATER OUTLET 8-97329-914-0 01 1 1307- ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 1307-1312 ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 1401- ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-97367-985-1 01 1 1307-1312 ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-97367-985-1 01 1 1401- ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1307-1312 ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1401- ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X85 FLANGE 		8-97023-062-0 02 1 1307-1312 ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X85 FLANGE 		8-97023-062-0 02 1 1401- ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 1307-1312 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 1401-1501 ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 02 1 1502- ● ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28650-820-0 02 1 1307-1312 ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28650-820-0 02 1 1401- ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 06 1 1307-1312 ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 06 1 1401- ● ●
179 HOSE; RUBBER,WATER DUCT 8-94390-400-3 01 1 1307-1312 ●
179 HOSE; RUBBER,WATER DUCT 8-94390-400-3 01 1 1401- ● ●
