0-28 — VENTILATION SYSTEM (#123624) — 99 parça

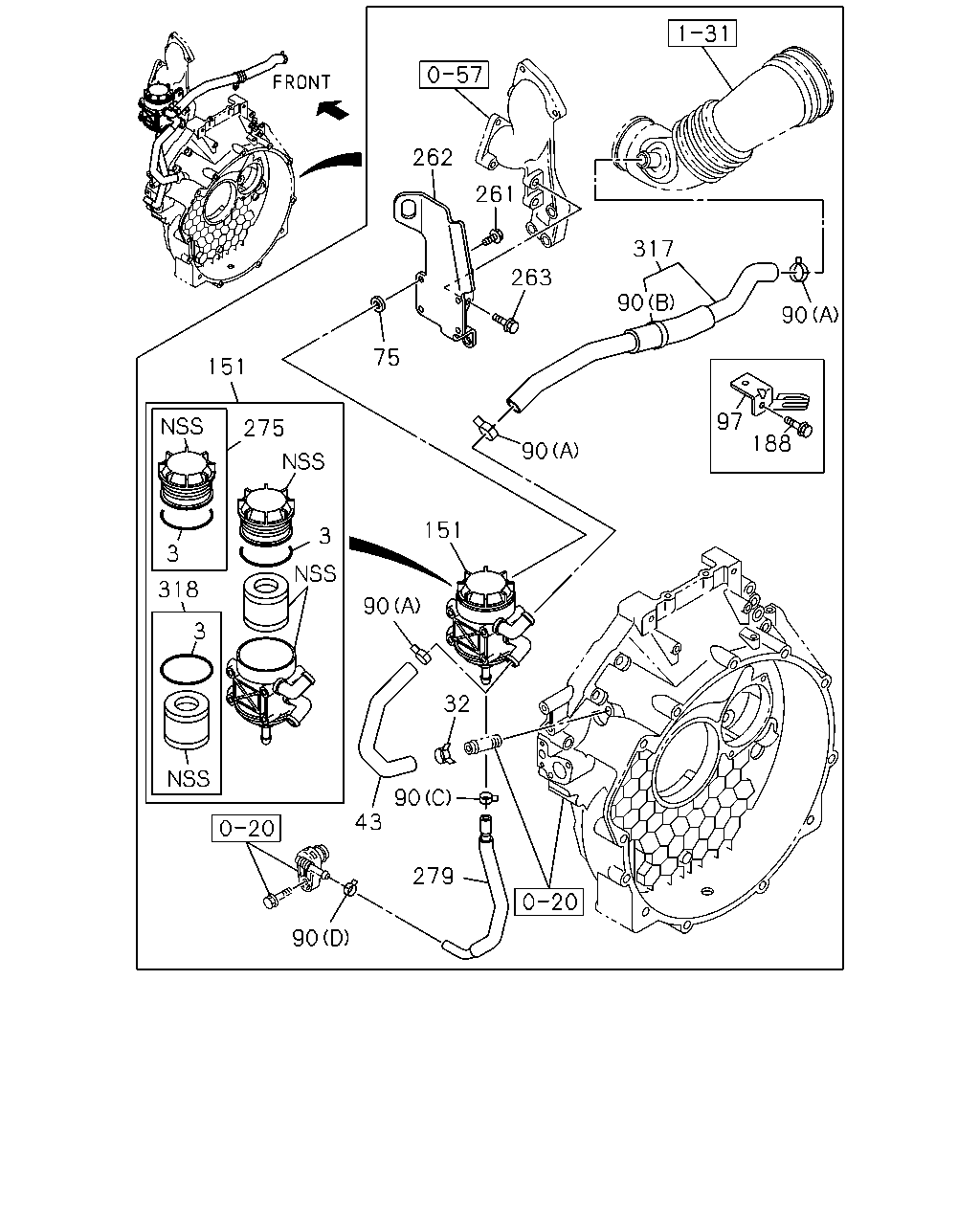

262 263 317 90 90 97 188 90 75 261 151 275 3 151 90 3 318 3 90 43 279 90 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	GASKET; BODY TO CAP	8-97385-921-0	01	1	1307-1312	●	●
3	GASKET; BODY TO CAP	8-97385-921-0	01	1	1401-	●	●	●
32	CLIP; VENT HOSE ID=21	8-94242-034-0	01	1	1307-		●
43	HOSE; PCV	8-98057-033-0	01	1	1307-		●
75	WASHER ID=9 OD=18 T=5	9-14149-173-0	04	1	1307-		●
90	CLIP; RUBBER HOSE (A) ID=28	1-09707-124-0	03	1	1307-		●
90	CLIP; RUBBER HOSE (B) L=212	8-94107-652-0	01	1	1307-		●
90	CLIP; RUBBER HOSE (C) ID=13	8-94238-571-0	01	1	1307-		●
90	CLIP; RUBBER HOSE (D) ID=11.5	8-97138-011-0	01	1	1307-		●
90	CLIP; RUBBER HOSE (E) ID=14	1-09704-102-0	02	1	1307-1312	●
90	CLIP; RUBBER HOSE (E) ID=14	1-09704-102-0	02	1	1401-	●		●
97	BRACKET; HOSE	8-98093-946-3	01	1	1307-		●
151	SEPARATOR; OIL,PCV	8-97324-682-1	01	1	1307-		●
151	SEPARATOR; OIL,PCV	8-97602-262-2	01	1	1307-1312	●
151	SEPARATOR; OIL,PCV	8-97602-262-2	01	1	1401-	●		●
188	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	01	1	1307-		●
188	BOLT; BRKT M6X12 FLANGE	0-28050-612-0	01	1	1307-1312	●
188	BOLT; BRKT M6X12 FLANGE	0-28050-612-0	01	1	1401-	●		●
188	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	1307-1312	●
188	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	1401-	●		●
261	BOLT; SEPARETOR M8X30 FLANGE	0-28650-830-0	04	1	1307-		●
261	BOLT; SEPARETOR M8X16 FLANGE	0-28050-816-0	04	1	1307-1312	●
261	BOLT; SEPARETOR M8X16 FLANGE	0-28050-816-0	04	1	1401-	●		●
262	BRACKET; OIL SEPARETOR	8-98036-498-0	01	1	1307-1501		●
262	BRACKET; OIL SEPARETOR	8-98296-130-0	01	1	1502-		●
262	BRACKET; OIL SEPARETOR	8-97610-919-1	01	1	1307-1312	●
262	BRACKET; OIL SEPARETOR	8-97610-919-1	01	1	1401-	●		●
263	BOLT; BRKT,OIL SEPARETOR M12X30 FLANGE	0-28151-230-0	03	1	1307-		●
263	BOLT; BRKT,OIL SEPARETOR M10X25 FLANGE	0-28751-025-0	02	1	1307-1312	●
263	BOLT; BRKT,OIL SEPARETOR M10X25 FLANGE	0-28751-025-0	02	1	1401-	●		●
275	CAP; PCV	8-97389-360-0	01	1	1307-		●
275	CAP; PCV	8-97606-319-0	01	1	1307-1312	●
275	CAP; PCV	8-97606-319-0	01	1	1401-	●		●
279	HOSE; RUBBER,OIL DRAIN	8-97386-653-1	01	1	1307-		●
279	HOSE; RUBBER,OIL DRAIN L=210 SERVICED BY L=1000	0-02759-100-0	01	1	1307-1312	●
279	HOSE; RUBBER,OIL DRAIN L=210 SERVICED BY L=1000	0-02759-100-0	01	1	1401-	●		●
317	HOSE; RUBBER,OIL SEPARATOR	8-98095-932-0	01	1	1307-		●
318	ELEMENT KIT; PCV	8-98002-346-0	01	1	1307-		●
318	ELEMENT KIT; PCV	8-97606-318-0	01	1	1307-1312	●
318	ELEMENT KIT; PCV	8-97606-318-0	01	1	1401-	●		●

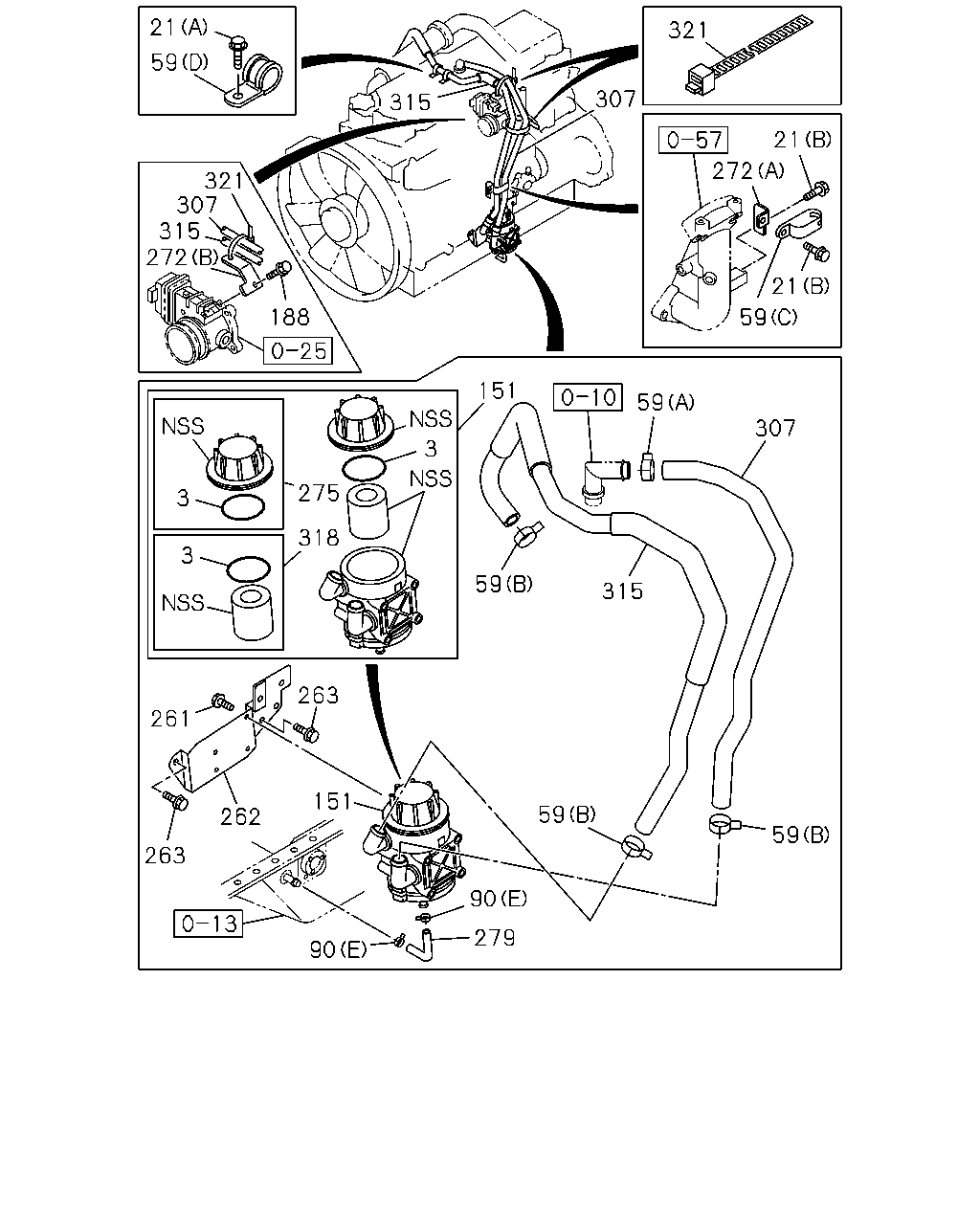

21 315 321 307 21 272 21 59 59 307 315 59 151 3 275 318 59 59 90 279 90 263 261 262 263 151 3 3 272 315 307 321 188 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	GASKET; BODY TO CAP	8-97385-921-0	01	1	1307-1312	●	●
3	GASKET; BODY TO CAP	8-97385-921-0	01	1	1401-	●	●	●
21	BOLT; CLIP (A) M8X12 FLANGE	0-28050-812-0	02	1	1307-1312	●
21	BOLT; CLIP (A) M8X12 FLANGE	0-28050-812-0	02	1	1401-	●		●
21	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	02	1	1307-1312	●
21	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	02	1	1401-	●		●
59	CLIP; HOSE (D) ID=35 L=33	1-09700-945-0	02	1	1307-1312	●
59	CLIP; HOSE (D) ID=35 L=33	1-09700-945-0	02	1	1401-	●		●
59	CLIP; HOSE (C) ID=30X2 L=28	1-09701-266-0	01	1	1307-1312	●
59	CLIP; HOSE (C) ID=30X2 L=28	1-09701-266-0	01	1	1401-	●		●
59	CLIP; HOSE (B) ID=28.5	1-09707-150-0	03	1	1307-1312	●
59	CLIP; HOSE (B) ID=28.5	1-09707-150-0	03	1	1401-	●		●
59	CLIP; HOSE (A) ID=31.2	8-97237-146-0	01	1	1307-1312	●
59	CLIP; HOSE (A) ID=31.2	8-97237-146-0	01	1	1401-	●		●
90	CLIP; RUBBER HOSE (A) ID=28	1-09707-124-0	03	1	1307-		●
90	CLIP; RUBBER HOSE (B) L=212	8-94107-652-0	01	1	1307-		●
90	CLIP; RUBBER HOSE (C) ID=13	8-94238-571-0	01	1	1307-		●
90	CLIP; RUBBER HOSE (D) ID=11.5	8-97138-011-0	01	1	1307-		●
90	CLIP; RUBBER HOSE (E) ID=14	1-09704-102-0	02	1	1307-1312	●
90	CLIP; RUBBER HOSE (E) ID=14	1-09704-102-0	02	1	1401-	●		●
151	SEPARATOR; OIL,PCV	8-97324-682-1	01	1	1307-		●
151	SEPARATOR; OIL,PCV	8-97602-262-2	01	1	1307-1312	●
151	SEPARATOR; OIL,PCV	8-97602-262-2	01	1	1401-	●		●
188	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	01	1	1307-		●
188	BOLT; BRKT M6X12 FLANGE	0-28050-612-0	01	1	1307-1312	●
188	BOLT; BRKT M6X12 FLANGE	0-28050-612-0	01	1	1401-	●		●
188	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	1307-1312	●
188	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	1401-	●		●
261	BOLT; SEPARETOR M8X30 FLANGE	0-28650-830-0	04	1	1307-		●
261	BOLT; SEPARETOR M8X16 FLANGE	0-28050-816-0	04	1	1307-1312	●
261	BOLT; SEPARETOR M8X16 FLANGE	0-28050-816-0	04	1	1401-	●		●
262	BRACKET; OIL SEPARETOR	8-98036-498-0	01	1	1307-1501		●
262	BRACKET; OIL SEPARETOR	8-98296-130-0	01	1	1502-		●
262	BRACKET; OIL SEPARETOR	8-97610-919-1	01	1	1307-1312	●
262	BRACKET; OIL SEPARETOR	8-97610-919-1	01	1	1401-	●		●
263	BOLT; BRKT,OIL SEPARETOR M12X30 FLANGE	0-28151-230-0	03	1	1307-		●
263	BOLT; BRKT,OIL SEPARETOR M10X25 FLANGE	0-28751-025-0	02	1	1307-1312	●
263	BOLT; BRKT,OIL SEPARETOR M10X25 FLANGE	0-28751-025-0	02	1	1401-	●		●
272	BRACKET; PIPE (A)	8-97607-396-1	01	1	1307-1312	●
272	BRACKET; PIPE (A)	8-97607-396-1	01	1	1401-	●		●
272	BRACKET; PIPE (B)	8-97607-397-0	01	1	1307-1312	●
272	BRACKET; PIPE (B)	8-97607-397-0	01	1	1401-	●		●
275	CAP; PCV	8-97389-360-0	01	1	1307-		●
275	CAP; PCV	8-97606-319-0	01	1	1307-1312	●
275	CAP; PCV	8-97606-319-0	01	1	1401-	●		●
279	HOSE; RUBBER,OIL DRAIN	8-97386-653-1	01	1	1307-		●
279	HOSE; RUBBER,OIL DRAIN L=210 SERVICED BY L=1000	0-02759-100-0	01	1	1307-1312	●
279	HOSE; RUBBER,OIL DRAIN L=210 SERVICED BY L=1000	0-02759-100-0	01	1	1401-	●		●
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT	8-98054-285-2	01	1	1307-1312	●
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT	8-98054-285-2	01	1	1401-	●		●
315	HOSE; RUBBER SGL CAB(FC*M)	8-98054-286-2	01	1	1307-1312	●
315	HOSE; RUBBER SGL CAB(FC*M)	8-98054-286-2	01	1	1401-	●
315	HOSE; RUBBER	8-98054-286-2	01	1	1401-			●
315	HOSE; RUBBER DBL CAB(FC*W)	8-98054-287-1	01	1	1307-	●
318	ELEMENT KIT; PCV	8-98002-346-0	01	1	1307-		●
318	ELEMENT KIT; PCV	8-97606-318-0	01	1	1307-1312	●
318	ELEMENT KIT; PCV	8-97606-318-0	01	1	1401-	●		●
321	CLIP; HOSE,SEPARATOR L=300	1-09707-001-1	02	1	1307-1312	●
321	CLIP; HOSE,SEPARATOR L=300	1-09707-001-1	02	1	1401-	●		●
