Isuzu WW
▶
TRUCKS
▶
FRR
▶
11548 - FRR AUST/NZ EURO5 EXC.SPACECAB
▶
0 - Engine, Emission, Engine Electrical
▶
0-25 - INLET MANIFOLD
▶

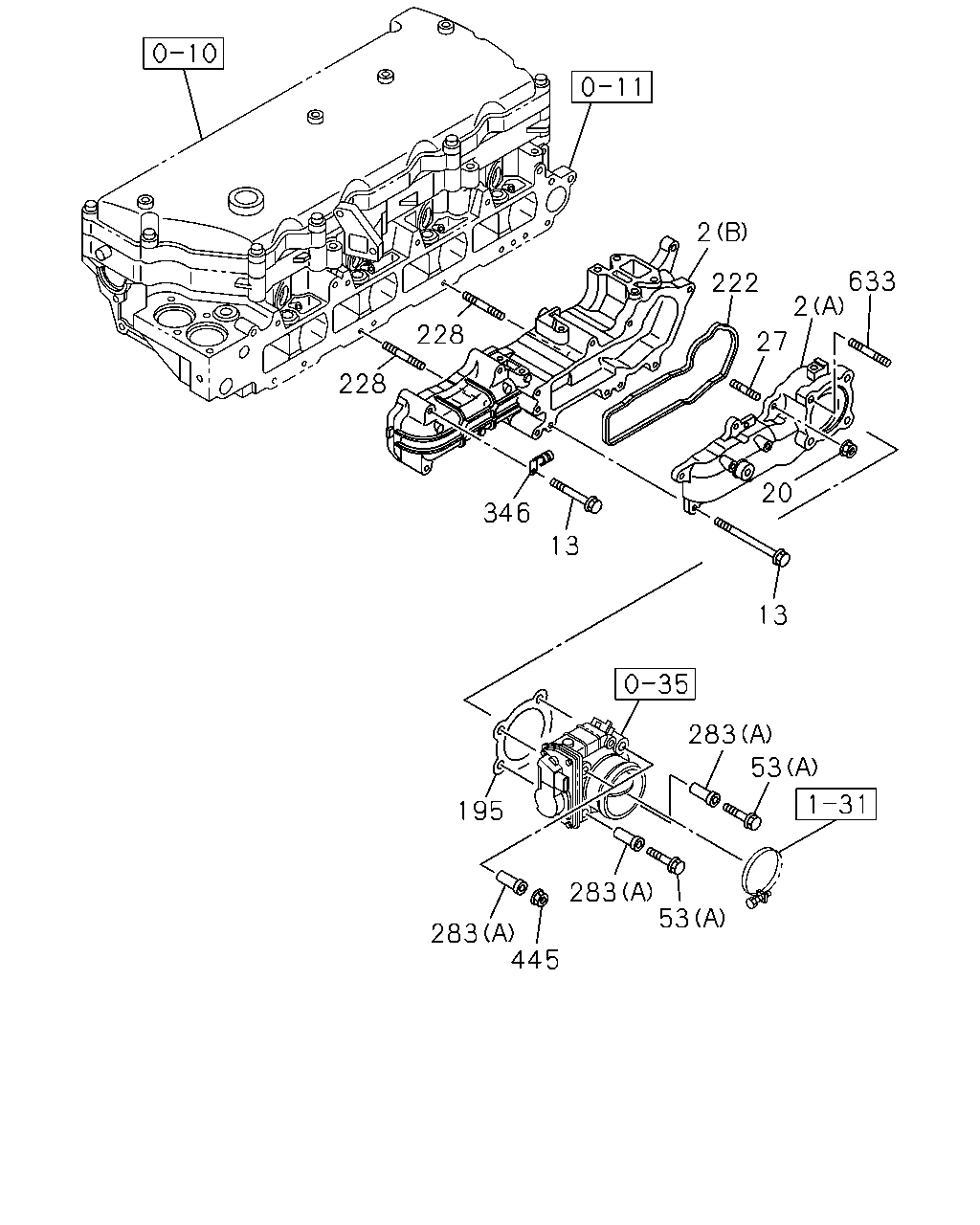

0-25 — INLET MANIFOLD
(#123622) — 78 parça
Tümü
A - 6HK1-TCN ENG
B - 6HK1-TCC ENG
C - 4HK1-TCS ENG
◀

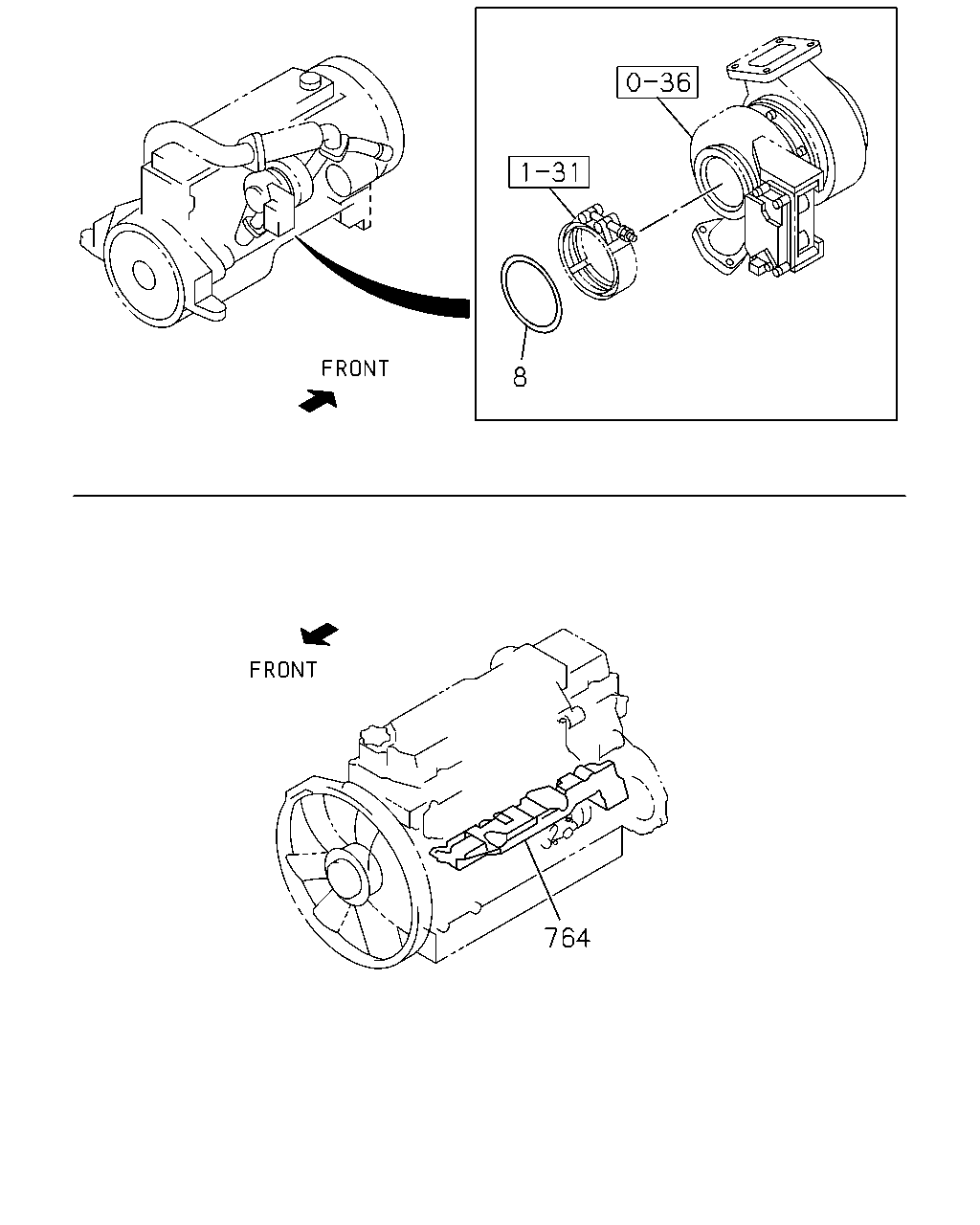

[025A] 6HK1;SPACER AND GASKET (4 parça)
[025A] 4HK1 (25 parça)

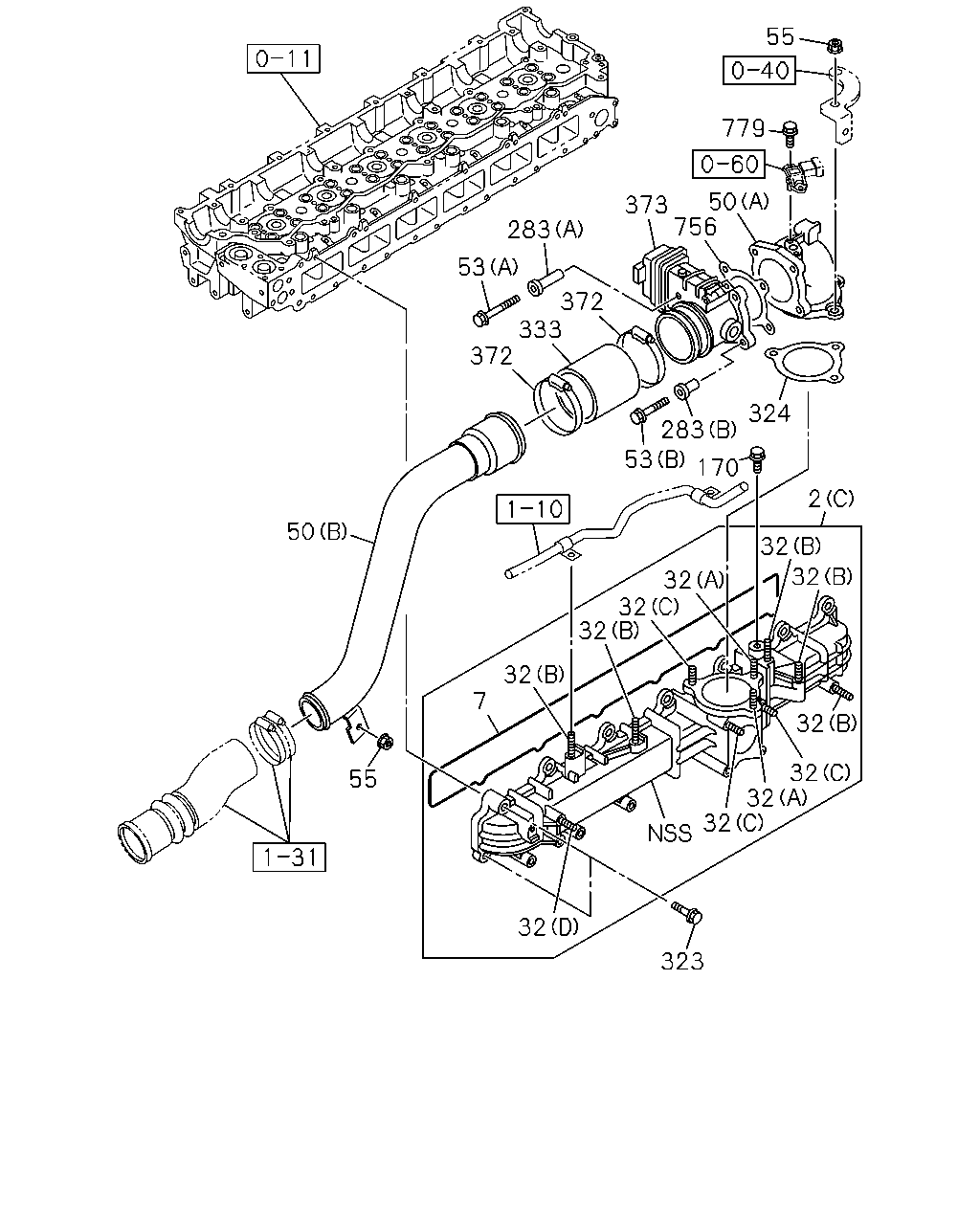

[025A] 6HK1;INLET COVER AND PIPE (49 parça)
▶
8
764
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
8
GASKET; INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98196-271-0
01
1
1307-1312
●
8
GASKET; INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98196-271-0
01
1
1401-
●
●
764
SPACER; INL COVER
8-98023-639-2
01
1
1307-1312
●
764
SPACER; INL COVER
8-98023-639-2
01
1
1401-
●
●
228
228
2
346
222
13
13
2
633
27
283
53
53
283
283
445
195
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
COVER; INL
(A)
8-98085-730-1
01
1
1307-
●
2
COVER; INL
(B)
8-98115-667-1
01
1
1307-
●
2
COVER; INL
(C)
8-98061-091-0
01
1
1307-1312
●
2
COVER; INL
(C)
8-98061-091-0
01
1
1401-
●
●
13
BOLT; INL MANIF
M8X25 FLANGE
0-28050-825-0
02
1
1307-
●
13
BOLT; INL MANIF
M8X30 FLANGE
0-28050-830-0
02
1
1307-
●
13
BOLT; INL MANIF
M8X60 FLANGE
0-28050-860-0
05
1
1307-
●
13
BOLT; INL MANIF
M8X120 FLANGE
0-28055-812-0
03
1
1307-
●
20
NUT; INL MANIF
M8 FLANGE
0-91180-108-0
02
1
1307-
●
27
STUD; INL MANIF
M8X25 L=37
0-41010-825-0
02
1
1307-
●
53
BOLT; INL PIPE
(A) M8X70 FLANGE
0-28050-870-0
02
1
1307-1312
●
●
53
BOLT; INL PIPE
(A) M8X70 FLANGE
0-28050-870-0
02
1
1401-
●
●
●
53
BOLT; INL PIPE
(B) M8X30 FLANGE
0-28050-830-0
02
1
1307-1312
●
53
BOLT; INL PIPE
(B) M8X30 FLANGE
0-28050-830-0
02
1
1401-
●
●
195
GASKET; THROTTLE BODY INJECTOR
ALSO INCLUDED IN GASKET SET(ENGINE).
8-98032-612-0
01
1
1307-
●
222
GASKET; INL COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98032-611-0
01
1
1307-
●
228
STUD; INL COVER
M8X126 L=137
8-97378-069-0
02
1
1307-
●
283
RUBBER
(A) L=58
8-97387-995-1
04
1
1307-
●
283
RUBBER
(B) L=18
8-97219-650-0
02
1
1307-1312
●
283
RUBBER
(B) L=18
8-97219-650-0
02
1
1401-
●
●
283
RUBBER
(A) L=58
8-97387-995-1
02
1
1307-1312
●
283
RUBBER
(A) L=58
8-97387-995-1
02
1
1401-
●
●
346
CLIP; ENG HARNESS
ID=12 VINYL CHLORIDE
8-97367-984-1
01
1
1307-
●
445
NUT; THROTTLE BODY TO MANIF
M8 FLANGE
0-91180-108-0
02
1
1307-
●
633
STUD; THROTTLE BODY
M8X71 L=83
9-09830-212-0
02
1
1307-
●
55
779
373
50
756
283
53
372
333
372
324
53
170
32
2
283
32
32
32
32
32
32
32
32
323
32
55
50
7
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
COVER; INL
(A)
8-98085-730-1
01
1
1307-
●
2
COVER; INL
(B)
8-98115-667-1
01
1
1307-
●
2
COVER; INL
(C)
8-98061-091-0
01
1
1307-1312
●
2
COVER; INL
(C)
8-98061-091-0
01
1
1401-
●
●
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94390-775-0
01
1
1307-1312
●
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94390-775-0
01
1
1401-
●
●
32
STUD; INL PIPE
(B) M6X30 L=38
0-41010-630-0
05
1
1307-1312
●
32
STUD; INL PIPE
(B) M6X30 L=38
0-41010-630-0
05
1
1401-
●
●
32
STUD; INL PIPE
(C) M8X28 L=40
0-41010-828-0
03
1
1307-1312
●
32
STUD; INL PIPE
(C) M8X28 L=40
0-41010-828-0
03
1
1401-
●
●
32
STUD; INL PIPE
(A) M8X40 L=52
0-41010-840-0
02
1
1307-1312
●
32
STUD; INL PIPE
(A) M8X40 L=52
0-41010-840-0
02
1
1401-
●
●
32
STUD; INL PIPE
(D) M10X30 L=45
0-44011-030-0
01
1
1307-1312
●
32
STUD; INL PIPE
(D) M10X30 L=45
0-44011-030-0
01
1
1401-
●
●
50
PIPE; INL
(A)
8-98239-524-0
01
1
1307-1312
●
50
PIPE; INL
(A)
8-98239-524-0
01
1
1401-
●
●
50
PIPE; INL
(B)
8-97607-412-2
01
1
1307-1312
●
50
PIPE; INL
(B)
8-97607-412-2
01
1
1401-
●
●
53
BOLT; INL PIPE
(A) M8X70 FLANGE
0-28050-870-0
02
1
1307-1312
●
●
53
BOLT; INL PIPE
(A) M8X70 FLANGE
0-28050-870-0
02
1
1401-
●
●
●
53
BOLT; INL PIPE
(B) M8X30 FLANGE
0-28050-830-0
02
1
1307-1312
●
53
BOLT; INL PIPE
(B) M8X30 FLANGE
0-28050-830-0
02
1
1401-
●
●
55
NUT; INL PIPE
M8 FLANGE
0-91180-108-0
04
1
1307-1312
●
55
NUT; INL PIPE
M8 FLANGE
0-91180-108-0
04
1
1401-
●
●
170
BOLT; BRKT
M8X35 FLANGE
0-28050-835-0
01
1
1307-1312
●
170
BOLT; BRKT
M8X35 FLANGE
0-28050-835-0
01
1
1401-
●
●
283
RUBBER
(A) L=58
8-97387-995-1
04
1
1307-
●
283
RUBBER
(B) L=18
8-97219-650-0
02
1
1307-1312
●
283
RUBBER
(B) L=18
8-97219-650-0
02
1
1401-
●
●
283
RUBBER
(A) L=58
8-97387-995-1
02
1
1307-1312
●
283
RUBBER
(A) L=58
8-97387-995-1
02
1
1401-
●
●
323
BOLT; DUCT
M8X50 FLANGE
0-28050-850-0
06
1
1307-1312
●
323
BOLT; DUCT
M8X50 FLANGE
0-28050-850-0
06
1
1401-
●
●
323
BOLT; DUCT
M8X25 FLANGE
0-28650-825-0
06
1
1307-1312
●
323
BOLT; DUCT
M8X25 FLANGE
0-28650-825-0
06
1
1401-
●
●
323
BOLT; DUCT
M8X48 FLANGE
8-97229-317-1
02
1
1307-1312
●
323
BOLT; DUCT
M8X48 FLANGE
8-97229-317-1
02
1
1401-
●
●
324
GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=78
8-97601-777-0
01
1
1307-1312
●
324
GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=78
8-97601-777-0
01
1
1401-
●
●
333
HOSE; RUBBER,INL PIPE
ID=80 OD=90 L=80
8-97611-306-0
01
1
1307-1312
●
333
HOSE; RUBBER,INL PIPE
ID=80 OD=90 L=80
8-97611-306-0
01
1
1401-
●
●
372
CLIP; HOSE
ID=77-99
1-09707-141-0
02
1
1307-1312
●
372
CLIP; HOSE
ID=77-99
1-09707-141-0
02
1
1401-
●
●
373
THROTTLE ASM; INT
8-98061-061-3
01
1
1307-1312
●
373
THROTTLE ASM; INT
8-98061-061-3
01
1
1401-
●
●
756
GASKET; INTAKE,THROTTLE
ID=88
8-97387-009-0
01
1
1307-1312
●
756
GASKET; INTAKE,THROTTLE
ID=88
8-97387-009-0
01
1
1401-
●
●
779
BOLT; SENSOR
M4X10 W/PL WASHER
8-97316-615-0
02
1
1307-1312
●
779
BOLT; SENSOR
M4X10 W/PL WASHER
8-97316-615-0
02
1
1401-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
