◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 10869 - CXY(51) RHD AUSTRALIA ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-71 - AIR SUSPENSION PIPING ▶
4-71 — AIR SUSPENSION PIPING (#12362) — 9 parça

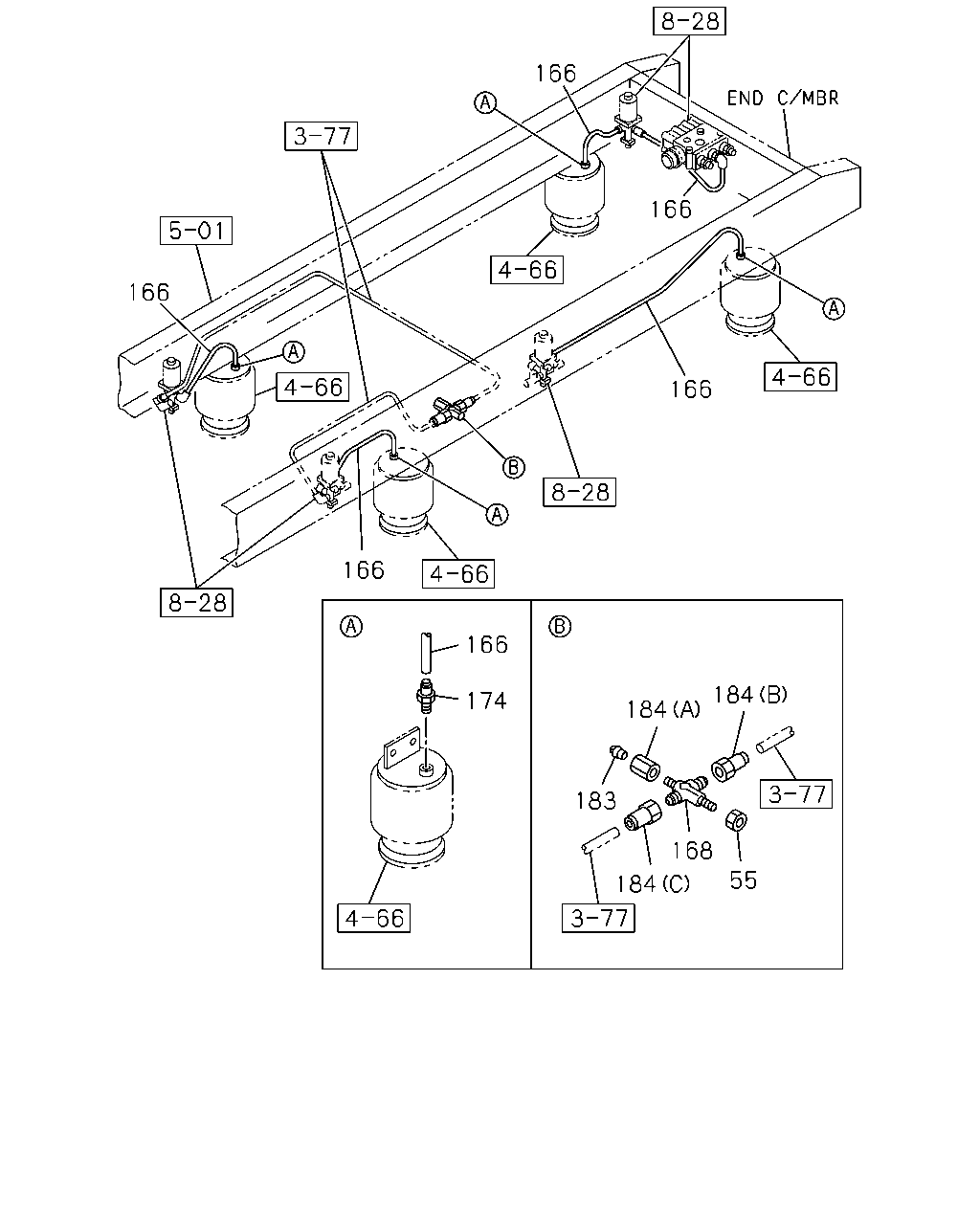

çizim 78343
166 166 166 166 166 166 174 183 184 184 55 168 184
BalonParca AdiParca NoAdetTipApplied Date
55 NUT; UNION
M10 FLANGE 		0-91150-210-0 01 1 0105-
166 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-0301
166 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0302-
168 UNION; 3WAY 1-09656-714-0 01 1 0105-
174 UNION; AIR SPRING
DIN12 & R1/4 STRAIGHT 		1-09661-214-0 04 1 0105-
183 ADAPTER
PT1/4 		9-99204-513-0 01 1 0105-
184 PLUG
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0105-
184 PLUG
(C) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0105-
184 PLUG
(A) M16 & RC1/4 STRAIGHT 		1-09660-886-0 01 1 0105-
