Sayfa 0-15 - Isuzu EPC

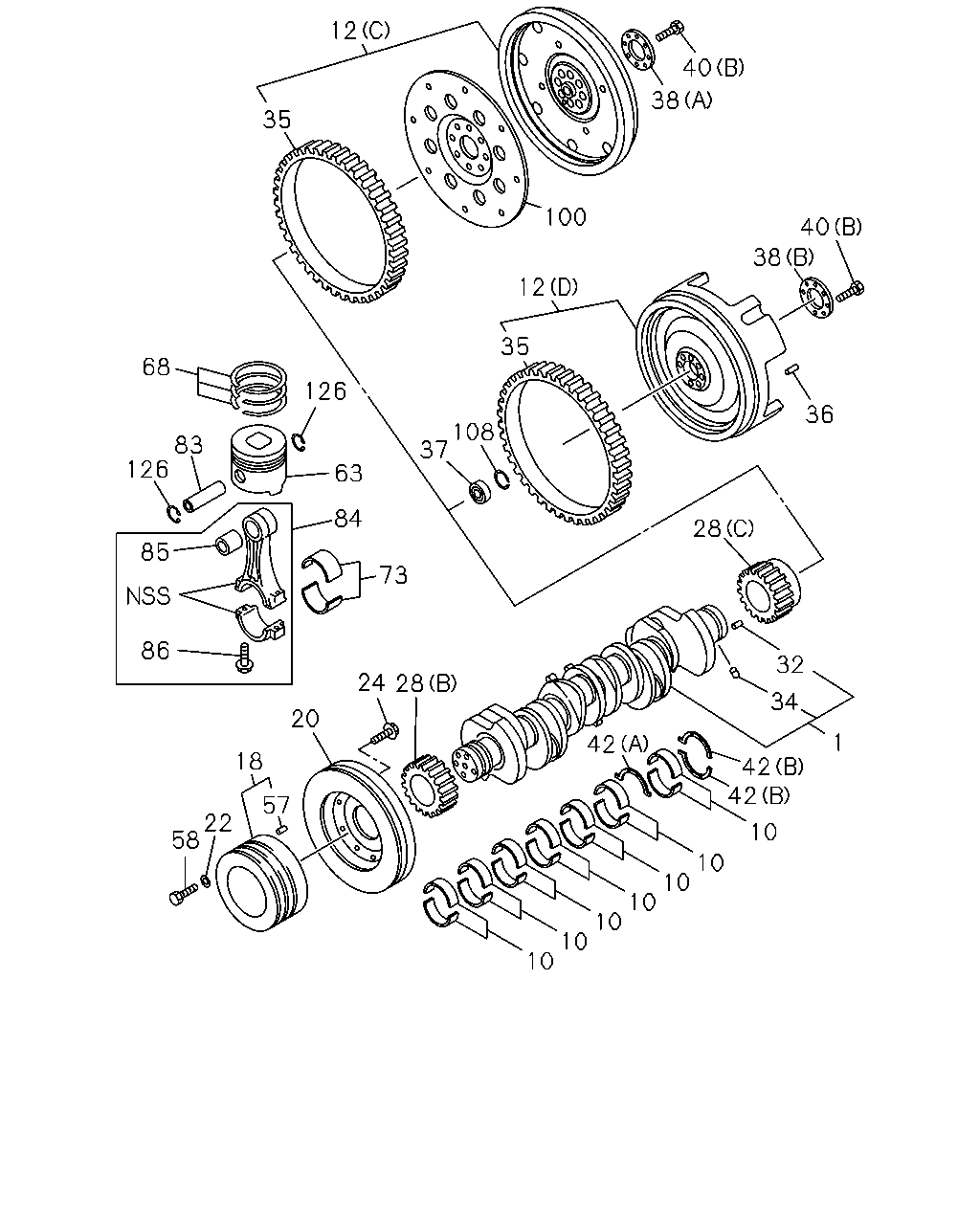

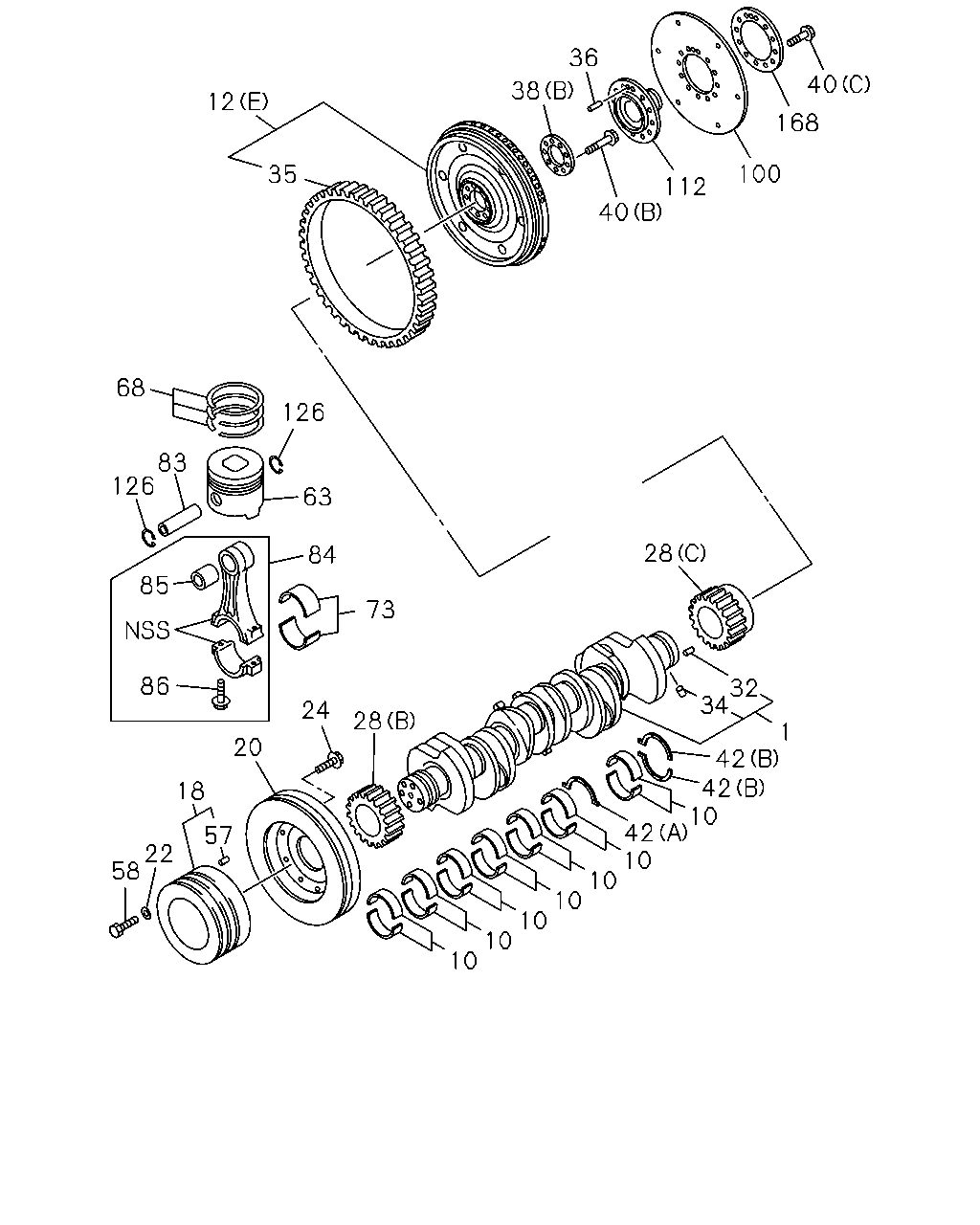

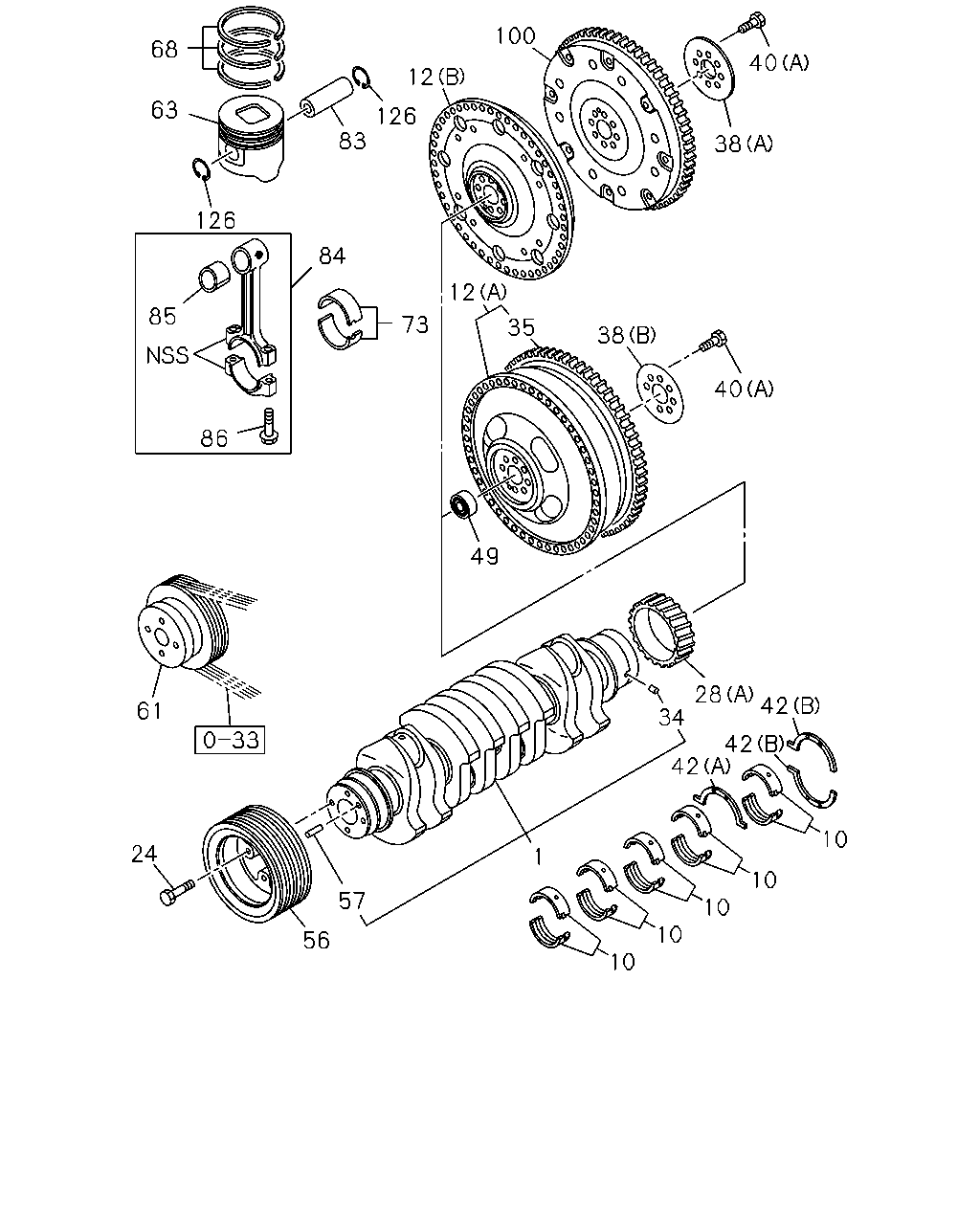

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#123619) — 303 parça

68 63 126 83 126 12 100 40 38 40 38 35 12 73 49 84 85 86 61 24 57 56 1 28 34 42 42 42 10 10 10 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CRANKSHAFT	8-98029-270-0	01	1	1307-	●
1	CRANKSHAFT	8-97603-004-0	01	1	1307-1312		●
1	CRANKSHAFT	8-97603-004-0	01	1	1401-		●	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	1307-	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	1307-	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	1307-	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	1307-1312		●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	1401-		●	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	1307-1312		●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	1401-		●	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	1307-1312		●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	1401-		●	●
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98056-355-2	01	1	1307-	●
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98020-543-1	01	1	1307-	●
12	FLYWHEEL LCT2500 A/T ALLISON(Y5W) (E)	8-97610-681-1	01	1	1307-1312		●
12	FLYWHEEL LCT2500 A/T ALLISON(Y5W) (E)	8-97610-681-1	01	1	1401-		●	●
12	FLYWHEEL MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-97602-463-2	01	1	1307-1312		●
12	FLYWHEEL MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-97602-463-2	01	1	1401-		●	●
12	FLYWHEEL MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97604-545-2	01	1	1307-1312		●
12	FLYWHEEL MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97604-545-2	01	1	1401-		●	●
24	BOLT; DAMPER M16X42	8-97028-733-0	04	1	1307-	●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	1307-1312		●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	1401-		●	●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	1307-	●
28	GEAR; CR/SHF (C) Z=42	8-94392-255-1	01	1	1307-1312		●
28	GEAR; CR/SHF (C) Z=42	8-94392-255-1	01	1	1401-		●	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	1307-1312		●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	1401-		●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1307-1312	●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1401-	●	●	●
35	GEAR; RING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=143	8-97375-675-1	01	1	1307-	●
35	GEAR; RING Z=140	8-94396-784-1	01	1	1307-1312		●
35	GEAR; RING Z=140	8-94396-784-1	01	1	1401-		●	●
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=55 OD=110	8-94397-496-1	01	1	1307-1312	●
38	WASHER; FLYWHEEL MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=55 OD=110	8-94397-496-1	01	1	1307-1312		●
38	WASHER; FLYWHEEL LCT2500 A/T ALLISON(Y5W) (B) ID=55 OD=110	8-94397-496-1	01	1	1307-1312		●
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=55 OD=110	8-94397-496-1	01	1	1401-	●
38	WASHER; FLYWHEEL MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=55 OD=110	8-94397-496-1	01	1	1401-		●	●
38	WASHER; FLYWHEEL LCT2500 A/T ALLISON(Y5W) (B) ID=55 OD=110	8-94397-496-1	01	1	1401-		●	●
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=50 OD=120	8-98176-500-0	01	1	1307-1312	●
38	WASHER; FLYWHEEL MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=50 OD=120	8-98176-500-0	01	1	1307-1312		●
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=50 OD=120	8-98176-500-0	01	1	1401-	●
38	WASHER; FLYWHEEL MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=50 OD=120	8-98176-500-0	01	1	1401-		●	●
40	BOLT; FLYWHEEL (A) M16X51	8-94334-870-1	08	1	1307-	●
40	BOLT; FLYWHEEL (B) M16X62	8-94393-070-2	08	1	1307-1312		●
40	BOLT; FLYWHEEL (B) M16X62	8-94393-070-2	08	1	1401-		●	●
40	BOLT; FLYWHEEL LCT2500 A/T ALLISON(Y5W) (C) M12X30	8-11505-501-0	12	1	1307-1312		●
40	BOLT; FLYWHEEL LCT2500 A/T ALLISON(Y5W) (C) M12X30	8-11505-501-0	12	1	1401-		●	●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1307-1312	●	●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1401-	●	●	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1307-1312	●	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1401-	●	●	●
49	BEARING; PILOT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97258-239-0	01	1	1307-	●
49	BEARING; PILOT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	5-87610-164-0	01	1	1307-	●
56	PULLEY; CR/SHF DAMPER 3-GROOVE	8-98004-024-3	01	1	1307-	●
57	PIN; PULLEY OD=8 L=20	9-08150-820-0	02	1	1307-	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	1307-1312		●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	1401-		●	●
61	PULLEY; FAN DRIVE 1-GROOVE	8-98003-384-1	01	1	1307-	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	04	1	1307-	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	06	1	1307-1312		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	06	1	1401-		●	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	04	1	1307-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	06	1	1307-1312		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	06	1	1401-		●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-98055-479-0	04	1	1307-	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-98055-480-0	04	1	1307-	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	1307-1312		●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	1401-		●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	1307-1312		●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	1401-		●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	04	1	1307-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	06	1	1307-1312		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	06	1	1401-		●	●
84	ROD ASM; CONN	8-98018-425-3	04	1	1307-	●
84	ROD ASM; CONN	8-98018-425-2	06	1	1307-1312		●
84	ROD ASM; CONN	8-98018-425-3	06	1	1401-		●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	04	1	1307-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	1307-1312		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	1401-		●	●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1307-	●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1307-1312		●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1401-		●	●
100	PLATE; FLEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-542-2	01	1	1307-	●
100	PLATE; FLEX LCT2500 A/T ALLISON(Y5W)	8-97500-320-0	01	1	1307-1312		●
100	PLATE; FLEX LCT2500 A/T ALLISON(Y5W)	8-97500-320-0	01	1	1401-		●	●
100	PLATE; FLEX MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98148-782-1	01	1	1307-1312		●
100	PLATE; FLEX MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98148-782-1	01	1	1401-		●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	08	1	1307-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	12	1	1307-1312		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	12	1	1401-		●	●

12 35 100 40 38 38 40 36 28 32 1 34 42 42 10 10 10 10 10 10 10 42 12 35 108 37 63 126 68 83 126 85 86 20 24 28 18 57 22 58 73 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CRANKSHAFT	8-98029-270-0	01	1	1307-	●
1	CRANKSHAFT	8-97603-004-0	01	1	1307-1312		●
1	CRANKSHAFT	8-97603-004-0	01	1	1401-		●	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	1307-	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	1307-	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	1307-	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	1307-1312		●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	1401-		●	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	1307-1312		●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	1401-		●	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	1307-1312		●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	1401-		●	●
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98056-355-2	01	1	1307-	●
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98020-543-1	01	1	1307-	●
12	FLYWHEEL LCT2500 A/T ALLISON(Y5W) (E)	8-97610-681-1	01	1	1307-1312		●
12	FLYWHEEL LCT2500 A/T ALLISON(Y5W) (E)	8-97610-681-1	01	1	1401-		●	●
12	FLYWHEEL MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-97602-463-2	01	1	1307-1312		●
12	FLYWHEEL MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-97602-463-2	01	1	1401-		●	●
12	FLYWHEEL MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97604-545-2	01	1	1307-1312		●
12	FLYWHEEL MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97604-545-2	01	1	1401-		●	●
18	PULLEY; CR/SHF 3-GROOVE	8-97606-944-0	01	1	1307-1312		●
18	PULLEY; CR/SHF 3-GROOVE	8-97606-944-0	01	1	1401-		●	●
20	DAMPER; CR/SHF	8-97613-696-1	01	1	1307-1312		●
20	DAMPER; CR/SHF	8-97613-696-1	01	1	1401-		●	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	1307-1312		●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	1401-		●	●
24	BOLT; DAMPER M16X42	8-97028-733-0	04	1	1307-	●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	1307-1312		●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	1401-		●	●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	1307-	●
28	GEAR; CR/SHF (C) Z=42	8-94392-255-1	01	1	1307-1312		●
28	GEAR; CR/SHF (C) Z=42	8-94392-255-1	01	1	1401-		●	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	1307-1312		●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	1401-		●	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	1307-1312		●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	1401-		●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1307-1312	●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1401-	●	●	●
35	GEAR; RING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=143	8-97375-675-1	01	1	1307-	●
35	GEAR; RING Z=140	8-94396-784-1	01	1	1307-1312		●
35	GEAR; RING Z=140	8-94396-784-1	01	1	1401-		●	●
36	PIN; FLYWHEEL LCT2500 A/T ALLISON(Y5W) OD=6 L=24	9-09878-532-0	01	1	1307-1312		●
36	PIN; FLYWHEEL LCT2500 A/T ALLISON(Y5W) OD=6 L=24	9-09878-532-0	01	1	1401-		●	●
36	PIN; FLYWHEEL MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=10 L=22	9-08151-022-0	02	1	1307-1312		●
36	PIN; FLYWHEEL MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=10 L=22	9-08151-022-0	02	1	1401-		●	●
37	BEARING; PILOT,TOP GEAR SHAFT MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-94392-288-0	01	1	1307-1312		●
37	BEARING; PILOT,TOP GEAR SHAFT MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-94392-288-0	01	1	1401-		●	●
37	BEARING; PILOT,TOP GEAR SHAFT MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	1-87610-157-0	01	1	1307-1312		●
37	BEARING; PILOT,TOP GEAR SHAFT MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	1-87610-157-0	01	1	1401-		●	●
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=55 OD=110	8-94397-496-1	01	1	1307-1312	●
38	WASHER; FLYWHEEL MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=55 OD=110	8-94397-496-1	01	1	1307-1312		●
38	WASHER; FLYWHEEL LCT2500 A/T ALLISON(Y5W) (B) ID=55 OD=110	8-94397-496-1	01	1	1307-1312		●
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=55 OD=110	8-94397-496-1	01	1	1401-	●
38	WASHER; FLYWHEEL MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=55 OD=110	8-94397-496-1	01	1	1401-		●	●
38	WASHER; FLYWHEEL LCT2500 A/T ALLISON(Y5W) (B) ID=55 OD=110	8-94397-496-1	01	1	1401-		●	●
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=50 OD=120	8-98176-500-0	01	1	1307-1312	●
38	WASHER; FLYWHEEL MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=50 OD=120	8-98176-500-0	01	1	1307-1312		●
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=50 OD=120	8-98176-500-0	01	1	1401-	●
38	WASHER; FLYWHEEL MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=50 OD=120	8-98176-500-0	01	1	1401-		●	●
40	BOLT; FLYWHEEL (A) M16X51	8-94334-870-1	08	1	1307-	●
40	BOLT; FLYWHEEL (B) M16X62	8-94393-070-2	08	1	1307-1312		●
40	BOLT; FLYWHEEL (B) M16X62	8-94393-070-2	08	1	1401-		●	●
40	BOLT; FLYWHEEL LCT2500 A/T ALLISON(Y5W) (C) M12X30	8-11505-501-0	12	1	1307-1312		●
40	BOLT; FLYWHEEL LCT2500 A/T ALLISON(Y5W) (C) M12X30	8-11505-501-0	12	1	1401-		●	●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1307-1312	●	●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1401-	●	●	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1307-1312	●	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1401-	●	●	●
57	PIN; PULLEY OD=8 L=20	9-08150-820-0	02	1	1307-	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	1307-1312		●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	1401-		●	●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	1307-1312		●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	1401-		●	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	04	1	1307-	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	06	1	1307-1312		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	06	1	1401-		●	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	04	1	1307-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	06	1	1307-1312		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	06	1	1401-		●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-98055-479-0	04	1	1307-	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-98055-480-0	04	1	1307-	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	1307-1312		●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	1401-		●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	1307-1312		●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	1401-		●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	04	1	1307-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	06	1	1307-1312		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	06	1	1401-		●	●
84	ROD ASM; CONN	8-98018-425-3	04	1	1307-	●
84	ROD ASM; CONN	8-98018-425-2	06	1	1307-1312		●
84	ROD ASM; CONN	8-98018-425-3	06	1	1401-		●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	04	1	1307-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	1307-1312		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	1401-		●	●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1307-	●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1307-1312		●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1401-		●	●
100	PLATE; FLEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-542-2	01	1	1307-	●
100	PLATE; FLEX LCT2500 A/T ALLISON(Y5W)	8-97500-320-0	01	1	1307-1312		●
100	PLATE; FLEX LCT2500 A/T ALLISON(Y5W)	8-97500-320-0	01	1	1401-		●	●
100	PLATE; FLEX MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98148-782-1	01	1	1307-1312		●
100	PLATE; FLEX MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98148-782-1	01	1	1401-		●	●
108	RING; SNAP,BRG SET MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=59.2	9-09180-155-0	01	1	1307-1312		●
108	RING; SNAP,BRG SET MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=59.2	9-09180-155-0	01	1	1401-		●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	08	1	1307-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	12	1	1307-1312		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	12	1	1401-		●	●

12 35 38 36 40 168 100 112 40 68 126 83 63 84 73 126 85 86 20 24 28 28 32 34 1 42 42 10 42 10 10 10 10 10 10 57 18 22 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CRANKSHAFT	8-98029-270-0	01	1	1307-	●
1	CRANKSHAFT	8-97603-004-0	01	1	1307-1312		●
1	CRANKSHAFT	8-97603-004-0	01	1	1401-		●	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	1307-	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	1307-	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	1307-	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	1307-1312		●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	1401-		●	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	1307-1312		●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	1401-		●	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	1307-1312		●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	1401-		●	●
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98056-355-2	01	1	1307-	●
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98020-543-1	01	1	1307-	●
12	FLYWHEEL LCT2500 A/T ALLISON(Y5W) (E)	8-97610-681-1	01	1	1307-1312		●
12	FLYWHEEL LCT2500 A/T ALLISON(Y5W) (E)	8-97610-681-1	01	1	1401-		●	●
12	FLYWHEEL MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-97602-463-2	01	1	1307-1312		●
12	FLYWHEEL MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-97602-463-2	01	1	1401-		●	●
12	FLYWHEEL MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97604-545-2	01	1	1307-1312		●
12	FLYWHEEL MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97604-545-2	01	1	1401-		●	●
18	PULLEY; CR/SHF 3-GROOVE	8-97606-944-0	01	1	1307-1312		●
18	PULLEY; CR/SHF 3-GROOVE	8-97606-944-0	01	1	1401-		●	●
20	DAMPER; CR/SHF	8-97613-696-1	01	1	1307-1312		●
20	DAMPER; CR/SHF	8-97613-696-1	01	1	1401-		●	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	1307-1312		●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	1401-		●	●
24	BOLT; DAMPER M16X42	8-97028-733-0	04	1	1307-	●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	1307-1312		●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	1401-		●	●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	1307-	●
28	GEAR; CR/SHF (C) Z=42	8-94392-255-1	01	1	1307-1312		●
28	GEAR; CR/SHF (C) Z=42	8-94392-255-1	01	1	1401-		●	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	1307-1312		●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	1401-		●	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	1307-1312		●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	1401-		●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1307-1312	●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1401-	●	●	●
35	GEAR; RING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=143	8-97375-675-1	01	1	1307-	●
35	GEAR; RING Z=140	8-94396-784-1	01	1	1307-1312		●
35	GEAR; RING Z=140	8-94396-784-1	01	1	1401-		●	●
36	PIN; FLYWHEEL LCT2500 A/T ALLISON(Y5W) OD=6 L=24	9-09878-532-0	01	1	1307-1312		●
36	PIN; FLYWHEEL LCT2500 A/T ALLISON(Y5W) OD=6 L=24	9-09878-532-0	01	1	1401-		●	●
36	PIN; FLYWHEEL MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=10 L=22	9-08151-022-0	02	1	1307-1312		●
36	PIN; FLYWHEEL MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=10 L=22	9-08151-022-0	02	1	1401-		●	●
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=55 OD=110	8-94397-496-1	01	1	1307-1312	●
38	WASHER; FLYWHEEL MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=55 OD=110	8-94397-496-1	01	1	1307-1312		●
38	WASHER; FLYWHEEL LCT2500 A/T ALLISON(Y5W) (B) ID=55 OD=110	8-94397-496-1	01	1	1307-1312		●
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=55 OD=110	8-94397-496-1	01	1	1401-	●
38	WASHER; FLYWHEEL MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=55 OD=110	8-94397-496-1	01	1	1401-		●	●
38	WASHER; FLYWHEEL LCT2500 A/T ALLISON(Y5W) (B) ID=55 OD=110	8-94397-496-1	01	1	1401-		●	●
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=50 OD=120	8-98176-500-0	01	1	1307-1312	●
38	WASHER; FLYWHEEL MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=50 OD=120	8-98176-500-0	01	1	1307-1312		●
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=50 OD=120	8-98176-500-0	01	1	1401-	●
38	WASHER; FLYWHEEL MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=50 OD=120	8-98176-500-0	01	1	1401-		●	●
40	BOLT; FLYWHEEL (A) M16X51	8-94334-870-1	08	1	1307-	●
40	BOLT; FLYWHEEL (B) M16X62	8-94393-070-2	08	1	1307-1312		●
40	BOLT; FLYWHEEL (B) M16X62	8-94393-070-2	08	1	1401-		●	●
40	BOLT; FLYWHEEL LCT2500 A/T ALLISON(Y5W) (C) M12X30	8-11505-501-0	12	1	1307-1312		●
40	BOLT; FLYWHEEL LCT2500 A/T ALLISON(Y5W) (C) M12X30	8-11505-501-0	12	1	1401-		●	●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1307-1312	●	●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1401-	●	●	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1307-1312	●	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1401-	●	●	●
57	PIN; PULLEY OD=8 L=20	9-08150-820-0	02	1	1307-	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	1307-1312		●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	1401-		●	●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	1307-1312		●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	1401-		●	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	04	1	1307-	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	06	1	1307-1312		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	06	1	1401-		●	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	04	1	1307-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	06	1	1307-1312		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	06	1	1401-		●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-98055-479-0	04	1	1307-	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-98055-480-0	04	1	1307-	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	1307-1312		●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	1401-		●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	1307-1312		●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	1401-		●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	04	1	1307-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	06	1	1307-1312		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	06	1	1401-		●	●
84	ROD ASM; CONN	8-98018-425-3	04	1	1307-	●
84	ROD ASM; CONN	8-98018-425-2	06	1	1307-1312		●
84	ROD ASM; CONN	8-98018-425-3	06	1	1401-		●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	04	1	1307-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	1307-1312		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	1401-		●	●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1307-	●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1307-1312		●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1401-		●	●
100	PLATE; FLEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-542-2	01	1	1307-	●
100	PLATE; FLEX LCT2500 A/T ALLISON(Y5W)	8-97500-320-0	01	1	1307-1312		●
100	PLATE; FLEX LCT2500 A/T ALLISON(Y5W)	8-97500-320-0	01	1	1401-		●	●
100	PLATE; FLEX MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98148-782-1	01	1	1307-1312		●
100	PLATE; FLEX MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98148-782-1	01	1	1401-		●	●
112	ADAPTER; FLEX PLATE LCT2500 A/T ALLISON(Y5W)	8-97500-319-0	01	1	1307-1312		●
112	ADAPTER; FLEX PLATE LCT2500 A/T ALLISON(Y5W)	8-97500-319-0	01	1	1401-		●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	08	1	1307-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	12	1	1307-1312		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	12	1	1401-		●	●
168	PLATE; WEAR LCT2500 A/T ALLISON(Y5W) ID=119 OD=177	8-29538-157-0	01	1	1307-1312		●
168	PLATE; WEAR LCT2500 A/T ALLISON(Y5W) ID=119 OD=177	8-29538-157-0	01	1	1401-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
