Sayfa 0-12 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11548 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-12 - CYLINDER BLOCK ▶

0-12 — CYLINDER BLOCK (#123616) — 193 parça

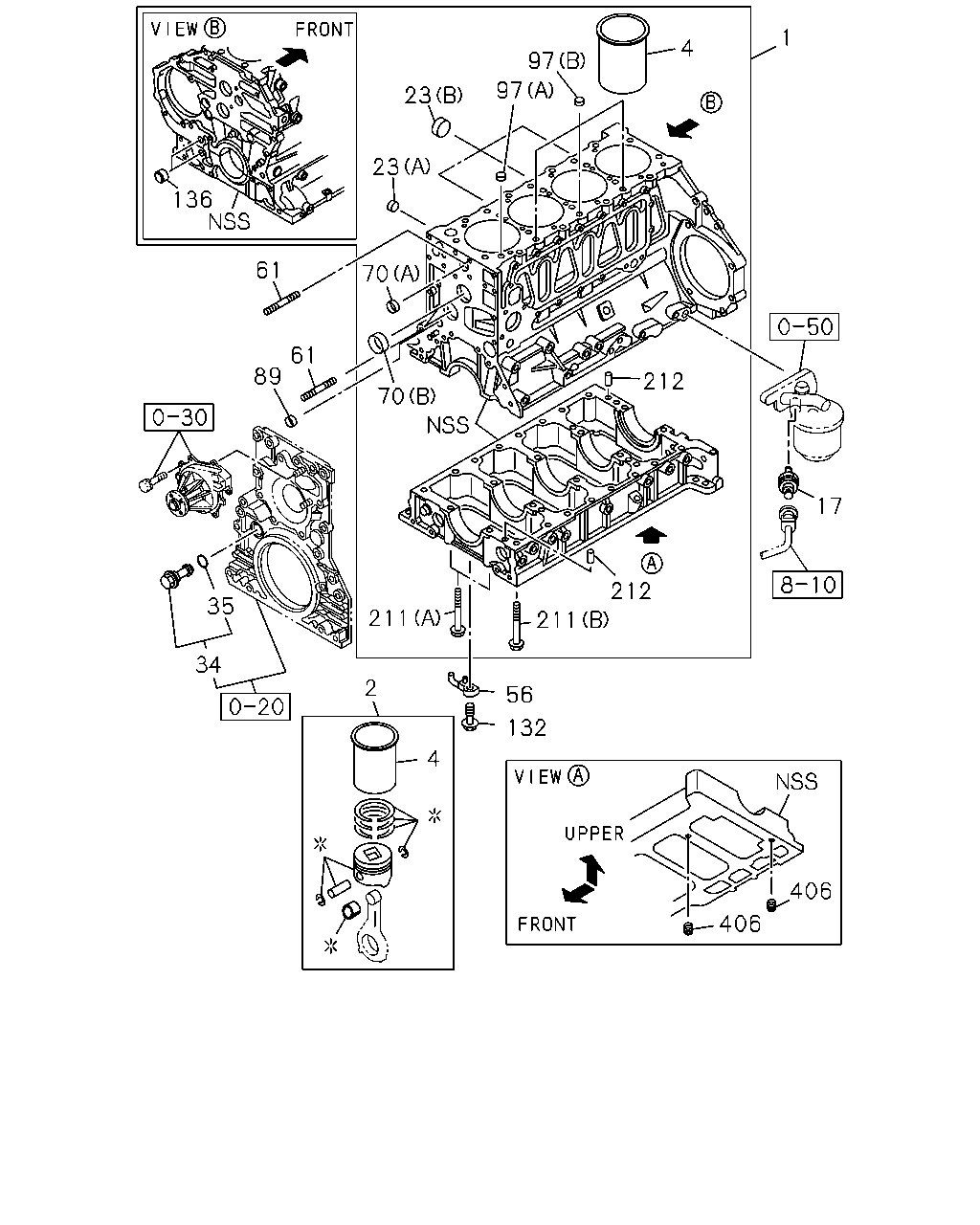

136 61 23 23 97 97 4 1 212 70 70 61 89 35 34 211 211 56 132 2 4 406 406 17 212

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOCK ASM; CYL	8-98204-529-0	01	1	1307-1405	●
1	BLOCK ASM; CYL	8-98204-528-0	01	1	1406-	●
1	BLOCK ASM; CYL	8-98206-967-0	01	1	1307-1312		●
1	BLOCK ASM; CYL	8-98206-967-0	01	1	1401-		●	●
2	LINER SET; ENG CYL GRADE=1X	1-87813-119-6	04	1	1307-1405	●
2	LINER SET; ENG CYL GRADE=1X	1-87814-726-0	04	1	1406-	●
2	LINER SET; ENG CYL GRADE=3X	1-87813-120-6	04	1	1307-1405	●
2	LINER SET; ENG CYL GRADE=3X	1-87814-727-0	04	1	1406-	●
2	LINER SET; ENG CYL GRADE=1X	1-87813-119-6	06	1	1307-1312		●
2	LINER SET; ENG CYL GRADE=1X	1-87813-119-6	06	1	1401-		●	●
2	LINER SET; ENG CYL GRADE=3X	1-87813-120-6	06	1	1307-1312		●
2	LINER SET; ENG CYL GRADE=3X	1-87813-120-6	06	1	1401-		●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	04	1	1307-1405	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	04	1	1406-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	04	1	1307-1405	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	04	1	1406-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	1307-1312		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	1401-		●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	1307-1312		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	1401-		●	●
17	SWITCH; OIL PRESSURE	8-97176-230-0	01	1	1307-	●
23	CUP; SEALING,C/BL FRT & RR (A) OD=25	1-09600-016-0	01	1	1307-	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	1307-	●
34	VALVE; OIL RELIEF	8-97328-859-0	01	1	1307-	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	1307-1312		●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	1401-		●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=23.3	8-94173-412-0	01	1	1307-	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	1307-1312		●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	1401-		●	●
56	JET; OIL,PISTON COOLING	8-98173-342-0	04	1	1307-	●
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1307-1312		●
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1401-		●	●
61	PIN; STRAIGHT L=22	8-94483-674-0	04	1	1307-	●
70	CUP; SEALING,FRT & RR (A) OD=25	1-09600-016-0	01	1	1307-	●
70	CUP; SEALING,FRT & RR (B) OD=40	8-97096-824-0	04	1	1307-	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	1307-1312	●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	1401-	●	●	●
97	CUP; SEALING (A) OD=16	5-11129-006-0	01	1	1307-	●
97	CUP; SEALING (C) OD=12	8-97036-335-1	01	1	1307-	●
97	CUP; SEALING (B) OD=22	8-97209-609-0	03	1	1307-	●
132	VALVE; CHECK,OIL M10X18.5	8-97329-618-0	04	1	1307-	●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	1307-1312		●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	1401-		●	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	1307-	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	1307-1312		●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	1401-		●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	1307-	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	10	1	1307-	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	1307-1312		●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	1401-		●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	1307-1312		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	1401-		●	●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	1307-	●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	1307-1312		●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	1401-		●	●
406	PLUG; CRANK CASE PT3/8	5-09605-005-0	02	1	1307-	●

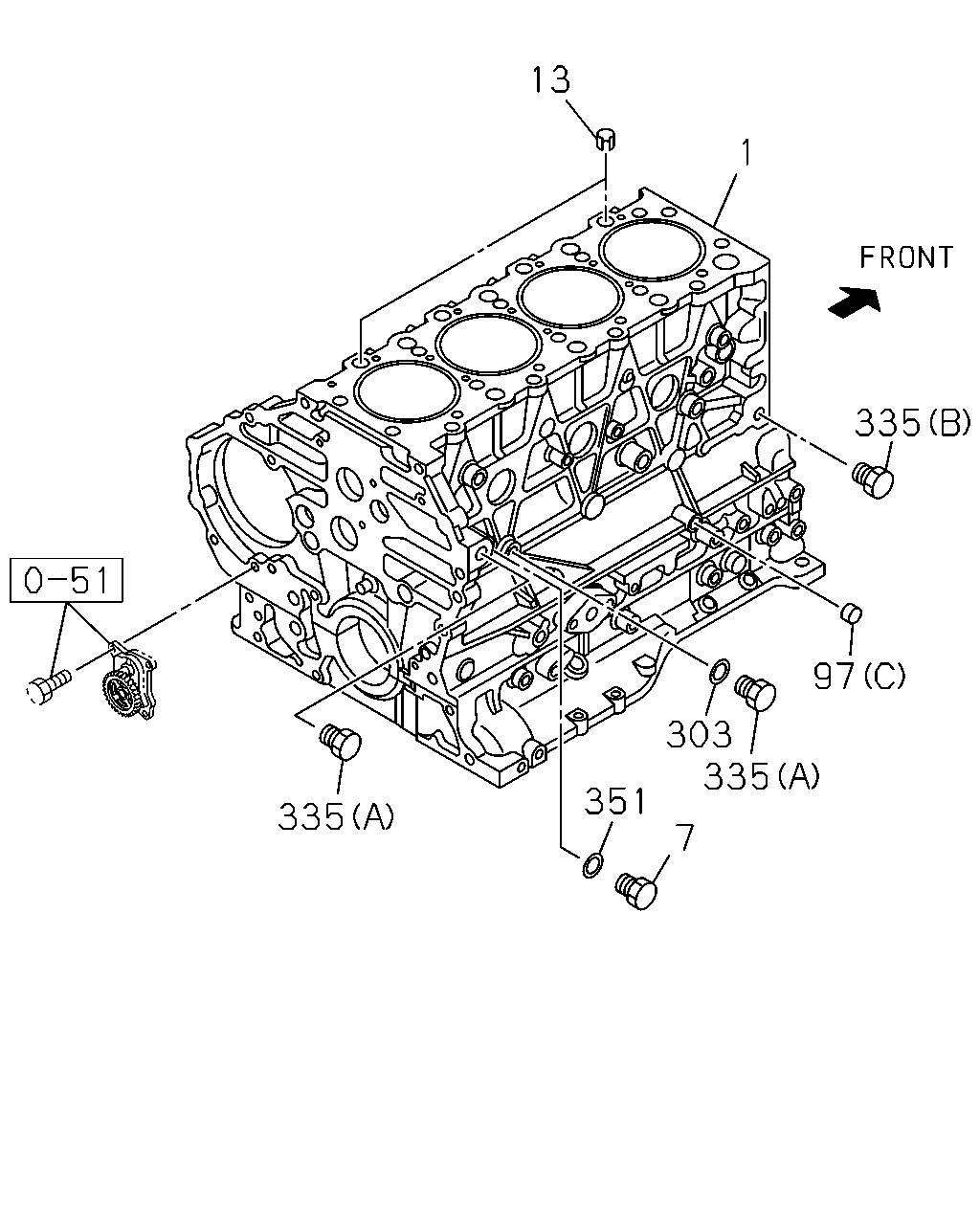

13 1 335 97 303 335 351 7 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOCK ASM; CYL	8-98204-529-0	01	1	1307-1405	●
1	BLOCK ASM; CYL	8-98204-528-0	01	1	1406-	●
1	BLOCK ASM; CYL	8-98206-967-0	01	1	1307-1312		●
1	BLOCK ASM; CYL	8-98206-967-0	01	1	1401-		●	●
7	PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	1307-	●
13	DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	1307-	●
97	CUP; SEALING (A) OD=16	5-11129-006-0	01	1	1307-	●
97	CUP; SEALING (C) OD=12	8-97036-335-1	01	1	1307-	●
97	CUP; SEALING (B) OD=22	8-97209-609-0	03	1	1307-	●
303	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	01	1	1307-1312	●
303	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-	●
335	PLUG; C/BL,SIDE (B) M14X18	8-98038-403-0	01	1	1307-	●
335	PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	02	1	1307-1312	●	●
335	PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	02	1	1401-	●	●	●
335	PLUG; C/BL,SIDE (C) M12X10	5-13265-001-0	01	1	1307-1312		●
335	PLUG; C/BL,SIDE (C) M12X10	5-13265-001-0	01	1	1401-		●	●
335	PLUG; C/BL,SIDE (E) M14	8-94399-225-0	01	1	1307-1312		●
335	PLUG; C/BL,SIDE (E) M14	8-94399-225-0	01	1	1401-		●	●
335	PLUG; C/BL,SIDE (D) M8X10	8-98003-416-0	01	1	1307-1312		●
335	PLUG; C/BL,SIDE (D) M8X10	8-98003-416-0	01	1	1401-		●	●
351	GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	1307-	●

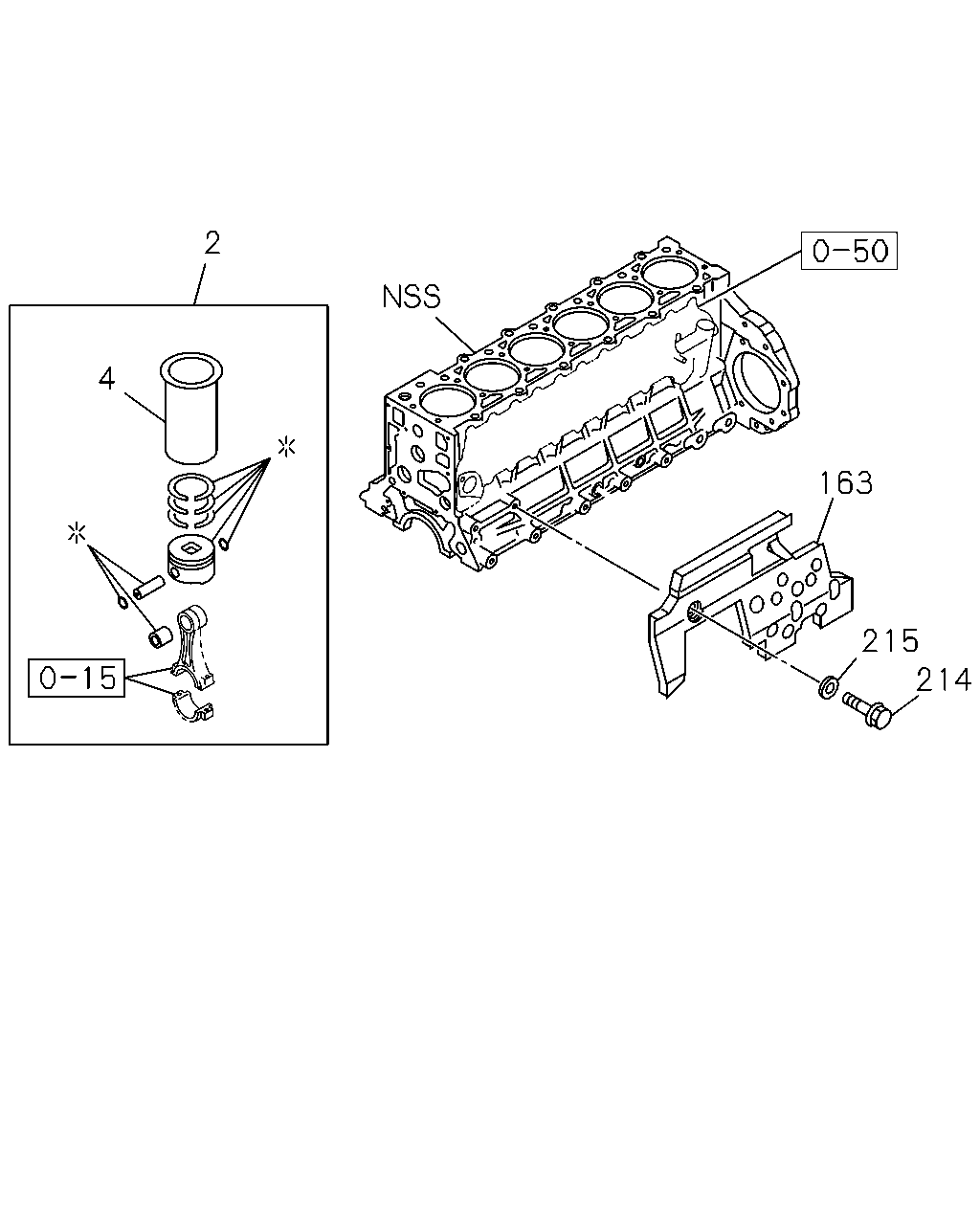

2 4 163 215 214

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	LINER SET; ENG CYL GRADE=1X	1-87813-119-6	04	1	1307-1405	●
2	LINER SET; ENG CYL GRADE=1X	1-87814-726-0	04	1	1406-	●
2	LINER SET; ENG CYL GRADE=3X	1-87813-120-6	04	1	1307-1405	●
2	LINER SET; ENG CYL GRADE=3X	1-87814-727-0	04	1	1406-	●
2	LINER SET; ENG CYL GRADE=1X	1-87813-119-6	06	1	1307-1312		●
2	LINER SET; ENG CYL GRADE=1X	1-87813-119-6	06	1	1401-		●	●
2	LINER SET; ENG CYL GRADE=3X	1-87813-120-6	06	1	1307-1312		●
2	LINER SET; ENG CYL GRADE=3X	1-87813-120-6	06	1	1401-		●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	04	1	1307-1405	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	04	1	1406-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	04	1	1307-1405	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	04	1	1406-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	1307-1312		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	1401-		●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	1307-1312		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	1401-		●	●
163	COVER ASM; C/BL SKIRT	8-97601-248-0	01	1	1307-1312		●
163	COVER ASM; C/BL SKIRT	8-97601-248-0	01	1	1401-		●	●
214	BOLT; NOISE COVER M10X16 FLANGE	0-28151-016-0	03	1	1307-1312		●
214	BOLT; NOISE COVER M10X16 FLANGE	0-28151-016-0	03	1	1401-		●	●
215	WASHER; PL,NOISE COVER ID=10.5 OD=32	0-91614-810-0	02	1	1307-1312		●
215	WASHER; PL,NOISE COVER ID=10.5 OD=32	0-91614-810-0	02	1	1401-		●	●

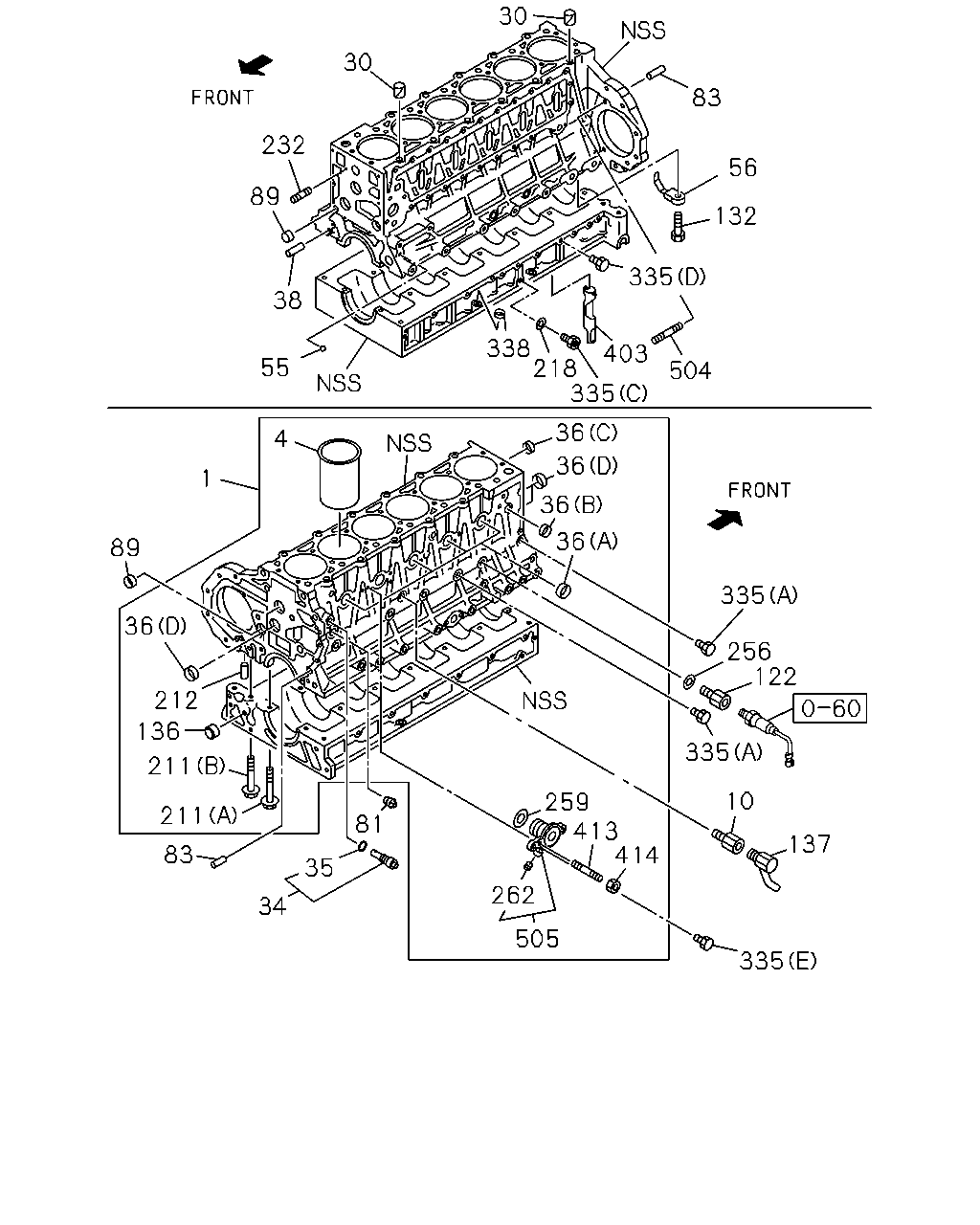

30 30 232 89 38 55 1 89 36 212 136 211 211 83 4 81 35 34 83 56 132 335 338 218 36 36 36 36 259 262 505 335 504 335 256 122 335 10 413 414 137 335 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOCK ASM; CYL	8-98204-529-0	01	1	1307-1405	●
1	BLOCK ASM; CYL	8-98204-528-0	01	1	1406-	●
1	BLOCK ASM; CYL	8-98206-967-0	01	1	1307-1312		●
1	BLOCK ASM; CYL	8-98206-967-0	01	1	1401-		●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	04	1	1307-1405	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	04	1	1406-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	04	1	1307-1405	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	04	1	1406-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	1307-1312		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	1401-		●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	1307-1312		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	1401-		●	●
10	CONNECTOR; WATER DRAIN	8-94396-378-0	01	1	1307-1312		●
10	CONNECTOR; WATER DRAIN	8-94396-378-0	01	1	1401-		●	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	1307-1312		●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	1401-		●	●
34	VALVE; OIL RELIEF	8-97328-859-0	01	1	1307-	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	1307-1312		●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	1401-		●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=23.3	8-94173-412-0	01	1	1307-	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	1307-1312		●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	1401-		●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	04	1	1307-1312		●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	04	1	1401-		●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	01	1	1307-1312		●
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	01	1	1401-		●	●
36	CUP; SEALING,WATER JACKET (C) OD=25	8-94399-005-0	01	1	1307-1312		●
36	CUP; SEALING,WATER JACKET (C) OD=25	8-94399-005-0	01	1	1401-		●	●
36	CUP; SEALING,WATER JACKET (D) OD=40	8-97096-824-0	04	1	1307-1312		●
36	CUP; SEALING,WATER JACKET (D) OD=40	8-97096-824-0	04	1	1401-		●	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	1307-1312		●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	1401-		●	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	01	1	1307-1312		●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	01	1	1401-		●	●
56	JET; OIL,PISTON COOLING	8-98173-342-0	04	1	1307-	●
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1307-1312		●
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1401-		●	●
81	PLUG; WATER JACKET PT3/8	8-94397-338-0	01	1	1307-1312		●
81	PLUG; WATER JACKET PT3/8	8-94397-338-0	01	1	1401-		●	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	1307-1312		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	1401-		●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	1307-1312	●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	1401-	●	●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-97603-667-0	01	1	1307-1312		●
122	ADAPTER; OIL PRESSURE SWITCH	8-97603-667-0	01	1	1401-		●	●
132	VALVE; CHECK,OIL M10X18.5	8-97329-618-0	04	1	1307-	●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	1307-1312		●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	1401-		●	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	1307-	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	1307-1312		●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	1401-		●	●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	1307-1312		●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	1401-		●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	1307-	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	10	1	1307-	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	1307-1312		●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	1401-		●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	1307-1312		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	1401-		●	●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	1307-	●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	1307-1312		●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	1401-		●	●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	1-09630-084-0	01	1	1307-1312		●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	8-98251-344-0	01	1	1401-1401		●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	8-98251-344-0	01	1	1401-		●	●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	1307-1312		●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	1401-		●	●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	1307-1312		●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	1401-		●	●
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	1307-1312		●
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	1401-		●	●
262	PLUG; ADAPTER	1-13163-002-0	01	1	1307-1312		●
262	PLUG; ADAPTER	1-13163-002-0	01	1	1401-		●	●
335	PLUG; C/BL,SIDE (B) M14X18	8-98038-403-0	01	1	1307-	●
335	PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	02	1	1307-1312	●	●
335	PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	02	1	1401-	●	●	●
335	PLUG; C/BL,SIDE (C) M12X10	5-13265-001-0	01	1	1307-1312		●
335	PLUG; C/BL,SIDE (C) M12X10	5-13265-001-0	01	1	1401-		●	●
335	PLUG; C/BL,SIDE (E) M14	8-94399-225-0	01	1	1307-1312		●
335	PLUG; C/BL,SIDE (E) M14	8-94399-225-0	01	1	1401-		●	●
335	PLUG; C/BL,SIDE (D) M8X10	8-98003-416-0	01	1	1307-1312		●
335	PLUG; C/BL,SIDE (D) M8X10	8-98003-416-0	01	1	1401-		●	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	1307-1312		●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	1401-		●	●
403	GUIDE; GALLERY	8-94395-351-1	01	1	1307-1312		●
403	GUIDE; GALLERY	8-94395-351-1	01	1	1401-		●	●
413	STUD; ADAPTER M8X30 L=41	0-41010-830-0	02	1	1307-1312		●
413	STUD; ADAPTER M8X30 L=41	0-41010-830-0	02	1	1401-		●	●
414	NUT; ADAPTER M8 FLANGE	0-91180-208-0	02	1	1307-1312		●
414	NUT; ADAPTER M8 FLANGE	0-91180-208-0	02	1	1401-		●	●
504	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	1307-1312		●
504	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	1401-		●	●
505	ADAPTER; WATER FEED	8-98145-412-1	01	1	1307-1312		●
505	ADAPTER; WATER FEED	8-98145-412-1	01	1	1401-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
