0-10 — CYLINDER HEAD COVER (#123614) — 88 parça

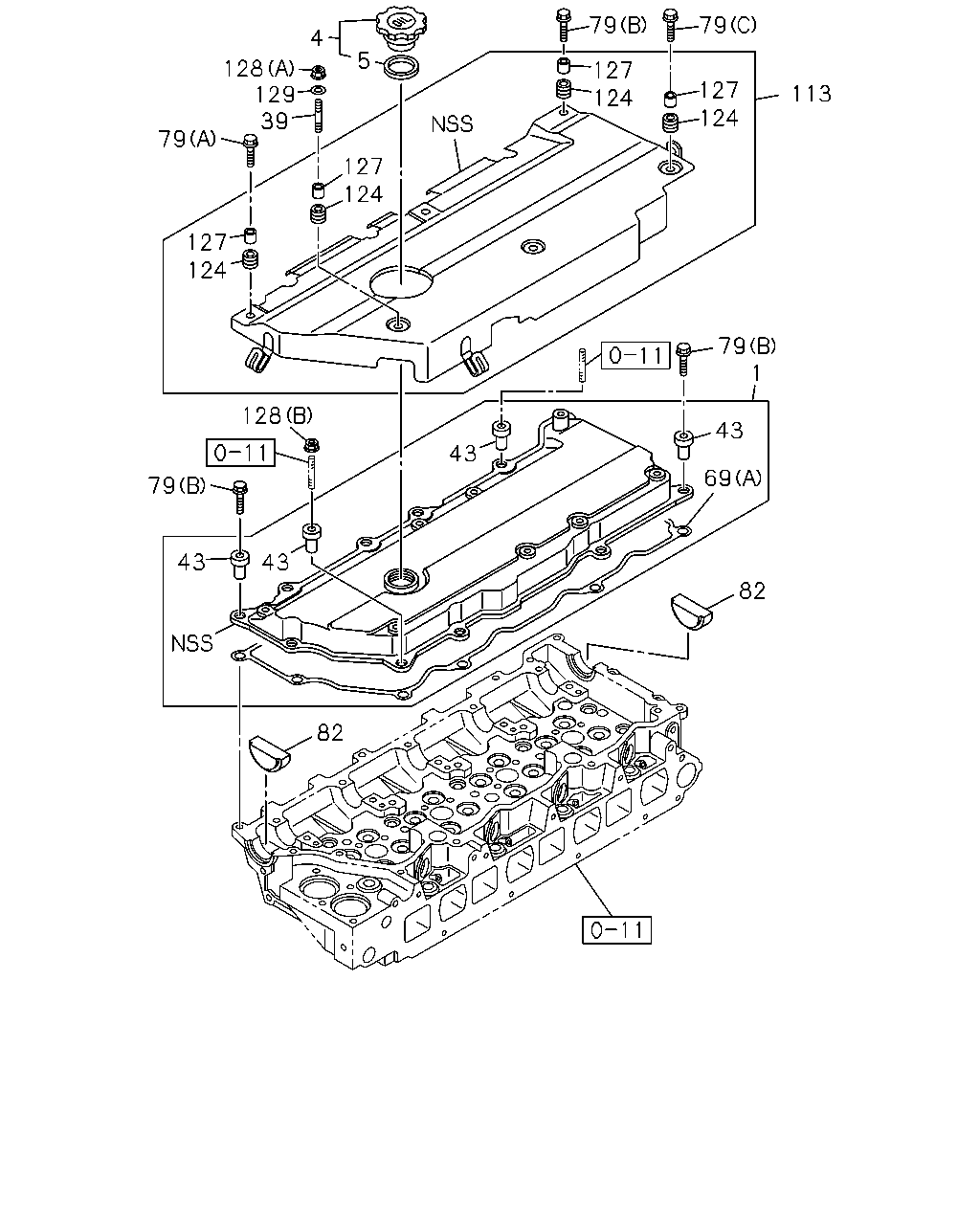

4 128 129 5 39 79 127 124 127 124 79 79 127 127 124 113 124 128 79 43 43 82 43 79 1 43 69 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COVER; CYL HD	8-97331-361-2	01	1	1307-	●
1	COVER; CYL HD	8-98208-874-0	01	1	1307-1312		●
1	COVER; CYL HD	8-98208-874-0	01	1	1401-		●	●
4	CAP; OIL FILLER	8-94133-207-5	01	1	1307-	●
4	CAP; OIL FILLER	8-94399-723-0	01	1	1307-1312		●
4	CAP; OIL FILLER	8-94399-723-0	01	1	1401-		●	●
5	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40	8-94123-623-1	01	1	1307-	●
5	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58	8-94399-689-0	01	1	1307-1312		●
5	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58	8-94399-689-0	01	1	1401-		●	●
39	STUD; COVER,HD M6X25 L=34	0-41010-625-0	02	1	1307-	●
39	STUD; COVER,HD M8X28 L=38	8-94396-512-0	02	1	1307-1312		●
39	STUD; COVER,HD M8X28 L=38	8-94396-512-0	02	1	1401-		●	●
43	RUBBER; MTG,HD COVER,OUTER OD=22	8-94395-684-0	11	1	1307-	●
43	RUBBER; MTG,HD COVER,OUTER OD=21.8	8-97325-051-0	04	1	1307-1312		●
43	RUBBER; MTG,HD COVER,OUTER OD=21.8	8-97325-051-0	04	1	1401-		●	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97331-359-1	01	1	1307-	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-94391-379-0	01	1	1307-1312		●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-94391-379-0	01	1	1401-		●	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C)	8-94391-380-0	01	1	1307-1312		●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C)	8-94391-380-0	01	1	1401-		●	●
79	BOLT; COVER (A) M8X35 FLANGE	0-28650-835-0	02	1	1307-	●
79	BOLT; COVER (B) M8X65 FLANGE	1-09044-072-1	07	1	1307-	●
79	BOLT; COVER (C) M6X20	8-97127-607-0	01	1	1307-	●
82	PLUG; CYL HD COVER	8-98163-813-0	02	1	1307-	●
113	COVER; CYL HEAD COVER	8-98115-676-0	01	1	1307-	●
113	COVER; CYL HEAD COVER	8-98044-128-2	01	1	1307-1312		●
113	COVER; CYL HEAD COVER	8-98044-128-2	01	1	1401-		●	●
124	RUBBER; MTG,COVER	8-97226-908-0	05	1	1307-	●
127	RETAINER; COVER	8-97092-314-0	05	1	1307-	●
128	NUT; COVER,CYL HEAD COVER (A) M6 FLANGE	0-91180-106-0	02	1	1307-	●
128	NUT; COVER,CYL HEAD COVER (B) M8 FLANGE	0-91180-108-0	02	1	1307-	●
129	WASHER; COVER,CYL HEAD COVER ID=6.4 OD=18	0-91610-706-0	01	1	1307-	●

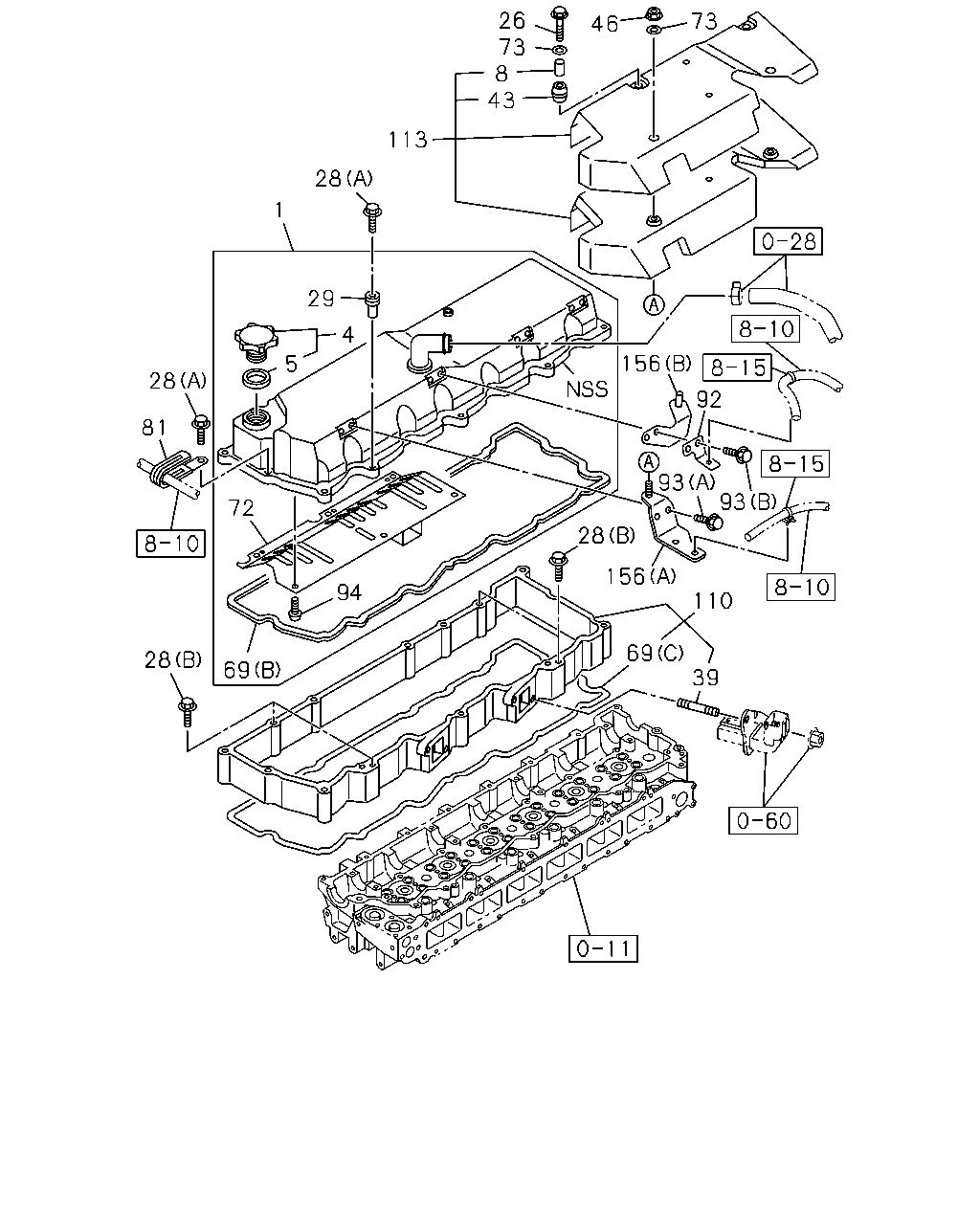

26 73 8 43 113 28 1 46 73 29 4 5 28 81 72 94 69 28 156 92 93 93 28 156 110 69 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COVER; CYL HD	8-97331-361-2	01	1	1307-	●
1	COVER; CYL HD	8-98208-874-0	01	1	1307-1312		●
1	COVER; CYL HD	8-98208-874-0	01	1	1401-		●	●
4	CAP; OIL FILLER	8-94133-207-5	01	1	1307-	●
4	CAP; OIL FILLER	8-94399-723-0	01	1	1307-1312		●
4	CAP; OIL FILLER	8-94399-723-0	01	1	1401-		●	●
5	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40	8-94123-623-1	01	1	1307-	●
5	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58	8-94399-689-0	01	1	1307-1312		●
5	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58	8-94399-689-0	01	1	1401-		●	●
8	SPACER; HD COVER OD=13 T=9.5	8-98164-239-0	04	1	1307-1312		●
8	SPACER; HD COVER OD=13 T=9.5	8-98164-239-0	04	1	1401-		●	●
26	BOLT; CYL HD COVER M8X20 FLANGE	0-28050-820-0	02	1	1307-1312		●
26	BOLT; CYL HD COVER M8X20 FLANGE	0-28050-820-0	02	1	1401-		●	●
28	BOLT; HD COVER (B) M8X45 FLANGE	0-28050-845-0	04	1	1307-1312		●
28	BOLT; HD COVER (B) M8X45 FLANGE	0-28050-845-0	04	1	1401-		●	●
28	BOLT; HD COVER (A) M8X70 FLANGE	0-28050-870-0	11	1	1307-1312		●
28	BOLT; HD COVER (A) M8X70 FLANGE	0-28050-870-0	11	1	1401-		●	●
29	RUBBER; MTG,HD COVER	8-94392-097-0	11	1	1307-1312		●
29	RUBBER; MTG,HD COVER	8-94392-097-0	11	1	1401-		●	●
39	STUD; COVER,HD M6X25 L=34	0-41010-625-0	02	1	1307-	●
39	STUD; COVER,HD M8X28 L=38	8-94396-512-0	02	1	1307-1312		●
39	STUD; COVER,HD M8X28 L=38	8-94396-512-0	02	1	1401-		●	●
43	RUBBER; MTG,HD COVER,OUTER OD=22	8-94395-684-0	11	1	1307-	●
43	RUBBER; MTG,HD COVER,OUTER OD=21.8	8-97325-051-0	04	1	1307-1312		●
43	RUBBER; MTG,HD COVER,OUTER OD=21.8	8-97325-051-0	04	1	1401-		●	●
46	NUT; HD COVER,OUTER M8 FLANGE	0-91180-108-0	02	1	1307-1312		●
46	NUT; HD COVER,OUTER M8 FLANGE	0-91180-108-0	02	1	1401-		●	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97331-359-1	01	1	1307-	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-94391-379-0	01	1	1307-1312		●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-94391-379-0	01	1	1401-		●	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C)	8-94391-380-0	01	1	1307-1312		●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C)	8-94391-380-0	01	1	1401-		●	●
72	PLATE; INNER HD COVER	8-94392-655-0	01	1	1307-1312		●
72	PLATE; INNER HD COVER	8-94392-655-0	01	1	1401-		●	●
73	WASHER; PL,HD COVER ID=8.4 OD=22	0-91610-708-0	04	1	1307-1312		●
73	WASHER; PL,HD COVER ID=8.4 OD=22	0-91610-708-0	04	1	1401-		●	●
81	CLIP; HARNESS ID=18 L=44	8-97367-985-1	02	1	1307-1312		●
81	CLIP; HARNESS ID=18 L=44	8-97367-985-1	02	1	1401-		●	●
92	BRACKET; CLIP	8-97602-621-0	01	1	1307-1312		●
92	BRACKET; CLIP	8-97602-621-0	01	1	1401-1405		●	●
92	BRACKET; CLIP	8-98271-674-0	01	1	1406-		●	●
93	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	1307-1312		●
93	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	1401-		●	●
93	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	02	1	1307-1312		●
93	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	02	1	1401-		●	●
94	SCREW; BAFFLE PLATE,CYL HD COVER M4X8	0-35050-408-0	06	1	1307-1312		●
94	SCREW; BAFFLE PLATE,CYL HD COVER M4X8	0-35050-408-0	06	1	1401-		●	●
110	COVER; CYL HEAD LWR	8-94390-862-3	01	1	1307-1312		●
110	COVER; CYL HEAD LWR	8-94390-862-3	01	1	1401-		●	●
113	COVER; CYL HEAD COVER	8-98115-676-0	01	1	1307-	●
113	COVER; CYL HEAD COVER	8-98044-128-2	01	1	1307-1312		●
113	COVER; CYL HEAD COVER	8-98044-128-2	01	1	1401-		●	●
156	BRACKET; ENGINE COVER (B)	8-97602-747-0	01	1	1307-1312		●
156	BRACKET; ENGINE COVER (B)	8-97602-747-0	01	1	1401-		●	●
156	BRACKET; ENGINE COVER (A)	8-97616-751-0	01	1	1307-1312		●
156	BRACKET; ENGINE COVER (A)	8-97616-751-0	01	1	1401-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
