◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11538 - EXR LHD EURO2 WITH REFLECTOR ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#123599) — 77 parça

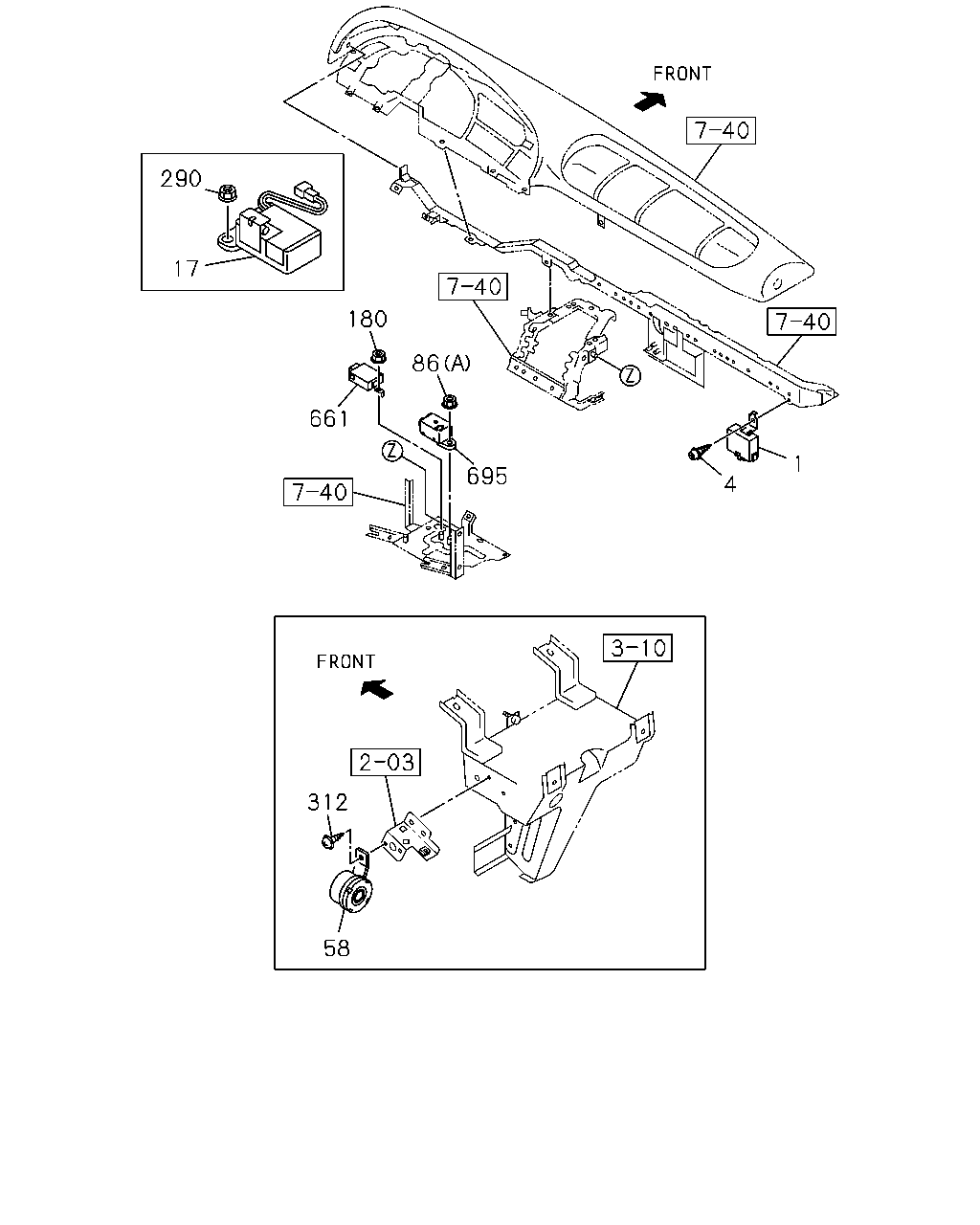

çizim 363984
290 17 180 661 86 695 312 58 4 1
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER 8-97613-970-1 01 1 1306-
4 SCREW; FLASHER UNIT
M5X14 		8-94279-325-0 01 1 1306-
17 TIMER; SEAT BELT 1-82550-183-1 01 1 1306-
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		8-98069-859-0 01 1 1306-
86 NUT; BUZZER
(A) M6 FLANGE 		0-91180-106-0 01 1 1306-
86 NUT; BUZZER
(B) M8 FLANGE 		0-91180-108-0 01 1 1306-
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91180-106-0 01 1 1306-
290 NUT
M6 FLANGE 		0-91180-106-0 02 1 1306-
312 BOLT; BUZZER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1306-
661 CONTROL UNIT; FLASHER 1-83470-066-1 01 1 1306-
695 ALARM; OVER HEAT 1-83460-051-1 01 1 1306-

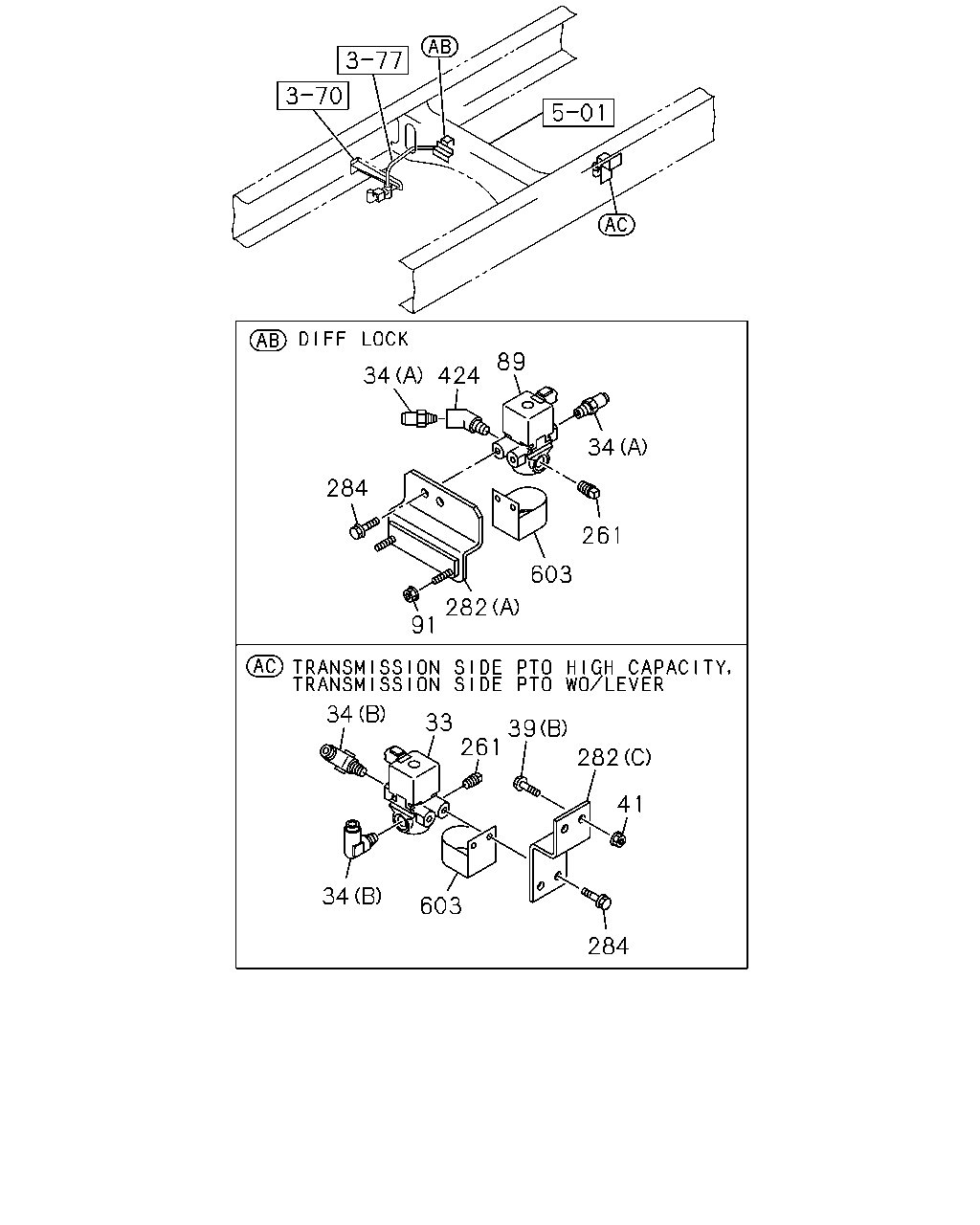

çizim 365432
34 424 89 34 261 603 282 91 284 34 33 261 39 282 41 284 603 34
BalonParca AdiParca NoAdetTipApplied Date
33 VALVE; MAG,PTO CONT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82563-871-2 01 1 1306-
34 CONNECTOR; MAG VLV,INL PORT
DIFF LOCK(C3N) (A) DIN8 R1/4 STRAIGHT 		1-09660-647-1 02 1 1306-
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 02 1 1306-
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1306-
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X30 FLANGE 		0-28650-830-0 02 1 1306-
41 NUT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 02 1 1306-
89 VALVE; MAG,DIFF LOCK
DIFF LOCK(C3N) 		8-97641-594-0 01 1 1306-
91 NUT; MAG VLV
DIFF LOCK(C3N) M10 FLANGE 		0-91180-210-0 02 1 1306-
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 1306-
261 PLUG; MAG VLV
DIFF LOCK(C3N) PT1/4 		9-99204-513-0 01 1 1306-
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4 		9-99204-513-0 01 1 1306-
282 BRACKET; MAG VLV
(B) 		1-82569-277-2 01 1 1306-
282 BRACKET; MAG VLV
DIFF LOCK(C3N) (A) 		1-47471-387-0 01 1 1306-
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		1-47471-175-0 01 1 1306-
284 BOLT; MAG VLV
DIFF LOCK(C3N) M8X20 FLANGE 		0-28650-820-0 02 1 1306-
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28650-820-0 02 1 1306-
424 ADAPTER
DIFF LOCK(C3N) R1/4 & RC1/4 		1-09664-211-0 01 1 1306-
603 PROTECTOR; MAG VLV
DIFF LOCK(C3N) 		1-47471-046-0 01 1 1306-
603 PROTECTOR; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-47471-046-0 01 1 1306-

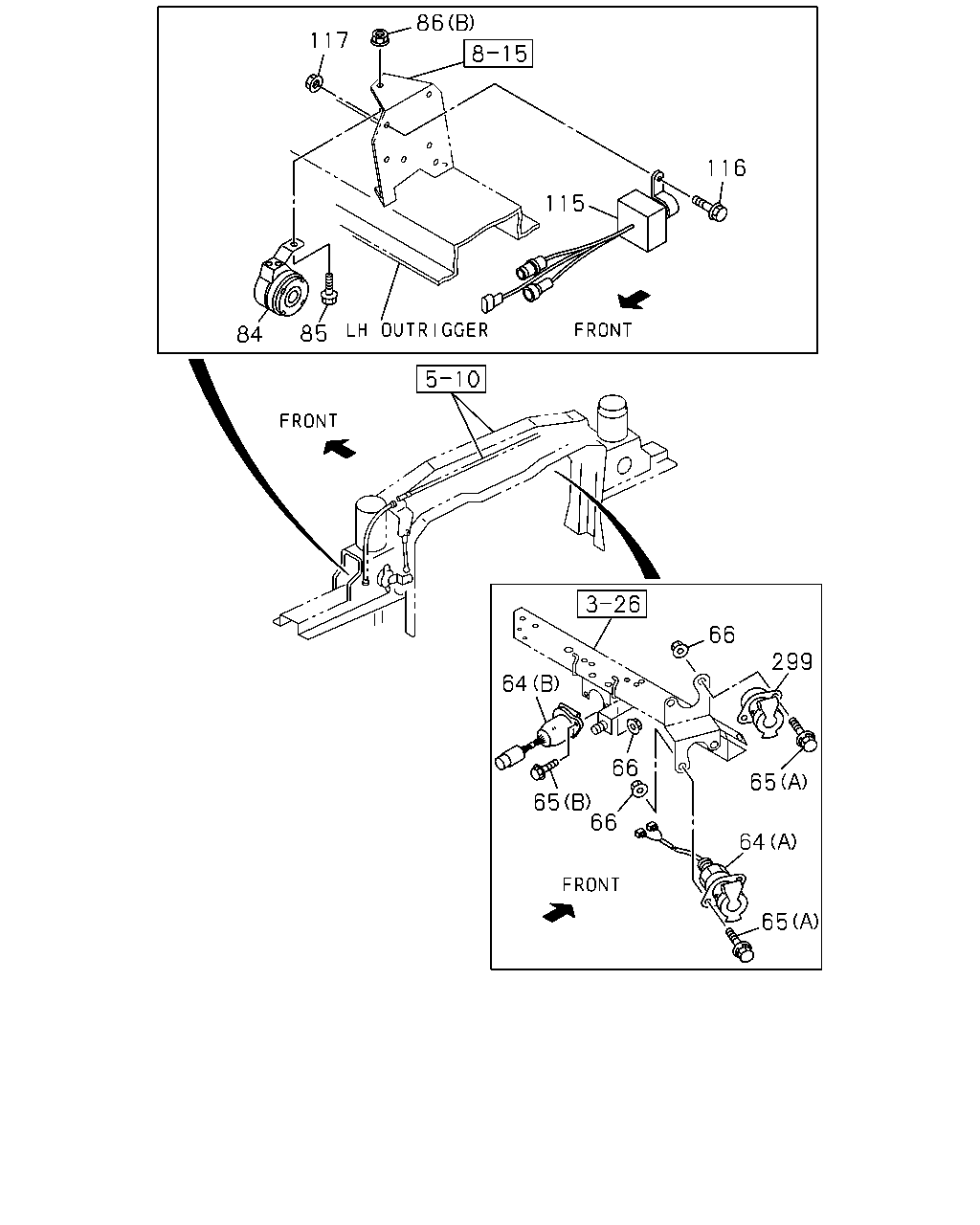

çizim 365455
64 65 66 66 66 299 65 64 65 86 117 84 85 115 116
BalonParca AdiParca NoAdetTipApplied Date
64 SOCKET; TRAILER
(B) 7P 		1-82523-014-0 01 1 1306-
64 SOCKET; TRAILER
(A) L=860 		8-98172-008-0 01 1 1306-
65 BOLT; SOCKET FIX
(A) M8X25 FLANGE 		0-28650-825-0 04 1 1306-
65 BOLT; SOCKET FIX
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1306-
66 NUT; SOCKET FIX
M8 FLANGE 		0-91180-108-0 02 1 1306-
66 NUT; SOCKET FIX
M8 FLANGE 		0-91180-108-0 03 1 1306-
84 BUZZER; POWER CAB TILT
METRO DENSO 		8-98069-860-0 01 1 1306-
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28650-820-0 01 1 1306-
86 NUT; BUZZER
(A) M6 FLANGE 		0-91180-106-0 01 1 1306-
86 NUT; BUZZER
(B) M8 FLANGE 		0-91180-108-0 01 1 1306-
115 RELAY; POWER CAB TILT UNIT
NIKKO 		1-81171-075-1 01 1 1306-
116 BOLT; RELAY FIX
M8X16 FLANGE 		0-28050-816-0 02 1 1306-
117 NUT; RELAY FIX
M8 FLANGE 		0-91180-108-0 02 1 1306-
299 SOCKET; PARKING 1-82699-396-2 01 1 1306-

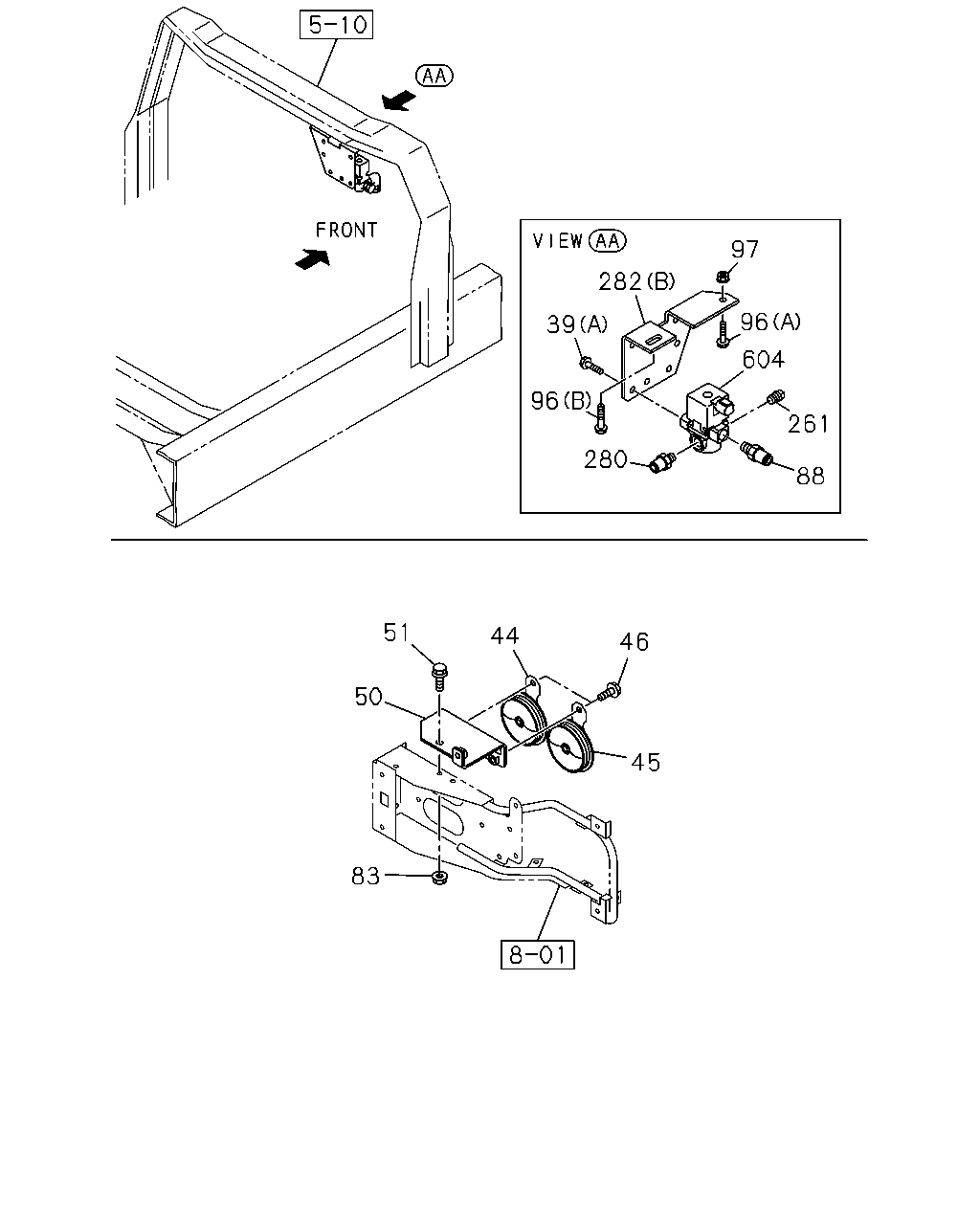

çizim 365477
282 39 96 280 88 261 604 96 97 51 50 83 44 46 45
BalonParca AdiParca NoAdetTipApplied Date
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1306-
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X30 FLANGE 		0-28650-830-0 02 1 1306-
44 HORN; HIGH NOTE 1-83410-061-1 01 1 1306-
45 HORN; LOW NOTE 1-83410-062-1 01 1 1306-
46 BOLT; HORN TO BODY
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1306-
50 BRACKET; HORN 8-98198-870-1 01 1 1306-
51 BOLT; HORN TO BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1306-
83 NUT; BRKT,HORN
M8 FLANGE 		0-91180-108-0 02 1 1306-
88 CONNECTOR; MAG VLV
M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1306-
96 BOLT; BRKT FIX
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1306-
96 BOLT; BRKT FIX
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1306-
97 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 1306-
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 1306-
261 PLUG; MAG VLV
DIFF LOCK(C3N) PT1/4 		9-99204-513-0 01 1 1306-
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4 		9-99204-513-0 01 1 1306-
280 CONNECTOR; IN,MAG VLV
M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1306-
282 BRACKET; MAG VLV
(B) 		1-82569-277-2 01 1 1306-
282 BRACKET; MAG VLV
DIFF LOCK(C3N) (A) 		1-47471-387-0 01 1 1306-
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		1-47471-175-0 01 1 1306-
604 VALVE; MAG,ENG CONT 1-82563-871-2 01 1 1306-

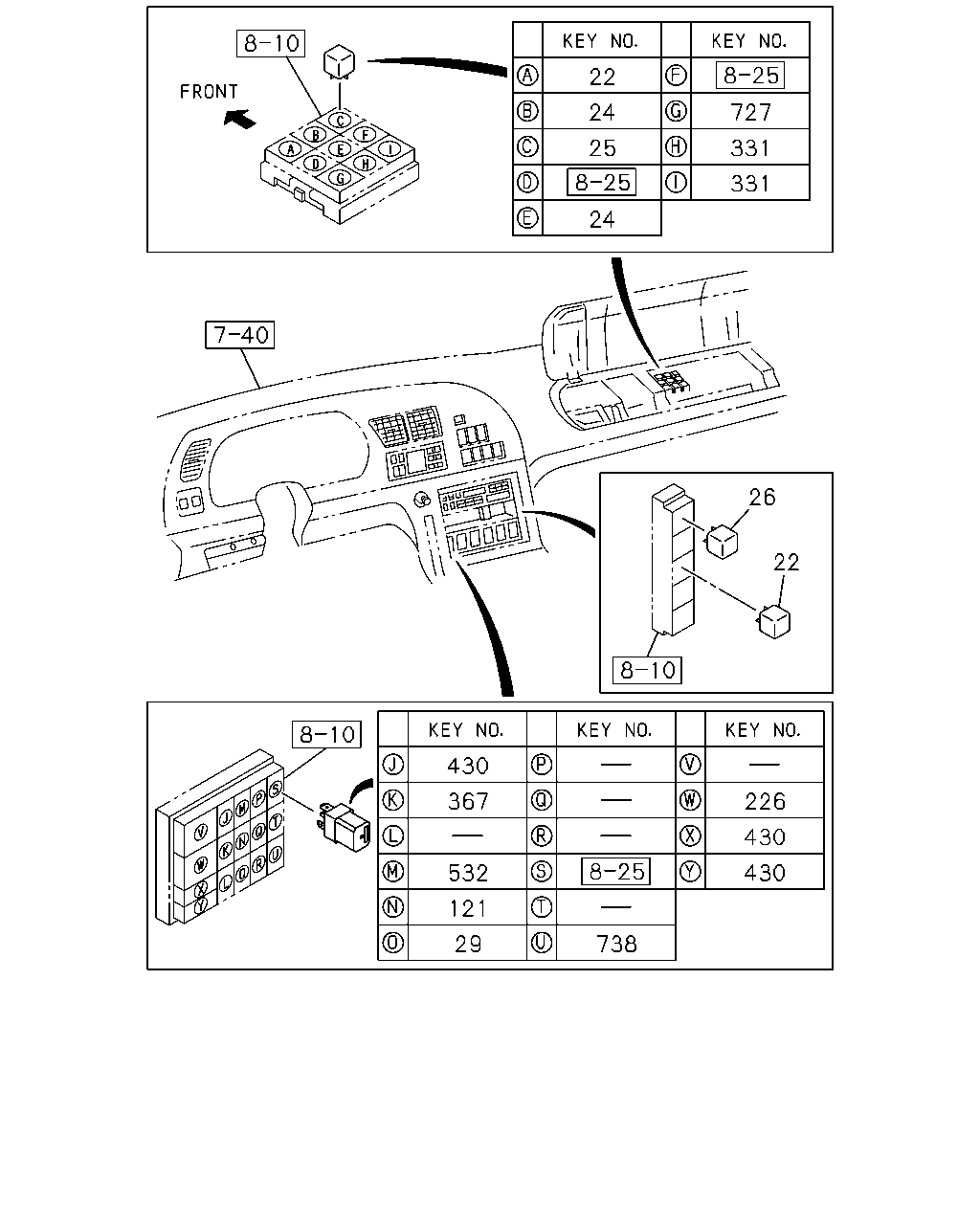

çizim 365505
22 24 25 24 727 331 331 26 22 430 367 532 121 29 738 226 430 430
BalonParca AdiParca NoAdetTipApplied Date
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 02 1 1306-
24 RELAY; LIGHTING
24V 12.5A PANASONIC 		8-97262-933-0 02 1 1306-
25 RELAY; TAIL LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1306-
26 RELAY; CONSENT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1306-
29 RELAY; HORN
24V 10A PANASONIC 		8-97173-035-1 01 1 1306-
121 RELAY; PARKING BRK
24V 10A PANASONIC 		8-97173-035-1 01 1 1306-
226 RELAY; EXH BRK
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1306-
331 RELAY; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 1306-
367 RELAY; NEUTRAL
24V 10A PANASONIC 		8-97173-035-1 01 1 1306-
430 RELAY; RANGE
MJX16P M/T(Y3Z) 24V 10A PANASONIC 		8-97173-035-1 03 1 1306-
532 RELAY; SEAT BELT WARNING
24V 10A PANASONIC 		8-97173-035-1 01 1 1306-
727 RELAY; START CUT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1306-
738 RELAY; EXH & RETARDER CUT
24V 10A PANASONIC 		8-97173-035-1 01 1 1306-
