5-01 — FRAME AND OTHER PARTS
(#123550) — 61 parça
◀

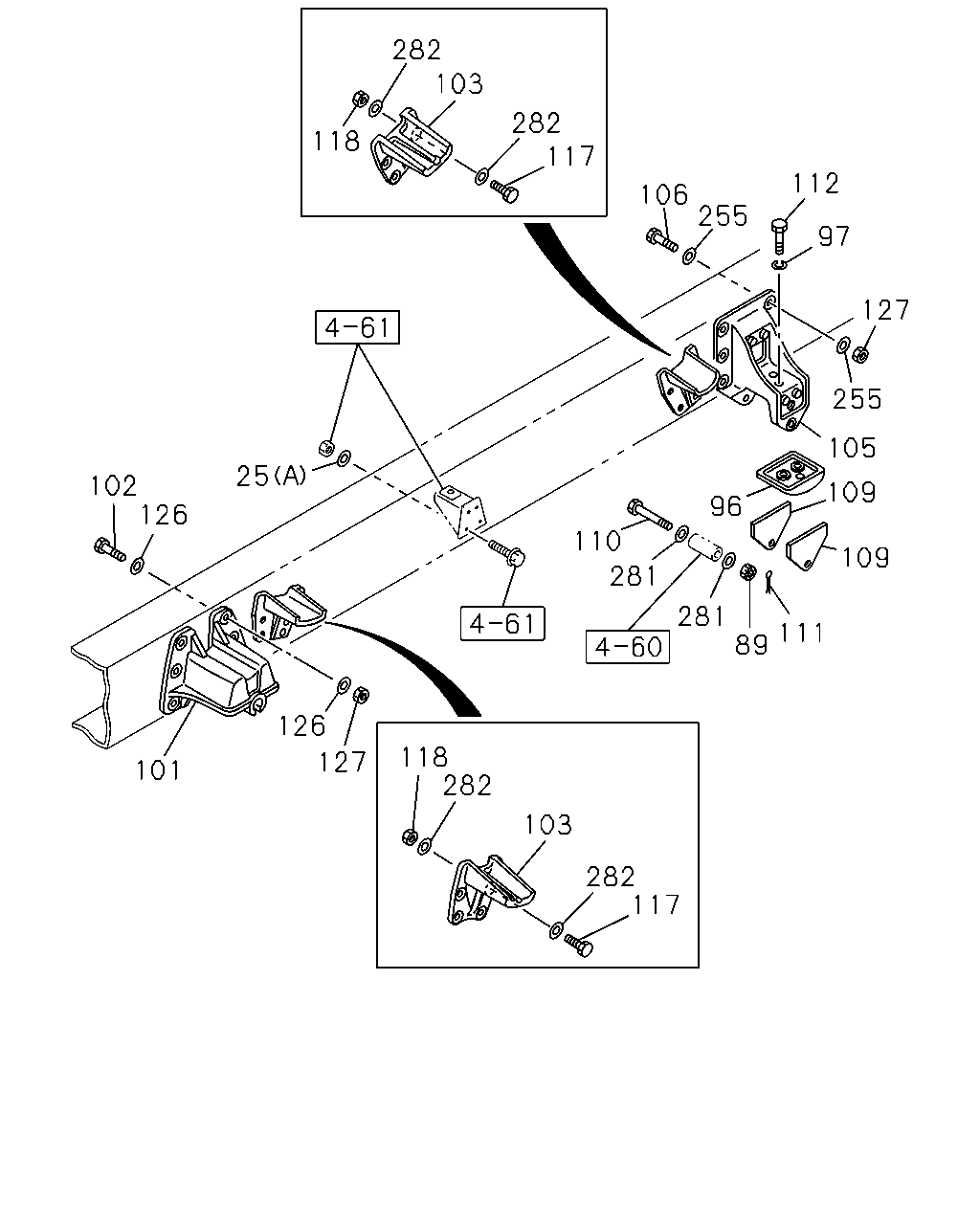

[501A] BRACKET REAR (22 parça)

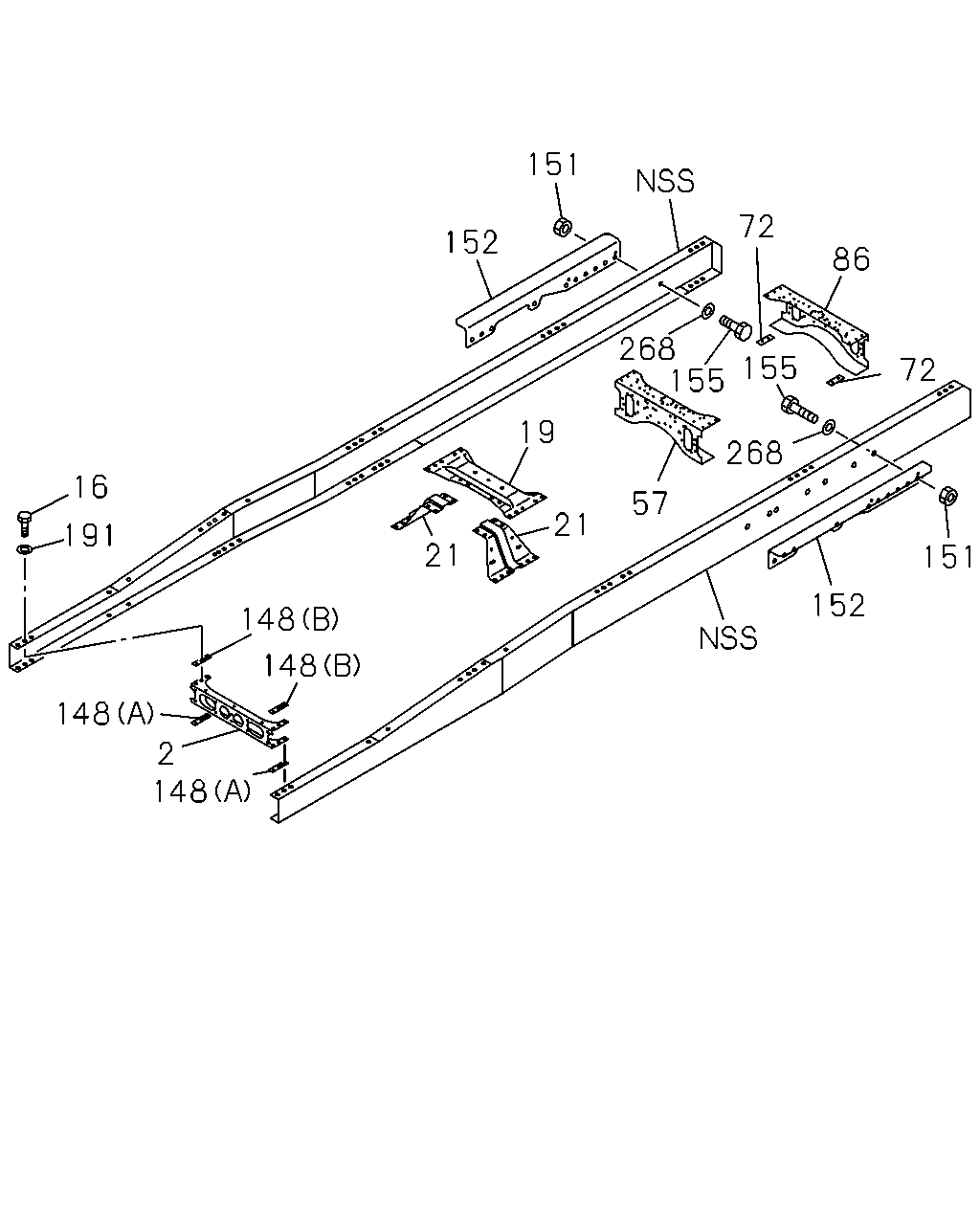

[501A] CROSS MEMBER AND OUTRIGGER (16 parça)

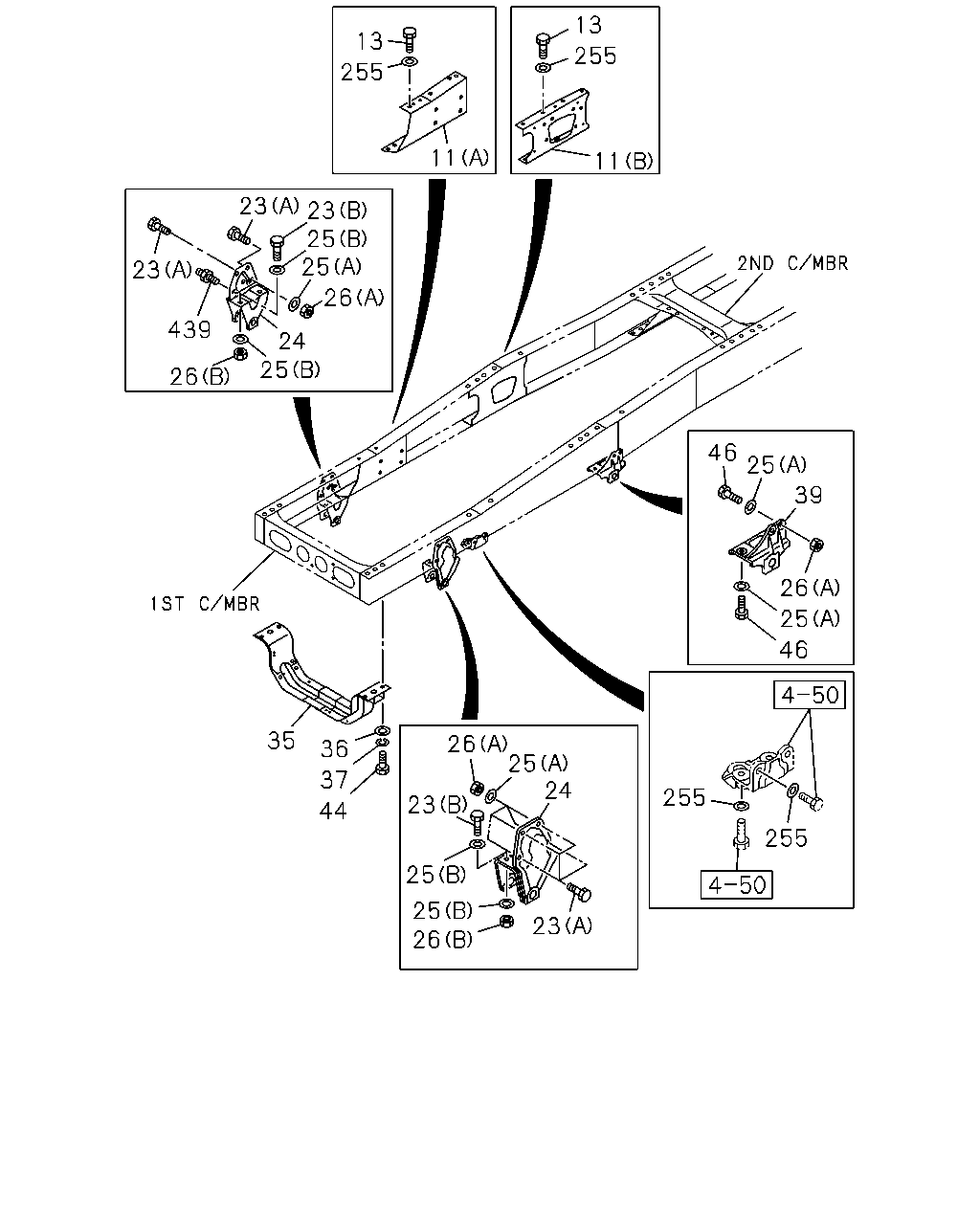

[501A] BRACKET FRONT AND UNDER MEMBER (23 parça)
▶
117
282
103
282
118
127
126
101
111
126
102
25
118
282
282
103
117
112
106
255
127
97
255
109
109
105
96
281
89
281
110
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1306-
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
24
1
1306-
89
NUT; LEAF SPR STOPPER
M14 SLOTTED
0-91116-514-0
02
1
1306-
96
PAD; RR SPR
1-53359-047-0
02
1
1306-
97
WASHER; LK,PAD
ID=14.2
0-91510-514-0
04
1
1306-
101
BRACKET; RR SPR,FRT
1-53353-081-2
02
1
1306-
102
BOLT; BRKT,RR SPR
M14X50
0-20951-450-0
12
1
1306-
103
STOPPER; SUB SPR
1-53356-057-0
04
1
1306-
105
BRACKET; RR SPR,RR
1-53354-066-2
02
1
1306-
106
BOLT; BRKT
M14X50
0-20951-450-0
12
1
1306-
109
SHIM; RR SPR
T=4.5
1-53359-061-1
02
1
1306-
109
SHIM; RR SPR
T=3.2
1-53359-062-1
02
1
1306-
110
BOLT; LEAF SPR STOPPER
1-09000-007-0
02
1
1306-
111
PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28
0-81123-028-0
02
1
1306-
112
BOLT; PAD
M14X35
0-20951-435-0
04
1
1306-
117
BOLT; STOPPER
M14X40
0-20951-440-0
16
1
1306-
118
NUT; STOPPER
M14
0-91110-514-0
16
1
1306-
126
WASHER; PL,BRKT
ID=15
8-98010-627-1
24
1
1306-
127
NUT; BRKT
M14
0-91110-514-0
24
1
1306-
255
WASHER; PL,BRKT
ID=15
8-98010-627-1
32
1
1306-
281
WASHER; LEAF SPR STOPPER
ID=15 OD=30
9-09160-614-0
04
1
1306-
282
WASHER; PL,STOPPER
ID=15
8-98010-627-1
16
1
1306-
151
152
268
155
86
72
72
268
151
152
155
19
57
21
21
148
148
148
191
16
2
148
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-98226-877-0
01
1
1306-
16
BOLT; 1ST C/MBR TO S/MBR
M16X40
0-20951-640-0
02
1
1306-
19
MEMBER; CROSS,2ND
8-98098-303-0
01
1
1306-
21
GUSSET; 2ND CROSS
8-98202-399-0
01
1
1306-
21
GUSSET; 2ND CROSS
8-98202-398-0
01
1
1306-
57
MEMBER; CROSS,RR SUSP FRT
8-97625-336-0
01
1
1306-
72
SPACER; TRUNNION
8-98191-613-0
02
1
1306-
86
MEMBER; CROSS,RR SUSP RR
8-97625-336-0
01
1
1306-
148
SPACER; C/MBR
(B)
8-98118-884-2
02
1
1306-
148
SPACER; C/MBR
(A)
8-98118-885-0
02
1
1306-
151
NUT; OUTRIGGER
M16
0-91110-516-0
22
1
1306-
152
OUTRIGGER
8-97632-285-0
01
1
1306-
152
OUTRIGGER
8-97632-284-0
01
1
1306-
155
BOLT; OUTRIGGER
M16X40
0-20951-640-0
22
1
1306-
191
WASHER; PL,1ST C/MBR TO S/MBR
ID=16.2
1-09503-316-0
02
1
1306-
268
WASHER; PL,OUTRIGGER
ID=17 OD=30
9-09851-935-0
22
1
1306-
13
11
255
11
255
13
23
23
25
25
26
24
25
26
439
23
46
39
25
26
25
46
255
255
26
25
24
23
25
25
26
23
44
35
36
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
(A)
1-53211-368-1
01
1
1306-
11
BRACKET; ENG MTG
(B)
8-98056-612-0
01
1
1306-
11
BRACKET; ENG MTG
(A)
1-53211-367-1
01
1
1306-
11
BRACKET; ENG MTG
(B)
8-98056-611-1
01
1
1306-
13
BOLT; BRKT,ENG MTG
M14X40
0-20951-440-0
04
1
1306-
23
BOLT; BRKT,SPR
(A) M14X40
0-20951-440-0
06
1
1306-
23
BOLT; BRKT,SPR
(B) M16X50
0-20951-650-0
04
1
1306-
24
BRACKET; FRT SPR,FRT
1-53351-238-1
01
1
1306-
24
BRACKET; FRT SPR,FRT
1-53351-237-1
01
1
1306-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1306-
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
24
1
1306-
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
12
1
1306-
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
1306-
35
MEMBER; UNDER
1-53174-263-2
01
1
1306-
36
WASHER; PL,UNDER MBR
ID=17
0-91614-516-0
04
1
1306-
37
WASHER; LK,UNDER MBR
ID=16.2
0-91510-816-0
04
1
1306-
39
BRACKET; FRT SPR,RR
1-53352-180-0
01
1
1306-
39
BRACKET; FRT SPR,RR
1-53352-179-0
01
1
1306-
44
BOLT; UNDER MBR
M16X60
0-20951-660-0
04
1
1306-
46
BOLT; BRKT FIX
M14X40
0-20951-440-0
04
1
1306-
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
04
1
1306-
255
WASHER; PL,BRKT
ID=15
8-98010-627-1
32
1
1306-
439
STUD; BRKT,SPR
M12X25,M14X45 L=81
1-09029-103-0
02
1
1306-
