Isuzu WW
▶
TRUCKS
▶
EXR
▶
11538 - EXR LHD EURO2 WITH REFLECTOR
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶
4-80 — ROAD WHEEL
(#123549) — 37 parça
◀

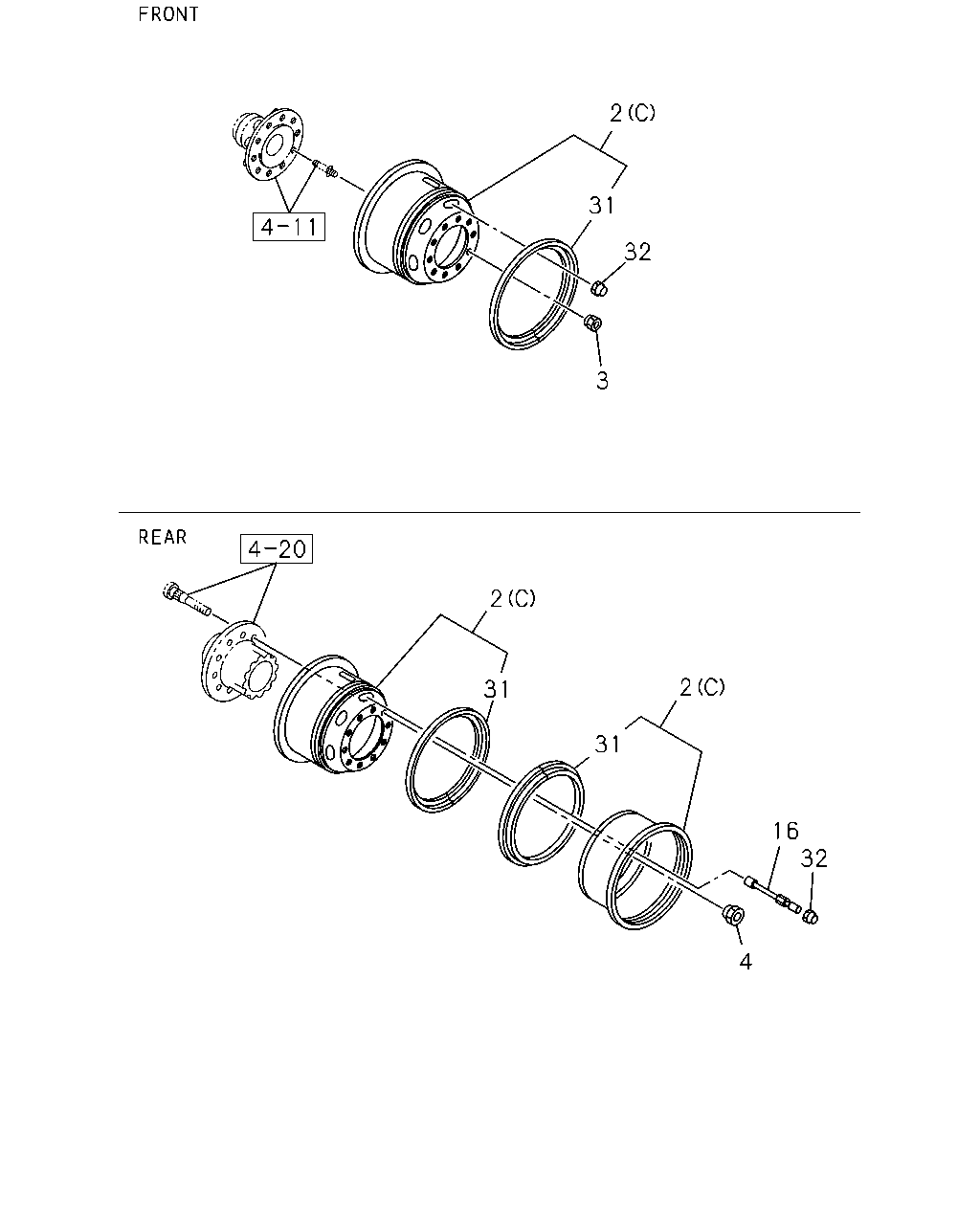

[480A] NO.2 (16 parça)

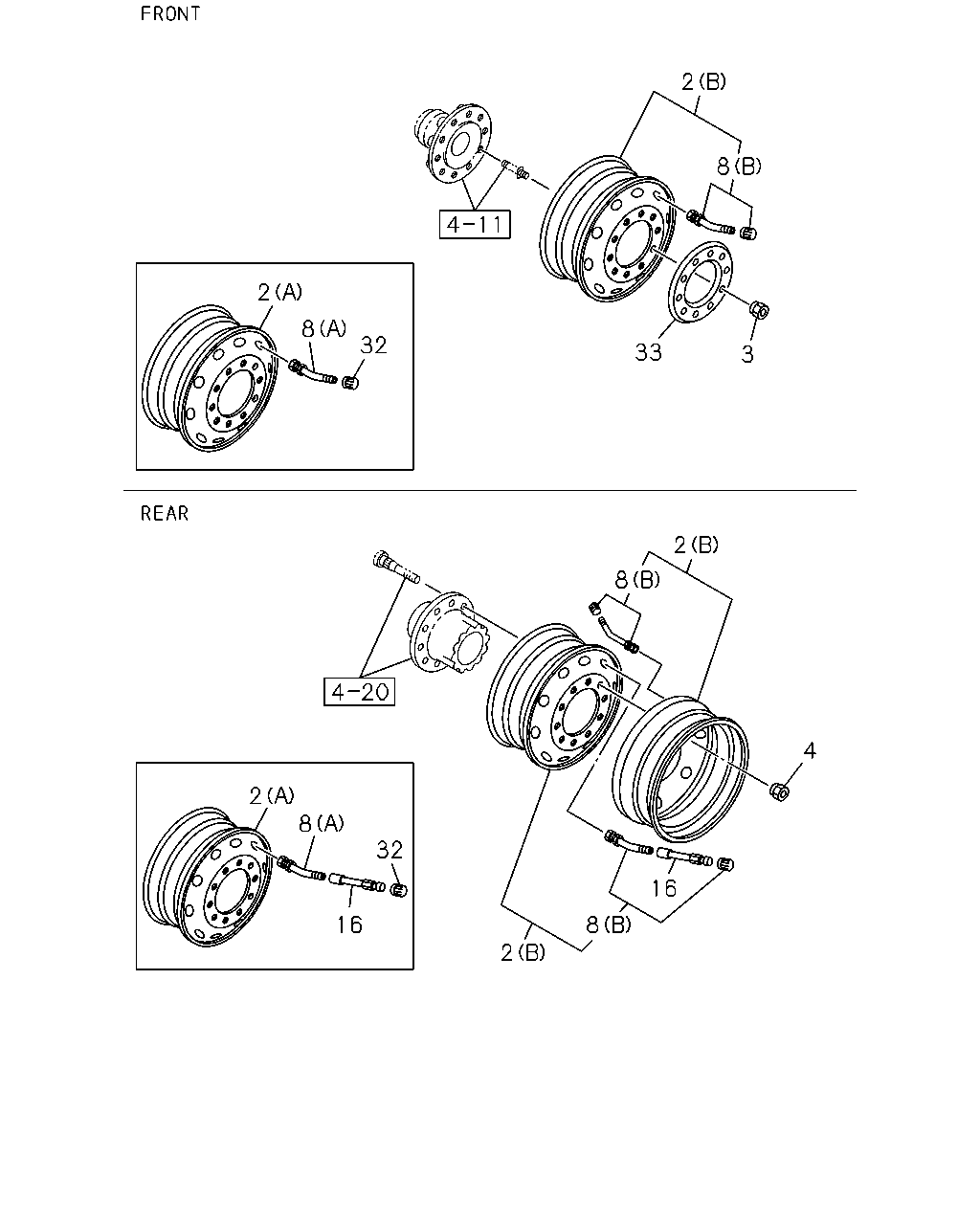

[480A] NO.1 (21 parça)
▶
2
31
32
3
2
31
31
2
4
16
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (C) FRONT,REAR
1-42350-448-0
06
1
1306-
2
WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE
1-42350-448-0
01
1
1306-
2
WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR
8-98217-247-0
06
1
1306-1407
2
WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR
8-98281-497-0
06
1
1408-
2
WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE
8-98217-247-0
01
1
1306-1407
2
WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE
8-98281-497-0
01
1
1408-
2
WHEEL; DISC
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (B) FRONT,REAR
1-42350-764-0
06
1
1306-
2
WHEEL; DISC
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE
1-42350-764-0
01
1
1306-
3
NUT; WHEEL,FRT AXLE
M22X1.5
1-42333-055-0
20
1
1306-
4
NUT; WHEEL,RR AXLE
M22X1.5
1-42333-055-0
20
1
1306-
16
HOLDER; TIRE VALVE,DISC WHEEL
L=170
8-98167-052-0
02
1
1306-
31
RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) FRONT,REAR
1-42355-014-0
06
1
1306-
31
RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE
1-42355-014-0
01
1
1306-
32
CAP; VALVE
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>
1-42374-001-0
05
1
1306-
32
CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
1-42374-001-0
06
1
1306-
32
CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>
1-42374-001-0
01
1
1306-
8
2
3
33
2
4
8
16
8
2
32
8
2
16
32
8
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (C) FRONT,REAR
1-42350-448-0
06
1
1306-
2
WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE
1-42350-448-0
01
1
1306-
2
WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR
8-98217-247-0
06
1
1306-1407
2
WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR
8-98281-497-0
06
1
1408-
2
WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE
8-98217-247-0
01
1
1306-1407
2
WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE
8-98281-497-0
01
1
1408-
2
WHEEL; DISC
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (B) FRONT,REAR
1-42350-764-0
06
1
1306-
2
WHEEL; DISC
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE
1-42350-764-0
01
1
1306-
3
NUT; WHEEL,FRT AXLE
M22X1.5
1-42333-055-0
20
1
1306-
4
NUT; WHEEL,RR AXLE
M22X1.5
1-42333-055-0
20
1
1306-
8
VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR
1-42370-048-0
06
1
1306-1407
8
VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR
1-42370-019-3
06
1
1408-
8
VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE
1-42370-048-0
01
1
1306-1407
8
VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE
1-42370-019-3
01
1
1408-
8
VALVE; TIRE
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (B) FRONT,REAR
1-42370-041-1
06
1
1306-
8
VALVE; TIRE
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE
1-42370-041-1
01
1
1306-
16
HOLDER; TIRE VALVE,DISC WHEEL
L=170
8-98167-052-0
02
1
1306-
32
CAP; VALVE
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>
1-42374-001-0
05
1
1306-
32
CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
1-42374-001-0
06
1
1306-
32
CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>
1-42374-001-0
01
1
1306-
33
COVER; WHEEL
FT WHEEL COVER<JEH>
1-43139-065-1
02
1
1306-
