◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11538 - EXR LHD EURO2 WITH REFLECTOR ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-35 - POWER STEERING CONTROL; CHASSIS SIDE ▶
4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#123540) — 105 parça

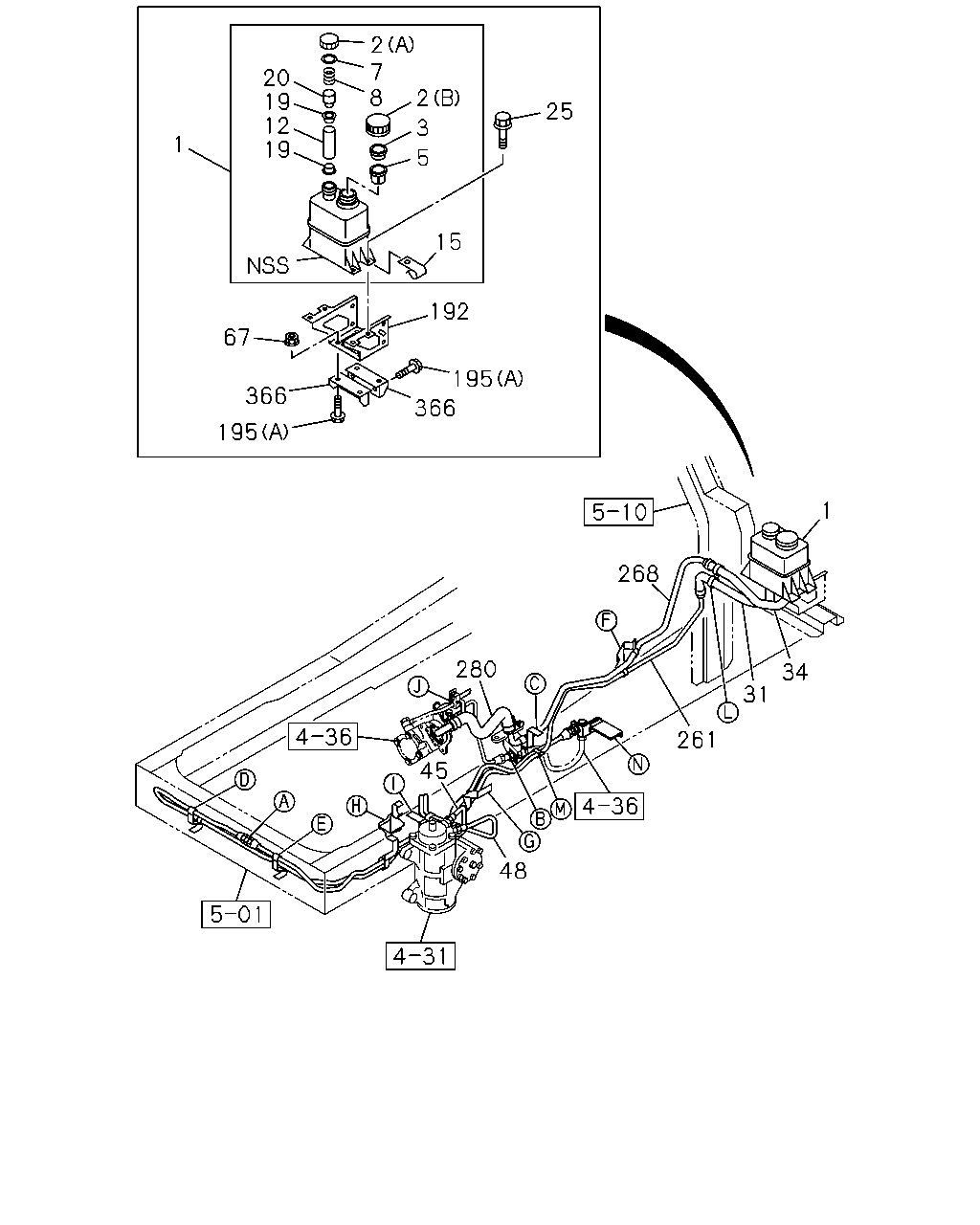

çizim 364235
1 25 15 192 195 366 366 195 67 1 5 3 2 8 7 2 19 19 12 20 268 31 261 34 48 45 280
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S 1-21210-235-1 01 1 1306-
2 CAP; OIL TANK,P/S
(A) WO/GAUGE 		1-21241-003-6 01 1 1306-
2 CAP; OIL TANK,P/S
(B) W/GAUGE 		1-21241-006-4 01 1 1306-
3 GASKET; OIL TANK,P/S 1-21249-006-2 01 1 1306-
5 STRAINER; OIL TANK,P/S 1-21235-006-1 01 1 1306-
7 RING; GASKET,OIL TANK,P/S 1-21249-005-0 01 1 1306-
8 SPRING; OIL TANK,P/S 1-09580-599-0 01 1 1306-
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-004-1 01 1 1306-
15 PLATE; FILTER,OIL TANK 1-21249-016-0 04 1 1306-
19 SEAT; OIL TANK 1-21262-001-0 02 1 1306-
20 HOLDER; FILTER,OIL TANK,P/S 1-21239-001-2 01 1 1306-
25 BOLT; OIL TANK BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1306-
31 HOSE; P/S OIL TANK,INL 8-98203-561-0 01 1 1306-
34 HOSE; P/S OIL TANK,OUTLET 8-98127-737-0 01 1 1306-
45 PIPE; OIL,P/S UNIT TO UNION 8-98224-869-0 01 1 1306-
48 PIPE; OIL,FLEX HOSE TO STRG UNIT 8-98233-229-0 01 1 1306-
67 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1306-
192 BRACKET; P/S OIL TANK 1-21489-200-1 01 1 1306-
195 BOLT; BRKT
(B) M8X12 FLANGE 		0-28050-812-0 02 1 1306-
195 BOLT; BRKT
(C) M10X35 FLANGE 		0-28151-035-0 01 1 1306-
195 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1306-
195 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 08 1 1306-
195 BOLT; BRKT
(D) M10X20 FLANGE 		0-28651-020-0 02 1 1306-
261 PIPE; OIL,UNION TO HOSE 8-98233-230-0 01 1 1306-
268 PIPE; OIL,FLEX HOSE TO FLEX HOSE 8-98226-736-0 01 1 1306-
280 HOSE; P/S OIL PUMP,INL 1-21117-831-0 01 1 1306-
366 SPACER; BRKT TO MEMBER 1-21489-196-1 02 1 1306-

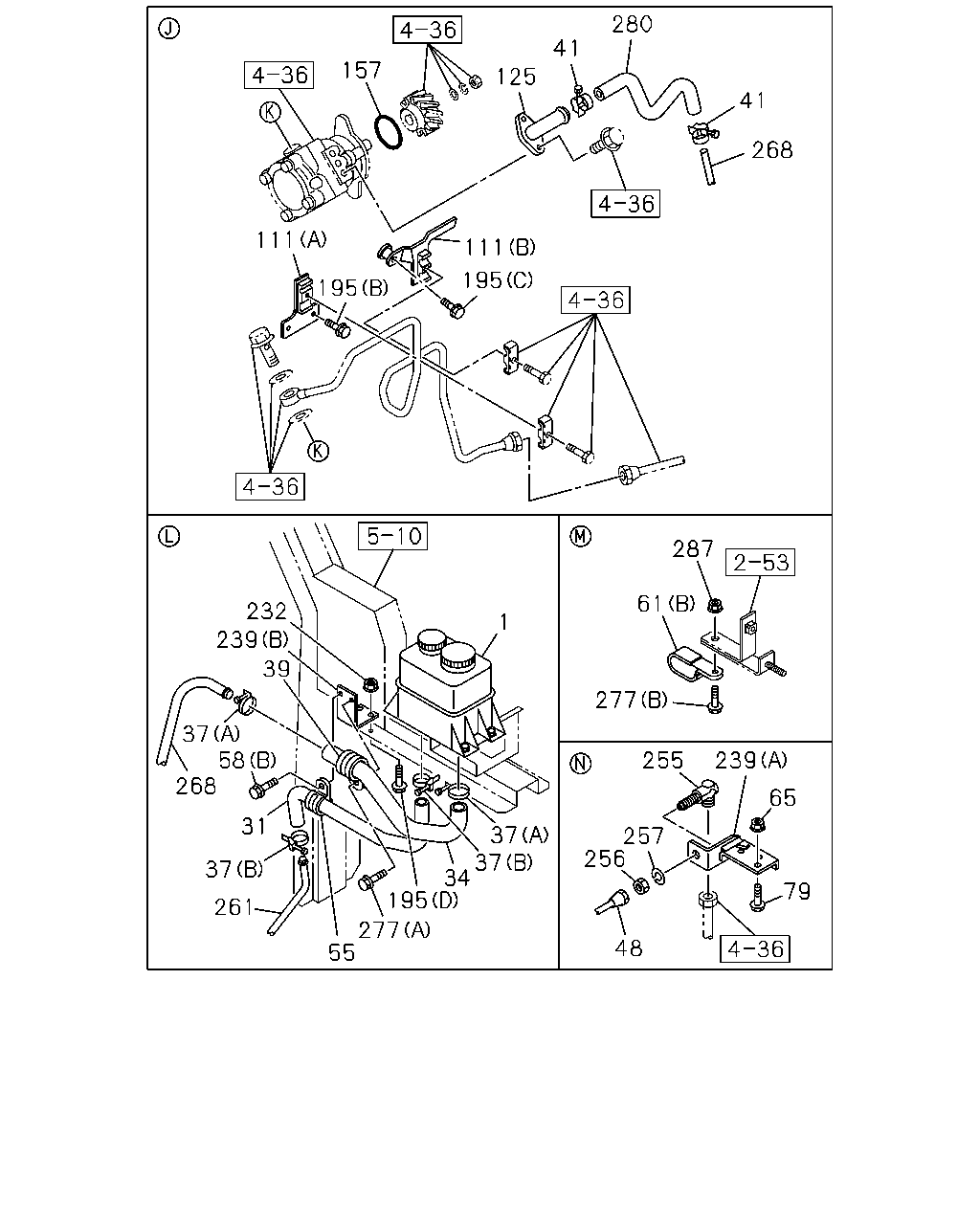

çizim 366235
280 41 268 41 125 157 111 111 195 195 287 61 277 255 239 65 79 48 256 257 37 37 34 195 277 55 261 31 37 1 39 232 239 37 268 58
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S 1-21210-235-1 01 1 1306-
31 HOSE; P/S OIL TANK,INL 8-98203-561-0 01 1 1306-
34 HOSE; P/S OIL TANK,OUTLET 8-98127-737-0 01 1 1306-
37 CLIP; HOSE,P/S
(A) ID=38 		9-09915-041-1 02 1 1306-
37 CLIP; HOSE,P/S
(B) ID=28 		9-09915-672-1 02 1 1306-
39 CLIP; FLEX HOSE
ID=37 L=35 		1-09701-109-0 01 1 1306-
41 CLIP; HOSE,P/S
ID=38 		9-09915-041-1 02 1 1306-
48 PIPE; OIL,FLEX HOSE TO STRG UNIT 8-98233-229-0 01 1 1306-
55 CLIP; P/S RUBBER HOSE
ID=28 L=32 		1-09701-107-1 01 1 1306-
58 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1306-
58 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1306-
58 BOLT; CLIP
(A) M10X25 FLANGE 		0-28651-025-0 02 1 1306-
61 CLIP; OIL PIPE
(C) ID=16 L=20 		0-95235-535-0 01 1 1306-
61 CLIP; OIL PIPE
(B) ID=16X2 L=20 		0-95325-535-0 01 1 1306-
61 CLIP; OIL PIPE
(A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 01 1 1306-
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1306-
79 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1306-
111 BRACKET; OIL PIPE
(A) 		1-13345-186-0 01 1 1306-
111 BRACKET; OIL PIPE
(B) 		1-13345-187-0 01 1 1306-
125 CONNECTOR; P/S PUMP 1-13313-532-0 01 1 1306-
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6 		1-09623-421-0 01 1 1306-
195 BOLT; BRKT
(B) M8X12 FLANGE 		0-28050-812-0 02 1 1306-
195 BOLT; BRKT
(C) M10X35 FLANGE 		0-28151-035-0 01 1 1306-
195 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1306-
195 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 08 1 1306-
195 BOLT; BRKT
(D) M10X20 FLANGE 		0-28651-020-0 02 1 1306-
232 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1306-
239 BRACKET; FLEX HOSE
(B) 		1-21464-780-0 01 1 1306-
239 BRACKET; FLEX HOSE
(A) 		8-98144-458-1 01 1 1306-
255 UNION; FLEX HOSE
M22 & M22 ELBOW 		1-09650-375-1 01 1 1306-
256 NUT; UNION
M22 		0-91111-522-0 01 1 1306-
256 NUT; UNION
M22 		0-91111-522-0 01 1 1306-
257 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 1306-
257 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 1306-
261 PIPE; OIL,UNION TO HOSE 8-98233-230-0 01 1 1306-
268 PIPE; OIL,FLEX HOSE TO FLEX HOSE 8-98226-736-0 01 1 1306-
277 BOLT; HOSE CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1306-
277 BOLT; HOSE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1306-
280 HOSE; P/S OIL PUMP,INL 1-21117-831-0 01 1 1306-
287 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1306-

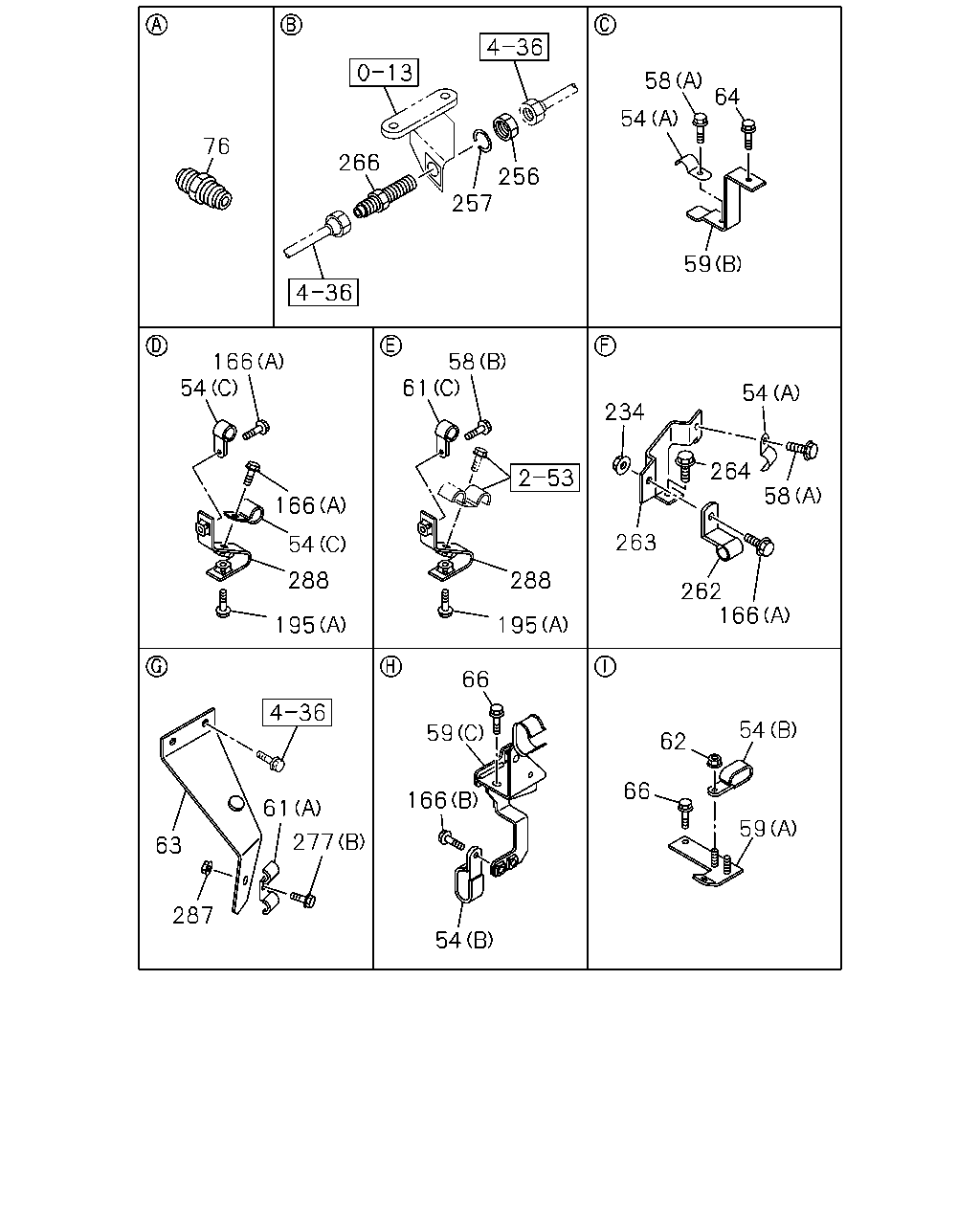

çizim 366701
64 59 54 58 257 256 266 76 166 54 166 54 288 195 195 288 61 58 234 264 54 263 262 166 58 54 62 59 66 59 66 166 61 277 63 287 54
BalonParca AdiParca NoAdetTipApplied Date
54 CLIP; OIL PIPE
(C) ID=16 L=20 		0-95235-535-0 02 1 1306-
54 CLIP; OIL PIPE
(B) ID=16X2 L=20 		0-95325-535-0 02 1 1306-
54 CLIP; OIL PIPE
(A) ID=23.6 L=35 		1-09700-634-0 02 1 1306-
58 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1306-
58 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1306-
58 BOLT; CLIP
(A) M10X25 FLANGE 		0-28651-025-0 02 1 1306-
59 BRACKET; CLIP,OIL PIPE
(B) 		1-47477-145-0 01 1 1306-
59 BRACKET; CLIP,OIL PIPE
(A) 		8-98224-867-0 01 1 1306-
59 BRACKET; CLIP,OIL PIPE
(C) 		8-98239-922-0 01 1 1306-
61 CLIP; OIL PIPE
(C) ID=16 L=20 		0-95235-535-0 01 1 1306-
61 CLIP; OIL PIPE
(B) ID=16X2 L=20 		0-95325-535-0 01 1 1306-
61 CLIP; OIL PIPE
(A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 01 1 1306-
62 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 01 1 1306-
63 BRACKET; CLIP,P/S 1-47471-146-0 01 1 1306-
64 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28050-830-0 01 1 1306-
66 BOLT; BRKT,OIL PIPE
M8X30 FLANGE 		0-28650-830-0 03 1 1306-
76 UNION; OIL PIPE
M22 L=51 		0-92123-015-0 01 1 1306-
166 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1306-
166 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1306-
166 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1306-
195 BOLT; BRKT
(B) M8X12 FLANGE 		0-28050-812-0 02 1 1306-
195 BOLT; BRKT
(C) M10X35 FLANGE 		0-28151-035-0 01 1 1306-
195 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1306-
195 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 08 1 1306-
195 BOLT; BRKT
(D) M10X20 FLANGE 		0-28651-020-0 02 1 1306-
234 NUT; PIPE CLIP,P/S
M8 FLANGE 		0-91180-108-0 01 1 1306-
256 NUT; UNION
M22 		0-91111-522-0 01 1 1306-
256 NUT; UNION
M22 		0-91111-522-0 01 1 1306-
257 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 1306-
257 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 1306-
262 CLIP; P/S PIPE
ID=15 H=24 L=20 		1-09700-606-0 01 1 1306-
263 BRACKET; P/S PIPE 1-47476-483-2 01 1 1306-
264 BOLT; PIPE BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1306-
266 UNION; OIL PIPE,P/S
M20 & M22 STRAIGHT 		1-09654-167-1 01 1 1306-
277 BOLT; HOSE CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1306-
277 BOLT; HOSE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1306-
287 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1306-
288 BRACKET; CLIP,P/S 1-47479-521-0 02 1 1306-
