◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11538 - EXR LHD EURO2 WITH REFLECTOR ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25B - REAR FINAL DRIVE ▶
4-25B — REAR FINAL DRIVE (#123536) — 170 parça

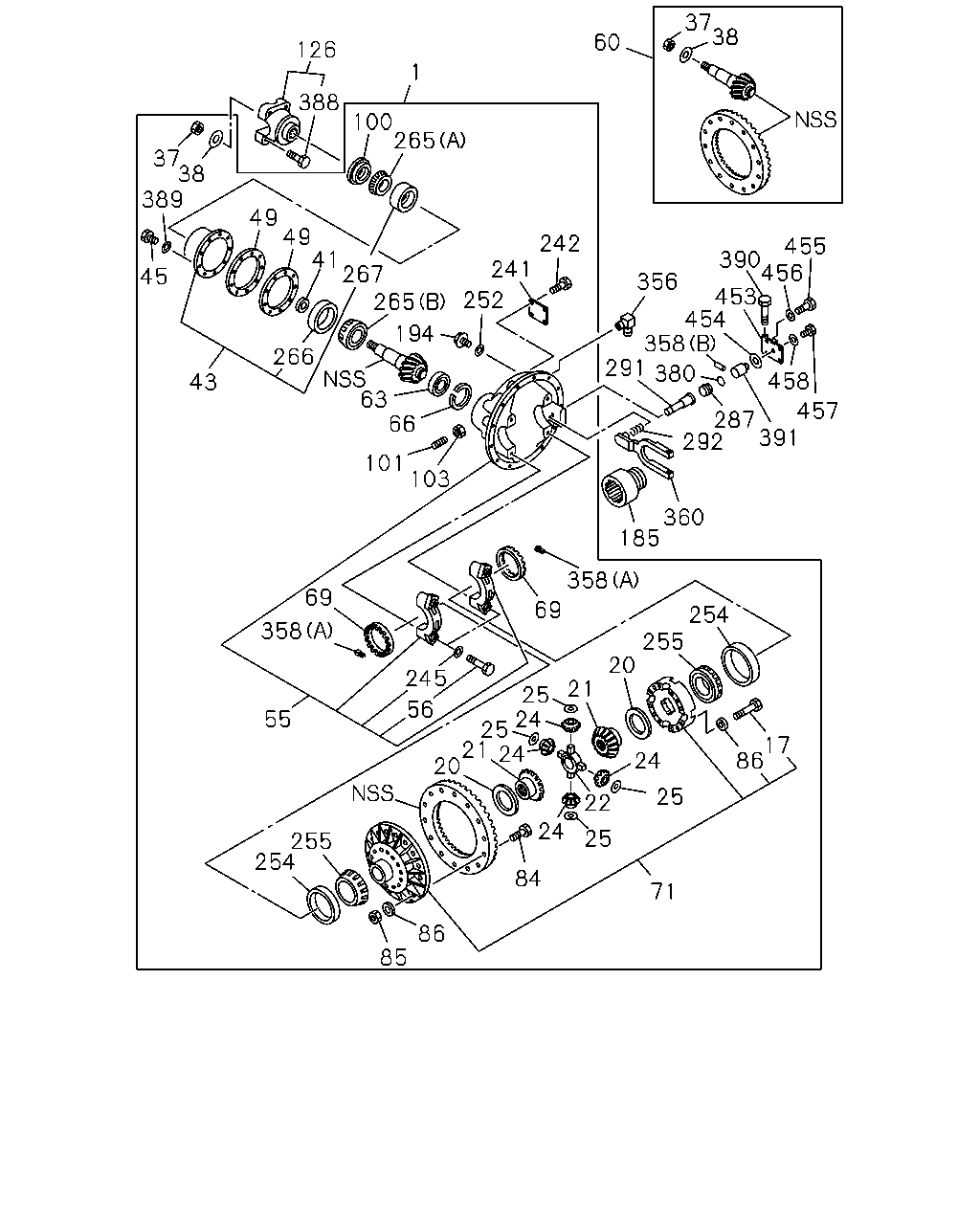

çizim 366906
287 292 391 457 458 453 454 358 291 356 390 455 456 360 185 358 69 20 21 25 24 25 21 20 24 24 25 24 22 25 17 86 254 255 71 84 86 255 254 55 358 69 43 266 41 49 49 38 37 389 45 1 100 388 126 265 265 267 194 66 63 101 103 245 56 252 241 242 60 37 38 380 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 DRIVE ASM; FINAL,RR
41/9 		1-41002-929-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
44/9 		1-41002-928-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
43/8 		1-41002-927-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
43/10 		1-41002-930-0 01 1 1306-1411 ●
1 DRIVE ASM; FINAL,RR
DIFF LOCK(C3N) 43/10 		1-41002-930-0 01 1 1412- ● ● ● ● ● ●
1 DRIVE ASM; FINAL,RR
41/10 		1-41002-931-0 01 1 1306-1411 ●
1 DRIVE ASM; FINAL,RR
43/11 		1-41002-932-0 01 1 1306- ●
17 BOLT; DIFF CAGE SETTING 1-41519-095-0 12 1 1306- ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41562-269-0 02 1 1306- ● ● ● ● ● ●
21 GEAR; SIDE,DIFF 1-41561-113-0 02 1 1306- ● ● ● ● ● ●
22 SPIDER; DIFF PINION 1-41521-054-0 01 1 1306- ● ● ● ● ● ●
24 GEAR; PINION,DIFF 1-41551-035-0 04 1 1306- ● ● ● ● ● ●
25 WASHER; THRUST,PINION 1-41552-037-0 04 1 1306- ● ● ● ● ● ●
37 NUT; DRIVING PINION 1-41219-028-0 01 1 1306- ● ● ● ● ● ●
38 WASHER; PL,DRIVING PINION 1-41210-689-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.35 		1-41229-372-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.38 		1-41229-373-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.40 		1-41229-374-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.43 		1-41229-375-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.45 		1-41229-376-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.50 		1-41229-377-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.60 		1-41229-378-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.63 		1-41229-379-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.65 		1-41229-380-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.68 		1-41229-381-0 01 1 1306- ● ● ● ● ● ●
43 CAGE; FINAL PINION 1-41151-103-0 01 1 1306- ● ● ● ● ● ●
45 BOLT; FINAL PINION CAGE 1-41159-059-0 08 1 1306- ● ● ● ● ● ●
45 BOLT; FINAL PINION CAGE 1-41159-059-0 08 1 1306- ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.125 		1-41154-115-0 AR 1 1306- ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.200 		1-41154-116-0 AR 1 1306- ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.500 		1-41154-117-0 AR 1 1306- ● ● ● ● ● ●
55 CARRIER; DIFF 1-41110-127-0 01 1 1306- ● ● ● ● ● ●
56 BOLT; BRG CAP 1-41119-066-0 04 1 1306- ● ● ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
41/9 		1-41210-685-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
44/9 		1-41210-686-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
43/8 		1-41210-687-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
43/10 		1-41210-684-0 01 1 1306-1411 ●
60 GEAR SET; FINAL DRIVE,RR
DIFF LOCK(C3N) 43/10 		1-41210-684-0 01 1 1412- ● ● ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
41/10 		1-41210-683-0 01 1 1306-1411 ●
60 GEAR SET; FINAL DRIVE,RR
43/11 		1-41210-682-0 01 1 1306- ●
63 BEARING; PINION PILOT 1-41219-034-0 01 1 1306- ● ● ● ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-035-0 01 1 1306- ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-052-0 01 1 1306-1411 ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-052-0 01 1 1412- ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-053-0 01 1 1306-1411 ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-053-0 01 1 1412- ● ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-312-0 01 1 1306- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-313-0 01 1 1306- ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41519-036-0 16 1 1306- ● ● ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 16 1 1306- ● ● ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING 1-41519-035-0 28 1 1306- ● ● ● ● ● ●
100 SEAL; OIL,FINAL PINION 1-41349-184-0 01 1 1306- ● ● ● ● ● ●
101 BOLT; ADJ,DRIVEN GEAR THRUST 1-41259-001-0 01 1 1306- ● ● ● ● ● ●
103 NUT; ADJ BOLT 1-41259-002-0 01 1 1306- ● ● ● ● ● ●
126 COUPLING; DRIVING PINION 1-37245-373-0 01 1 1306- ● ● ● ● ● ●
185 COLLAR; SHIFT FORK
DIFF LOCK(C3N) 		1-48269-210-0 01 1 1306- ● ● ● ● ● ●
194 PLUG 1-41119-072-0 01 1 1306- ● ● ● ● ● ●
241 COVER; SHIFT HSG 1-48269-220-0 01 1 1306- ● ● ● ● ● ●
242 BOLT; COVER 1-48269-260-0 04 1 1306- ● ● ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-065-0 04 1 1306- ● ● ● ● ● ●
252 GASKET; CARRIER
DIFF LOCK(C3N) 		1-48269-219-0 02 1 1306- ● ● ● ● ● ●
252 GASKET; CARRIER
EXC. DIFF LOCK(C3N) 		1-48269-219-0 01 1 1306- ● ● ● ● ● ●
254 CUP; DIFF BRG 1-41519-091-0 01 1 1306-1411 ● ● ● ● ● ●
254 CUP; DIFF BRG 1-41519-091-0 01 1 1412- ● ● ● ● ● ●
254 CUP; DIFF BRG 1-41519-092-0 01 1 1306-1411 ● ● ● ● ● ●
254 CUP; DIFF BRG 1-41519-092-0 01 1 1412- ● ● ● ● ● ●
255 CONE; DIFF BRG 1-41519-093-0 01 1 1306-1411 ● ● ● ● ● ●
255 CONE; DIFF BRG 1-41519-093-0 01 1 1412- ● ● ● ● ● ●
255 CONE; DIFF BRG 1-41519-094-0 01 1 1306-1411 ● ● ● ● ● ●
255 CONE; DIFF BRG 1-41519-094-0 01 1 1412- ● ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-033-0 01 1 1306- ● ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-135-0 01 1 1306- ● ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER 1-41219-137-0 01 1 1306- ● ● ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER 1-41219-136-0 01 1 1306- ● ● ● ● ● ●
287 PISTON; SHIFT UNIT
DIFF LOCK(C3N) 		1-48262-029-0 01 1 1306- ● ● ● ● ● ●
291 ROD; PUSH
DIFF LOCK(C3N) 		1-48269-211-0 01 1 1306- ● ● ● ● ● ●
292 SPRING; PISTON
DIFF LOCK(C3N) 		1-48265-012-0 01 1 1306- ● ● ● ● ● ●
356 NIPPLE; SHIFT UNIT
DIFF LOCK(C3N) 		1-09650-490-0 01 1 1306- ● ● ● ● ● ●
358 PIN; SPR
(A) 		1-41129-020-0 02 1 1306- ● ● ● ● ● ●
358 PIN; SPR
DIFF LOCK(C3N) (B) 		1-48269-218-0 01 1 1306- ● ● ● ● ● ●
360 FORK; SHIFT
DIFF LOCK(C3N) 		1-48269-207-0 01 1 1306- ● ● ● ● ● ●
380 GASKET; PISTON
DIFF LOCK(C3N) 		1-48269-215-0 01 1 1306- ● ● ● ● ● ●
388 BOLT; COUPLING
M14X48.5 		1-09046-013-0 04 1 1306- ● ● ● ● ● ●
389 WASHER; FINAL PINION CAGE 1-41159-009-0 08 1 1306- ● ● ● ● ● ●
389 WASHER; FINAL PINION CAGE 1-41159-009-0 08 1 1306- ● ● ● ● ● ●
390 BOLT; CAGING
DIFF LOCK(C3N) 		1-48269-213-0 01 1 1306- ● ● ● ● ● ●
391 CYLINDER; SHIFT
DIFF LOCK(C3N) 		1-48269-206-0 01 1 1306- ● ● ● ● ● ●
453 COVER; CYLINDER
DIFF LOCK(C3N) 		1-48269-212-0 01 1 1306- ● ● ● ● ● ●
454 GASKET; CYLINDER
DIFF LOCK(C3N) 		1-48269-208-0 01 1 1306- ● ● ● ● ● ●
455 BOLT; CYLINDER COVER
DIFF LOCK(C3N) 		1-48269-216-0 04 1 1306- ● ● ● ● ● ●
456 WASHER; CYLINDER COVER
DIFF LOCK(C3N) 		1-48269-217-0 04 1 1306- ● ● ● ● ● ●
457 CAP; SCREW,DIFF LOCK
DIFF LOCK(C3N) 		1-48269-214-0 01 1 1306- ● ● ● ● ● ●
458 GASKET; CYLINDER CAP
DIFF LOCK(C3N) 		1-48269-209-0 01 1 1306- ● ● ● ● ● ●

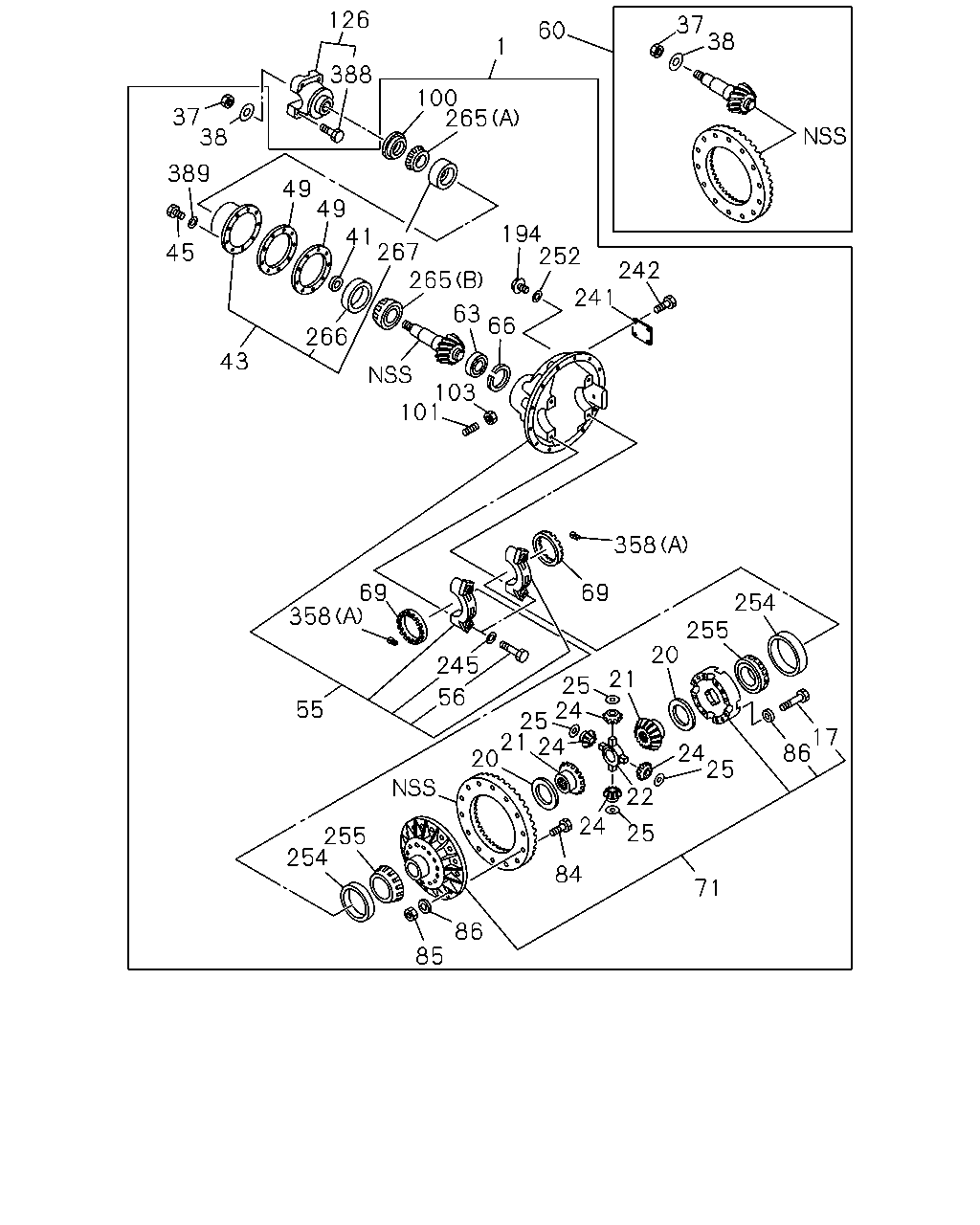

çizim 367080
254 255 20 21 25 24 25 21 20 24 24 25 24 25 22 84 71 86 17 69 358 101 103 63 265 267 66 252 24 242 194 41 49 49 389 38 37 126 388 1 265 100 60 37 38 245 56 358 55 255 254 85 86 266 43 45 69
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 DRIVE ASM; FINAL,RR
41/9 		1-41002-929-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
44/9 		1-41002-928-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
43/8 		1-41002-927-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
43/10 		1-41002-930-0 01 1 1306-1411 ●
1 DRIVE ASM; FINAL,RR
DIFF LOCK(C3N) 43/10 		1-41002-930-0 01 1 1412- ● ● ● ● ● ●
1 DRIVE ASM; FINAL,RR
41/10 		1-41002-931-0 01 1 1306-1411 ●
1 DRIVE ASM; FINAL,RR
43/11 		1-41002-932-0 01 1 1306- ●
17 BOLT; DIFF CAGE SETTING 1-41519-095-0 12 1 1306- ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41562-269-0 02 1 1306- ● ● ● ● ● ●
21 GEAR; SIDE,DIFF 1-41561-113-0 02 1 1306- ● ● ● ● ● ●
22 SPIDER; DIFF PINION 1-41521-054-0 01 1 1306- ● ● ● ● ● ●
24 GEAR; PINION,DIFF 1-41551-035-0 04 1 1306- ● ● ● ● ● ●
25 WASHER; THRUST,PINION 1-41552-037-0 04 1 1306- ● ● ● ● ● ●
37 NUT; DRIVING PINION 1-41219-028-0 01 1 1306- ● ● ● ● ● ●
38 WASHER; PL,DRIVING PINION 1-41210-689-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.35 		1-41229-372-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.38 		1-41229-373-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.40 		1-41229-374-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.43 		1-41229-375-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.45 		1-41229-376-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.50 		1-41229-377-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.60 		1-41229-378-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.63 		1-41229-379-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.65 		1-41229-380-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.68 		1-41229-381-0 01 1 1306- ● ● ● ● ● ●
43 CAGE; FINAL PINION 1-41151-103-0 01 1 1306- ● ● ● ● ● ●
45 BOLT; FINAL PINION CAGE 1-41159-059-0 08 1 1306- ● ● ● ● ● ●
45 BOLT; FINAL PINION CAGE 1-41159-059-0 08 1 1306- ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.125 		1-41154-115-0 AR 1 1306- ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.200 		1-41154-116-0 AR 1 1306- ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.500 		1-41154-117-0 AR 1 1306- ● ● ● ● ● ●
55 CARRIER; DIFF 1-41110-127-0 01 1 1306- ● ● ● ● ● ●
56 BOLT; BRG CAP 1-41119-066-0 04 1 1306- ● ● ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
41/9 		1-41210-685-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
44/9 		1-41210-686-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
43/8 		1-41210-687-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
43/10 		1-41210-684-0 01 1 1306-1411 ●
60 GEAR SET; FINAL DRIVE,RR
DIFF LOCK(C3N) 43/10 		1-41210-684-0 01 1 1412- ● ● ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
41/10 		1-41210-683-0 01 1 1306-1411 ●
60 GEAR SET; FINAL DRIVE,RR
43/11 		1-41210-682-0 01 1 1306- ●
63 BEARING; PINION PILOT 1-41219-034-0 01 1 1306- ● ● ● ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-035-0 01 1 1306- ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-052-0 01 1 1306-1411 ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-052-0 01 1 1412- ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-053-0 01 1 1306-1411 ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-053-0 01 1 1412- ● ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-312-0 01 1 1306- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-313-0 01 1 1306- ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41519-036-0 16 1 1306- ● ● ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 16 1 1306- ● ● ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING 1-41519-035-0 28 1 1306- ● ● ● ● ● ●
100 SEAL; OIL,FINAL PINION 1-41349-184-0 01 1 1306- ● ● ● ● ● ●
101 BOLT; ADJ,DRIVEN GEAR THRUST 1-41259-001-0 01 1 1306- ● ● ● ● ● ●
103 NUT; ADJ BOLT 1-41259-002-0 01 1 1306- ● ● ● ● ● ●
126 COUPLING; DRIVING PINION 1-37245-373-0 01 1 1306- ● ● ● ● ● ●
194 PLUG 1-41119-072-0 01 1 1306- ● ● ● ● ● ●
242 BOLT; COVER 1-48269-260-0 04 1 1306- ● ● ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-065-0 04 1 1306- ● ● ● ● ● ●
252 GASKET; CARRIER
DIFF LOCK(C3N) 		1-48269-219-0 02 1 1306- ● ● ● ● ● ●
252 GASKET; CARRIER
EXC. DIFF LOCK(C3N) 		1-48269-219-0 01 1 1306- ● ● ● ● ● ●
254 CUP; DIFF BRG 1-41519-091-0 01 1 1306-1411 ● ● ● ● ● ●
254 CUP; DIFF BRG 1-41519-091-0 01 1 1412- ● ● ● ● ● ●
254 CUP; DIFF BRG 1-41519-092-0 01 1 1306-1411 ● ● ● ● ● ●
254 CUP; DIFF BRG 1-41519-092-0 01 1 1412- ● ● ● ● ● ●
255 CONE; DIFF BRG 1-41519-093-0 01 1 1306-1411 ● ● ● ● ● ●
255 CONE; DIFF BRG 1-41519-093-0 01 1 1412- ● ● ● ● ● ●
255 CONE; DIFF BRG 1-41519-094-0 01 1 1306-1411 ● ● ● ● ● ●
255 CONE; DIFF BRG 1-41519-094-0 01 1 1412- ● ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-033-0 01 1 1306- ● ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-135-0 01 1 1306- ● ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER 1-41219-137-0 01 1 1306- ● ● ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER 1-41219-136-0 01 1 1306- ● ● ● ● ● ●
358 PIN; SPR
(A) 		1-41129-020-0 02 1 1306- ● ● ● ● ● ●
358 PIN; SPR
DIFF LOCK(C3N) (B) 		1-48269-218-0 01 1 1306- ● ● ● ● ● ●
388 BOLT; COUPLING
M14X48.5 		1-09046-013-0 04 1 1306- ● ● ● ● ● ●
389 WASHER; FINAL PINION CAGE 1-41159-009-0 08 1 1306- ● ● ● ● ● ●
389 WASHER; FINAL PINION CAGE 1-41159-009-0 08 1 1306- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
