Sayfa 4-25A - Isuzu EPC

4-25A — REAR FINAL DRIVE (#123535) — 197 parça

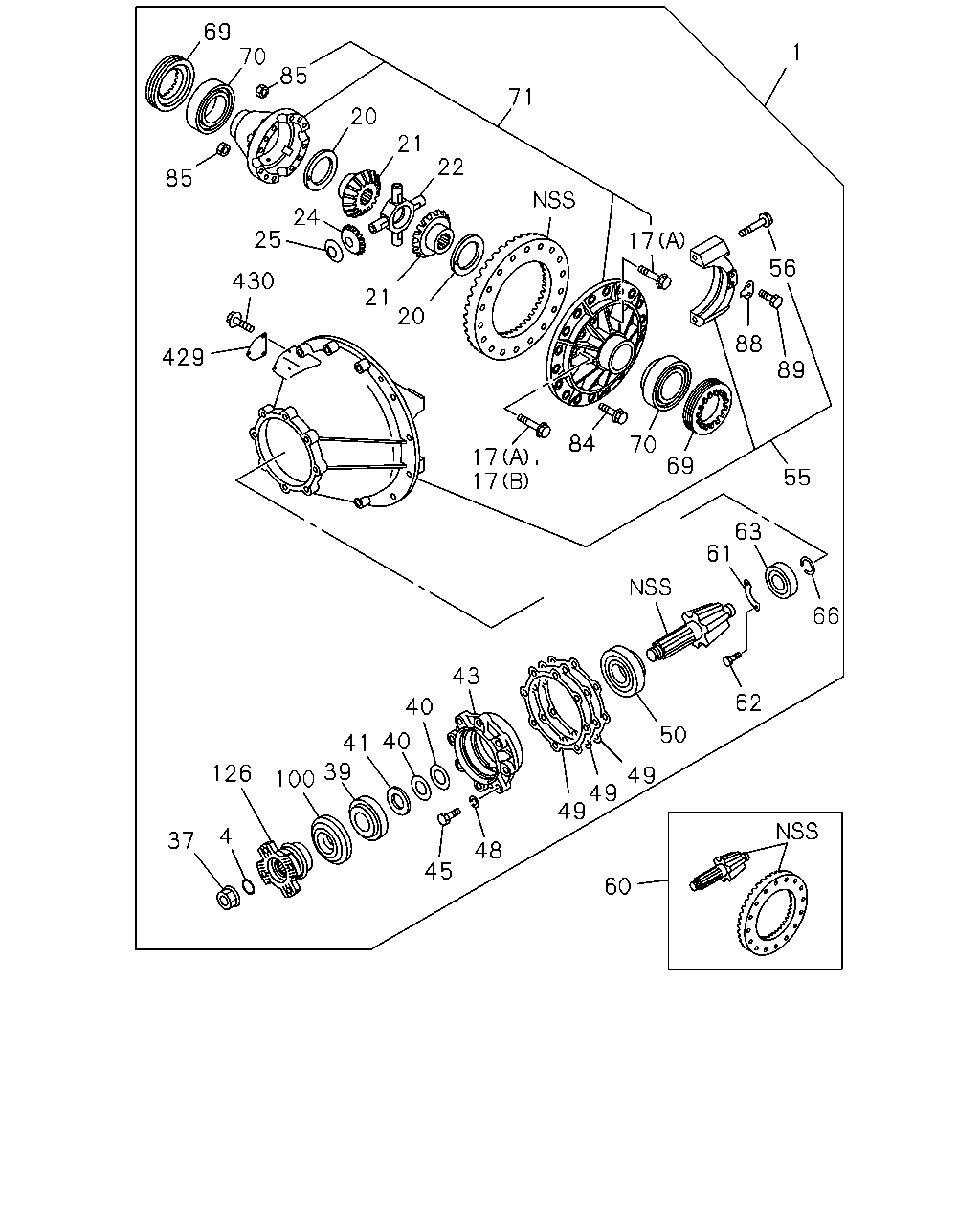

1 71 22 17 48 43 40 40 41 56 89 88 55 69 70 66 63 61 62 50 49 49 49 60 45 39 21 20 85 70 69 85 21 24 25 20 430 429 100 126 37 4 17 84 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	DRIVE ASM; FINAL,RR DIFF LOCK(C3N) 39/8	1-41003-518-0	01	1	1306-	●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK(C3N) 39/8	1-41003-516-0	01	1	1306-	●
1	DRIVE ASM; FINAL,RR DIFF LOCK(C3N) 41/8	1-41003-517-0	01	1	1306-		●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK(C3N) 41/8	1-41003-515-0	01	1	1306-		●
1	DRIVE ASM; FINAL,RR DIFF LOCK(C3N) 41/9	1-41003-326-0	01	1	1306-			●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK(C3N) 41/9	1-41003-317-0	01	1	1306-			●
1	DRIVE ASM; FINAL,RR DIFF LOCK(C3N) 41/10	1-41003-328-0	01	1	1306-				●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK(C3N) 41/10	1-41003-319-0	01	1	1306-				●
1	DRIVE ASM; FINAL,RR DIFF LOCK(C3N) 43/11	1-41003-329-0	01	1	1306-					●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK(C3N) 43/11	1-41003-320-0	01	1	1306-					●
1	DRIVE ASM; FINAL,RR DIFF LOCK(C3N) 39/9	1-41003-327-0	01	1	1306-						●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK(C3N) 39/9	1-41003-318-0	01	1	1306-						●
1	DRIVE ASM; FINAL,RR DIFF LOCK(C3N) 41/10	1-41002-931-0	01	1	1412-	●	●	●	●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	1306-	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X141 FLANGE	1-09070-013-0	08	1	1306-	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (B) M16X105 FLANGE	1-09070-014-0	04	1	1306-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-270-1	AR	1	1306-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-271-1	AR	1	1306-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-272-1	AR	1	1306-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-273-1	AR	1	1306-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-274-1	AR	1	1306-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-275-1	AR	1	1306-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-276-1	AR	1	1306-	●	●	●	●	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-167-0	02	1	1306-	●	●	●	●	●	●
22	SPIDER; DIFF PINION OD=35	1-41521-052-0	01	1	1306-	●	●	●	●	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-054-0	04	1	1306-	●	●	●	●	●	●
25	WASHER; THRUST,PINION T=1.6	1-41552-003-0	04	1	1306-	●	●	●	●	●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	1306-	●	●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	1306-	●	●	●	●	●	●
39	BEARING; FINAL PINION JTEKT	1-09812-076-1	01	1	1306-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	1306-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	1306-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	1306-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	1306-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	1306-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	1306-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	1306-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	1306-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	1306-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	1306-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	1306-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	1306-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	1306-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	1306-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	1306-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	1306-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	1306-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	1306-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	1306-	●	●	●	●	●	●
43	CAGE; FINAL PINION T=82	1-41151-057-0	01	1	1306-	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	1306-	●	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	0-91510-516-0	08	1	1306-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-077-0	AR	1	1306-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	1306-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-079-0	AR	1	1306-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-080-0	AR	1	1306-	●	●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-250-0	01	1	1306-	●	●	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-251-0	01	1	1306-	●	●	●	●	●	●
55	CARRIER; DIFF	1-41110-117-1	01	1	1306-	●	●	●	●	●	●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	1306-	●	●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR 39/8	1-41210-744-0	01	1	1306-	●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-743-0	01	1	1306-		●
60	GEAR SET; FINAL DRIVE,RR 41/9	1-41210-719-0	01	1	1306-			●
60	GEAR SET; FINAL DRIVE,RR 41/10	1-41210-721-0	01	1	1306-				●
60	GEAR SET; FINAL DRIVE,RR 43/11	1-41210-722-0	01	1	1306-					●
60	GEAR SET; FINAL DRIVE,RR 39/9	1-41210-720-0	01	1	1306-						●
60	GEAR SET; FINAL DRIVE,RR DIFF LOCK(C3N) 41/10	1-41210-683-0	01	1	1412-	●	●	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-008-0	01	1	1306-	●	●	●	●	●	●
62	BOLT; RET M8X16	0-20850-816-0	02	1	1306-	●	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	1306-	●	●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-153-0	01	1	1306-	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	1306-	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-051-0	01	1	1306-1411	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-051-0	01	1	1412-	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-050-0	01	1	1306-1411	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-050-0	01	1	1412-	●	●	●	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=110 OD=170 T=38	1-09812-226-0	02	1	1306-	●	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-253-0	01	1	1306-	●	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	18	1	1306-	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	1306-	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT T=3.2	1-41124-026-0	02	1	1306-	●	●	●	●	●	●
89	BOLT; LK PLATE M10X20 FLANGE	0-28751-020-0	04	1	1306-	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	1306-	●	●	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-343-0	01	1	1306-	●	●	●	●	●	●
429	PLATE; DUMMY EXC. DIFF LOCK(C3N)	1-41279-014-0	01	1	1306-	●	●	●	●	●	●
430	BOLT; PLATE,DUMMY EXC. DIFF LOCK(C3N) M8X20 FLANGE	0-28650-820-0	03	1	1306-	●	●	●	●	●	●

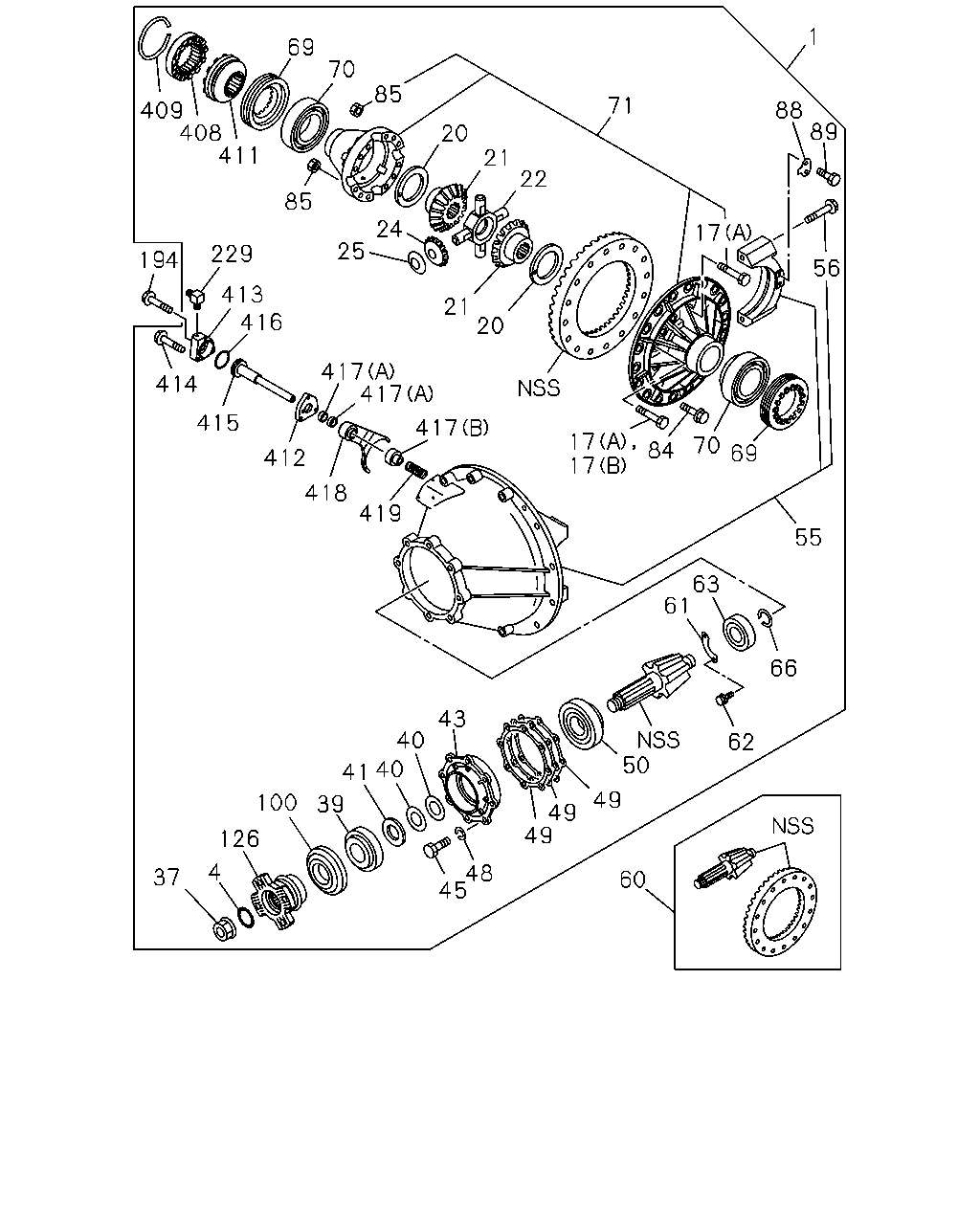

71 1 88 56 89 17 55 69 409 194 408 85 411 25 24 70 20 21 22 21 20 17 70 17 84 419 69 63 61 66 62 49 60 49 49 48 45 37 100 126 4 39 43 40 40 41 418 412 415 414 229 416 413 417 417 417 85 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	DRIVE ASM; FINAL,RR DIFF LOCK(C3N) 39/8	1-41003-518-0	01	1	1306-	●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK(C3N) 39/8	1-41003-516-0	01	1	1306-	●
1	DRIVE ASM; FINAL,RR DIFF LOCK(C3N) 41/8	1-41003-517-0	01	1	1306-		●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK(C3N) 41/8	1-41003-515-0	01	1	1306-		●
1	DRIVE ASM; FINAL,RR DIFF LOCK(C3N) 41/9	1-41003-326-0	01	1	1306-			●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK(C3N) 41/9	1-41003-317-0	01	1	1306-			●
1	DRIVE ASM; FINAL,RR DIFF LOCK(C3N) 41/10	1-41003-328-0	01	1	1306-				●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK(C3N) 41/10	1-41003-319-0	01	1	1306-				●
1	DRIVE ASM; FINAL,RR DIFF LOCK(C3N) 43/11	1-41003-329-0	01	1	1306-					●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK(C3N) 43/11	1-41003-320-0	01	1	1306-					●
1	DRIVE ASM; FINAL,RR DIFF LOCK(C3N) 39/9	1-41003-327-0	01	1	1306-						●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK(C3N) 39/9	1-41003-318-0	01	1	1306-						●
1	DRIVE ASM; FINAL,RR DIFF LOCK(C3N) 41/10	1-41002-931-0	01	1	1412-	●	●	●	●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	1306-	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X141 FLANGE	1-09070-013-0	08	1	1306-	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (B) M16X105 FLANGE	1-09070-014-0	04	1	1306-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-270-1	AR	1	1306-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-271-1	AR	1	1306-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-272-1	AR	1	1306-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-273-1	AR	1	1306-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-274-1	AR	1	1306-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-275-1	AR	1	1306-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-276-1	AR	1	1306-	●	●	●	●	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-167-0	02	1	1306-	●	●	●	●	●	●
22	SPIDER; DIFF PINION OD=35	1-41521-052-0	01	1	1306-	●	●	●	●	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-054-0	04	1	1306-	●	●	●	●	●	●
25	WASHER; THRUST,PINION T=1.6	1-41552-003-0	04	1	1306-	●	●	●	●	●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	1306-	●	●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	1306-	●	●	●	●	●	●
39	BEARING; FINAL PINION JTEKT	1-09812-076-1	01	1	1306-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	1306-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	1306-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	1306-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	1306-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	1306-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	1306-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	1306-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	1306-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	1306-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	1306-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	1306-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	1306-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	1306-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	1306-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	1306-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	1306-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	1306-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	1306-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	1306-	●	●	●	●	●	●
43	CAGE; FINAL PINION T=82	1-41151-057-0	01	1	1306-	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	1306-	●	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	0-91510-516-0	08	1	1306-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-077-0	AR	1	1306-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	1306-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-079-0	AR	1	1306-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-080-0	AR	1	1306-	●	●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-250-0	01	1	1306-	●	●	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-251-0	01	1	1306-	●	●	●	●	●	●
55	CARRIER; DIFF	1-41110-117-1	01	1	1306-	●	●	●	●	●	●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	1306-	●	●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR 39/8	1-41210-744-0	01	1	1306-	●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-743-0	01	1	1306-		●
60	GEAR SET; FINAL DRIVE,RR 41/9	1-41210-719-0	01	1	1306-			●
60	GEAR SET; FINAL DRIVE,RR 41/10	1-41210-721-0	01	1	1306-				●
60	GEAR SET; FINAL DRIVE,RR 43/11	1-41210-722-0	01	1	1306-					●
60	GEAR SET; FINAL DRIVE,RR 39/9	1-41210-720-0	01	1	1306-						●
60	GEAR SET; FINAL DRIVE,RR DIFF LOCK(C3N) 41/10	1-41210-683-0	01	1	1412-	●	●	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-008-0	01	1	1306-	●	●	●	●	●	●
62	BOLT; RET M8X16	0-20850-816-0	02	1	1306-	●	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	1306-	●	●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-153-0	01	1	1306-	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	1306-	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-051-0	01	1	1306-1411	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-051-0	01	1	1412-	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-050-0	01	1	1306-1411	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-050-0	01	1	1412-	●	●	●	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=110 OD=170 T=38	1-09812-226-0	02	1	1306-	●	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-253-0	01	1	1306-	●	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	18	1	1306-	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	1306-	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT T=3.2	1-41124-026-0	02	1	1306-	●	●	●	●	●	●
89	BOLT; LK PLATE M10X20 FLANGE	0-28751-020-0	04	1	1306-	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	1306-	●	●	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-343-0	01	1	1306-	●	●	●	●	●	●
194	PLUG DIFF LOCK(C3N) M8X10 FLANGE	0-28050-810-0	01	1	1306-	●	●	●	●	●	●
229	CONNECTOR DIFF LOCK(C3N) M12 & PT1/8	0-92124-306-0	01	1	1306-	●	●	●	●	●	●
408	CLAW; CLU,DIFF LK DIFF LOCK(C3N)	1-41266-020-1	01	1	1306-	●	●	●	●	●	●
409	CIRCUIT DIFF LOCK(C3N)	1-33219-024-0	01	1	1306-	●	●	●	●	●	●
411	SLEEVE; CLU DIFF LOCK(C3N)	1-41266-021-2	01	1	1306-	●	●	●	●	●	●
412	STOPPER; STROKE,SHIFT DIFF LOCK(C3N)	1-41279-017-1	01	1	1306-	●	●	●	●	●	●
413	CYLINDER; DIFF LK DIFF LOCK(C3N)	1-41279-018-0	01	1	1306-1404	●	●	●	●	●	●
413	CYLINDER; DIFF LK DIFF LOCK(C3N)	1-41279-023-0	01	1	1405-	●	●	●	●	●	●
414	BOLT; CYL DIFF LOCK(C3N) M8X45 FLANGE	0-28050-845-0	03	1	1306-1404	●	●	●	●	●	●
414	BOLT; CYL DIFF LOCK(C3N) M8X50 FLANGE	0-28050-850-0	03	1	1405-	●	●	●	●	●	●
415	ROD; PISTON,DIFF LK DIFF LOCK(C3N)	1-41279-016-0	01	1	1306-	●	●	●	●	●	●
416	GASKET DIFF LOCK(C3N) ID=43.7	9-09561-344-0	01	1	1306-	●	●	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK(C3N) (B) T=10.0	1-41229-338-0	01	1	1306-1411	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK(C3N) (B) T=10.0	1-41229-338-0	01	1	1412-	●	●	●			●
417	SHIM; DIFF LK DIFF LOCK(C3N) (A) T=4.0	1-41229-274-0	AR	1	1306-	●	●	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK(C3N) (A) T=4.5	1-41229-275-0	AR	1	1306-	●	●	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK(C3N) (A) T=5.0	1-41229-276-0	AR	1	1306-	●	●	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK(C3N) (A) T=5.5	1-41229-277-0	AR	1	1306-	●	●	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK(C3N) (A) T=6.0	1-41229-278-0	AR	1	1306-	●	●	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK(C3N) (A) T=6.5	1-41229-279-0	AR	1	1306-	●	●	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK(C3N) (A) T=7.0	1-41229-280-0	AR	1	1306-	●	●	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK(C3N) (A) T=7.5	1-41229-281-0	AR	1	1306-	●	●	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK(C3N) (A) T=8.0	1-41229-282-0	AR	1	1306-	●	●	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK(C3N) (A) T=10.0	1-41229-297-0	AR	1	1306-	●	●	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK(C3N) (A) T=15.0	1-41229-298-0	AR	1	1306-	●	●	●	●	●	●
418	SHIFT FORK; DIFF LK DIFF LOCK(C3N)	1-41271-012-0	01	1	1306-	●	●	●	●	●	●
419	SPRING; DIFF LK DIFF LOCK(C3N)	1-09580-507-0	01	1	1306-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
