4-01 — PROPELLER SHAFT (#123531) — 33 parça

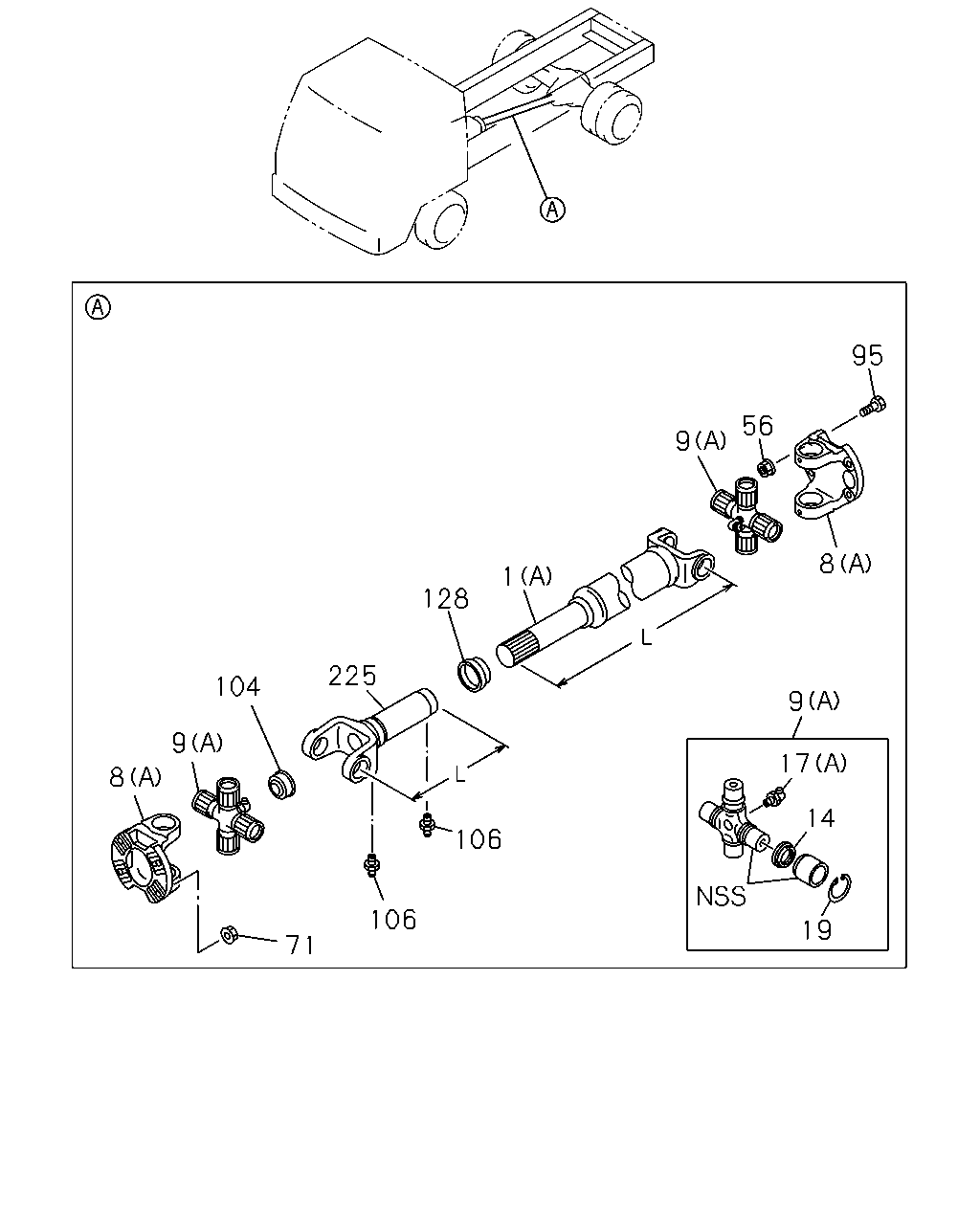

8 9 104 225 128 1 9 56 95 8 106 106 71 9 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP MJT7S M/T(Y3E) FINAL GEAR 18.5" STRENGTHEN TYPE<FAV> (A) L=1155	1-37125-395-0	01	1	1306-
1	SHAFT; PROP MJT7S M/T(Y3E) FINAL GEAR 19.5"<BDC> (A) L=1130	1-37125-398-0	01	1	1306-
1	SHAFT; PROP MJX16P M/T(Y3Z) FINAL GEAR 18.5" STRENGTHEN TYPE<FAV> (B) L=1425	1-37124-763-1	01	1	1306-
1	SHAFT; PROP MJX16P M/T(Y3Z) FINAL GEAR 19.5"<BDC> (B) L=1410	8-98028-250-0	01	1	1306-
8	YOKE; FLANGE,PROP SHAFT MJT7S M/T(Y3E) (A)	1-37211-084-0	02	1	1306-
8	YOKE; FLANGE,PROP SHAFT MJX16P M/T(Y3Z) (B)	1-37211-083-0	02	1	1306-
9	JOURNAL ASM; PROP SHAFT MJT7S M/T(Y3E) (A)	1-37300-112-0	02	1	1306-
9	JOURNAL ASM; PROP SHAFT MJX16P M/T(Y3Z) (B)	1-37300-118-0	02	1	1306-
14	COVER; DUST,SPIDER MJT7S M/T(Y3E)	1-37249-133-0	08	1	1306-
17	NIPPLE; GREASE,PROP SHAFT MJT7S M/T(Y3E) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1306-
17	NIPPLE; GREASE,PROP SHAFT MJX16P M/T(Y3Z) (B)	1-37319-013-0	02	1	1306-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MJT7S M/T(Y3E) T=2.2	1-09587-103-1	08	1	1306-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MJT7S M/T(Y3E) T=2.17	1-09587-107-0	08	1	1306-
56	NUT; YOKE M14 FLANGE	8-97365-444-0	04	1	1306-
71	NUT; YOKE M14 FLANGE	8-97365-444-0	04	1	1306-
95	BOLT; YOKE,FINAL M14X50	1-09000-645-0	04	1	1306-
104	PLUG; SLEEVE YOKE MJT7S M/T(Y3E)	1-09600-049-0	01	1	1306-
106	NIPPLE; GREASE,YOKE,PROP SHAFT MJT7S M/T(Y3E) PT1/8 STRAIGHT	0-90301-410-0	02	1	1306-
128	SEAL; SLEEVE MJT7S M/T(Y3E)	1-37247-020-0	01	1	1306-
225	YOKE; SLEEVE,PROP SHAFT MJT7S M/T(Y3E) L=339	1-37241-140-0	01	1	1306-

1 56 95 17 9 8 9 17 8 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP MJT7S M/T(Y3E) FINAL GEAR 18.5" STRENGTHEN TYPE<FAV> (A) L=1155	1-37125-395-0	01	1	1306-
1	SHAFT; PROP MJT7S M/T(Y3E) FINAL GEAR 19.5"<BDC> (A) L=1130	1-37125-398-0	01	1	1306-
1	SHAFT; PROP MJX16P M/T(Y3Z) FINAL GEAR 18.5" STRENGTHEN TYPE<FAV> (B) L=1425	1-37124-763-1	01	1	1306-
1	SHAFT; PROP MJX16P M/T(Y3Z) FINAL GEAR 19.5"<BDC> (B) L=1410	8-98028-250-0	01	1	1306-
8	YOKE; FLANGE,PROP SHAFT MJT7S M/T(Y3E) (A)	1-37211-084-0	02	1	1306-
8	YOKE; FLANGE,PROP SHAFT MJX16P M/T(Y3Z) (B)	1-37211-083-0	02	1	1306-
9	JOURNAL ASM; PROP SHAFT MJT7S M/T(Y3E) (A)	1-37300-112-0	02	1	1306-
9	JOURNAL ASM; PROP SHAFT MJX16P M/T(Y3Z) (B)	1-37300-118-0	02	1	1306-
17	NIPPLE; GREASE,PROP SHAFT MJT7S M/T(Y3E) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1306-
17	NIPPLE; GREASE,PROP SHAFT MJX16P M/T(Y3Z) (B)	1-37319-013-0	02	1	1306-
56	NUT; YOKE M14 FLANGE	8-97365-444-0	04	1	1306-
71	NUT; YOKE M14 FLANGE	8-97365-444-0	04	1	1306-
95	BOLT; YOKE,FINAL M14X50	1-09000-645-0	04	1	1306-
