◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 10869 - CXY(51) RHD AUSTRALIA ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#12353) — 240 parça
çizim 20968
73 56 35 44 58 47 46 54 50 72 52 42 47 51 46 77 47 46 47 46 47 46 47 48 132 7 75 77 75 11 12 9 9 13 8 23 24 30 14 27 22 12 11 30 19 32
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44249-041-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-875-0, C = 1-44000-896-0 		1-44240-102-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: D = 1-44000-904-0 		1-44240-148-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-868-0 		1-44241-097-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-868-0 		1-44249-040-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-868-0 		1-44519-103-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-868-0 		1-44249-071-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-868-0 		1-44519-226-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-265-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-868-0 		1-44249-038-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: B = 1-44000-875-0, C = 1-44000-896-0 		1-44249-072-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: D = 1-44000-904-0 		1-44320-016-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-868-0 		1-44321-022-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 1-44000-896-0 		1-44321-032-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-875-0 		1-44321-043-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-868-0 		1-44260-019-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-875-0, C = 1-44000-896-0 		1-44260-021-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-868-0 		1-44519-105-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: B = 1-44000-875-0, C = 1-44000-896-0 		1-44519-234-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-868-0 		1-44269-016-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44269-035-0 01 1 -
30 BOLT; COVER STRG UNIT
(A) STUD ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44279-012-0 05 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44269-007-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-868-0 		1-44150-054-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-875-0 		1-44150-102-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: C = 1-44000-896-0, D = 1-44000-904-0 		1-44150-104-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-868-0 		1-44560-073-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44560-080-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-868-0 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-868-0 		1-44519-100-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-868-0 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-868-0 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-868-0 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-868-0 		1-44519-097-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-868-0 		1-44560-072-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44560-076-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44561-020-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44259-029-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44259-017-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-114-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
M22X1.5 ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44259-035-1 02 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-227-0 01 1 -

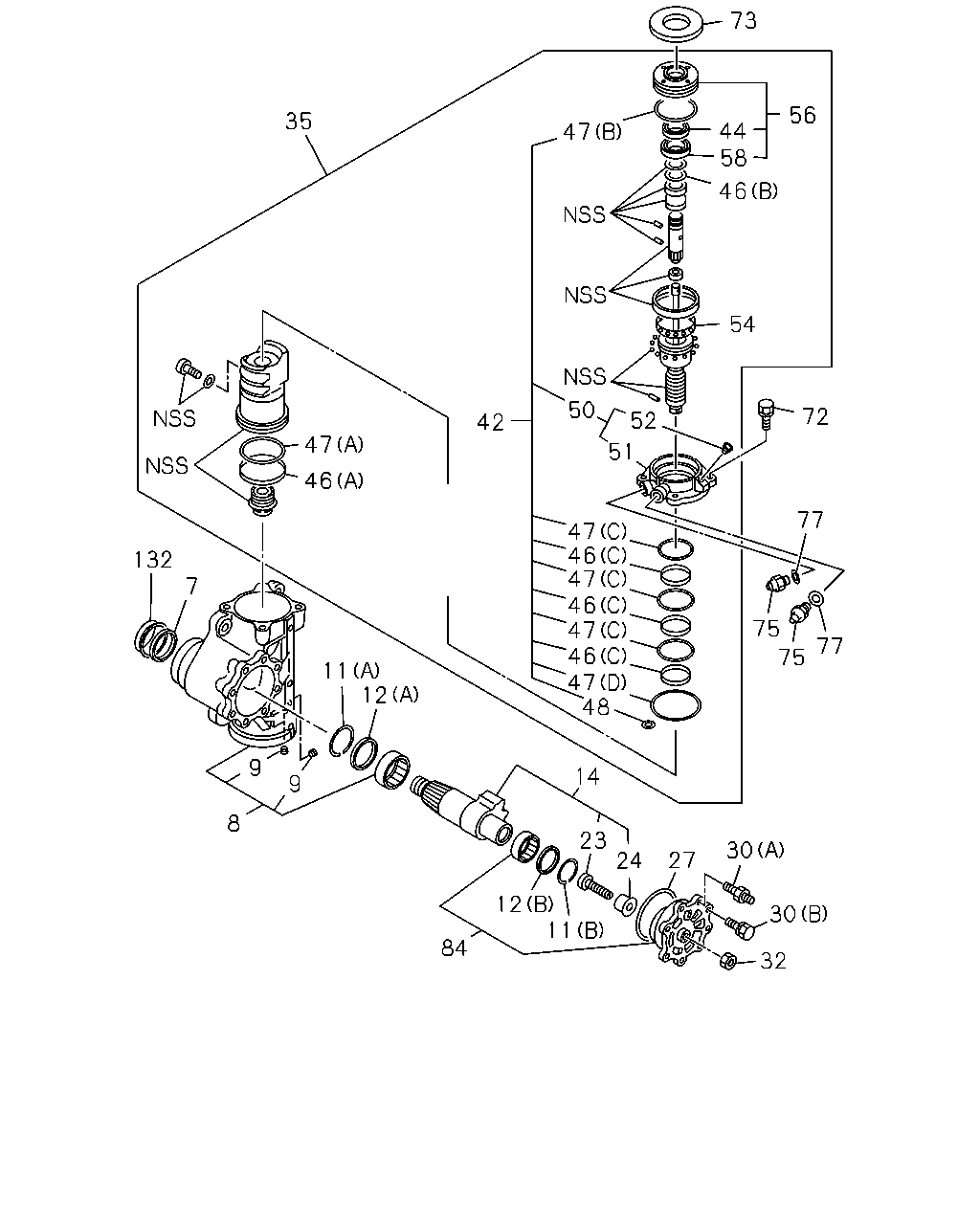

çizim 20969
73 56 35 44 58 47 46 54 50 72 52 42 47 51 46 77 47 46 47 46 47 46 47 48 132 7 75 77 75 11 12 9 14 9 8 23 24 30 27 12 11 30 84 32
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44249-041-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-875-0, C = 1-44000-896-0 		1-44240-102-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: D = 1-44000-904-0 		1-44240-148-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-868-0 		1-44241-097-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-868-0 		1-44249-040-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-868-0 		1-44519-103-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-868-0 		1-44249-071-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-868-0 		1-44519-226-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-265-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: D = 1-44000-904-0 		1-44320-016-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-868-0 		1-44321-022-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 1-44000-896-0 		1-44321-032-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-875-0 		1-44321-043-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-868-0 		1-44269-016-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44269-035-0 01 1 -
30 BOLT; COVER STRG UNIT
(A) STUD ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44279-012-0 05 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44269-007-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-868-0 		1-44150-054-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-875-0 		1-44150-102-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: C = 1-44000-896-0, D = 1-44000-904-0 		1-44150-104-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-868-0 		1-44560-073-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44560-080-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-868-0 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-868-0 		1-44519-100-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-868-0 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-868-0 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-868-0 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-868-0 		1-44519-097-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-868-0 		1-44560-072-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44560-076-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44561-020-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44259-029-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44259-017-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-114-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
M22X1.5 ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44259-035-1 02 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		9-89970-787-0 02 1 -
84 COVER ASM; STRG UNIT
ASM PART: D = 1-44000-904-0 		1-44260-030-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-227-0 01 1 -

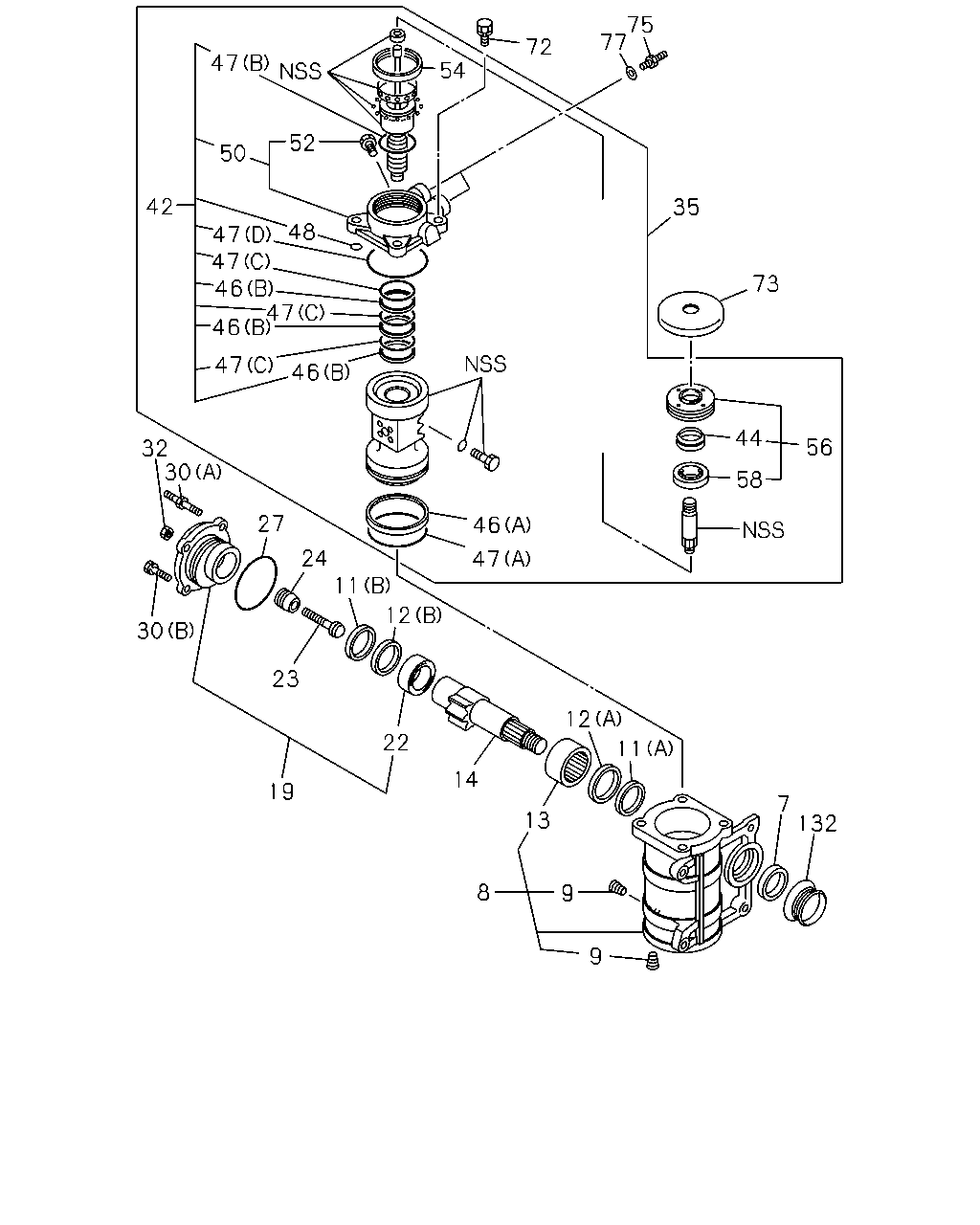

çizim 21433
75 77 72 47 54 52 50 42 35 48 47 47 46 47 46 73 47 46 44 56 32 30 58 27 46 24 47 11 12 30 23 12 22 11 14 19 7 13 132 8 9 9
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44249-041-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-875-0, C = 1-44000-896-0 		1-44240-102-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: D = 1-44000-904-0 		1-44240-148-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-868-0 		1-44241-097-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-868-0 		1-44249-040-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-868-0 		1-44519-103-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-868-0 		1-44249-071-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-868-0 		1-44519-226-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-265-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-868-0 		1-44249-038-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: B = 1-44000-875-0, C = 1-44000-896-0 		1-44249-072-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: D = 1-44000-904-0 		1-44320-016-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-868-0 		1-44321-022-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 1-44000-896-0 		1-44321-032-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-875-0 		1-44321-043-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-868-0 		1-44260-019-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-875-0, C = 1-44000-896-0 		1-44260-021-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-868-0 		1-44519-105-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: B = 1-44000-875-0, C = 1-44000-896-0 		1-44519-234-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-868-0 		1-44269-016-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44269-035-0 01 1 -
30 BOLT; COVER STRG UNIT
(A) STUD ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44279-012-0 05 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44269-007-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-868-0 		1-44150-054-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-875-0 		1-44150-102-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: C = 1-44000-896-0, D = 1-44000-904-0 		1-44150-104-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-868-0 		1-44560-073-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44560-080-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-868-0 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-868-0 		1-44519-100-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-868-0 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-868-0 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-868-0 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-868-0 		1-44519-097-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-868-0 		1-44560-072-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44560-076-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44259-029-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44259-017-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-114-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
M22X1.5 ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44259-035-1 02 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-227-0 01 1 -

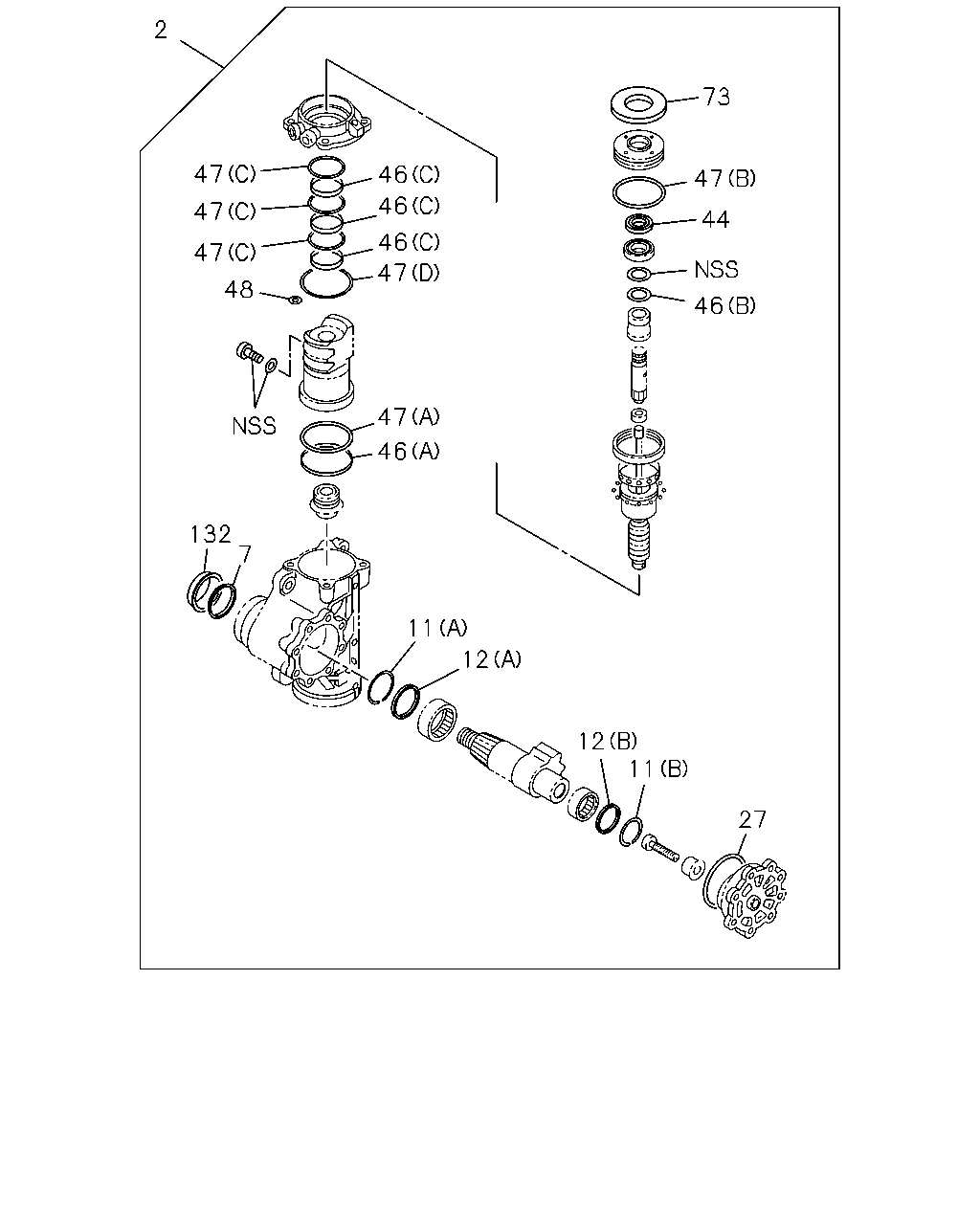

çizim 78928
2 73 47 46 47 46 47 44 46 47 47 48 46 47 46 132 7 11 12 12 11 27
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-868-0 		1-85574-030-0 01 1 -
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-85574-052-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44249-041-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-868-0 		1-44249-040-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-868-0 		1-44519-103-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-868-0 		1-44249-071-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-868-0 		1-44519-226-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-265-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-868-0 		1-44269-016-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44269-035-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-868-0 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-868-0 		1-44519-100-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-868-0 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-868-0 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-868-0 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-868-0 		1-44519-097-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-262-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-114-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-227-0 01 1 -

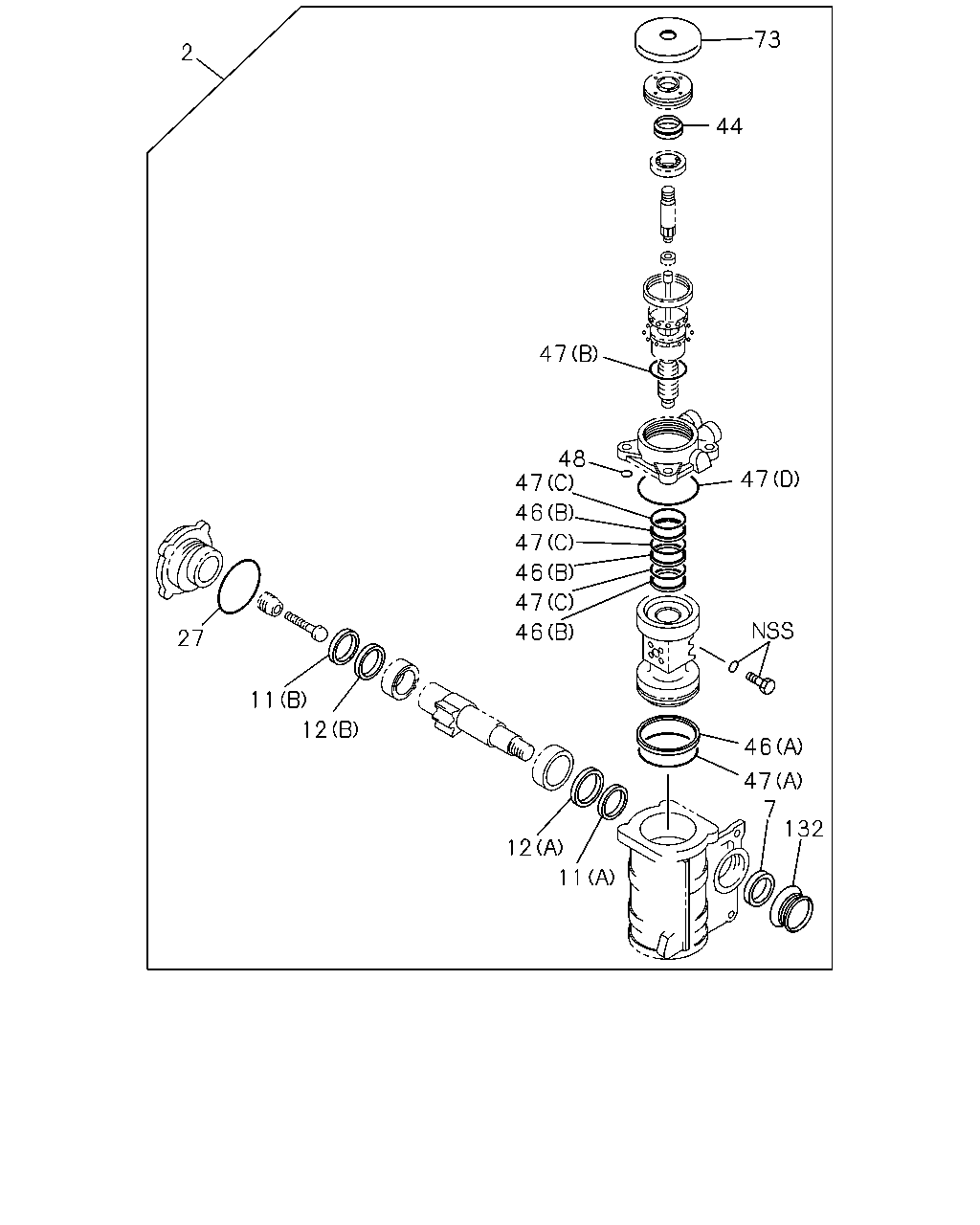

çizim 79160
73 2 44 47 48 47 47 46 47 46 47 46 27 11 12 46 47 7 132 12 11
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-868-0 		1-85574-030-0 01 1 -
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-85574-052-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44249-041-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-868-0 		1-44249-040-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-868-0 		1-44519-103-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-868-0 		1-44249-071-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-868-0 		1-44519-226-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-265-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-868-0 		1-44269-016-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44269-035-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-868-0 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-868-0 		1-44519-100-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-868-0 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-868-0 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-868-0 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-868-0 		1-44519-097-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-262-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-114-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-868-0, B = 1-44000-875-0, C = 1-44000-896-0, D = 1-44000-904-0 		1-44519-227-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
