3-78 — FIXING PARTS; AIR PIPING (#123528) — 164 parça

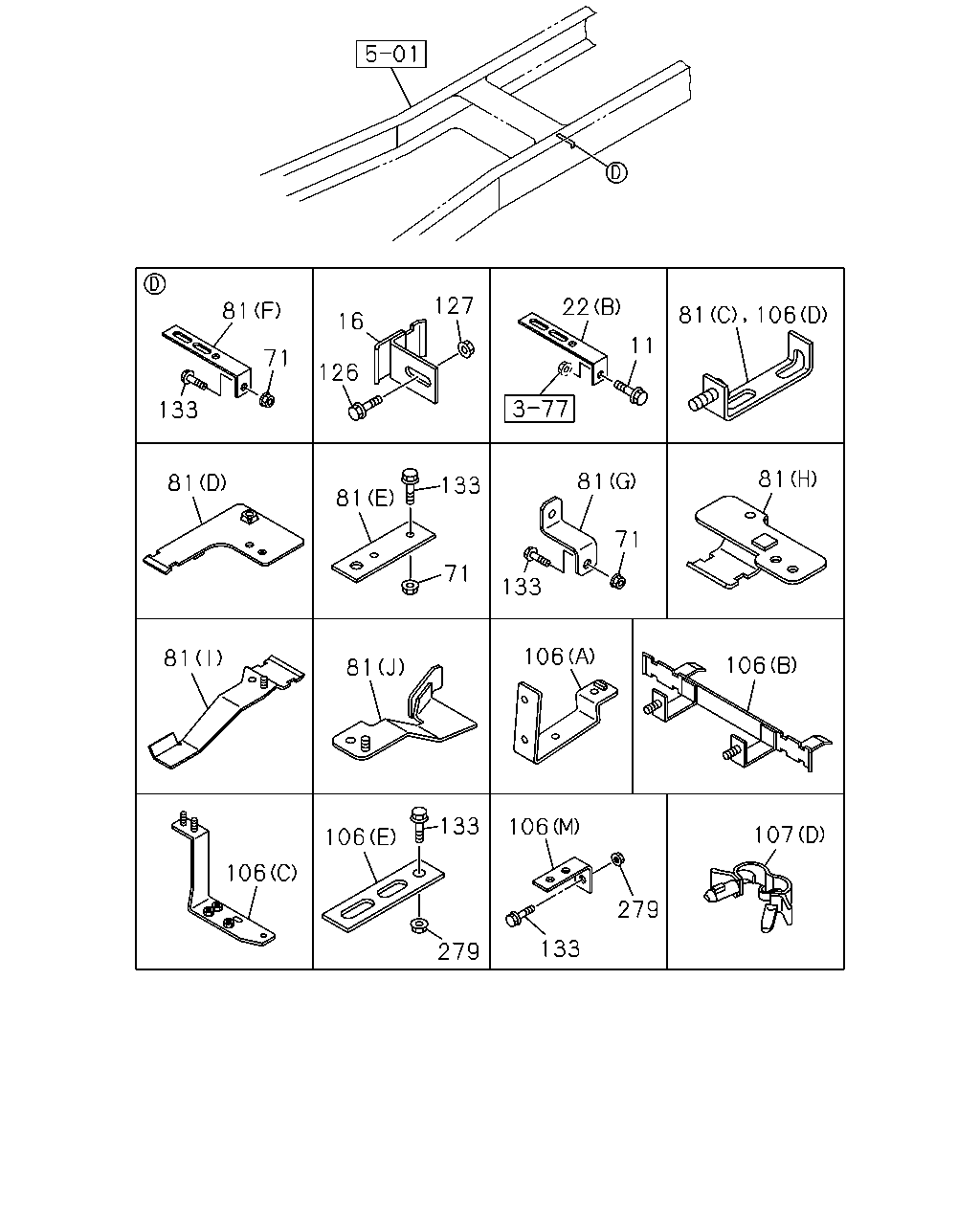

çizim 364389
81 133 71 16 126 127 22 11 81 106 81 81 133 71 133 81 71 81 81 81 106 106 106 106 133 106 279 133 279 107
BalonParca AdiParca NoAdetTipApplied Date
11 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 1306-
16 BRACKET; PIPE CLIP 1-47479-693-0 01 1 1306-
22 BRACKET; CLIP
(A) L=50 		1-47475-299-2 01 1 1306-
22 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 03 1 1306-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 1306-
81 BRACKET; CLIP
(E) L=150 		1-47471-217-0 02 1 1306-
81 BRACKET; CLIP
(F) L=100 H=30 		1-47477-645-2 02 1 1306-
81 BRACKET; CLIP
(G) 		1-47478-113-0 01 1 1306-
81 BRACKET; CLIP
(B) 		1-79996-133-2 01 1 1306-
81 BRACKET; CLIP
(D) 		8-98052-412-0 01 1 1306-
81 BRACKET; CLIP
(H) 		8-98052-413-0 01 1 1306-
81 BRACKET; CLIP
(I) 		8-98052-414-0 01 1 1306-
81 BRACKET; CLIP
(J) 		8-98052-415-0 01 1 1306-
81 BRACKET; CLIP
(C) 		8-98061-758-0 02 1 1306-
81 BRACKET; CLIP
(A) 		1-79996-127-2 01 1 1306-
106 BRACKET; TUBE CLIP
(C) 		1-47471-108-0 01 1 1306-
106 BRACKET; TUBE CLIP
(E) 		1-47477-514-3 02 1 1306-
106 BRACKET; TUBE CLIP
(M) L=82 B=20 		1-47478-420-0 01 1 1306-1404
106 BRACKET; TUBE CLIP
(M) L=82 B=20 		8-98259-390-0 01 1 1405-
106 BRACKET; TUBE CLIP
(F) 		1-47479-381-2 02 1 1306-
106 BRACKET; TUBE CLIP
(B) 		1-47479-553-0 01 1 1306-
106 BRACKET; TUBE CLIP
(L) 		1-47479-870-0 01 1 1306-
106 BRACKET; TUBE CLIP
(G) 		8-98052-408-0 01 1 1306-1412
106 BRACKET; TUBE CLIP
(G) 		8-98297-188-0 01 1 1501-
106 BRACKET; TUBE CLIP
(H) 		8-98052-409-0 01 1 1306-
106 BRACKET; TUBE CLIP
(I) 		8-98052-410-0 01 1 1306-
106 BRACKET; TUBE CLIP
(J) 		8-98052-411-0 01 1 1306-
106 BRACKET; TUBE CLIP
(D) 		8-98061-758-0 01 1 1306-
106 BRACKET; TUBE CLIP
(A) 		8-98224-856-1 01 1 1306-
106 BRACKET; TUBE CLIP
(K) 		8-98226-741-1 01 1 1306-1312
106 BRACKET; TUBE CLIP
(K) 		8-98251-771-0 01 1 1401-
107 CLIP; NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 02 1 1306-
107 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 01 1 1306-
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 01 1 1306-
107 CLIP; NYLON TUBE
(C) ID=45 H=31 L=35 		1-09701-308-0 01 1 1306-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 15 1 1306-
107 CLIP; NYLON TUBE
(D) ID=13-18 L=14.5 		1-09709-290-0 01 1 1306-
107 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 L=28 		1-09701-216-0 01 1 1306-
107 CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 L=28 		1-09701-216-0 01 1 1306-
107 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=5-12 L=14.5 		1-09987-221-0 02 1 1306-
107 CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=5-12 L=14.5 		1-09987-221-0 02 1 1306-
107 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=350 		1-09707-183-0 02 1 1306-
107 CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=350 		1-09707-183-0 02 1 1306-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1306-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1306-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1306-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 1306-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1306-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1306-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 11 1 1306-1312
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 12 1 1401-
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 09 1 1306-
279 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1306-

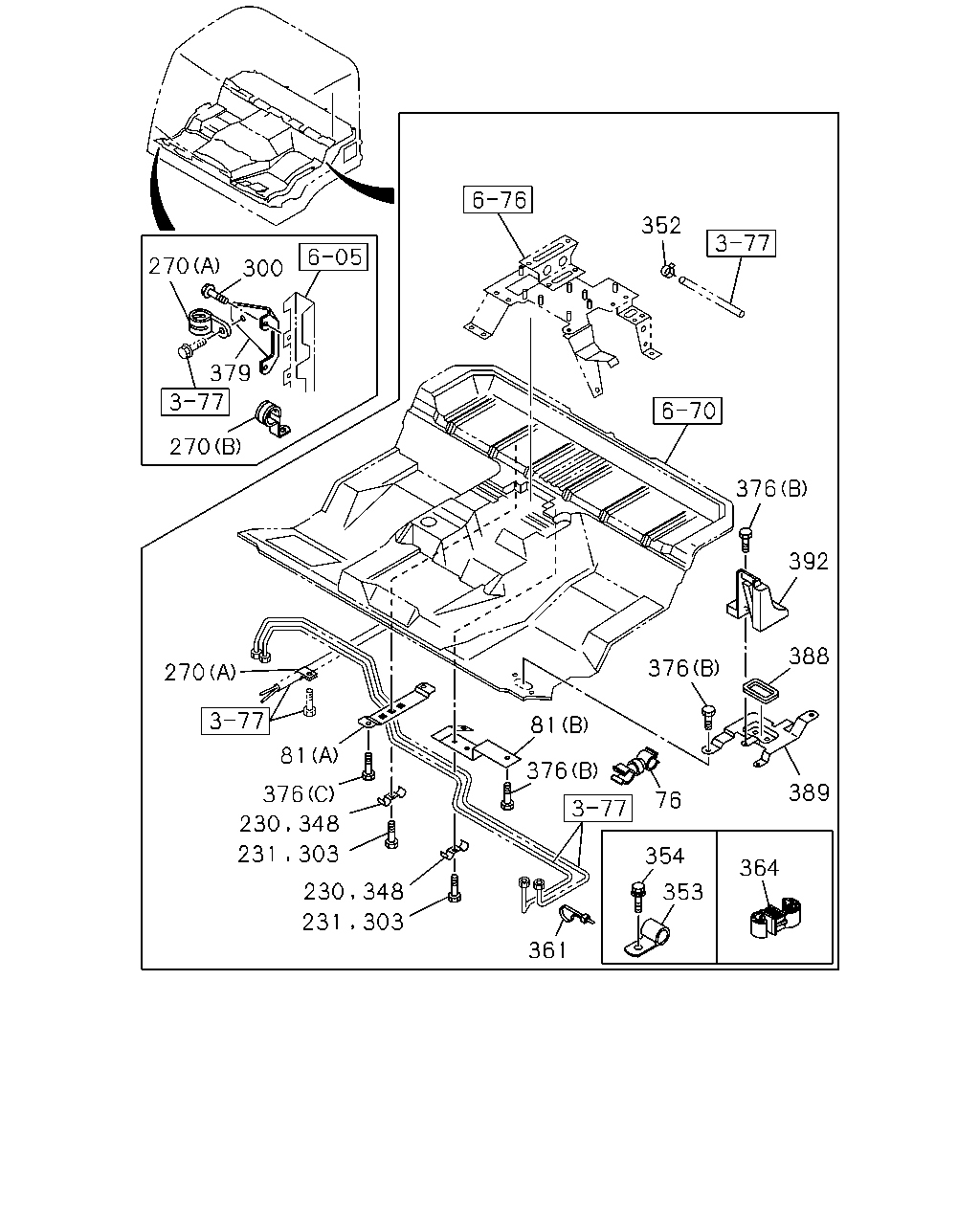

çizim 364408
270 300 379 270 270 81 376 230 348 231 303 230 348 231 303 361 353 354 364 76 376 81 389 376 388 392 376 352
BalonParca AdiParca NoAdetTipApplied Date
76 CLIP; NYLON TUBE
ID=6 & 8.3 		8-94167-742-0 01 1 1306-
81 BRACKET; CLIP
(E) L=150 		1-47471-217-0 02 1 1306-
81 BRACKET; CLIP
(F) L=100 H=30 		1-47477-645-2 02 1 1306-
81 BRACKET; CLIP
(G) 		1-47478-113-0 01 1 1306-
81 BRACKET; CLIP
(B) 		1-79996-133-2 01 1 1306-
81 BRACKET; CLIP
(D) 		8-98052-412-0 01 1 1306-
81 BRACKET; CLIP
(H) 		8-98052-413-0 01 1 1306-
81 BRACKET; CLIP
(I) 		8-98052-414-0 01 1 1306-
81 BRACKET; CLIP
(J) 		8-98052-415-0 01 1 1306-
81 BRACKET; CLIP
(C) 		8-98061-758-0 02 1 1306-
81 BRACKET; CLIP
(A) 		1-79996-127-2 01 1 1306-
230 CLIP; PIPE,AIR
ID=11 & 9 L=15 & 15 		1-09700-062-0 03 1 1306-
231 BOLT; CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1306-
270 CLIP; NYLON TUBE
(B) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1306-
270 CLIP; NYLON TUBE
(A) ID=28 L=32 		1-09701-107-1 03 1 1306-
300 BOLT; TUBE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1306-
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1306-
348 CLIP; AIR PIPE
ID=9 & 9 L=15 & 15 		1-09700-061-0 03 1 1306-
352 CLIP; EXH HOSE
ID=14 		8-94238-572-0 02 1 1306-
353 CLIP; AIR PIPE
ID=9 L=16 		0-95234-822-0 01 1 1306-
354 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1306-
361 CLIP; FLEX HOSE,AIR PRESS GAGE
L=250 		5-09707-030-1 01 1 1306-
364 CLIP; AIR PIPE
ID=8.3 & 10 		8-94176-792-0 01 1 1306-
376 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1306-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 1306-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1306-
376 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1306-
379 BRACKET; NYLON TUBE 1-79996-110-2 01 1 1306-
388 SEAL
L=215 		1-79738-794-1 01 1 1306-
389 BRACKET; UNION 1-79738-790-1 01 1 1306-
392 COVER; BRKT 1-73996-264-1 01 1 1306-

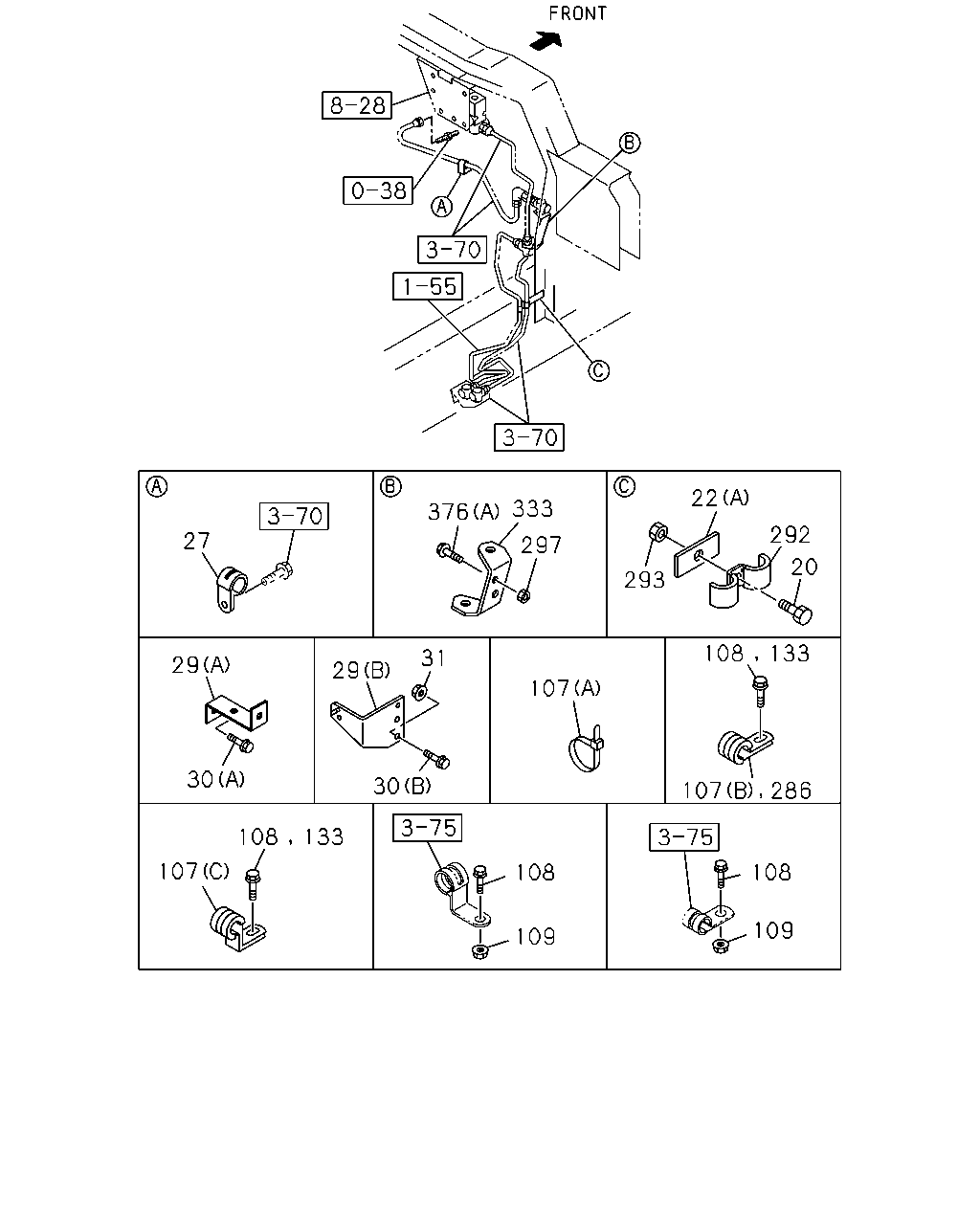

çizim 364449
27 376 333 297 22 293 292 20 133 108 107 31 29 30 29 30 107 108 133 108 109 108 109 286 107
BalonParca AdiParca NoAdetTipApplied Date
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1306-
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1306-
22 BRACKET; CLIP
(A) L=50 		1-47475-299-2 01 1 1306-
22 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 03 1 1306-
27 CLIP; FLEX HOSE
MJT7S M/T(Y3E) ID=15 L=28 		1-09701-216-0 01 1 1306-
27 CLIP; FLEX HOSE
MJX16P M/T(Y3Z) ID=11 L=50 		0-95235-085-0 01 1 1306-
29 BRACKET; CLIP,AIR PIPE
(A) 		1-47479-698-0 01 1 1306-
29 BRACKET; CLIP,AIR PIPE
(B) 		8-98169-621-1 01 1 1306-
30 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1306-
30 BOLT; CLIP BRKT
(B) M10X25 FLANGE 		0-28651-025-0 01 1 1306-
31 NUT; CLIP BRKT
M10 FLANGE 		0-91180-210-0 01 1 1306-
107 CLIP; NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 02 1 1306-
107 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 01 1 1306-
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 01 1 1306-
107 CLIP; NYLON TUBE
(C) ID=45 H=31 L=35 		1-09701-308-0 01 1 1306-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 15 1 1306-
107 CLIP; NYLON TUBE
(D) ID=13-18 L=14.5 		1-09709-290-0 01 1 1306-
107 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 L=28 		1-09701-216-0 01 1 1306-
107 CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 L=28 		1-09701-216-0 01 1 1306-
107 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=5-12 L=14.5 		1-09987-221-0 02 1 1306-
107 CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=5-12 L=14.5 		1-09987-221-0 02 1 1306-
107 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=350 		1-09707-183-0 02 1 1306-
107 CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=350 		1-09707-183-0 02 1 1306-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1306-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1306-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1306-
108 BOLT; TUBE CLIP
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X25 FLANGE 		0-28650-825-0 01 1 1306-
108 BOLT; TUBE CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X25 FLANGE 		0-28650-825-0 01 1 1306-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1306-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 1306-
108 BOLT; TUBE CLIP
M8X35 FLANGE 		0-28650-835-0 01 1 1306-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1306-
109 NUT; TUBE CLIP
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE 		0-91180-108-0 01 1 1306-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 03 1 1306-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 1306-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1306-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1306-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 11 1 1306-1312
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 12 1 1401-
286 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) ID=15 L=28 		1-09701-216-0 01 1 1306-
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 1306-
293 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1306-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1306-
333 BRACKET; BRK AIR PIPE 1-47477-045-0 01 1 1306-
376 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1306-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 1306-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1306-
376 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1306-

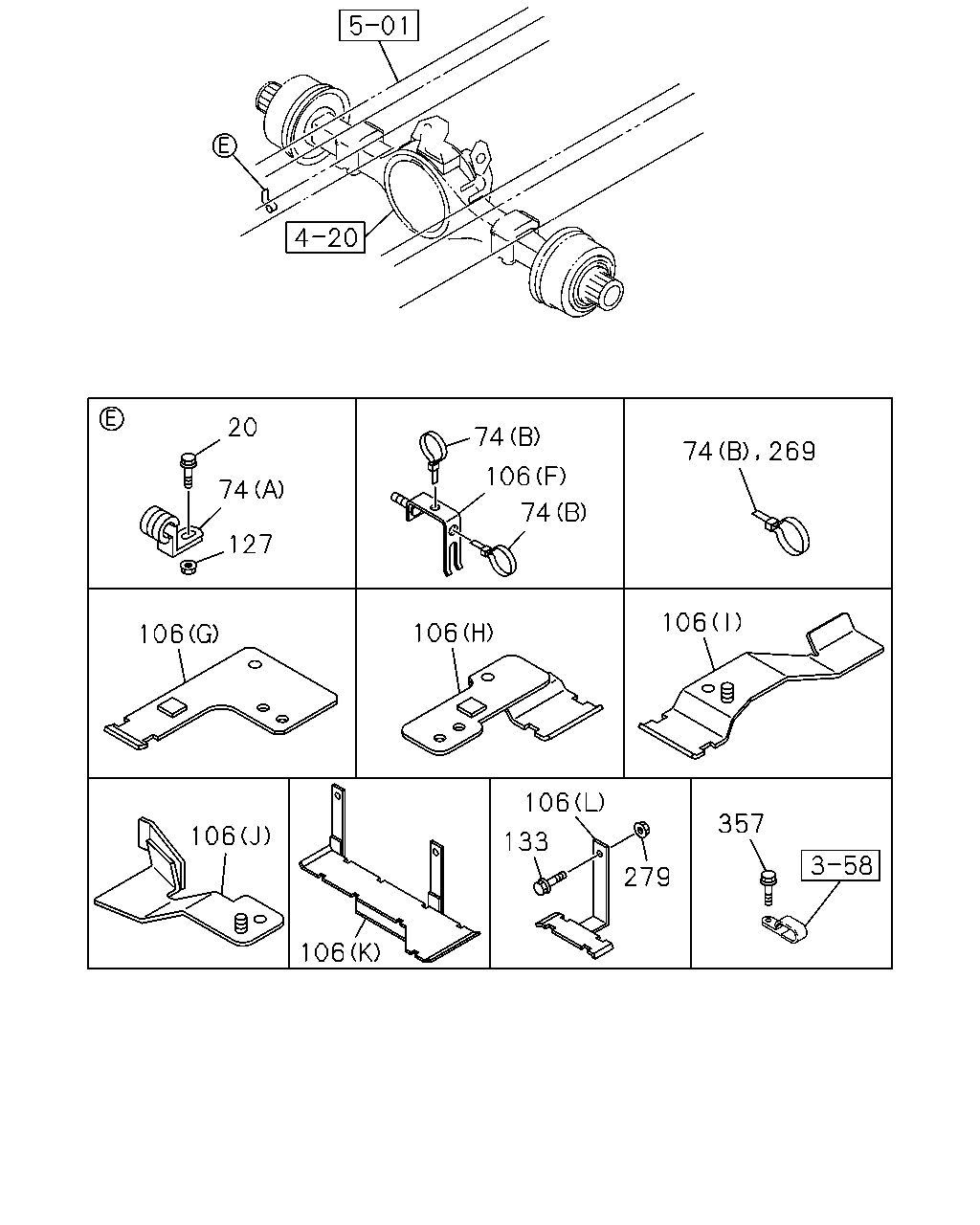

çizim 364450
20 74 127 74 74 106 74 269 106 106 106 106 106 106 133 279 357
BalonParca AdiParca NoAdetTipApplied Date
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1306-
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1306-
74 CLIP; NYLON TUBE
(A) ID=25 H=30 L=35 		1-09700-875-0 01 1 1306-
74 CLIP; NYLON TUBE
(A) ID=31 H=30 L=35 		1-09700-994-0 01 1 1306-
74 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 11 1 1306-
106 BRACKET; TUBE CLIP
(C) 		1-47471-108-0 01 1 1306-
106 BRACKET; TUBE CLIP
(E) 		1-47477-514-3 02 1 1306-
106 BRACKET; TUBE CLIP
(M) L=82 B=20 		1-47478-420-0 01 1 1306-1404
106 BRACKET; TUBE CLIP
(M) L=82 B=20 		8-98259-390-0 01 1 1405-
106 BRACKET; TUBE CLIP
(F) 		1-47479-381-2 02 1 1306-
106 BRACKET; TUBE CLIP
(B) 		1-47479-553-0 01 1 1306-
106 BRACKET; TUBE CLIP
(L) 		1-47479-870-0 01 1 1306-
106 BRACKET; TUBE CLIP
(G) 		8-98052-408-0 01 1 1306-1412
106 BRACKET; TUBE CLIP
(G) 		8-98297-188-0 01 1 1501-
106 BRACKET; TUBE CLIP
(H) 		8-98052-409-0 01 1 1306-
106 BRACKET; TUBE CLIP
(I) 		8-98052-410-0 01 1 1306-
106 BRACKET; TUBE CLIP
(J) 		8-98052-411-0 01 1 1306-
106 BRACKET; TUBE CLIP
(D) 		8-98061-758-0 01 1 1306-
106 BRACKET; TUBE CLIP
(A) 		8-98224-856-1 01 1 1306-
106 BRACKET; TUBE CLIP
(K) 		8-98226-741-1 01 1 1306-1312
106 BRACKET; TUBE CLIP
(K) 		8-98251-771-0 01 1 1401-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1306-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1306-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 1306-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1306-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1306-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 11 1 1306-1312
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 12 1 1401-
269 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 01 1 1306-
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 09 1 1306-
279 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1306-
357 BOLT; CLIP FIX
M8X10 FLANGE 		0-28050-810-0 01 1 1306-
