3-77 — BRAKE PIPING; AIR,REAR (#123527) — 143 parça
çizim 363366
192 192 72 126 76 192 262 280 100 105
BalonParca AdiParca NoAdetTipApplied Date
72 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 1306-
72 NUT; BRKT
DIFF LOCK(C3N) M8 FLANGE 		0-91180-108-0 02 1 1306-
76 ADAPTER; NYLON TUBE
DIFF LOCK(C3N) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1306-
100 NUT; UNION
(A) M14 FLANGE 		0-91150-114-0 01 1 1306-
100 NUT; UNION
DIFF LOCK(C3N) (B) M12 		9-09840-280-0 01 1 1306-
105 HOSE; FLEX
DIFF LOCK(C3N) FINAL GEAR 18.5" STRENGTHEN TYPE<FAV> L=320 		1-09363-625-0 01 1 1306-
105 HOSE; FLEX
FINAL GEAR 19.5"<BDC> DIFF LOCK(C3N) L=390 		1-09363-616-0 01 1 1306-
126 UNION; NYLON TUBE
(A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 1306-
126 UNION; NYLON TUBE
(B) 		1-09661-612-1 01 1 1306-
126 UNION; NYLON TUBE
(C) M22X2 STRAIGHT 		8-98107-103-0 02 1 1306-
126 UNION; NYLON TUBE
DIFF LOCK(C3N) (D) M12 ELBOW 		0-92125-206-0 01 1 1306-
192 TUBE; NYLON
(B) L=990 OD=8 		1-49218-618-1 02 1 1306-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1306-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1306-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1306-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1306-
192 TUBE; NYLON
(C) 		8-98234-678-0 01 1 1306-
192 TUBE; NYLON
(D) 		8-98234-679-0 01 1 1306-
262 BRACKET
(C) 		1-47471-015-0 01 1 1306-
262 BRACKET
(A) 		1-79996-143-0 01 1 1306-
262 BRACKET
(B) 		1-79996-258-1 01 1 1306-
262 BRACKET
DIFF LOCK(C3N) (D) 		1-47471-386-0 01 1 1306-
280 WASHER; LK
DIFF LOCK(C3N) ID=12.2 		0-91510-512-0 01 1 1306-

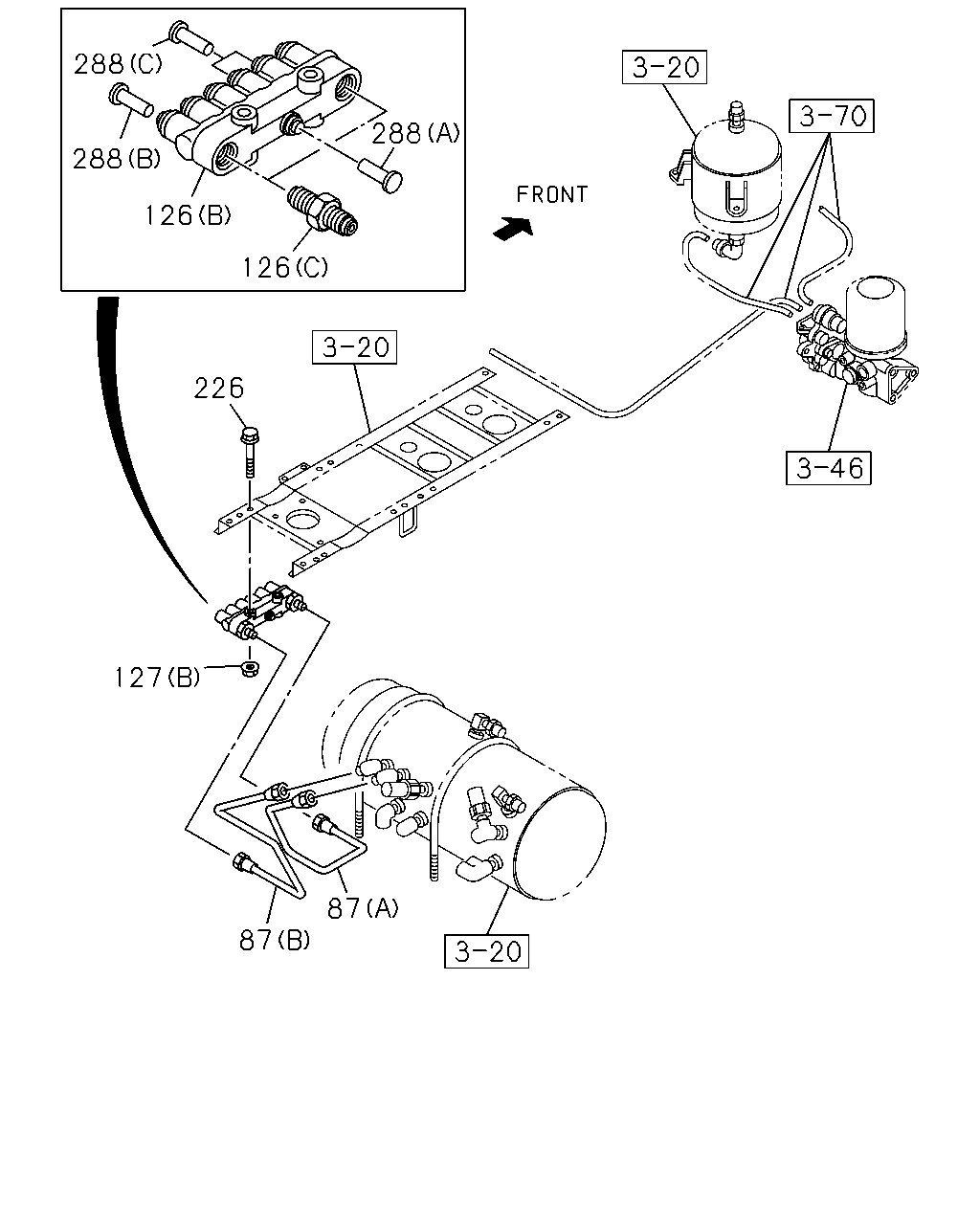

çizim 363488
288 288 126 126 288 226 127 87 87
BalonParca AdiParca NoAdetTipApplied Date
87 PIPE; AIR,AIR TANK TO UNION
(B) L=429 		8-98239-053-0 01 1 1306-
87 PIPE; AIR,AIR TANK TO UNION
(A) L=543 		8-98239-054-0 01 1 1306-
126 UNION; NYLON TUBE
(A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 1306-
126 UNION; NYLON TUBE
(B) 		1-09661-612-1 01 1 1306-
126 UNION; NYLON TUBE
(C) M22X2 STRAIGHT 		8-98107-103-0 02 1 1306-
126 UNION; NYLON TUBE
DIFF LOCK(C3N) (D) M12 ELBOW 		0-92125-206-0 01 1 1306-
127 NUT; UNION
(A) M20 		0-91111-520-0 03 1 1306-
127 NUT; UNION
(B) M8 FLANGE 		0-91180-108-0 03 1 1306-
226 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 01 1 1306-
226 BOLT; UNION
M8X45 FLANGE 		0-28050-845-0 02 1 1306-
226 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 1306-
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1306-
288 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 1306-
288 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 1306-
288 PLUG
(C) OD=12 		1-09661-617-0 02 1 1306-

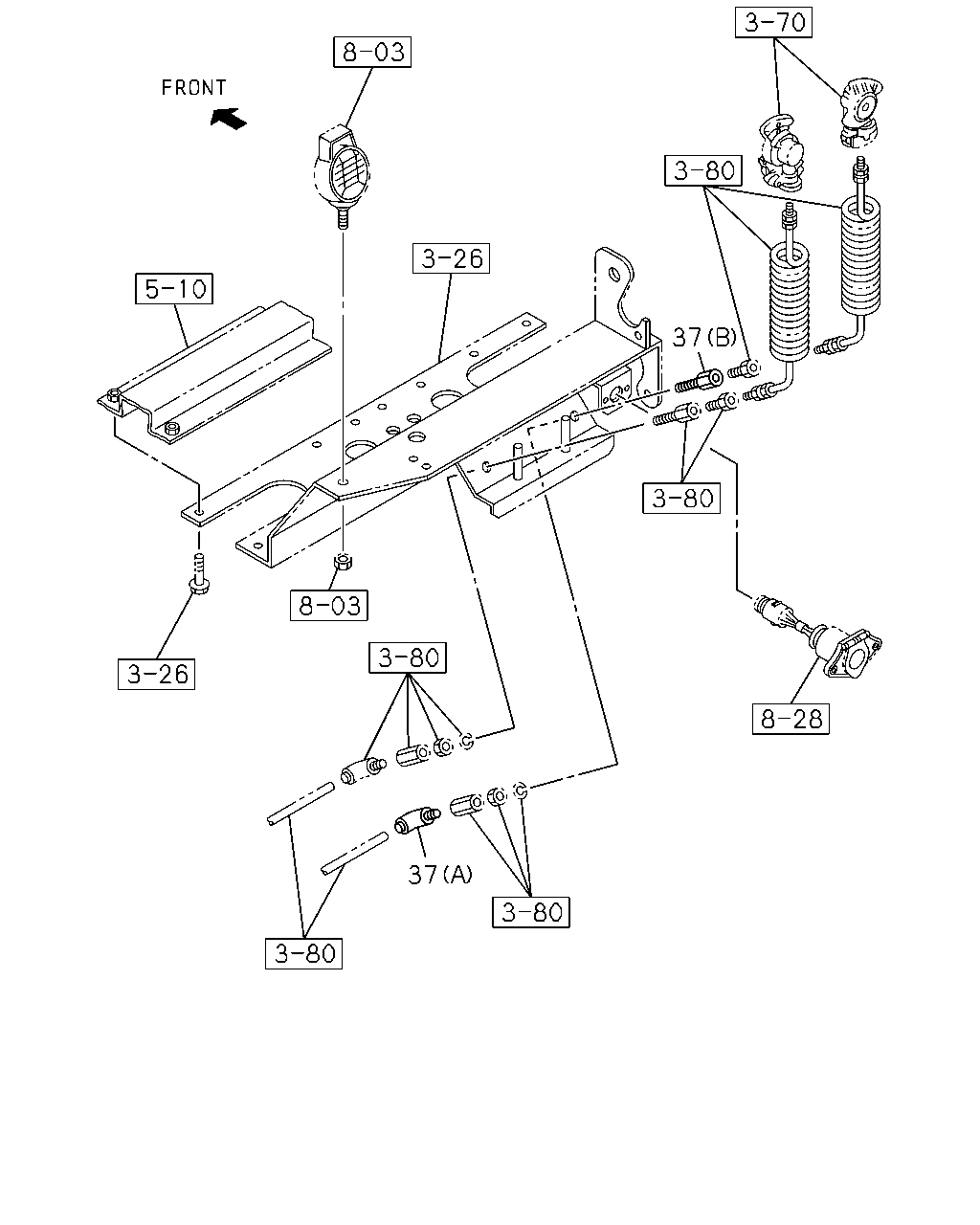

çizim 363518
37 37
BalonParca AdiParca NoAdetTipApplied Date
37 UNION; AIR PIPE
(B) M16 & PT1/2 STRAIGHT 		1-09650-222-1 01 1 1306-
37 UNION; AIR PIPE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1306-
37 UNION; AIR PIPE
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1306-

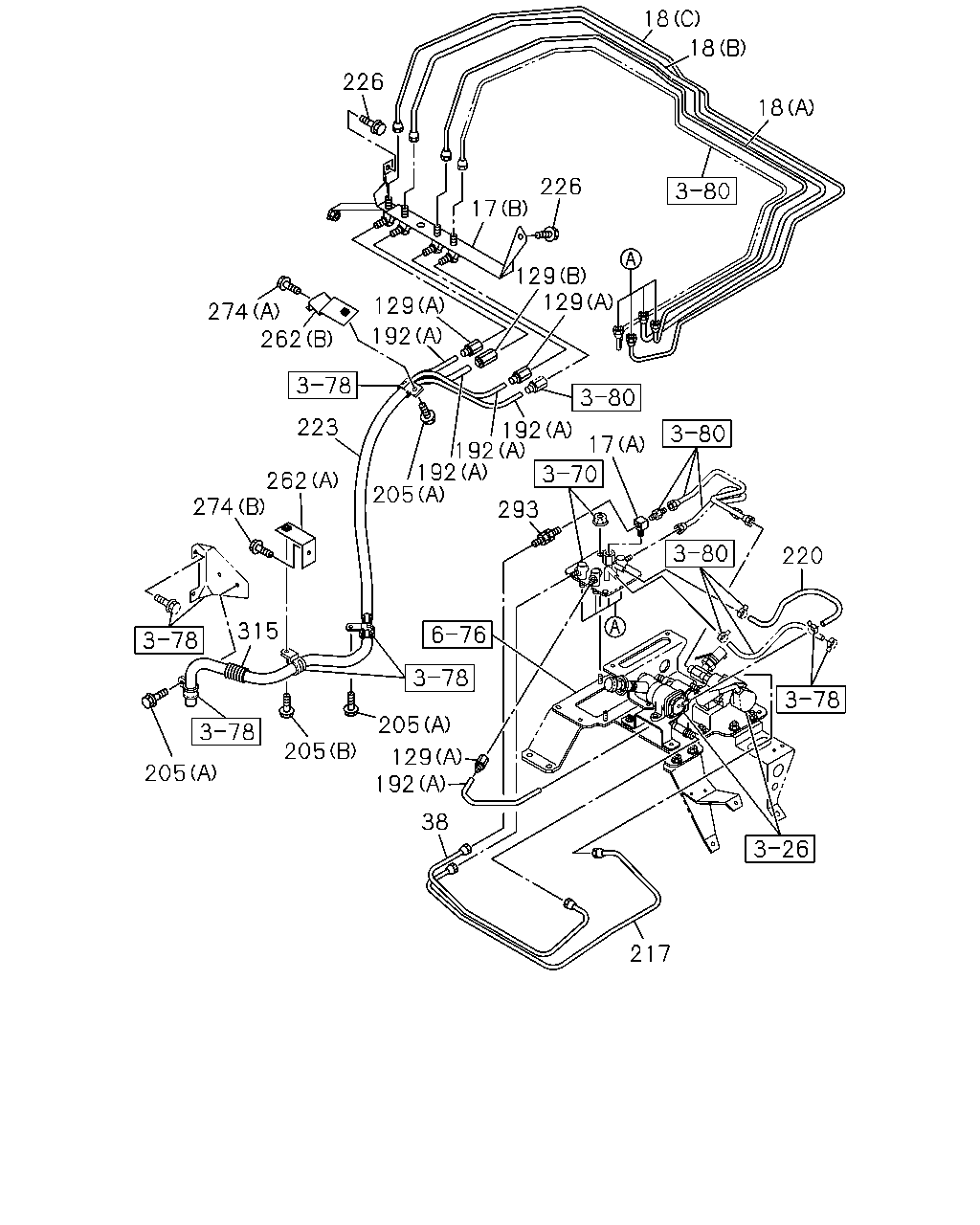

çizim 364381
18 18 18 226 17 226 129 129 129 192 262 274 223 262 274 315 205 205 192 129 205 205 192 192 192 293 17 220 217 38
BalonParca AdiParca NoAdetTipApplied Date
17 UNION; AIR PIPE
(A) PT3/8X2 & PT1/4 3WAY 		1-09656-708-0 01 1 1306-
17 UNION; AIR PIPE
(B) 		1-47470-656-0 01 1 1306-
18 PIPE; AIR,UNION TO UNION
(A) L=1931 SERVICED BY L=1950 		1-47428-854-0 01 1 1306-
18 PIPE; AIR,UNION TO UNION
(C) L=2316 SERVICED BY L=2400 		1-47428-856-0 01 1 1306-
18 PIPE; AIR,UNION TO UNION
(B) L=2098 SERVICED BY L=2100 		1-47428-882-0 01 1 1306-
38 PIPE; AIR,UNION TO MAG VLV 1-49122-879-0 01 1 1306-
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 1306-
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 1306-
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 1306-
192 TUBE; NYLON
(B) L=990 OD=8 		1-49218-618-1 02 1 1306-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1306-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1306-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1306-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1306-
192 TUBE; NYLON
(C) 		8-98234-678-0 01 1 1306-
192 TUBE; NYLON
(D) 		8-98234-679-0 01 1 1306-
205 BOLT; TUBE CLIP
(A) M8X16 FLANGE 		0-28050-816-0 03 1 1306-
205 BOLT; TUBE CLIP
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1306-
217 PIPE; AIR,PARKING BRK VLV TO UNION 1-49123-172-0 01 1 1306-
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=350 SERVICED BY L=10000 		9-09914-701-0 01 1 1306-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1306-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1306-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 1306-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1306-
226 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 01 1 1306-
226 BOLT; UNION
M8X45 FLANGE 		0-28050-845-0 02 1 1306-
226 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 1306-
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1306-
262 BRACKET
(C) 		1-47471-015-0 01 1 1306-
262 BRACKET
(A) 		1-79996-143-0 01 1 1306-
262 BRACKET
(B) 		1-79996-258-1 01 1 1306-
262 BRACKET
DIFF LOCK(C3N) (D) 		1-47471-386-0 01 1 1306-
274 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1306-
274 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1306-
293 VALVE; CHECK 1-48410-479-1 01 1 1306-
315 CLIP 8-97332-148-0 01 1 1306-

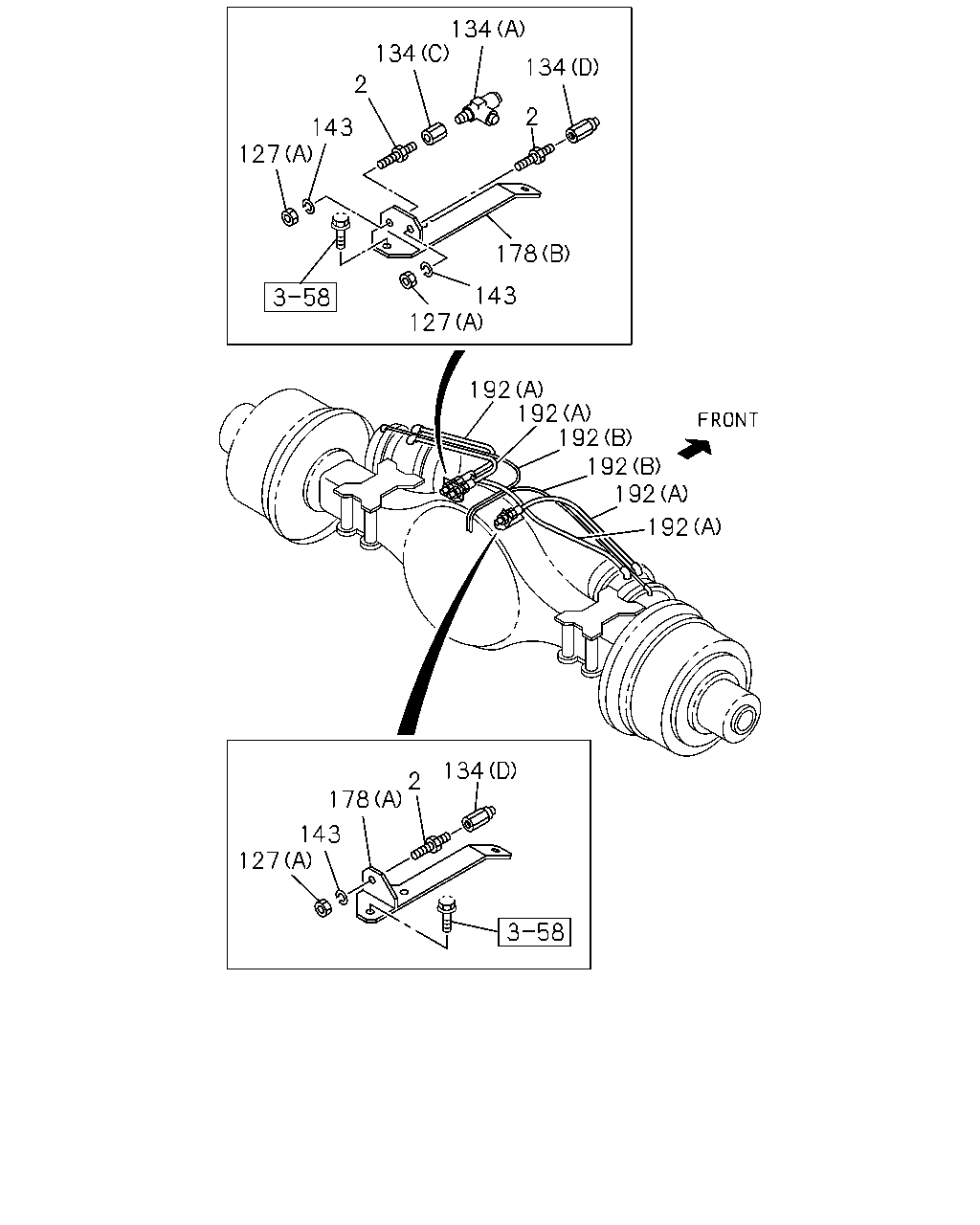

çizim 364458
127 143 2 134 134 134 2 178 143 127 192 192 192 192 192 192 127 143 178 2 134
BalonParca AdiParca NoAdetTipApplied Date
2 UNION; AIR PIPE
M20 STRAIGHT 		1-09654-240-1 03 1 1306-
127 NUT; UNION
(A) M20 		0-91111-520-0 03 1 1306-
127 NUT; UNION
(B) M8 FLANGE 		0-91180-108-0 03 1 1306-
134 CONNECTOR
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 1306-
134 CONNECTOR
(D) DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 1306-
134 CONNECTOR
(C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1306-
134 CONNECTOR
(A) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 1306-
143 WASHER; LK,UNION
ID=20.2 		0-91510-620-0 03 1 1306-
178 BRACKET; UNION
(A) 		1-42119-186-0 01 1 1306-
178 BRACKET; UNION
(B) 		1-42119-187-0 01 1 1306-
192 TUBE; NYLON
(B) L=990 OD=8 		1-49218-618-1 02 1 1306-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1306-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1306-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1306-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1306-
192 TUBE; NYLON
(C) 		8-98234-678-0 01 1 1306-
192 TUBE; NYLON
(D) 		8-98234-679-0 01 1 1306-

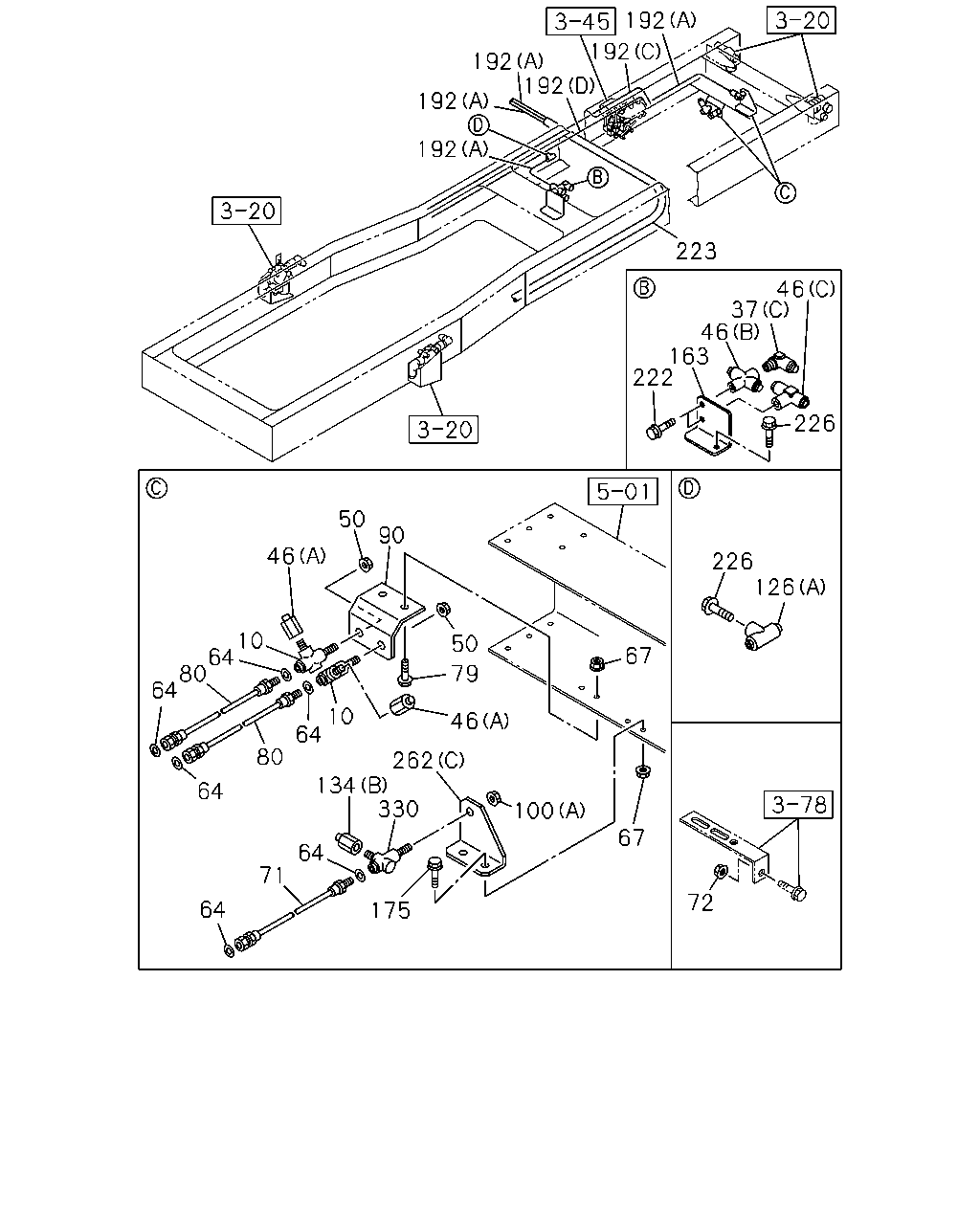

çizim 365997
192 192 192 192 192 192 223 222 163 46 37 46 226 126 226 72 67 67 90 50 46 10 64 80 64 64 80 64 10 50 79 46 262 134 330 64 71 64 175 100
BalonParca AdiParca NoAdetTipApplied Date
10 CONNECTOR; FLEX HOSE 1-09650-360-1 02 1 1306-
37 UNION; AIR PIPE
(B) M16 & PT1/2 STRAIGHT 		1-09650-222-1 01 1 1306-
37 UNION; AIR PIPE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1306-
37 UNION; AIR PIPE
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1306-
46 NIPPLE; AIR PIPE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 1306-
46 NIPPLE; AIR PIPE
(B) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1306-
46 NIPPLE; AIR PIPE
(C) DIN8X2 & M8 2WAY 		1-09661-133-0 01 1 1306-
50 NUT; UNION BRKT
M14 FLANGE 		0-91150-114-0 02 1 1306-
64 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 06 1 1306-
67 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 04 1 1306-
71 HOSE; FLEX,RWD RR
L=630 		0-57846-630-1 01 1 1306-
72 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 1306-
72 NUT; BRKT
DIFF LOCK(C3N) M8 FLANGE 		0-91180-108-0 02 1 1306-
79 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1306-
80 HOSE; FLEX,POWER CHAMBER
L=630 		0-57846-630-1 02 1 1306-
90 BRACKET; PIPE UNION 1-47471-007-0 01 1 1306-
100 NUT; UNION
(A) M14 FLANGE 		0-91150-114-0 01 1 1306-
100 NUT; UNION
DIFF LOCK(C3N) (B) M12 		9-09840-280-0 01 1 1306-
126 UNION; NYLON TUBE
(A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 1306-
126 UNION; NYLON TUBE
(B) 		1-09661-612-1 01 1 1306-
126 UNION; NYLON TUBE
(C) M22X2 STRAIGHT 		8-98107-103-0 02 1 1306-
126 UNION; NYLON TUBE
DIFF LOCK(C3N) (D) M12 ELBOW 		0-92125-206-0 01 1 1306-
134 CONNECTOR
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 1306-
134 CONNECTOR
(D) DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 1306-
134 CONNECTOR
(C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1306-
134 CONNECTOR
(A) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 1306-
163 BRACKET; FLEX HOSE 1-47471-145-0 01 1 1306-
175 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1306-
192 TUBE; NYLON
(B) L=990 OD=8 		1-49218-618-1 02 1 1306-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1306-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1306-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1306-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1306-
192 TUBE; NYLON
(C) 		8-98234-678-0 01 1 1306-
192 TUBE; NYLON
(D) 		8-98234-679-0 01 1 1306-
222 BOLT; CONNECTOR
M8X10 FLANGE 		0-28050-810-0 02 1 1306-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1306-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1306-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 1306-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1306-
226 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 01 1 1306-
226 BOLT; UNION
M8X45 FLANGE 		0-28050-845-0 02 1 1306-
226 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 1306-
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1306-
262 BRACKET
(C) 		1-47471-015-0 01 1 1306-
262 BRACKET
(A) 		1-79996-143-0 01 1 1306-
262 BRACKET
(B) 		1-79996-258-1 01 1 1306-
262 BRACKET
DIFF LOCK(C3N) (D) 		1-47471-386-0 01 1 1306-
330 UNION; FLEX HOSE 1-09650-360-1 01 1 1306-
