3-70 — BRAKE PIPING; AIR,AIR MASTER (#123525) — 168 parça

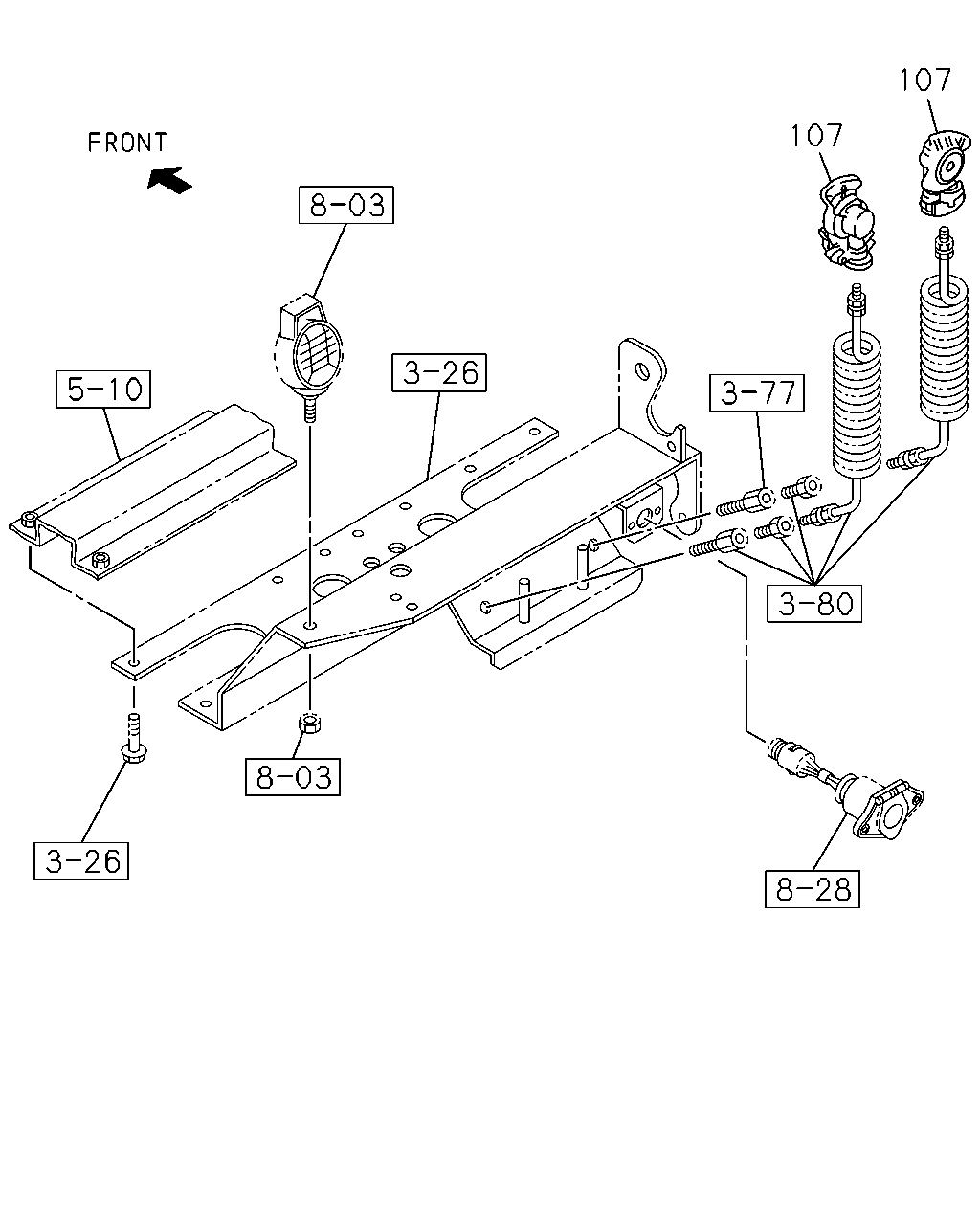

çizim 363607
107 107
BalonParca AdiParca NoAdetTipApplied Date
107 COUPLING; SERVICE
EMERGENCY 		1-47478-210-0 01 1 1306-
107 COUPLING; SERVICE
SERVICE 		1-47478-211-0 01 1 1306-

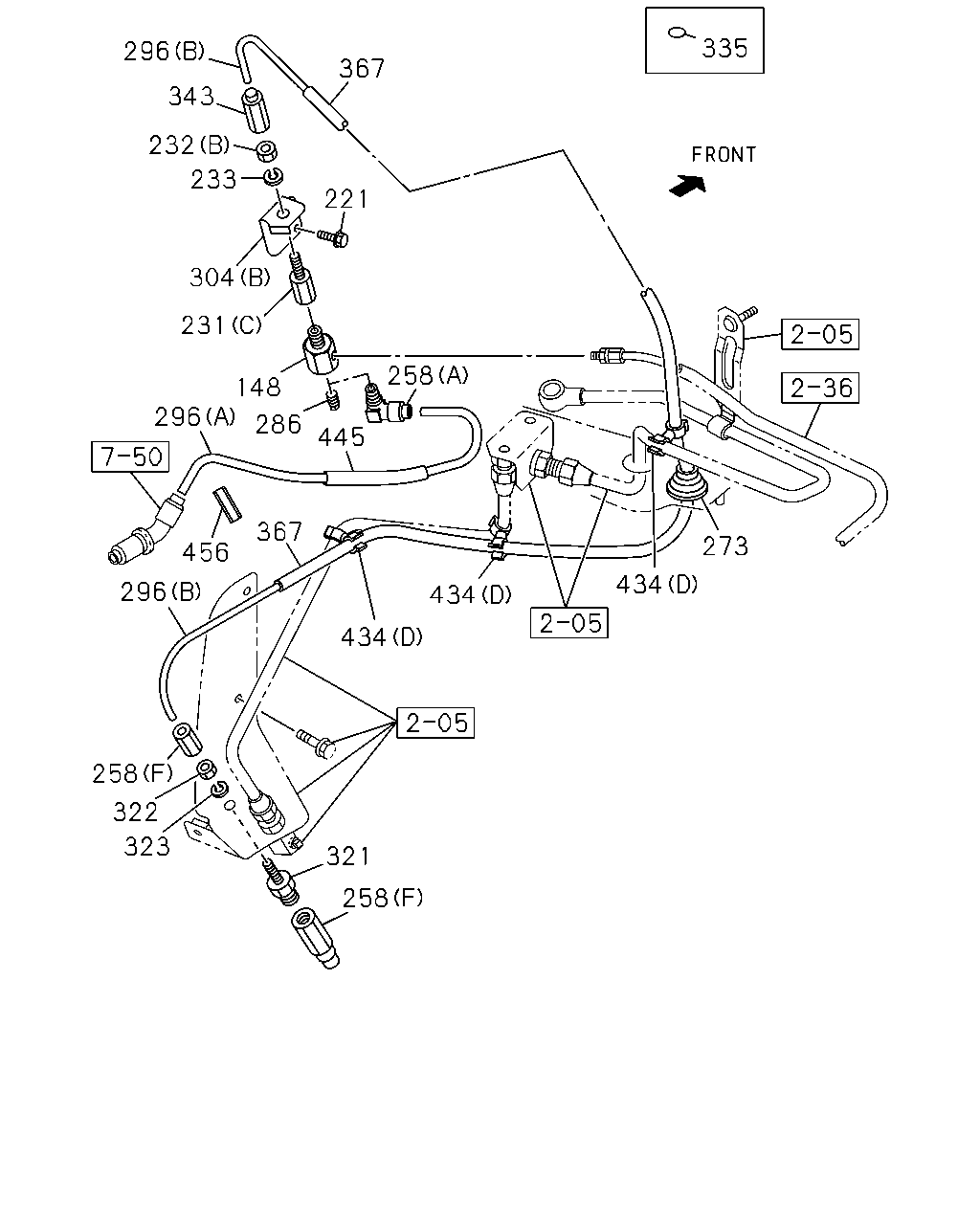

çizim 364419
258 321 323 322 258 434 434 434 273 335 367 221 304 231 296 296 456 148 286 445 367 258 233 232 343 296
BalonParca AdiParca NoAdetTipApplied Date
148 CONNECTOR; UNION
MJX16P M/T(Y3Z) 		8-94338-417-0 01 1 1306-
221 BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1306-
221 BOLT; BRKT
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1306-
231 UNION; AIR PIPE
(B) M10 ELBOW 		1-09654-186-2 01 1 1306-
231 UNION; AIR PIPE
(A) M10 STRAIGHT 		1-09654-361-0 01 1 1306-
231 UNION; AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1306-
231 UNION; AIR PIPE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) (C) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1306-
232 NUT; UNION,AIR PIPE
(A) M10 		0-91110-510-0 01 1 1306-
232 NUT; UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M10 H=8 		1-09400-029-0 01 1 1306-
232 NUT; UNION,AIR PIPE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) (B) M10 H=8 		1-09400-029-0 01 1 1306-
233 WASHER; LK,UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		0-91510-510-0 01 1 1306-
233 WASHER; LK,UNION,AIR PIPE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) ID=10.2 		0-91510-510-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
(D) PT3/8 3WAY 		1-09661-300-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
(E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) DIFF LOCK(C3N) (G) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1306-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1306-
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) (F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1306-
273 GROMMET
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09332-102-0 01 1 1306-
273 GROMMET
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) 		1-09332-102-0 01 1 1306-
286 PLUG; AIR PIPE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) 		9-09204-510-0 01 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1306-
296 TUBE; NYLON
(C) 		8-98241-072-0 01 1 1306-
296 TUBE; NYLON
(D) 		8-98242-435-0 01 1 1306-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1306-
304 BRACKET; UNION
(A) 		8-98082-870-0 01 1 1306-
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-71117-210-0 01 1 1306-
304 BRACKET; UNION
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) (B) 		1-71117-210-0 01 1 1306-
321 JOINT; FLEX HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5 		0-92113-306-0 01 1 1306-
321 JOINT; FLEX HOSE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) M12 L=66.5 		0-92113-306-0 01 1 1306-
322 NUT; JOINT,FLEX HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 		9-09840-280-0 01 1 1306-
322 NUT; JOINT,FLEX HOSE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) M12 		9-09840-280-0 01 1 1306-
323 WASHER; LK,JOINT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=12.2 		0-91510-512-0 01 1 1306-
323 WASHER; LK,JOINT
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) ID=12.2 		0-91510-512-0 01 1 1306-
335 SEAL; UNION
MJT7S M/T(Y3E) RIGID SEAT W/ARM REST(SGC) OD=30 BLACK 		1-76798-035-0 01 1 1306-
343 UNION; NYLON TUBE 1-09660-796-1 02 1 1306-
343 UNION; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09660-796-1 01 1 1306-
343 UNION; NYLON TUBE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) 		1-09660-796-1 01 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1306-
434 CLIP
(A) ID=24 L=27 		1-09700-809-0 03 1 1306-
434 CLIP
(B) ID=12 & 24 		1-09701-248-0 01 1 1306-
434 CLIP
(C) ID=10 & 10 		1-09709-221-0 01 1 1306-
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=8.3 & 8.3 		8-94426-175-0 03 1 1306-
434 CLIP
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) (D) ID=8.3 & 8.3 		8-94426-175-0 03 1 1306-
445 GUARD
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=520 ID=7.4 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 1306-
456 SEAL; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 100X40 		1-72498-022-1 01 1 1306-
çizim 364493
434 337 232 330 337 231 330 334 232 343 297 343 231 372 120
BalonParca AdiParca NoAdetTipApplied Date
120 CONNECTOR; AIR PIPE 1-47470-655-0 01 1 1306-
231 UNION; AIR PIPE
(B) M10 ELBOW 		1-09654-186-2 01 1 1306-
231 UNION; AIR PIPE
(A) M10 STRAIGHT 		1-09654-361-0 01 1 1306-
231 UNION; AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1306-
231 UNION; AIR PIPE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) (C) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1306-
232 NUT; UNION,AIR PIPE
(A) M10 		0-91110-510-0 01 1 1306-
232 NUT; UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M10 H=8 		1-09400-029-0 01 1 1306-
232 NUT; UNION,AIR PIPE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) (B) M10 H=8 		1-09400-029-0 01 1 1306-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 1306-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1306-
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 02 1 1306-
334 SPACER; PIPE UNION
ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 1306-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-57210-720-0 02 1 1306-
343 UNION; NYLON TUBE 1-09660-796-1 02 1 1306-
343 UNION; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09660-796-1 01 1 1306-
343 UNION; NYLON TUBE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) 		1-09660-796-1 01 1 1306-
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 1306-
434 CLIP
(A) ID=24 L=27 		1-09700-809-0 03 1 1306-
434 CLIP
(B) ID=12 & 24 		1-09701-248-0 01 1 1306-
434 CLIP
(C) ID=10 & 10 		1-09709-221-0 01 1 1306-
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=8.3 & 8.3 		8-94426-175-0 03 1 1306-
434 CLIP
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) (D) ID=8.3 & 8.3 		8-94426-175-0 03 1 1306-

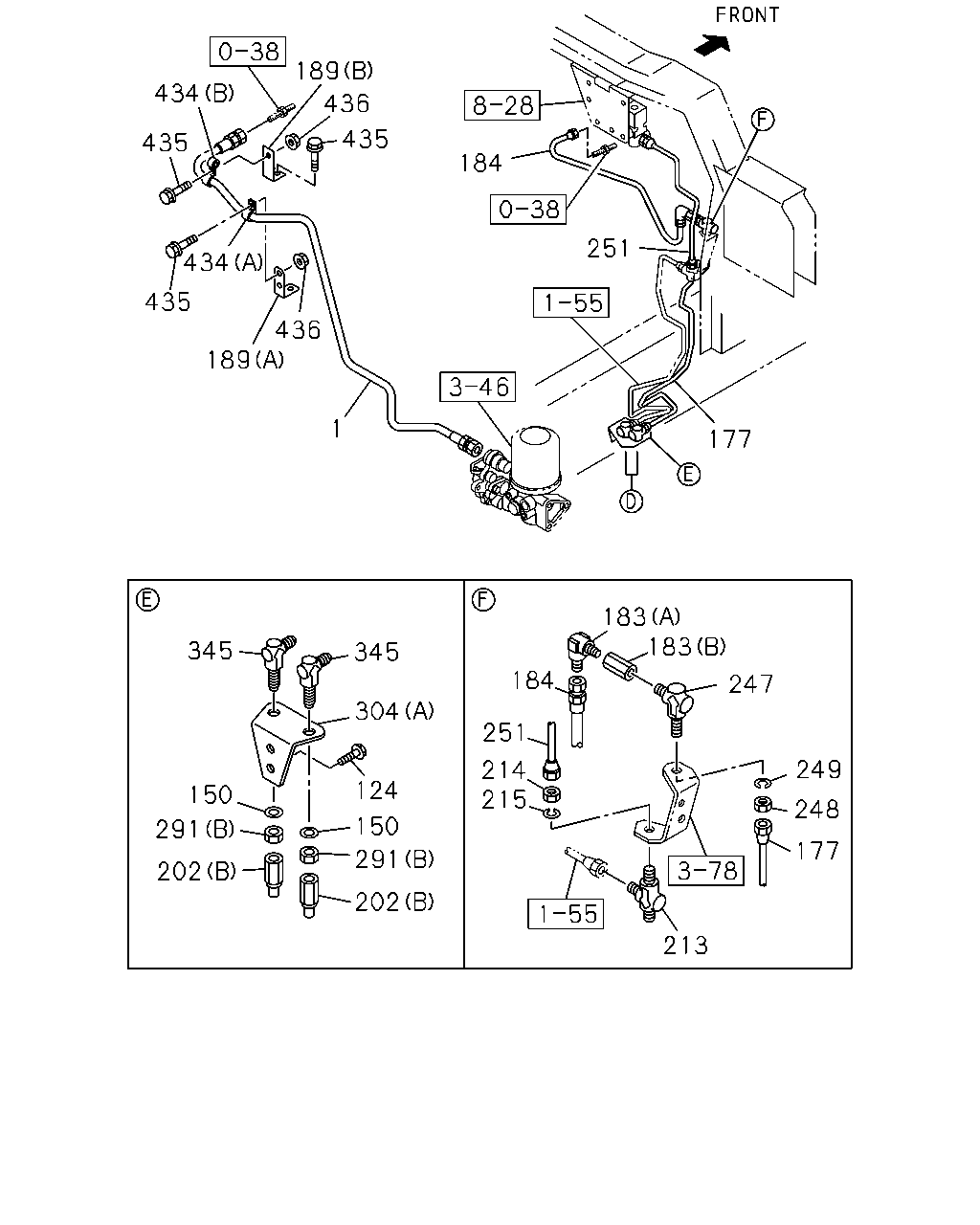

çizim 366097
434 435 434 435 436 189 189 436 435 1 184 251 177 183 183 184 251 214 215 247 249 248 177 213 345 304 124 150 291 202 150 291 202 345
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=1480 		8-98169-578-0 01 1 1306-
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1306-
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 1306-
177 PIPE; AIR,UNION TO UNION
L=582 SERVICED BY L=600 		1-47428-809-0 01 1 1306-
183 UNION; FLEX HOSE,GOV
(A) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1306-
183 UNION; FLEX HOSE,GOV
(B) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 1306-
184 HOSE; FLEX,AIR GOV
L=740 		1-09363-675-0 01 1 1306-
189 BRACKET; FLEX HOSE
(B) L=75 		1-47478-328-0 01 1 1306-
189 BRACKET; FLEX HOSE
MJX16P M/T(Y3Z) (A) 		1-47477-337-1 01 1 1306-
189 BRACKET; FLEX HOSE
MJX16P M/T(Y3Z) (C) 		8-97645-648-0 01 1 1306-1308
189 BRACKET; FLEX HOSE
MJX16P M/T(Y3Z) (C) 		8-97646-842-0 01 1 1309-
202 ADAPTER
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1306-
202 ADAPTER
MJX16P M/T(Y3Z) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1306-
213 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1306-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1306-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 1306-
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1306-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 1306-
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 1306-
251 PIPE; AIR,UNION TO MAG VLV
L=375 		1-49124-511-0 01 1 1306-
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 1306-
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1306-
304 BRACKET; UNION
(A) 		8-98082-870-0 01 1 1306-
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-71117-210-0 01 1 1306-
304 BRACKET; UNION
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) (B) 		1-71117-210-0 01 1 1306-
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 1306-
434 CLIP
(A) ID=24 L=27 		1-09700-809-0 03 1 1306-
434 CLIP
(B) ID=12 & 24 		1-09701-248-0 01 1 1306-
434 CLIP
(C) ID=10 & 10 		1-09709-221-0 01 1 1306-
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=8.3 & 8.3 		8-94426-175-0 03 1 1306-
434 CLIP
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) (D) ID=8.3 & 8.3 		8-94426-175-0 03 1 1306-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 1306-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1306-

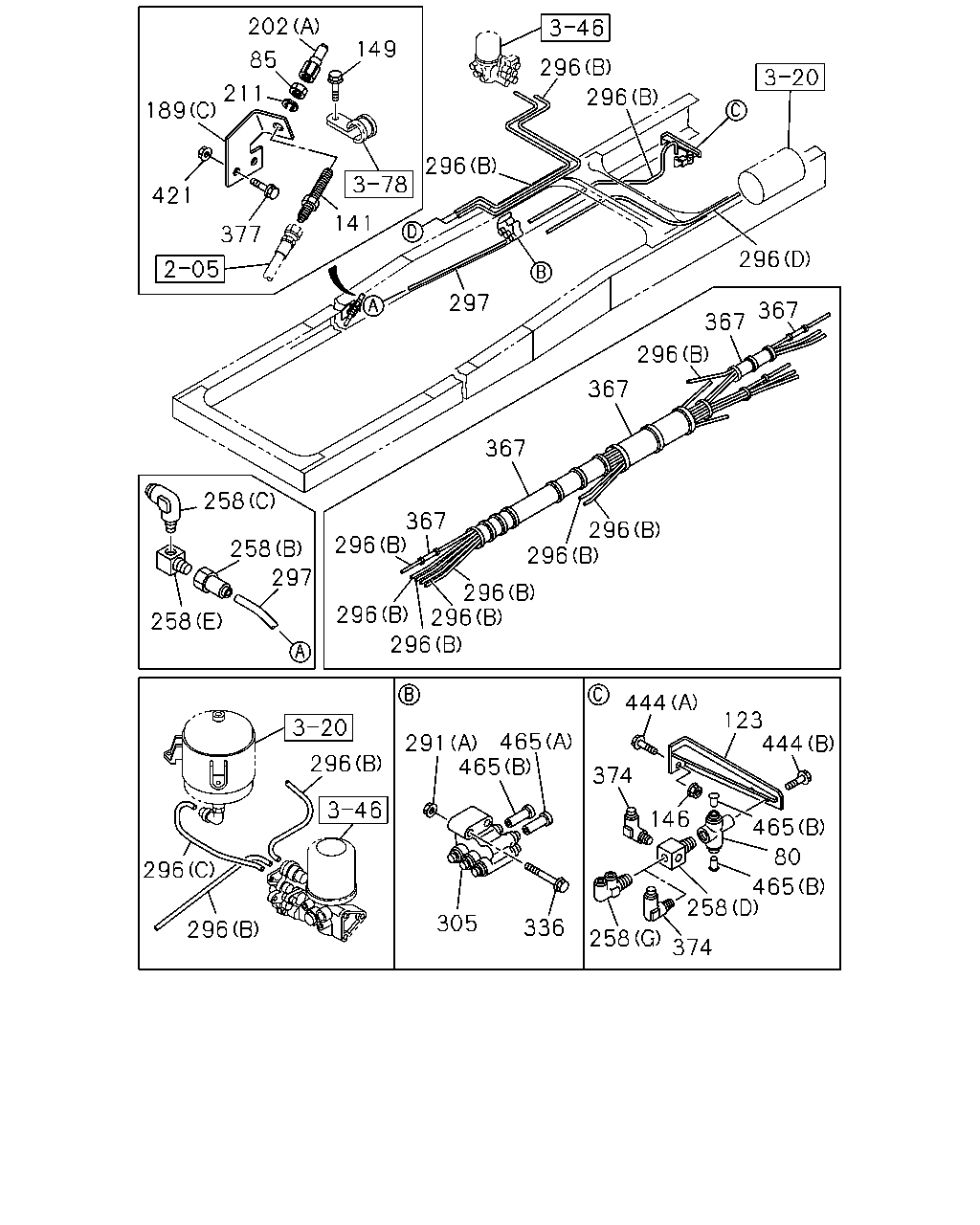

çizim 366716
202 85 211 189 421 377 141 149 296 297 367 367 296 367 367 296 296 296 258 258 258 296 296 367 296 296 296 296 296 296 296 296 291 465 305 465 444 123 444 465 80 465 146 374 258 374 258 336 297
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1306-
85 NUT; UNION
MJX16P M/T(Y3Z) M12 		0-91111-512-0 01 1 1306-1308
85 NUT; UNION
MJX16P M/T(Y3Z) M12 		9-09840-280-0 01 1 1309-
123 BRACKET; UNION 1-47479-401-0 01 1 1306-
141 UNION; FLEX HOSE
MJX16P M/T(Y3Z) M12 L=66.5 		0-92113-306-0 01 1 1306-
146 NUT; UNION
M8 FLANGE 		0-91180-108-0 02 1 1306-
149 BOLT; TUBE CLIP
MJX16P M/T(Y3Z) M8X25 FLANGE 		0-28650-825-0 01 1 1306-
189 BRACKET; FLEX HOSE
(B) L=75 		1-47478-328-0 01 1 1306-
189 BRACKET; FLEX HOSE
MJX16P M/T(Y3Z) (A) 		1-47477-337-1 01 1 1306-
189 BRACKET; FLEX HOSE
MJX16P M/T(Y3Z) (C) 		8-97645-648-0 01 1 1306-1308
189 BRACKET; FLEX HOSE
MJX16P M/T(Y3Z) (C) 		8-97646-842-0 01 1 1309-
202 ADAPTER
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1306-
202 ADAPTER
MJX16P M/T(Y3Z) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1306-
211 WASHER; LK,UNION
MJX16P M/T(Y3Z) ID=12.2 		0-91510-812-0 01 1 1306-1308
211 WASHER; LK,UNION
MJX16P M/T(Y3Z) ID=12.2 		0-91510-512-0 01 1 1309-
258 CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
(D) PT3/8 3WAY 		1-09661-300-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
(E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) DIFF LOCK(C3N) (G) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1306-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1306-
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) (F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1306-
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 1306-
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1306-
296 TUBE; NYLON
(C) 		8-98241-072-0 01 1 1306-
296 TUBE; NYLON
(D) 		8-98242-435-0 01 1 1306-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1306-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 1306-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1306-
305 UNION ASM; NYLON TUBE 1-09661-613-1 01 1 1306-
336 BOLT; PIPE UNION
M8X60 FLANGE 		0-28050-860-0 02 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1306-
374 CONNECTOR
DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1306-
377 BOLT; BRKT FIX
MJX16P M/T(Y3Z) M8X25 FLANGE 		0-28650-825-0 02 1 1306-
421 NUT; BRKT
MJX16P M/T(Y3Z) M8 FLANGE 		0-91180-108-0 02 1 1306-
444 BOLT; UNION
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1306-
444 BOLT; UNION
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1306-
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 1306-
465 PLUG
MJT7S M/T(Y3E) DIFF LOCK(C3N) (B) OD=8 PLASTIC 		1-09661-616-0 01 1 1306-
465 PLUG
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (B) OD=8 PLASTIC 		1-09661-616-0 01 1 1306-
465 PLUG
MJT7S M/T(Y3E) CAB SUSPENSION-FULL FLOATING(SMK) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) OD=6 L=27 		1-09661-615-0 01 1 1306-1409
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) OD=6 L=27 		1-09661-615-0 01 1 1306-1409
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 1306-1409
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) OD=6 L=27 		1-09661-615-0 01 1 1410-
465 PLUG
MJT7S M/T(Y3E) CAB SUSPENSION-FULL FLOATING(SMK) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) OD=6 L=27 		1-09661-615-0 01 1 1410-
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 1410-
465 PLUG
MJT7S M/T(Y3E) EXC. DIFF LOCK(C3N) (B) OD=8 PLASTIC 		1-09661-616-0 02 1 1306-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
