4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#12351) — 154 parça

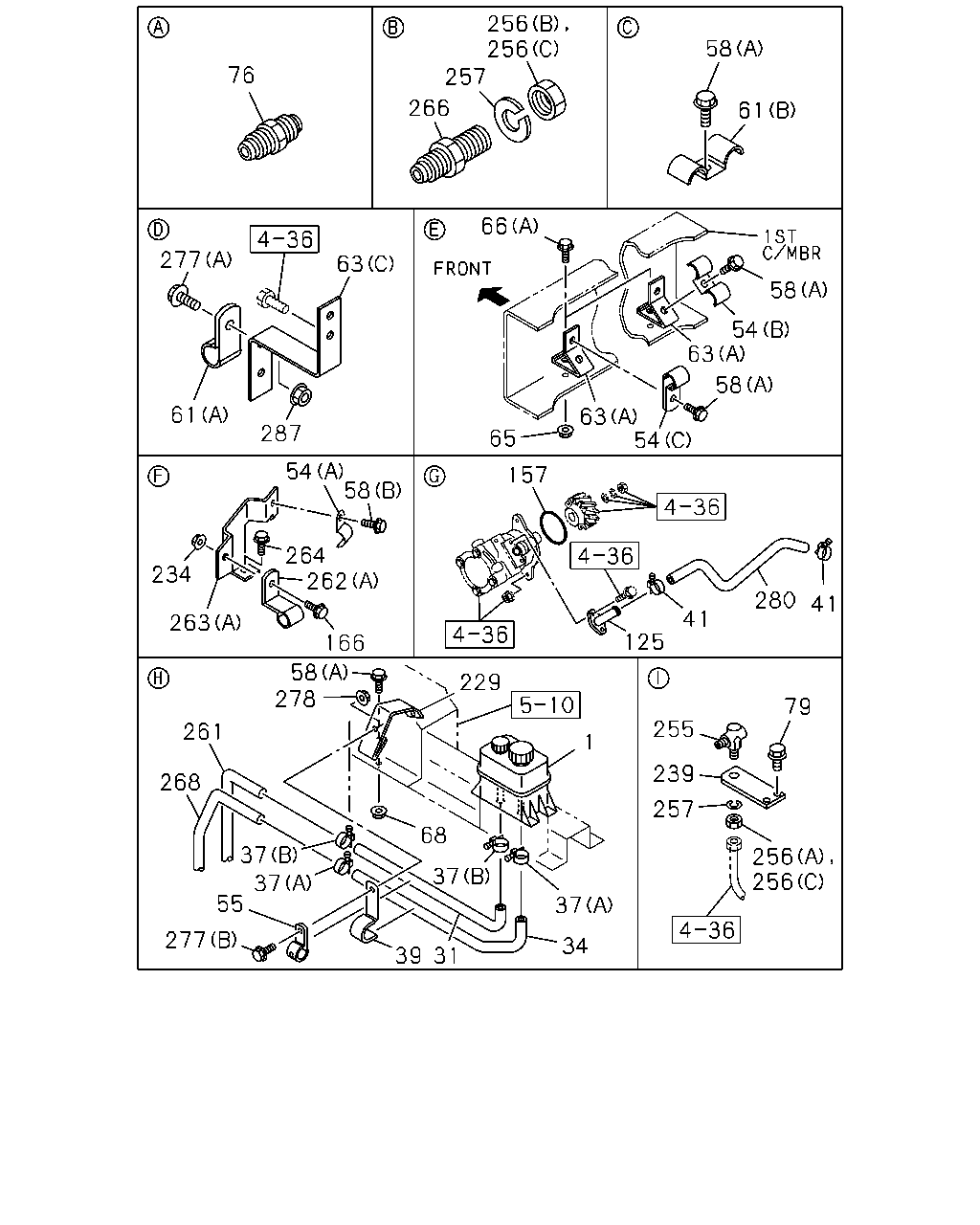

256 256 257 58 76 266 61 66 277 63 58 54 63 58 61 63 54 287 65 54 58 157 264 262 234 280 41 41 263 125 166 58 278 229 79 255 261 1 239 268 257 68 37 256 256 37 37 55 37 277 34 39 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0105-0508
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0509-
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	0105-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	0105-
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	0105-
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	0105-
39	CLIP; FLEX HOSE ID=32 L=75	1-09700-702-0	01	1	0105-
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	0105-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0105-
54	CLIP; OIL PIPE (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-
54	CLIP; OIL PIPE (C) ID=16 L=20	9-09525-535-0	01	1	0105-
55	CLIP; P/S RUBBER HOSE ID=28 L=30	1-09700-607-1	01	1	0105-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0301
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	06	1	0302-0512
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	06	1	0601-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	04	1	0105-0301
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
58	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
58	BOLT; CLIP (B) M10X25 FLANGE	0-28681-025-0	02	1	0105-0512
58	BOLT; CLIP (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-
61	CLIP; OIL PIPE (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-
61	CLIP; OIL PIPE (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-
61	CLIP; OIL PIPE (A) ID=16 L=20	9-09525-535-0	04	1	0105-0404
61	CLIP; OIL PIPE (A) ID=16 L=20	9-09525-535-0	05	1	0405-
63	BRACKET; CLIP,P/S (C)	1-47475-963-1	01	1	0105-
63	BRACKET; CLIP,P/S (B)	1-47477-193-0	01	1	0105-
63	BRACKET; CLIP,P/S (A)	1-47477-621-1	02	1	0105-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0301
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0301
65	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0302-
66	BOLT; BRKT,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
66	BOLT; BRKT,OIL PIPE (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
66	BOLT; BRKT,OIL PIPE (B) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
66	BOLT; BRKT,OIL PIPE (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-
66	BOLT; BRKT,OIL PIPE (B) M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
66	BOLT; BRKT,OIL PIPE (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0105-
76	UNION; OIL PIPE M22	9-09233-015-1	01	1	0105-0301
76	UNION; OIL PIPE M22	9-09233-015-1	01	1	0105-0301
76	UNION; OIL PIPE M22	9-09233-015-1	02	1	0302-
79	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0105-0512
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	0105-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0105-
166	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
166	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-
229	BRACKET; HOSE,POWER STRG	1-21464-407-1	01	1	0105-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	02	1	0105-
239	BRACKET; FLEX HOSE	1-47476-679-4	01	1	0105-
255	UNION; FLEX HOSE M22 & M22 ELBOW	1-09654-163-1	01	1	0105-
256	NUT; UNION (A) M22	9-09111-422-0	01	1	0105-0512
256	NUT; UNION (B) M22	9-09111-522-0	01	1	0105-0512
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0601-
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0601-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0105-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0105-
261	PIPE; OIL,UNION TO HOSE L=1031	1-21117-048-0	01	1	0105-
262	CLIP; P/S PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0105-
262	CLIP; P/S PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0105-
263	BRACKET; P/S PIPE (A)	1-47476-483-2	01	1	0105-
263	BRACKET; P/S PIPE (B)	1-47477-597-3	01	1	0105-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	0105-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1315	1-21116-855-0	01	1	0105-
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0404
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28680-820-0	03	1	0405-0512
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-
277	BOLT; HOSE CLIP (B) M10X25 FLANGE	0-28681-025-0	01	1	0105-0512
277	BOLT; HOSE CLIP (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-
278	NUT; HOSE CLIP M10 FLANGE	0-91150-210-0	01	1	0105-
280	HOSE; P/S OIL PUMP,INL	1-21115-865-0	01	1	0105-0305
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0306-
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0105-0404
287	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	0405-

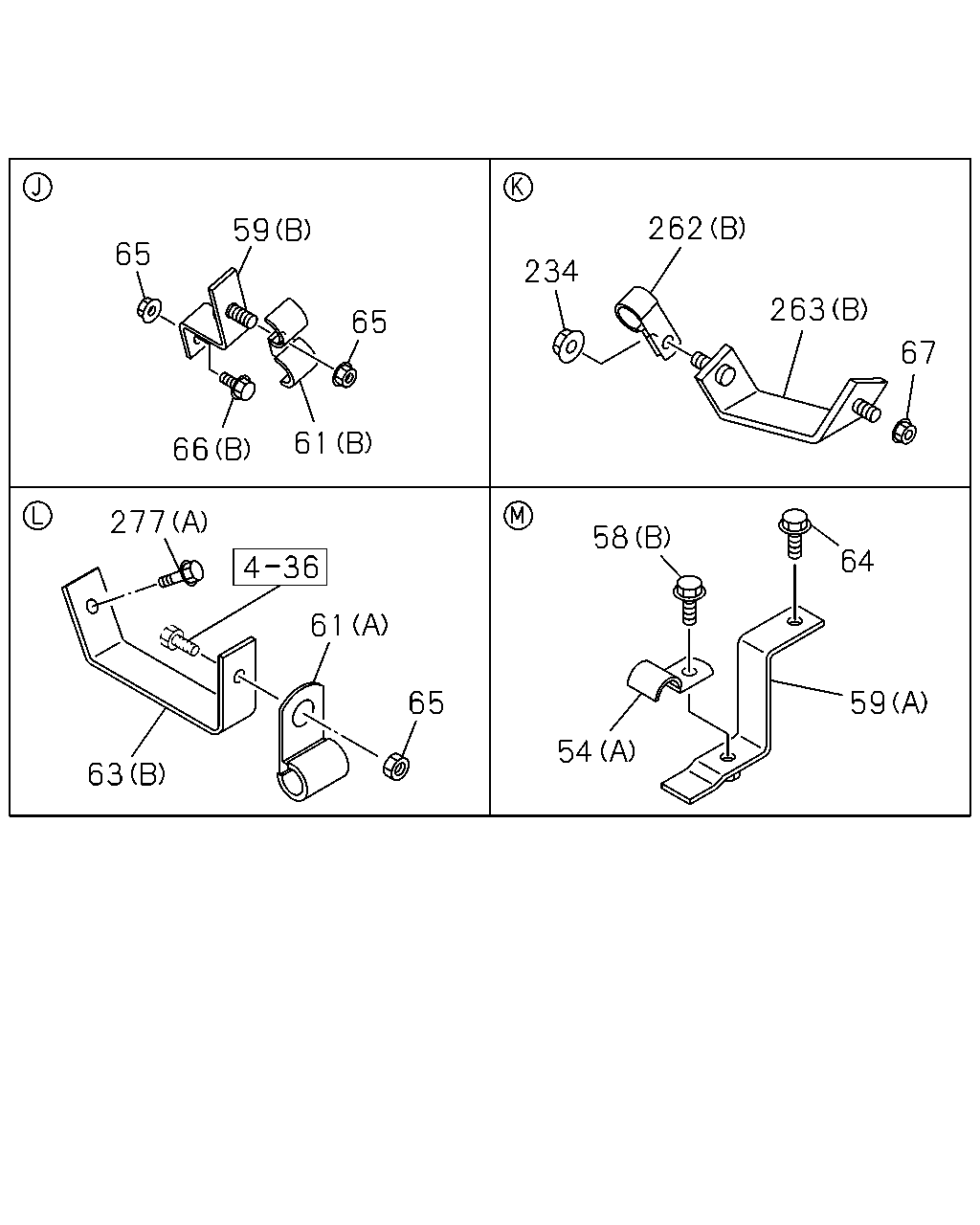

262 59 65 234 263 65 67 61 66 277 58 64 61 59 65 54 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0105-
54	CLIP; OIL PIPE (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-
54	CLIP; OIL PIPE (C) ID=16 L=20	9-09525-535-0	01	1	0105-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0301
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	06	1	0302-0512
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	06	1	0601-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	04	1	0105-0301
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
58	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
58	BOLT; CLIP (B) M10X25 FLANGE	0-28681-025-0	02	1	0105-0512
58	BOLT; CLIP (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-
59	BRACKET; CLIP,OIL PIPE (A)	1-47477-145-0	01	1	0105-
59	BRACKET; CLIP,OIL PIPE (B)	1-47477-235-0	01	1	0105-0106
59	BRACKET; CLIP,OIL PIPE (B)	1-47477-669-1	01	1	0107-
61	CLIP; OIL PIPE (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-
61	CLIP; OIL PIPE (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-
61	CLIP; OIL PIPE (A) ID=16 L=20	9-09525-535-0	04	1	0105-0404
61	CLIP; OIL PIPE (A) ID=16 L=20	9-09525-535-0	05	1	0405-
63	BRACKET; CLIP,P/S (C)	1-47475-963-1	01	1	0105-
63	BRACKET; CLIP,P/S (B)	1-47477-193-0	01	1	0105-
63	BRACKET; CLIP,P/S (A)	1-47477-621-1	02	1	0105-
64	BOLT; CLIP BRKT M8X20 FLANGE	0-28080-820-0	01	1	0105-0512
64	BOLT; CLIP BRKT M8X20 FLANGE	0-28050-820-0	01	1	0601-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0301
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0301
65	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0302-
66	BOLT; BRKT,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
66	BOLT; BRKT,OIL PIPE (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
66	BOLT; BRKT,OIL PIPE (B) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
66	BOLT; BRKT,OIL PIPE (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-
66	BOLT; BRKT,OIL PIPE (B) M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
66	BOLT; BRKT,OIL PIPE (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-
67	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	02	1	0105-
262	CLIP; P/S PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0105-
262	CLIP; P/S PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0105-
263	BRACKET; P/S PIPE (A)	1-47476-483-2	01	1	0105-
263	BRACKET; P/S PIPE (B)	1-47477-597-3	01	1	0105-
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0404
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28680-820-0	03	1	0405-0512
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-
277	BOLT; HOSE CLIP (B) M10X25 FLANGE	0-28681-025-0	01	1	0105-0512
277	BOLT; HOSE CLIP (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-

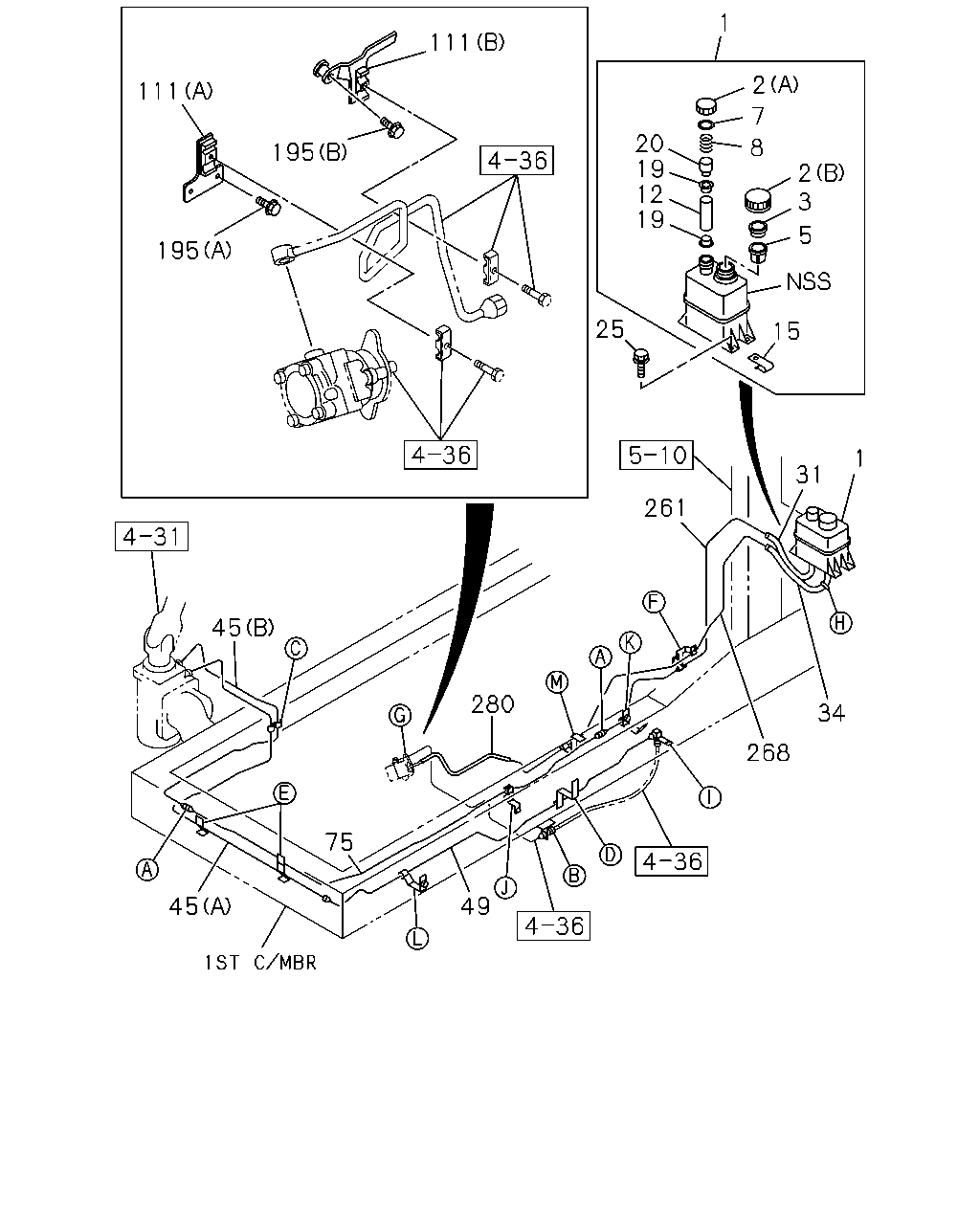

1 111 2 111 7 20 19 12 19 8 195 2 3 5 195 25 15 1 31 261 45 280 34 268 75 45 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0105-0508
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0509-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0105-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0105-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0105-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0105-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0105-
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	0105-0508
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0509-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0105-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	0105-0508
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0509-
19	SEAT; OIL TANK	1-21262-001-0	02	1	0105-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0105-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	0105-0512
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	0105-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	0105-
45	PIPE; OIL,P/S UNIT TO UNION (B) L=1239	1-21116-471-0	01	1	0105-
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1661	1-21116-850-0	01	1	0105-
49	PIPE; OIL,FLEX HOSE TO UNION L=1663	1-21116-235-0	01	1	0105-0108
49	PIPE; OIL,FLEX HOSE TO UNION L=1672	1-21117-137-0	01	1	0109-0211
49	PIPE; OIL,FLEX HOSE TO UNION L=1662	1-21117-337-0	01	1	0212-0404
49	PIPE; OIL,FLEX HOSE TO UNION L=1701	1-21117-568-0	01	1	0405-
75	PIPE; OIL,P/S,UNION TO UNION L=1807	1-21116-404-0	01	1	0105-0106
75	PIPE; OIL,P/S,UNION TO UNION L=1815	1-21117-076-0	01	1	0107-
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	0105-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	0105-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	02	1	0105-0512
195	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28181-035-0	01	1	0105-0512
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	0601-
261	PIPE; OIL,UNION TO HOSE L=1031	1-21117-048-0	01	1	0105-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1315	1-21116-855-0	01	1	0105-
280	HOSE; P/S OIL PUMP,INL	1-21115-865-0	01	1	0105-0305
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0306-
