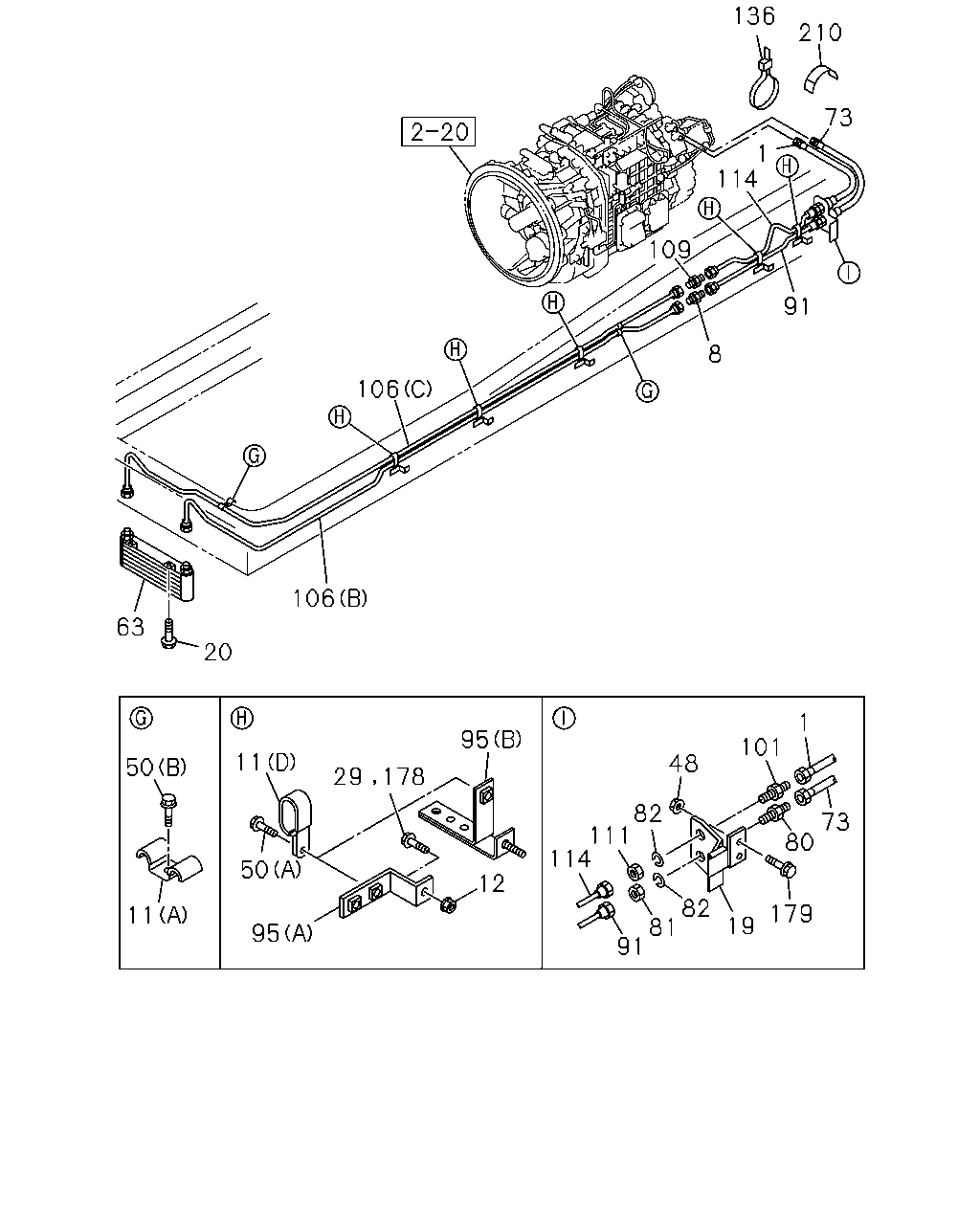

2-53 — TRANSMISSION OIL COOLER SYSTEM (#123508) — 95 parça

210 136 1 73 91 114 106 106 63 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1306-
1	HOSE; ATF MJX16P M/T(Y3Z) L=710	8-97635-173-0	01	1	1306-
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28051-020-0	02	1	1306-
63	COOLER; OIL MJT7S M/T(Y3E)	8-98240-506-0	01	1	1306-1405
63	COOLER; OIL MJT7S M/T(Y3E)	8-98269-767-0	01	1	1406-
63	COOLER; OIL MJX16P M/T(Y3Z)	8-98240-507-0	01	1	1306-
73	HOSE; FLEX,TRANS MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1306-
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=630	8-97635-172-0	01	1	1306-
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=876 SERVICED BY L=900	1-47428-873-0	01	1	1306-
91	PIPE; OIL,FLEX HOSE TO UNION MJX16P M/T(Y3Z) L=919	1-49166-987-1	01	1	1306-
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (B) L=1689	8-98234-564-0	01	1	1306-
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (A) L=2314	8-98234-565-0	01	1	1306-
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (B) L=1746	8-98234-809-0	01	1	1306-
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (C) L=2347	8-98234-810-0	01	1	1306-
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=841	8-98100-827-0	01	1	1306-
114	PIPE; OIL,UNION TO FLEX HOSE MJX16P M/T(Y3Z) L=849	1-49167-146-0	01	1	1306-
136	CLIP; FLEX HOSE MJT7S M/T(Y3E) L=350	1-09707-183-0	01	1	1306-
136	CLIP; FLEX HOSE MJX16P M/T(Y3Z) L=350	1-09707-183-0	02	1	1306-
210	BAND; FLEX HOSE MJT7S M/T(Y3E) L=175	1-09707-178-0	01	1	1306-
210	BAND; FLEX HOSE MJX16P M/T(Y3Z) L=175	1-09707-178-0	02	1	1306-

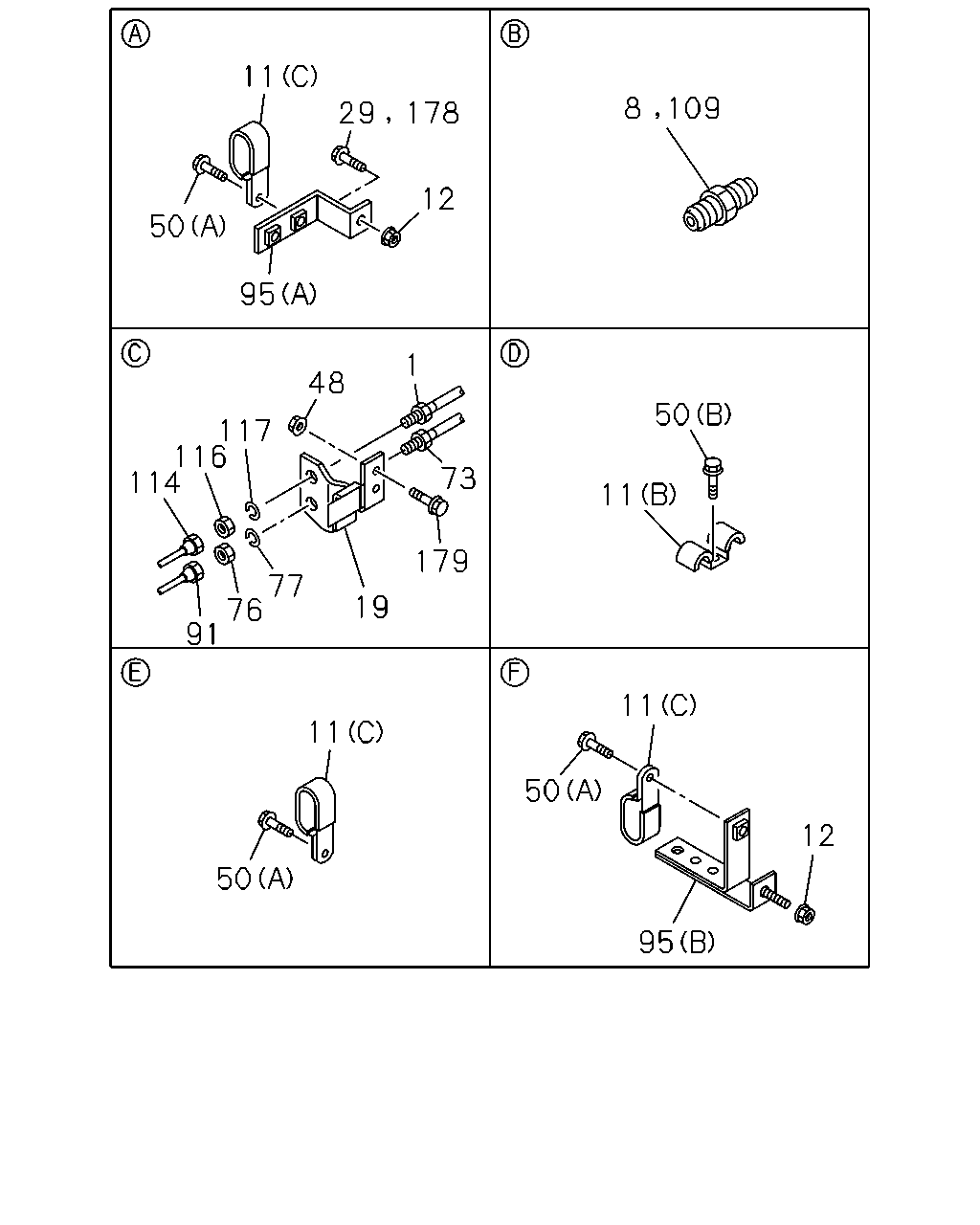

109 8 50 11 11 12 95 50 11 50 91 19 179 73 77 76 114 116 117 48 1 12 178 29 95 50 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1306-
1	HOSE; ATF MJX16P M/T(Y3Z) L=710	8-97635-173-0	01	1	1306-
8	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1306-
8	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	1306-
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	0-95325-035-0	05	1	1306-
11	CLIP; PIPE MJT7S M/T(Y3E) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	1306-
11	CLIP; PIPE MJX16P M/T(Y3Z) (D) ID=16X2 L=20	0-95325-535-0	05	1	1306-
11	CLIP; PIPE MJX16P M/T(Y3Z) (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1306-
12	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1306-
19	BRACKET; FLEX HOSE MJT7S M/T(Y3E)	1-47479-559-0	01	1	1306-
19	BRACKET; FLEX HOSE MJX16P M/T(Y3Z)	1-47479-561-1	01	1	1306-
29	BOLT; FILTER TO BRKT M8X35 FLANGE	0-28650-835-0	02	1	1306-
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-
50	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1306-
50	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	05	1	1306-
73	HOSE; FLEX,TRANS MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1306-
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=630	8-97635-172-0	01	1	1306-
76	NUT; FLEX HOSE MJT7S M/T(Y3E) M16	0-91111-516-0	01	1	1306-
77	WASHER; LK MJT7S M/T(Y3E) ID=16.2	0-91510-516-0	01	1	1306-
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=876 SERVICED BY L=900	1-47428-873-0	01	1	1306-
91	PIPE; OIL,FLEX HOSE TO UNION MJX16P M/T(Y3Z) L=919	1-49166-987-1	01	1	1306-
95	BRACKET; CLIP (A)	1-47479-482-0	03	1	1306-
95	BRACKET; CLIP (B)	8-98199-287-2	01	1	1306-
109	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1306-
109	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	1306-
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=841	8-98100-827-0	01	1	1306-
114	PIPE; OIL,UNION TO FLEX HOSE MJX16P M/T(Y3Z) L=849	1-49167-146-0	01	1	1306-
116	NUT; BRKT,FLEX HOSE MJT7S M/T(Y3E) M16	0-91111-516-0	01	1	1306-
117	WASHER; LK,FLEX HOSE MJT7S M/T(Y3E) ID=16.2	0-91510-516-0	01	1	1306-
178	BOLT; BRKT,CLIP M8X35 FLANGE	0-28650-835-0	01	1	1306-
179	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1306-

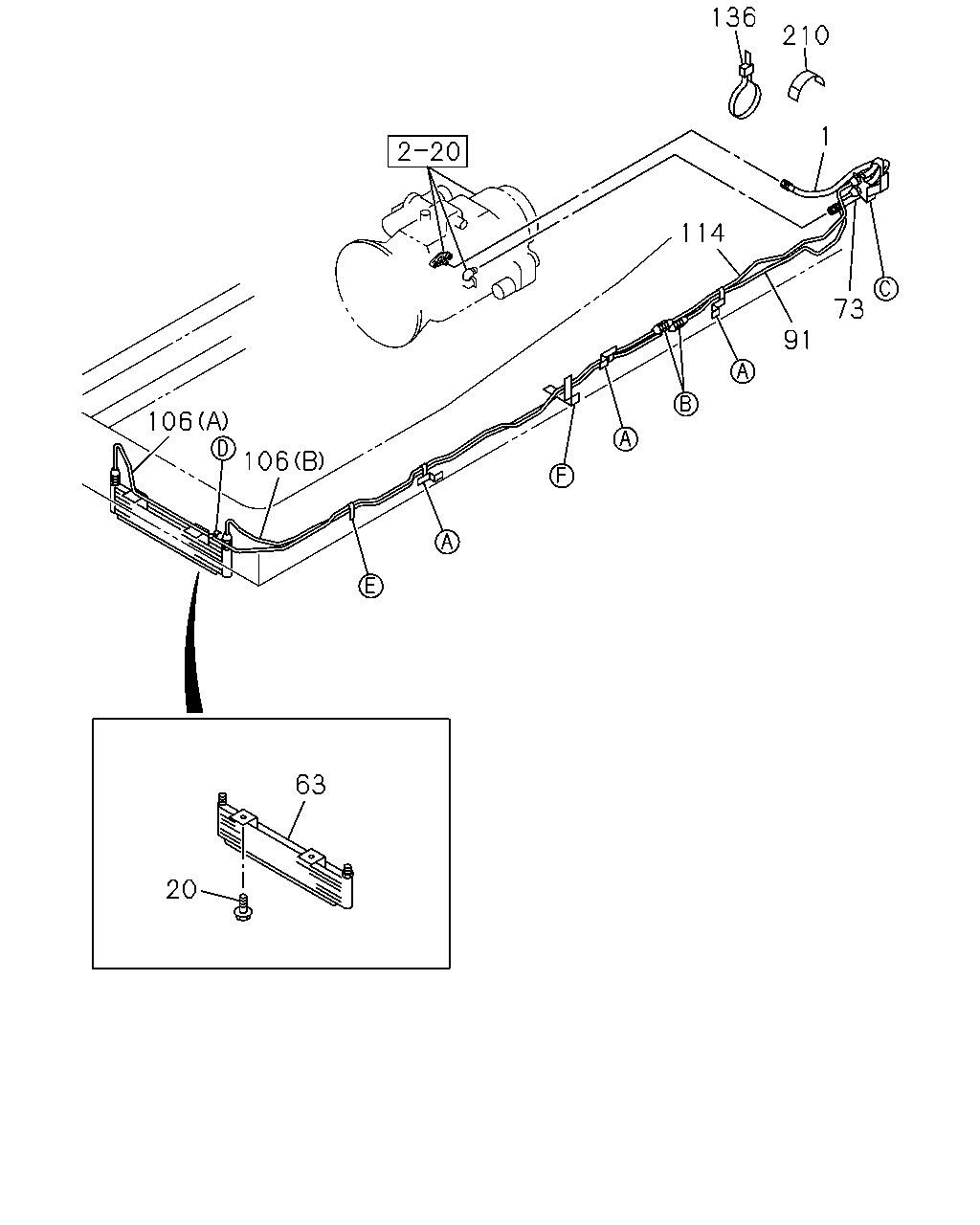

136 114 1 73 210 91 8 106 109 106 20 63 50 11 11 50 95 29 178 12 95 111 114 91 82 48 1 101 81 179 19 82 80 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1306-
1	HOSE; ATF MJX16P M/T(Y3Z) L=710	8-97635-173-0	01	1	1306-
8	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1306-
8	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	1306-
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	0-95325-035-0	05	1	1306-
11	CLIP; PIPE MJT7S M/T(Y3E) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	1306-
11	CLIP; PIPE MJX16P M/T(Y3Z) (D) ID=16X2 L=20	0-95325-535-0	05	1	1306-
11	CLIP; PIPE MJX16P M/T(Y3Z) (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1306-
12	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1306-
19	BRACKET; FLEX HOSE MJT7S M/T(Y3E)	1-47479-559-0	01	1	1306-
19	BRACKET; FLEX HOSE MJX16P M/T(Y3Z)	1-47479-561-1	01	1	1306-
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28051-020-0	02	1	1306-
29	BOLT; FILTER TO BRKT M8X35 FLANGE	0-28650-835-0	02	1	1306-
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-
50	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1306-
50	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	05	1	1306-
63	COOLER; OIL MJT7S M/T(Y3E)	8-98240-506-0	01	1	1306-1405
63	COOLER; OIL MJT7S M/T(Y3E)	8-98269-767-0	01	1	1406-
63	COOLER; OIL MJX16P M/T(Y3Z)	8-98240-507-0	01	1	1306-
73	HOSE; FLEX,TRANS MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1306-
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=630	8-97635-172-0	01	1	1306-
80	UNION; FLEX HOSE MJX16P M/T(Y3Z) M22 & M22 STRAIGHT	1-09654-204-2	01	1	1306-
81	NUT; UNION MJX16P M/T(Y3Z) M22	0-91111-522-0	01	1	1306-
82	WASHER; LK,UNION MJX16P M/T(Y3Z) ID=22.5	0-91510-522-0	02	1	1306-
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=876 SERVICED BY L=900	1-47428-873-0	01	1	1306-
91	PIPE; OIL,FLEX HOSE TO UNION MJX16P M/T(Y3Z) L=919	1-49166-987-1	01	1	1306-
95	BRACKET; CLIP (A)	1-47479-482-0	03	1	1306-
95	BRACKET; CLIP (B)	8-98199-287-2	01	1	1306-
101	UNION; FLEX HOSE MJX16P M/T(Y3Z) M22 & M22 STRAIGHT	1-09654-204-2	01	1	1306-
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (B) L=1689	8-98234-564-0	01	1	1306-
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (A) L=2314	8-98234-565-0	01	1	1306-
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (B) L=1746	8-98234-809-0	01	1	1306-
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (C) L=2347	8-98234-810-0	01	1	1306-
109	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1306-
109	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	1306-
111	NUT; UNION MJX16P M/T(Y3Z) M22	0-91111-522-0	01	1	1306-
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=841	8-98100-827-0	01	1	1306-
114	PIPE; OIL,UNION TO FLEX HOSE MJX16P M/T(Y3Z) L=849	1-49167-146-0	01	1	1306-
136	CLIP; FLEX HOSE MJT7S M/T(Y3E) L=350	1-09707-183-0	01	1	1306-
136	CLIP; FLEX HOSE MJX16P M/T(Y3Z) L=350	1-09707-183-0	02	1	1306-
178	BOLT; BRKT,CLIP M8X35 FLANGE	0-28650-835-0	01	1	1306-
179	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1306-
210	BAND; FLEX HOSE MJT7S M/T(Y3E) L=175	1-09707-178-0	01	1	1306-
210	BAND; FLEX HOSE MJX16P M/T(Y3Z) L=175	1-09707-178-0	02	1	1306-
