◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11538 - EXR LHD EURO2 WITH REFLECTOR ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#123502) — 355 parça

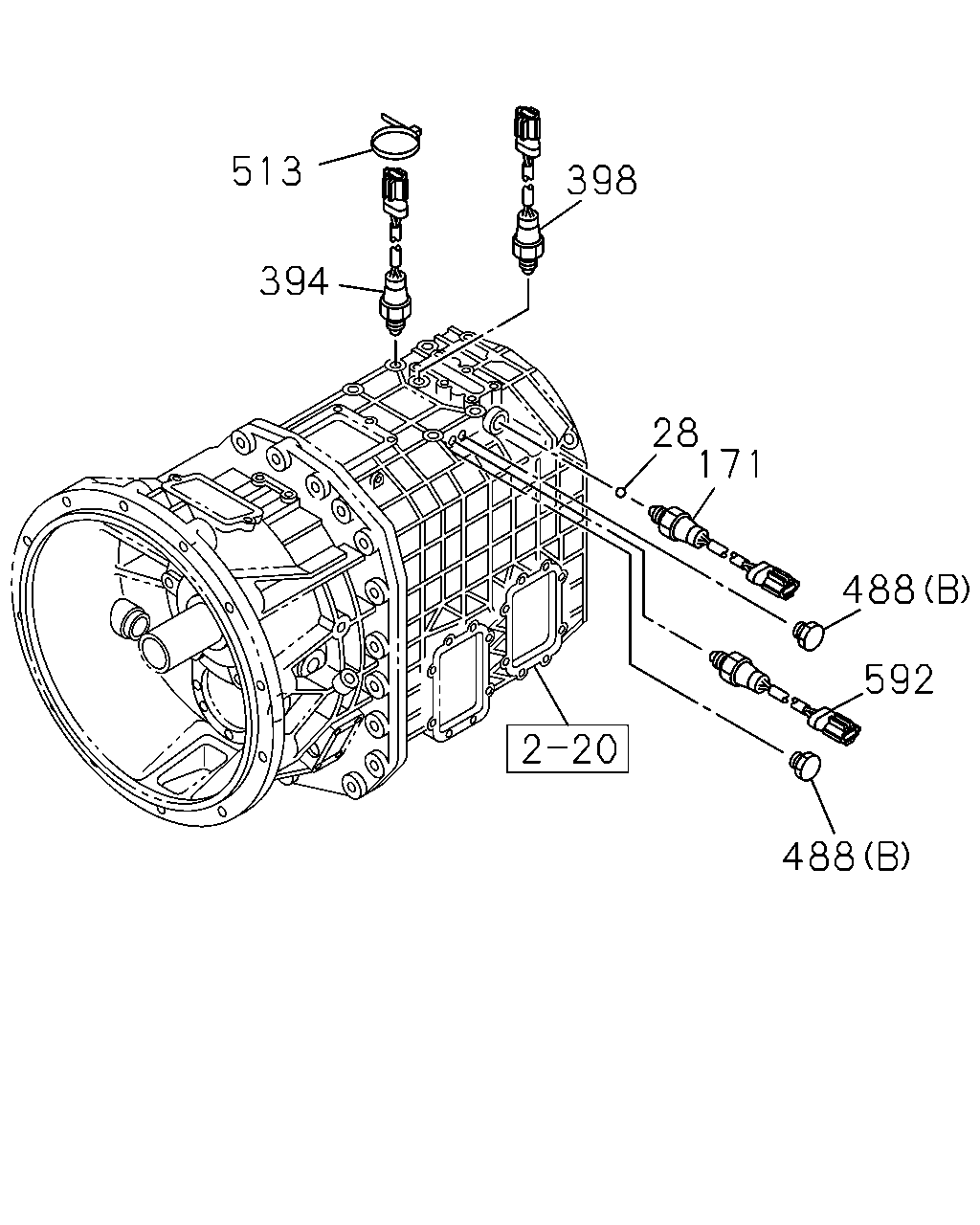

çizim 363045
513 394 398 28 171 488 592 488
BalonParca AdiParca NoAdetTipApplied Date A B
28 BALL; INTER LK 9-00097-501-0 04 1 1306- ●
28 BALL; INTER LK 9-00097-501-0 02 1 1306- ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1306- ● ●
394 SWITCH; RANGE CHANGE 8-98228-482-0 02 1 1306- ●
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1306- ● ●
488 PLUG; AIR CYL
(B) M14X9 		8-98042-944-0 02 1 1306- ●
488 PLUG; AIR CYL
(A) 		9-09204-510-0 01 1 1306- ●
488 PLUG; AIR CYL
(C) PT1/4 		9-99204-513-0 01 1 1306- ●
513 CLIP; BAND
L=140 		5-09707-031-1 02 1 1306- ● ●
592 SWITCH; POSITION 8-98228-482-0 01 1 1306- ●

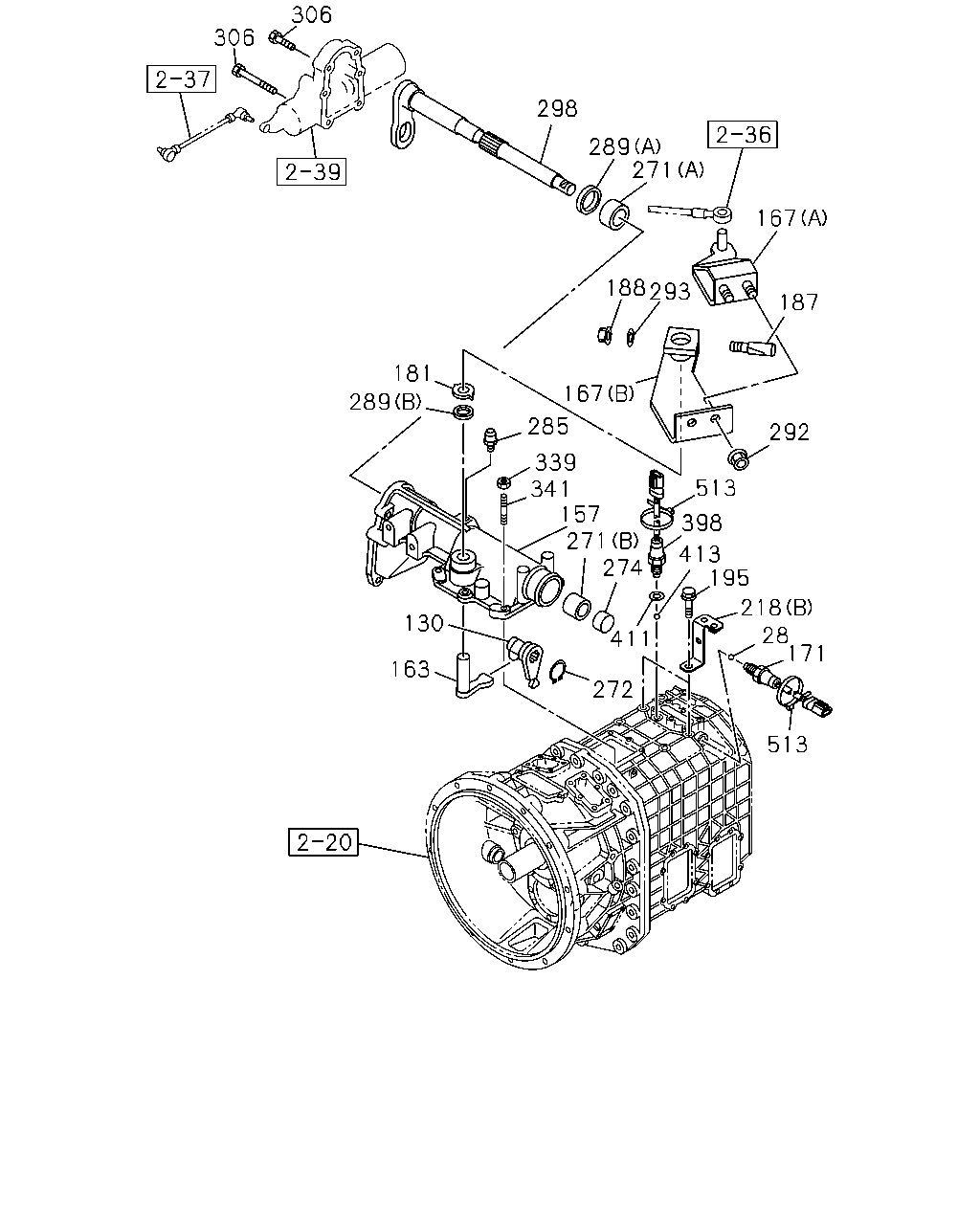

çizim 363137
306 306 298 289 271 167 187 292 293 188 167 513 398 413 195 218 28 171 513 272 411 274 271 157 341 339 285 181 289 130 163
BalonParca AdiParca NoAdetTipApplied Date A B
28 BALL; INTER LK 9-00097-501-0 04 1 1306- ●
28 BALL; INTER LK 9-00097-501-0 02 1 1306- ●
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 1306- ●
130 LEVER; SHIFT,INTERNAL 1-33521-189-0 01 1 1306- ●
157 BOX; QUAD,TRANS 1-33541-507-3 01 1 1306-1311 ●
157 BOX; QUAD,TRANS 8-98231-390-0 01 1 1312- ●
157 BOX; QUAD,TRANS 8-98220-885-0 01 1 1306- ●
163 LEVER; SELECT,INTERNAL 1-33522-201-0 01 1 1306- ●
163 LEVER; SELECT,INTERNAL 1-33522-202-0 01 1 1306- ●
167 LEVER; SELECT,EXTERNAL
(B) 		1-33521-192-1 01 1 1306- ●
167 LEVER; SELECT,EXTERNAL
(A) 		1-33521-193-1 01 1 1306- ●
167 LEVER; SELECT,EXTERNAL
(B) 		1-33521-194-0 01 1 1306- ●
167 LEVER; SELECT,EXTERNAL
(A) 		8-98052-192-0 01 1 1306- ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1306- ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 1306- ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 1306- ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 1306- ● ●
195 BOLT
M10X25 FLANGE 		0-28751-025-0 02 1 1306- ●
195 BOLT
M8X16 FLANGE 		0-28050-816-0 02 1 1306- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		8-98133-847-0 02 1 1306- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82698-350-0 01 1 1306- ●
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 1306- ● ●
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 1306- ● ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 1306- ●
272 RING; SNAP,QUAD BOX 1-09588-213-0 01 1 1306- ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 1306- ●
274 COVER; SHAFT,QUAD BOX 8-98220-886-0 01 1 1306- ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 1306- ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 1306- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 1306- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 1306- ● ●
292 NUT; LINK ROD
M8 FLANGE 		0-91180-108-0 02 1 1306-1408 ● ●
292 NUT; LINK ROD
M8 FLANGE 		0-91180-108-0 02 1 1409- ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 1306- ● ●
298 SHAFT; SHIFT LEVER 1-33522-180-0 01 1 1306- ●
298 SHAFT; SHIFT LEVER 8-98222-566-0 01 1 1306- ●
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE 		0-28151-045-0 02 1 1306- ● ●
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE 		0-28151-080-0 04 1 1306- ● ●
339 NUT; QUAD BOX
M10 FLANGE 		0-91180-210-0 06 1 1306- ●
339 NUT; QUAD BOX
M10 FLANGE 		0-91180-210-0 05 1 1306- ●
341 STUD; QUAD BOX
M10X25 L=40 		0-44011-025-0 06 1 1306- ●
341 STUD; QUAD BOX
M10X35 L=50 		0-44011-035-0 05 1 1306- ●
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1306- ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 1306- ●
413 BALL; BACK SW 9-00097-013-0 01 1 1306- ●
513 CLIP; BAND
L=140 		5-09707-031-1 02 1 1306- ● ●

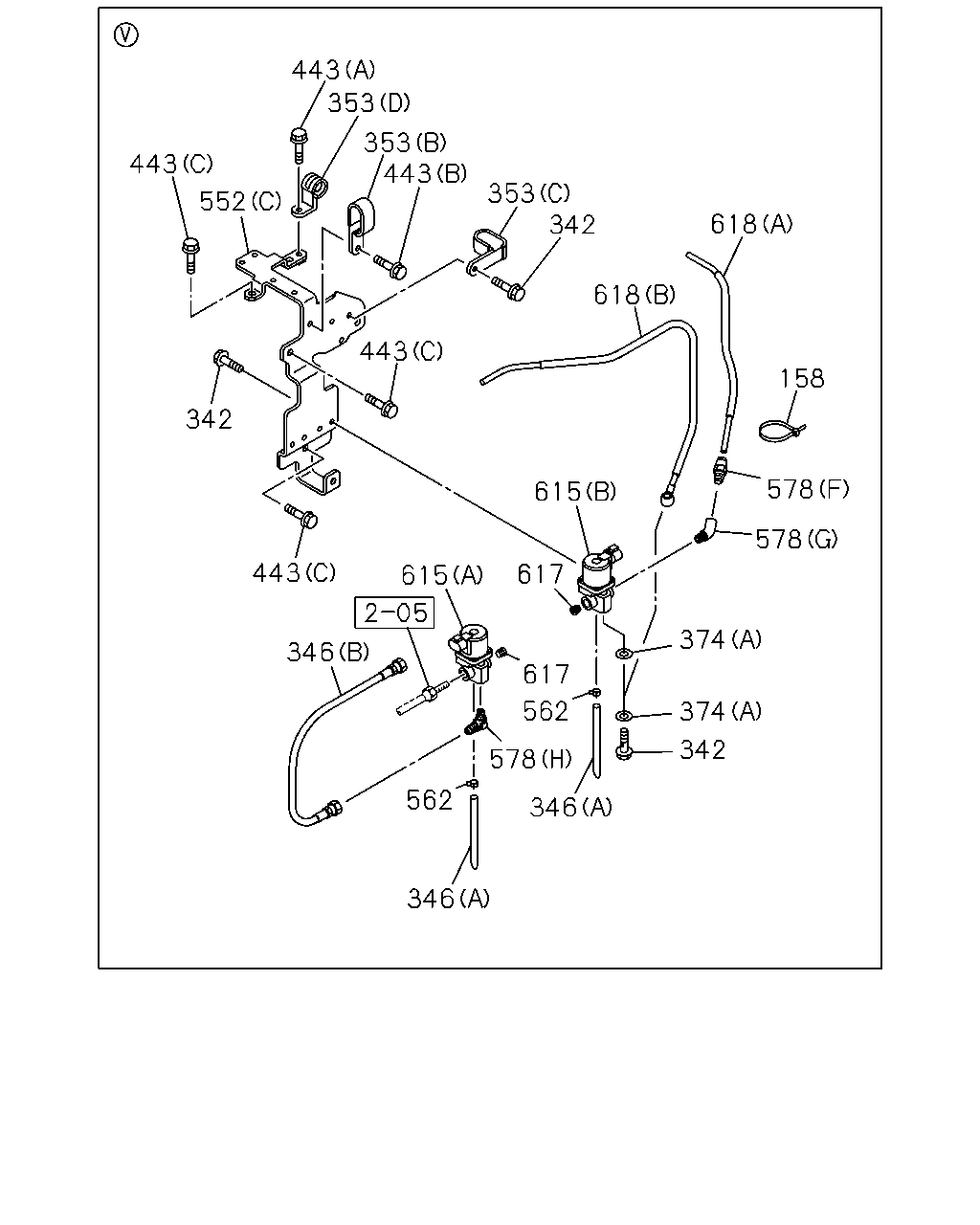

çizim 363138
443 353 353 443 353 618 443 552 342 443 346 562 346 615 615 617 617 562 578 346 342 618 158 578 578 374 374 342 443
BalonParca AdiParca NoAdetTipApplied Date A B
158 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1306- ●
342 BOLT
M8X16 FLANGE 		0-28050-816-0 05 1 1306- ●
342 BOLT
M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 1306- ●
346 HOSE; AIR
(A) ID=6 OD=9 L=150 		1-33739-872-0 02 1 1306-1401 ●
346 HOSE; AIR
(A) ID=6 OD=9 L=150 		1-33739-872-0 03 1 1402- ●
346 HOSE; AIR
(B) L=450 		1-09363-965-0 01 1 1306- ●
353 CLIP; AIR HOSE
(D) ID=12 H=24 L=20 		1-09700-605-0 01 1 1306- ●
353 CLIP; AIR HOSE
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 1306- ●
353 CLIP; AIR HOSE
(C) ID=33X16.5 L=50 		5-09700-341-0 01 1 1306- ●
353 CLIP; AIR HOSE
(B) ID=16X2 L=40 		9-09535-576-0 01 1 1306- ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2 		1-09630-084-0 02 1 1306-1312 ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2 		8-98251-344-0 02 1 1401- ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-09661-390-0 01 1 1306- ●
443 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1306- ●
443 BOLT; CLIP
(B) M8X90 FLANGE 		0-28050-890-0 04 1 1306- ●
443 BOLT; CLIP
(D) M8X20 FLANGE 		0-28650-820-0 01 1 1306- ●
443 BOLT; CLIP
(C) M10X25 FLANGE 		0-28751-025-0 05 1 1306- ●
552 BRACKET
(A) 		1-33719-082-0 01 1 1306- ●
552 BRACKET
(B) 		1-33719-083-0 01 1 1306- ●
552 BRACKET
(C) 		8-98222-117-0 01 1 1306- ●
562 CLAMP; LOCKING
ID=7.8 		8-94246-958-0 02 1 1306- ●
578 CONNECTOR
(I) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 1306- ●
578 CONNECTOR
(H) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1306- ●
578 CONNECTOR
(D) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 1306- ●
578 CONNECTOR
(F) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1306- ●
578 CONNECTOR
(E) 		1-09661-292-0 02 1 1306- ●
578 CONNECTOR
(G) R1/4 & RC1/4 		1-09664-211-0 02 1 1306- ●
578 CONNECTOR
(C) 		1-33712-023-0 02 1 1306- ●
578 CONNECTOR
(A) 		1-33712-024-0 01 1 1306- ●
578 CONNECTOR
(B) 		1-33712-026-0 01 1 1306- ●
615 VALVE; MAGNETIC
(A) 		8-98222-558-0 01 1 1306- ●
615 VALVE; MAGNETIC
(B) 		8-98222-559-0 01 1 1306- ●
617 PLUG 8-97320-204-0 02 1 1306- ●
618 TUBE; NYLON
(B) L=730 		8-98222-118-0 01 1 1306- ●
618 TUBE; NYLON
(A) L=400 		8-98222-734-0 01 1 1306- ●

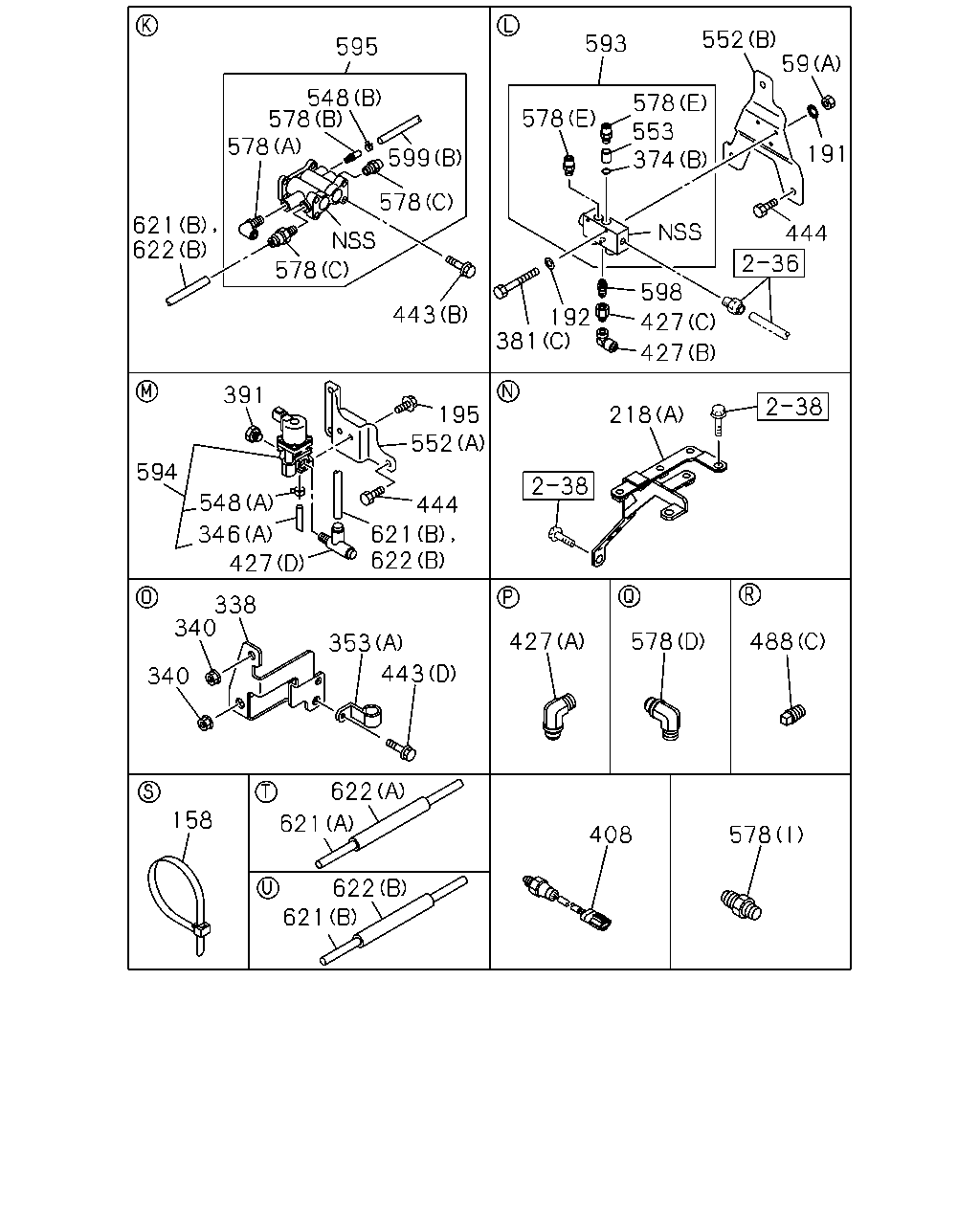

çizim 365682
595 548 578 578 599 578 578 622 621 391 195 552 444 621 622 427 346 594 218 578 427 488 578 408 622 621 158 621 622 443 353 340 340 338 548 443 593 552 59 191 444 598 427 427 381 192 578 553 374 578
BalonParca AdiParca NoAdetTipApplied Date A B
59 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 1409- ●
59 NUT
(A) 		1-09440-068-0 04 1 1306- ●
158 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1306- ●
191 WASHER; LK 1-09503-311-0 04 1 1306- ●
192 WASHER; PL
ID=16.5 		9-09857-042-0 01 1 1306- ●
192 WASHER; PL 1-09503-310-0 04 1 1306- ●
195 BOLT
M10X25 FLANGE 		0-28751-025-0 02 1 1306- ●
195 BOLT
M8X16 FLANGE 		0-28050-816-0 02 1 1306- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		8-98133-847-0 02 1 1306- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82698-350-0 01 1 1306- ●
338 BRACKET; FLEX TUBE 8-98222-750-1 01 1 1306- ●
340 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1306- ●
346 HOSE; AIR
(A) ID=6 OD=9 L=150 		1-33739-872-0 02 1 1306-1401 ●
346 HOSE; AIR
(A) ID=6 OD=9 L=150 		1-33739-872-0 03 1 1402- ●
346 HOSE; AIR
(B) L=450 		1-09363-965-0 01 1 1306- ●
353 CLIP; AIR HOSE
(D) ID=12 H=24 L=20 		1-09700-605-0 01 1 1306- ●
353 CLIP; AIR HOSE
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 1306- ●
353 CLIP; AIR HOSE
(C) ID=33X16.5 L=50 		5-09700-341-0 01 1 1306- ●
353 CLIP; AIR HOSE
(B) ID=16X2 L=40 		9-09535-576-0 01 1 1306- ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2 		1-09630-084-0 02 1 1306-1312 ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2 		8-98251-344-0 02 1 1401- ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-09661-390-0 01 1 1306- ●
381 BOLT
(A) M10X35 FLANGE 		0-28751-035-0 01 1 1306- ● ●
381 BOLT
(B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 1306- ● ●
381 BOLT
(C) 		1-09044-111-0 04 1 1306- ●
391 PLUG; SW HOLE
M12X9 		0-92002-412-0 01 1 1306- ●
408 SWITCH; SELECT,4TH 5TH 8-98228-507-0 01 1 1306- ●
427 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 1306- ●
427 CONNECTOR; NYLON TUBE
(C) DIN8 ELBOW 		1-09660-924-1 01 1 1306- ●
427 CONNECTOR; NYLON TUBE
(D) M12 		1-09660-931-1 01 1 1306- ●
427 CONNECTOR; NYLON TUBE
(A) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 1306- ●
443 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1306- ●
443 BOLT; CLIP
(B) M8X90 FLANGE 		0-28050-890-0 04 1 1306- ●
443 BOLT; CLIP
(D) M8X20 FLANGE 		0-28650-820-0 01 1 1306- ●
443 BOLT; CLIP
(C) M10X25 FLANGE 		0-28751-025-0 05 1 1306- ●
444 BOLT; CLIP
M10X25 FLANGE 		0-28751-025-0 06 1 1306- ●
488 PLUG; AIR CYL
(B) M14X9 		8-98042-944-0 02 1 1306- ●
488 PLUG; AIR CYL
(A) 		9-09204-510-0 01 1 1306- ●
488 PLUG; AIR CYL
(C) PT1/4 		9-99204-513-0 01 1 1306- ●
548 CLIP; HOSE
(A) ID=7.8 		8-94246-958-0 01 1 1306- ●
548 CLIP; HOSE
(B) 		1-33712-028-0 01 1 1306- ●
552 BRACKET
(A) 		1-33719-082-0 01 1 1306- ●
552 BRACKET
(B) 		1-33719-083-0 01 1 1306- ●
552 BRACKET
(C) 		8-98222-117-0 01 1 1306- ●
553 ADAPTER; AIR 1-09661-389-0 01 1 1306- ●
578 CONNECTOR
(I) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 1306- ●
578 CONNECTOR
(H) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1306- ●
578 CONNECTOR
(D) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 1306- ●
578 CONNECTOR
(F) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1306- ●
578 CONNECTOR
(E) 		1-09661-292-0 02 1 1306- ●
578 CONNECTOR
(G) R1/4 & RC1/4 		1-09664-211-0 02 1 1306- ●
578 CONNECTOR
(C) 		1-33712-023-0 02 1 1306- ●
578 CONNECTOR
(A) 		1-33712-024-0 01 1 1306- ●
578 CONNECTOR
(B) 		1-33712-026-0 01 1 1306- ●
593 VALVE; SPLITTER 1-33712-009-0 01 1 1306- ●
594 VALVE; MAGNETIC,AIR 1-82564-069-0 01 1 1306- ●
595 VALVE; RANGE 1-33712-029-1 01 1 1306- ●
598 UNION
M10 & M12 STRAIGHT 		1-09664-235-0 01 1 1306- ●
599 TUBE; NYLON
(A) 		1-09377-036-1 01 1 1306- ●
599 TUBE; NYLON
(B) 		1-33712-027-0 01 1 1306- ●
621 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 1306- ●
621 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 03 1 1306- ●
622 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 1306- ●
622 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 1306- ●

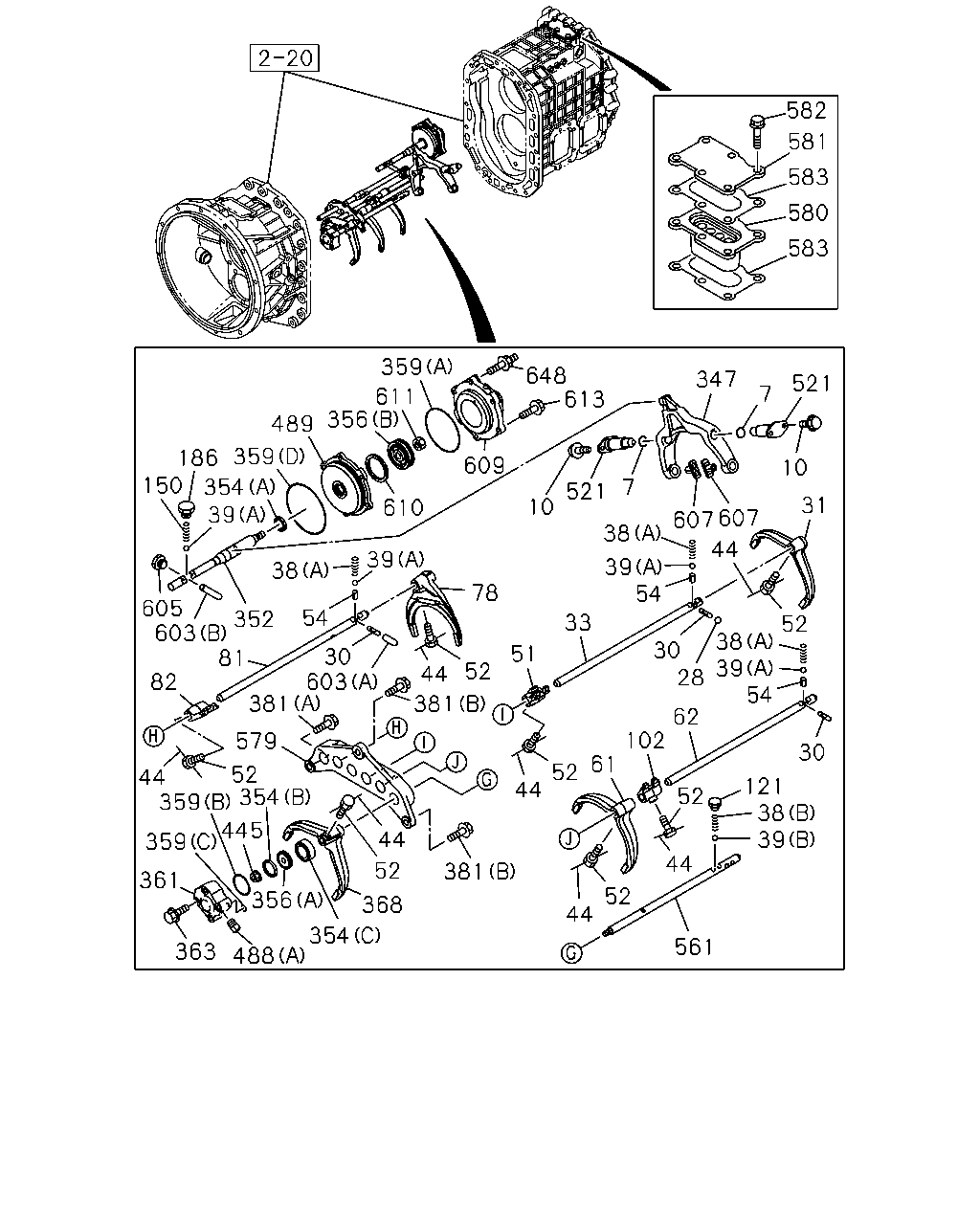

çizim 365732
186 150 605 603 82 44 359 359 361 363 488 354 356 445 354 52 579 381 81 352 38 39 354 359 489 356 611 610 39 54 30 603 44 381 52 51 78 44 44 52 368 381 44 52 561 44 52 52 61 102 62 39 38 121 30 54 39 28 30 38 52 54 33 39 38 10 521 7 607 607 44 31 10 7 521 347 613 609 648 359 583 580 583 581 582
BalonParca AdiParca NoAdetTipApplied Date A B
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 02 1 1306- ●
10 BOLT; SPINDLE
M10X30 FLANGE 		0-28751-030-0 04 1 1306- ●
28 BALL; INTER LK 9-00097-501-0 04 1 1306- ●
28 BALL; INTER LK 9-00097-501-0 02 1 1306- ●
30 PIN; INTER LK 9-33534-003-0 03 1 1306- ● ●
31 ARM; SHIFT,LOW & 2ND 1-33511-587-0 01 1 1306- ●
33 ROD; SHIFT,LOW & 2ND 1-33531-458-0 01 1 1306- ●
38 SPRING; DETENT
(A) 		1-09580-379-0 04 1 1306- ●
38 SPRING; DETENT
(B) 		1-09580-374-0 01 1 1306- ●
38 SPRING; DETENT
(A) 		1-09580-379-0 03 1 1306- ●
38 SPRING; DETENT
(C) 		1-09580-580-0 02 1 1306- ●
39 BALL; DETENT
(A) 		1-09843-012-0 04 1 1306- ● ●
39 BALL; DETENT
(B) 		9-00097-013-0 01 1 1306- ●
44 WIRE; LK
L=180 		1-09780-024-0 10 1 1306- ●
44 WIRE; LK
L=200 		9-08351-020-0 02 1 1306- ●
44 WIRE; LK
L=200 		9-08351-020-0 07 1 1306- ●
51 BLOCK; SHIFT,1ST & 2ND 1-33511-617-0 01 1 1306- ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 12 1 1306- ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 07 1 1306- ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 1306- ● ●
61 ARM; SHIFT,3RD & 4TH 1-33511-586-0 01 1 1306- ●
62 ROD; SHIFT,3RD & 4TH 1-33531-459-0 01 1 1306- ●
78 ARM; SHIFT,REV 1-33511-589-0 01 1 1306- ●
81 ROD; SHIFT,REV BLOCK 1-33531-457-0 01 1 1306- ●
82 BLOCK; SHIFT,REV 1-33511-600-0 01 1 1306- ●
102 BLOCK; SHIFT,3RD & 4TH 1-33511-615-0 01 1 1306- ●
121 PLUG; DETENT SPR
M16X12 		0-92002-416-0 01 1 1306- ●
121 PLUG; DETENT SPR
M14X9 		8-98042-944-0 02 1 1306- ●
150 SPRING; DETENT BALL 1-09580-379-0 01 1 1306- ●
186 PLUG; SHIFTER ROD
M16X12 		0-92002-416-0 01 1 1306- ●
347 ARM; SHIFT,RANGE CHANGE 1-33511-585-0 01 1 1306- ●
352 ROD; SHIFT,RANGE CHANGE 1-33531-482-0 01 1 1306- ●
354 SEAL; AIR CYL
(A) 		1-19387-056-0 01 1 1306- ●
354 SEAL; AIR CYL
(B) 		1-33739-978-0 01 1 1306- ●
354 SEAL; AIR CYL
(C) 		1-33739-981-0 01 1 1306- ●
356 PISTON; AIR CYL
(A) 		1-33551-017-0 01 1 1306- ●
356 PISTON; AIR CYL
(B) 		1-33551-025-0 01 1 1306- ●
359 GASKET; AIR CYL
(A) ID=124.6 		1-09623-468-0 01 1 1306- ●
359 GASKET; AIR CYL
(B) ID=55.6 		8-98075-598-0 01 1 1306- ●
359 GASKET; AIR CYL
(C) ID=6.8 		9-09565-107-0 01 1 1306- ●
359 GASKET; AIR CYL
(D) ID=144.4 		9-09920-735-0 01 1 1306- ●
361 CYLINDER; AIR,SHIFT 1-33561-019-0 01 1 1306- ●
363 BOLT; AIR CYL
M10X60 FLANGE 		8-98169-763-0 04 1 1306- ●
368 ARM; SHIFT,SPLITTER GEAR 1-33511-588-0 01 1 1306-1510 ●
368 ARM; SHIFT,SPLITTER GEAR 8-98318-482-0 01 1 1511- ●
381 BOLT
(A) M10X35 FLANGE 		0-28751-035-0 01 1 1306- ● ●
381 BOLT
(B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 1306- ● ●
381 BOLT
(C) 		1-09044-111-0 04 1 1306- ●
445 NUT; SHIFT CYL
M12 LOCK NUT FLANGE 		0-91380-012-0 01 1 1306- ●
488 PLUG; AIR CYL
(B) M14X9 		8-98042-944-0 02 1 1306- ●
488 PLUG; AIR CYL
(A) 		9-09204-510-0 01 1 1306- ●
488 PLUG; AIR CYL
(C) PT1/4 		9-99204-513-0 01 1 1306- ●
489 COVER; AIR CYL 1-33569-052-0 01 1 1306- ●
521 SPINDLE; 6TH 1-33519-131-0 02 1 1306- ●
561 ROD; SHIFT 1-33531-466-0 01 1 1306- ●
579 BLOCK; SHIFT,ROD GUIDE 1-33539-065-1 01 1 1306- ●
579 BLOCK; SHIFT,ROD GUIDE 1-33539-066-2 01 1 1306- ●
580 BLOCK; INTERLOCK 1-33539-064-1 01 1 1306- ● ●
581 COVER; BLOCK 1-33141-056-0 01 1 1306- ● ●
582 BOLT; SPRING GUIDE
M10X35 FLANGE 		0-28151-035-0 06 1 1306- ● ●
583 GASKET; SPRING GUIDE 1-33142-047-0 02 1 1306- ● ●
603 ROD; INTER LK
(A) L=49 		1-33534-005-0 01 1 1306- ●
603 ROD; INTER LK
(B) L=77 		1-33534-010-0 01 1 1306- ●
605 PLUG; INTER LK
M18X12 		0-92002-418-0 01 1 1306- ●
607 PIECE; SHIFT 1-33518-010-0 02 1 1306- ●
609 BODY; AIR,CYL 1-33561-018-0 01 1 1306- ●
610 SEAL; PISTON 1-33738-054-0 01 1 1306- ●
611 NUT; SHAFT 8-97324-304-0 01 1 1306- ●
613 BOLT; AIR CYL
M10X45 FLANGE 		0-28151-045-0 03 1 1306- ●
648 STUD; AIR CYL
M10X20,M10X45 L=75 		8-98010-335-0 03 1 1306- ●

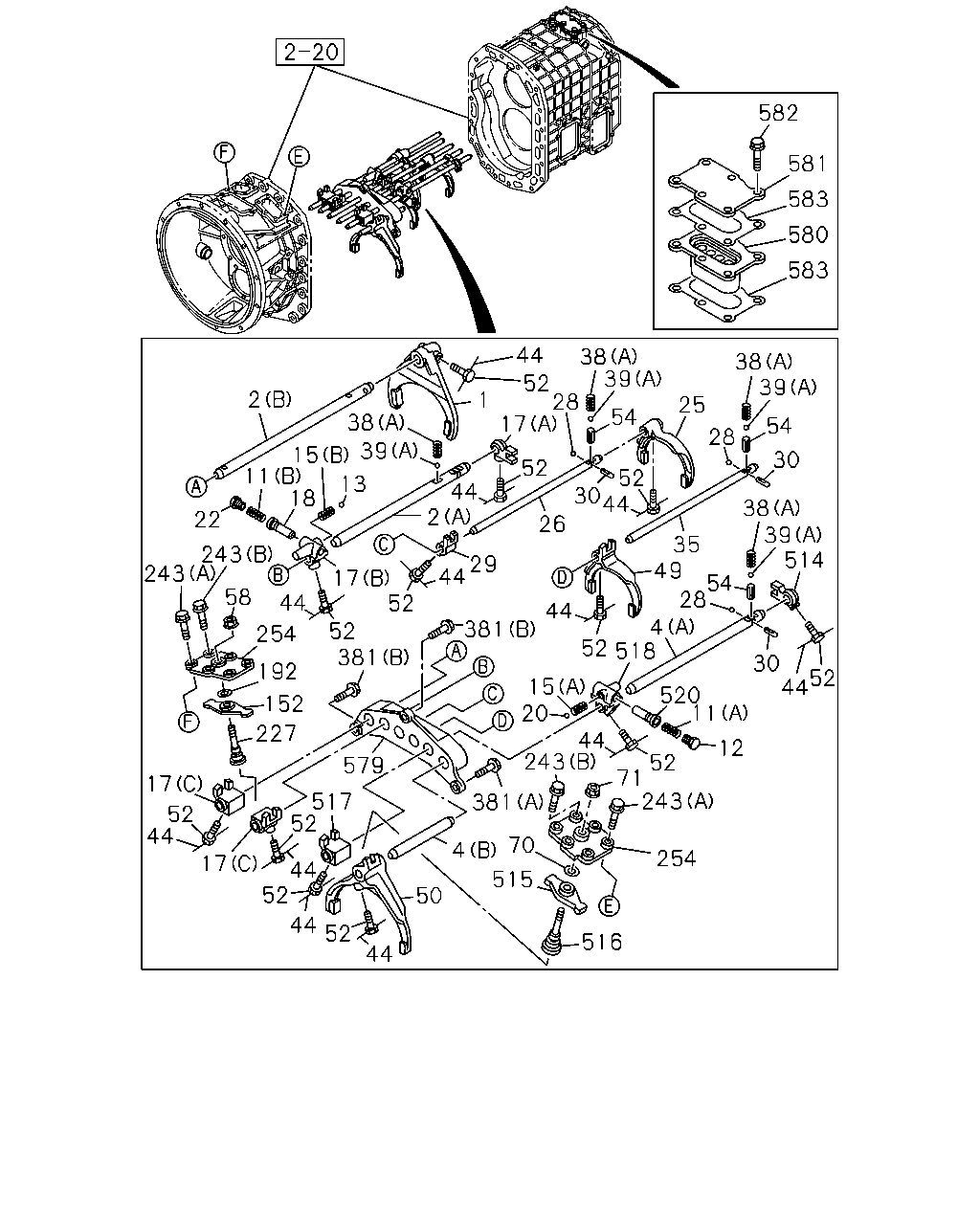

çizim 366057
582 581 583 580 583 22 11 2 18 13 15 39 38 1 44 52 17 28 38 39 54 52 44 30 26 52 44 2 17 29 44 52 52 44 243 243 58 254 381 192 152 227 381 44 25 28 38 39 54 30 38 39 514 30 52 44 54 35 49 28 4 518 52 520 11 12 52 71 44 15 20 243 243 254 516 515 70 4 381 579 517 52 17 52 44 44 52 44 50 44 52 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; SHIFT,1ST & REV 1-33511-579-0 01 1 1306- ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-438-0 01 1 1306- ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-456-0 01 1 1306- ●
4 ROD; SHIFT,6TH
(A) 		1-33531-443-1 01 1 1306- ●
4 ROD; SHIFT,6TH
(B) 		1-33531-445-0 01 1 1306- ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		1-09580-444-0 01 1 1306- ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 1306-1510 ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		8-98294-206-0 01 1 1511- ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 1306- ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 1306- ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-439-0 01 1 1306- ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 1306- ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-202-3 01 1 1306- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-552-1 01 1 1306- ●
17 BLOCK; SHIFT,1ST & REV
(C) 		1-33511-557-0 02 1 1306- ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-022-1 01 1 1306- ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 1306- ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 1306- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-435-0 01 1 1306- ●
26 ROD; SHIFT,2ND & 3RD 1-33531-440-1 01 1 1306- ●
28 BALL; INTER LK 9-00097-501-0 04 1 1306- ●
28 BALL; INTER LK 9-00097-501-0 02 1 1306- ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-376-1 01 1 1306- ●
30 PIN; INTER LK 9-33534-003-0 03 1 1306- ● ●
35 ROD; SHIFT,4TH & 5TH BLOCK 1-33531-442-1 01 1 1306- ●
38 SPRING; DETENT
(A) 		1-09580-379-0 04 1 1306- ●
38 SPRING; DETENT
(B) 		1-09580-374-0 01 1 1306- ●
38 SPRING; DETENT
(A) 		1-09580-379-0 03 1 1306- ●
38 SPRING; DETENT
(C) 		1-09580-580-0 02 1 1306- ●
39 BALL; DETENT
(A) 		1-09843-012-0 04 1 1306- ● ●
39 BALL; DETENT
(B) 		9-00097-013-0 01 1 1306- ●
44 WIRE; LK
L=180 		1-09780-024-0 10 1 1306- ●
44 WIRE; LK
L=200 		9-08351-020-0 02 1 1306- ●
44 WIRE; LK
L=200 		9-08351-020-0 07 1 1306- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-466-1 01 1 1306- ●
50 ARM; SHIFT,6TH 1-33511-550-0 01 1 1306- ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 12 1 1306- ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 07 1 1306- ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 1306- ● ●
58 NUT
M12 FLANGE 		0-91180-212-0 01 1 1306- ●
70 WASHER; PL,SHIFT LEVER
ID=16.5 		9-09857-042-0 01 1 1306- ●
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91180-212-0 01 1 1306- ●
152 LEVER; RELAY,SELECT 1-33511-560-1 01 1 1306- ●
192 WASHER; PL
ID=16.5 		9-09857-042-0 01 1 1306- ●
192 WASHER; PL 1-09503-310-0 04 1 1306- ●
227 SPINDLE; 1ST & REV 1-33519-104-0 01 1 1306- ●
243 BOLT; COVER
(A) M10X30 FLANGE 		0-28151-030-0 08 1 1306- ●
243 BOLT; COVER
(B) M10X28 FLANGE REAMER 		8-97365-375-0 04 1 1306- ●
243 BOLT; COVER
(C) M8X20 FLANGE 		0-28050-820-0 06 1 1306- ●
243 BOLT; COVER
(C) M8X35 FLANGE 		0-28650-835-0 04 1 1306- ●
254 COVER; LEVER 1-33141-054-0 02 1 1306- ●
381 BOLT
(A) M10X35 FLANGE 		0-28751-035-0 01 1 1306- ● ●
381 BOLT
(B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 1306- ● ●
381 BOLT
(C) 		1-09044-111-0 04 1 1306- ●
514 BLOCK; 6-7 SETTING 1-33511-605-0 01 1 1306- ●
515 LEVER; SHIFT,6TH & 7TH 1-33511-560-1 01 1 1306- ●
516 SPINDLE; 6TH & 7TH 1-33519-104-0 01 1 1306- ●
517 BLOCK; SHIFT,6TH & 7TH 1-33511-557-0 01 1 1306- ●
518 BLOCK ASM; SHIFT,6TH & 7TH 1-33511-558-1 01 1 1306- ●
520 SLEEVE; 6TH & 7TH 1-33516-022-1 01 1 1306- ●
579 BLOCK; SHIFT,ROD GUIDE 1-33539-065-1 01 1 1306- ●
579 BLOCK; SHIFT,ROD GUIDE 1-33539-066-2 01 1 1306- ●
580 BLOCK; INTERLOCK 1-33539-064-1 01 1 1306- ● ●
581 COVER; BLOCK 1-33141-056-0 01 1 1306- ● ●
582 BOLT; SPRING GUIDE
M10X35 FLANGE 		0-28151-035-0 06 1 1306- ● ●
583 GASKET; SPRING GUIDE 1-33142-047-0 02 1 1306- ● ●

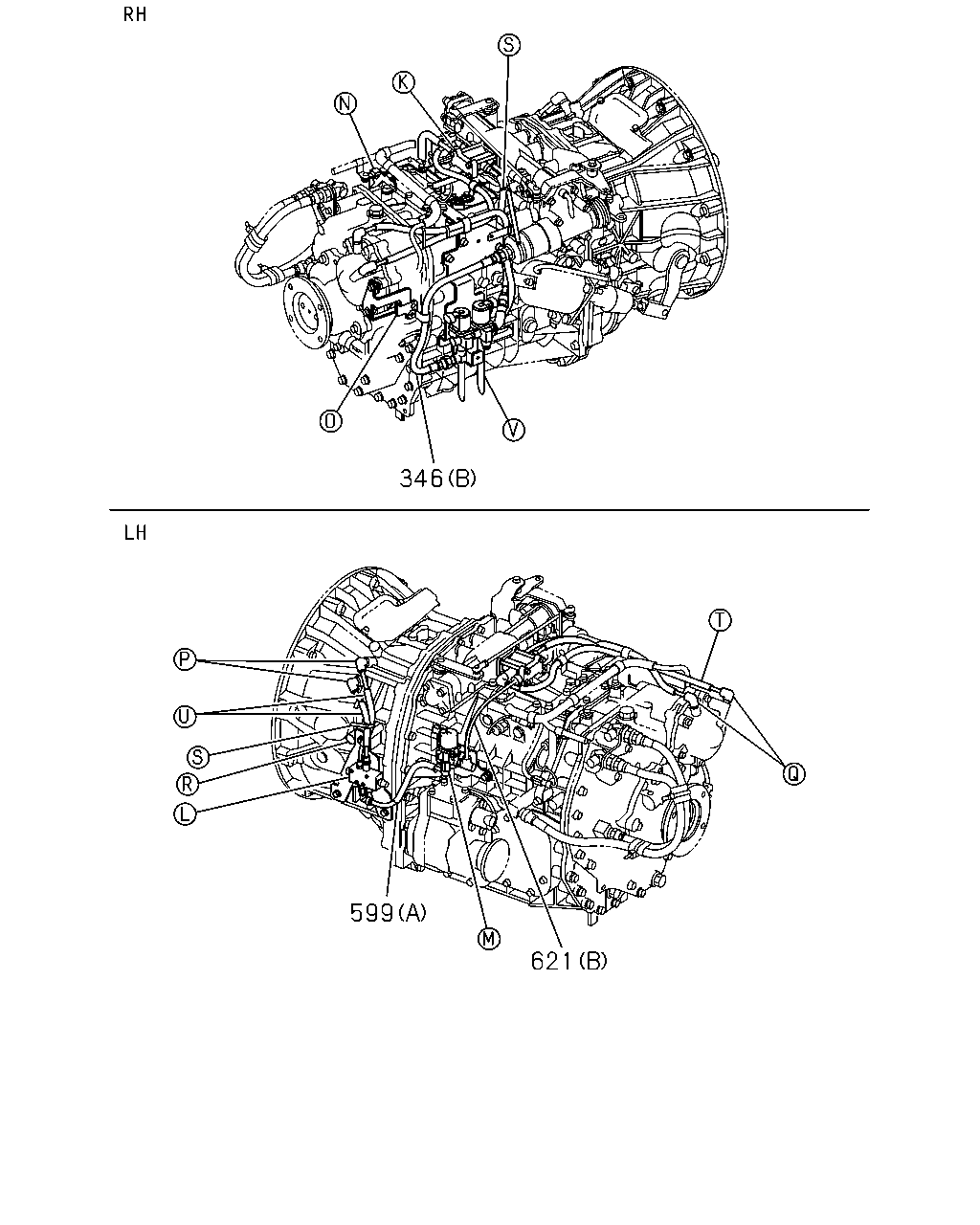

çizim 366283
346 599 621
BalonParca AdiParca NoAdetTipApplied Date A B
346 HOSE; AIR
(A) ID=6 OD=9 L=150 		1-33739-872-0 02 1 1306-1401 ●
346 HOSE; AIR
(A) ID=6 OD=9 L=150 		1-33739-872-0 03 1 1402- ●
346 HOSE; AIR
(B) L=450 		1-09363-965-0 01 1 1306- ●
599 TUBE; NYLON
(A) 		1-09377-036-1 01 1 1306- ●
599 TUBE; NYLON
(B) 		1-33712-027-0 01 1 1306- ●
621 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 1306- ●
621 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 03 1 1306- ●

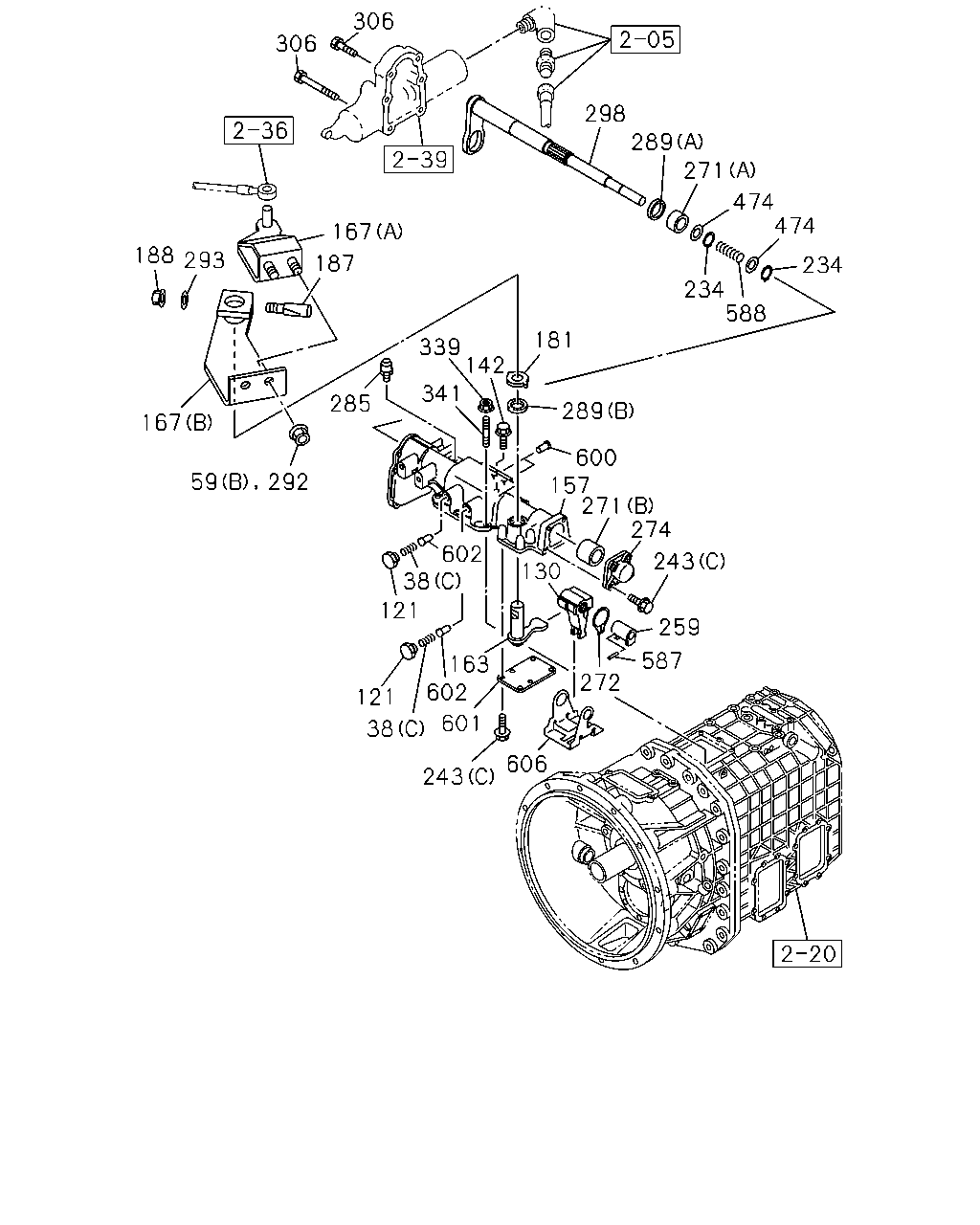

çizim 367000
306 306 298 289 271 474 474 234 588 234 181 142 339 341 289 600 157 271 274 243 259 587 272 606 243 601 38 121 602 121 38 602 130 292 59 167 188 293 187 167 285 163
BalonParca AdiParca NoAdetTipApplied Date A B
38 SPRING; DETENT
(A) 		1-09580-379-0 04 1 1306- ●
38 SPRING; DETENT
(B) 		1-09580-374-0 01 1 1306- ●
38 SPRING; DETENT
(A) 		1-09580-379-0 03 1 1306- ●
38 SPRING; DETENT
(C) 		1-09580-580-0 02 1 1306- ●
59 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 1409- ●
59 NUT
(A) 		1-09440-068-0 04 1 1306- ●
121 PLUG; DETENT SPR
M16X12 		0-92002-416-0 01 1 1306- ●
121 PLUG; DETENT SPR
M14X9 		8-98042-944-0 02 1 1306- ●
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 1306- ●
130 LEVER; SHIFT,INTERNAL 1-33521-189-0 01 1 1306- ●
142 BOLT; QUAD BOX
M10X30 FLANGE 		0-28751-030-0 01 1 1306- ●
157 BOX; QUAD,TRANS 1-33541-507-3 01 1 1306-1311 ●
157 BOX; QUAD,TRANS 8-98231-390-0 01 1 1312- ●
157 BOX; QUAD,TRANS 8-98220-885-0 01 1 1306- ●
163 LEVER; SELECT,INTERNAL 1-33522-201-0 01 1 1306- ●
163 LEVER; SELECT,INTERNAL 1-33522-202-0 01 1 1306- ●
167 LEVER; SELECT,EXTERNAL
(B) 		1-33521-192-1 01 1 1306- ●
167 LEVER; SELECT,EXTERNAL
(A) 		1-33521-193-1 01 1 1306- ●
167 LEVER; SELECT,EXTERNAL
(B) 		1-33521-194-0 01 1 1306- ●
167 LEVER; SELECT,EXTERNAL
(A) 		8-98052-192-0 01 1 1306- ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 1306- ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 1306- ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 1306- ● ●
234 RING; SNAP
ID=14.7 		0-91800-616-0 02 1 1306- ●
243 BOLT; COVER
(A) M10X30 FLANGE 		0-28151-030-0 08 1 1306- ●
243 BOLT; COVER
(B) M10X28 FLANGE REAMER 		8-97365-375-0 04 1 1306- ●
243 BOLT; COVER
(C) M8X20 FLANGE 		0-28050-820-0 06 1 1306- ●
243 BOLT; COVER
(C) M8X35 FLANGE 		0-28650-835-0 04 1 1306- ●
259 GUIDE; SELECT,CONT BOX 8-98222-568-0 01 1 1306- ●
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 1306- ● ●
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 1306- ● ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 1306- ●
272 RING; SNAP,QUAD BOX 1-09588-213-0 01 1 1306- ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 1306- ●
274 COVER; SHAFT,QUAD BOX 8-98220-886-0 01 1 1306- ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 1306- ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 1306- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 1306- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 1306- ● ●
292 NUT; LINK ROD
M8 FLANGE 		0-91180-108-0 02 1 1306-1408 ● ●
292 NUT; LINK ROD
M8 FLANGE 		0-91180-108-0 02 1 1409- ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 1306- ● ●
298 SHAFT; SHIFT LEVER 1-33522-180-0 01 1 1306- ●
298 SHAFT; SHIFT LEVER 8-98222-566-0 01 1 1306- ●
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE 		0-28151-045-0 02 1 1306- ● ●
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE 		0-28151-080-0 04 1 1306- ● ●
339 NUT; QUAD BOX
M10 FLANGE 		0-91180-210-0 06 1 1306- ●
339 NUT; QUAD BOX
M10 FLANGE 		0-91180-210-0 05 1 1306- ●
341 STUD; QUAD BOX
M10X25 L=40 		0-44011-025-0 06 1 1306- ●
341 STUD; QUAD BOX
M10X35 L=50 		0-44011-035-0 05 1 1306- ●
474 WASHER; SPRING STOPPER 8-98222-569-0 02 1 1306- ●
587 PIN; SHIFT GUIDE 9-08160-420-0 01 1 1306- ●
588 SPRING; RETURN,QUADRANT BOX 1-09580-576-0 01 1 1306- ●
600 PLUNGER; VLV 1-33263-037-0 02 1 1306- ●
601 COVER; SHAFT,SELECT 1-33545-011-0 01 1 1306- ●
602 PLUNGER; DETENT 1-33263-037-0 02 1 1306- ●
606 INHIBITOR 1-33529-116-0 01 1 1306- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
