Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#123501) — 334 parça

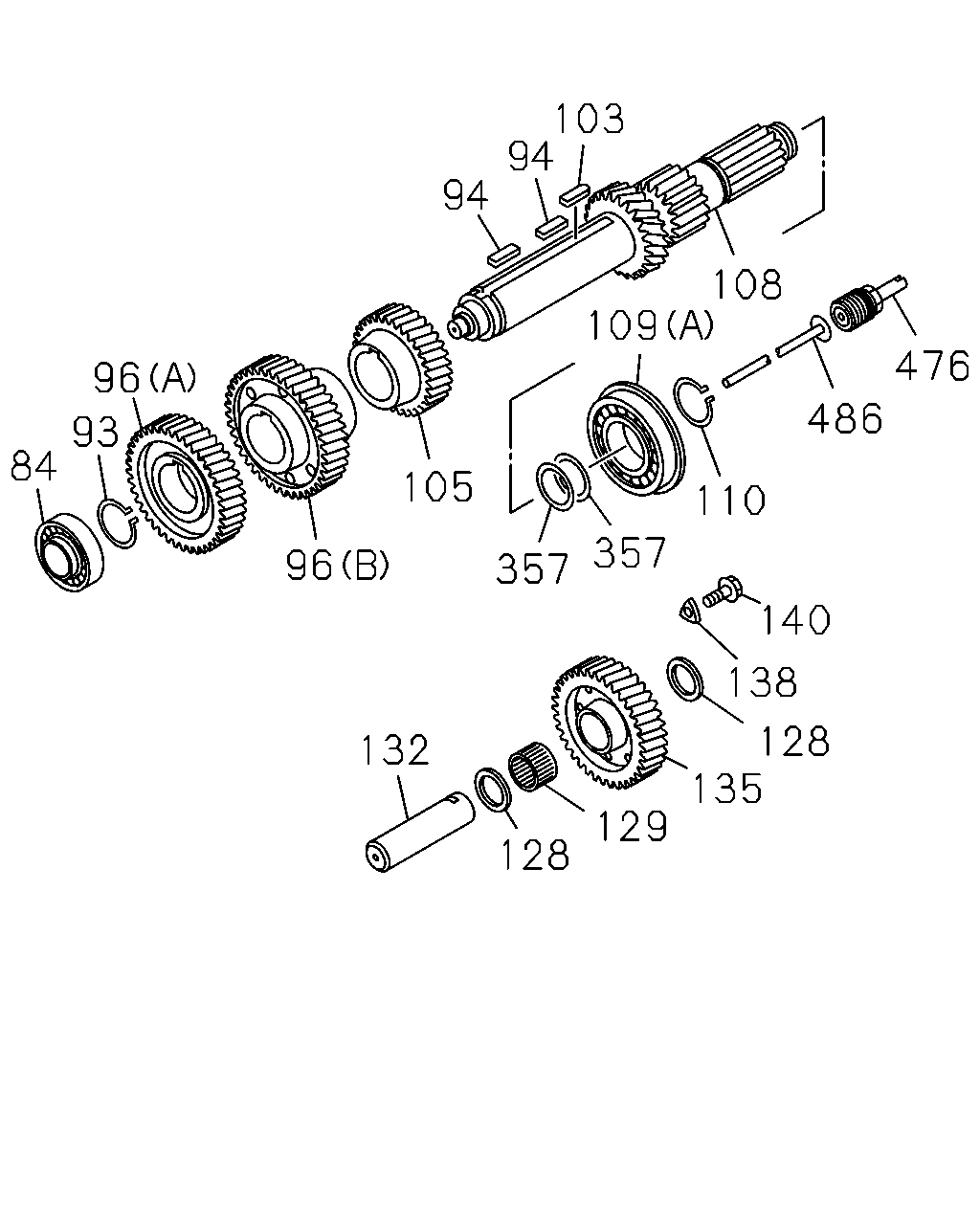

84 93 96 94 94 103 108 109 105 96 357 357 110 486 476 140 138 128 135 129 128 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	1306-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	1306-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	1306-		●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	1306-		●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	1306-	●	●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	1306-	●
94	KEY; FEATHER,COUNTER SHAFT L=70	1-09735-046-0	02	1	1306-		●
96	GEAR; COUNTER DRIVE (C) Z=41	1-33331-272-0	01	1	1306-	●
96	GEAR; COUNTER DRIVE (A) Z=35	1-33331-258-2	01	1	1306-		●
96	GEAR; COUNTER DRIVE (B) Z=38	1-33338-374-3	01	1	1306-		●
103	KEY; COUNTER GEAR L=63	1-09735-027-0	01	1	1306-	●
103	KEY; COUNTER GEAR L=67	1-09735-049-0	01	1	1306-	●
103	KEY; COUNTER GEAR L=75.3	1-09735-042-0	01	1	1306-		●
105	GEAR; 3RD,COUNTER Z=36	1-33338-373-1	01	1	1306-		●
108	SHAFT; COUNTER Z=24-17-12	1-33311-331-0	01	1	1306-	●
108	SHAFT; COUNTER Z=26-21	1-33311-325-1	01	1	1306-		●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	1306-	●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	1306-	●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	1306-	●	●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	1306-	●	●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	1306-	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	1306-	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	1306-	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	1306-	●	●
132	SHAFT; REV	1-33351-025-4	01	1	1306-	●
132	SHAFT; REV	1-33351-035-1	01	1	1306-		●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	1306-	●
135	GEAR; REV IDLER Z=30	1-33361-081-1	01	1	1306-		●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	1306-	●	●
140	BOLT; LK PIECE M10X25	1-09049-006-1	01	1	1306-	●	●
357	RING	1-31349-015-0	01	1	1306-	●
357	RING	1-31349-044-0	04	1	1306-		●
476	ADAPTER; PUMP DRIVE	1-33339-066-0	01	1	1306-	●
476	ADAPTER; PUMP DRIVE	1-33339-091-1	01	1	1306-		●
486	NOZZLE; CONT SHAFT	1-33219-254-1	01	1	1306-		●

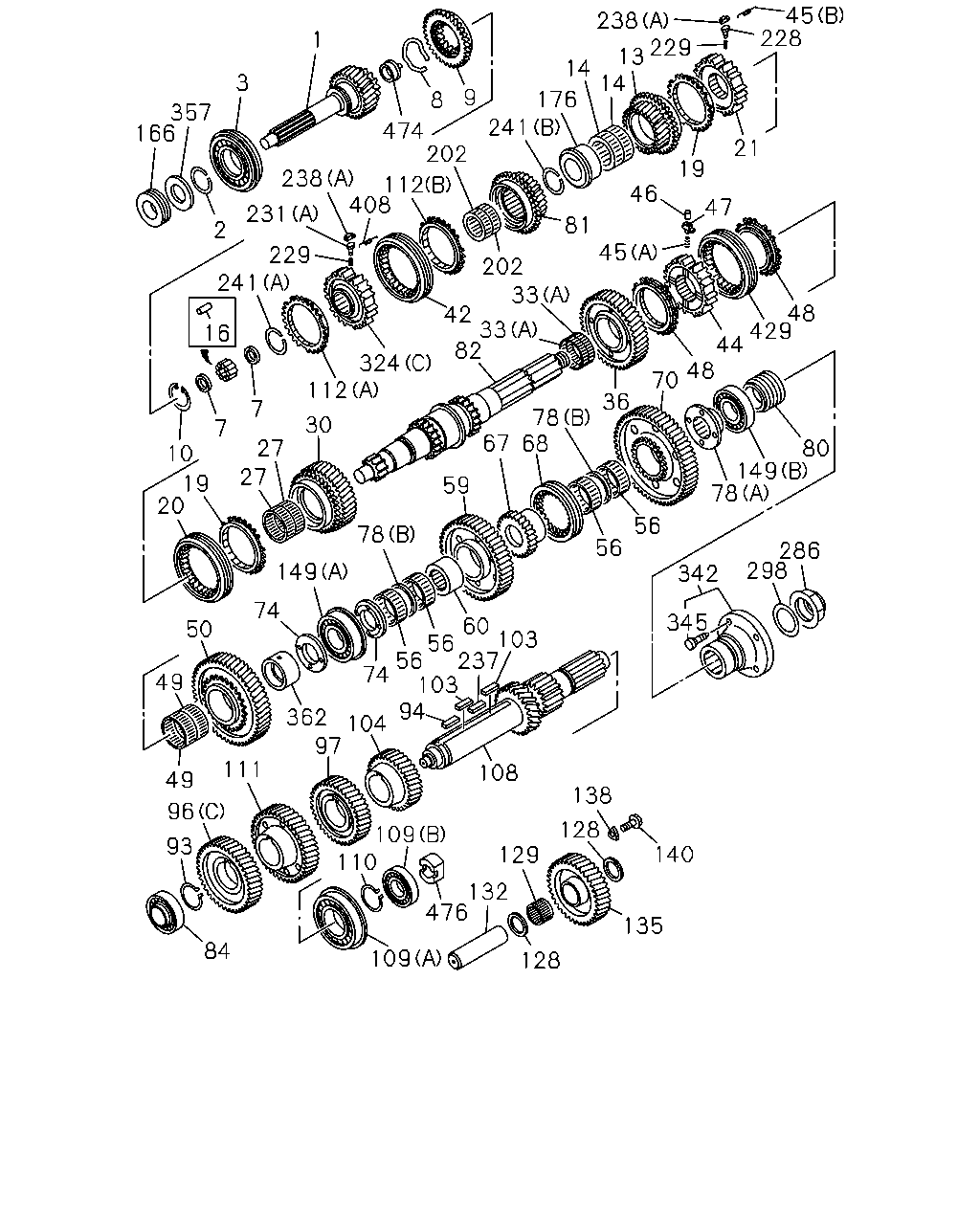

1 3 357 166 2 231 238 474 8 9 16 241 229 408 112 202 241 176 14 238 45 228 229 13 14 21 19 46 81 202 42 324 112 7 7 10 20 19 27 27 30 82 33 33 45 47 48 429 44 48 70 36 78 68 67 59 78 149 74 50 49 49 362 74 56 56 60 56 56 78 149 80 103 237 103 94 104 97 111 96 93 84 110 109 108 345 342 298 286 138 128 129 132 476 109 128 135 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=27	1-33211-992-0	01	1	1306-	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	1306-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	1306-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	1306-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	1306-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	1306-	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	1306-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-278-0	01	1	1306-		●
7	WASHER; THRUST,MAINSHAFT	1-33239-262-0	02	1	1306-	●	●
8	CLIP; DOG CLU	1-33219-024-0	01	1	1306-	●
9	CLUTCH; DOG,TOP GEAR Z=66	1-33265-401-0	01	1	1306-	●
10	RING; SNAP,PILOT BRG OD=72.5	9-09180-168-0	01	1	1306-	●	●
13	GEAR; 5TH,MAINSHAFT Z=31	1-33253-673-0	01	1	1306-	●
14	BEARING; NEEDLE,5TH NSK	1-09811-376-0	02	1	1306-1311	●
14	BEARING; NEEDLE,5TH NTN	1-09811-401-0	02	1	1306-	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-242-0	16	1	1306-1511	●
16	BEARING; PILOT,MAINSHAFT NTN	8-98316-648-0	16	1	1512-	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-243-0	16	1	1306-1511	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-260-0	16	1	1306-		●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-261-0	16	1	1306-		●
19	RING; BLOCK,4TH & 5TH Z=66	1-33265-545-1	02	1	1306-	●
20	SLEEVE	1-33262-222-0	01	1	1306-	●
20	SLEEVE	1-33262-216-1	01	1	1306-		●
21	HUB; CLU,4TH & 5TH	1-33261-252-0	01	1	1306-	●
27	BEARING; 4TH GEAR NSK	1-09811-376-0	02	1	1306-1311	●
27	BEARING; 4TH GEAR NTN	1-09811-401-0	02	1	1306-	●
30	GEAR; 4TH,MAINSHAFT Z=42	1-33253-691-0	01	1	1306-	●
33	BEARING; NEEDLE,3RD GEAR (A) NSK	1-09811-380-0	02	1	1306-1311	●
33	BEARING; NEEDLE,3RD GEAR (A) NTN	1-09811-381-0	02	1	1306-	●
33	BEARING; NEEDLE,3RD GEAR (C) NSK	1-09811-378-0	02	1	1306-1308		●
33	BEARING; NEEDLE,3RD GEAR (C) NTN	1-09811-379-0	02	1	1306-		●
33	BEARING; NEEDLE,3RD GEAR (B) NSK	1-09811-422-0	02	1	1306-1311		●
33	BEARING; NEEDLE,3RD GEAR (B) NTN	1-09811-423-0	02	1	1306-		●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	1306-	●
36	GEAR; 3RD,MAINSHAFT Z=41	1-33253-704-1	01	1	1306-		●
42	SLEEVE	1-33262-222-0	01	1	1306-	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-261-0	01	1	1306-	●
45	SPRING; BLOCK INSERT (A) D=3.8	1-09580-395-0	06	1	1306-	●
45	SPRING; BLOCK INSERT (B)	1-09583-171-0	03	1	1306-	●	●
45	SPRING; BLOCK INSERT (C)	1-09580-578-0	03	1	1306-		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	1306-	●
46	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	1306-		●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	1306-	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-612-1	02	1	1306-	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-378-0	02	1	1306-1308	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-379-0	02	1	1306-	●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-358-1	01	1	1306-	●
50	GEAR; 2ND,MAINSHAFT Z=43	1-33251-411-1	01	1	1306-		●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-376-0	04	1	1306-1311	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-401-0	04	1	1306-	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-422-0	04	1	1306-1311		●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-423-0	04	1	1306-		●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	1306-	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-081-2	01	1	1306-		●
60	COLLAR; REV MAIN	1-33234-087-0	01	1	1306-	●
67	HUB; CLU,1ST TO REV	1-33261-222-0	01	1	1306-	●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	1306-	●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	1306-	●
70	GEAR; 1ST,MAINSHAFT Z=49	1-33255-074-1	01	1	1306-		●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	02	1	1306-1506	●
74	WASHER; THRUST,REV GEAR	8-98304-662-0	02	1	1507-	●
74	WASHER; THRUST,REV GEAR	1-33239-308-0	01	1	1306-		●
78	COLLAR; DIST,MAINSHAFT BRG (A)	1-33235-098-0	01	1	1306-	●
78	COLLAR; DIST,MAINSHAFT BRG (B)	1-33363-030-0	02	1	1306-	●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	1306-	●
80	GEAR; SPD DRIVE Z=11	1-33371-069-0	01	1	1306-		●
81	GEAR; 7TH,MAIN Z=24	1-33253-654-0	01	1	1306-	●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	1-33231-298-0	01	1	1306-1506	●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	8-98304-660-0	01	1	1507-	●
82	SHAFT; MAIN,TRANS Z=37-40-28-19	1-33231-327-2	01	1	1306-		●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	1306-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	1306-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	1306-		●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	1306-		●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	1306-	●	●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	1306-	●
94	KEY; FEATHER,COUNTER SHAFT L=70	1-09735-046-0	02	1	1306-		●
96	GEAR; COUNTER DRIVE (C) Z=41	1-33331-272-0	01	1	1306-	●
96	GEAR; COUNTER DRIVE (A) Z=35	1-33331-258-2	01	1	1306-		●
96	GEAR; COUNTER DRIVE (B) Z=38	1-33338-374-3	01	1	1306-		●
97	GEAR; 5TH,COUNTER Z=36	1-33338-386-0	01	1	1306-	●
103	KEY; COUNTER GEAR L=63	1-09735-027-0	01	1	1306-	●
103	KEY; COUNTER GEAR L=67	1-09735-049-0	01	1	1306-	●
103	KEY; COUNTER GEAR L=75.3	1-09735-042-0	01	1	1306-		●
104	GEAR; 4TH,COUNTER Z=35	1-33338-380-0	01	1	1306-	●
108	SHAFT; COUNTER Z=24-17-12	1-33311-331-0	01	1	1306-	●
108	SHAFT; COUNTER Z=26-21	1-33311-325-1	01	1	1306-		●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	1306-	●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	1306-	●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	1306-	●	●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	1306-	●	●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	1306-	●	●
111	GEAR; 7TH COUNTER SHAFT Z=50	1-33338-388-0	01	1	1306-	●
112	RING; BLOCK,7TH SYN (A) Z=66	1-33265-376-7	01	1	1306-	●
112	RING; BLOCK,7TH SYN (B) Z=66	1-33265-545-1	01	1	1306-	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	1306-	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	1306-	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	1306-	●	●
132	SHAFT; REV	1-33351-025-4	01	1	1306-	●
132	SHAFT; REV	1-33351-035-1	01	1	1306-		●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	1306-	●
135	GEAR; REV IDLER Z=30	1-33361-081-1	01	1	1306-		●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	1306-	●	●
140	BOLT; LK PIECE M10X25	1-09049-006-1	01	1	1306-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	1306-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	1306-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-203-0	01	1	1306-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-204-0	01	1	1306-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NSK	1-09810-256-0	01	1	1306-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NTN	1-09810-257-0	01	1	1306-		●
166	PIECE; DIST	1-33363-032-1	01	1	1306-	●
176	COLLAR; 5TH GEAR	1-33234-069-1	01	1	1306-	●
202	BEARING; COUNTER GEAR NSK	1-09811-382-0	02	1	1306-1311	●
202	BEARING; COUNTER GEAR NTN	1-09811-383-0	02	1	1306-	●
228	PLUNGER; SYN	1-33263-020-0	03	1	1306-	●
229	SPRING; PLUNGER D=3.8	1-09580-395-0	06	1	1404-		●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	06	1	1306-	●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	15	1	1306-1403		●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	09	1	1404-		●
231	PLUNGER (A)	1-33263-020-0	03	1	1306-	●
231	PLUNGER (C)	1-33263-033-0	06	1	1306-1403		●
231	PLUNGER (C)	8-98273-831-0	06	1	1404-		●
231	PLUNGER (B)	1-33263-038-1	12	1	1306-		●
237	KEY; 5TH GEAR L=67	1-09735-049-0	01	1	1306-	●
238	INSERT (A)	1-33263-025-2	06	1	1306-	●
238	INSERT (C)	1-33263-036-0	06	1	1306-		●
238	INSERT (B)	1-33263-039-0	09	1	1306-		●
241	RING; SNAP (A)	1-09588-185-0	01	1	1306-	●
241	RING; SNAP (B)	1-09588-189-0	01	1	1306-	●
241	RING; SNAP (C)	1-09587-023-0	02	1	1306-		●
241	RING; SNAP (D)	1-09587-104-0	01	1	1306-		●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	1306-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	1306-	●
324	HUB; CLU (C)	1-33261-238-0	01	1	1306-	●
324	HUB; CLU (A)	1-34231-015-0	01	1	1306-		●
324	HUB; CLU (B)	1-34371-017-0	01	1	1306-1307		●
324	HUB; CLU (B)	8-98239-089-0	01	1	1308-		●
342	FLANGE; OUTPUT	8-98210-980-0	01	1	1306-	●
342	FLANGE; OUTPUT	1-37243-370-0	01	1	1306-		●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	1306-	●	●
357	RING	1-31349-015-0	01	1	1306-	●
357	RING	1-31349-044-0	04	1	1306-		●
362	COLLAR; 2ND GEAR	1-33234-072-0	01	1	1306-	●
408	SPRING	1-09583-171-0	03	1	1306-	●
429	SLEEVE; 2ND & 3RD	1-33262-219-0	01	1	1306-	●
474	NOZZLE; OIL	1-33219-257-1	01	1	1306-	●
476	ADAPTER; PUMP DRIVE	1-33339-066-0	01	1	1306-	●
476	ADAPTER; PUMP DRIVE	1-33339-091-1	01	1	1306-		●

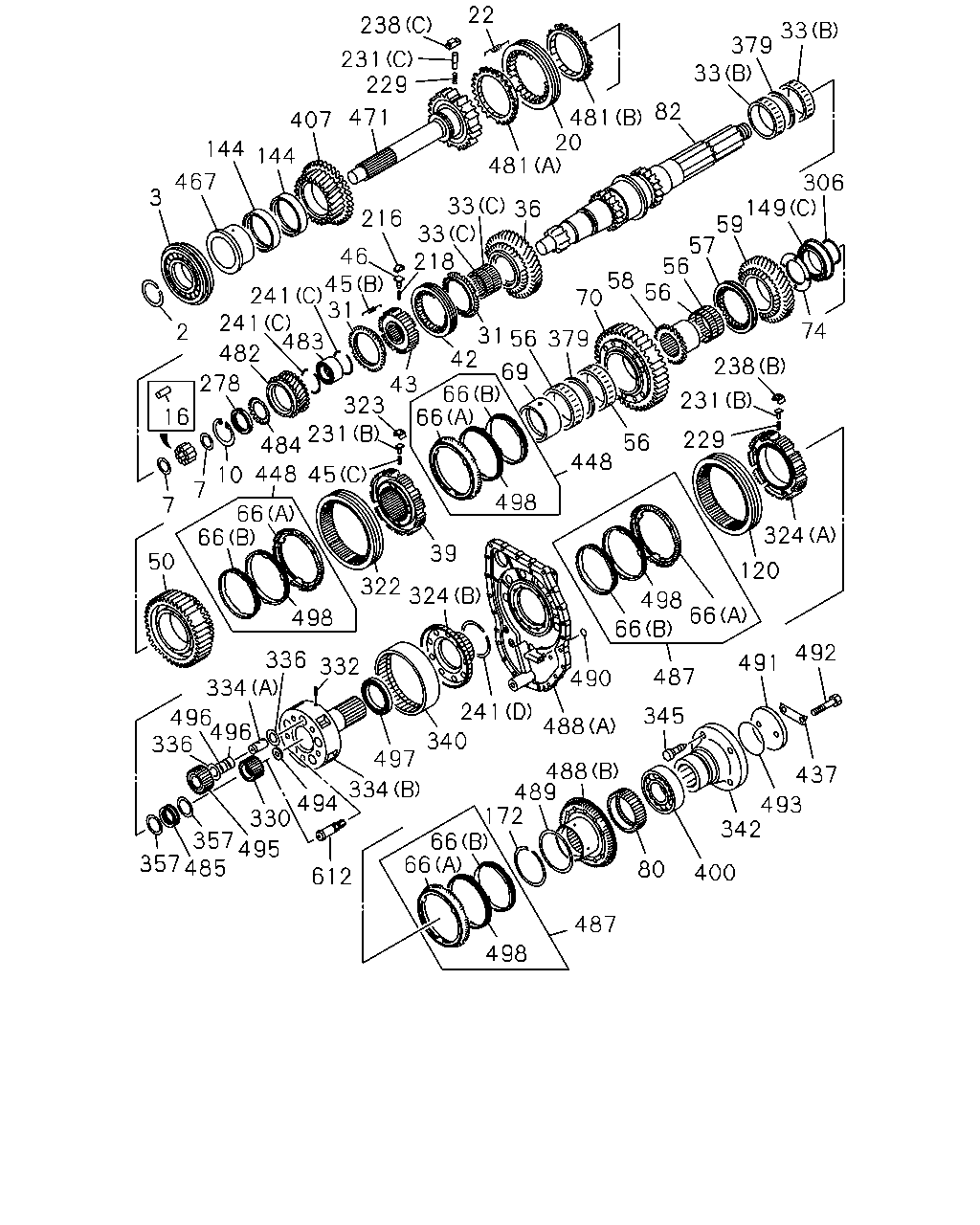

144 144 120 149 10 22 238 231 231 238 229 241 231 241 241 278 229 33 379 33 306 324 345 340 334 330 357 357 336 334 332 322 324 39 323 31 33 33 218 216 20 342 336 498 400 493 492 491 487 488 488 489 172 487 490 498 448 498 379 498 496 496 485 494 497 481 481 46 45 483 482 2 3 467 407 471 16 484 448 43 42 31 45 495 437 36 50 56 58 56 56 57 59 69 66 66 66 66 66 612 66 66 56 82 70 7 7 74 80 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	1306-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	1306-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	1306-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	1306-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	1306-	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	1306-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-278-0	01	1	1306-		●
7	WASHER; THRUST,MAINSHAFT	1-33239-262-0	02	1	1306-	●	●
10	RING; SNAP,PILOT BRG OD=72.5	9-09180-168-0	01	1	1306-	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-242-0	16	1	1306-1511	●
16	BEARING; PILOT,MAINSHAFT NTN	8-98316-648-0	16	1	1512-	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-243-0	16	1	1306-1511	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-260-0	16	1	1306-		●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-261-0	16	1	1306-		●
20	SLEEVE	1-33262-222-0	01	1	1306-	●
20	SLEEVE	1-33262-216-1	01	1	1306-		●
22	SPRING; BLOCK,INSERT	1-09583-363-0	03	1	1306-		●
31	RING; BLOCK,3RD & 4TH	8-98212-814-1	02	1	1306-		●
33	BEARING; NEEDLE,3RD GEAR (A) NSK	1-09811-380-0	02	1	1306-1311	●
33	BEARING; NEEDLE,3RD GEAR (A) NTN	1-09811-381-0	02	1	1306-	●
33	BEARING; NEEDLE,3RD GEAR (C) NSK	1-09811-378-0	02	1	1306-1308		●
33	BEARING; NEEDLE,3RD GEAR (C) NTN	1-09811-379-0	02	1	1306-		●
33	BEARING; NEEDLE,3RD GEAR (B) NSK	1-09811-422-0	02	1	1306-1311		●
33	BEARING; NEEDLE,3RD GEAR (B) NTN	1-09811-423-0	02	1	1306-		●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	1306-	●
36	GEAR; 3RD,MAINSHAFT Z=41	1-33253-704-1	01	1	1306-		●
39	HUB; CLU,LOW & 2ND	1-33261-277-0	01	1	1306-		●
42	SLEEVE	1-33262-222-0	01	1	1306-	●	●
43	HUB; CLU,3RD & 4TH,MAIN	1-33261-278-1	01	1	1306-		●
45	SPRING; BLOCK INSERT (A) D=3.8	1-09580-395-0	06	1	1306-	●
45	SPRING; BLOCK INSERT (B)	1-09583-171-0	03	1	1306-	●	●
45	SPRING; BLOCK INSERT (C)	1-09580-578-0	03	1	1306-		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	1306-	●
46	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	1306-		●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-358-1	01	1	1306-	●
50	GEAR; 2ND,MAINSHAFT Z=43	1-33251-411-1	01	1	1306-		●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-376-0	04	1	1306-1311	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-401-0	04	1	1306-	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-422-0	04	1	1306-1311		●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-423-0	04	1	1306-		●
57	SLEEVE; REV	1-33262-209-1	01	1	1306-		●
58	HUB; CLU,REV	1-33261-286-1	01	1	1306-		●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	1306-	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-081-2	01	1	1306-		●
66	RING; BLOCK,SYN (A)	1-33265-588-0	04	1	1306-1312		●
66	RING; BLOCK,SYN (A)	8-98239-909-1	04	1	1401-		●
66	RING; BLOCK,SYN (B)	1-33265-590-0	04	1	1306-1307		●
66	RING; BLOCK,SYN (B)	8-98239-294-0	04	1	1308-1312		●
66	RING; BLOCK,SYN (B)	8-98239-911-1	04	1	1401-		●
69	COLLAR; 1ST GEAR MAIN	1-33234-099-0	01	1	1306-		●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	1306-	●
70	GEAR; 1ST,MAINSHAFT Z=49	1-33255-074-1	01	1	1306-		●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	02	1	1306-1506	●
74	WASHER; THRUST,REV GEAR	8-98304-662-0	02	1	1507-	●
74	WASHER; THRUST,REV GEAR	1-33239-308-0	01	1	1306-		●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	1306-	●
80	GEAR; SPD DRIVE Z=11	1-33371-069-0	01	1	1306-		●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	1-33231-298-0	01	1	1306-1506	●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	8-98304-660-0	01	1	1507-	●
82	SHAFT; MAIN,TRANS Z=37-40-28-19	1-33231-327-2	01	1	1306-		●
120	SLEEVE	1-33262-229-0	01	1	1306-		●
144	BEARING; NEEDLE,INPUT GEAR NSK	1-09811-422-0	02	1	1306-1311		●
144	BEARING; NEEDLE,INPUT GEAR NTN	1-09811-423-0	02	1	1306-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	1306-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	1306-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-203-0	01	1	1306-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-204-0	01	1	1306-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NSK	1-09810-256-0	01	1	1306-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NTN	1-09810-257-0	01	1	1306-		●
172	RING; SNAP,CLU HUB OD=121.2	1-09587-031-0	01	1	1306-		●
216	INSERT; CLU HUB,2ND TO 3RD	1-33263-025-2	03	1	1306-		●
218	SPRING; INSERT,CLU HUB,2ND TO 3RD D=6.2	1-09580-091-1	03	1	1306-		●
229	SPRING; PLUNGER D=3.8	1-09580-395-0	06	1	1404-		●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	06	1	1306-	●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	15	1	1306-1403		●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	09	1	1404-		●
231	PLUNGER (A)	1-33263-020-0	03	1	1306-	●
231	PLUNGER (C)	1-33263-033-0	06	1	1306-1403		●
231	PLUNGER (C)	8-98273-831-0	06	1	1404-		●
231	PLUNGER (B)	1-33263-038-1	12	1	1306-		●
238	INSERT (A)	1-33263-025-2	06	1	1306-	●
238	INSERT (C)	1-33263-036-0	06	1	1306-		●
238	INSERT (B)	1-33263-039-0	09	1	1306-		●
241	RING; SNAP (A)	1-09588-185-0	01	1	1306-	●
241	RING; SNAP (B)	1-09588-189-0	01	1	1306-	●
241	RING; SNAP (C)	1-09587-023-0	02	1	1306-		●
241	RING; SNAP (D)	1-09587-104-0	01	1	1306-		●
278	NUT; BRG	1-09449-080-0	01	1	1306-		●
306	RING; SNAP,MAINSHAFT	1-09588-149-0	01	1	1306-		●
322	SLEEVE; SYN,LOW & 2ND	1-33262-228-0	01	1	1306-		●
323	INSERT	1-33263-041-0	03	1	1306-		●
324	HUB; CLU (C)	1-33261-238-0	01	1	1306-	●
324	HUB; CLU (A)	1-34231-015-0	01	1	1306-		●
324	HUB; CLU (B)	1-34371-017-0	01	1	1306-1307		●
324	HUB; CLU (B)	8-98239-089-0	01	1	1308-		●
330	GEAR; SUN Z=24	1-34311-010-0	01	1	1306-		●
332	PIN; LOCK,SHAFT	1-09748-025-0	05	1	1306-		●
334	SHAFT; PLANETARY GEAR (A)	1-34353-010-1	05	1	1306-		●
334	SHAFT; PLANETARY GEAR (B)	1-34372-034-0	01	1	1306-1307		●
334	SHAFT; PLANETARY GEAR (B)	8-98238-294-0	01	1	1308-		●
336	WASHER; THRUST,PLANETARY GEAR	1-09503-230-0	10	1	1306-		●
340	GEAR; RING Z=86 OKUBO GEAR	1-34371-014-0	01	1	1306-		●
340	GEAR; RING Z=86 NIPPON GEAR	1-34371-018-0	01	1	1306-		●
340	GEAR; RING Z=86 ISUZU	1-34371-019-0	01	1	1306-		●
342	FLANGE; OUTPUT	8-98210-980-0	01	1	1306-	●
342	FLANGE; OUTPUT	1-37243-370-0	01	1	1306-		●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	1306-	●	●
357	RING	1-31349-015-0	01	1	1306-	●
357	RING	1-31349-044-0	04	1	1306-		●
379	PIECE; DIST,MAINSHAFT	1-33363-034-0	02	1	1306-		●
400	BEARING; OUTPUT SHAFT RR NSK W/SNAP RING	8-98153-252-0	01	1	1306-		●
407	GEAR; PRIMARY MAIN Z=33	1-33253-717-0	01	1	1306-		●
437	PLATE; LOCK	1-34252-032-0	01	1	1306-		●
448	SYNCHRONIZER ASM; 1ST & 2ND	1-33265-616-0	02	1	1306-1307		●
448	SYNCHRONIZER ASM; 1ST & 2ND	8-98239-293-0	02	1	1308-1312		●
448	SYNCHRONIZER ASM; 1ST & 2ND	8-98239-908-1	02	1	1401-		●
467	COLLAR; SHAFT	1-33234-091-1	01	1	1306-		●
471	SHAFT; INPUT	8-98174-781-0	01	1	1306-		●
481	RING; BLOCK (A) HIGH	1-33265-516-1	01	1	1306-1407		●
481	RING; BLOCK (A) HIGH	8-98239-518-1	01	1	1408-1410		●
481	RING; BLOCK (A) HIGH	1-33265-516-1	01	1	1411-		●
481	RING; BLOCK (B) LOW	1-33265-532-1	01	1	1306-1407		●
481	RING; BLOCK (B) LOW	8-98239-519-1	01	1	1408-1410		●
481	RING; BLOCK (B) LOW	1-33265-532-1	01	1	1411-		●
482	GEAR; PRIMARY Z=29	1-33253-718-0	01	1	1306-		●
483	BEARING; TAPER NTN	8-98174-410-0	01	1	1306-1504		●
483	BEARING; TAPER NTN	8-98316-126-0	01	1	1505-		●
484	PLATE; SETTING	1-33313-023-0	01	1	1306-		●
485	PIECE; GUIDE	1-33363-040-1	01	1	1306-		●
487	SYNCHRONIZER; RANGE CHANGE	1-33265-616-0	02	1	1306-1307		●
487	SYNCHRONIZER; RANGE CHANGE	8-98239-293-0	02	1	1308-1312		●
487	SYNCHRONIZER; RANGE CHANGE	8-98239-908-1	02	1	1401-		●
488	CLUTCH; DOG,RANGE (A)	8-98060-771-1	01	1	1306-1307		●
488	CLUTCH; DOG,RANGE (A)	8-98239-163-0	01	1	1308-		●
488	CLUTCH; DOG,RANGE (B)	8-98218-291-0	01	1	1306-1307		●
488	CLUTCH; DOG,RANGE (B)	8-98238-509-0	01	1	1308-		●
489	WASHER; THRUST	1-09503-308-0	01	1	1306-		●
490	GASKET; SEAL,CASE ID=10	1-09623-369-0	01	1	1306-		●
491	PLATE; OUTPUT SHAFT	1-34252-026-0	01	1	1306-		●
492	BOLT; PLATE	1-09000-740-0	02	1	1306-		●
493	GASKET; OUTPUT SHAFT	9-09561-385-0	01	1	1306-		●
494	PLATE; OUTPUT SHAFT	1-34379-020-0	01	1	1306-1307		●
495	PINION; PLANETARY Z=30	1-34361-023-0	05	1	1306-		●
496	BEARING; PLANETARY NSK	1-09811-424-0	10	1	1306-		●
496	BEARING; PLANETARY NTN	1-09811-425-0	10	1	1306-		●
497	BEARING; RING GEAR NSK	1-09810-276-0	01	1	1306-1307		●
497	BEARING; RING GEAR NTN	1-09810-277-0	01	1	1306-1307		●
497	BEARING; RING GEAR NTN	8-98239-433-0	01	1	1308-		●
498	CONE; SYN	1-33265-617-0	04	1	1306-1312		●
498	CONE; SYN	8-98239-910-0	04	1	1401-		●
612	GALLERY; OIL	8-98239-463-0	01	1	1308-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
