Isuzu WW
▶
TRUCKS
▶
CXY
▶
10869 - CXY(51) RHD AUSTRALIA
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-33 - STEERING LINKAGE
▶

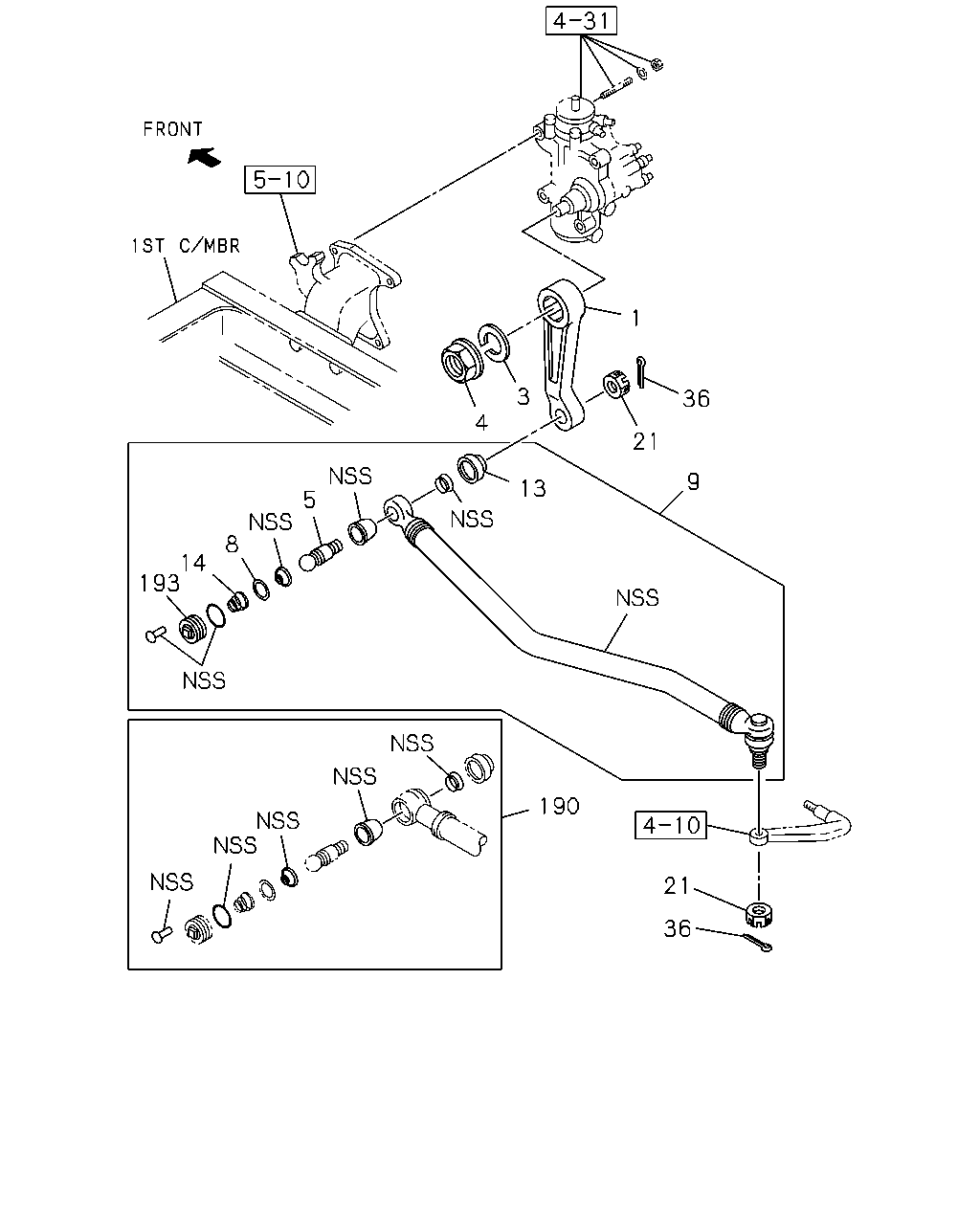

4-33 — STEERING LINKAGE
(#12350) — 24 parça
◀
[433A] -'03/1 (15 parça)
[433A] '03/2- (9 parça)
▶
1
3
36
4
21
9
13
5
8
14
193
190
21
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ARM; PITMAN,STRG
1-44341-430-1
01
1
0105-0301
1
ARM; PITMAN,STRG
1-44341-466-0
01
1
0302-
3
WASHER; LK,PITMAN ARM
ID=36.5
1-09500-021-0
01
1
0105-
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-013-0
01
1
0105-
5
BALL; JOINT,DRAG LINK
1-44361-105-1
02
1
0105-0301
8
SEAT; SPR,ROD END
1-43159-075-0
02
1
0105-0301
9
LINK; DRAG
1-44380-183-1
01
1
0105-0301
9
LINK; DRAG
1-44380-279-0
01
1
0302-
13
BOOT; DRAG LINK
1-43159-107-0
02
1
0105-0301
14
SPRING; COIL,DRAG LINK
1-43159-074-0
02
1
0105-0301
21
NUT; LK,JOINT BALL
M24 SLOTTED
1-09442-020-0
02
1
0105-0301
21
NUT; LK,JOINT BALL
M24 SLOTTED
1-09442-028-0
02
1
0302-
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
9-08115-035-0
02
1
0105-
190
REPAIR KIT; DRAG LINK
1-85574-041-0
02
1
0105-0301
193
PLUG; END,DRAG LINK
1-43159-093-0
02
1
0105-0301
1
3
4
9
21
36
21
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ARM; PITMAN,STRG
1-44341-430-1
01
1
0105-0301
1
ARM; PITMAN,STRG
1-44341-466-0
01
1
0302-
3
WASHER; LK,PITMAN ARM
ID=36.5
1-09500-021-0
01
1
0105-
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-013-0
01
1
0105-
9
LINK; DRAG
1-44380-183-1
01
1
0105-0301
9
LINK; DRAG
1-44380-279-0
01
1
0302-
21
NUT; LK,JOINT BALL
M24 SLOTTED
1-09442-020-0
02
1
0105-0301
21
NUT; LK,JOINT BALL
M24 SLOTTED
1-09442-028-0
02
1
0302-
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
9-08115-035-0
02
1
0105-
