Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#1235) — 608 parça

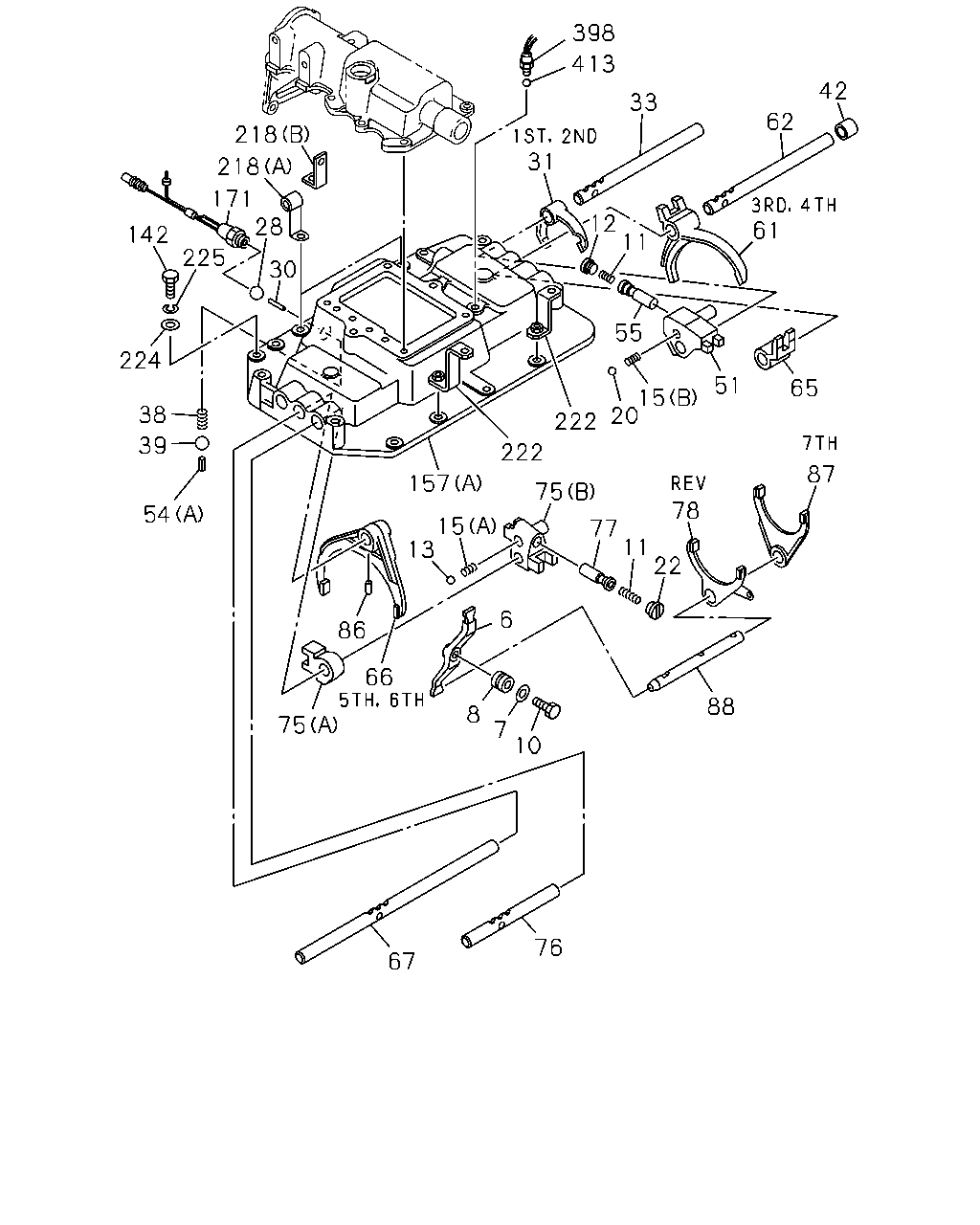

398 413 42 33 62 218 31 218 171 28 61 12 11 142 225 30 55 224 51 65 15 20 38 222 7 39 222 87 157 78 75 54 15 13 77 11 22 6 86 66 88 8 75 7 10 76 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	LEVER; RELAY	1-33511-009-1	01	1	9202-	●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-183-0	01	1	9202-	●
8	SPINDLE; REV & 7TH	9-33513-022-1	01	1	9202-	●
10	BOLT; SPINDLE M10X25 W/LK WASHER	0-50051-025-0	02	1	9202-9203	●
10	BOLT; SPINDLE M10X22	1-09033-005-0	02	1	9204-9205	●
10	BOLT; SPINDLE M14X20	1-09044-078-0	02	1	9206-	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9202-		●	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	02	1	9202-	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9202-		●	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9202-	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9202-	●	●	●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-442-0	01	1	9202-	●	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-440-0	01	1	9202-	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9202-	●	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9202-		●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9202-	●
28	BALL; INTER LK	9-00097-501-0	04	1	9202-	●	●	●
30	PIN; INTER LK	9-33534-003-0	03	1	9202-	●	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	9202-		●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-426-0	01	1	9202-	●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	9202-		●	●
33	ROD; SHIFT,LOW & 2ND	1-33531-246-2	01	1	9202-	●
38	SPRING; DETENT ASSISTER SHIFT CONTROL<WX8>	1-09580-379-0	04	1	9202-	●	●	●
38	SPRING; DETENT EXC. ASSISTER SHIFT CONTROL<WX8>	1-09580-419-0	04	1	9202-	●	●	●
39	BALL; DETENT	1-09843-012-0	04	1	9202-	●	●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	9202-		●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	07	1	9202-	●
42	CAP; QUAD BOX	1-33619-327-0	01	1	9306-				●
51	BLOCK; SHIFT,1ST & 2ND	1-33511-311-2	01	1	9202-	●
54	PIN; SPR,SHIFT BLOCK (B)	1-09748-006-0	01	1	9202-		●	●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	9202-	●	●	●
55	SLEEVE; 1ST & 2ND	1-33516-025-0	01	1	9202-	●
61	ARM; SHIFT,3RD & 4TH	1-33511-414-3	01	1	9202-9412		●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	9501-		●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-419-3	01	1	9202-9412	●
61	ARM; SHIFT,3RD & 4TH	1-33511-491-1	01	1	9501-	●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	9202-		●	●
62	ROD; SHIFT,3RD & 4TH	1-33531-247-0	01	1	9202-	●
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-308-1	01	1	9202-		●	●
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-331-2	01	1	9202-	●
66	ARM; SHIFT,5TH & 6TH	1-33511-224-2	01	1	9202-9412		●	●
66	ARM; SHIFT,5TH & 6TH	1-33511-488-1	01	1	9501-		●	●
66	ARM; SHIFT,5TH & 6TH	1-33511-228-2	01	1	9202-9412	●
66	ARM; SHIFT,5TH & 6TH	1-33511-489-1	01	1	9501-	●
67	ROD; SHIFT,5TH & 6TH L=278	1-33531-255-1	01	1	9202-		●	●
67	ROD; SHIFT,5TH & 6TH L=407	1-33531-248-0	01	1	9202-	●
75	BLOCK ASM; SHIFT,REV & 7TH (A)	1-33511-202-3	01	1	9202-	●
75	BLOCK ASM; SHIFT,REV & 7TH (B)	1-33511-309-1	01	1	9202-	●
76	ROD; SHIFT,REV & 7TH BLOCK	1-33531-249-0	01	1	9202-	●
77	SLEEVE; REV & 7TH	1-33516-025-0	01	1	9202-	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	9202-		●	●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	9202-		●	●
78	ARM; SHIFT,REV	1-33511-232-5	01	1	9202-	●
86	SCREW; TAPER,ARM TO ROD	1-09129-014-2	07	1	9202-9412		●	●
86	SCREW; TAPER,ARM TO ROD M12X20 NO-HOLE	1-09052-032-1	07	1	9501-		●	●
86	SCREW; TAPER,ARM TO ROD	1-09129-014-2	09	1	9202-9412	●
86	SCREW; TAPER,ARM TO ROD M12X20 NO-HOLE	1-09052-032-1	09	1	9501-	●
87	ARM; SHIFT,7TH	1-33511-229-4	01	1	9202-	●
88	ROD; SHIFT,REV & 7TH ARM	1-33531-250-0	01	1	9202-	●
142	BOLT; QUAD BOX M10X65	0-16806-065-0	02	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	02	1	9206-	●	●	●
142	BOLT; QUAD BOX M10X32 W/LK&PL WASHER	0-50151-032-0	08	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9206-	●	●	●
142	BOLT; QUAD BOX M10X35 W/WASHER	0-50151-035-0	04	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X35	1-09040-064-1	02	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-	●	●	●
142	BOLT; QUAD BOX M10X22,M10X66 L=96	1-09069-006-1	02	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	02	1	9206-	●	●	●
142	BOLT; QUAD BOX (A) M8X75	1-33549-158-0	07	1	9306-				●
142	BOLT; QUAD BOX (B) M8X50	1-33549-171-0	04	1	9306-				●
157	BOX; QUAD,TRANS (A)	1-33541-295-6	01	1	9202-		●	●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-349-0	01	1	9202-	●	●	●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-392-1	01	1	9202-	●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-297-6	01	1	9202-	●
157	BOX; QUAD,TRANS (A)	1-33541-448-0	01	1	9306-				●
157	BOX; QUAD,TRANS (B)	1-33543-041-0	01	1	9306-				●
171	SWITCH; NEUTRAL	1-82440-067-1	01	1	9202-	●	●	●
171	SWITCH; NEUTRAL	1-82440-095-0	01	1	9306-				●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-09700-415-0	01	1	9202-	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47476-812-1	01	1	9202-	●	●	●
222	BRACKET; CLIP	1-47475-868-0	02	1	9202-	●	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9202-		●	●
224	WASHER; PL,QUAD BOX ID=10.5	9-09164-510-0	04	1	9202-9205	●	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9202-		●	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	06	1	9202-9205	●	●	●
225	WASHER; LK,QUAD BOX (A)	1-33549-159-0	07	1	9306-				●
225	WASHER; LK,QUAD BOX (B)	1-36129-007-0	04	1	9306-				●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9202-	●	●	●
398	SWITCH; REV LAMP	1-82440-080-1	01	1	9306-				●
413	BALL; BACK SW	9-00097-013-0	01	1	9202-	●	●	●

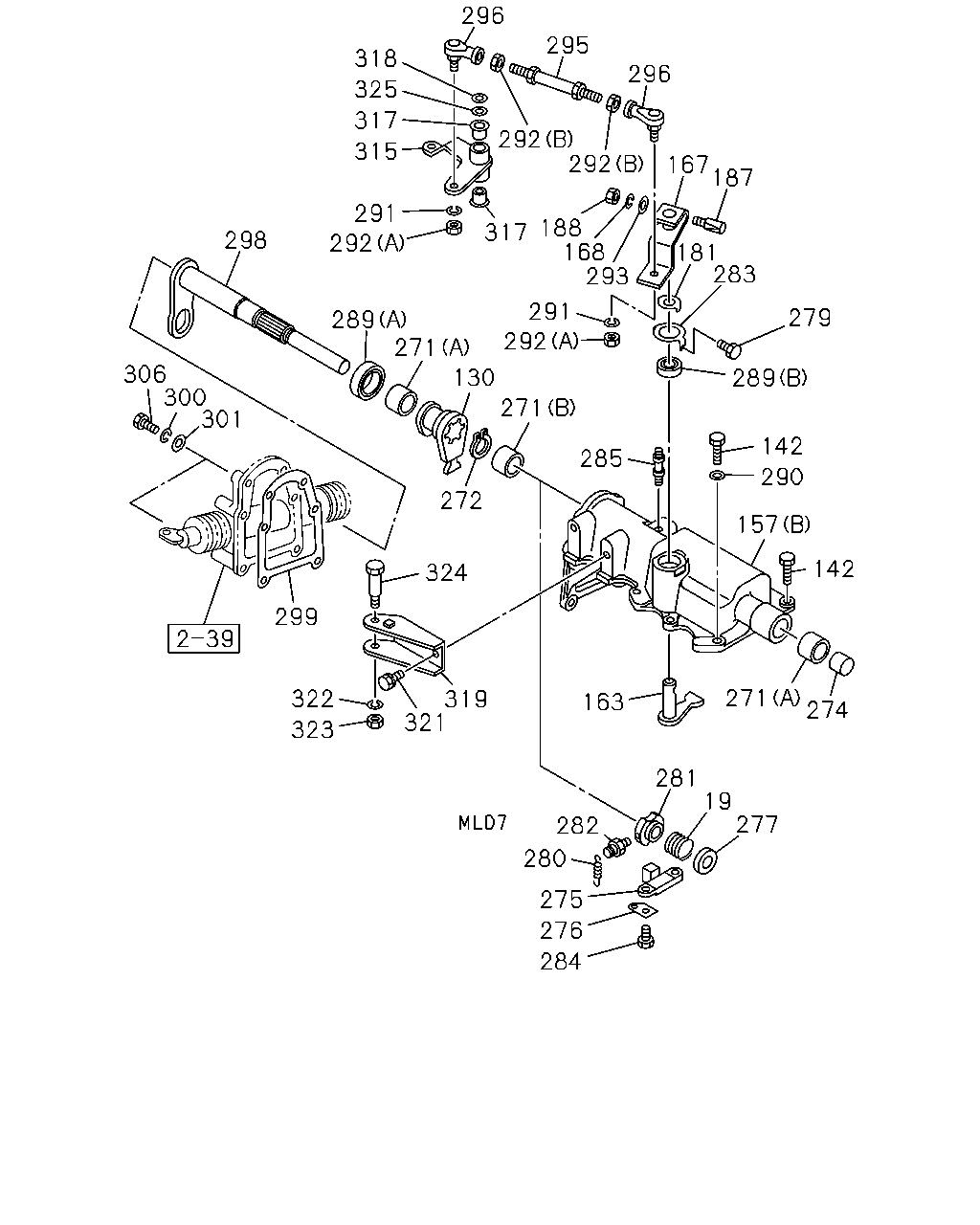

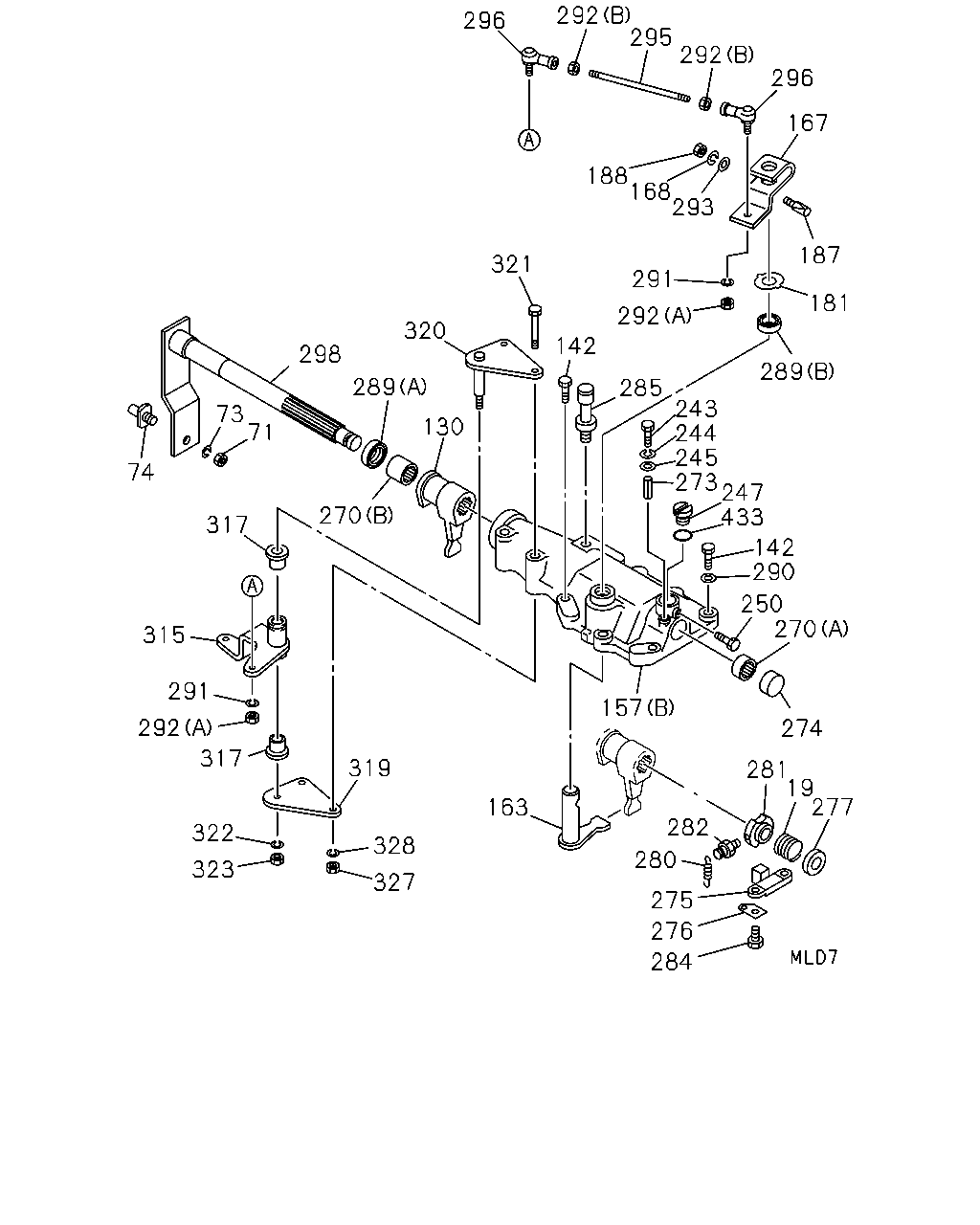

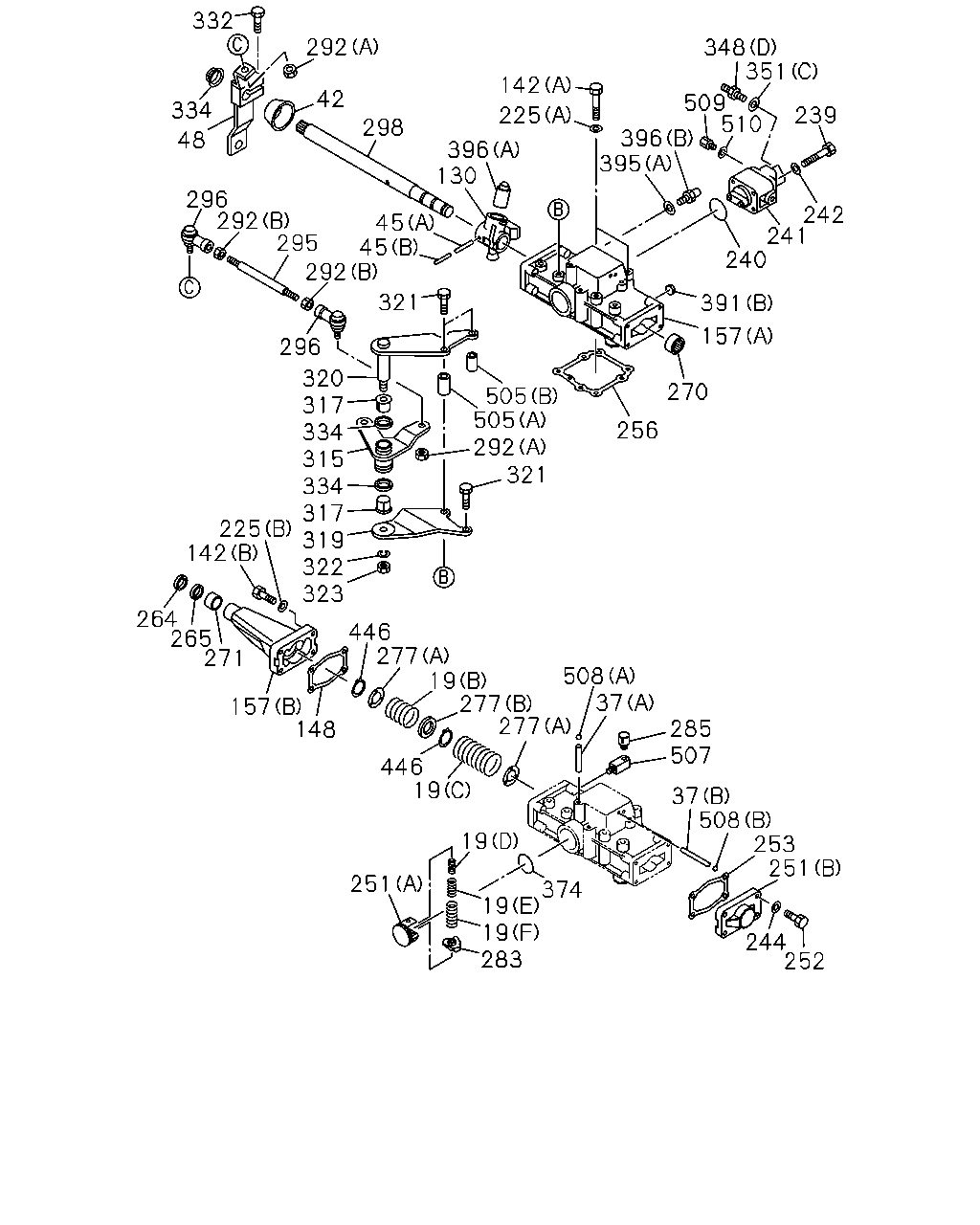

332 292 348 351 142 42 509 510 334 225 239 298 396 395 48 396 130 296 292 295 242 241 240 45 45 292 321 391 157 296 320 317 334 315 334 317 319 322 323 270 505 505 292 321 256 225 142 264 265 271 446 277 19 277 277 508 37 157 148 285 507 446 19 37 508 253 251 19 251 374 19 19 283 244 252

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
19	SPRING; COIL COMP	1-09580-441-0	01	1	9202-		●	●
19	SPRING; COIL COMP	1-09580-403-1	01	1	9202-	●
19	SPRING; COIL COMP (C)	1-33539-027-0	01	1	9306-				●
19	SPRING; COIL COMP (A)	1-33539-038-0	03	1	9306-				●
19	SPRING; COIL COMP (B)	1-33539-041-0	01	1	9306-				●
19	SPRING; COIL COMP (D)	1-33549-173-0	01	1	9306-9412				●
19	SPRING; COIL COMP (E)	1-33549-174-0	01	1	9306-9412				●
19	SPRING; COIL COMP (F)	1-33549-175-0	01	1	9306-				●
37	PIN; STOPPER ARM (B)	1-33549-160-0	02	1	9306-				●
37	PIN; STOPPER ARM (A)	1-33549-163-0	01	1	9306-				●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	9202-		●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	07	1	9202-	●
42	CAP; QUAD BOX	1-33619-327-0	01	1	9306-				●
45	PIN; SPRING,SHIFT LEVER (A)	1-33529-058-0	01	1	9306-				●
45	PIN; SPRING,SHIFT LEVER (B)	1-33529-059-0	01	1	9306-				●
48	LEVER; 4TH,SHIFT	1-33651-608-0	01	1	9306-				●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-111-1	01	1	9202-		●	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-093-1	01	1	9202-		●	●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-110-1	01	1	9202-	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-094-2	01	1	9202-	●
130	LEVER; SHIFT,INTERNAL	1-33521-144-0	01	1	9306-				●
142	BOLT; QUAD BOX M10X65	0-16806-065-0	02	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	02	1	9206-	●	●	●
142	BOLT; QUAD BOX M10X32 W/LK&PL WASHER	0-50151-032-0	08	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9206-	●	●	●
142	BOLT; QUAD BOX M10X35 W/WASHER	0-50151-035-0	04	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X35	1-09040-064-1	02	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-	●	●	●
142	BOLT; QUAD BOX M10X22,M10X66 L=96	1-09069-006-1	02	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	02	1	9206-	●	●	●
142	BOLT; QUAD BOX (A) M8X75	1-33549-158-0	07	1	9306-				●
142	BOLT; QUAD BOX (B) M8X50	1-33549-171-0	04	1	9306-				●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	1-33544-044-0	01	1	9306-				●
157	BOX; QUAD,TRANS (A)	1-33541-295-6	01	1	9202-		●	●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-349-0	01	1	9202-	●	●	●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-392-1	01	1	9202-	●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-297-6	01	1	9202-	●
157	BOX; QUAD,TRANS (A)	1-33541-448-0	01	1	9306-				●
157	BOX; QUAD,TRANS (B)	1-33543-041-0	01	1	9306-				●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9202-		●	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	06	1	9202-9205	●	●	●
225	WASHER; LK,QUAD BOX (A)	1-33549-159-0	07	1	9306-				●
225	WASHER; LK,QUAD BOX (B)	1-36129-007-0	04	1	9306-				●
239	BOLT; CUT OFF VALVE M8X65	1-33549-168-0	04	1	9306-				●
240	GASKET; CUT OFF VALVE	1-33549-127-0	01	1	9306-				●
241	VALVE; CUT OFF	1-33549-153-0	01	1	9306-				●
242	WASHER; CUT OFF VALVE	1-36129-007-0	04	1	9306-				●
244	WASHER; LK,COVER EXC. ASSISTER SHIFT CONTROL<WX8> ID=6.1	9-09150-506-0	01	1	9202-9205	●	●	●
244	WASHER; LK,COVER	1-36129-007-0	04	1	9306-				●
251	COVER; SIDE (A)	1-33543-040-0	01	1	9306-				●
251	COVER; SIDE (B)	1-33543-042-0	01	1	9306-				●
252	BOLT; SIDE COVER M8X30	1-33549-172-0	04	1	9306-				●
253	GASKET; SIDE COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33544-044-0	01	1	9306-				●
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33542-054-0	01	1	9306-				●
264	SEAL; DUST,SHAFT	1-33549-119-0	01	1	9306-				●
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T).	1-33549-118-0	01	1	9306-				●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (A) NSK	1-09811-057-0	01	1	9202-	●	●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (B) NTN	1-09811-260-0	01	1	9202-	●	●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (A) NTN	1-09811-006-0	01	1	9212-	●	●	●
270	BEARING; NEEDLE,QUAD BOX	1-33549-162-0	01	1	9306-				●
271	BUSHING; QUAD BOX ASSISTER SHIFT CONTROL<WX8> (A) ID=20 OD=23	1-33549-016-0	01	1	9202-	●	●	●
271	BUSHING; QUAD BOX ASSISTER SHIFT CONTROL<WX8> (B) ID=28 OD=32	1-33549-104-0	01	1	9202-	●	●	●
271	BUSHING; QUAD BOX	1-33549-124-0	01	1	9306-				●
277	PLATE; SPRING SEAT	1-33529-009-0	01	1	9202-	●
277	PLATE; SPRING SEAT (A)	1-33539-039-0	02	1	9306-				●
277	PLATE; SPRING SEAT (B)	1-33539-042-0	01	1	9306-				●
283	STOPPER; SHIFT SHAFT ASSISTER SHIFT CONTROL<WX8>	1-33529-029-0	01	1	9202-	●
283	STOPPER; SHIFT SHAFT	1-33549-166-0	01	1	9306-				●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9202-	●	●	●
285	BREATHER; AIR,QUAD BOX	1-36122-004-0	01	1	9306-				●
292	NUT; LINK ROD (A) M8	9-09110-408-0	02	1	9202-9205	●	●	●
292	NUT; LINK ROD (A) M8 FLANGE	0-91150-208-0	02	1	9206-9301	●	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9302-	●	●	●	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	9202-	●	●	●	●
295	ROD; LINK,RELAY LEVER	1-33652-392-0	01	1	9202-9402	●	●	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	9403-	●	●	●
295	ROD; LINK,RELAY LEVER	1-33652-571-0	01	1	9306-9510				●
295	ROD; LINK,RELAY LEVER	9-08400-810-0	01	1	9511-				●
296	ROD END L=48	1-09760-038-1	02	1	9202-	●	●	●	●
298	SHAFT; SHIFT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33522-105-1	01	1	9202-	●	●	●
298	SHAFT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33522-091-1	01	1	9202-	●	●	●
298	SHAFT; SHIFT LEVER	1-33522-132-0	01	1	9306-				●
315	LEVER; SELECT ASSISTER SHIFT CONTROL<WX8>	1-33651-494-0	01	1	9202-	●	●	●
315	LEVER; SELECT EXC. ASSISTER SHIFT CONTROL<WX8>	1-33651-496-0	01	1	9202-	●	●	●
315	LEVER; SELECT	1-33651-609-1	01	1	9306-				●
317	BUSHING; LEVER ID=16 OD=18 H=16	1-09503-151-0	02	1	9202-	●	●	●	●
319	BRACKET; SELECT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33651-352-0	01	1	9202-	●	●	●
319	BRACKET; SELECT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33657-240-0	01	1	9202-	●	●	●
319	BRACKET; SELECT LEVER	1-33657-526-0	01	1	9306-				●
320	SHAFT; LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33657-241-0	01	1	9202-	●	●	●
320	SHAFT; LEVER	1-33657-525-1	01	1	9306-				●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X25 W/LK WASHER	0-50051-025-0	02	1	9202-9205	●	●	●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	9206-	●	●	●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	9202-	●	●	●
321	BOLT; BRKT,RELAY LEVER	1-09040-100-0	01	1	9306-9310				●
321	BOLT; BRKT,RELAY LEVER M8X80 FLANGE	1-09044-091-0	01	1	9306-				●
321	BOLT; BRKT,RELAY LEVER M8X20,M8X104 L=132	1-09049-026-0	01	1	9306-9310				●
321	BOLT; BRKT,RELAY LEVER M8X20,M8X104 L=132	1-09049-026-0	02	1	9311-				●
322	WASHER; LK ID=10.2	9-09150-510-0	01	1	9202-	●	●	●	●
323	NUT; LK,SELECT LEVER M10	9-09110-410-0	01	1	9202-	●	●	●	●
332	BOLT; 4TH,SHIFT LEVER M8X35 W/LK WASHER	0-50040-835-0	01	1	9306-				●
334	SEAL; DUST,RELAY LEVER	1-33659-114-0	02	1	9306-				●
348	CONNECTOR; AIR HOSE (D)	1-09660-678-0	01	1	9306-				●
348	CONNECTOR; AIR HOSE (C)	1-33549-176-0	02	1	9306-				●
348	CONNECTOR; AIR HOSE (A)	1-33549-177-0	01	1	9306-				●
348	CONNECTOR; AIR HOSE (B)	1-33549-179-0	01	1	9306-				●
351	GASKET; CONNECTOR (C) ID=12.2	1-09630-084-0	01	1	9306-				●
351	GASKET; CONNECTOR (A)	1-33549-129-0	04	1	9306-				●
351	GASKET; CONNECTOR (B)	1-33549-137-0	04	1	9306-				●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T).	1-33549-127-0	01	1	9306-				●
391	PLUG; SW HOLE (A)	1-33119-171-0	01	1	9306-				●
391	PLUG; SW HOLE (C)	1-33119-253-0	01	1	9306-				●
391	PLUG; SW HOLE (B)	1-36259-018-0	01	1	9306-				●
395	GASKET; PLUNGER (A)	1-33549-167-0	01	1	9306-				●
395	GASKET; PLUNGER (B)	1-36289-021-0	01	1	9306-				●
396	PLUNGER; SHIFT ROD (C)	1-33119-251-0	01	1	9306-				●
396	PLUNGER; SHIFT ROD (A)	1-33529-057-0	01	1	9306-				●
396	PLUNGER; SHIFT ROD (B)	1-33549-165-0	01	1	9306-				●
446	RING; SNAP,SPR SEAT	1-33539-040-0	02	1	9306-				●
505	SPACER; BRKT (A)	1-11349-149-0	01	1	9306-				●
505	SPACER; BRKT (B) L=24.5	1-33659-186-1	01	1	9306-				●
507	ADAPTER; BREATHER	1-36129-120-0	01	1	9306-				●
508	CUP; SEALING (B)	1-33549-161-0	04	1	9306-				●
508	CUP; SEALING (A)	1-33549-164-0	01	1	9306-				●
509	ADAPTER	1-33549-169-0	01	1	9306-				●
510	GASKET; ADAPTER	1-33549-170-0	01	1	9306-				●

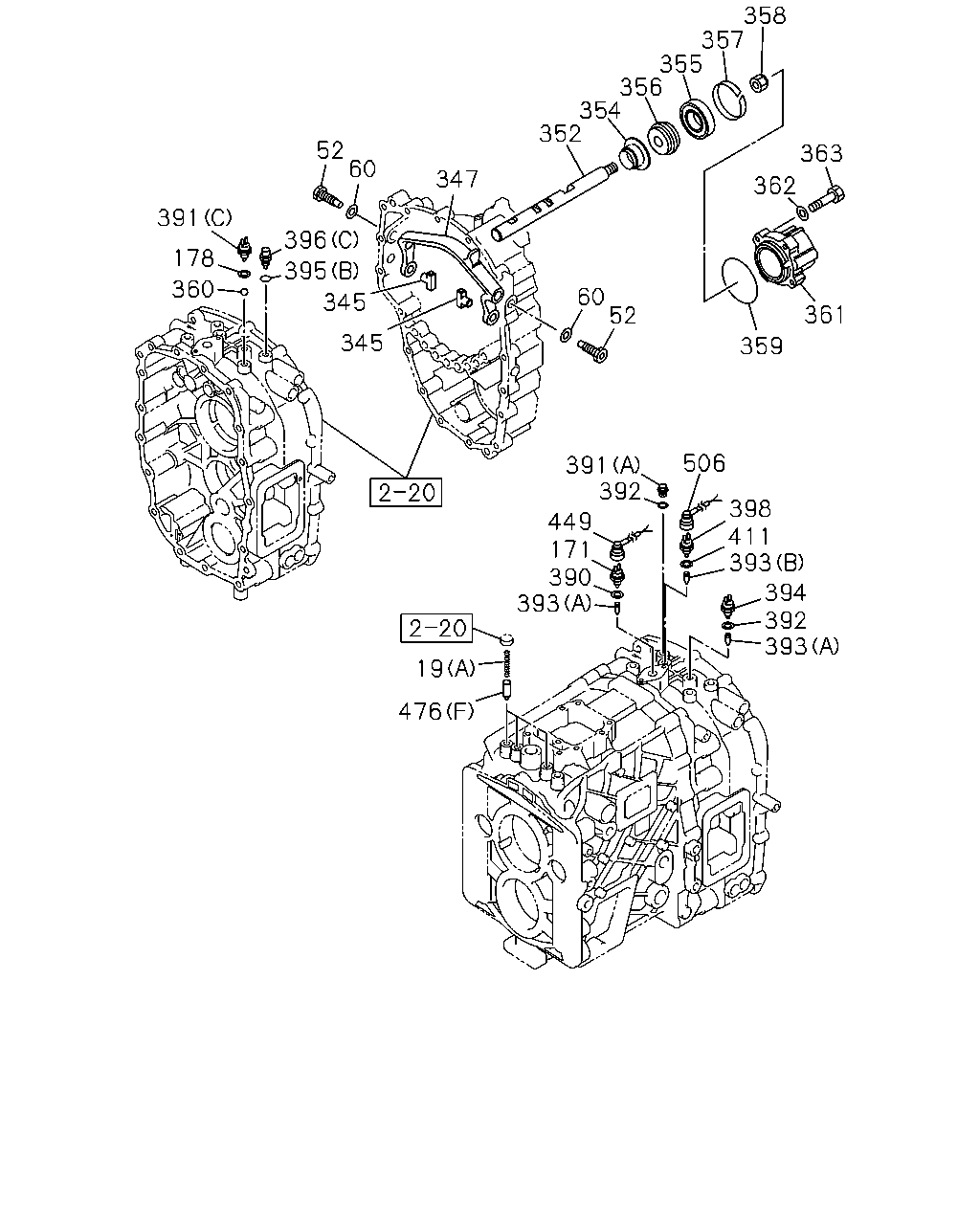

358 357 355 356 354 352 52 60 363 347 362 391 396 178 395 360 60 52 345 361 345 359 506 391 392 398 411 393 449 171 390 393 394 392 393 19 476

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
19	SPRING; COIL COMP	1-09580-441-0	01	1	9202-		●	●
19	SPRING; COIL COMP	1-09580-403-1	01	1	9202-	●
19	SPRING; COIL COMP (C)	1-33539-027-0	01	1	9306-				●
19	SPRING; COIL COMP (A)	1-33539-038-0	03	1	9306-				●
19	SPRING; COIL COMP (B)	1-33539-041-0	01	1	9306-				●
19	SPRING; COIL COMP (D)	1-33549-173-0	01	1	9306-9412				●
19	SPRING; COIL COMP (E)	1-33549-174-0	01	1	9306-9412				●
19	SPRING; COIL COMP (F)	1-33549-175-0	01	1	9306-				●
52	BOLT; SHIFT ARM M20	1-33519-054-0	02	1	9306-				●
60	WASHER; LK	1-33519-052-0	02	1	9306-				●
171	SWITCH; NEUTRAL	1-82440-067-1	01	1	9202-	●	●	●
171	SWITCH; NEUTRAL	1-82440-095-0	01	1	9306-				●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	9306-				●
345	BLOCK; SHIFT,RANGE CHANGE	1-33519-053-0	02	1	9306-				●
347	ARM; SHIFT,RANGE CHANGE	1-33511-476-0	01	1	9306-				●
352	ROD; SHIFT,RANGE CHANGE	1-33531-375-0	01	1	9306-				●
354	SEAL; AIR CYL	1-33519-045-0	01	1	9306-				●
355	CUP; PISTON,AIR CYL	1-33519-047-0	02	1	9306-				●
356	PISTON; AIR CYL	1-33519-046-0	01	1	9306-				●
357	RING; GUIDE,AIR CYL	1-33519-048-0	01	1	9306-				●
358	NUT; SHIFT ROD	1-33519-049-0	01	1	9306-				●
359	GASKET; AIR CYL	1-33519-050-0	01	1	9306-				●
360	BALL; AIR CYL	1-33119-252-0	01	1	9306-				●
361	CYLINDER; AIR,SHIFT	1-33519-051-0	01	1	9306-				●
362	WASHER; AIR CYL	1-36129-007-0	04	1	9306-				●
363	BOLT; AIR CYL M8X30	1-33549-172-0	04	1	9306-				●
390	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	9306-				●
391	PLUG; SW HOLE (A)	1-33119-171-0	01	1	9306-				●
391	PLUG; SW HOLE (C)	1-33119-253-0	01	1	9306-				●
391	PLUG; SW HOLE (B)	1-36259-018-0	01	1	9306-				●
392	GASKET; PLUG & SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	02	1	9306-				●
393	PIN; SW (A)	1-33119-250-0	02	1	9306-				●
393	PIN; SW (B)	1-33519-029-0	01	1	9306-				●
394	SWITCH; RANGE CHANGE	1-82440-095-0	01	1	9306-				●
395	GASKET; PLUNGER (A)	1-33549-167-0	01	1	9306-				●
395	GASKET; PLUNGER (B)	1-36289-021-0	01	1	9306-				●
396	PLUNGER; SHIFT ROD (C)	1-33119-251-0	01	1	9306-				●
396	PLUNGER; SHIFT ROD (A)	1-33529-057-0	01	1	9306-				●
396	PLUNGER; SHIFT ROD (B)	1-33549-165-0	01	1	9306-				●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9202-	●	●	●
398	SWITCH; REV LAMP	1-82440-080-1	01	1	9306-				●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	9306-				●
449	HARNESS; NEUTRAL SW	1-82659-152-0	01	1	9306-				●
476	PIN; SHIFT ROD (C)	1-33534-004-0	02	1	9306-				●
476	PIN; SHIFT ROD (B)	1-33539-033-0	01	1	9306-				●
476	PIN; SHIFT ROD (D)	1-33539-034-0	01	1	9306-				●
476	PIN; SHIFT ROD (E)	1-33539-035-0	01	1	9306-				●
476	PIN; SHIFT ROD (A)	1-33539-036-0	01	1	9306-				●
476	PIN; SHIFT ROD (F)	1-33539-037-0	03	1	9306-				●
506	HARNESS; REV SW	1-82659-152-0	01	1	9306-				●

296 295 318 296 325 317 292 292 315 167 187 291 188 168 293 317 298 292 181 283 291 279 289 271 292 306 300 301 130 289 271 142 285 290 272 157 142 324 299 271 274 322 319 321 163 323 281 19 277 282 280 275 276 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
19	SPRING; COIL COMP	1-09580-441-0	01	1	9202-		●	●
19	SPRING; COIL COMP	1-09580-403-1	01	1	9202-	●
19	SPRING; COIL COMP (C)	1-33539-027-0	01	1	9306-				●
19	SPRING; COIL COMP (A)	1-33539-038-0	03	1	9306-				●
19	SPRING; COIL COMP (B)	1-33539-041-0	01	1	9306-				●
19	SPRING; COIL COMP (D)	1-33549-173-0	01	1	9306-9412				●
19	SPRING; COIL COMP (E)	1-33549-174-0	01	1	9306-9412				●
19	SPRING; COIL COMP (F)	1-33549-175-0	01	1	9306-				●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-111-1	01	1	9202-		●	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-093-1	01	1	9202-		●	●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-110-1	01	1	9202-	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-094-2	01	1	9202-	●
130	LEVER; SHIFT,INTERNAL	1-33521-144-0	01	1	9306-				●
142	BOLT; QUAD BOX M10X65	0-16806-065-0	02	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	02	1	9206-	●	●	●
142	BOLT; QUAD BOX M10X32 W/LK&PL WASHER	0-50151-032-0	08	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9206-	●	●	●
142	BOLT; QUAD BOX M10X35 W/WASHER	0-50151-035-0	04	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X35	1-09040-064-1	02	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-	●	●	●
142	BOLT; QUAD BOX M10X22,M10X66 L=96	1-09069-006-1	02	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	02	1	9206-	●	●	●
142	BOLT; QUAD BOX (A) M8X75	1-33549-158-0	07	1	9306-				●
142	BOLT; QUAD BOX (B) M8X50	1-33549-171-0	04	1	9306-				●
157	BOX; QUAD,TRANS (A)	1-33541-295-6	01	1	9202-		●	●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-349-0	01	1	9202-	●	●	●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-392-1	01	1	9202-	●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-297-6	01	1	9202-	●
157	BOX; QUAD,TRANS (A)	1-33541-448-0	01	1	9306-				●
157	BOX; QUAD,TRANS (B)	1-33543-041-0	01	1	9306-				●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9202-	●	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	9202-	●	●	●
168	WASHER; LK,SELECT LEVER ID=8.2	9-09150-508-0	01	1	9202-9205	●	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9202-	●	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9202-	●	●	●
188	NUT; SELECT LEVER M8	9-09110-408-0	01	1	9202-9205	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9206-9304	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9305-	●	●	●
271	BUSHING; QUAD BOX ASSISTER SHIFT CONTROL<WX8> (A) ID=20 OD=23	1-33549-016-0	01	1	9202-	●	●	●
271	BUSHING; QUAD BOX ASSISTER SHIFT CONTROL<WX8> (B) ID=28 OD=32	1-33549-104-0	01	1	9202-	●	●	●
271	BUSHING; QUAD BOX	1-33549-124-0	01	1	9306-				●
272	RING; SNAP,QUAD BOX ASSISTER SHIFT CONTROL<WX8>	1-09588-175-0	01	1	9202-	●	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9202-	●	●	●
275	BLOCK; OBSTRUCT,QUAD BOX	1-33529-027-0	01	1	9202-	●
276	PLATE; SPRING RET	1-33529-010-0	01	1	9202-	●
277	PLATE; SPRING SEAT	1-33529-009-0	01	1	9202-	●
277	PLATE; SPRING SEAT (A)	1-33539-039-0	02	1	9306-				●
277	PLATE; SPRING SEAT (B)	1-33539-042-0	01	1	9306-				●
279	BOLT; STOPPER ASSISTER SHIFT CONTROL<WX8> M5X8	0-20800-508-0	01	1	9202-	●
280	SPRING; COIL TENSION	1-09583-227-0	01	1	9202-	●
281	PLATE; OBSTRUCT,QUAD BOX	1-33529-025-2	01	1	9202-	●
282	BOLT; SPRING REAMER	1-33529-024-0	01	1	9202-	●
283	STOPPER; SHIFT SHAFT ASSISTER SHIFT CONTROL<WX8>	1-33529-029-0	01	1	9202-	●
283	STOPPER; SHIFT SHAFT	1-33549-166-0	01	1	9306-				●
284	BOLT; REAMER,QUAD BOX	1-09040-075-1	02	1	9202-	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9202-	●	●	●
285	BREATHER; AIR,QUAD BOX	1-36122-004-0	01	1	9306-				●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9202-	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9202-	●	●	●
290	WASHER; PL,QUAD BOX ID=10.5 OD=18	9-09160-510-0	02	1	9202-9205	●	●	●
291	WASHER; LK,LINK ROD ID=8.2	9-09150-508-0	02	1	9202-9205	●	●	●
292	NUT; LINK ROD (A) M8	9-09110-408-0	02	1	9202-9205	●	●	●
292	NUT; LINK ROD (A) M8 FLANGE	0-91150-208-0	02	1	9206-9301	●	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9302-	●	●	●	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	9202-	●	●	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9202-	●	●	●
295	ROD; LINK,RELAY LEVER	1-33652-392-0	01	1	9202-9402	●	●	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	9403-	●	●	●
295	ROD; LINK,RELAY LEVER	1-33652-571-0	01	1	9306-9510				●
295	ROD; LINK,RELAY LEVER	9-08400-810-0	01	1	9511-				●
296	ROD END L=48	1-09760-038-1	02	1	9202-	●	●	●	●
298	SHAFT; SHIFT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33522-105-1	01	1	9202-	●	●	●
298	SHAFT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33522-091-1	01	1	9202-	●	●	●
298	SHAFT; SHIFT LEVER	1-33522-132-0	01	1	9306-				●
299	GASKET; QUAD BOX TO POWER ASSISTOR ALSO INCLUDED IN GASKET SET(M/T). ASSISTER SHIFT CONTROL<WX8>	1-33542-032-0	01	1	9202-9406	●	●	●
300	WASHER; LK,SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> ID=10.2	9-09150-510-0	06	1	9202-9205	●	●	●
301	WASHER; PL,SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> ID=10.5 OD=18	9-09160-510-0	06	1	9202-9205	●	●	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X50	0-16806-050-0	02	1	9202-9205	●	●	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X45 FLANGE	0-28181-045-0	02	1	9206-	●	●	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X75	0-16806-075-0	02	1	9202-9205	●	●	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X70 FLANGE	0-28181-070-0	02	1	9206-9406	●	●	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X70 FLANGE	0-28181-070-0	04	1	9407-	●	●	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X75	1-09040-072-0	02	1	9202-9205	●	●	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X72	1-09040-095-1	02	1	9206-9406	●	●	●
315	LEVER; SELECT ASSISTER SHIFT CONTROL<WX8>	1-33651-494-0	01	1	9202-	●	●	●
315	LEVER; SELECT EXC. ASSISTER SHIFT CONTROL<WX8>	1-33651-496-0	01	1	9202-	●	●	●
315	LEVER; SELECT	1-33651-609-1	01	1	9306-				●
317	BUSHING; LEVER ID=16 OD=18 H=16	1-09503-151-0	02	1	9202-	●	●	●	●
318	WASHER; WAVE ASSISTER SHIFT CONTROL<WX8>	9-09855-315-0	01	1	9202-	●	●	●
319	BRACKET; SELECT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33651-352-0	01	1	9202-	●	●	●
319	BRACKET; SELECT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33657-240-0	01	1	9202-	●	●	●
319	BRACKET; SELECT LEVER	1-33657-526-0	01	1	9306-				●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X25 W/LK WASHER	0-50051-025-0	02	1	9202-9205	●	●	●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	9206-	●	●	●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	9202-	●	●	●
321	BOLT; BRKT,RELAY LEVER	1-09040-100-0	01	1	9306-9310				●
321	BOLT; BRKT,RELAY LEVER M8X80 FLANGE	1-09044-091-0	01	1	9306-				●
321	BOLT; BRKT,RELAY LEVER M8X20,M8X104 L=132	1-09049-026-0	01	1	9306-9310				●
321	BOLT; BRKT,RELAY LEVER M8X20,M8X104 L=132	1-09049-026-0	02	1	9311-				●
322	WASHER; LK ID=10.2	9-09150-510-0	01	1	9202-	●	●	●	●
323	NUT; LK,SELECT LEVER M10	9-09110-410-0	01	1	9202-	●	●	●	●
324	BOLT; SHAFT ASSISTER SHIFT CONTROL<WX8> L=61	1-33619-126-2	01	1	9202-	●	●	●
325	SHIM; LEVER ASSISTER SHIFT CONTROL<WX8>	1-33659-096-0	01	1	9202-	●	●	●

292 295 292 296 296 167 188 168 293 187 321 291 181 292 320 142 298 289 289 285 243 244 245 273 247 433 73 71 130 74 270 317 142 290 250 270 315 291 157 292 274 317 319 281 19 277 163 282 322 328 280 323 275 327 276 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
19	SPRING; COIL COMP	1-09580-441-0	01	1	9202-		●	●
19	SPRING; COIL COMP	1-09580-403-1	01	1	9202-	●
19	SPRING; COIL COMP (C)	1-33539-027-0	01	1	9306-				●
19	SPRING; COIL COMP (A)	1-33539-038-0	03	1	9306-				●
19	SPRING; COIL COMP (B)	1-33539-041-0	01	1	9306-				●
19	SPRING; COIL COMP (D)	1-33549-173-0	01	1	9306-9412				●
19	SPRING; COIL COMP (E)	1-33549-174-0	01	1	9306-9412				●
19	SPRING; COIL COMP (F)	1-33549-175-0	01	1	9306-				●
71	NUT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10	9-09110-410-0	01	1	9202-9205	●	●	●
71	NUT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10 FLANGE	0-91150-210-0	01	1	9206-	●	●	●
73	WASHER; LK,SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8> ID=10.2	9-09150-510-0	01	1	9202-9205	●	●	●
74	PIN; WIRE,SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33659-115-0	01	1	9202-	●	●	●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-111-1	01	1	9202-		●	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-093-1	01	1	9202-		●	●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-110-1	01	1	9202-	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-094-2	01	1	9202-	●
130	LEVER; SHIFT,INTERNAL	1-33521-144-0	01	1	9306-				●
142	BOLT; QUAD BOX M10X65	0-16806-065-0	02	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	02	1	9206-	●	●	●
142	BOLT; QUAD BOX M10X32 W/LK&PL WASHER	0-50151-032-0	08	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9206-	●	●	●
142	BOLT; QUAD BOX M10X35 W/WASHER	0-50151-035-0	04	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X35	1-09040-064-1	02	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-	●	●	●
142	BOLT; QUAD BOX M10X22,M10X66 L=96	1-09069-006-1	02	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	02	1	9206-	●	●	●
142	BOLT; QUAD BOX (A) M8X75	1-33549-158-0	07	1	9306-				●
142	BOLT; QUAD BOX (B) M8X50	1-33549-171-0	04	1	9306-				●
157	BOX; QUAD,TRANS (A)	1-33541-295-6	01	1	9202-		●	●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-349-0	01	1	9202-	●	●	●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-392-1	01	1	9202-	●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-297-6	01	1	9202-	●
157	BOX; QUAD,TRANS (A)	1-33541-448-0	01	1	9306-				●
157	BOX; QUAD,TRANS (B)	1-33543-041-0	01	1	9306-				●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9202-	●	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	9202-	●	●	●
168	WASHER; LK,SELECT LEVER ID=8.2	9-09150-508-0	01	1	9202-9205	●	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9202-	●	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9202-	●	●	●
188	NUT; SELECT LEVER M8	9-09110-408-0	01	1	9202-9205	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9206-9304	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9305-	●	●	●
243	BOLT; COVER EXC. ASSISTER SHIFT CONTROL<WX8> M6X10	0-20800-610-0	01	1	9202-9205	●	●	●
243	BOLT; COVER EXC. ASSISTER SHIFT CONTROL<WX8> M6X10 FLANGE	0-28080-610-0	01	1	9206-	●	●	●
244	WASHER; LK,COVER EXC. ASSISTER SHIFT CONTROL<WX8> ID=6.1	9-09150-506-0	01	1	9202-9205	●	●	●
244	WASHER; LK,COVER	1-36129-007-0	04	1	9306-				●
245	WASHER; PL,COVER EXC. ASSISTER SHIFT CONTROL<WX8> ID=6.4	9-09160-506-0	01	1	9202-9205	●	●	●
247	BUSHING ASM; DETENT EXC. ASSISTER SHIFT CONTROL<WX8>	1-33529-019-0	01	1	9202-	●	●	●
250	SCREW; BUSHING EXC. ASSISTER SHIFT CONTROL<WX8>	9-06130-618-0	01	1	9202-	●	●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (A) NSK	1-09811-057-0	01	1	9202-	●	●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (B) NTN	1-09811-260-0	01	1	9202-	●	●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (A) NTN	1-09811-006-0	01	1	9212-	●	●	●
270	BEARING; NEEDLE,QUAD BOX	1-33549-162-0	01	1	9306-				●
273	PIN; SPR,STOPPER EXC. ASSISTER SHIFT CONTROL<WX8>	1-09748-016-0	01	1	9202-	●	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9202-	●	●	●
275	BLOCK; OBSTRUCT,QUAD BOX	1-33529-027-0	01	1	9202-	●
276	PLATE; SPRING RET	1-33529-010-0	01	1	9202-	●
277	PLATE; SPRING SEAT	1-33529-009-0	01	1	9202-	●
277	PLATE; SPRING SEAT (A)	1-33539-039-0	02	1	9306-				●
277	PLATE; SPRING SEAT (B)	1-33539-042-0	01	1	9306-				●
280	SPRING; COIL TENSION	1-09583-227-0	01	1	9202-	●
281	PLATE; OBSTRUCT,QUAD BOX	1-33529-025-2	01	1	9202-	●
282	BOLT; SPRING REAMER	1-33529-024-0	01	1	9202-	●
284	BOLT; REAMER,QUAD BOX	1-09040-075-1	02	1	9202-	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9202-	●	●	●
285	BREATHER; AIR,QUAD BOX	1-36122-004-0	01	1	9306-				●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9202-	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9202-	●	●	●
290	WASHER; PL,QUAD BOX ID=10.5 OD=18	9-09160-510-0	02	1	9202-9205	●	●	●
291	WASHER; LK,LINK ROD ID=8.2	9-09150-508-0	02	1	9202-9205	●	●	●
292	NUT; LINK ROD (A) M8	9-09110-408-0	02	1	9202-9205	●	●	●
292	NUT; LINK ROD (A) M8 FLANGE	0-91150-208-0	02	1	9206-9301	●	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9302-	●	●	●	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	9202-	●	●	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9202-	●	●	●
295	ROD; LINK,RELAY LEVER	1-33652-392-0	01	1	9202-9402	●	●	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	9403-	●	●	●
295	ROD; LINK,RELAY LEVER	1-33652-571-0	01	1	9306-9510				●
295	ROD; LINK,RELAY LEVER	9-08400-810-0	01	1	9511-				●
296	ROD END L=48	1-09760-038-1	02	1	9202-	●	●	●	●
298	SHAFT; SHIFT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33522-105-1	01	1	9202-	●	●	●
298	SHAFT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33522-091-1	01	1	9202-	●	●	●
298	SHAFT; SHIFT LEVER	1-33522-132-0	01	1	9306-				●
315	LEVER; SELECT ASSISTER SHIFT CONTROL<WX8>	1-33651-494-0	01	1	9202-	●	●	●
315	LEVER; SELECT EXC. ASSISTER SHIFT CONTROL<WX8>	1-33651-496-0	01	1	9202-	●	●	●
315	LEVER; SELECT	1-33651-609-1	01	1	9306-				●
317	BUSHING; LEVER ID=16 OD=18 H=16	1-09503-151-0	02	1	9202-	●	●	●	●
319	BRACKET; SELECT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33651-352-0	01	1	9202-	●	●	●
319	BRACKET; SELECT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33657-240-0	01	1	9202-	●	●	●
319	BRACKET; SELECT LEVER	1-33657-526-0	01	1	9306-				●
320	SHAFT; LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33657-241-0	01	1	9202-	●	●	●
320	SHAFT; LEVER	1-33657-525-1	01	1	9306-				●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X25 W/LK WASHER	0-50051-025-0	02	1	9202-9205	●	●	●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	9206-	●	●	●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	9202-	●	●	●
321	BOLT; BRKT,RELAY LEVER	1-09040-100-0	01	1	9306-9310				●
321	BOLT; BRKT,RELAY LEVER M8X80 FLANGE	1-09044-091-0	01	1	9306-				●
321	BOLT; BRKT,RELAY LEVER M8X20,M8X104 L=132	1-09049-026-0	01	1	9306-9310				●
321	BOLT; BRKT,RELAY LEVER M8X20,M8X104 L=132	1-09049-026-0	02	1	9311-				●
322	WASHER; LK ID=10.2	9-09150-510-0	01	1	9202-	●	●	●	●
323	NUT; LK,SELECT LEVER M10	9-09110-410-0	01	1	9202-	●	●	●	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10	9-09110-410-0	02	1	9202-9205	●	●	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10 FLANGE	0-91150-210-0	02	1	9206-	●	●	●
328	WASHER; LK,BRKT EXC. ASSISTER SHIFT CONTROL<WX8> ID=10.2	9-09150-510-0	02	1	9202-9205	●	●	●
433	GASKET; BUSHING EXC. ASSISTER SHIFT CONTROL<WX8>	1-09623-130-0	01	1	9202-	●	●	●

38 39 54 142 225 171 28 30 224 42 157 67 398 221 413 220 219 222 223 224 89 218 218 11 84 219 33 78 13 22 227 15 82 85 86 66 62 80 61 31 65 54 19 68 20 21 78 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9202-		●	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	02	1	9202-	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9202-		●	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9202-	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9202-	●	●	●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-442-0	01	1	9202-	●	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-440-0	01	1	9202-	●
19	SPRING; COIL COMP	1-09580-441-0	01	1	9202-		●	●
19	SPRING; COIL COMP	1-09580-403-1	01	1	9202-	●
19	SPRING; COIL COMP (C)	1-33539-027-0	01	1	9306-				●
19	SPRING; COIL COMP (A)	1-33539-038-0	03	1	9306-				●
19	SPRING; COIL COMP (B)	1-33539-041-0	01	1	9306-				●
19	SPRING; COIL COMP (D)	1-33549-173-0	01	1	9306-9412				●
19	SPRING; COIL COMP (E)	1-33549-174-0	01	1	9306-9412				●
19	SPRING; COIL COMP (F)	1-33549-175-0	01	1	9306-				●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9202-	●	●	●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	9202-		●	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9202-		●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9202-	●
28	BALL; INTER LK	9-00097-501-0	04	1	9202-	●	●	●
30	PIN; INTER LK	9-33534-003-0	03	1	9202-	●	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	9202-		●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-426-0	01	1	9202-	●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	9202-		●	●
33	ROD; SHIFT,LOW & 2ND	1-33531-246-2	01	1	9202-	●
38	SPRING; DETENT ASSISTER SHIFT CONTROL<WX8>	1-09580-379-0	04	1	9202-	●	●	●
38	SPRING; DETENT EXC. ASSISTER SHIFT CONTROL<WX8>	1-09580-419-0	04	1	9202-	●	●	●
39	BALL; DETENT	1-09843-012-0	04	1	9202-	●	●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	9202-		●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	07	1	9202-	●
42	CAP; QUAD BOX	1-33619-327-0	01	1	9306-				●
54	PIN; SPR,SHIFT BLOCK (B)	1-09748-006-0	01	1	9202-		●	●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	9202-	●	●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-414-3	01	1	9202-9412		●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	9501-		●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-419-3	01	1	9202-9412	●
61	ARM; SHIFT,3RD & 4TH	1-33511-491-1	01	1	9501-	●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	9202-		●	●
62	ROD; SHIFT,3RD & 4TH	1-33531-247-0	01	1	9202-	●
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-308-1	01	1	9202-		●	●
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-331-2	01	1	9202-	●
66	ARM; SHIFT,5TH & 6TH	1-33511-224-2	01	1	9202-9412		●	●
66	ARM; SHIFT,5TH & 6TH	1-33511-488-1	01	1	9501-		●	●
66	ARM; SHIFT,5TH & 6TH	1-33511-228-2	01	1	9202-9412	●
66	ARM; SHIFT,5TH & 6TH	1-33511-489-1	01	1	9501-	●
67	ROD; SHIFT,5TH & 6TH L=278	1-33531-255-1	01	1	9202-		●	●
67	ROD; SHIFT,5TH & 6TH L=407	1-33531-248-0	01	1	9202-	●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	9202-		●	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	9202-		●	●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	9202-		●	●
78	ARM; SHIFT,REV	1-33511-232-5	01	1	9202-	●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	9202-		●	●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	9202-		●	●
84	SLEEVE; REV	1-33516-025-0	01	1	9202-		●	●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	9202-		●	●
86	SCREW; TAPER,ARM TO ROD	1-09129-014-2	07	1	9202-9412		●	●
86	SCREW; TAPER,ARM TO ROD M12X20 NO-HOLE	1-09052-032-1	07	1	9501-		●	●
86	SCREW; TAPER,ARM TO ROD	1-09129-014-2	09	1	9202-9412	●
86	SCREW; TAPER,ARM TO ROD M12X20 NO-HOLE	1-09052-032-1	09	1	9501-	●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	9202-		●	●
142	BOLT; QUAD BOX M10X65	0-16806-065-0	02	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	02	1	9206-	●	●	●
142	BOLT; QUAD BOX M10X32 W/LK&PL WASHER	0-50151-032-0	08	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9206-	●	●	●
142	BOLT; QUAD BOX M10X35 W/WASHER	0-50151-035-0	04	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X35	1-09040-064-1	02	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-	●	●	●
142	BOLT; QUAD BOX M10X22,M10X66 L=96	1-09069-006-1	02	1	9202-9205	●	●	●
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	02	1	9206-	●	●	●
142	BOLT; QUAD BOX (A) M8X75	1-33549-158-0	07	1	9306-				●
142	BOLT; QUAD BOX (B) M8X50	1-33549-171-0	04	1	9306-				●
157	BOX; QUAD,TRANS (A)	1-33541-295-6	01	1	9202-		●	●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-349-0	01	1	9202-	●	●	●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-392-1	01	1	9202-	●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-297-6	01	1	9202-	●
157	BOX; QUAD,TRANS (A)	1-33541-448-0	01	1	9306-				●
157	BOX; QUAD,TRANS (B)	1-33543-041-0	01	1	9306-				●
171	SWITCH; NEUTRAL	1-82440-067-1	01	1	9202-	●	●	●
171	SWITCH; NEUTRAL	1-82440-095-0	01	1	9306-				●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-09700-415-0	01	1	9202-	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47476-812-1	01	1	9202-	●	●	●
219	WASHER; PL,SPINDLE (A) ID=12.5 OD=26	9-09164-612-0	01	1	9202-9205		●	●
219	WASHER; PL,SPINDLE (B) ID=16.5	9-09857-042-0	01	1	9202-		●	●
220	WASHER; LK,SPINDLE ID=12.2	9-09150-512-0	01	1	9202-9205		●	●
221	NUT; SPINDLE	9-99110-412-0	01	1	9202-9205		●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9206-		●	●
222	BRACKET; CLIP	1-47475-868-0	02	1	9202-	●	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9202-		●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9202-		●	●
224	WASHER; PL,QUAD BOX ID=10.5	9-09164-510-0	04	1	9202-9205	●	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9202-		●	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	06	1	9202-9205	●	●	●
225	WASHER; LK,QUAD BOX (A)	1-33549-159-0	07	1	9306-				●
225	WASHER; LK,QUAD BOX (B)	1-36129-007-0	04	1	9306-				●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9202-		●	●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9202-	●	●	●
398	SWITCH; REV LAMP	1-82440-080-1	01	1	9306-				●
413	BALL; BACK SW	9-00097-013-0	01	1	9202-	●	●	●

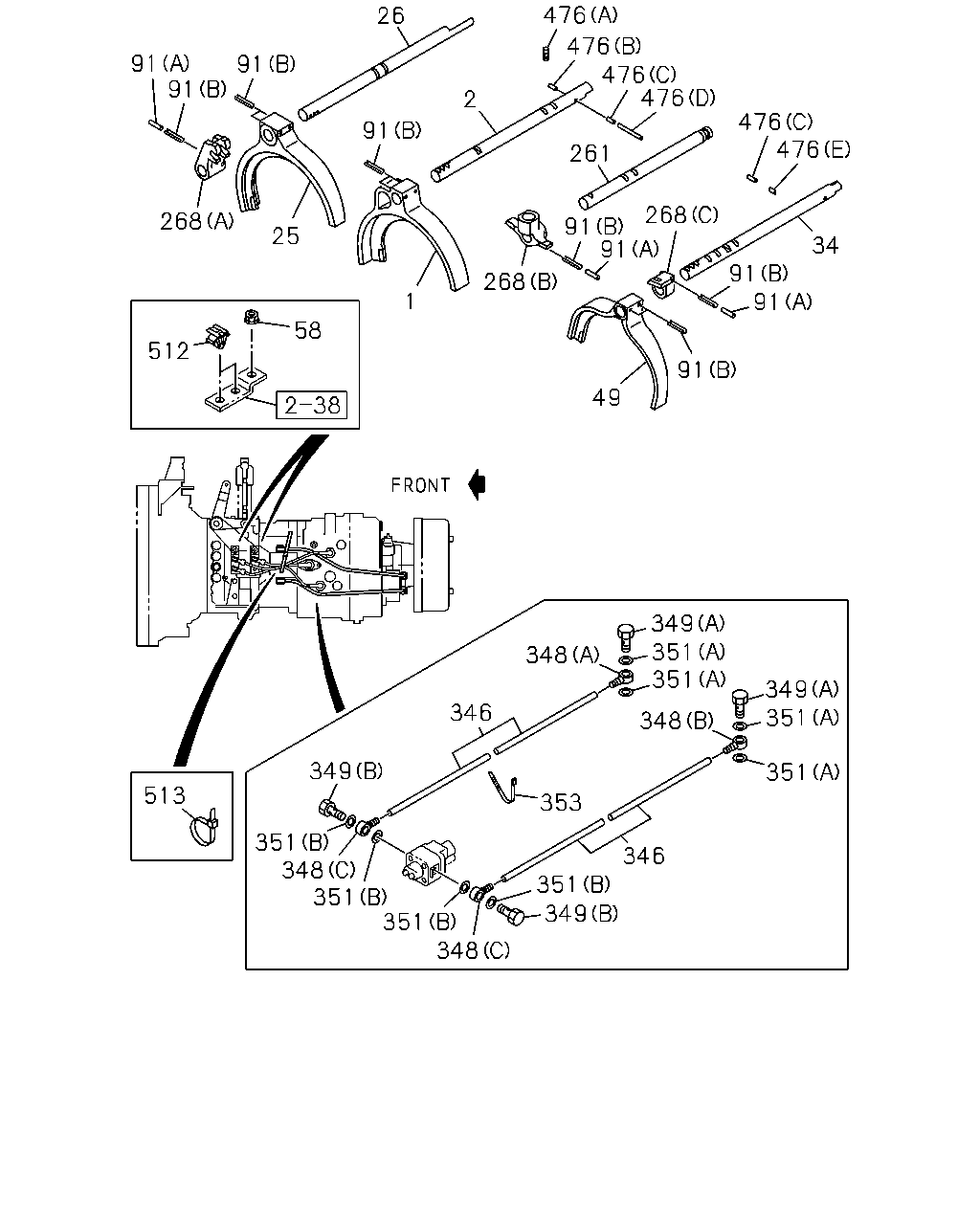

476 26 476 476 476 91 91 91 2 476 476 91 261 268 268 91 91 25 34 91 91 268 1 58 512 91 49 349 351 351 348 349 351 346 348 349 351 513 353 351 348 351 351 348 346 351 349

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D
1	ARM; SHIFT,1ST & REV	1-33511-474-0	01	1	9306-9503	●
1	ARM; SHIFT,1ST & REV	1-33511-512-0	01	1	9504-	●
2	ROD; SHIFT,1ST & REV	1-33531-373-0	01	1	9306-	●
25	ARM; SHIFT,2ND & 3RD	1-33511-473-0	01	1	9306-	●
26	ROD; SHIFT,2ND & 3RD	1-33531-372-0	01	1	9306-	●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-374-0	01	1	9306-	●
49	ARM; SHIFT,4TH & 5TH	1-33511-475-0	01	1	9306-	●
58	NUT M8 FLANGE	5-09440-005-0	02	1	9501-	●
91	PIN; SPR,SHIFT ARM (B)	1-33519-044-0	09	1	9306-	●
91	PIN; SPR,SHIFT ARM (A)	1-33529-054-0	03	1	9306-	●
261	ROD; GEAR CONT	1-33522-131-0	01	1	9306-	●
268	LEVER; CONT,INTERNAL (A)	1-33521-140-0	01	1	9306-	●
268	LEVER; CONT,INTERNAL (C)	1-33521-141-0	01	1	9306-	●
268	LEVER; CONT,INTERNAL (B)	1-33521-142-0	01	1	9306-	●
346	HOSE; AIR	1-33549-178-0	02	1	9306-	●
348	CONNECTOR; AIR HOSE (D)	1-09660-678-0	01	1	9306-	●
348	CONNECTOR; AIR HOSE (C)	1-33549-176-0	02	1	9306-	●
348	CONNECTOR; AIR HOSE (A)	1-33549-177-0	01	1	9306-	●
348	CONNECTOR; AIR HOSE (B)	1-33549-179-0	01	1	9306-	●
349	BOLT; EYE,AIR HOSE (A)	1-33549-144-0	02	1	9306-	●
349	BOLT; EYE,AIR HOSE (B)	1-33549-155-0	02	1	9306-	●
351	GASKET; CONNECTOR (C) ID=12.2	1-09630-084-0	01	1	9306-	●
351	GASKET; CONNECTOR (A)	1-33549-129-0	04	1	9306-	●
351	GASKET; CONNECTOR (B)	1-33549-137-0	04	1	9306-	●
353	CLIP; AIR HOSE	1-33549-142-0	02	1	9306-	●
476	PIN; SHIFT ROD (C)	1-33534-004-0	02	1	9306-	●
476	PIN; SHIFT ROD (B)	1-33539-033-0	01	1	9306-	●
476	PIN; SHIFT ROD (D)	1-33539-034-0	01	1	9306-	●
476	PIN; SHIFT ROD (E)	1-33539-035-0	01	1	9306-	●
476	PIN; SHIFT ROD (A)	1-33539-036-0	01	1	9306-	●
476	PIN; SHIFT ROD (F)	1-33539-037-0	03	1	9306-	●
512	CLIP; PIPE OD=9 H=6	1-09709-178-0	03	1	9311-	●
513	CLIP; BAND L=140	5-09707-031-0	01	1	9306-	●

382 383

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
382	BRACKET; PARKING BRK CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46147-105-1	01	1	9202-	●
383	BOLT; BRKT,PARK BRAKE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X25 W/LK WASHER	0-50051-025-0	03	1	9202-9205	●
383	BOLT; BRKT,PARK BRAKE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X22 FLANGE	0-28181-022-0	03	1	9206-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
