Isuzu WW
▶
TRUCKS
▶
EXR
▶
11538 - EXR LHD EURO2 WITH REFLECTOR
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶
1-40 — FUEL TANK
(#123488) — 22 parça
◀

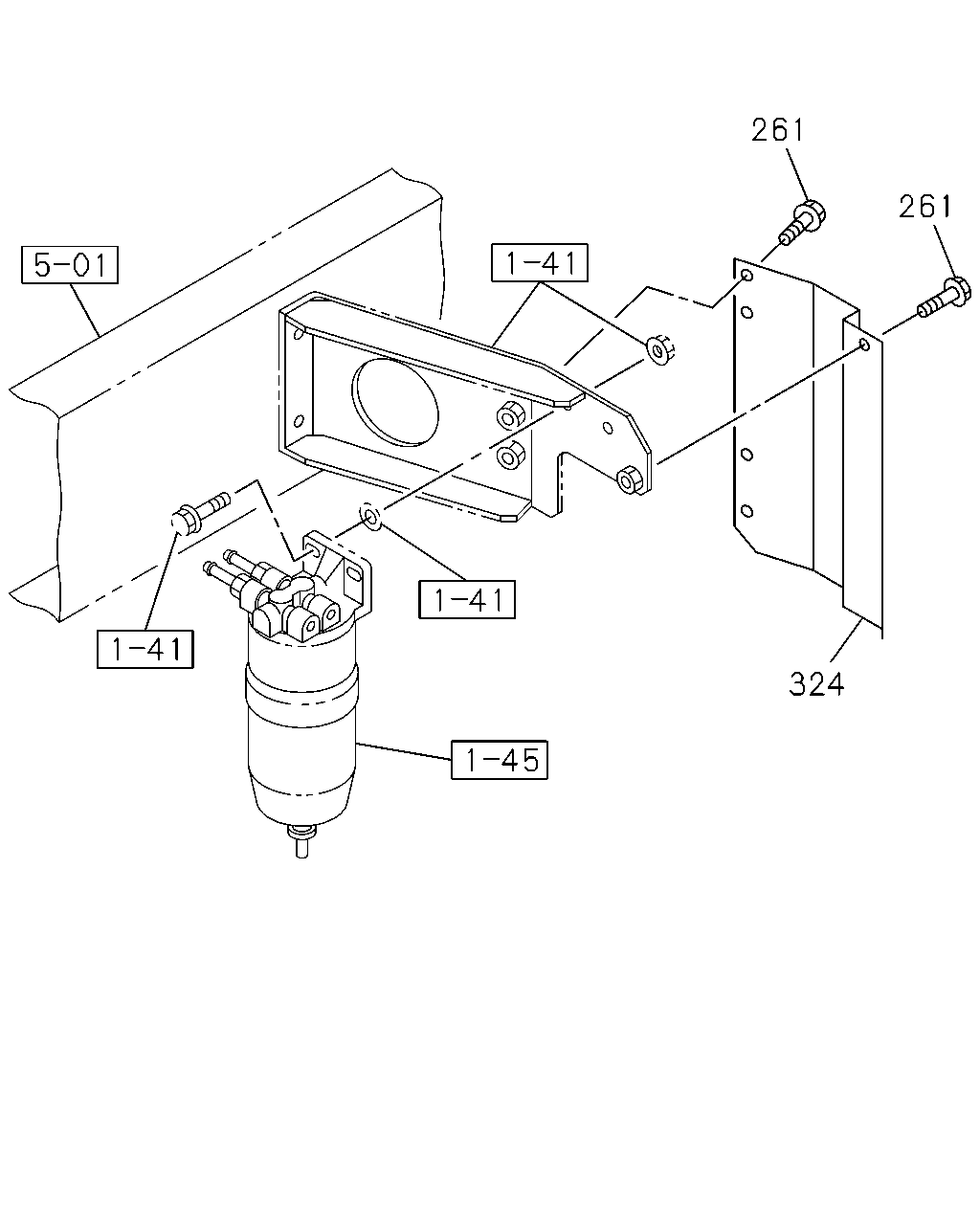

[140A] PROTECTOR;FUEL SEDIMENTER (2 parça)

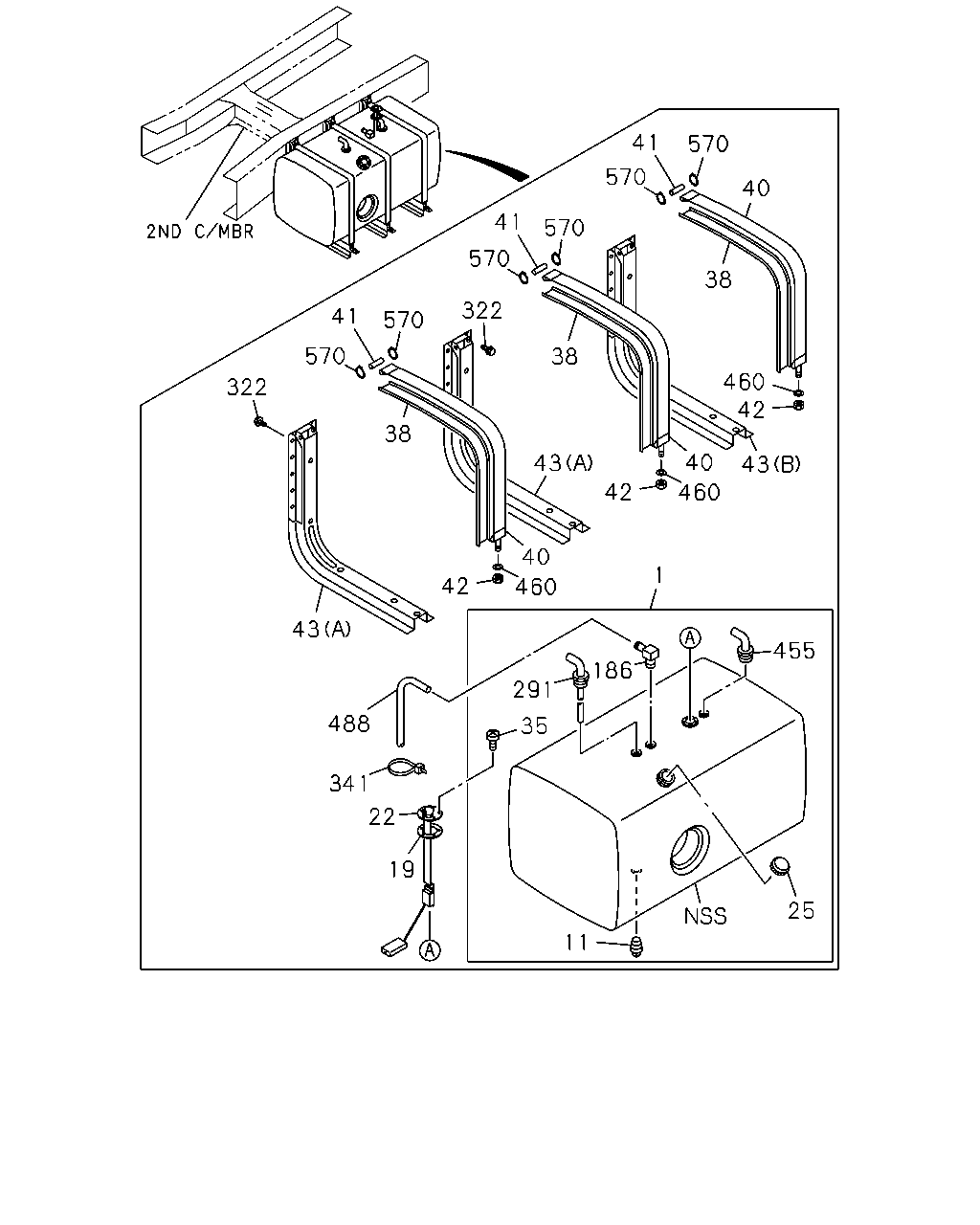

[140A] FUEL TANK (20 parça)
▶
324
261
261
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
261
BOLT; PROTECTOR
M8X20 FLANGE
0-28050-820-0
03
1
1306-
324
PROTECTOR; FUEL SEDIMENTER
8-98147-923-1
01
1
1306-
25
11
35
291
186
455
1
19
22
341
488
43
42
460
40
460
40
42
42
460
38
40
570
41
570
570
41
570
38
322
570
41
570
322
38
43
43
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
1280X700X700 550L
8-98140-322-0
01
1
1306-
11
PLUG; DRAIN,FUEL TANK
8-98154-085-0
02
1
1306-
19
GASKET; FUEL TANK UNIT
ID=45 OD=67
1-83149-003-0
01
1
1306-
22
UNIT; FUEL TANK
1-83141-150-1
01
1
1306-
25
CAP; FILLER,FUEL TANK
1-22440-057-2
01
1
1306-
35
SCREW; FUEL TANK UNIT
8-98168-468-0
05
1
1306-
38
INSULATION; SUPPORT BELT
8-98048-490-0
03
1
1306-
40
BELT; SUPPORT,FUEL TANK
8-98048-517-0
03
1
1306-
41
PIN; SUPPORT BELT
8-98048-491-0
03
1
1306-
42
NUT; SUPPORT BELT
1-22559-027-0
03
1
1306-
43
BRACKET; FUEL TANK
(B)
8-98093-785-0
01
1
1306-
43
BRACKET; FUEL TANK
(A)
8-98093-786-0
02
1
1306-
186
VALVE; GT,FUEL TANK
8-98154-029-0
01
1
1306-
291
PIPE; FUEL,SUCTION
8-98154-021-0
01
1
1306-
322
BOLT; BRKT FIX
M12X45 FLANGE
0-28051-245-0
18
1
1306-
341
CLIP; BAND,RUBBER HOSE
L=350
1-09707-183-0
02
1
1306-
455
PIPE; FUEL,RETURN
8-98154-022-0
01
1
1306-
460
WASHER; PL,BRKT
0-91610-616-0
03
1
1306-
488
HOSE; RUBBER
8-98151-246-0
01
1
1306-
570
CLIP; PIN
1-22559-024-0
06
1
1306-
