Isuzu WW
▶
TRUCKS
▶
CXY
▶
10869 - CXY(51) RHD AUSTRALIA
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-20 - REAR AXLE CASE AND SHAFT
▶

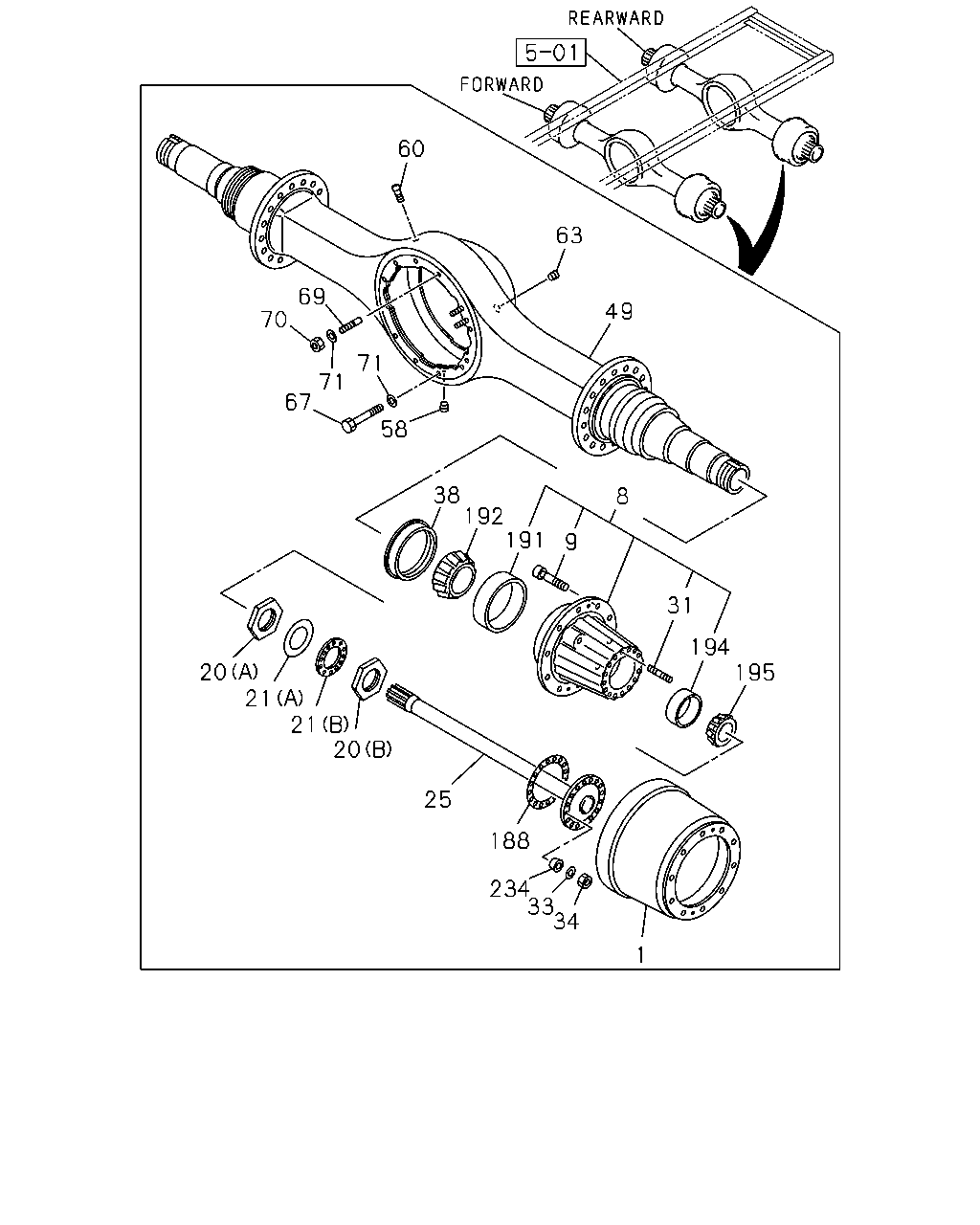

4-20 — REAR AXLE CASE AND SHAFT
(#12346) — 39 parça
60
63
69
49
70
71
71
67
58
38
192
191
8
9
31
194
195
20
21
21
20
25
188
234
33
34
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRUM; BRK,RR
1-42315-379-0
04
1
0105-
8
HUB; RR AXLE
DISC WHEEL AL<SDM>
1-42311-130-0
04
1
0105-
8
HUB; RR AXLE
EXC. DISC WHEEL AL<SDM>
1-42311-131-0
04
1
0105-
9
PIN; WHEEL,RR AXLE
DISC WHEEL AL<SDM>
1-42339-032-0
40
1
0105-
9
PIN; WHEEL,RR AXLE
EXC. DISC WHEEL AL<SDM>
1-42339-031-0
40
1
0105-
20
NUT; BRG,RR HUB
(A)
1-42129-065-0
04
1
0105-
20
NUT; BRG,RR HUB
(B)
1-42129-067-0
04
1
0105-
21
WASHER; LK,BRG NUT
(A)
1-42179-016-0
04
1
0105-
21
WASHER; LK,BRG NUT
(B)
1-42179-018-0
04
1
0105-
25
SHAFT; AXLE,RR
FORWARD LH, REARWARD RH L=951
1-42171-557-0
02
1
0105-
25
SHAFT; AXLE,RR
FORWARD RH, REARWARD LH L=1120
1-42171-558-0
02
1
0105-
31
STUD; AXLE SHAFT TO HUB
1-42319-201-0
32
1
0105-
33
WASHER; AXLE SHAFT
1-42179-003-0
32
1
0105-
34
NUT; AXLE SHAFT
1-41229-126-0
32
1
0105-0411
34
NUT; AXLE SHAFT
1-42179-005-0
32
1
0412-
38
SEAL; OIL,RR HUB,INNER
1-42319-172-0
04
1
0105-
49
CASE; RR AXLE
FORWARD
1-42190-269-0
01
1
0105-
49
CASE; RR AXLE
REARWARD
1-42190-270-0
01
1
0105-
58
PLUG; DRAIN,AXLE CASE
1-41229-148-0
02
1
0105-0411
58
PLUG; DRAIN,AXLE CASE
1-42129-054-0
02
1
0412-
60
BREATHER; RR AXLE CASE
1-09893-028-0
03
1
0105-
63
PLUG; OIL FILLER,AXLE CASE
1-41229-148-0
02
1
0105-0411
63
PLUG; OIL FILLER,AXLE CASE
1-42129-054-0
02
1
0412-
67
BOLT; FINAL DRIVE SETTING
REARWARD
1-42119-136-0
08
1
0105-
69
STUD; AXLE CASE
FORWARD L=69.85
1-42119-134-0
08
1
0105-
69
STUD; AXLE CASE
REARWARD L=120.65
1-42119-184-0
04
1
0105-
69
STUD; AXLE CASE
FORWARD L=76.45
1-42119-210-0
02
1
0105-
69
STUD; AXLE CASE
FORWARD L=107.95
1-42119-211-0
03
1
0105-
70
NUT; CARRIER
1-41229-126-0
16
1
0105-0411
70
NUT; CARRIER
1-42179-005-0
16
1
0412-
71
WASHER; LK,FINAL DRIVE SETTING
FORWARD
1-41229-121-0
12
1
0105-0411
71
WASHER; LK,FINAL DRIVE SETTING
FORWARD
1-41229-168-0
12
1
0412-
71
WASHER; LK,FINAL DRIVE SETTING
REARWARD
1-41229-361-0
12
1
0105-
188
GASKET; AXLE SHAFT
1-42175-013-0
04
1
0105-
191
CUP; BRG,HUB INNER
1-41229-131-0
04
1
0105-
192
CONE; BRG,HUB INNER
1-41519-032-0
04
1
0105-
194
CUP; BRG,HUB OUTER
1-42179-024-0
04
1
0105-
195
CONE; BRG,HUB OUTER
1-42179-009-0
04
1
0105-
234
DOWEL; AXLE SHAFT
1-42319-162-0
32
1
0105-
