Isuzu WW
▶
TRUCKS
▶
CXY
▶
10869 - CXY(51) RHD AUSTRALIA
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

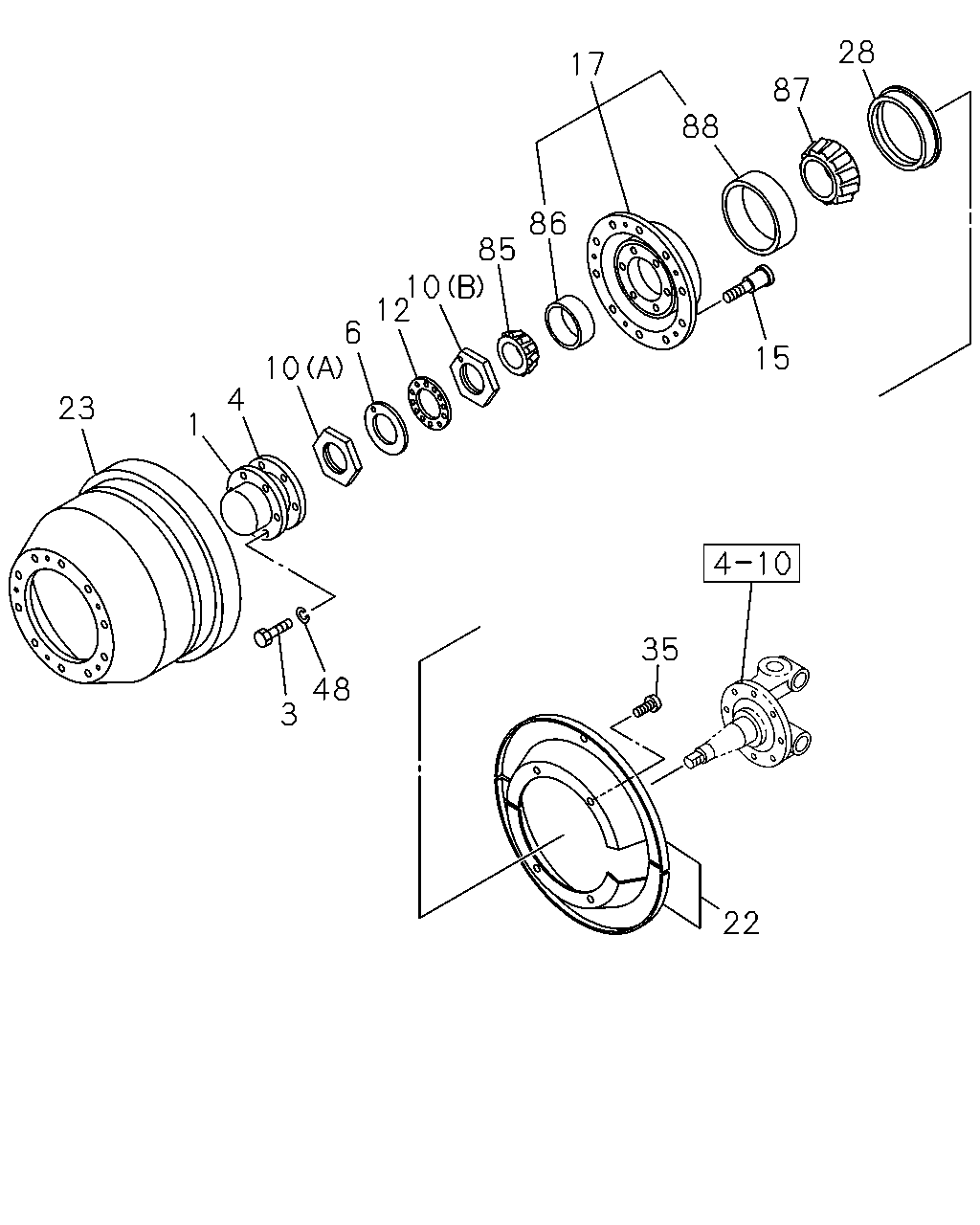

4-11 - FRONT HUB AND DRUM OR ROTOR
▶
4-11 — FRONT HUB AND DRUM OR ROTOR
(#12345) — 18 parça
28
17
87
88
86
85
10
12
6
15
10
4
23
1
35
48
3
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
1-42313-024-0
02
1
0105-
3
BOLT; HUB CAP,FRT WHEEL
1-42319-189-0
12
1
0105-
4
GASKET; HUB CAP,FRT WHEEL
1-42319-186-0
02
1
0105-
6
WASHER; LK,FRT HUB
1-42329-007-0
02
1
0105-
10
NUT; FRT HUB BRG
(A)
1-42329-006-0
02
1
0105-
10
NUT; FRT HUB BRG
(B)
1-42329-009-0
02
1
0105-
12
WASHER; LK,FRT HUB BRG
1-42329-008-0
02
1
0105-
15
PIN; WHEEL,FRT AXLE
1-42337-061-0
20
1
0105-
17
HUB; FRT AXLE
1-42312-158-0
02
1
0105-
22
COVER SET; FRT BRK DRUM
1-47151-708-0
02
1
0105-
23
DRUM; BRK,FRT
1-42315-378-0
02
1
0105-
28
SEAL; OIL,FRT HUB
1-09625-636-0
02
1
0105-
35
BOLT; DRUM COVER
1-47159-176-0
12
1
0105-
48
WASHER; LK,HUB CAP,FRT WHEEL
1-42319-190-0
12
1
0105-
85
CONE; BEARING,HUB OUTER
1-09812-238-0
02
1
0105-
86
CUP; BEARING,HUB OUTER
1-42319-187-0
02
1
0105-
87
CONE; BEARING,HUB INNER
1-09812-239-0
02
1
0105-
88
CUP; BEARING,HUB INNER
1-42319-188-0
02
1
0105-
