8-73 — BLOWER UNIT (#123442) — 99 parça

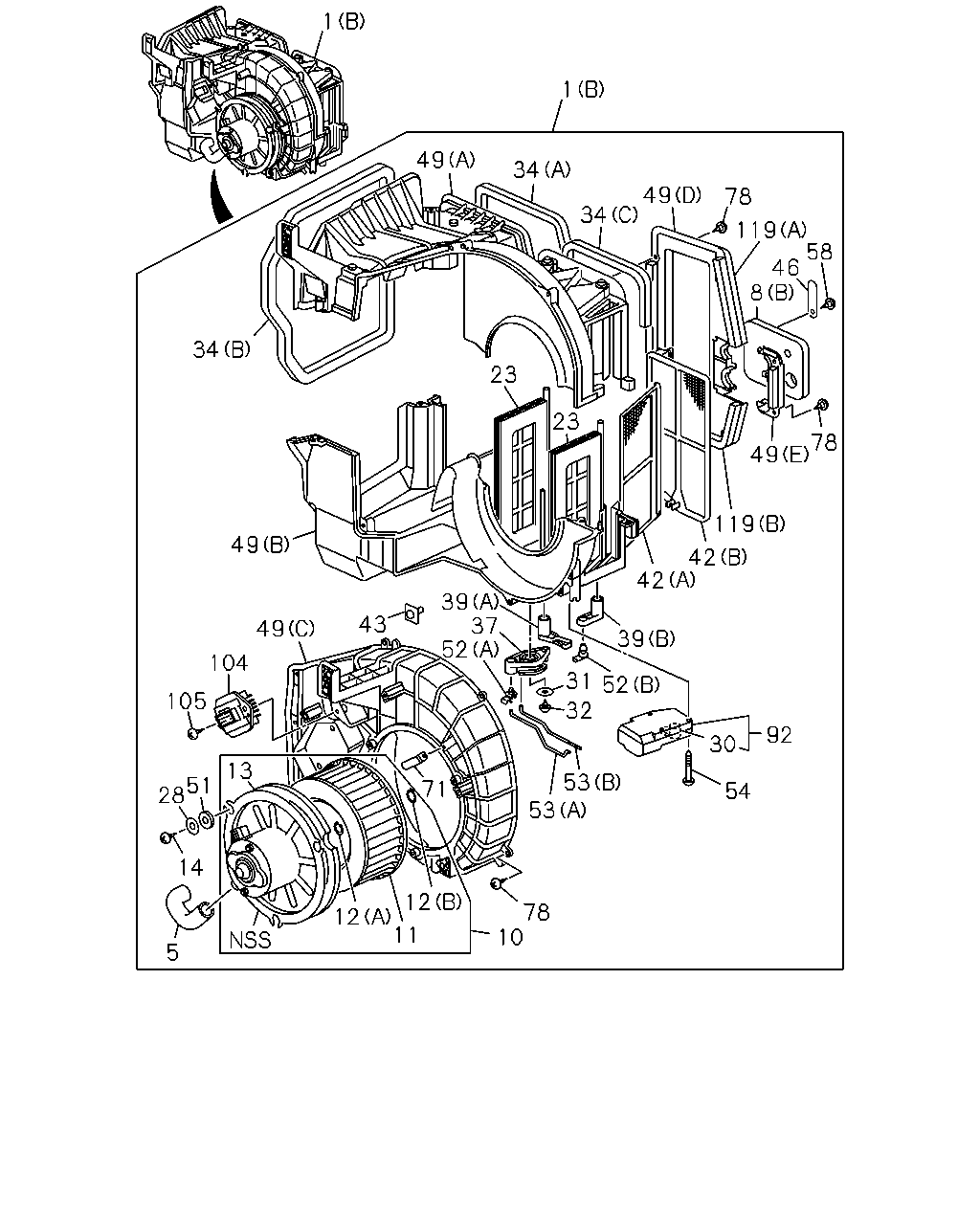

çizim 365848
1 1 49 34 34 49 119 46 58 8 49 78 119 42 42 39 52 30 54 92 53 53 32 31 39 37 52 78 10 12 11 12 14 28 51 13 105 104 49 49 34 23 23 43 78 5 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83561-183-2 01 1 1306- ● ●
1 BLOWER ASM
HEATER & DEFROSTER(C41) (B) 		1-83561-181-2 01 1 1306- ● ●
5 HOSE; AIR 1-83563-147-0 01 1 1306- ● ●
8 SEAL; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-261-1 01 1 1306- ● ●
8 SEAL; BLOWER UNIT
HEATER & DEFROSTER(C41) (B) 		1-83579-801-1 01 1 1306- ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-164-0 01 1 1306- ● ●
11 IMPELLER; FAN MOTOR 1-83579-796-0 01 1 1306- ● ●
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 1306- ● ●
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 1306- ● ●
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 1306- ● ●
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 1306- ● ●
23 SHUTTER; BLOWER UNIT 1-83579-797-0 02 1 1306- ● ●
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 1306- ● ●
30 LEVER; ACTUATOR 1-83564-345-1 01 1 1306- ● ●
31 WASHER; LEVER 1-83579-095-0 01 1 1306- ● ●
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 1306- ● ●
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 1306- ● ●
34 LINING; BLOWER UNIT
(C) 		1-83579-634-2 01 1 1306- ● ●
34 LINING; BLOWER UNIT
(B) 		1-83579-644-0 01 1 1306- ● ●
37 LEVER; MODE LEVER 1-83564-375-0 01 1 1306- ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-373-0 01 1 1306- ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-374-0 01 1 1306- ● ●
42 FILTER; BLOWER UNIT
(B) 		1-83579-800-1 01 1 1306- ● ●
42 FILTER; BLOWER UNIT
(A) 		1-83579-993-0 02 1 1306- ● ●
43 BOLT; CASE 1-83579-657-2 04 1 1306- ● ●
46 PLATE; BLOWER UNIT
HEATER & DEFROSTER(C41) 		1-83571-870-1 01 1 1306- ● ●
49 CASE; BLOWER UNIT
(A) 		1-83564-368-0 01 1 1306- ● ●
49 CASE; BLOWER UNIT
(C) 		1-83564-370-0 01 1 1306- ● ●
49 CASE; BLOWER UNIT
(D) 		1-83564-371-0 01 1 1306- ● ●
49 CASE; BLOWER UNIT
(E) 		1-83564-372-0 01 1 1306- ● ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-378-0 01 1 1306- ● ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (F) 		8-97500-034-0 01 1 1306- ● ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41) (B) 		1-83564-369-0 01 1 1306- ● ●
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 1306- ● ●
52 CLIP; LEVER TO CASE
(A) 		1-83574-136-0 01 1 1306- ● ●
52 CLIP; LEVER TO CASE
(B) 		8-94248-794-0 01 1 1306- ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 1306- ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-799-0 01 1 1306- ● ●
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 1306- ● ●
58 SCREW; PLATE TO CASE
HEATER & DEFROSTER(C41) M4X16 		8-94324-850-0 01 1 1306- ● ●
71 CLIP; HARNESS 8-97096-145-0 01 1 1306- ● ●
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 18 1 1306- ● ●
92 ACTUATOR; BLOWER UNIT 1-83579-798-1 01 1 1306- ● ●
104 RESISTOR; BLOWER UNIT 1-83519-093-0 01 1 1306- ● ●
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 1306- ● ●
119 LINING; CASE
(A) 		1-83579-670-1 01 1 1306- ● ●
119 LINING; CASE
(B) 		1-83579-671-1 01 1 1306- ● ●
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83579-672-0 01 1 1306- ● ●
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-795-0 01 1 1306- ● ●

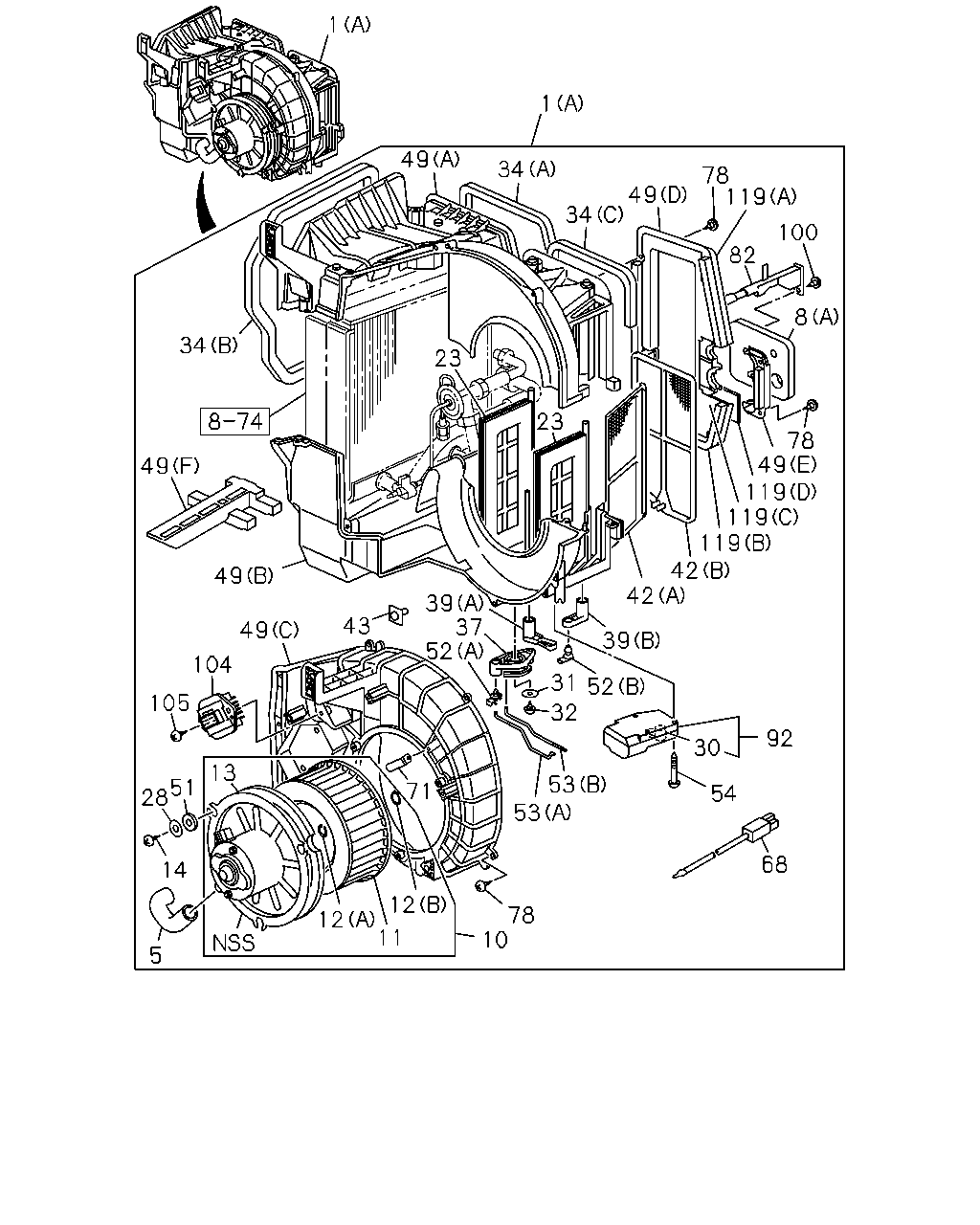

çizim 365851
1 49 1 34 34 49 78 119 100 82 8 78 49 119 119 119 42 42 39 52 31 32 92 30 54 68 10 78 53 53 11 12 12 13 49 49 34 49 104 105 51 28 14 5 43 39 52 37 23 23 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83561-183-2 01 1 1306- ● ●
1 BLOWER ASM
HEATER & DEFROSTER(C41) (B) 		1-83561-181-2 01 1 1306- ● ●
5 HOSE; AIR 1-83563-147-0 01 1 1306- ● ●
8 SEAL; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-261-1 01 1 1306- ● ●
8 SEAL; BLOWER UNIT
HEATER & DEFROSTER(C41) (B) 		1-83579-801-1 01 1 1306- ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-164-0 01 1 1306- ● ●
11 IMPELLER; FAN MOTOR 1-83579-796-0 01 1 1306- ● ●
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 1306- ● ●
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 1306- ● ●
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 1306- ● ●
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 1306- ● ●
23 SHUTTER; BLOWER UNIT 1-83579-797-0 02 1 1306- ● ●
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 1306- ● ●
30 LEVER; ACTUATOR 1-83564-345-1 01 1 1306- ● ●
31 WASHER; LEVER 1-83579-095-0 01 1 1306- ● ●
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 1306- ● ●
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 1306- ● ●
34 LINING; BLOWER UNIT
(C) 		1-83579-634-2 01 1 1306- ● ●
34 LINING; BLOWER UNIT
(B) 		1-83579-644-0 01 1 1306- ● ●
37 LEVER; MODE LEVER 1-83564-375-0 01 1 1306- ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-373-0 01 1 1306- ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-374-0 01 1 1306- ● ●
42 FILTER; BLOWER UNIT
(B) 		1-83579-800-1 01 1 1306- ● ●
42 FILTER; BLOWER UNIT
(A) 		1-83579-993-0 02 1 1306- ● ●
43 BOLT; CASE 1-83579-657-2 04 1 1306- ● ●
49 CASE; BLOWER UNIT
(A) 		1-83564-368-0 01 1 1306- ● ●
49 CASE; BLOWER UNIT
(C) 		1-83564-370-0 01 1 1306- ● ●
49 CASE; BLOWER UNIT
(D) 		1-83564-371-0 01 1 1306- ● ●
49 CASE; BLOWER UNIT
(E) 		1-83564-372-0 01 1 1306- ● ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-378-0 01 1 1306- ● ●
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (F) 		8-97500-034-0 01 1 1306- ● ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41) (B) 		1-83564-369-0 01 1 1306- ● ●
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 1306- ● ●
52 CLIP; LEVER TO CASE
(A) 		1-83574-136-0 01 1 1306- ● ●
52 CLIP; LEVER TO CASE
(B) 		8-94248-794-0 01 1 1306- ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 1306- ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-799-0 01 1 1306- ● ●
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 1306- ● ●
68 THERMOSTAT; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83544-026-1 01 1 1306- ● ●
71 CLIP; HARNESS 8-97096-145-0 01 1 1306- ● ●
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 18 1 1306- ● ●
82 BRACKET; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-932-0 01 1 1306- ● ●
92 ACTUATOR; BLOWER UNIT 1-83579-798-1 01 1 1306- ● ●
100 SCREW; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 01 1 1306- ● ●
104 RESISTOR; BLOWER UNIT 1-83519-093-0 01 1 1306- ● ●
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 1306- ● ●
119 LINING; CASE
(A) 		1-83579-670-1 01 1 1306- ● ●
119 LINING; CASE
(B) 		1-83579-671-1 01 1 1306- ● ●
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83579-672-0 01 1 1306- ● ●
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-795-0 01 1 1306- ● ●
