8-45 — HEATER PIPING (#123437) — 14 parça

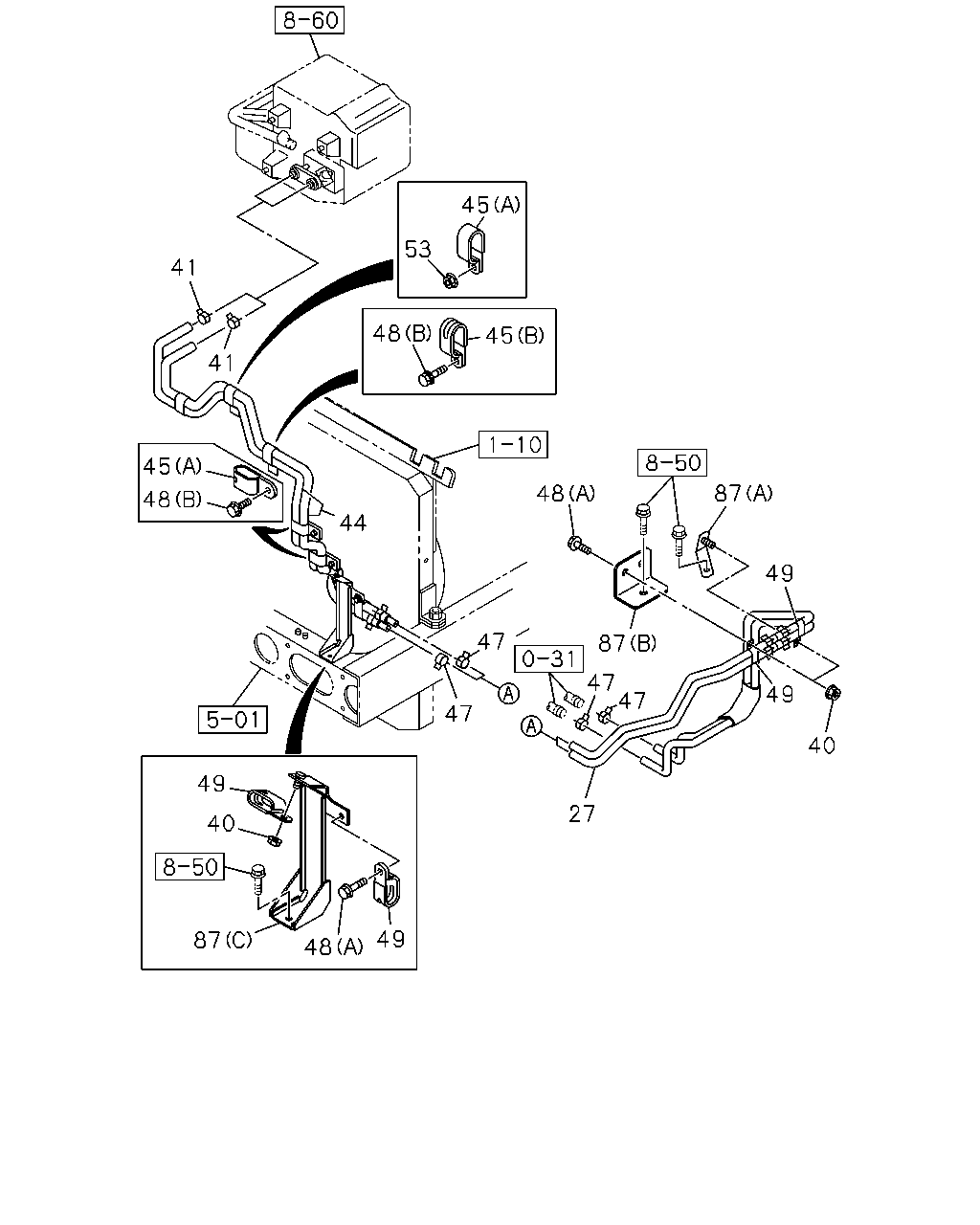

çizim 365520
41 41 45 48 44 48 53 45 45 48 87 49 49 40 47 47 87 27 47 47 49 48 87 40 49
BalonParca AdiParca NoAdetTipApplied Date A B
27 HOSE; WATER,HTR UNIT TO WATER PIPE 8-98223-223-1 01 1 1306- ● ●
40 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1306- ● ●
41 CLAMP; WATER HOSE,HTR
ID=22 		8-97359-141-0 02 1 1306- ● ●
44 HOSE; WATER,HTR,INL 8-98226-524-2 01 1 1306- ● ●
45 CLIP; WATER PIPE
(B) WO/SCREW 		1-09701-143-1 01 1 1306- ● ●
45 CLIP; WATER PIPE
(A) 		1-09701-238-0 02 1 1306- ● ●
47 CLAMP; WATER HOSE,HTR
ID=22 		8-97359-141-0 04 1 1306- ● ●
48 BOLT; CLIP FIX
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1306- ● ●
48 BOLT; CLIP FIX
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1306- ● ●
49 CLIP; WATER HOSE,HTR
ID=24X2 L=25 		1-09700-710-0 04 1 1306- ● ●
53 NUT; HOSE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1306- ● ●
87 BRACKET; HTR HOSE CLIP
(A) 		1-83573-251-1 01 1 1306- ● ●
87 BRACKET; HTR HOSE CLIP
(C) 		8-98225-548-0 01 1 1306- ● ●
87 BRACKET; HTR HOSE CLIP
(B) 		8-98239-443-0 01 1 1306- ● ●
