Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11537 - CYZ LHD EURO2 WITH REFLECTOR
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-28 - CHASSIS ELECTRICAL
▶
8-28 — CHASSIS ELECTRICAL
(#123435) — 91 parça
Tümü
A - CYZ6MC
B - CYZ6MF
◀
[828A] INST PANEL SIDE NO.2 (16 parça)
[828A] FRAME SIDE NO.3 (20 parça)
[828A] FRAME SIDE NO.1 (19 parça)
[828A] FRAME SIDE NO.2 (22 parça)
[828A] INST PANEL SIDE NO.1 (14 parça)
▶

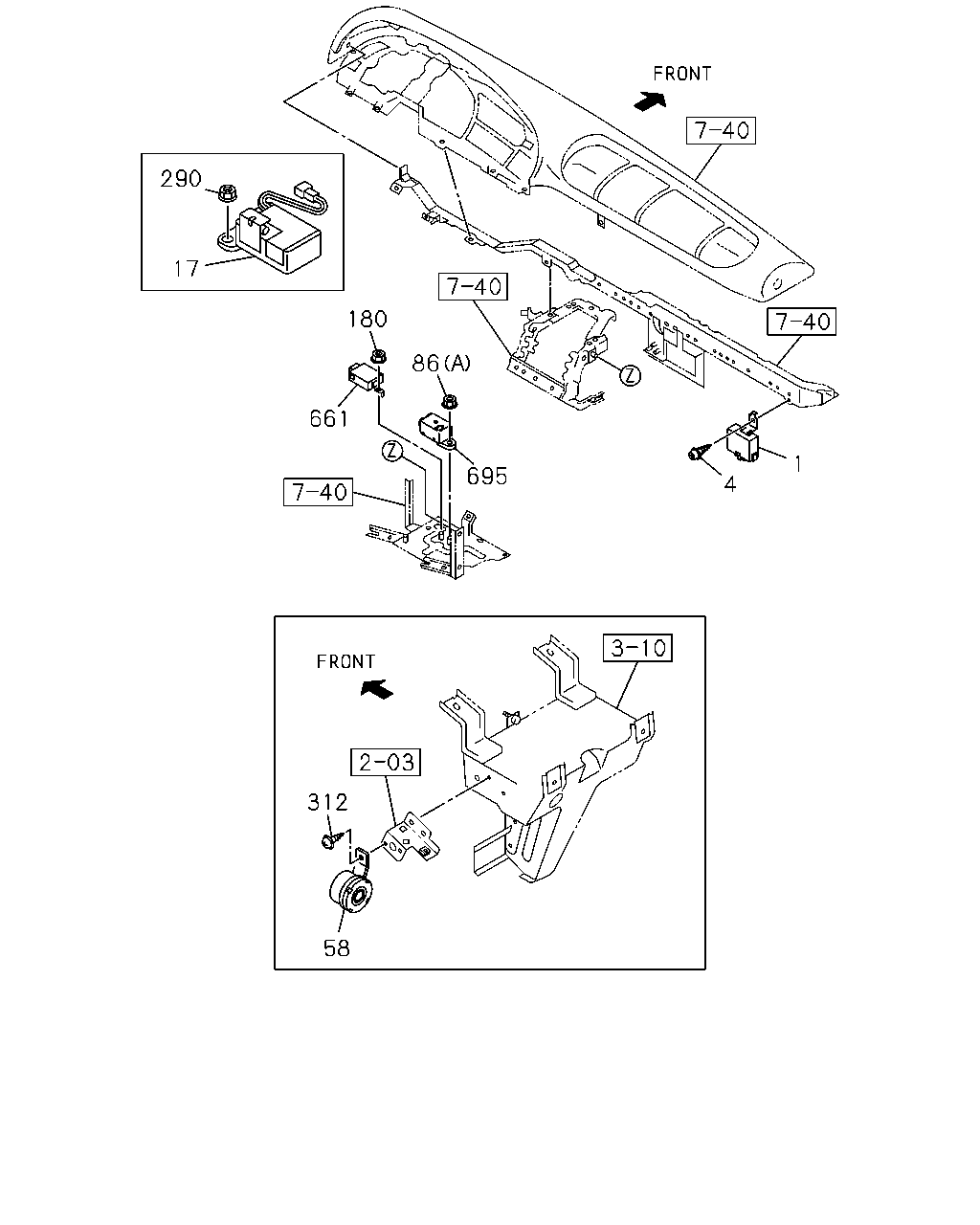

58
312
1
4
695
86
180
661
17
290
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
UNIT; FLASHER
8-98025-533-1
01
1
1306-1510
●
1
UNIT; FLASHER
EXC. FULL TRACTOR TRUCK<RD6>
8-98025-533-1
01
1
1306-1510
●
1
UNIT; FLASHER
8-98025-533-1
01
1
1511-
●
1
UNIT; FLASHER
EXC. FULL TRAILER PIPING<Z25>
8-98025-533-1
01
1
1511-
●
1
UNIT; FLASHER
FULL TRACTOR TRUCK<RD6>
8-97613-970-1
01
1
1306-1510
●
1
UNIT; FLASHER
FULL TRAILER PIPING<Z25>
8-97613-970-1
01
1
1511-
●
4
SCREW; FLASHER UNIT
FULL TRACTOR TRUCK<RD6> M5X14
8-94279-325-0
01
1
1306-
●
17
TIMER; SEAT BELT
1-82550-183-1
01
1
1306-
●
●
58
BUZZER; AIR PRESSURE WARNING
METRO DENSO
8-98069-859-0
01
1
1306-
●
●
86
NUT; BUZZER
(A) M6 FLANGE
0-91180-106-0
01
1
1306-
●
●
86
NUT; BUZZER
(B) M8 FLANGE
0-91180-108-0
01
1
1306-
●
●
180
NUT; FLASHER UNIT
M6 FLANGE
0-91180-106-0
01
1
1306-
●
●
290
NUT
M6 FLANGE
0-91180-106-0
02
1
1306-
●
●
312
BOLT; BUZZER
M6X19.5 W/LK&PL WASHER
8-94279-201-0
01
1
1306-
●
●
661
CONTROL UNIT; FLASHER
FULL TRACTOR TRUCK<RD6>
1-83470-066-1
01
1
1306-
●
695
ALARM; OVER HEAT
1-83460-051-1
01
1
1306-
●
●

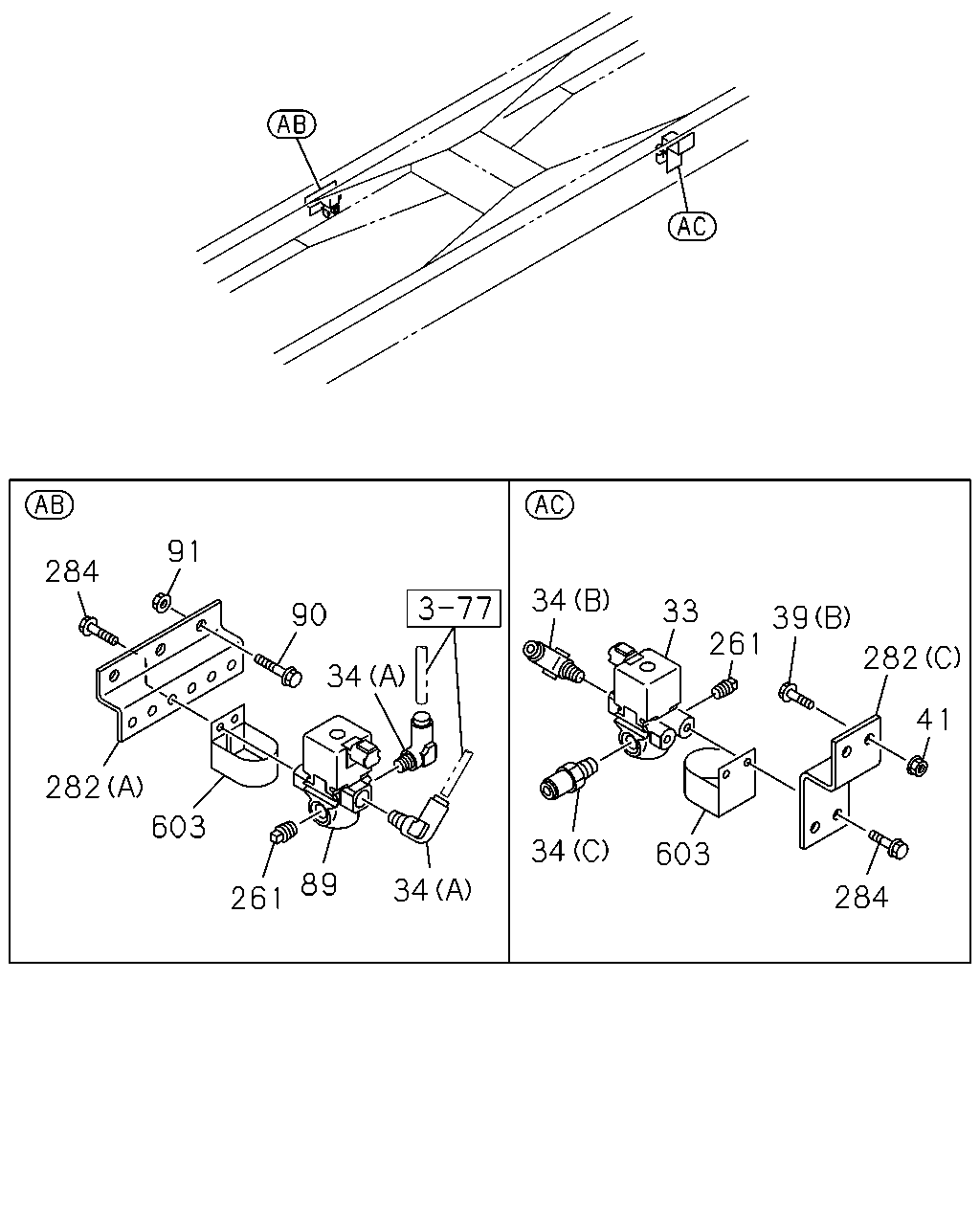

284
91
282
603
261
89
34
34
90
34
33
261
39
282
41
284
603
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
33
VALVE; MAG,PTO CONT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5)
1-82563-871-2
01
1
1306-
●
●
34
CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW
1-09660-956-0
02
1
1306-
●
●
34
CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW
1-09661-067-0
01
1
1306-
●
●
34
CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (C) DIN6 & R1/4 STRAIGHT
1-09661-069-0
01
1
1306-
●
●
39
BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE
0-28650-820-0
02
1
1306-
●
●
39
BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (B) M8X35 FLANGE
0-28650-835-0
02
1
1306-
●
●
41
NUT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) M8 FLANGE
0-91180-108-0
02
1
1306-
●
●
89
VALVE; MAG,DIFF LOCK
8-97641-594-0
01
1
1306-
●
●
90
BOLT; MAG VLV
M8X40 FLANGE
0-28650-840-0
02
1
1306-
●
●
91
NUT; MAG VLV
M8 FLANGE
0-91180-108-0
02
1
1306-
●
●
261
PLUG; MAG VLV
PT1/4
9-99204-513-0
01
1
1306-
●
●
261
PLUG; MAG VLV
PT1/4
9-99204-513-0
01
1
1306-
●
●
261
PLUG; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) PT1/4
9-99204-513-0
01
1
1306-
●
●
282
BRACKET; MAG VLV
(B)
1-82569-277-2
01
1
1306-
●
●
282
BRACKET; MAG VLV
(A)
1-82569-421-0
01
1
1306-
●
●
282
BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (C)
1-47471-175-0
01
1
1306-
●
●
284
BOLT; MAG VLV
M8X20 FLANGE
0-28650-820-0
02
1
1306-
●
●
284
BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) M8X20 FLANGE
0-28650-820-0
02
1
1306-
●
●
603
PROTECTOR; MAG VLV
1-47471-046-0
01
1
1306-
●
●
603
PROTECTOR; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5)
1-47471-046-0
01
1
1306-
●
●

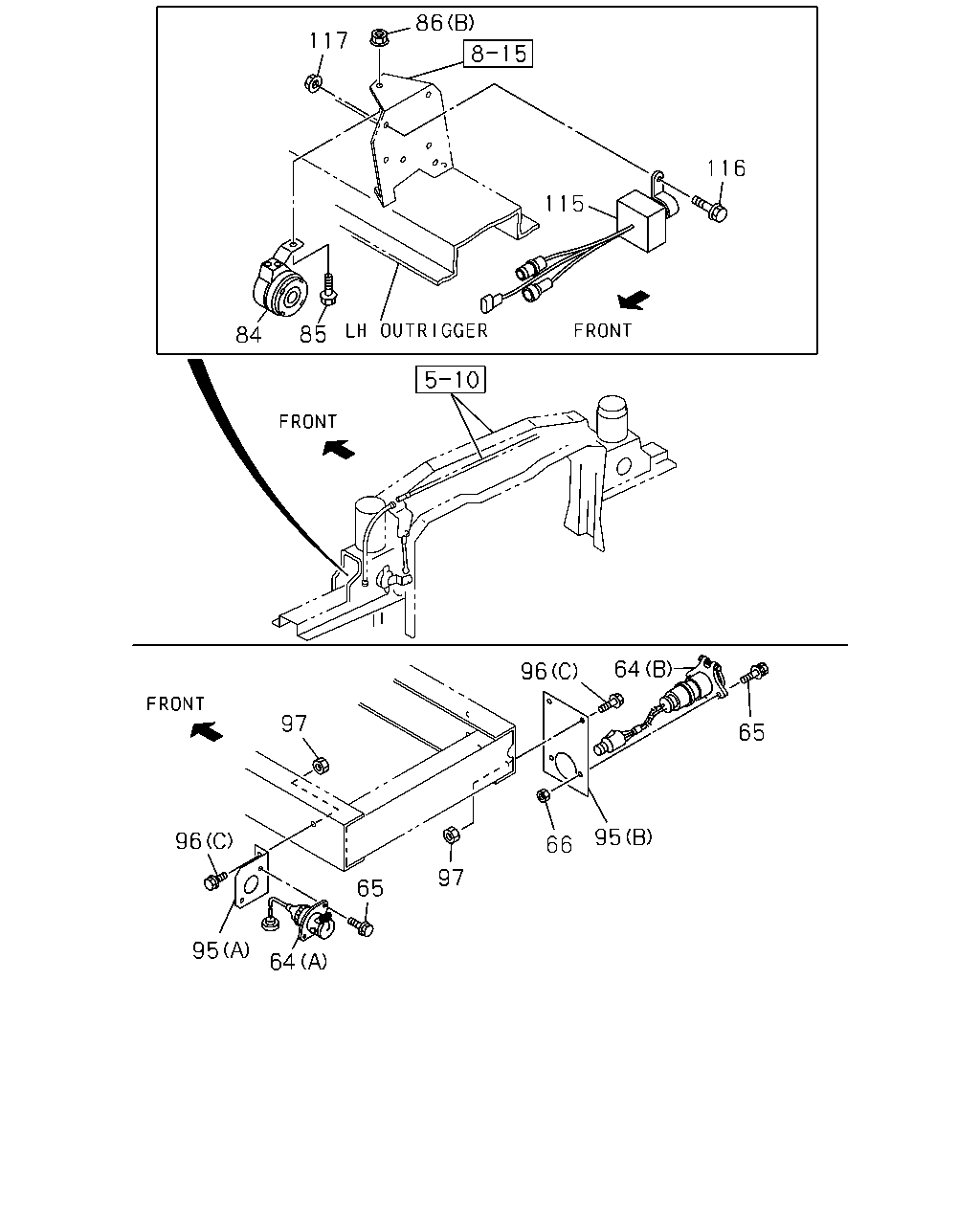

117
86
116
115
85
84
96
97
96
64
65
95
66
97
65
64
95
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
64
SOCKET; TRAILER
FULL TRAILER PIPING<Z25> (B) 7P
1-82523-014-0
01
1
1306-1510
●
64
SOCKET; TRAILER
FULL TRAILER PIPING<Z25> (B) 7P
1-82523-019-0
01
1
1511-
●
64
SOCKET; TRAILER
FULL TRAILER PIPING<Z25> (A) L=860
8-98172-008-0
01
1
1306-
●
65
BOLT; SOCKET FIX
FULL TRAILER PIPING<Z25> M8X25 FLANGE
0-28650-825-0
04
1
1306-
●
66
NUT; SOCKET FIX
FULL TRAILER PIPING<Z25> M8 FLANGE
0-91180-108-0
02
1
1306-
●
84
BUZZER; POWER CAB TILT
METRO DENSO
8-98069-860-0
01
1
1306-
●
●
85
BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE
0-28650-820-0
01
1
1306-
●
●
86
NUT; BUZZER
(A) M6 FLANGE
0-91180-106-0
01
1
1306-
●
●
86
NUT; BUZZER
(B) M8 FLANGE
0-91180-108-0
01
1
1306-
●
●
95
BRACKET; SOCKET,TRAILER
FULL TRAILER PIPING<Z25> (B)
1-82699-387-0
01
1
1306-
●
95
BRACKET; SOCKET,TRAILER
FULL TRAILER PIPING<Z25> (A)
8-97985-137-0
01
1
1306-
●
96
BOLT; BRKT FIX
(A) M8X25 FLANGE
0-28650-825-0
01
1
1306-
●
●
96
BOLT; BRKT FIX
(B) M10X25 FLANGE
0-28651-025-0
01
1
1306-
●
●
96
BOLT; BRKT FIX
FULL TRAILER PIPING<Z25> (C) M8X35 FLANGE
0-28650-835-0
04
1
1306-
●
97
NUT; BRKT FIX
M8 FLANGE
0-91180-108-0
01
1
1306-
●
●
97
NUT; BRKT FIX
FULL TRAILER PIPING<Z25> M8 FLANGE
0-91180-108-0
04
1
1306-
●
115
RELAY; POWER CAB TILT UNIT
NIKKO
1-81171-075-1
01
1
1306-
●
●
116
BOLT; RELAY FIX
M8X16 FLANGE
0-28050-816-0
02
1
1306-
●
●
117
NUT; RELAY FIX
M8 FLANGE
0-91180-108-0
02
1
1306-
●
●

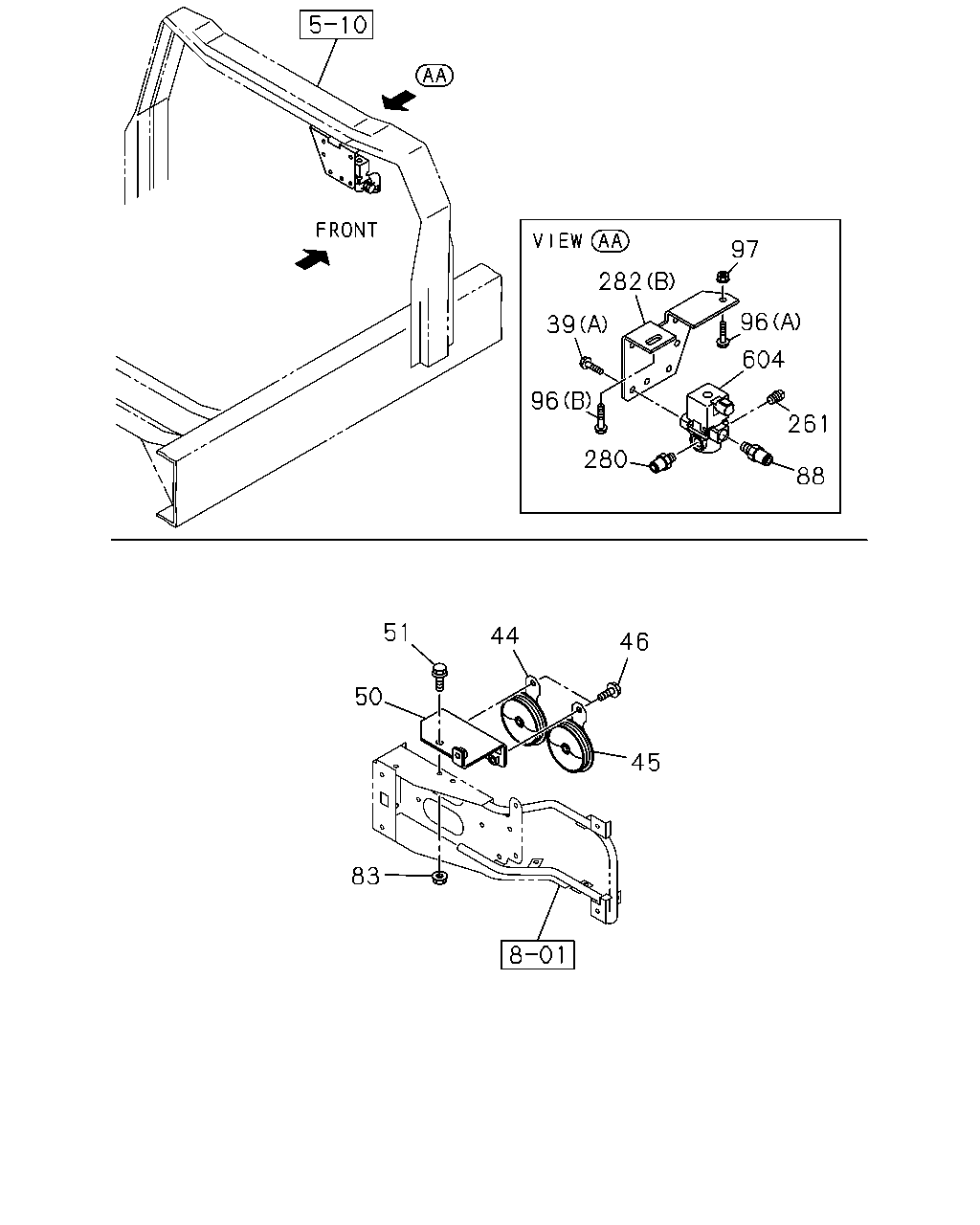

97
96
604
261
88
280
96
39
282
44
46
45
83
50
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
39
BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE
0-28650-820-0
02
1
1306-
●
●
39
BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (B) M8X35 FLANGE
0-28650-835-0
02
1
1306-
●
●
44
HORN; HIGH NOTE
1-83410-061-1
01
1
1306-
●
●
45
HORN; LOW NOTE
1-83410-062-1
01
1
1306-
●
●
46
BOLT; HORN TO BODY
M8X18.5 W/PL WASHER
8-98141-255-0
02
1
1306-
●
●
50
BRACKET; HORN
8-98198-870-1
01
1
1306-
●
●
51
BOLT; HORN TO BRKT
M8X25 FLANGE
0-28650-825-0
02
1
1306-
●
●
83
NUT; BRKT,HORN
M8 FLANGE
0-91180-108-0
02
1
1306-
●
●
88
CONNECTOR; MAG VLV
M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
1306-
●
●
96
BOLT; BRKT FIX
(A) M8X25 FLANGE
0-28650-825-0
01
1
1306-
●
●
96
BOLT; BRKT FIX
(B) M10X25 FLANGE
0-28651-025-0
01
1
1306-
●
●
96
BOLT; BRKT FIX
FULL TRAILER PIPING<Z25> (C) M8X35 FLANGE
0-28650-835-0
04
1
1306-
●
97
NUT; BRKT FIX
M8 FLANGE
0-91180-108-0
01
1
1306-
●
●
97
NUT; BRKT FIX
FULL TRAILER PIPING<Z25> M8 FLANGE
0-91180-108-0
04
1
1306-
●
261
PLUG; MAG VLV
PT1/4
9-99204-513-0
01
1
1306-
●
●
261
PLUG; MAG VLV
PT1/4
9-99204-513-0
01
1
1306-
●
●
261
PLUG; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) PT1/4
9-99204-513-0
01
1
1306-
●
●
280
CONNECTOR; IN,MAG VLV
M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
1306-
●
●
282
BRACKET; MAG VLV
(B)
1-82569-277-2
01
1
1306-
●
●
282
BRACKET; MAG VLV
(A)
1-82569-421-0
01
1
1306-
●
●
282
BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (C)
1-47471-175-0
01
1
1306-
●
●
604
VALVE; MAG,ENG CONT
1-82563-871-2
01
1
1306-
●
●

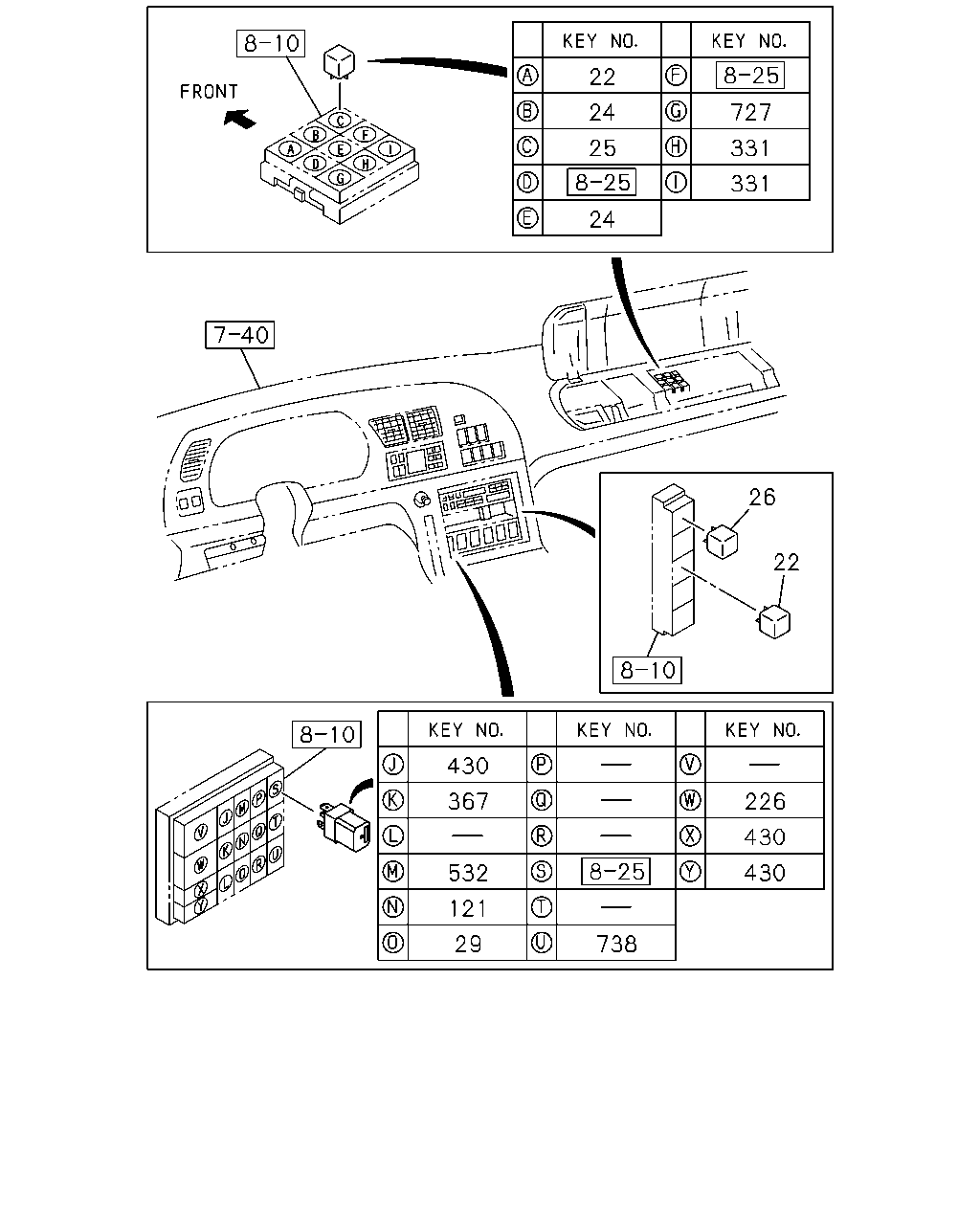

22
24
25
24
727
331
331
26
22
430
367
532
121
29
738
226
430
430
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
22
RELAY; STOP LAMP
24V 12.5A PANASONIC
8-97262-933-0
01
1
1306-
●
●
22
RELAY; STOP LAMP
FULL TRACTOR TRUCK<RD6> 24V 12.5A PANASONIC
8-97262-933-0
01
1
1306-
●
24
RELAY; LIGHTING
24V 12.5A PANASONIC
8-97262-933-0
02
1
1306-
●
●
25
RELAY; TAIL LAMP
24V 12.5A PANASONIC
8-97262-933-0
01
1
1306-
●
●
26
RELAY; CONSENT
24V 12.5A PANASONIC
8-97262-933-0
01
1
1306-
●
●
29
RELAY; HORN
24V 10A PANASONIC
8-97173-035-1
01
1
1306-
●
●
121
RELAY; PARKING BRK
24V 10A PANASONIC
8-97173-035-1
01
1
1306-
●
●
226
RELAY; EXH BRK
24V 12.5A PANASONIC
8-97262-933-0
01
1
1306-
●
●
331
RELAY; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC
8-97262-933-0
02
1
1306-
●
●
367
RELAY; NEUTRAL
24V 10A PANASONIC
8-97173-035-1
01
1
1306-
●
●
430
RELAY; RANGE
MJX16P M/T(Y3Z) 24V 10A PANASONIC
8-97173-035-1
03
1
1306-
●
●
532
RELAY; SEAT BELT WARNING
24V 10A PANASONIC
8-97173-035-1
01
1
1306-
●
●
727
RELAY; START CUT
24V 12.5A PANASONIC
8-97262-933-0
01
1
1306-
●
●
738
RELAY; EXH & RETARDER CUT
24V 10A PANASONIC
8-97173-035-1
01
1
1306-
●
●
