◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11537 - CYZ LHD EURO2 WITH REFLECTOR ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#123432) — 44 parça

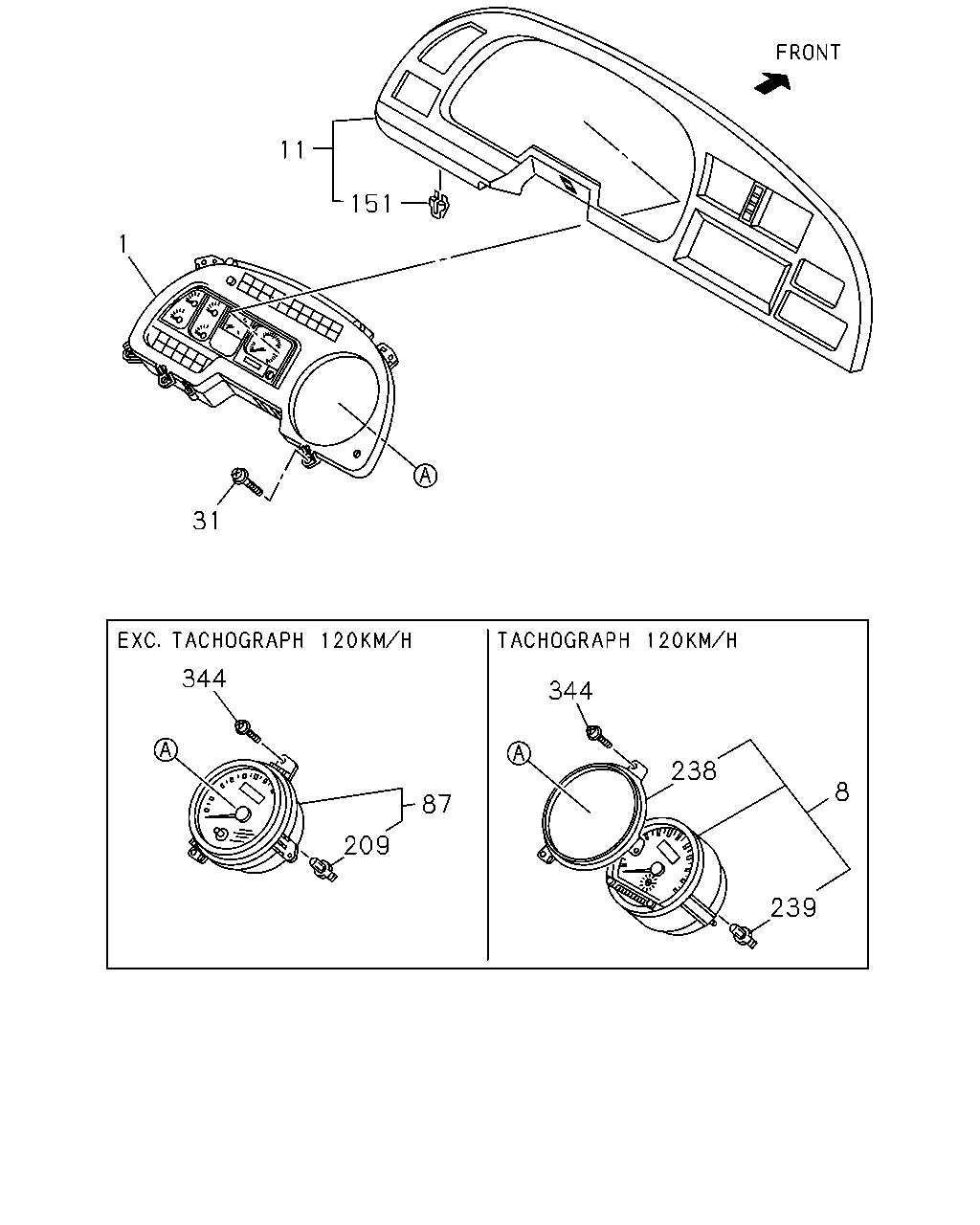

çizim 363914
11 1 31 151 344 87 209 344 238 8 239
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98214-934-0 01 1 1306- ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<SM8> 		1-83120-856-0 01 1 1306- ● ●
11 CLUSTER ASM; METER 1-72418-022-7 01 1 1306-1408 ● ●
11 CLUSTER ASM; METER 1-72418-022-7 01 1 1409- ● ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 04 1 1306- ● ●
87 SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<SM8> 		8-98039-481-0 01 1 1306- ● ●
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 1306-1408 ● ●
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 1409- ● ●
209 BULB; SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<SM8> 24V 3W GREEN SOCKET 		1-82194-061-0 01 1 1306- ● ●
238 PANEL; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8> 		1-83129-311-0 01 1 1306- ● ●
239 BULB; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8> 24V 1.4W 		5-82194-034-0 03 1 1306- ● ●
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 1306- ● ●

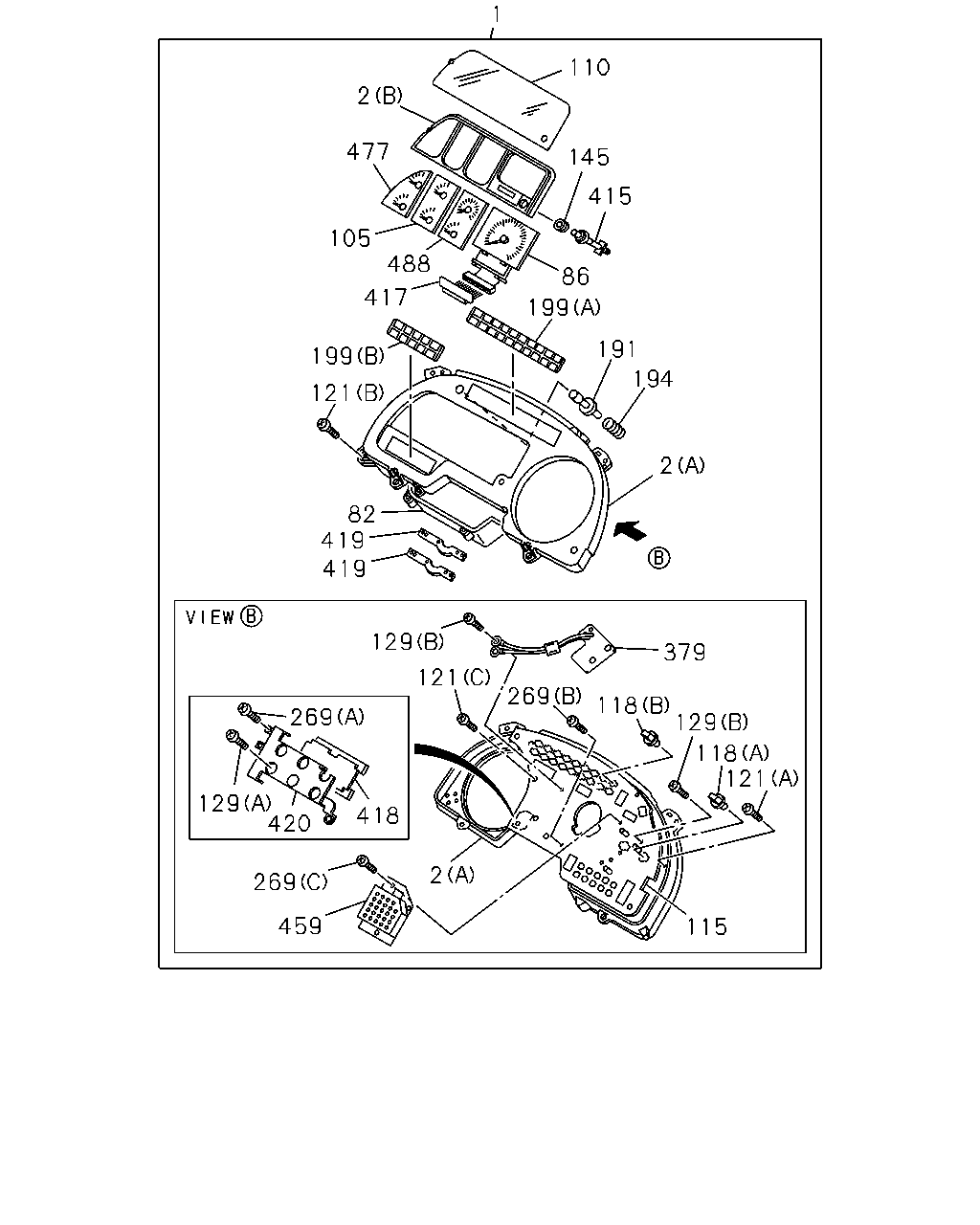

çizim 366699
1 110 2 477 145 415 86 105 417 199 199 194 191 2 82 419 419 129 121 379 118 129 269 118 121 115 2 420 269 129 418 269 459 488 121
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98214-934-0 01 1 1306- ● ●
2 PANEL; CLUSTER
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-83119-644-0 01 1 1306- ● ●
2 PANEL; CLUSTER
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-83119-682-0 01 1 1306- ● ●
82 CASE ASM; CLUSTER METER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-83119-653-0 01 1 1306- ● ●
86 TACHOMETER; CLUSTER METER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-83120-921-0 01 1 1306- ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98185-065-0 01 1 1306- ● ●
110 GLASS; CLUSTER METER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-83119-646-0 01 1 1306- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98194-994-0 01 1 1306- ● ●
118 BULB; CLUSTER METER
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 24V 3W GREEN SOCKET 		1-82194-061-0 04 1 1306- ● ●
118 BULB; CLUSTER METER
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 28 1 1306- ● ●
121 SCREW; PANEL FIX,CLUSTER METER
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) M3 TAPPING 		1-83119-084-0 01 1 1306- ● ●
121 SCREW; PANEL FIX,CLUSTER METER
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M4 TAPPING 		1-83119-442-0 05 1 1306- ● ●
121 SCREW; PANEL FIX,CLUSTER METER
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M3 TAPPING 		1-83119-676-0 02 1 1306- ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M3 TAPPING 		1-83119-657-0 09 1 1306- ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M3 TAPPING 		1-83119-675-0 06 1 1306- ● ●
145 GROMMET; GLASS,KNOB HOLE,CLUSTER METER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-83119-680-0 01 1 1306- ● ●
191 KNOB; BULB CHECK
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-83119-672-0 01 1 1306- ● ●
194 SPRING; BULB CHECK KNOB
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-83119-673-0 01 1 1306- ● ●
199 LENS; WARNING LAMP
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		8-98170-738-0 01 1 1306- ● ●
199 LENS; WARNING LAMP
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-98216-761-0 01 1 1306- ● ●
269 SCREW; METER CLUSTER
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M3 		1-83119-273-0 02 1 1306- ● ●
269 SCREW; METER CLUSTER
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) M3 TAPPING 		1-83119-657-0 03 1 1306- ● ●
269 SCREW; METER CLUSTER
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M3 TAPPING 		1-83119-677-0 08 1 1306- ● ●
379 CIRCUIT; DROP
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-83189-369-0 01 1 1306- ● ●
415 KNOB; TRIP,METER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-83119-674-0 01 1 1306- ● ●
417 DISPLAY; ODO & TRIP,METER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98195-041-0 01 1 1306- ● ●
418 CIRCUIT; CONTROL,METER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-83189-442-0 01 1 1306- ● ●
419 SPACER; CIRCUIT,METER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-83119-678-0 02 1 1306- ● ●
420 HEAT SINK; METER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-83119-679-0 01 1 1306- ● ●
459 POWER SUPPLY ASM
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-83119-925-0 01 1 1306- ● ●
477 GAUGE; AIR PRESS & VOLTAGE
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98216-762-0 01 1 1306- ● ●
488 GAUGE; AIR PRESS & OIL PRESS
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98216-750-0 01 1 1306- ● ●
