8-20 — METER CABLE (#123431) — 18 parça

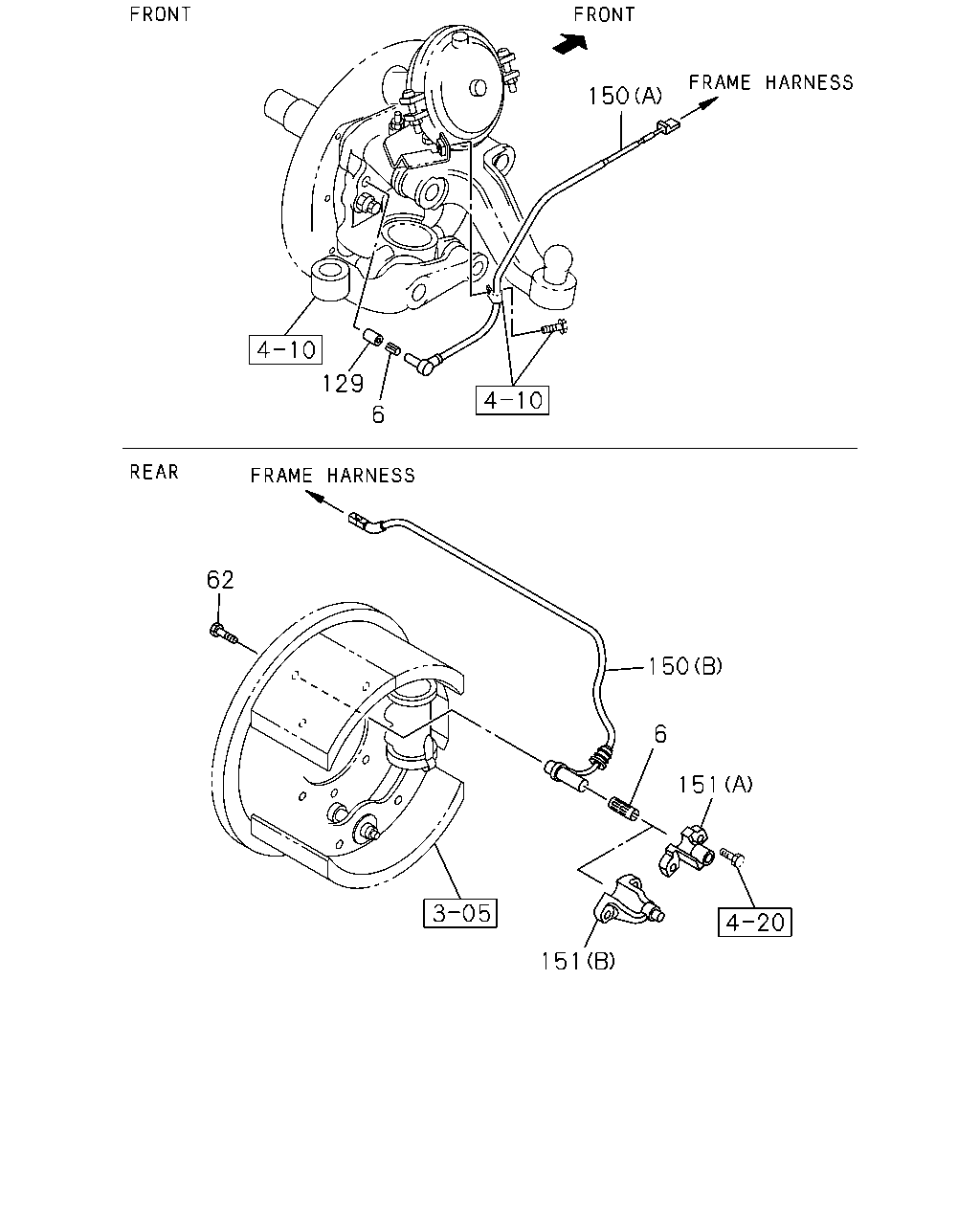

150 6 129 62 150 6 151 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HOLDER; SPD SENSOR	1-83129-260-1	02	1	1306-1510	●	●
6	HOLDER; SPD SENSOR DISC WHEEL STEEL<SDN>	1-83129-260-1	02	1	1306-1510	●
6	HOLDER; SPD SENSOR FRT BRK AIR D410 WEDGE-160-24/24<B7R> DISC WHEEL STEEL<SDN>	1-83129-260-1	02	1	1306-1510		●
6	HOLDER; SPD SENSOR DISC WHEEL STEEL<SDN>	1-83129-260-1	02	1	1511-	●
6	HOLDER; SPD SENSOR DISC WHEEL STEEL<SDN>	1-83129-260-1	02	1	1511-	●
6	HOLDER; SPD SENSOR FRT BRK AIR D410 WEDGE-160-24/24<B7R> DISC WHEEL STEEL<SDN>	1-83129-260-1	02	1	1511-		●
6	HOLDER; SPD SENSOR RR BRK AIR D410 WEDGE-220-30/30<B9V> REAR AXLE RT260<C2B> DISC WHEEL STEEL<SDN>	1-83129-260-1	02	1	1511-		●
62	BOLT; SENSOR M8X16	9-05820-816-0	02	1	1306-1506	●	●
62	BOLT; SENSOR M8X16 HEX SOCKET	0-58330-816-0	02	1	1507-	●	●
129	COLLAR	1-83129-471-0	02	1	1306-	●	●
150	SENSOR; SPEED,ABS (A)	1-83127-961-1	02	1	1306-	●	●
150	SENSOR; SPEED,ABS (B)	8-98148-101-0	01	1	1306-	●	●
150	SENSOR; SPEED,ABS (B)	8-98148-100-0	01	1	1306-	●	●
151	BRACKET; SPD SENSOR (A)	1-83129-406-0	01	1	1306-1504	●	●
151	BRACKET; SPD SENSOR (B)	8-98299-399-0	01	1	1505-	●	●
151	BRACKET; SPD SENSOR (A)	1-83129-405-0	01	1	1306-1504	●	●
151	BRACKET; SPD SENSOR (B)	8-98299-398-0	01	1	1505-	●	●

228 228

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	228	PROTECTOR; SENSOR	8-98119-901-0	01	1	1306-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
