◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11537 - CYZ LHD EURO2 WITH REFLECTOR ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#123430) — 396 parça
çizim 363854
423 515 515 294 219 524 515 340 119
BalonParca AdiParca NoAdetTipApplied Date A B
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 1306- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1306- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1306- ● ●
219 NUT
EXC. ENGINE REAR PTO(SV1) M8 FLANGE 		0-91180-108-0 01 1 1306- ●
219 NUT
FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 01 1 1306- ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1306- ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1306- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 03 1 1306- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 06 1 1306- ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 1306- ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 1306- ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 03 1 1306- ● ●
340 NUT; HARNESS CAB TO FRAME
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 1306- ● ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 1306-1510 ●
423 WASHER; HARNESS,EARTH
EXC. FULL TRACTOR TRUCK<RD6> ID=8.4 		1-09503-264-0 02 1 1306-1510 ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 1511- ●
423 WASHER; HARNESS,EARTH
EXC. FULL TRAILER PIPING<Z25> ID=8.4 		1-09503-264-0 02 1 1511- ●
423 WASHER; HARNESS,EARTH
FULL TRACTOR TRUCK<RD6> ID=8.4 		1-09503-264-0 03 1 1306-1510 ●
423 WASHER; HARNESS,EARTH
FULL TRAILER PIPING<Z25> ID=8.4 		1-09503-264-0 03 1 1511- ●
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1306- ● ●
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1306- ● ●
515 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1306- ● ●
515 NUT; BRKT
(C) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 06 1 1306- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 02 1 1306- ● ●
çizim 363943
375 342 342 335 335 334
BalonParca AdiParca NoAdetTipApplied Date A B
334 BRACKET 8-98212-895-0 01 1 1306- ● ●
335 BRACKET; CONNECTOR
WHEEL BASE 5200MM(52W) (A) 		1-82698-167-0 01 1 1306- ●
335 BRACKET; CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) (A) 		1-82698-167-0 01 1 1306- ●
335 BRACKET; CONNECTOR
WHEEL BASE 5900MM(59W) (B) 		1-82698-663-0 01 1 1306- ●
342 BRACKET; HARNESS CAB MTG
EXC. ENGINE REAR PTO(SV1) (A) 		8-98240-938-0 01 1 1306- ●
342 BRACKET; HARNESS CAB MTG
(A) 		8-98240-938-0 01 1 1306- ●
342 BRACKET; HARNESS CAB MTG
(B) 		1-82699-625-0 01 1 1306- ● ●
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 1306- ● ●

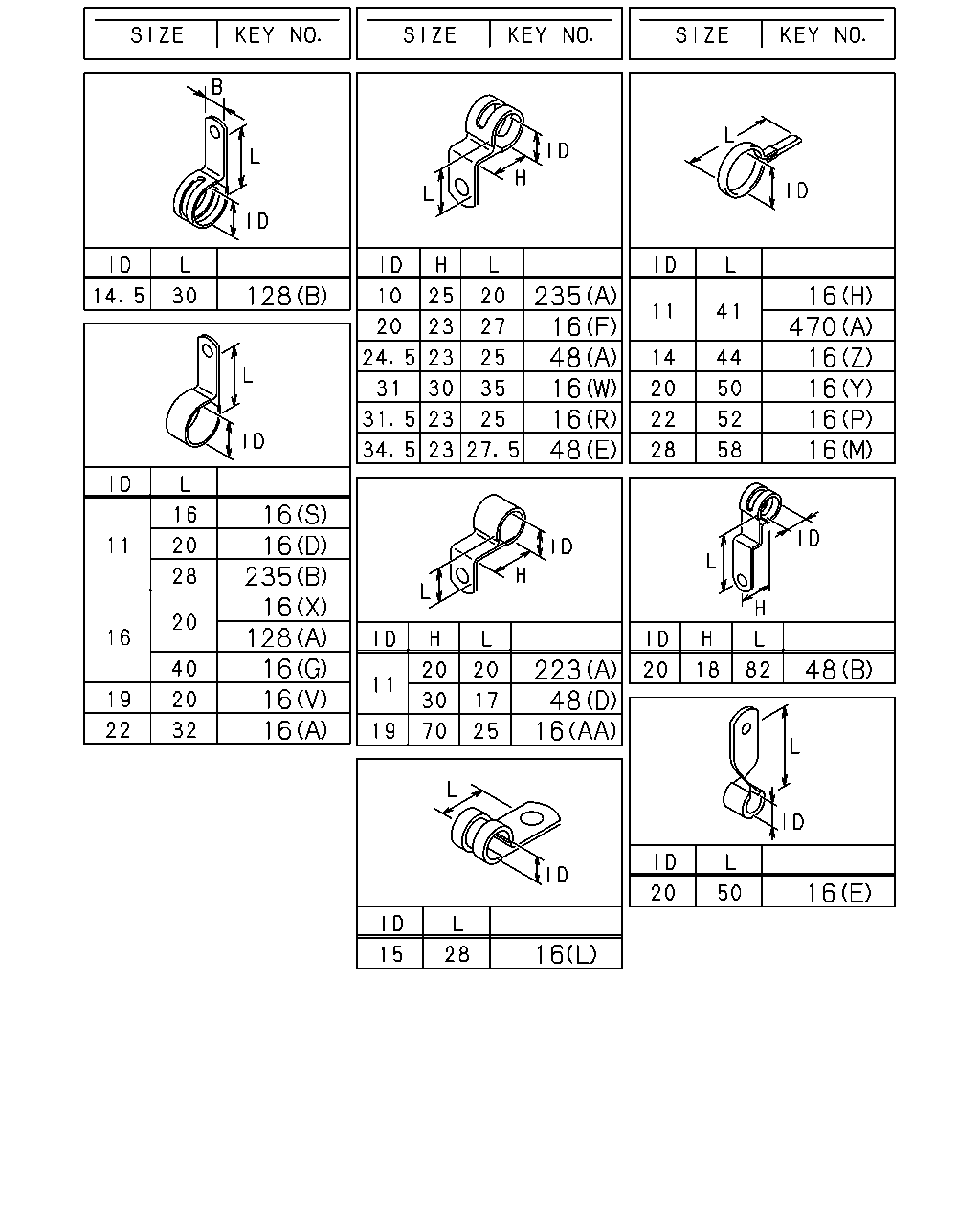

çizim 365118
16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 128 235 128 235 48 48 223 48 470 48
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(I) ID=18-24 L=26 		1-09709-296-0 01 1 1306-1510 ●
16 CLIP; HARNESS
EXC. BATTERY LAYOUT REAR VAR1<NCT> (I) ID=18-24 L=26 		1-09709-296-0 01 1 1306-1510 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) FULL TRACTOR TRUCK<RD6> (I) ID=18-24 L=26 		1-09709-296-0 01 1 1306-1510 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25> ID=18-24 L=26 		1-09709-296-0 01 1 1511- ●
16 CLIP; HARNESS
(S) ID=11 L=16 		0-95235-025-0 02 1 1306- ● ●
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		0-95235-032-0 01 1 1306- ● ●
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1306- ● ●
16 CLIP; HARNESS
(X) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1306- ● ●
16 CLIP; HARNESS
(V) B=14 ID=19 L=20 		0-95235-832-0 01 1 1306- ● ●
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 1306- ● ●
16 CLIP; HARNESS
(M) ID=28 L=58 		1-09700-400-0 02 1 1306- ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 1306- ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 1306- ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 1306- ● ●
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 1306- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1306- ● ●
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1306- ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1306- ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1306- ● ●
16 CLIP; HARNESS
(R) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1306- ● ●
16 CLIP; HARNESS
(R) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 1306- ● ●
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 1306- ● ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 1306- ● ●
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 1306- ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 02 1 1306- ● ●
16 CLIP; HARNESS
(C) ID=5-12 L=26 		1-09709-289-0 01 1 1306- ● ●
16 CLIP; HARNESS
(C) ID=5-12 L=26 		1-09709-289-0 01 1 1306- ● ●
16 CLIP; HARNESS
(N) ID=5-12 L=14.5 		1-09987-221-0 02 1 1306- ● ●
16 CLIP; HARNESS
(N) ID=5-12 L=14.5 		1-09987-221-0 02 1 1306- ● ●
16 CLIP; HARNESS
(N) ID=5-12 L=14.5 		1-09987-221-0 01 1 1306- ● ●
16 CLIP; HARNESS
BATTERY LAYOUT REAR VAR1<NCT> (N) ID=5-12 L=14.5 		1-09987-221-0 01 1 1306- ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 1306-1510 ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 1306-1510 ● ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (U) L=250 		5-09707-030-1 01 1 1306-1510 ●
16 CLIP; HARNESS
L=250 		5-09707-030-1 01 1 1511- ● ●
16 CLIP; HARNESS
L=250 		5-09707-030-1 01 1 1511- ● ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> L=250 		5-09707-030-1 01 1 1511- ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 02 1 1306-1510 ● ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (U) L=250 		5-09707-030-1 02 1 1306-1510 ●
16 CLIP; HARNESS
L=250 		5-09707-030-1 02 1 1511- ● ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> L=250 		5-09707-030-1 02 1 1511- ●
16 CLIP; HARNESS
(AB) L=140 		5-09707-031-1 03 1 1306- ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AB) L=140 		5-09707-031-1 03 1 1306- ● ●
16 CLIP; HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 1306- ● ●
16 CLIP; HARNESS
(AA) ID=19 H=70 L=25 		8-97360-209-0 01 1 1306- ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 1306-1510 ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 1306-1510 ●
16 CLIP; HARNESS
EXC. FULL TRACTOR TRUCK<RD6> (Z) ID=14 L=44 		9-09917-427-0 03 1 1306-1510 ●
16 CLIP; HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1511- ● ●
16 CLIP; HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1511- ●
16 CLIP; HARNESS
EXC. FULL TRAILER PIPING<Z25> ID=14 L=44 		9-09917-427-0 03 1 1511- ●
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 02 1 1306- ● ●
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 06 1 1306- ● ●
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 1306- ● ●
16 CLIP; HARNESS
MJT7S M/T(Y3E) (X) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 1306- ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (D) B=18 ID=11 L=20 		0-95235-035-0 01 1 1306- ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (X) T=1.2 ID=16 L=20 		0-95235-536-0 01 1 1306- ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (G) ID=16 L=40 		0-95235-576-0 02 1 1306- ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (V) B=18 ID=19 L=20 		0-95235-836-0 01 1 1306- ● ●
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (V) B=18 ID=19 L=20 		0-95235-836-0 01 1 1306- ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (T) L=350 		1-09707-183-0 01 1 1306- ● ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) (T) L=350 		1-09707-183-0 01 1 1306- ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (Q) OD=9 H=6 		1-09709-178-0 06 1 1306-1506 ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (Q) OD=9 H=6 		1-09709-178-0 03 1 1507- ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (Q) OD=9 H=6 		1-09709-178-0 03 1 1507- ● ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (J) ID=13-18 L=26 		1-09709-293-0 02 1 1306-1510 ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> ID=13-18 L=26 		1-09709-293-0 02 1 1511- ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (J) ID=13-18 L=26 		1-09709-293-0 01 1 1306-1510 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) EXC. FULL TRACTOR TRUCK<RD6> (J) ID=13-18 L=26 		1-09709-293-0 01 1 1306-1510 ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> ID=13-18 L=26 		1-09709-293-0 01 1 1511- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) EXC. FULL TRAILER PIPING<Z25> ID=13-18 L=26 		1-09709-293-0 01 1 1511- ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (Y) ID=20 L=50 		9-09917-430-0 03 1 1306-1510 ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> ID=20 L=50 		9-09917-430-0 03 1 1511- ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (K) W/SPONGE RUBBER 		1-09709-150-0 01 1 1306- ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (J) ID=13-18 L=26 		1-09709-293-0 03 1 1306- ●
48 CLIP; FRAME HARNESS
(D) ID=11 H=30 L=17 		1-09700-113-0 01 1 1306- ● ●
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1306- ● ●
48 CLIP; FRAME HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1306- ● ●
48 CLIP; FRAME HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1306- ● ●
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 1306- ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1306- ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1306- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 1306- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 1306- ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 01 1 1306- ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 03 1 1306- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
MJT7S M/T(Y3E) (A) ID=10 H=25 L=20 		1-09700-519-0 01 1 1306- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
MJX16P M/T(Y3Z) (B) ID=11 L=28 		9-09917-544-0 01 1 1306- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(A) ID=11 L=41 		1-09700-403-0 01 1 1306- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(B) L=250 		5-09707-030-1 04 1 1306- ● ●

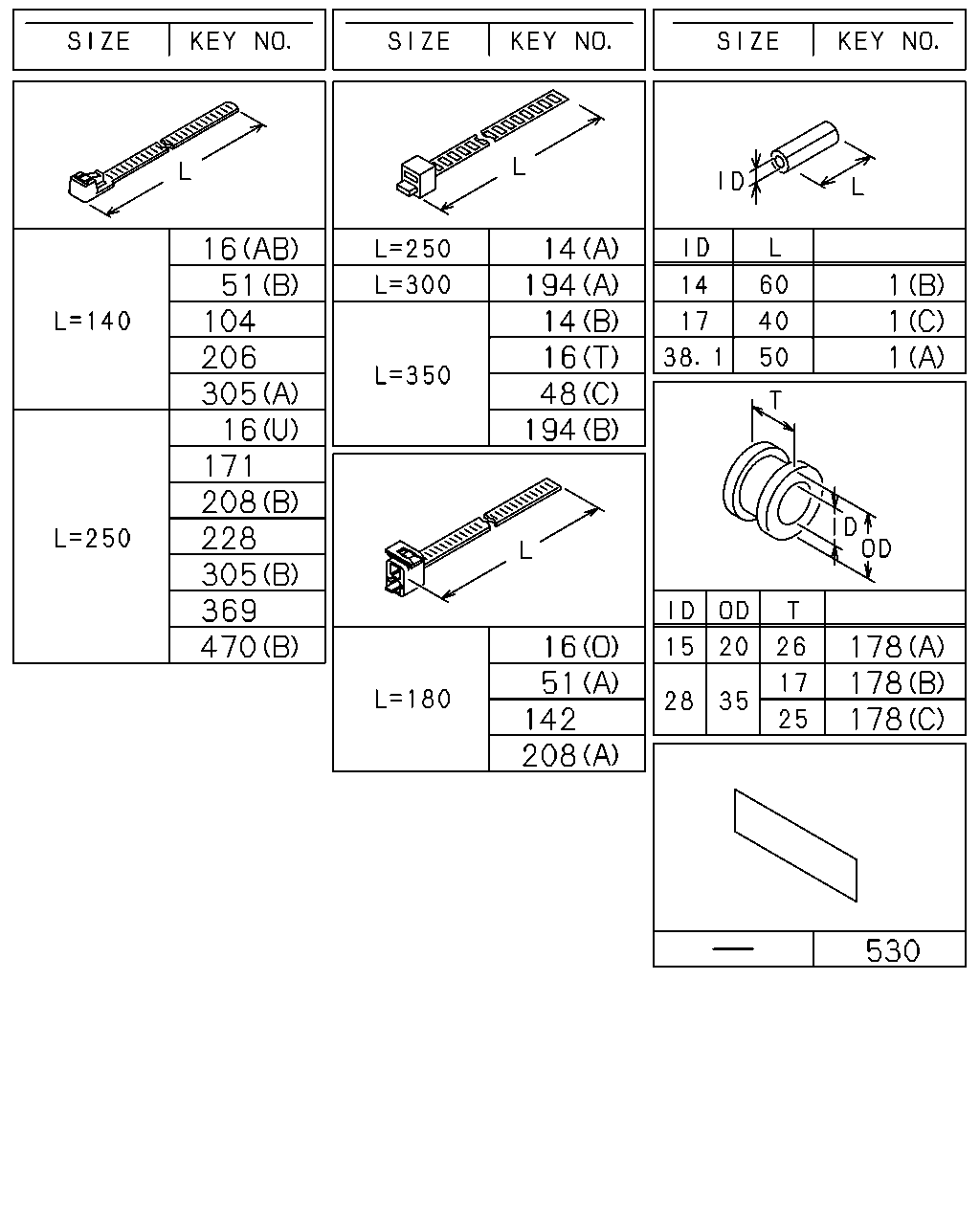

çizim 365181
178 178 178 1 1 1 530 208 142 51 16 194 48 16 14 194 14 16 51 104 206 305 16 171 208 228 305 369 470
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
(C) ID=17 OD=21 L=40 		1-09337-012-0 01 1 1306- ● ●
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 1306- ● ●
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=38.1 OD=48.1 L=50 		5-09360-835-0 01 1 1306- ● ●
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 1306- ● ●
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 1306- ● ●
16 CLIP; HARNESS
(I) ID=18-24 L=26 		1-09709-296-0 01 1 1306-1510 ●
16 CLIP; HARNESS
EXC. BATTERY LAYOUT REAR VAR1<NCT> (I) ID=18-24 L=26 		1-09709-296-0 01 1 1306-1510 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) FULL TRACTOR TRUCK<RD6> (I) ID=18-24 L=26 		1-09709-296-0 01 1 1306-1510 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25> ID=18-24 L=26 		1-09709-296-0 01 1 1511- ●
16 CLIP; HARNESS
(S) ID=11 L=16 		0-95235-025-0 02 1 1306- ● ●
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		0-95235-032-0 01 1 1306- ● ●
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1306- ● ●
16 CLIP; HARNESS
(X) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1306- ● ●
16 CLIP; HARNESS
(V) B=14 ID=19 L=20 		0-95235-832-0 01 1 1306- ● ●
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 1306- ● ●
16 CLIP; HARNESS
(M) ID=28 L=58 		1-09700-400-0 02 1 1306- ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 1306- ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 1306- ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 1306- ● ●
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 1306- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1306- ● ●
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1306- ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1306- ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1306- ● ●
16 CLIP; HARNESS
(R) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1306- ● ●
16 CLIP; HARNESS
(R) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 1306- ● ●
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 1306- ● ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 1306- ● ●
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 1306- ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 02 1 1306- ● ●
16 CLIP; HARNESS
(C) ID=5-12 L=26 		1-09709-289-0 01 1 1306- ● ●
16 CLIP; HARNESS
(C) ID=5-12 L=26 		1-09709-289-0 01 1 1306- ● ●
16 CLIP; HARNESS
(N) ID=5-12 L=14.5 		1-09987-221-0 02 1 1306- ● ●
16 CLIP; HARNESS
(N) ID=5-12 L=14.5 		1-09987-221-0 02 1 1306- ● ●
16 CLIP; HARNESS
(N) ID=5-12 L=14.5 		1-09987-221-0 01 1 1306- ● ●
16 CLIP; HARNESS
BATTERY LAYOUT REAR VAR1<NCT> (N) ID=5-12 L=14.5 		1-09987-221-0 01 1 1306- ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 1306-1510 ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 1306-1510 ● ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (U) L=250 		5-09707-030-1 01 1 1306-1510 ●
16 CLIP; HARNESS
L=250 		5-09707-030-1 01 1 1511- ● ●
16 CLIP; HARNESS
L=250 		5-09707-030-1 01 1 1511- ● ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> L=250 		5-09707-030-1 01 1 1511- ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 02 1 1306-1510 ● ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (U) L=250 		5-09707-030-1 02 1 1306-1510 ●
16 CLIP; HARNESS
L=250 		5-09707-030-1 02 1 1511- ● ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> L=250 		5-09707-030-1 02 1 1511- ●
16 CLIP; HARNESS
(AB) L=140 		5-09707-031-1 03 1 1306- ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AB) L=140 		5-09707-031-1 03 1 1306- ● ●
16 CLIP; HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 1306- ● ●
16 CLIP; HARNESS
(AA) ID=19 H=70 L=25 		8-97360-209-0 01 1 1306- ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 1306-1510 ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 1306-1510 ●
16 CLIP; HARNESS
EXC. FULL TRACTOR TRUCK<RD6> (Z) ID=14 L=44 		9-09917-427-0 03 1 1306-1510 ●
16 CLIP; HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1511- ● ●
16 CLIP; HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1511- ●
16 CLIP; HARNESS
EXC. FULL TRAILER PIPING<Z25> ID=14 L=44 		9-09917-427-0 03 1 1511- ●
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 02 1 1306- ● ●
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 06 1 1306- ● ●
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 1306- ● ●
16 CLIP; HARNESS
MJT7S M/T(Y3E) (X) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 1306- ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (D) B=18 ID=11 L=20 		0-95235-035-0 01 1 1306- ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (X) T=1.2 ID=16 L=20 		0-95235-536-0 01 1 1306- ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (G) ID=16 L=40 		0-95235-576-0 02 1 1306- ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (V) B=18 ID=19 L=20 		0-95235-836-0 01 1 1306- ● ●
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (V) B=18 ID=19 L=20 		0-95235-836-0 01 1 1306- ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (T) L=350 		1-09707-183-0 01 1 1306- ● ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) (T) L=350 		1-09707-183-0 01 1 1306- ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (Q) OD=9 H=6 		1-09709-178-0 06 1 1306-1506 ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (Q) OD=9 H=6 		1-09709-178-0 03 1 1507- ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (Q) OD=9 H=6 		1-09709-178-0 03 1 1507- ● ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (J) ID=13-18 L=26 		1-09709-293-0 02 1 1306-1510 ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> ID=13-18 L=26 		1-09709-293-0 02 1 1511- ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (J) ID=13-18 L=26 		1-09709-293-0 01 1 1306-1510 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) EXC. FULL TRACTOR TRUCK<RD6> (J) ID=13-18 L=26 		1-09709-293-0 01 1 1306-1510 ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> ID=13-18 L=26 		1-09709-293-0 01 1 1511- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) EXC. FULL TRAILER PIPING<Z25> ID=13-18 L=26 		1-09709-293-0 01 1 1511- ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (Y) ID=20 L=50 		9-09917-430-0 03 1 1306-1510 ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> ID=20 L=50 		9-09917-430-0 03 1 1511- ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (K) W/SPONGE RUBBER 		1-09709-150-0 01 1 1306- ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (J) ID=13-18 L=26 		1-09709-293-0 03 1 1306- ●
48 CLIP; FRAME HARNESS
(D) ID=11 H=30 L=17 		1-09700-113-0 01 1 1306- ● ●
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1306- ● ●
48 CLIP; FRAME HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1306- ● ●
48 CLIP; FRAME HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1306- ● ●
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 1306- ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1306- ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1306- ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 1306- ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 1306- ● ●
104 CLIP; HEADLAMP HARNESS
L=140 		5-09707-031-1 02 1 1306- ● ●
142 CLIP; HARNESS,ENG
L=180 		8-98216-427-0 02 1 1306- ● ●
171 CLIP; STARTER HARNESS
L=250 		5-09707-030-1 03 1 1306- ● ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1306- ● ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1306- ● ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1306- ● ●
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=26 		1-09332-132-0 01 1 1306- ● ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=17 		9-09956-256-2 03 1 1306- ● ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 01 1 1306-1410 ●
194 CLIP; BAND
GENERAL EXPORT EQUIPMENT(TAA) (B) L=350 		1-09707-183-0 01 1 1306-1410 ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 01 1 1411- ● ●
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 1306- ● ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 04 1 1306- ● ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 1306- ● ●
208 CLIP; HARNESS,MAG VLV
(B) L=250 		5-09707-030-1 01 1 1306- ● ●
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> (A) L=180 		1-09707-162-1 01 1 1306- ● ●
228 CLIP; COOLER HARNESS
L=250 		5-09707-030-1 02 1 1306- ● ●
305 CLIP; ENG HARNESS
(B) L=250 		5-09707-030-1 03 1 1306- ● ●
305 CLIP; ENG HARNESS
(A) L=140 		5-09707-031-1 01 1 1306- ● ●
369 CLIP; BAND EDS HARNESS
FULL TRACTOR TRUCK<RD6> L=250 		5-09707-030-1 02 1 1306-1510 ●
369 CLIP; BAND EDS HARNESS
FULL TRAILER PIPING<Z25> L=250 		5-09707-030-1 02 1 1511- ●
470 CLIP; HARNESS,LICENSE LAMP
(A) ID=11 L=41 		1-09700-403-0 01 1 1306- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(B) L=250 		5-09707-030-1 04 1 1306- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 12 1 1306- ● ●
530 SEAL; HARNESS
100X40 		1-72498-022-1 01 1 1306- ● ●
530 SEAL; HARNESS
MIRROR - O/SIDE RR VIEW,REM CONTROL&HEATED<EEP> 180X40 		1-72498-019-1 01 1 1306- ● ●

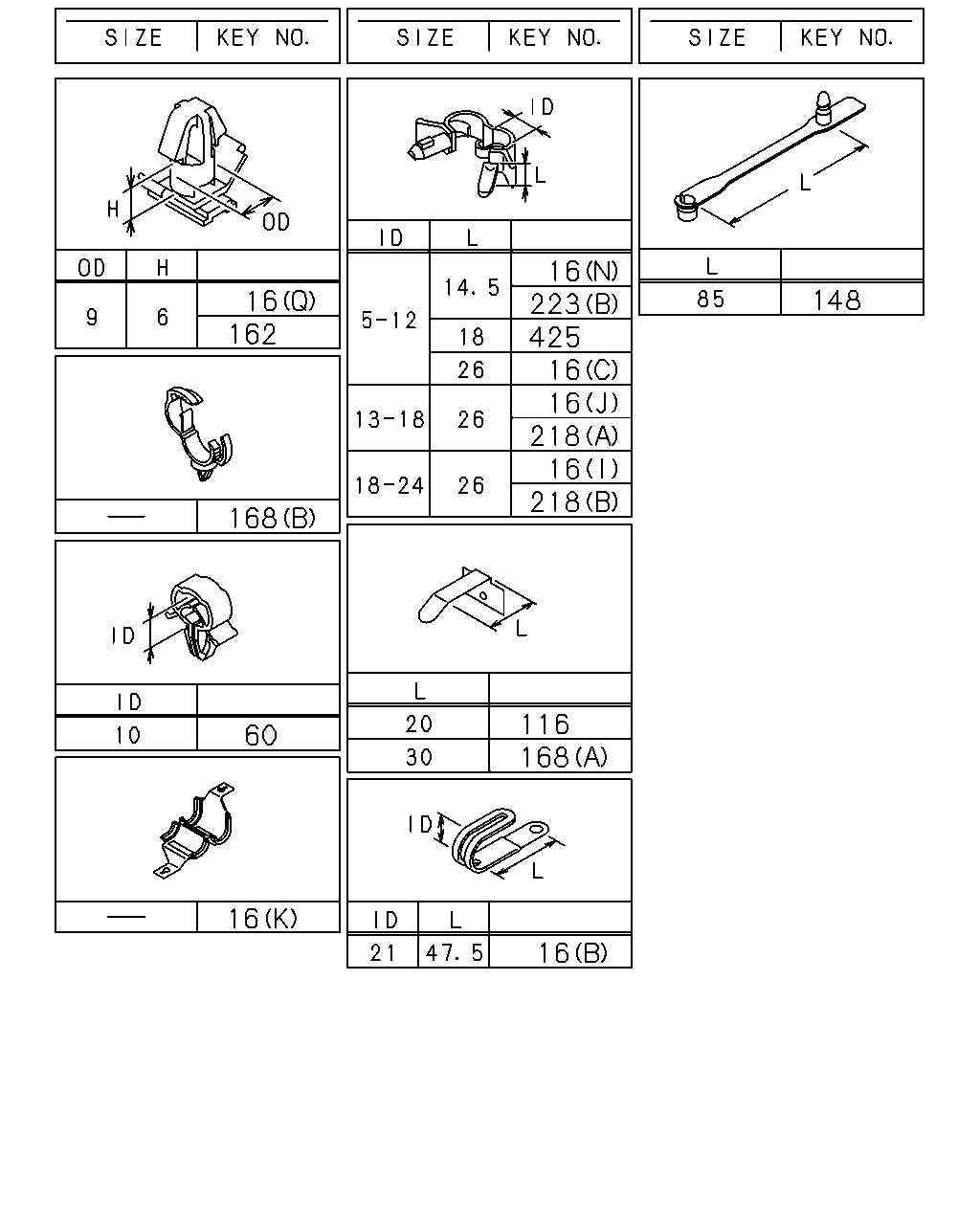

çizim 365316
148 218 16 218 16 16 425 223 16 162 16 168 60 16 116 168 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(I) ID=18-24 L=26 		1-09709-296-0 01 1 1306-1510 ●
16 CLIP; HARNESS
EXC. BATTERY LAYOUT REAR VAR1<NCT> (I) ID=18-24 L=26 		1-09709-296-0 01 1 1306-1510 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) FULL TRACTOR TRUCK<RD6> (I) ID=18-24 L=26 		1-09709-296-0 01 1 1306-1510 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25> ID=18-24 L=26 		1-09709-296-0 01 1 1511- ●
16 CLIP; HARNESS
(S) ID=11 L=16 		0-95235-025-0 02 1 1306- ● ●
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		0-95235-032-0 01 1 1306- ● ●
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1306- ● ●
16 CLIP; HARNESS
(X) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1306- ● ●
16 CLIP; HARNESS
(V) B=14 ID=19 L=20 		0-95235-832-0 01 1 1306- ● ●
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 1306- ● ●
16 CLIP; HARNESS
(M) ID=28 L=58 		1-09700-400-0 02 1 1306- ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 1306- ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 1306- ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 1306- ● ●
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 1306- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1306- ● ●
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1306- ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1306- ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1306- ● ●
16 CLIP; HARNESS
(R) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1306- ● ●
16 CLIP; HARNESS
(R) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 1306- ● ●
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 1306- ● ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 1306- ● ●
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 1306- ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 02 1 1306- ● ●
16 CLIP; HARNESS
(C) ID=5-12 L=26 		1-09709-289-0 01 1 1306- ● ●
16 CLIP; HARNESS
(C) ID=5-12 L=26 		1-09709-289-0 01 1 1306- ● ●
16 CLIP; HARNESS
(N) ID=5-12 L=14.5 		1-09987-221-0 02 1 1306- ● ●
16 CLIP; HARNESS
(N) ID=5-12 L=14.5 		1-09987-221-0 02 1 1306- ● ●
16 CLIP; HARNESS
(N) ID=5-12 L=14.5 		1-09987-221-0 01 1 1306- ● ●
16 CLIP; HARNESS
BATTERY LAYOUT REAR VAR1<NCT> (N) ID=5-12 L=14.5 		1-09987-221-0 01 1 1306- ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 1306-1510 ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 1306-1510 ● ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (U) L=250 		5-09707-030-1 01 1 1306-1510 ●
16 CLIP; HARNESS
L=250 		5-09707-030-1 01 1 1511- ● ●
16 CLIP; HARNESS
L=250 		5-09707-030-1 01 1 1511- ● ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> L=250 		5-09707-030-1 01 1 1511- ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 02 1 1306-1510 ● ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (U) L=250 		5-09707-030-1 02 1 1306-1510 ●
16 CLIP; HARNESS
L=250 		5-09707-030-1 02 1 1511- ● ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> L=250 		5-09707-030-1 02 1 1511- ●
16 CLIP; HARNESS
(AB) L=140 		5-09707-031-1 03 1 1306- ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AB) L=140 		5-09707-031-1 03 1 1306- ● ●
16 CLIP; HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 1306- ● ●
16 CLIP; HARNESS
(AA) ID=19 H=70 L=25 		8-97360-209-0 01 1 1306- ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 1306-1510 ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 1306-1510 ●
16 CLIP; HARNESS
EXC. FULL TRACTOR TRUCK<RD6> (Z) ID=14 L=44 		9-09917-427-0 03 1 1306-1510 ●
16 CLIP; HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1511- ● ●
16 CLIP; HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1511- ●
16 CLIP; HARNESS
EXC. FULL TRAILER PIPING<Z25> ID=14 L=44 		9-09917-427-0 03 1 1511- ●
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 02 1 1306- ● ●
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 06 1 1306- ● ●
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 1306- ● ●
16 CLIP; HARNESS
MJT7S M/T(Y3E) (X) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 1306- ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (D) B=18 ID=11 L=20 		0-95235-035-0 01 1 1306- ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (X) T=1.2 ID=16 L=20 		0-95235-536-0 01 1 1306- ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (G) ID=16 L=40 		0-95235-576-0 02 1 1306- ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (V) B=18 ID=19 L=20 		0-95235-836-0 01 1 1306- ● ●
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (V) B=18 ID=19 L=20 		0-95235-836-0 01 1 1306- ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (T) L=350 		1-09707-183-0 01 1 1306- ● ●
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W) (T) L=350 		1-09707-183-0 01 1 1306- ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (Q) OD=9 H=6 		1-09709-178-0 06 1 1306-1506 ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (Q) OD=9 H=6 		1-09709-178-0 03 1 1507- ● ●
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (Q) OD=9 H=6 		1-09709-178-0 03 1 1507- ● ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (J) ID=13-18 L=26 		1-09709-293-0 02 1 1306-1510 ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> ID=13-18 L=26 		1-09709-293-0 02 1 1511- ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (J) ID=13-18 L=26 		1-09709-293-0 01 1 1306-1510 ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) EXC. FULL TRACTOR TRUCK<RD6> (J) ID=13-18 L=26 		1-09709-293-0 01 1 1306-1510 ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> ID=13-18 L=26 		1-09709-293-0 01 1 1511- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) EXC. FULL TRAILER PIPING<Z25> ID=13-18 L=26 		1-09709-293-0 01 1 1511- ●
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (Y) ID=20 L=50 		9-09917-430-0 03 1 1306-1510 ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> ID=20 L=50 		9-09917-430-0 03 1 1511- ●
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (K) W/SPONGE RUBBER 		1-09709-150-0 01 1 1306- ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (J) ID=13-18 L=26 		1-09709-293-0 03 1 1306- ●
60 CLIP; CONSOLE HARNESS,SW PTO
DUMP CONTROL LEVER<RC4> ID=10 		8-94450-392-0 01 1 1306- ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 1306-1409 ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410- ● ●
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 01 1 1306- ● ●
162 CLIP; SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 1306- ● ●
168 CLIP; DASH HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 02 1 1306- ● ●
168 CLIP; DASH HARNESS
HEATER & DEFROSTER(C41) (A) L=30 SET=10 PIECE 		1-09987-265-0 01 1 1306- ● ●
218 CLIP; BAND,RR COMB
(A) ID=13-18 L=26 		1-09709-293-0 06 1 1306-1510 ●
218 CLIP; BAND,RR COMB
EXC. FULL TRACTOR TRUCK<RD6> (A) ID=13-18 L=26 		1-09709-293-0 06 1 1306-1510 ●
218 CLIP; BAND,RR COMB
ID=13-18 L=26 		1-09709-293-0 06 1 1511- ●
218 CLIP; BAND,RR COMB
EXC. FULL TRAILER PIPING<Z25> ID=13-18 L=26 		1-09709-293-0 06 1 1511- ●
218 CLIP; BAND,RR COMB
FULL TRACTOR TRUCK<RD6> (A) ID=13-18 L=26 		1-09709-293-0 05 1 1306-1510 ●
218 CLIP; BAND,RR COMB
FULL TRAILER PIPING<Z25> ID=13-18 L=26 		1-09709-293-0 05 1 1511- ●
218 CLIP; BAND,RR COMB
FULL TRACTOR TRUCK<RD6> (B) ID=18-24 L=26 		1-09709-296-0 01 1 1306-1510 ●
218 CLIP; BAND,RR COMB
FULL TRAILER PIPING<Z25> ID=18-24 L=26 		1-09709-296-0 01 1 1511- ●
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 01 1 1306- ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 03 1 1306- ● ●
425 CLIP; MODULATOR
ID=5-12 L=18 		1-09709-287-0 01 1 1306- ● ●

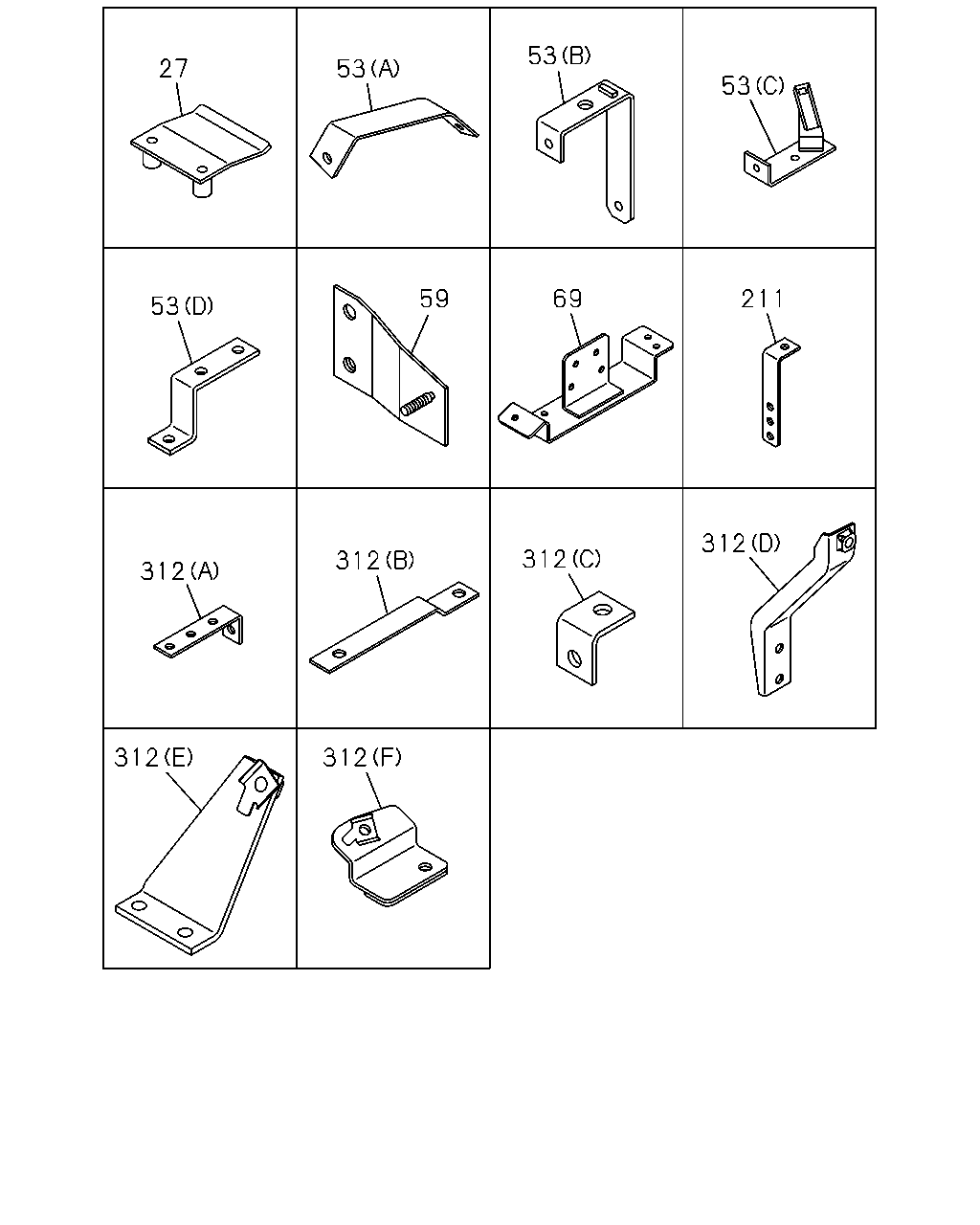

çizim 365358
312 312 312 312 312 312 211 69 59 53 53 53 53 27
BalonParca AdiParca NoAdetTipApplied Date A B
27 PROTECTOR; EDGE 8-98201-145-0 01 1 1306- ● ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 02 1 1306- ● ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 02 1 1306- ● ●
53 BRACKET; HARNESS
(D) 		8-98124-778-0 01 1 1306- ● ●
53 BRACKET; HARNESS
(B) 		8-98212-499-0 01 1 1306- ● ●
53 BRACKET; HARNESS
(C) 		8-98212-500-1 01 1 1306- ● ●
59 BRACKET; FRAME HARNESS 8-98061-135-1 01 1 1306- ● ●
59 BRACKET; FRAME HARNESS
BURRS AND SHARP EDGES 		8-98201-144-0 01 1 1306- ● ●
69 BRACKET; CLIP 8-98171-829-0 01 1 1306- ● ●
211 BRACKET; AXLE HARNESS
L=95 		1-82699-085-0 02 1 1306- ● ●
312 BRACKET; CLIP HARNESS
(C) 		1-47477-694-0 02 1 1306- ● ●
312 BRACKET; CLIP HARNESS
(A) L=120 H=35 		1-82698-088-0 01 1 1306- ● ●
312 BRACKET; CLIP HARNESS
(D) 		8-97636-868-1 02 1 1306- ● ●
312 BRACKET; CLIP HARNESS
(B) 		8-98201-136-0 01 1 1306- ● ●
312 BRACKET; CLIP HARNESS
(E) 		8-98225-560-0 01 1 1306- ● ●
312 BRACKET; CLIP HARNESS
(F) 		8-98233-397-0 01 1 1306- ● ●
çizim 366346
38 242 150 150 242 38 38 133 38 38 242 150 480 38 38 139 313 86 139 313 139 38 242 516 239 19 38 377 88 386 358 313 38
BalonParca AdiParca NoAdetTipApplied Date A B
19 BOLT; PROTECTOR
M8X50 W/LK&PL WASHER 		0-50640-850-0 02 1 1306- ● ●
38 BOLT; CLIP,HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) FULL TRAILER PIPING<Z25> (G) M8X35 FLANGE 		0-28650-835-0 01 1 1511- ●
38 BOLT; CLIP,HARNESS
(H) M8X14 W/PL WASHER 		8-98164-837-0 02 1 1306-1510 ●
38 BOLT; CLIP,HARNESS
EXC. FULL TRACTOR TRUCK<RD6> (H) M8X14 W/PL WASHER 		8-98164-837-0 02 1 1306-1510 ●
38 BOLT; CLIP,HARNESS
(H) M8X14 W/PL WASHER 		8-98164-837-0 02 1 1511- ●
38 BOLT; CLIP,HARNESS
EXC. FULL TRAILER PIPING<Z25> (H) M8X14 W/PL WASHER 		8-98164-837-0 02 1 1511- ●
38 BOLT; CLIP,HARNESS
(B) M6X10 FLANGE 		0-28050-610-0 01 1 1306- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 01 1 1306- ● ●
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		0-28051-216-0 01 1 1306- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1306- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 01 1 1306- ● ●
38 BOLT; CLIP,HARNESS
(I) M8X30 FLANGE 		0-28650-830-0 01 1 1306- ● ●
38 BOLT; CLIP,HARNESS
(I) M8X30 FLANGE 		0-28650-830-0 06 1 1306- ● ●
38 BOLT; CLIP,HARNESS
(E) M10X20 FLANGE 		0-28751-020-0 01 1 1306- ● ●
38 BOLT; CLIP,HARNESS
MJT7S M/T(Y3E) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1306- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1306- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1306- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1306- ● ●
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) (A) M8X20 FLANGE 		0-28650-820-0 05 1 1306- ● ●
38 BOLT; CLIP,HARNESS
FULL TRACTOR TRUCK<RD6> (H) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1306-1510 ●
38 BOLT; CLIP,HARNESS
WHEEL BASE 5500MM(55W) FULL TRAILER PIPING<Z25> (J) M8X50 FLANGE 		0-28050-850-0 01 1 1511- ●
38 BOLT; CLIP,HARNESS
FULL TRAILER PIPING<Z25> (G) M8X35 FLANGE 		0-28650-835-0 01 1 1306-1510 ●
38 BOLT; CLIP,HARNESS
FULL TRAILER PIPING<Z25> (H) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1511- ●
86 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 1306- ● ●
88 BOLT; DOOR HARNESS EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1306- ●
88 BOLT; DOOR HARNESS EARTH
POWER WINDOW<A30> M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1306- ●
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 1306- ● ●
139 BOLT; BRKT
WHEEL BASE 5200MM(52W) (B) M8X35 FLANGE 		0-28650-835-0 01 1 1306- ●
139 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) (B) M8X35 FLANGE 		0-28650-835-0 01 1 1306- ●
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1306- ● ●
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1306- ● ●
139 BOLT; BRKT
WHEEL BASE 5900MM(59W) (C) M8X40 FLANGE 		0-28650-840-0 01 1 1306- ●
150 BOLT; CLIP
(A) M6X12 FLANGE 		0-28050-612-0 02 1 1306- ● ●
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1306- ● ●
150 BOLT; CLIP
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1306- ● ●
239 BOLT; GRAND
M6X14 W/PL WASHER 		8-98164-836-0 02 1 1306- ● ●
242 BOLT; BRKT,HARNESS
EXC. ENGINE REAR PTO(SV1) (E) M8X20 FLANGE 		0-28650-820-0 01 1 1306- ●
242 BOLT; BRKT,HARNESS
(E) M8X20 FLANGE 		0-28650-820-0 01 1 1306- ●
242 BOLT; BRKT,HARNESS
(B) M8X12 FLANGE 		0-28050-812-0 01 1 1306- ● ●
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 02 1 1306- ● ●
242 BOLT; BRKT,HARNESS
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1306- ● ●
242 BOLT; BRKT,HARNESS
(D) M10X25 FLANGE 		0-28651-025-0 01 1 1306- ● ●
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1306- ● ●
313 BOLT; BRKT
(C) M8X35 FLANGE 		0-28650-835-0 01 1 1306- ● ●
313 BOLT; BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 1306- ● ●
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1306- ● ●
377 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 01 1 1306- ● ●
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1306- ● ●
480 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 03 1 1306- ● ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1306- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
