◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 10869 - CXY(51) RHD AUSTRALIA ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#12343) — 36 parça
çizim 79459
96 198 9 1 128 225 9 198 106 96
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(A) L=1363.8 		1-37124-911-0 01 1 0105-0205
1 SHAFT; PROP
(C) L=1690 		1-37124-505-1 01 1 0206-
1 SHAFT; PROP
(B) L=405.3 		1-37124-936-0 01 1 0105-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-062-0 AR 1 0105-0205
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-115-0 AR 1 0105-
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-118-0 AR 1 0206-
96 BOLT; PROP SHAFT 1-09088-009-0 08 1 0105-
106 NIPPLE; GREASE,YOKE,PROP SHAFT 1-09380-013-0 01 1 0105-0205
106 NIPPLE; GREASE,YOKE,PROP SHAFT 1-09380-013-0 01 1 0105-0205
106 NIPPLE; GREASE,YOKE,PROP SHAFT 1-09380-013-0 01 1 0206-
128 SEAL; SLEEVE
(B) 		1-37247-025-0 01 1 0105-
128 SEAL; SLEEVE
(A) 		1-37247-026-0 01 1 0105-0205
198 PLATE; PROP SHAFT 1-37319-010-0 04 1 0105-
225 YOKE; SLEEVE,PROP SHAFT
(B) L=297 		1-37241-142-0 01 1 0105-
225 YOKE; SLEEVE,PROP SHAFT
(A) 		1-37241-143-0 01 1 0105-0205

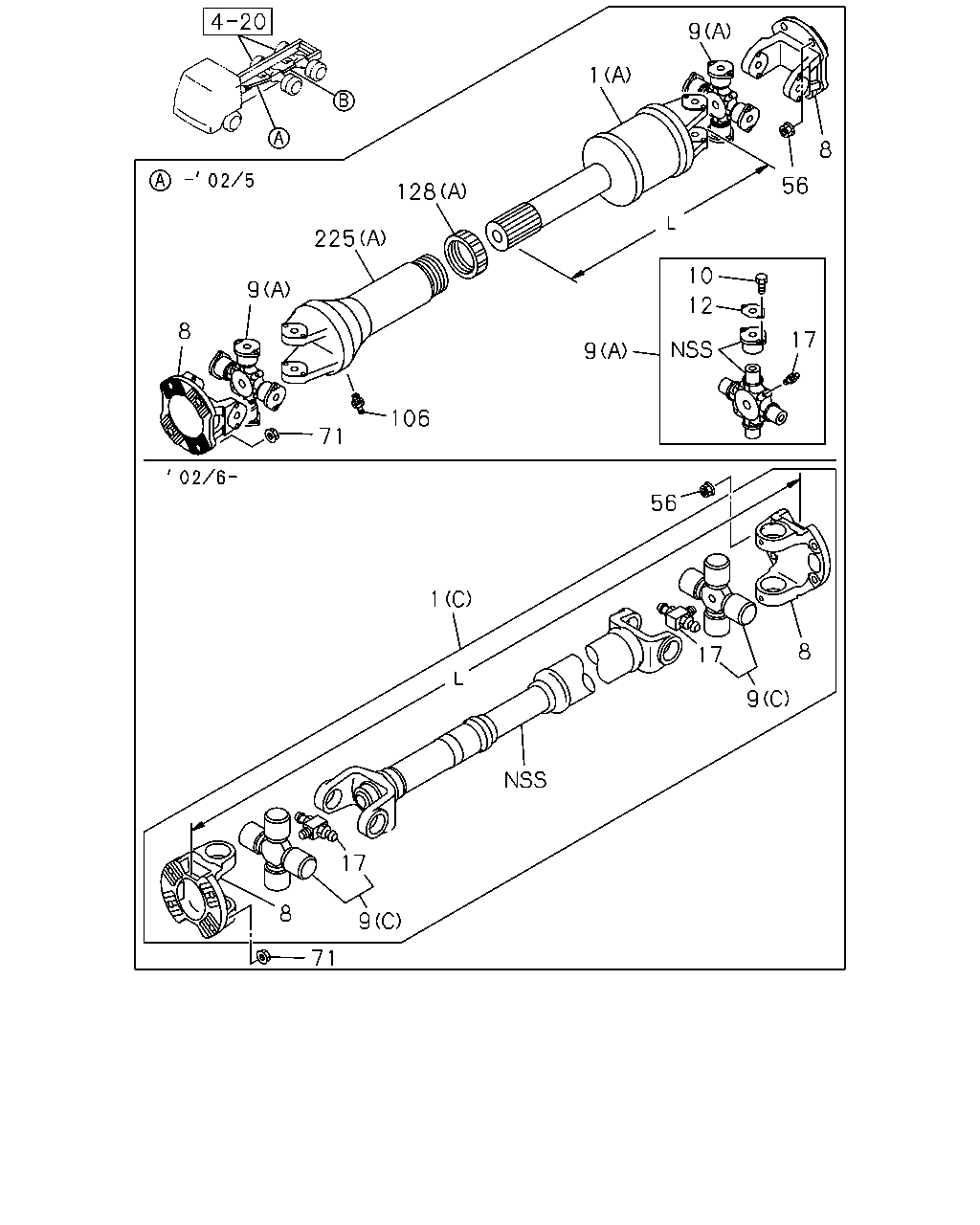

çizim 80605
9 1 8 56 128 225 10 9 12 8 17 9 106 71 56 1 8 17 9 17 8 9 71
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(A) L=1363.8 		1-37124-911-0 01 1 0105-0205
1 SHAFT; PROP
(C) L=1690 		1-37124-505-1 01 1 0206-
1 SHAFT; PROP
(B) L=405.3 		1-37124-936-0 01 1 0105-
8 YOKE; FLANGE,PROP SHAFT 1-37211-080-0 02 1 0105-0205
8 YOKE; FLANGE,PROP SHAFT 1-37211-083-0 02 1 0206-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-062-0 AR 1 0105-0205
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-115-0 AR 1 0105-
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-118-0 AR 1 0206-
10 BOLT; UJT 1-37359-001-0 AR 1 0105-0205
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-007-0 AR 1 0105-0205
17 NIPPLE; GREASE,PROP SHAFT 1-37319-005-0 AR 1 0105-0205
17 NIPPLE; GREASE,PROP SHAFT 1-37319-013-0 AR 1 0206-
56 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0105-
71 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0105-
106 NIPPLE; GREASE,YOKE,PROP SHAFT 1-09380-013-0 01 1 0105-0205
106 NIPPLE; GREASE,YOKE,PROP SHAFT 1-09380-013-0 01 1 0105-0205
106 NIPPLE; GREASE,YOKE,PROP SHAFT 1-09380-013-0 01 1 0206-
128 SEAL; SLEEVE
(B) 		1-37247-025-0 01 1 0105-
128 SEAL; SLEEVE
(A) 		1-37247-026-0 01 1 0105-0205
225 YOKE; SLEEVE,PROP SHAFT
(B) L=297 		1-37241-142-0 01 1 0105-
225 YOKE; SLEEVE,PROP SHAFT
(A) 		1-37241-143-0 01 1 0105-0205
